毁伤评估-破片飞散角矢量绘制

破片飞散角仿真

Gurney公式：计算破片初速度
$$v_0=\sqrt{2E}\sqrt{\frac{\beta }{1+\frac{\beta }{2}}}$$

• $D=6930m/s$，实验表明，$\sqrt{2E}=0.52+0.28D$，这里单位是$mm/\mu s$，计算得$\sqrt{2E}=2370m/s$
• $\beta =C/M$，为炸药与金属质量比，一般取$(0.1,5.0)$，假设$\beta =1$
• 计算$v_0=1935.0969m/s$

Charran公式：考虑端部效应
$$v_0(x)=k\cdot \sqrt{2E}\sqrt{\frac{\beta F(x)}{1+0.5\beta F(x)}}$$
Shapiro公式：计算静态飞散角
$$\begin{gathered} {\alpha }_i=90^{\circ }-\arctan \frac{V_0\cos {\mu }_i}{2V_D} \\ {\mu }_i=\frac{\pi }{2}-{\mu }_{ni}+{\mu }_{fi} \end{gathered}$$

• 假设战斗部是圆柱体，则其侧面图为长方形，近似为${\mu }_{ni}=90^{\circ }，{\mu }_i={\mu }_{fi}$即战斗部轴线与起爆器到第i枚碎片连线的夹角；

• 假设起爆点在圆柱体侧边，侧面二维图长方形的边中点；

• $V_D$即装药爆速，这里使用最常见的TNT炸药，查阅资料得其$D=6930m/s$

%a minor upgrade

%define parameter
D = 6930;								%爆速
beta = 1;								%装药质量比
sqrt_2E = 2370;
v_0 = sqrt_2E*sqrt(beta/(1+beta/2));	%初速

%define warhead
length_rec = 16;						%战斗部的长度
width_rec = 8;							%战斗部的宽度
burst_point_x = -8;						%起爆点横坐标
burst_point_y = 0;						%起爆点纵坐标
interval = 0.4;							%破片单位间隔

%warhead modeling
burst_pos = [burst_point_x, burst_point_y];
a1 = [-length_rec/2, -width_rec/2];
a2 = [length_rec/2, -width_rec/2];
a3 = [length_rec/2, width_rec/2];
a4 = [-length_rec/2, width_rec/2];
A = [a1' a2' a3' a4' a1'];

%debris modeling
x = (-length_rec/2 : interval : length_rec/2);
x1 = (0 : interval : length_rec);
unit_v = [1 0];
t1 = width_rec/2*ones(1, length(x));
t2 = [x' t1']-[burst_point_x*ones(length(x), 1) burst_point_y*ones(length(x), 1)];
t3 = t2.*unit_v;
dot_t = t3(:, 1);
b_pos = ones(length(x), 2).*burst_pos;
dist_try = pdist2(b_pos, t2);
dist = dist_try(1, 1:length(x))';

%calculating mu_i and alpha_i
mu_i_mat = acos(dot_t./dist);
alhpa_i_mat = (pi/2-atan(v_0/2/D*dot_t./dist));
delta_x = cos(alhpa_i_mat);
delta_y = sin(alhpa_i_mat);

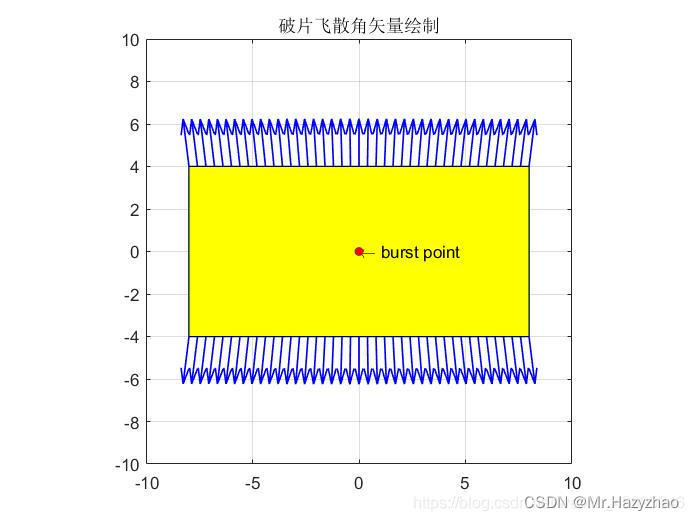

%visualization process
plot(A(1,:),A(2,:), 'linewidth', 1), hold on, axis equal;
axis([-10 10 -10 10]);
fill(A(1,:),A(2,:),'y');
grid on;
quiver(x,t1,delta_x',delta_y','b','linewidth',1);
quiver(x,-t1,delta_x',-delta_y','b','linewidth',1);
text(burst_point_x,burst_point_y,'\leftarrow burst point');
plot(burst_point_x,burst_point_y,'o','MarkerFaceColor', 'r','markersize',5)
title('破片飞散角矢量绘制');
