本章我们会先讲述一下PriorSet以及pg_info_t数据结构,然后开始正式的讲解Ceph的Peering流程。
1. PriorSet
PriorSet是运行于PG Primary上,用于构建一个Recovery状态。下面我们来看看其数据结构:
struct PriorSet {
const bool ec_pool;
set<pg_shard_t> probe; /// current+prior OSDs we need to probe.
set<int> down; /// down osds that would normally be in @a probe and might be interesting.
map<int, epoch_t> blocked_by; /// current lost_at values for any OSDs in cur set for which (re)marking them lost would affect cur set
bool pg_down; /// some down osds are included in @a cur; the DOWN pg state bit should be set.
boost::scoped_ptr<IsPGRecoverablePredicate> pcontdec;
};
各字段含义如下:
-
ec_pool: 当前PG所在的pool是否是ec_pool
-
probe: current_interval以及past_intervals中我们需要probe的OSD,也就是需要去获取pg_info的OSD列表
-
down: 保存了probe中down掉的osd,以及其他感兴趣的处于down状态的osd
-
blocked_by: 用于记录当前osd的lost_at值。如果lost_at值发生改变,会影响当前所构建出来的PriorSet
-
pg_down: 如果当前存在一些down OSDs导致我们不能进行数据恢复,会将此标志设置为true
-
pcontdec: 断言PG是否可以进行恢复。函数IsPGRecoverablePredicate实际上是一个类的运算符重载。对于不同类型的PG有不同的实现。对于ReplicatedPG对应的实现类为RPCRecPred,其至少保证有一个处于Up状态的OSD;对应ErasureCode(n+m)类型的PG,至少有n各处于up状态的OSD。
1.1 PriorSet构造函数
/*---------------------------------------------------*/
#undef dout_prefix
#define dout_prefix (*_dout << (debug_pg ? debug_pg->gen_prefix() : string()) << " PriorSet: ")
PG::PriorSet::PriorSet(bool ec_pool,
IsPGRecoverablePredicate *c,
const OSDMap &osdmap,
const map<epoch_t, pg_interval_t> &past_intervals,
const vector<int> &up,
const vector<int> &acting,
const pg_info_t &info,
const PG *debug_pg)
: ec_pool(ec_pool), pg_down(false), pcontdec(c)
{
/*
* We have to be careful to gracefully deal with situations like
* so. Say we have a power outage or something that takes out both
* OSDs, but the monitor doesn't mark them down in the same epoch.
* The history may look like
*
* 1: A B
* 2: B
* 3: let's say B dies for good, too (say, from the power spike)
* 4: A
*
* which makes it look like B may have applied updates to the PG
* that we need in order to proceed. This sucks...
*
* To minimize the risk of this happening, we CANNOT go active if
* _any_ OSDs in the prior set are down until we send an MOSDAlive
* to the monitor such that the OSDMap sets osd_up_thru to an epoch.
* Then, we have something like
*
* 1: A B
* 2: B up_thru[B]=0
* 3:
* 4: A
*
* -> we can ignore B, bc it couldn't have gone active (alive_thru
* still 0).
*
* or,
*
* 1: A B
* 2: B up_thru[B]=0
* 3: B up_thru[B]=2
* 4:
* 5: A
*
* -> we must wait for B, bc it was alive through 2, and could have
* written to the pg.
*
* If B is really dead, then an administrator will need to manually
* intervene by marking the OSD as "lost."
*/
// Include current acting and up nodes... not because they may
// contain old data (this interval hasn't gone active, obviously),
// but because we want their pg_info to inform choose_acting(), and
// so that we know what they do/do not have explicitly before
// sending them any new info/logs/whatever.
for (unsigned i=0; i<acting.size(); i++) {
if (acting[i] != CRUSH_ITEM_NONE)
probe.insert(pg_shard_t(acting[i], ec_pool ? shard_id_t(i) : shard_id_t::NO_SHARD));
}
// It may be possible to exlude the up nodes, but let's keep them in
// there for now.
for (unsigned i=0; i<up.size(); i++) {
if (up[i] != CRUSH_ITEM_NONE)
probe.insert(pg_shard_t(up[i], ec_pool ? shard_id_t(i) : shard_id_t::NO_SHARD));
}
for (map<epoch_t,pg_interval_t>::const_reverse_iterator p = past_intervals.rbegin();p != past_intervals.rend();++p) {
const pg_interval_t &interval = p->second;
dout(10) << "build_prior " << interval << dendl;
if (interval.last < info.history.last_epoch_started)
break; // we don't care
if (interval.acting.empty())
continue;
if (!interval.maybe_went_rw)
continue;
// look at candidate osds during this interval. each falls into
// one of three categories: up, down (but potentially
// interesting), or lost (down, but we won't wait for it).
set<pg_shard_t> up_now;
bool any_down_now = false; // any candidates down now (that might have useful data)
// consider ACTING osds
for (unsigned i=0; i<interval.acting.size(); i++) {
int o = interval.acting[i];
if (o == CRUSH_ITEM_NONE)
continue;
pg_shard_t so(o, ec_pool ? shard_id_t(i) : shard_id_t::NO_SHARD);
const osd_info_t *pinfo = 0;
if (osdmap.exists(o))
pinfo = &osdmap.get_info(o);
if (osdmap.is_up(o)) {
// include past acting osds if they are up.
probe.insert(so);
up_now.insert(so);
} else if (!pinfo) {
dout(10) << "build_prior prior osd." << o << " no longer exists" << dendl;
down.insert(o);
} else if (pinfo->lost_at > interval.first) {
dout(10) << "build_prior prior osd." << o << " is down, but lost_at " << pinfo->lost_at << dendl;
up_now.insert(so);
down.insert(o);
} else {
dout(10) << "build_prior prior osd." << o << " is down" << dendl;
down.insert(o);
any_down_now = true;
}
}
// if not enough osds survived this interval, and we may have gone rw,
// then we need to wait for one of those osds to recover to
// ensure that we haven't lost any information.
if (!(*pcontdec)(up_now) && any_down_now) {
// fixme: how do we identify a "clean" shutdown anyway?
dout(10) << "build_prior possibly went active+rw, insufficient up;"<< " including down osds" << dendl;
for (vector<int>::const_iterator i = interval.acting.begin();i != interval.acting.end();++i) {
if (osdmap.exists(*i) && // if it doesn't exist, we already consider it lost.
osdmap.is_down(*i)) {
pg_down = true;
// make note of when any down osd in the cur set was lost, so that
// we can notice changes in prior_set_affected.
blocked_by[*i] = osdmap.get_info(*i).lost_at;
}
}
}
}
dout(10) << "build_prior final: probe " << probe<< " down " << down<< " blocked_by " << blocked_by<< (pg_down ? " pg_down":"")<< dendl;
}
下面我们看具体的实现步骤:
1)把当前PG的acting set和up set中的OSD加入到probe列表中(这里时current_interval)

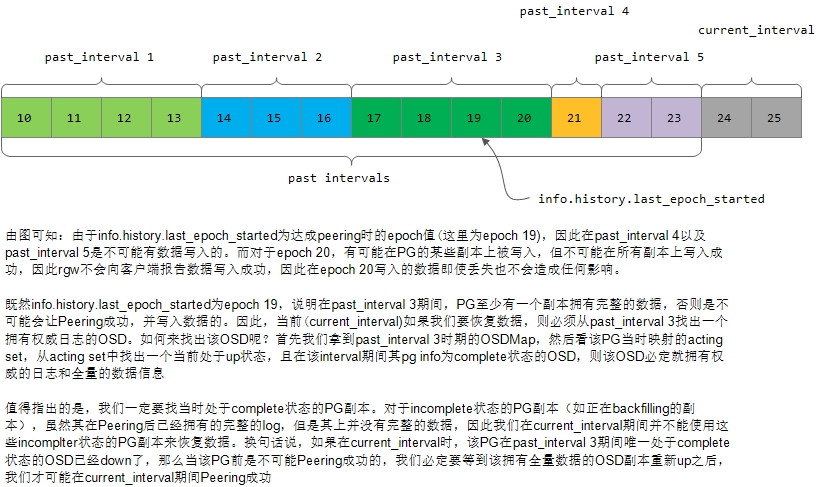

2) 遍历past_intervals阶段:
a) 如果interval.last小于info.history.last_epoch_started,这种情况下past_interval就没有意义,直接跳过;
b) 如果该interval的acting set为空,就跳过;
c) 如果该interval没有读写操作,就跳过
d) 对于当前interval的每一个处于acting状态的OSD进行检查:
* 如果该OSD当前处于up状态,就加入到up_now列表中。并同时加入到probe列表中,用于获取权威日志以及后续数据恢复;
* 如果该OSD当前已不在OSDMap中,那么就将其加入到down列表中;
* 如果该OSD当前不是up状态,但是在该past_interval期间还处于up状态,且该OSD的lost_at值大于该interval.first,说明是后期人工将其置为lost状态的,就将该OSD加入到up_now列表,并将其加入到down列表。(注:因为该OSD当前实际并不是处于up状态,这里加入up_now列表仅仅是为了可以通过pcontdec的检测,从而有机会跳过该OSD,使peering不会因为该OSD被阻塞,但是这存在丢失数据的风险)
* 否则,加入到down列表,并且将any_down_now置为true;
e) 如果当前interval确实有宕掉的OSD,就调用函数pcontdec,也就是IsPGRecoverablePredicate函数。该函数判断该PG在该interval期间的数据是否可以恢复,如果无法恢复,就直接设置pg_down为true值。同时会将对应down掉的OSD加入到block_by中,表明是由于哪些OSD阻塞了当前的恢复。(注:这里将prior_set的pg_down设置为true之后,并不是马上就结束Peering动作,而仍然会向probe中的OSD发起get_info动作,但是在进入GetLog阶段前会判断本标志,就会阻塞Peering的进一步推进)
1.2 build_prior()函数
build_prior()函数是用来构建PriorSet:
void PG::build_prior(std::unique_ptr<PriorSet> &prior_set)
{
if (1) {
// sanity check
for (map<pg_shard_t,pg_info_t>::iterator it = peer_info.begin();it != peer_info.end();++it) {
assert(info.history.last_epoch_started >= it->second.history.last_epoch_started);
}
}
prior_set.reset(
new PriorSet(
pool.info.ec_pool(),
get_pgbackend()->get_is_recoverable_predicate(),
*get_osdmap(),
past_intervals,
up,
acting,
info,
this));
PriorSet &prior(*prior_set.get());
if (prior.pg_down) {
state_set(PG_STATE_DOWN);
}
if (get_osdmap()->get_up_thru(osd->whoami) < info.history.same_interval_since) {
dout(10) << "up_thru " << get_osdmap()->get_up_thru(osd->whoami)<< " < same_since " << info.history.same_interval_since<< ", must notify monitor" << dendl;
need_up_thru = true;
} else {
dout(10) << "up_thru " << get_osdmap()->get_up_thru(osd->whoami)<< " >= same_since " << info.history.same_interval_since<< ", all is well" << dendl;
need_up_thru = false;
}
set_probe_targets(prior_set->probe);
}
void PG::set_probe_targets(const set<pg_shard_t> &probe_set)
{
Mutex::Locker l(heartbeat_peer_lock);
probe_targets.clear();
for (set<pg_shard_t>::iterator i = probe_set.begin();i != probe_set.end();++i) {
probe_targets.insert(i->osd);
}
}
这里代码比较简单,就是构建PriorSet,然后检查当前OSD的up_thru是否小于info.history.same_interval_since,如果是则设置need_up_thru标志为true。
1.3 判断一个新的OSDMap是否会影响PriorSet
// true if the given map affects the prior set
bool PG::PriorSet::affected_by_map(const OSDMapRef osdmap, const PG *debug_pg) const
{
for (set<pg_shard_t>::iterator p = probe.begin();p != probe.end();++p) {
int o = p->osd;
// did someone in the prior set go down?
if (osdmap->is_down(o) && down.count(o) == 0) {
dout(10) << "affected_by_map osd." << o << " now down" << dendl;
return true;
}
// did a down osd in cur get (re)marked as lost?
map<int, epoch_t>::const_iterator r = blocked_by.find(o);
if (r != blocked_by.end()) {
if (!osdmap->exists(o)) {
dout(10) << "affected_by_map osd." << o << " no longer exists" << dendl;
return true;
}
if (osdmap->get_info(o).lost_at != r->second) {
dout(10) << "affected_by_map osd." << o << " (re)marked as lost" << dendl;
return true;
}
}
}
// did someone in the prior down set go up?
for (set<int>::const_iterator p = down.begin();p != down.end();++p) {
int o = *p;
if (osdmap->is_up(o)) {
dout(10) << "affected_by_map osd." << *p << " now up" << dendl;
return true;
}
// did someone in the prior set get lost or destroyed?
if (!osdmap->exists(o)) {
dout(10) << "affected_by_map osd." << o << " no longer exists" << dendl;
return true;
}
// did a down osd in down get (re)marked as lost?
map<int, epoch_t>::const_iterator r = blocked_by.find(o);
if (r != blocked_by.end()) {
if (osdmap->get_info(o).lost_at != r->second) {
dout(10) << "affected_by_map osd." << o << " (re)marked as lost" << dendl;
return true;
}
}
}
return false;
}
affected_by_map()函数用于判断一个新的OSDMap是否会影响当前的PriorSet,如果不会影响则在Peering阶段收到AdvMap事件时,就不必再重新回到Reset阶段开启一个新的Peering动作。
下面我们来看其实现:
1) 遍历prior.probe列表:
-
如果probe列表中的OSD当前进入down状态,肯定会改变PriorSet,返回true
-
如果处于down状态的OSD被移出osdmap,或者被重新标记为lost,那么也会影响PriorSet,返回true(注: 似乎不会有此种情况发生)
2) 遍历prior.down列表
-
如果down列表中的OSD重新up,肯定会改变PriorSet,返回true
-
如果down列表中的OSD被移出osdmap,也会影响PriorSet,返回true
-
如果被block_by的osd被重新设置lost_at,那么也会影响PriorSet,返回true(因为重新构建PriorSet时,可能可以绕过该OSD)
2. pg_info_t数据结构
数据结构pg_info_t
保存了PG在OSD上的一些描述信息。该数据结构在Peering的整个过程,以及后续的数据修复中都发挥了重要的作用,理解该数据结构的各个关节字段的含义可以更好地理解相关的过程。pg_info_t
数据结构如下:
/**
* pg_info_t - summary of PG statistics.
*
* some notes:
* - last_complete implies we have all objects that existed as of that
* stamp, OR a newer object, OR have already applied a later delete.
* - if last_complete >= log.bottom, then we know pg contents thru log.head.
* otherwise, we have no idea what the pg is supposed to contain.
*/
struct pg_info_t {
spg_t pgid;
eversion_t last_update; ///< last object version applied to store.
eversion_t last_complete; ///< last version pg was complete through.
epoch_t last_epoch_started; ///< last epoch at which this pg started on this osd
version_t last_user_version; ///< last user object version applied to store
eversion_t log_tail; ///< oldest log entry.
hobject_t last_backfill; ///< objects >= this and < last_complete may be missing
bool last_backfill_bitwise; ///< true if last_backfill reflects a bitwise (vs nibblewise) sort
interval_set<snapid_t> purged_snaps;
pg_stat_t stats;
pg_history_t history;
pg_hit_set_history_t hit_set;
};
结构pg_history_t
保存了PG的一些历史信息:
/**
* pg_history_t - information about recent pg peering/mapping history
*
* This is aggressively shared between OSDs to bound the amount of past
* history they need to worry about.
*/
struct pg_history_t {
epoch_t epoch_created; // epoch in which PG was created
epoch_t last_epoch_started; // lower bound on last epoch started (anywhere, not necessarily locally)
epoch_t last_epoch_clean; // lower bound on last epoch the PG was completely clean.
epoch_t last_epoch_split; // as parent
epoch_t last_epoch_marked_full; // pool or cluster
/**
* In the event of a map discontinuity, same_*_since may reflect the first
* map the osd has seen in the new map sequence rather than the actual start
* of the interval. This is ok since a discontinuity at epoch e means there
* must have been a clean interval between e and now and that we cannot be
* in the active set during the interval containing e.
*/
epoch_t same_up_since; // same acting set since
epoch_t same_interval_since; // same acting AND up set since
epoch_t same_primary_since; // same primary at least back through this epoch.
eversion_t last_scrub;
eversion_t last_deep_scrub;
utime_t last_scrub_stamp;
utime_t last_deep_scrub_stamp;
utime_t last_clean_scrub_stamp;
};
2.1 last_epoch_started介绍
last_epoch_started字段有两个地方出现,一个是pg_info_t
结构里的last_epoch_started,代表最后一次Peering成功后的epoch值,是本地PG完成Peering后就设置的。另一个是pg_history_t
结构里的last_epoch_started,是PG里所有的OSD都完成Peering后设置的epoch值。

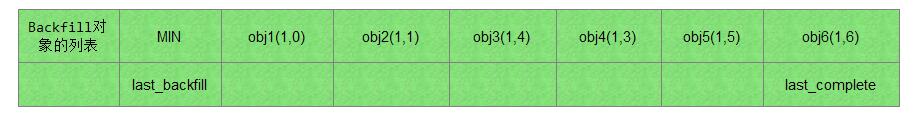

2.2 last_complete和last_backfill的区别
在这里特别指出last_update和last_complete、last_backfill之间的区别。下面通过一个例子来讲解,同时也可以大概了解PG数据恢复的流程。在数据恢复过程中先进行Recovery过程,再进行Backfill过程(我们会在后面的章节进行讲解)。
情况1: 在PG处于clean状态时,last_complete就等于last_update的值,并等于PG日志中的head版本。它们都是同步更新,此时没有区别。last_backfill设置为MAX值。例如: 下面的PG日志里有三条日志记录。此时last_update和last_complete以及pg_log.head都指向版本(1,2)。由于没有缺失的对象,不需要恢复,last_backfill设置为MAX值。示例如下所示:
情况2: 当该osd1发生异常之后,过一段时间又重新恢复,当完成了Peering状态后的情况。此时该PG可以继续接受更新操作。例如:下面的灰色字体的日志记录为该osd1崩溃期间缺失的日志,obj7为新的写入的操作日志记录。last_update指向最新的更新版本(1,7),last_complete依然指向版本(1,2)。即last_update指的是最新的版本,last_complete指的是上次的更新版本。过程如下:
注:obj7的epoch似乎不应该为1了
last_complete为Recovery修复进程完成的指针。当该PG开始进行Recovery工作时,last_complete指针随着Recovery过程推进,它指向完成修复的版本。例如:当Recovery完成后last_complete指向最后一个修复的对象版本(1,6),如下图所示:
last_backfill为Backfill修复进程的指针。在Ceph Peering的过程中,该PG有osd2无法根据PG日志来恢复,就需要进行backfill过程。last_backfill初始化为MIN对象,用来记录Backfill的修复进程中已修复的对象。例如:进行Backfill操作时,扫描本地对象(按照对象的hash值排序)。last_backfill随修复的过程不断推进。如果对象小于等于last_backfill,就是已经修复完成的对象。如果对象大于last_backfill且对象的版本小于last_complete,就是处于缺失还没有修复的对象。过程如下所示:
当恢复完成之后,last_backfill设置为MAX值,表明恢复完成,设置last_complete等于last_update的值。
3. Peering的触发
通常在如下两种情形下会触发PG的Peering过程:
- OSD启动时主动触发
int OSD::init()
{
...
consume_map();
...
}
void OSD::consume_map()
{
...
}
- 接收到新的OSDMap触发
对于上面第一种情况,这里不做介绍。这里主要讲述当OSD接受到新的OSDMap时,是如何触发Peering流程的。如下图所示:
3.1 接收新的OSDMap
OSD继承自Dispatcher,因此其可以作为网络消息的接收者:
bool OSD::ms_dispatch(Message *m)
{
....
while (dispatch_running) {
dout(10) << "ms_dispatch waiting for other dispatch thread to complete" << dendl;
dispatch_cond.Wait(osd_lock);
}
dispatch_running = true;
do_waiters();
_dispatch(m);
do_waiters();
dispatch_running = false;
dispatch_cond.Signal();
...
}
void OSD::do_waiters()
{
assert(osd_lock.is_locked());
dout(10) << "do_waiters -- start" << dendl;
finished_lock.Lock();
while (!finished.empty()) {
OpRequestRef next = finished.front();
finished.pop_front();
finished_lock.Unlock();
dispatch_op(next);
finished_lock.Lock();
}
finished_lock.Unlock();
dout(10) << "do_waiters -- finish" << dendl;
}
void OSD::activate_map(){
...
// process waiters
take_waiters(waiting_for_osdmap);
}
void take_waiters(list<OpRequestRef>& ls) {
finished_lock.Lock();
finished.splice(finished.end(), ls);
finished_lock.Unlock();
}
ms_dispatch()所分发的一般是实时性不需要那么强的消息,因此这里我们看到其会调用do_waiters()来等待阻塞在osdmap上的消息分发完成。
如下是对osdmap的分发:
void OSD::_dispatch(Message *m)
{
...
switch (m->get_type()) {
// map and replication
case CEPH_MSG_OSD_MAP:
handle_osd_map(static_cast<MOSDMap*>(m));
break;
}
}
3.2 handle_osd_map()实现对新OSDMap的处理

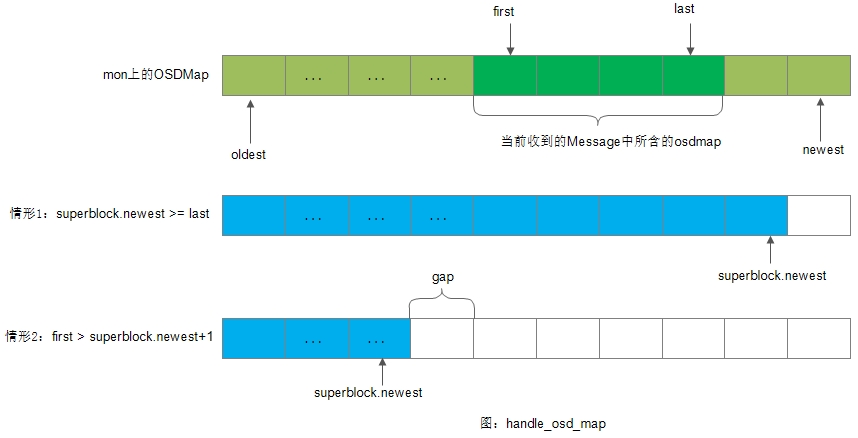

handle_osd_map()的实现比较简单,其主要是对接收到的Message中的相关OSDMap信息进行处理。如下图所示:
1)如果接收到的osdmaps中,最后一个OSDMap小于等于superblock.newest,则直接跳过
2) 如果收到的osdmaps中,第一个OSDMap大于superblock.newest +1,那么中间肯定存在缝隙,可分如下几种情况处理:
-
如果Monitor上最老的osdmap小于等于superblock.newest+1,那么说明我们仍然可以获取到OSD所需的所有OSDMap,此时只需要发起一个订阅请求即可;
-
如果Monitor上最老的osdmap大于superblock.newest+1,且monitor.oldest小于m.first,则当前OSD是无法从Monitor获得所有的OSDMap了,此时只能尝试从Monitor获取尽可能多的osdmap,因此也发起一个订阅请求;
-
如果Monitor上最老的osdmap大于superblock.newest+1,且monitor.oldest等于m.first,则此时虽然存在缝隙,但是我们也不能从Monitor获取到更多的OSDMap,此时将skip_maps置为true;
3)遍历Message中的所有OSDMap,然后存入缓存以及硬盘
注: 当skip_maps置为true时,我们要将superblock上保存的最老的OSDMap设置为m.first,确保OSD上所保存的OSDMap是连续的
3.3 处理已提交的OSDMaps
当接收到的OSDMap保存成功之后,就会回调_committed_osd_maps(),下面我们来看该函数的实现:
1)遍历接收到的osdmaps,如果有OSD在新的osdmap中不存在了或者不为up状态了,那么在发布新的OSDMap之前,必须等待阻塞在当前osdmap上的请求处理完成
void OSD::_committed_osd_maps(epoch_t first, epoch_t last, MOSDMap *m)
{
...
// advance through the new maps
for (epoch_t cur = first; cur <= last; cur++) {
OSDMapRef newmap = get_map(cur);
service.pre_publish_map(newmap); //将新的osdmap标记为预发布状态
/*
* kill connections to newly down osds
* (等待当前OSDMap上的请求处理完成)
*/
bool waited_for_reservations = false;
set<int> old;
osdmap->get_all_osds(old);
for (set<int>::iterator p = old.begin(); p != old.end(); ++p) {
if (*p != whoami &&
osdmap->have_inst(*p) && // in old map
(!newmap->exists(*p) || !newmap->is_up(*p))) { // but not the new one
if (!waited_for_reservations) {
service.await_reserved_maps();
waited_for_reservations = true;
}
note_down_osd(*p);
}
}
//将newmap发布
osdmap = newmap;
}
}
2)若当前所设置的最新的OSDMap合法,且当前OSD处于active状态,那么检测当前OSD状态看是否符合OSDMap要求:
void OSD::_committed_osd_maps(epoch_t first, epoch_t last, MOSDMap *m)
{
...
if (osdmap->get_epoch() > 0 && is_active()) {
if (!osdmap->exists(whoami)) {
//当前OSD已经在OSDMap中不存在了,则发起相应的信号关闭当前OSD
}else if (!osdmap->is_up(whoami) ||
!osdmap->get_addr(whoami).probably_equals(
client_messenger->get_myaddr()) ||
!osdmap->get_cluster_addr(whoami).probably_equals(
cluster_messenger->get_myaddr()) ||
!osdmap->get_hb_back_addr(whoami).probably_equals(
hb_back_server_messenger->get_myaddr()) ||
(osdmap->get_hb_front_addr(whoami) != entity_addr_t() &&
!osdmap->get_hb_front_addr(whoami).probably_equals(
hb_front_server_messenger->get_myaddr()))){
//当前OSD的绑定信息出现了错误,需要重新绑定
}
}
}
3)消费并激活OSDMap
void OSD::_committed_osd_maps(epoch_t first, epoch_t last, MOSDMap *m)
{
...
// yay!
consume_map();
if (is_active() || is_waiting_for_healthy())
maybe_update_heartbeat_peers();
if (!is_active()) {
dout(10) << " not yet active; waiting for peering wq to drain" << dendl;
peering_wq.drain();
} else {
activate_map();
}
...
}
对于consume_map()函数,我们放到后面来讲解,现在我们来看一下activate_map()的实现:
void OSD::activate_map()
{
...
service.activate_map();
// process waiters
take_waiters(waiting_for_osdmap);
}
void take_waiters(list<OpRequestRef>& ls) {
finished_lock.Lock();
finished.splice(finished.end(), ls);
finished_lock.Unlock();
}
我们知道waiting_for_osdmap里面存放的是一些因等待新osdmap
而阻塞的请求,现在新的osdmap已经发布了,因此这里将相关的请求放入到finished队列里。
注:waiting_for_osdmap里面存放的是不需要绑定session的消息
3.4 消费OSDMap
在OSD::consume_map()中主要做如下事情:
1) 遍历pg_map,检查是否有PG需要移除,或者是否有PG需要分裂
void OSD::consume_map()
{
// scan pg's
{
RWLock::RLocker l(pg_map_lock);
for (ceph::unordered_map<spg_t,PG*>::iterator it = pg_map.begin();it != pg_map.end();++it) {
PG *pg = it->second;
pg->lock();
if (pg->is_primary())
num_pg_primary++;
else if (pg->is_replica())
num_pg_replica++;
else
num_pg_stray++;
if (!osdmap->have_pg_pool(pg->info.pgid.pool())) {
//pool is deleted!
to_remove.push_back(PGRef(pg));
} else {
service.init_splits_between(it->first, service.get_osdmap(), osdmap);
}
pg->unlock();
}
}
for (list<PGRef>::iterator i = to_remove.begin();i != to_remove.end();to_remove.erase(i++)) {
RWLock::WLocker locker(pg_map_lock);
(*i)->lock();
_remove_pg(&**i);
(*i)->unlock();
}
to_remove.clear();
}
2) 将OSDMap发布到OSDService
void OSD::consume_map()
{
...
service.pre_publish_map(osdmap);
service.await_reserved_maps();
service.publish_map(osdmap);
dispatch_sessions_waiting_on_map();
}
这里注意,我们在_committed_osd_maps()函数里只是将新收到的OSDMap发布给了OSD,在这里才将该最新的OSD发布到OSDService里。我们在进行数据读写操作时用的都是OSDService::osdmap。在真正发布之前,我们需要等到前一个OSDMap上的请求都执行完成。
session_waiting_for_map中所存放的一般是需要绑定session且因等待osdmap而阻塞的消息,因此这里我们调用dispatch_sessions_waiting_on_map()来对阻塞的消息进行分发。
注:要绑定session,一般是说明请求与OSDMap严重相关,且一般需要对相关的请求做响应
3)移除session_waiting_for_pg中不符合条件的PG
void OSD::consume_map()
{
// remove any PGs which we no longer host from the session waiting_for_pg lists
set<spg_t> pgs_to_check;
get_pgs_with_waiting_sessions(&pgs_to_check);
for (set<spg_t>::iterator p = pgs_to_check.begin();p != pgs_to_check.end();++p) {
if (!(osdmap->is_acting_osd_shard(p->pgid, whoami, p->shard))) {
set<Session*> concerned_sessions;
get_sessions_possibly_interested_in_pg(*p, &concerned_sessions);
for (set<Session*>::iterator i = concerned_sessions.begin();i != concerned_sessions.end();++i) {
{
Mutex::Locker l((*i)->session_dispatch_lock);
session_notify_pg_cleared(*i, osdmap, *p);
}
(*i)->put();
}
}
}
}
由于OSDMap发生变化,当前OSD上的一些PG可能会由pg primary变为pg replica,因此这里将session_waiting_for_pg中一些不再符合条件的PG移除。
4) 向当前OSD上的所有PG发送CephPeeringEvt事件
void OSD::consume_map()
{
// scan pg's
{
RWLock::RLocker l(pg_map_lock);
for (ceph::unordered_map<spg_t,PG*>::iterator it = pg_map.begin();it != pg_map.end();++it) {
PG *pg = it->second;
pg->lock();
pg->queue_null(osdmap->get_epoch(), osdmap->get_epoch());
pg->unlock();
}
logger->set(l_osd_pg, pg_map.size());
}
}
void PG::queue_null(epoch_t msg_epoch,epoch_t query_epoch)
{
dout(10) << "null" << dendl;
queue_peering_event(
CephPeeringEvtRef(std::make_shared<CephPeeringEvt>(msg_epoch, query_epoch,
NullEvt())));
}
void PG::queue_peering_event(CephPeeringEvtRef evt)
{
if (old_peering_evt(evt))
return;
peering_queue.push_back(evt);
osd->queue_for_peering(this);
}
void OSDService::queue_for_peering(PG *pg)
{
peering_wq.queue(pg);
}
这里我们看到,OSD会遍历pg_map上的所有PG(包括pg primary以及pg replica),然后向其发送NullEvt事件。事件最终会添加进PG::peering_queue中,并且会将该PG添加到OSDService::peering_wq(即OSD::peering_wq,因为OSDService::peering_wq只是一个引用)
这里我们注意,CephPeeringEvt::epoch_sent以及CephPeeringEvt::epoch_requested都设置为了当前OSD::osdmap的版本号。
在前面的章节中,我们从OSD接收到新的OSDMap开始讲起,然后讲述到其会向状态机投递两个事件:
-
AdvMap事件(advance map)
-
ActMap事件(activate map)

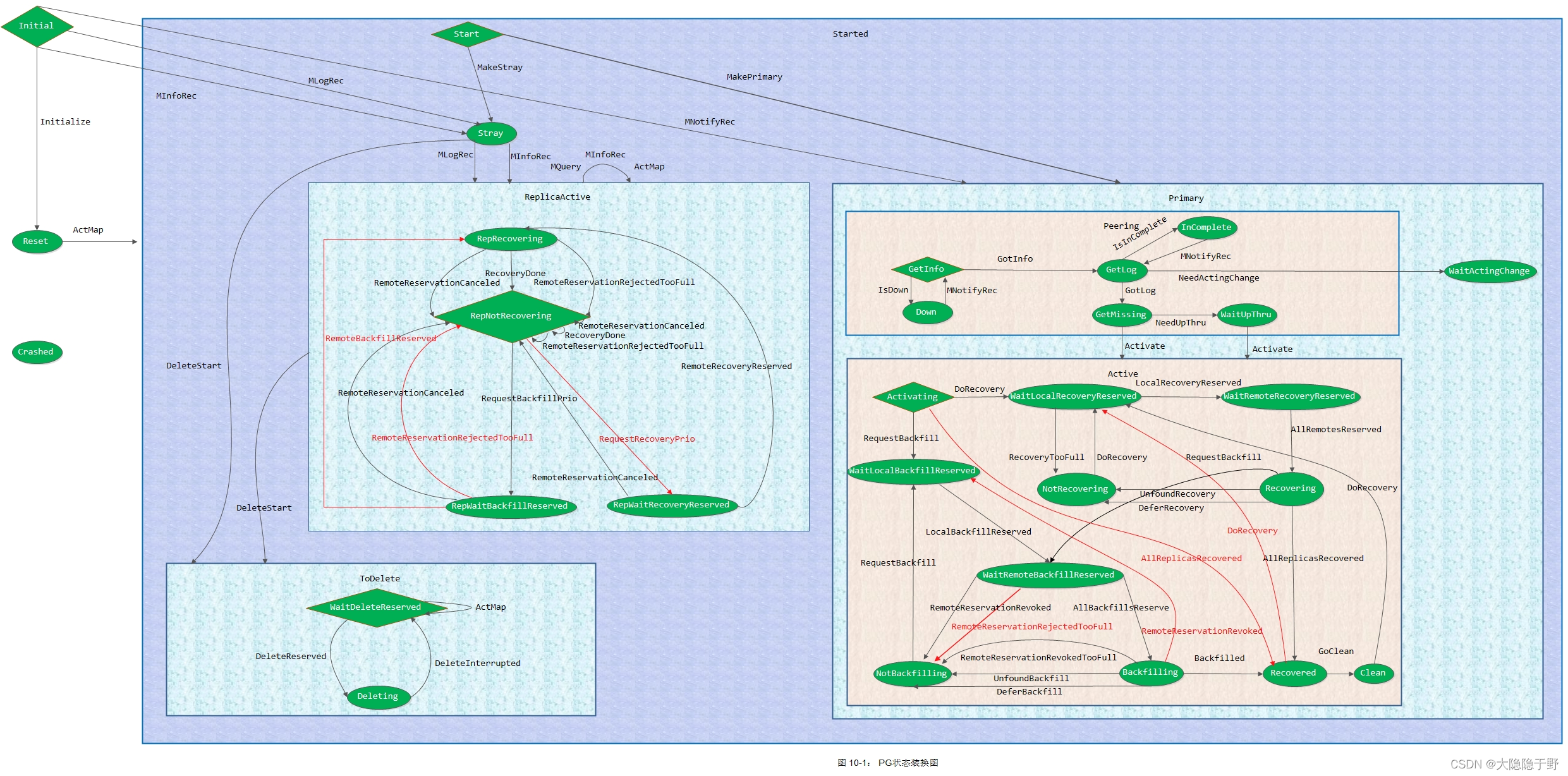

本章承接上文,从这两个事件入手,引出本文重点: PG Peering。但是在这里我还是想要先给出一张整体架构图,以更好的理解Peering流程。
1. PG状态机接收到AdvMap事件
我们先来看看AdvMap事件数据结构:
struct AdvMap : boost::statechart::event< AdvMap > {
OSDMapRef osdmap;
OSDMapRef lastmap;
vector<int> newup, newacting;
int up_primary, acting_primary;
};
各字段含义如下:
-
osdmap: 当前PG advance到的osdmap
-
lastmap: 当前PG上一版的osdmap
-
newup: AdvMap::osdmap版本下的up set
-
newacting: AdvMap.osdmap版本下的acting set
-
up_primary: AdvMap.osdmap版本下的up primary
-
acting_primary: AdvMap.osdmap版本下的acting primary
我们在代码中搜索AdvMap,发现在如下状态下都会接受AdvMap事件:
-
Started状态
-
Reset状态
-
Peering状态
-
Active状态
-
GetLog状态
-
WaitActingChange状态
-
InComplete状态
查看对应的代码,发现大部分都是先判断是否要重新启动Peering,如果要,则跳转到Reset状态,然后继续处理AdvMap事件。
1.1 Active状态下对AdvMap事件的处理
这里我们假设集群的初始状态为active+clean
,因此这里收到AdvMap
事件后是调用如下函数来进行处理:
boost::statechart::result PG::RecoveryState::Active::react(const AdvMap& advmap)
{
PG *pg = context< RecoveryMachine >().pg;
dout(10) << "Active advmap" << dendl;
if (!pg->pool.newly_removed_snaps.empty()) {
pg->snap_trimq.union_of(pg->pool.newly_removed_snaps);
dout(10) << *pg << " snap_trimq now " << pg->snap_trimq << dendl;
pg->dirty_info = true;
pg->dirty_big_info = true;
}
for (size_t i = 0; i < pg->want_acting.size(); i++) {
int osd = pg->want_acting[i];
if (!advmap.osdmap->is_up(osd)) {
pg_shard_t osd_with_shard(osd, shard_id_t(i));
assert(pg->is_acting(osd_with_shard) || pg->is_up(osd_with_shard));
}
}
bool need_publish = false;
/* Check for changes in pool size (if the acting set changed as a result,
* this does not matter) */
if (advmap.lastmap->get_pg_size(pg->info.pgid.pgid) != pg->get_osdmap()->get_pg_size(pg->info.pgid.pgid)) {
if (pg->get_osdmap()->get_pg_size(pg->info.pgid.pgid) <= pg->actingset.size()) {
pg->state_clear(PG_STATE_UNDERSIZED);
if (pg->needs_recovery()) {
pg->state_set(PG_STATE_DEGRADED);
} else {
pg->state_clear(PG_STATE_DEGRADED);
}
} else {
pg->state_set(PG_STATE_UNDERSIZED);
pg->state_set(PG_STATE_DEGRADED);
}
need_publish = true; // degraded may have changed
}
// if we haven't reported our PG stats in a long time, do so now.
if (pg->info.stats.reported_epoch + pg->cct->_conf->osd_pg_stat_report_interval_max < advmap.osdmap->get_epoch()) {
dout(20) << "reporting stats to osd after " << (advmap.osdmap->get_epoch() - pg->info.stats.reported_epoch)
<< " epochs" << dendl;
need_publish = true;
}
if (need_publish)
pg->publish_stats_to_osd();
return forward_event();
}
下面我们来看具体实现步骤:
1) 检查pool size是否发生改变
unsigned get_pg_size(pg_t pg) const {
map<int64_t,pg_pool_t>::const_iterator p = pools.find(pg.pool());
assert(p != pools.end());
return p->second.get_size();
}
struct pg_pool_t {
__u8 size, min_size; ///< number of osds in each pg
__u8 crush_ruleset; ///< crush placement rule set
unsigned get_type() const { return type; }
unsigned get_size() const { return size; }
unsigned get_min_size() const { return min_size; }
int get_crush_ruleset() const { return crush_ruleset; }
};
通常情况下OSDMap的变化不会导致pool的OSD size发生变化,因为一个pool的OSD个数一般是在设置rule时就已经确定了。因此,在这里如果前后两个OSDMap中,PG所在pool的osd size发生改变,则很有可能是通过执行如下命令进行了更改:
# ceph osd pool set {pool-name} size 2
因此如果pg->get_osdmap()->get_pg_size(pg->info.pgid.pgid)小于等于pg->actingset.size(),说明当前已经对pool的osd size进行了降低,因此会先清除PG_STATE_UNDERSIZED
标识;否则说明当前已经对pool的osd size进行了增加,因此需要将PG状态设置为undersized + degraded
。
2)将AdvMap事件继续往父状态机投递
在函数的最后我们看到通过forward_event()将事件继续往父状态机投递:
boost::statechart::result PG::RecoveryState::Active::react(const AdvMap& advmap)
{
...
return forward_event();
}
Active状态的父状态为Primary,而Primary的父状态为Started。因此这里会投递到Started状态来进行处理。
1.2 Started处理Active抛上来的AdvMap事件
现在我们来看Started状态机是如何处理Active抛上来的AdvMap事件:
boost::statechart::result PG::RecoveryState::Started::react(const AdvMap& advmap)
{
dout(10) << "Started advmap" << dendl;
PG *pg = context< RecoveryMachine >().pg;
pg->check_full_transition(advmap.lastmap, advmap.osdmap);
if (pg->should_restart_peering(
advmap.up_primary,
advmap.acting_primary,
advmap.newup,
advmap.newacting,
advmap.lastmap,
advmap.osdmap)) {
dout(10) << "should_restart_peering, transitioning to Reset" << dendl;
post_event(advmap);
return transit< Reset >();
}
pg->remove_down_peer_info(advmap.osdmap);
return discard_event();
}
1) 检查OSDMap及pool是否由not full
转变为full
void PG::check_full_transition(OSDMapRef lastmap, OSDMapRef osdmap)
{
bool changed = false;
if (osdmap->test_flag(CEPH_OSDMAP_FULL) &&!lastmap->test_flag(CEPH_OSDMAP_FULL)) {
dout(10) << " cluster was marked full in " << osdmap->get_epoch() << dendl;
changed = true;
}
const pg_pool_t *pi = osdmap->get_pg_pool(info.pgid.pool());
assert(pi);
if (pi->has_flag(pg_pool_t::FLAG_FULL)) {
const pg_pool_t *opi = lastmap->get_pg_pool(info.pgid.pool());
if (!opi || !opi->has_flag(pg_pool_t::FLAG_FULL)) {
dout(10) << " pool was marked full in " << osdmap->get_epoch() << dendl;
changed = true;
}
}
if (changed) {
info.history.last_epoch_marked_full = osdmap->get_epoch();
dirty_info = true;
}
}
代码实现较为简单,这里不做过多说明。
2) 检查是否需要重新发起新的peering
bool PG::should_restart_peering(
int newupprimary,
int newactingprimary,
const vector<int>& newup,
const vector<int>& newacting,
OSDMapRef lastmap,
OSDMapRef osdmap)
{
if (pg_interval_t::is_new_interval(
primary.osd,
newactingprimary,
acting,
newacting,
up_primary.osd,
newupprimary,
up,
newup,
osdmap,
lastmap,
info.pgid.pgid)) {
dout(20) << "new interval newup " << newup<< " newacting " << newacting << dendl;
return true;
} else {
return false;
}
}
这里我们看到,只要产生了一个新的interval,PG::should_restart_peering()就会返回true,否则返回false。
-
若产生了新的interval,则状态机转变为Reset状态,并向其抛出AdvMap事件
-
若没有产生新的interval,则移除PG::peer_info中所有处于down状态的OSD的信息(未知此场景如何产生!),然后抛弃AdvMap事件。
这里因为我们要探讨PG的Peering流程,因此我们假设PG的一个副本OSD由up状态
转变为down状态
,从而会产生一个新的interval,因此会转到Reset状态。
1.3 Reset状态对AdvMap事件的处理
接着上面的假设,PG产生了新的interval,因此会转到Reset状态,并向其投递AdvMap事件:
boost::statechart::result PG::RecoveryState::Reset::react(const AdvMap& advmap)
{
PG *pg = context< RecoveryMachine >().pg;
dout(10) << "Reset advmap" << dendl;
// make sure we have past_intervals filled in. hopefully this will happen
// _before_ we are active.
pg->generate_past_intervals();
pg->check_full_transition(advmap.lastmap, advmap.osdmap);
if (pg->should_restart_peering(
advmap.up_primary,
advmap.acting_primary,
advmap.newup,
advmap.newacting,
advmap.lastmap,
advmap.osdmap)) {
dout(10) << "should restart peering, calling start_peering_interval again"<< dendl;
pg->start_peering_interval(
advmap.lastmap,
advmap.newup, advmap.up_primary,
advmap.newacting, advmap.acting_primary,
context< RecoveryMachine >().get_cur_transaction());
}
pg->remove_down_peer_info(advmap.osdmap);
return discard_event();
}
我们简单分析一下实现流程:
1)调用PG::generate_past_intervals()来产生past_intervals,如果后续需要进行peering操作,那么就可以利用past_intervals的相关信息
2)检查是否需要重新发起新的peering
-
如果需要重新peering,那么就调用PG::start_peering_interval()开启一个新的peering流程
-
如果没有必要进行重新peering,则直接丢弃相应的事件
我们仍然按照上面的假设,PG会进行新的Peering操作,因此会调用到PG::start_peering_interval()
1.4 启动一个peering interval
此函数会在初始化一个peering之前被调用:
/* Called before initializing peering during advance_map */
void PG::start_peering_interval(
const OSDMapRef lastmap,
const vector<int>& newup, int new_up_primary,
const vector<int>& newacting, int new_acting_primary,
ObjectStore::Transaction *t)
{
//1) 将上一次的Peering进行重置
//2) 利用新的OSDMap初始化PG的up set、up primary、acting set、primary,并更新当前的PGinfo 信息
//3) 判断up、acting、primary是否发生变化,并更新PG状态
//4) 处理PG角色变化相关的问题
}
PG::start_peering_interval()处理主流程如下图所示:
注:如果要进行Peering,那么PG的所有副本(主副本以及从副本)都会调用到此函数
1.4.1 进行Peering重置
因为这里我们要开启一个新的Peering流程,因此需要把前面未完成的Peering进行重置:
/* Called before initializing peering during advance_map */
void PG::start_peering_interval(
const OSDMapRef lastmap,
const vector<int>& newup, int new_up_primary,
const vector<int>& newacting, int new_acting_primary,
ObjectStore::Transaction *t)
{
const OSDMapRef osdmap = get_osdmap();
set_last_peering_reset();
}
void PG::set_last_peering_reset()
{
dout(20) << "set_last_peering_reset " << get_osdmap()->get_epoch() << dendl;
if (last_peering_reset != get_osdmap()->get_epoch()) {
last_peering_reset = get_osdmap()->get_epoch();
reset_interval_flush();
}
}
void PG::reset_interval_flush()
{
dout(10) << "Clearing blocked outgoing recovery messages" << dendl;
recovery_state.clear_blocked_outgoing();
Context *c = new QueuePeeringEvt<IntervalFlush>(this, get_osdmap()->get_epoch(), IntervalFlush());
if (!osr->flush_commit(c)) {
dout(10) << "Beginning to block outgoing recovery messages" << dendl;
recovery_state.begin_block_outgoing();
} else {
dout(10) << "Not blocking outgoing recovery messages" << dendl;
delete c;
}
}
void PG::RecoveryState::begin_block_outgoing() {
assert(!messages_pending_flush);
assert(orig_ctx);
assert(rctx);
messages_pending_flush = BufferedRecoveryMessages();
rctx = RecoveryCtx(*messages_pending_flush, *orig_ctx);
}

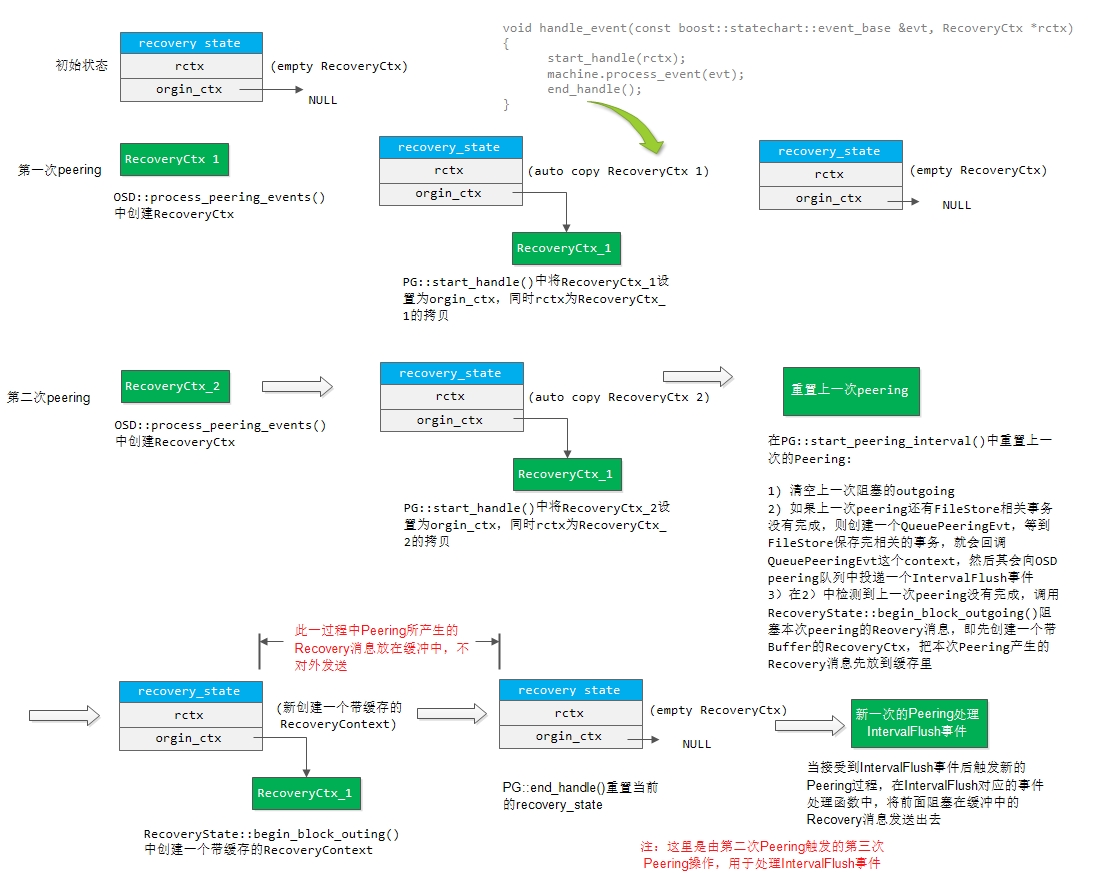

如上图所示,假设我们当前是属于第二次Peering
阶段。如果该PG还有一些FileStore上的事务未处理完成,则会创建一个BufferedRecoveryMessages
,然后将本次Peering所产生的RecoveryMessage都放入该Buffer中。等到FileStore中的事务处理完成就会回调一个Context,然后向OSD::peering_wq中投递一个IntervalFlush事件,这时就会将上一次所缓冲的RecoveryMessage发送出去。
注:之所以要把RecoveryMessages放到Buffer中缓存起来,猜测可能的原因是FileStore上的事务可能会产生相关的回调,从而将破坏PG本次Peering的状态机。
1.4.2 初始化新的up、acting信息,并更新pginfo信息
/* Called before initializing peering during advance_map */
void PG::start_peering_interval(
const OSDMapRef lastmap,
const vector<int>& newup, int new_up_primary,
const vector<int>& newacting, int new_acting_primary,
ObjectStore::Transaction *t)
{
...
vector<int> oldacting, oldup;
int oldrole = get_role();
unreg_next_scrub();
pg_shard_t old_acting_primary = get_primary();
pg_shard_t old_up_primary = up_primary;
bool was_old_primary = is_primary();
acting.swap(oldacting);
up.swap(oldup);
init_primary_up_acting(
newup,
newacting,
new_up_primary,
new_acting_primary);
if (info.stats.up != up ||info.stats.acting != acting ||
info.stats.up_primary != new_up_primary || info.stats.acting_primary != new_acting_primary) {
info.stats.up = up;
info.stats.up_primary = new_up_primary;
info.stats.acting = acting;
info.stats.acting_primary = new_acting_primary;
info.stats.mapping_epoch = info.history.same_interval_since;
}
pg_stats_publish_lock.Lock();
pg_stats_publish_valid = false;
pg_stats_publish_lock.Unlock();
// This will now be remapped during a backfill in cases
// that it would not have been before.
if (up != acting)
state_set(PG_STATE_REMAPPED);
else
state_clear(PG_STATE_REMAPPED);
...
}
我们在OSD::advance_pg()中调用OSD::pg_to_up_acting_osds()算出了最新的up set、up_primary、acting set、primary,但是还没有真正设置到PG。在这里PG::start_peering_interval()中调用init_primary_up_acting(),这时就将这些真正设置到PG中。
接着更新PG的状态信息(info.stats)。之后根据up set与acting set是否相同,来设置PG的REMAPPED
标识(注:一般出现pg_temp时会导致up set与acting set不一致)。
1.4.3 处理PG角色变化相关问题
/* Called before initializing peering during advance_map */
void PG::start_peering_interval(
const OSDMapRef lastmap,
const vector<int>& newup, int new_up_primary,
const vector<int>& newacting, int new_acting_primary,
ObjectStore::Transaction *t)
{
...
int oldrole = get_role();
...
int role = osdmap->calc_pg_role(osd->whoami, acting, acting.size());
if (pool.info.is_replicated() || role == pg_whoami.shard)
set_role(role);
else
set_role(-1);
// did acting, up, primary|acker change?
if (!lastmap) {
dout(10) << " no lastmap" << dendl;
dirty_info = true;
dirty_big_info = true;
info.history.same_interval_since = osdmap->get_epoch();
} else {
std::stringstream debug;
assert(info.history.same_interval_since != 0);
boost::scoped_ptr<IsPGRecoverablePredicate> recoverable(get_is_recoverable_predicate());
bool new_interval = pg_interval_t::check_new_interval(
old_acting_primary.osd,
new_acting_primary,
oldacting, newacting,
old_up_primary.osd,
new_up_primary,
oldup, newup,
info.history.same_interval_since,
info.history.last_epoch_clean,
osdmap,
lastmap,
info.pgid.pgid,
recoverable.get(),
&past_intervals,
&debug);
dout(10) << __func__ << ": check_new_interval output: "<< debug.str() << dendl;
if (new_interval) {
dout(10) << " noting past " << past_intervals.rbegin()->second << dendl;
dirty_info = true;
dirty_big_info = true;
info.history.same_interval_since = osdmap->get_epoch();
}
}
if (old_up_primary != up_primary || oldup != up) {
info.history.same_up_since = osdmap->get_epoch();
}
// this comparison includes primary rank via pg_shard_t
if (old_acting_primary != get_primary()) {
info.history.same_primary_since = osdmap->get_epoch();
}
on_new_interval();
dout(10) << " up " << oldup << " -> " << up
<< ", acting " << oldacting << " -> " << acting
<< ", acting_primary " << old_acting_primary << " -> " << new_acting_primary
<< ", up_primary " << old_up_primary << " -> " << new_up_primary
<< ", role " << oldrole << " -> " << role
<< ", features acting " << acting_features
<< " upacting " << upacting_features
<< dendl;
// deactivate.
state_clear(PG_STATE_ACTIVE);
state_clear(PG_STATE_PEERED);
state_clear(PG_STATE_DOWN);
state_clear(PG_STATE_RECOVERY_WAIT);
state_clear(PG_STATE_RECOVERING);
peer_purged.clear();
actingbackfill.clear();
snap_trim_queued = false;
scrub_queued = false;
// reset primary state?
if (was_old_primary || is_primary()) {
osd->remove_want_pg_temp(info.pgid.pgid);
}
clear_primary_state();
// pg->on_*
on_change(t);
assert(!deleting);
// should we tell the primary we are here?
send_notify = !is_primary();
if (role != oldrole ||was_old_primary != is_primary()) {
// did primary change?
if (was_old_primary != is_primary()) {
state_clear(PG_STATE_CLEAN);
clear_publish_stats();
// take replay queue waiters
list<OpRequestRef> ls;
for (map<eversion_t,OpRequestRef>::iterator it = replay_queue.begin();it != replay_queue.end();++it)
ls.push_back(it->second);
replay_queue.clear();
requeue_ops(ls);
}
on_role_change();
// take active waiters
requeue_ops(waiting_for_peered);
} else {
// no role change.
// did primary change?
if (get_primary() != old_acting_primary) {
dout(10) << *this << " " << oldacting << " -> " << acting << ", acting primary "
<< old_acting_primary << " -> " << get_primary() << dendl;
} else {
// primary is the same.
if (is_primary()) {
// i am (still) primary. but my replica set changed.
state_clear(PG_STATE_CLEAN);
dout(10) << oldacting << " -> " << acting<< ", replicas changed" << dendl;
}
}
}
}
我们来看实现过程:
1) 调用pg_interval_t::check_new_interval()检查是否产生了一个新的interval,如果是则更新info.history.same_interval_since。
2) 如果old_up_primary不等于当前的up_primary,或者oldup不等于当前的up set,那么更新info.history.same_up_since
3) 如果old_acting_primary不等于当前的Primary,那么更新info.history.same_primary_since
4) 清除PG的相关状态标志
// deactivate.
state_clear(PG_STATE_ACTIVE);
state_clear(PG_STATE_PEERED);
state_clear(PG_STATE_DOWN);
state_clear(PG_STATE_RECOVERY_WAIT);
state_clear(PG_STATE_RECOVERING);
需要说明的是,因为这里我们会停止Recovery操作,因此将PG_STATE_RECOVERING
标志清除。
5) 根据PG当前副本role的变化情况,进行以下处理
首先我们先来看看role的计算:
//注:role的取值可以为 0 -- primary 1 -- replica -1 -- none
int OSDMap::calc_pg_role(int osd, const vector<int>& acting, int nrep)
{
if (!nrep)
nrep = acting.size();
return calc_pg_rank(osd, acting, nrep);
}
int OSDMap::calc_pg_rank(int osd, const vector<int>& acting, int nrep)
{
if (!nrep)
nrep = acting.size();
for (int i=0; i<nrep; i++)
if (acting[i] == osd)
return i;
return -1;
}
-
如果role发生了变化,那么会回调on_role_change()函数,同时将waiting_for_peered当中的请求重新放入OSD::op_wq中
-
如果role没有发生变化(比如前后都是replica角色),判断PG的Primary是否发生改变,如果发生了改变,那么打印出相关日志信息
总结:
到此为止,OSD::advance_pg()中调用pg->handle_advance_map()所产生的AdvMap事件就已经处理完成。
仔细观察上面的流程,PG Replicas也是通过Reset::react(AdvMap)进入到PG::start_peering_interval()阶段。
2. PG状态机接收到ActMap事件
在OSD::advance_pg()中,调用pg->handle_advance_map()产生AdvMap事件并处理完成之后,接着又会调用pg->handle_activate_map()产生ActMap事件:
bool OSD::advance_pg(
epoch_t osd_epoch, PG *pg,
ThreadPool::TPHandle &handle,
PG::RecoveryCtx *rctx,
set<boost::intrusive_ptr<PG> > *new_pgs)
{
...
pg->handle_activate_map(rctx);
}
void PG::handle_activate_map(RecoveryCtx *rctx)
{
dout(10) << "handle_activate_map " << dendl;
ActMap evt;
recovery_state.handle_event(evt, rctx);
if (osdmap_ref->get_epoch() - last_persisted_osdmap_ref->get_epoch() >cct->_conf->osd_pg_epoch_persisted_max_stale) {
dout(20) << __func__ << ": Dirtying info: last_persisted is "<< last_persisted_osdmap_ref->get_epoch()
<< " while current is " << osdmap_ref->get_epoch() << dendl;
dirty_info = true;
} else {
dout(20) << __func__ << ": Not dirtying info: last_persisted is "<< last_persisted_osdmap_ref->get_epoch()
<< " while current is " << osdmap_ref->get_epoch() << dendl;
}
if (osdmap_ref->check_new_blacklist_entries()) check_blacklisted_watchers();
}
我们看到其向recovery_state投递ActMap
事件。
我们搜索ActMap
,发现在如下状态下会接受ActMap事件:
-
Reset状态
-
Primary状态
-
Active状态
-
ReplicaActive状态
-
Stray状态
-
WaitUpThru状态
在我们前面的假设中,PG开始是处于active + clean
状态,后面经过AdvMap
事件进入到Reset状态。下面我们就从Reset状态下对ActMap
事件的处理开始讲起。
2.1 Reset状态下对ActMap事件的处理
boost::statechart::result PG::RecoveryState::Reset::react(const ActMap&)
{
PG *pg = context< RecoveryMachine >().pg;
if (pg->should_send_notify() && pg->get_primary().osd >= 0) {
context< RecoveryMachine >().send_notify(
pg->get_primary(),
pg_notify_t(
pg->get_primary().shard, pg->pg_whoami.shard,
pg->get_osdmap()->get_epoch(),
pg->get_osdmap()->get_epoch(),
pg->info),
pg->past_intervals);
}
pg->update_heartbeat_peers();
pg->take_waiters();
return transit< Started >();
}
void RecoveryMachine::send_notify(pg_shard_t to,const pg_notify_t &info, const pg_interval_map_t &pi) {
assert(state->rctx);
assert(state->rctx->notify_list);
(*state->rctx->notify_list)[to.osd].push_back(make_pair(info, pi));
}
1)非Primary PG
向Primary PG
发送pg_notify_t请求
如果PG::should_send_notify()为true,且我们知道PG当前的主OSD是什么,就会调用RecoveryMachine::send_notify()来向主OSD发送pg_notify_t消息。
在PG::start_peering_interval()函数中:
void PG::start_peering_interval(
const OSDMapRef lastmap,
const vector<int>& newup, int new_up_primary,
const vector<int>& newacting, int new_acting_primary,
ObjectStore::Transaction *t)
{
// should we tell the primary we are here?
send_notify = !is_primary();
}
从上面我们看到,对于非PG Primary(包括PG Replicas、PG Strays),其都会将send_notify置为true。
2)PG的状态由Reset状态转到Started状态
2.2 进入Started状态
struct Started : boost::statechart::state< Started, RecoveryMachine, Start >, NamedState {
};
上面看到,Started的默认初始子状态为Start
状态,因此这里会马上进入Start状态。
2.3 进入Start状态
struct Start : boost::statechart::state< Start, Started >, NamedState {
explicit Start(my_context ctx);
void exit();
typedef boost::mpl::list <
boost::statechart::transition< MakePrimary, Primary >,
boost::statechart::transition< MakeStray, Stray >
> reactions;
};
PG::RecoveryState::Start::Start(my_context ctx)
: my_base(ctx),
NamedState(context< RecoveryMachine >().pg->cct, "Start")
{
context< RecoveryMachine >().log_enter(state_name);
PG *pg = context< RecoveryMachine >().pg;
if (pg->is_primary()) {
dout(1) << "transitioning to Primary" << dendl;
post_event(MakePrimary());
} else { //is_stray
dout(1) << "transitioning to Stray" << dendl;
post_event(MakeStray());
}
}
从上面我们看到,对于PG Primary来说产生MakePrimary
事件,进入Primary
状态;否则产生MakeStray
事件,进入Stray
状态。
到此,PG对相应事件的处理就明显分为不同的路径:
-
Primary路径
-
Stray路径
这里因为PG Primary主导整个Peering过程,因此我们先从Primary路径开始讲起。对于Stray路径,我们后面会讲解到。
2.4 进入Primary状态
struct Primary : boost::statechart::state< Primary, Started, Peering >, NamedState {
explicit Primary(my_context ctx);
void exit();
typedef boost::mpl::list <
boost::statechart::custom_reaction< ActMap >,
boost::statechart::custom_reaction< MNotifyRec >,
boost::statechart::transition< NeedActingChange, WaitActingChange >
> reactions;
boost::statechart::result react(const ActMap&);
boost::statechart::result react(const MNotifyRec&);
};
PG::RecoveryState::Primary::Primary(my_context ctx)
: my_base(ctx),
NamedState(context< RecoveryMachine >().pg->cct, "Started/Primary")
{
context< RecoveryMachine >().log_enter(state_name);
PG *pg = context< RecoveryMachine >().pg;
assert(pg->want_acting.empty());
// set CREATING bit until we have peered for the first time.
if (pg->info.history.last_epoch_started == 0) {
pg->state_set(PG_STATE_CREATING);
// use the history timestamp, which ultimately comes from the
// monitor in the create case.
utime_t t = pg->info.history.last_scrub_stamp;
pg->info.stats.last_fresh = t;
pg->info.stats.last_active = t;
pg->info.stats.last_change = t;
pg->info.stats.last_peered = t;
pg->info.stats.last_clean = t;
pg->info.stats.last_unstale = t;
pg->info.stats.last_undegraded = t;
pg->info.stats.last_fullsized = t;
pg->info.stats.last_scrub_stamp = t;
pg->info.stats.last_deep_scrub_stamp = t;
pg->info.stats.last_clean_scrub_stamp = t;
}
}
Primary的默认初始子状态为Peering
,因此我们这里会马上进入到Peering状态。
2.5 进入Peering状态
struct Peering : boost::statechart::state< Peering, Primary, GetInfo >, NamedState {
std::unique_ptr< PriorSet > prior_set;
bool history_les_bound; //< need osd_find_best_info_ignore_history_les
explicit Peering(my_context ctx);
void exit();
typedef boost::mpl::list <
boost::statechart::custom_reaction< QueryState >,
boost::statechart::transition< Activate, Active >,
boost::statechart::custom_reaction< AdvMap >
> reactions;
boost::statechart::result react(const QueryState& q);
boost::statechart::result react(const AdvMap &advmap);
};
PG::RecoveryState::Peering::Peering(my_context ctx)
: my_base(ctx),
NamedState(context< RecoveryMachine >().pg->cct, "Started/Primary/Peering"),
history_les_bound(false)
{
context< RecoveryMachine >().log_enter(state_name);
PG *pg = context< RecoveryMachine >().pg;
assert(!pg->is_peered());
assert(!pg->is_peering());
assert(pg->is_primary());
pg->state_set(PG_STATE_PEERING);
}
Peering的默认初始子状态为GetInfo状态,因此这里会马上进入GetInfo
状态。
3. Peering状态详细处理

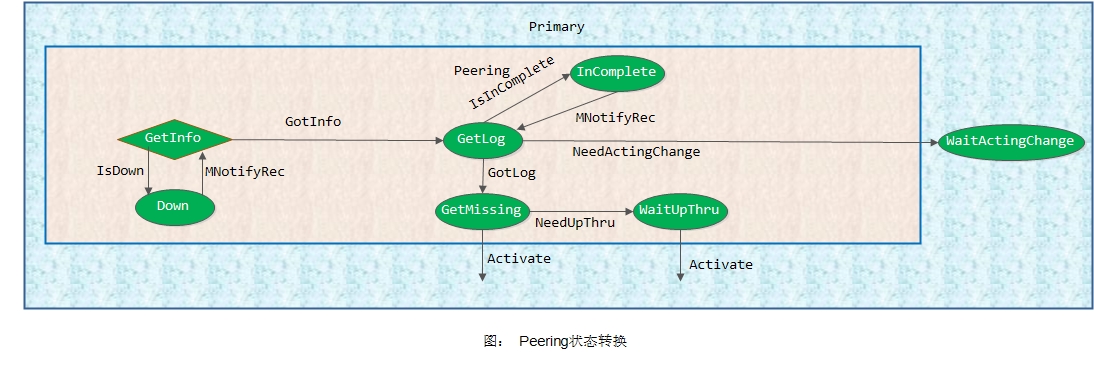

我们接着上面,对于PG Primary进入Peering状态后,马上进入Peering的默认初始子状态GetInfo。下图是Peering过程的一个整体状态转换图:
现在我们从GetInfo
状态开始讲起。
3.1 GetInfo状态
struct GetInfo : boost::statechart::state< GetInfo, Peering >, NamedState {
set<pg_shard_t> peer_info_requested;
explicit GetInfo(my_context ctx);
void exit();
void get_infos();
typedef boost::mpl::list <
boost::statechart::custom_reaction< QueryState >,
boost::statechart::transition< GotInfo, GetLog >,
boost::statechart::custom_reaction< MNotifyRec >
> reactions;
boost::statechart::result react(const QueryState& q);
boost::statechart::result react(const MNotifyRec& infoevt);
};
PG::RecoveryState::GetInfo::GetInfo(my_context ctx)
: my_base(ctx),
NamedState(context< RecoveryMachine >().pg->cct, "Started/Primary/Peering/GetInfo")
{
context< RecoveryMachine >().log_enter(state_name);
PG *pg = context< RecoveryMachine >().pg;
pg->generate_past_intervals();
unique_ptr<PriorSet> &prior_set = context< Peering >().prior_set;
assert(pg->blocked_by.empty());
if (!prior_set.get())
pg->build_prior(prior_set);
pg->reset_min_peer_features();
get_infos();
if (peer_info_requested.empty() && !prior_set->pg_down) {
post_event(GotInfo());
}
}
在GetInfo构造函数中,首先调用PG::generate_past_intervals()产生past_intervals,之后调用PG::build_prior()来生成Recovery过程中所需要依赖的OSD列表。
之后调用get_infos()来获取PG各副本的pg info信息。我们来看该函数实现。
3.1.1 获取PG各副本pg info信息
void PG::RecoveryState::GetInfo::get_infos()
{
PG *pg = context< RecoveryMachine >().pg;
unique_ptr<PriorSet> &prior_set = context< Peering >().prior_set;
pg->blocked_by.clear();
for (set<pg_shard_t>::const_iterator it = prior_set->probe.begin();it != prior_set->probe.end();++it) {
pg_shard_t peer = *it;
if (peer == pg->pg_whoami) {
continue;
}
if (pg->peer_info.count(peer)) {
dout(10) << " have osd." << peer << " info " << pg->peer_info[peer] << dendl;
continue;
}
if (peer_info_requested.count(peer)) {
dout(10) << " already requested info from osd." << peer << dendl;
pg->blocked_by.insert(peer.osd);
} else if (!pg->get_osdmap()->is_up(peer.osd)) {
dout(10) << " not querying info from down osd." << peer << dendl;
} else {
dout(10) << " querying info from osd." << peer << dendl;
context< RecoveryMachine >().send_query(
peer, pg_query_t(pg_query_t::INFO,
it->shard, pg->pg_whoami.shard,
pg->info.history,
pg->get_osdmap()->get_epoch()));
peer_info_requested.insert(peer);
pg->blocked_by.insert(peer.osd);
}
}
pg->publish_stats_to_osd();
}
1)清理PG::blocked_by
PG::blocked_by用于记录当前PG被哪些OSD所阻塞,这样在执行pg stats时我们就知道这些阻塞信息。一般在一个状态退出,就会将其进行清理。比如在GetInfo状态退出时,就有如下:
void PG::RecoveryState::GetInfo::exit()
{
context< RecoveryMachine >().log_exit(state_name, enter_time);
PG *pg = context< RecoveryMachine >().pg;
utime_t dur = ceph_clock_now(pg->cct) - enter_time;
pg->osd->recoverystate_perf->tinc(rs_getinfo_latency, dur);
pg->blocked_by.clear();
}
2) 向相应的Peer发送pg_query_t查询请求
我们在GetInfo构造函数中创建了PriorSet,其中就告诉了我们需要向哪些OSD发送查询信息。这里遍历PriorSet,向当前仍处于Up状态
的OSD发送pg_query_t
查询请求。
3.1.2 重要提醒
到目前为止,在OSD::advance_pg()中所触发的AdvMap以及ActMap事件就已经处理完成。接下来就是接受Peer返回过来的pg info信息了。
3.1.3 接收Peer返回过来的pg info信息

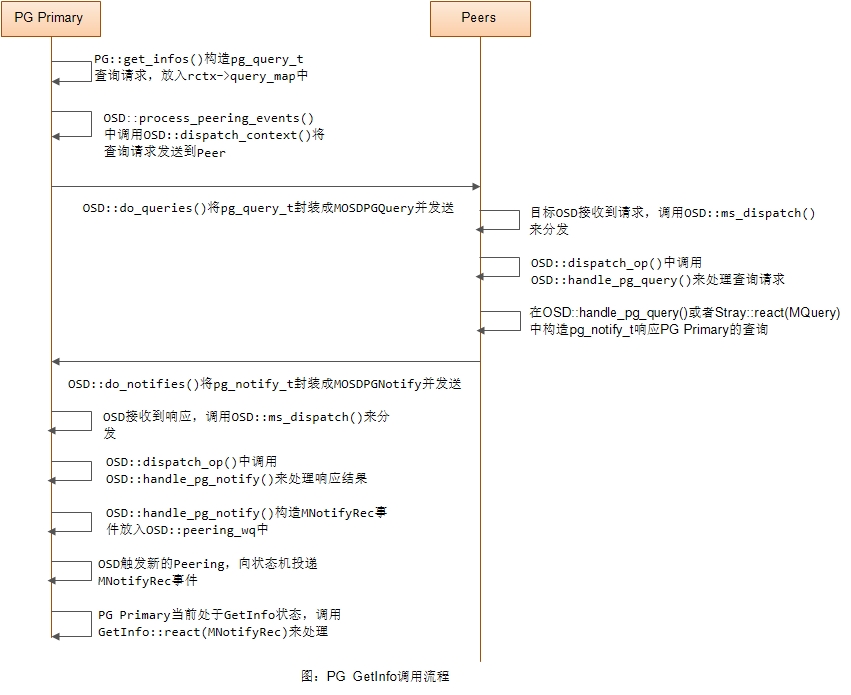

这里我们先大概给出一张PG Primary发送pg_query_t查询请求,然后Peer返回响应的一个大体流程图:
MNotifyRec数据结构
这里我们先来看一下查询pg_info的响应的数据结构:
struct MNotifyRec : boost::statechart::event< MNotifyRec > {
pg_shard_t from;
pg_notify_t notify;
uint64_t features;
MNotifyRec(pg_shard_t from, pg_notify_t ¬ify, uint64_t f) :
from(from), notify(notify), features(f) {}
void print(std::ostream *out) const {
*out << "MNotifyRec from " << from << " notify: " << notify<< " features: 0x" << hex << features << dec;
}
};
struct pg_notify_t {
epoch_t query_epoch; //查询时请求消息的epoch
epoch_t epoch_sent; //发送时响应消息的epoch
pg_info_t info; //pg_info的信息
shard_id_t to; //目标OSD
shard_id_t from; //源OSD
};
GetInfo状态下对MNotifyRec事件的处理
因为我们实在GetInfo状态下发送的pg_info查询请求,假设没有新的Peering事件触发状态改变的话,我们会使用GetInfo::react(MNotifyRec)函数来处理。在讲解该函数之前,我们先来看一下PG::proc_replica_info()函数:
bool PG::proc_replica_info(
pg_shard_t from, const pg_info_t &oinfo, epoch_t send_epoch)
{
map<pg_shard_t, pg_info_t>::iterator p = peer_info.find(from);
if (p != peer_info.end() && p->second.last_update == oinfo.last_update) {
dout(10) << " got dup osd." << from << " info " << oinfo << ", identical to ours" << dendl;
return false;
}
if (!get_osdmap()->has_been_up_since(from.osd, send_epoch)) {
dout(10) << " got info " << oinfo << " from down osd." << from<< " discarding" << dendl;
return false;
}
dout(10) << " got osd." << from << " " << oinfo << dendl;
assert(is_primary());
peer_info[from] = oinfo;
might_have_unfound.insert(from);
unreg_next_scrub();
if (info.history.merge(oinfo.history))
dirty_info = true;
reg_next_scrub();
// stray?
if (!is_up(from) && !is_acting(from)) {
dout(10) << " osd." << from << " has stray content: " << oinfo << dendl;
stray_set.insert(from);
if (is_clean()) {
purge_strays();
}
}
// was this a new info? if so, update peers!
if (p == peer_info.end())
update_heartbeat_peers();
return true;
}
bool pg_history_t::merge(const pg_history_t &other) {
// Here, we only update the fields which cannot be calculated from the OSDmap.
bool modified = false;
if (epoch_created < other.epoch_created) {
epoch_created = other.epoch_created;
modified = true;
}
if (last_epoch_started < other.last_epoch_started) {
last_epoch_started = other.last_epoch_started;
modified = true;
}
if (last_epoch_clean < other.last_epoch_clean) {
last_epoch_clean = other.last_epoch_clean;
modified = true;
}
if (last_epoch_split < other.last_epoch_split) {
last_epoch_split = other.last_epoch_split;
modified = true;
}
if (last_epoch_marked_full < other.last_epoch_marked_full) {
last_epoch_marked_full = other.last_epoch_marked_full;
modified = true;
}
if (other.last_scrub > last_scrub) {
last_scrub = other.last_scrub;
modified = true;
}
if (other.last_scrub_stamp > last_scrub_stamp) {
last_scrub_stamp = other.last_scrub_stamp;
modified = true;
}
if (other.last_deep_scrub > last_deep_scrub) {
last_deep_scrub = other.last_deep_scrub;
modified = true;
}
if (other.last_deep_scrub_stamp > last_deep_scrub_stamp) {
last_deep_scrub_stamp = other.last_deep_scrub_stamp;
modified = true;
}
if (other.last_clean_scrub_stamp > last_clean_scrub_stamp) {
last_clean_scrub_stamp = other.last_clean_scrub_stamp;
modified = true;
}
return modified;
}
void PG::update_heartbeat_peers()
{
assert(is_locked());
if (!is_primary())
return;
set<int> new_peers;
for (unsigned i=0; i<acting.size(); i++) {
if (acting[i] != CRUSH_ITEM_NONE)
new_peers.insert(acting[i]);
}
for (unsigned i=0; i<up.size(); i++) {
if (up[i] != CRUSH_ITEM_NONE)
new_peers.insert(up[i]);
}
for (map<pg_shard_t,pg_info_t>::iterator p = peer_info.begin();p != peer_info.end();++p)
new_peers.insert(p->first.osd);
bool need_update = false;
heartbeat_peer_lock.Lock();
if (new_peers == heartbeat_peers) {
dout(10) << "update_heartbeat_peers " << heartbeat_peers << " unchanged" << dendl;
} else {
dout(10) << "update_heartbeat_peers " << heartbeat_peers << " -> " << new_peers << dendl;
heartbeat_peers.swap(new_peers);
need_update = true;
}
heartbeat_peer_lock.Unlock();
if (need_update)
osd->need_heartbeat_peer_update();
}
1) 首先检查如果该OSD的pg_info信息已经存在,并且last_update参数相同,则说明已经处理过,返回false。
2) 调用函数OSDMap::has_been_up_since()检查该OSD在send_epoch时已经处于up状态
3) 确保自己是主OSD,把从from返回来的pg_info信息保存到peer_info数组,并加入might_have_unfound数组里
注:PG::might_have_unfound数组里的OSD可能存放了PG的一些对象,我们后续需要利用这些OSD来进行数据恢复
4) 调用函数unreg_next_scrub()使该PG不在scrub操作的队列里
5) 调用info.history.merge()函数处理副本OSD
发送过来的pg_info信息。处理的方法是:更新为最新的字段。
6) 调用函数reg_next_scrub()注册PG下一次scrub的时间
7) 如果该OSD既不在up数组中也不在acting数组中,那就加入stray_set列表中。当PG处于clean状态时,就会调用purge_strays()函数删除stray状态的PG及其上的对象数据。
8) 如果是一个新的OSD,就调用函数update_heartbeat_peers()更新需要heartbeat的OSD列表
接下来我们看GetInfo状态下对MNotifyRec
事件的处理:
boost::statechart::result PG::RecoveryState::GetInfo::react(const MNotifyRec& infoevt)
{
PG *pg = context< RecoveryMachine >().pg;
set<pg_shard_t>::iterator p = peer_info_requested.find(infoevt.from);
if (p != peer_info_requested.end()) {
peer_info_requested.erase(p);
pg->blocked_by.erase(infoevt.from.osd);
}
epoch_t old_start = pg->info.history.last_epoch_started;
if (pg->proc_replica_info(infoevt.from, infoevt.notify.info, infoevt.notify.epoch_sent)) {
// we got something new ...
unique_ptr<PriorSet> &prior_set = context< Peering >().prior_set;
if (old_start < pg->info.history.last_epoch_started) {
dout(10) << " last_epoch_started moved forward, rebuilding prior" << dendl;
pg->build_prior(prior_set);
// filter out any osds that got dropped from the probe set from
// peer_info_requested. this is less expensive than restarting
// peering (which would re-probe everyone).
set<pg_shard_t>::iterator p = peer_info_requested.begin();
while (p != peer_info_requested.end()) {
if (prior_set->probe.count(*p) == 0) {
dout(20) << " dropping osd." << *p << " from info_requested, no longer in probe set" << dendl;
peer_info_requested.erase(p++);
} else {
++p;
}
}
get_infos();
}
dout(20) << "Adding osd: " << infoevt.from.osd << " peer features: "<< hex << infoevt.features << dec << dendl;
pg->apply_peer_features(infoevt.features);
// are we done getting everything?
if (peer_info_requested.empty() && !prior_set->pg_down) {
/*
* make sure we have at least one !incomplete() osd from the
* last rw interval. the incomplete (backfilling) replicas
* get a copy of the log, but they don't get all the object
* updates, so they are insufficient to recover changes during
* that interval.
*/
if (pg->info.history.last_epoch_started) {
for (map<epoch_t,pg_interval_t>::reverse_iterator p = pg->past_intervals.rbegin();p != pg->past_intervals.rend();++p) {
if (p->first < pg->info.history.last_epoch_started)
break;
if (!p->second.maybe_went_rw)
continue;
pg_interval_t& interval = p->second;
dout(10) << " last maybe_went_rw interval was " << interval << dendl;
OSDMapRef osdmap = pg->get_osdmap();
/*
* this mirrors the PriorSet calculation: we wait if we
* don't have an up (AND !incomplete) node AND there are
* nodes down that might be usable.
*/
bool any_up_complete_now = false;
bool any_down_now = false;
for (unsigned i=0; i<interval.acting.size(); i++) {
int o = interval.acting[i];
if (o == CRUSH_ITEM_NONE)
continue;
pg_shard_t so(o, pg->pool.info.ec_pool() ? shard_id_t(i) : shard_id_t::NO_SHARD);
if (!osdmap->exists(o) || osdmap->get_info(o).lost_at > interval.first)
continue; // dne or lost
if (osdmap->is_up(o)) {
pg_info_t *pinfo;
if (so == pg->pg_whoami) {
pinfo = &pg->info;
} else {
assert(pg->peer_info.count(so));
pinfo = &pg->peer_info[so];
}
if (!pinfo->is_incomplete())
any_up_complete_now = true;
} else {
any_down_now = true;
}
}
if (!any_up_complete_now && any_down_now) {
dout(10) << " no osds up+complete from interval " << interval << dendl;
pg->state_set(PG_STATE_DOWN);
pg->publish_stats_to_osd();
return discard_event();
}
break;
}
}
dout(20) << "Common peer features: " << hex << pg->get_min_peer_features() << dec << dendl;
dout(20) << "Common acting features: " << hex << pg->get_min_acting_features() << dec << dendl;
dout(20) << "Common upacting features: " << hex << pg->get_min_upacting_features() << dec << dendl;
post_event(GotInfo());
}
}
return discard_event();
}
下面我们来看具体的处理过程:
1)首先从peer_info_requested里删除该peer,同时从blocked_by队列里删除
2)调用函数PG::proc_replica_info()来处理副本的pg_info信息。如果获取到了一个新的有效的pg_info,则PG::proc_replica_info()返回true,继续下面的步骤3);否则丢弃该事件
3)在变量old_start里保存了调用PG::proc_replica_info()前主OSD的pg->info.history.last_epoch_started,如果该epoch值小于合并后的值,说明该值被更新了,副本OSD上的epoch值比较新,需要进行如下操作:
a) 调用PG::build_prior()重新构建prior_set对象
b) 从peer_info_requested队列中去掉上次构建的prior_set中存在的OSD,这里最新构建上次不存在的OSD列表;
c) 调用get_infos()函数重新发送查询peer_info请求
4)调用pg->apply_peer_features()更新相关的features值
5) 当peer_info_requested队列为空,并且prior_set不处于pg_down状态时,说明收到所有OSD的peer_info并处理完成
6)之后检查past_interval阶段至少有一个OSD处于up状态且非incomplete
状态;否则该PG无法恢复,标记状态为PG_STATE_DOWN
并直接返回。如下图所示:
7)最后完成处理,调用函数post_event(GotInfo())抛出GotInfo事件进入状态机的下一个状态。
在GetInfo状态里直接定义了当前状态接收到GotInfo事件后,直接跳转到下一个状态GetLog里:
struct GetInfo : boost::statechart::state< GetInfo, Peering >, NamedState {
set<pg_shard_t> peer_info_requested;
explicit GetInfo(my_context ctx);
void exit();
void get_infos();
typedef boost::mpl::list <
boost::statechart::custom_reaction< QueryState >,
boost::statechart::transition< GotInfo, GetLog >,
boost::statechart::custom_reaction< MNotifyRec >
> reactions;
boost::statechart::result react(const QueryState& q);
boost::statechart::result react(const MNotifyRec& infoevt);
};
