LSI阵列卡的使用教程

以LSI9460-16i 为例

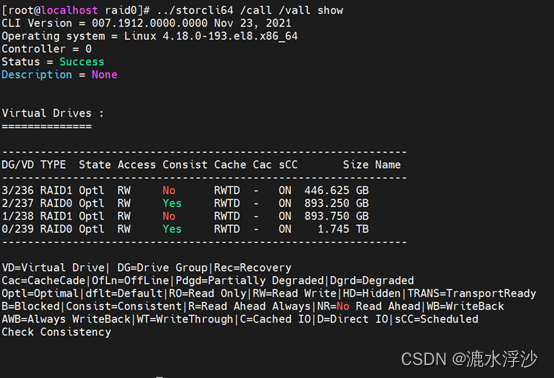

1 ./storcli64 /call /vall show #查看逻辑盘状态

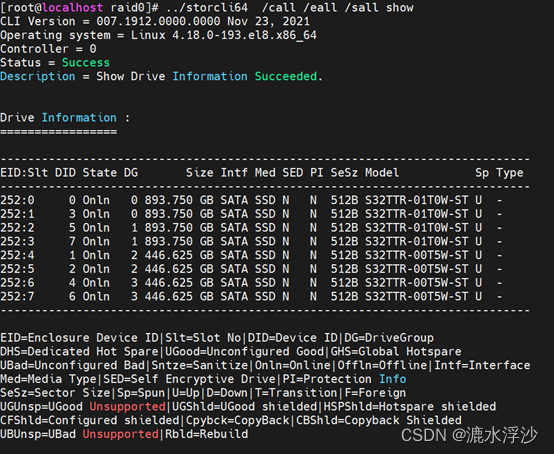

2 /storcli64 /call /eall /sall show #查看当前物理盘状态

3 …/storcli64 /c0 /eall /sall show all|grep “Firmware Revision” 查看所接的盘的分为

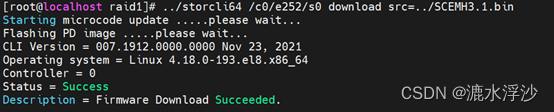

4 …/storcli64 /c0/e252/s1 download src=…/SCEMH3.1.bin 刷新固件

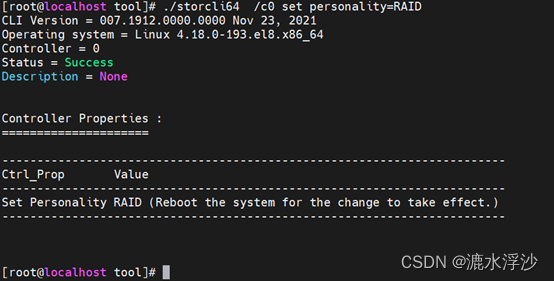

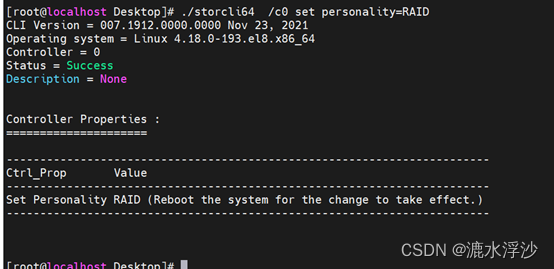

5./storcli64 /c0 set personality=RAID 设置RAID 模式（该模式下才能组raid5）

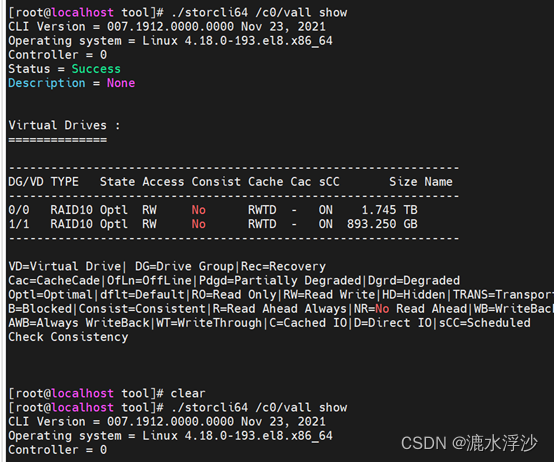

6 storcli64 /c0/vall show 查看所有虚拟驱动器列表

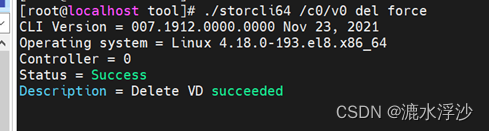

7 删除raid组 ./storcli64 /c0/v0 del force

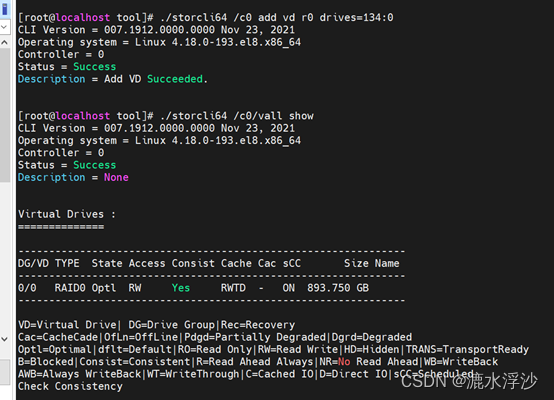

8 ./storcli64 /c0 add vd r0 drives=134:0
./storcli64 /c0 add vd type=raid0 drives=134:2
两种皆可以创建raid0

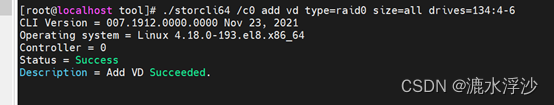

9 ./storcli64 /c0 add vd type=raid0 size=all drives=134:4-6 多盘创建raid0
./storcli64 /c0 add vd type=raid1 size=all drives=134:4-6 多盘创建raid1
./storcli64 /c0 add vd type=raid5 size=all drives=10:2-7 多盘创建raid5

10 多盘raid10/50/60

./storcli64 /c0 add vd type=raid10/50/60 size=all drives=10:2-7 pdperarray=2

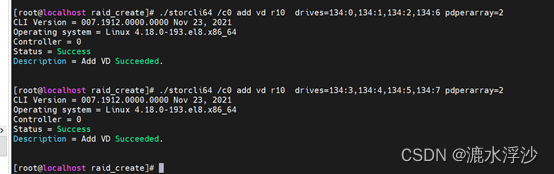

./storcli64 /c0 add vd r10 drives=134:0,134:1,134:2,134:6 pdperarray=2

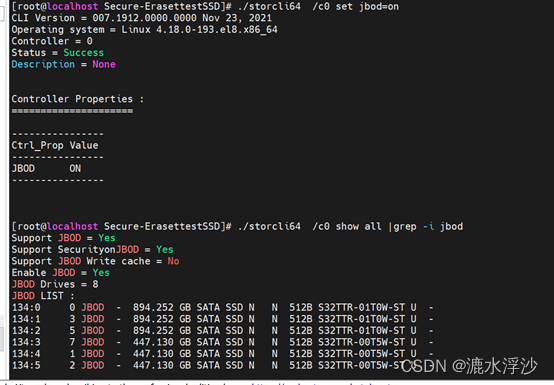

11 ./storcli64 /c0 set jbod=on 开启jbod模式
./storcli64 /c0 set jbod=off 关闭jbod模式
./storcli64 /c0 set personality=RAID 设置RAID模式(需要将jbod模式先关闭)

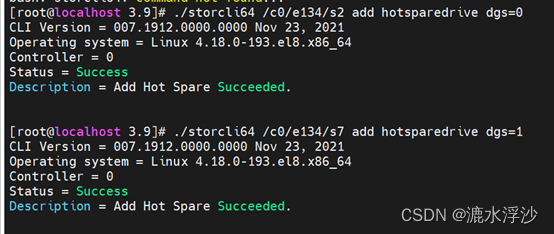

12 ./storcli64 /c0/e134/s2 add hotsparedrive dgs=0 背板为134，
槽位为2的磁盘做 dgs为0的RAID的专属热备

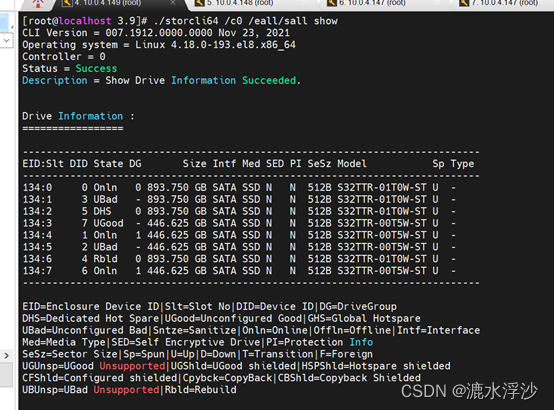

13 查看热备盘 storcli64 /c0 /eall/sall show 磁盘状态为DHS,GHS

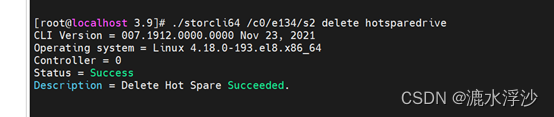

14 ./storcli64 /c0/e134/s2 delete hotsparedrive 删除热备盘

15
拔掉冗余盘， 将盘插回去 查看磁盘状态 storcli64 /cx/ex/sall show all 磁盘状态为ubad

设置磁盘状态为good storcli64 /c0/ex/sx set good

查看磁盘状态 storcli64 /cx/ex/sx show 磁盘状态为 UGOOD –F

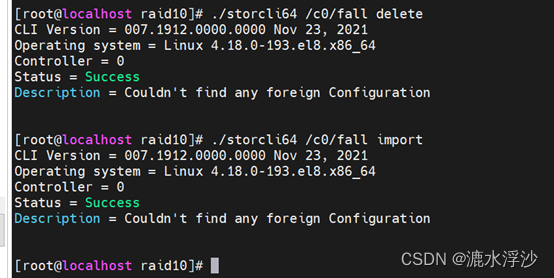

删除外部信息：导入磁盘
storcli64 /cx/fall delete
storcli64 /cx/fall import

查看磁盘状态 storcli64 /cx/ex/sx show 磁盘状态为 UGOOD -
磁盘为可用状态
./storcli64 /c0 /eall/sall show

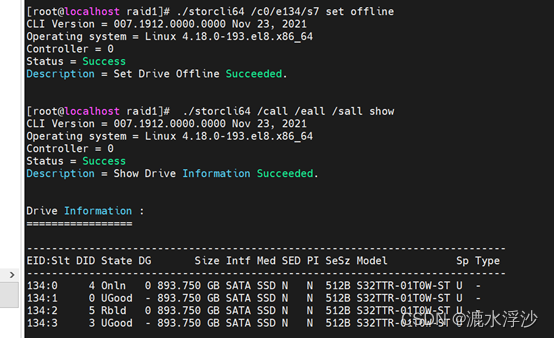

16 设置控制器 0 背板36 槽位号为1的磁盘状态为offline
storcli64 /c0/e36/s1 set offline

设置控制器为0 背板为36 槽位号为1的磁盘状态为online
storcli64 /c0/e36/s1 set online

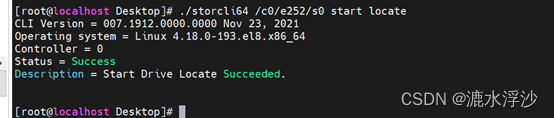

17./storcli64 /c0/e252/s0 start locate点亮定位灯

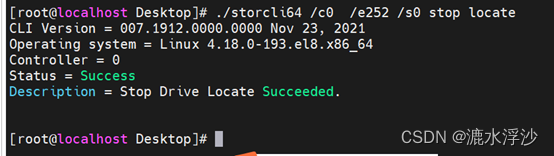

./storcli64 /c0/e252/s0 start locate 停止定位灯

18 阵列卡的autorebuild的重建功能要开启
storcli64 /c0 show autorebuild
storcli64 /c0 set autorebuild=on

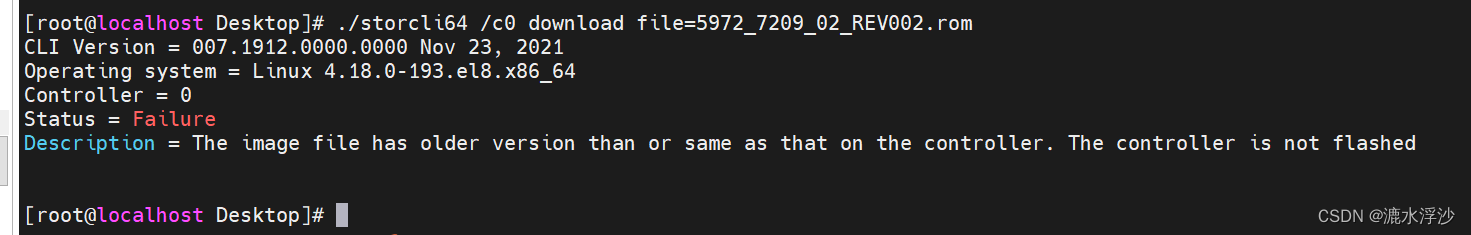

19 ./storcli64 /c0 download file=5972_7209_02_REV002.rom（同样的FW无法刷新）
