基于TI DRV10970驱动直流无刷电机

前言

之前在实验室接手了一个项目，需要使用TI的DRV10970芯片来驱动直流无刷电机带霍尔反馈，最近这几天把电机调通了，所以写个文章记录一下。

---

关于直流无刷电机的驱动方式，我也不过多赘述，CSDN上有很多，我只讲基于TI的DRV10970芯片来实现驱动直流无刷电机。

一、TI DRV10970

1.介绍

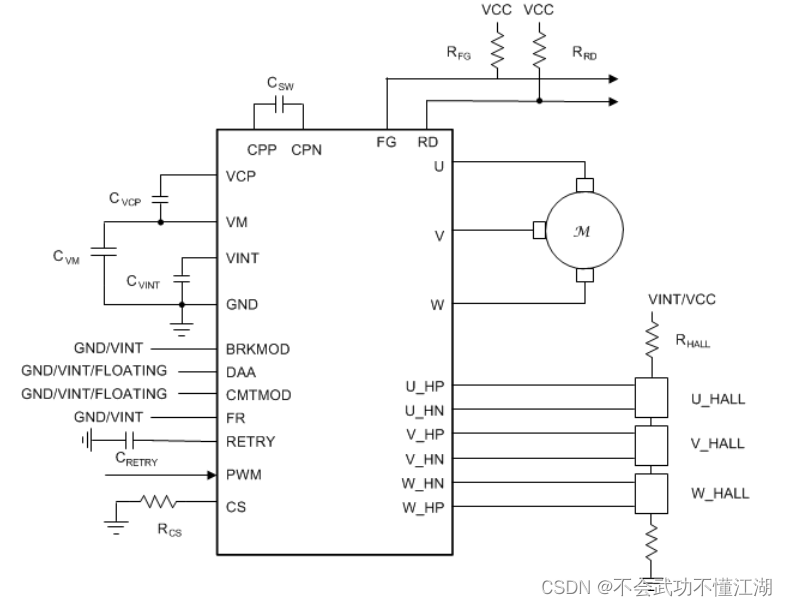

DRV10970是一款集成式三相BLDC电机驱动器，适用于家用电器、冷却风扇以及其他通用电机控制 应用。该器件内置智能特性，并且拥有小巧外形和简单的引脚分布结构，不仅降低了设计复杂度、节省了电路板空间，而且还降低了系统成本。集成的保护功能提高了系统的稳健性和可靠性。
这就意味着我们不需要去处理霍尔信号，芯片会自动来处理霍尔信号，我们只需要输出PWM和设置一些管脚便可以实现驱动直流无刷电机。

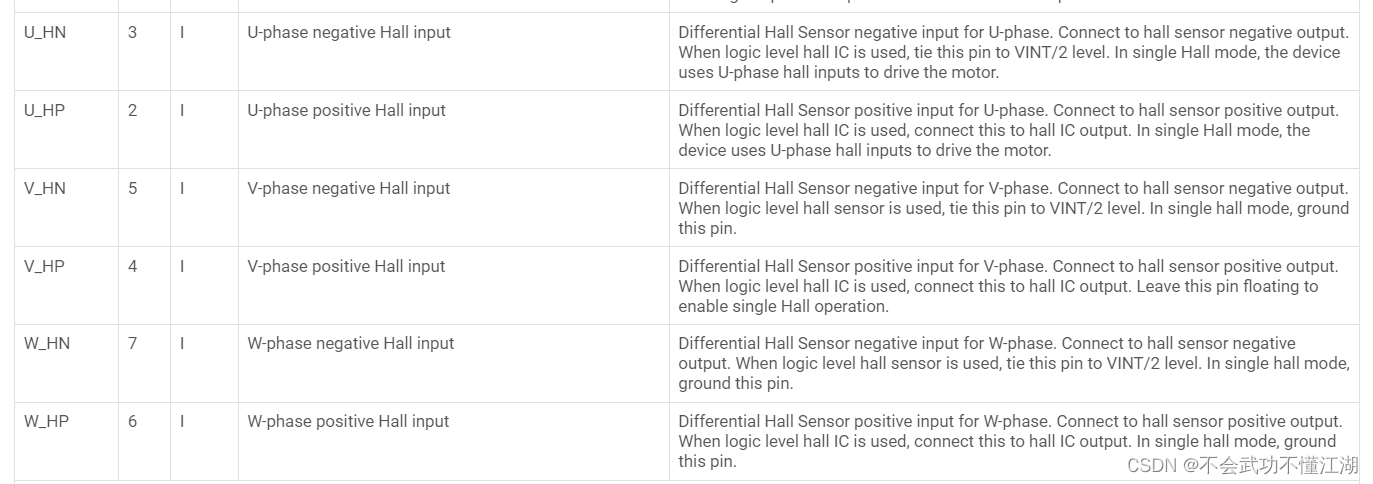

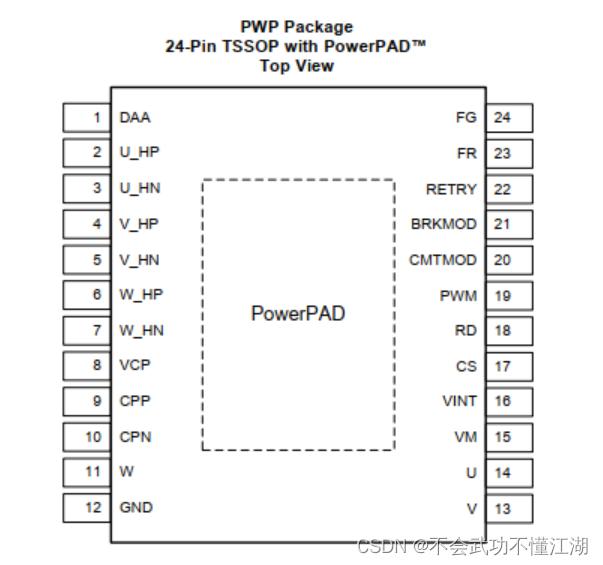

2.引脚介绍

名字	描述
CPN	Charge pump switching node，Connect a 0.1-µF X7R capacitor rated for VM between CPN and CPP
CPP	Charge pump switching node，Connect a 0.1-µF X7R capacitor rated for VM between CPN and CPP
VCP	Charge pump output，Connect a 16-V, 1-µF ceramic capacitor to VM
GND	Device ground，Must be connected to board ground
VINT	Integrated regulator output，Integrated regulator (typical voltage 5 V) mainly for internal circuits; Provide external power for less than 20 mA. Bypass to GND with a 10-V, 2.2-µF ceramic capacitor
VM	Power supply
CS	Current limit setting pin
DAA	Drive angle adjustment configuration pin，Low: 10° drive angle adjustment，High: 5° drive angle adjustment，Floating: adaptive drive angle adjustment
FG	Frequency indication pin，Open drain Electrical Frequency Output pin. One toggle per electrical cycle. Requires an external pull-up of 3.3-kΩ.
FR	Motor direction control，Direction Control Input.When low, phase driving sequence is U → V → W ( U phase is leading V phase by 120°).When high, the phase driving sequence is U → W → V.
BRKMOD	Brake mode setting，Low: Coasting mode (phases are tri-stated)，High: Brake mode (phases are driven low)
PWM	Variable duty cycle PWM input for speed control
RD	Lock indication pin
RETRY	Auto retry timing configure
CMTMOD	Commutation mode setting，Low: Sinusoidal operation mode with 0° Hall placement，High: Sinusoidal operation mode with 30° Hall placement，Floating: Trapezoidal operation mode with 30° Hall placement

上面这么多引脚中我们只需要特别关注几个就好，其中包含脉宽调制 (PWM) 输入（速度命令）、FG 输出（速度反馈）、FR 输入（正向和反向控制）以及 RD 输出（电机锁定指示）。
FG和RD是DRV10970反馈给MCU的信号
CMTMOD是设置模式，一般将CMTMOD设置为低电平就是正弦模式0°放置霍尔元件，
BRKMOD是刹车模式设置，将BRKMOD引脚设置为低电平，即使把BRKMOD设置为高电平电机也不会刹车，因为这个管脚是设置刹车模式，而不是直接让电机刹车，只有断电或者将PWM设置为0才可以刹车。
DAA是驱动电机角度设置，设置为浮空即可，浮空就是自适应角度来驱动电机
PWM就是连接MCU的PWM输出管脚，PWM的频率为15Khz-100Khz。

二、使用步骤

1.程序

所以在使用DRV10970时，我们需要将PWM，FR，BM，CM，DAA设置好即可，我这里使用了两个芯片驱动两个电机

void PWM_Configuration(u16 arr,u16 pre)
{
	GPIO_InitTypeDef GPIO_InitStructure;
	TIM_TimeBaseInitTypeDef	TIM_TimeBaseStructure;
	TIM_OCInitTypeDef TIM_OCInitStructure;
//	TIM_BDTRInitTypeDef     TIM_BDTRInitStructure;

	RCC_AHB1PeriphClockCmd( RCC_AHB1Periph_GPIOA | RCC_AHB1Periph_GPIOB | RCC_AHB1Periph_GPIOC |RCC_AHB1Periph_GPIOD, ENABLE);
  RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM12, ENABLE);

	GPIO_PinAFConfig(GPIOB,GPIO_PinSource14,GPIO_AF_TIM12); //PB14 复用 TIM12
	GPIO_PinAFConfig(GPIOB,GPIO_PinSource15,GPIO_AF_TIM12); //PB14 复用 TIM12

	// PWM
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_14 | GPIO_Pin_15;		 //
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;
	GPIO_InitStructure.GPIO_OType = GPIO_OType_PP; //复用推挽输出
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP; //上拉
	GPIO_Init(GPIOB,&GPIO_InitStructure); //初始化 PB14

	//M1
	//GPIO  DAA  悬空    M2 PD14--DAA
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_8 | GPIO_Pin_14 ;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN;//普通输入模式
	GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;//浮空
	GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化GPIOD

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_8 ;	 //GPIO_Pin_11
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;//普通输出模式
	GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉
	GPIO_Init(GPIOB, &GPIO_InitStructure);//初始化GPIOD

			//GPIO    M1--PD12--CM
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_12 | GPIO_Pin_15 ;	 //M2 PD15--FR
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;//普通输出模式
	GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉
	GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化GPIOD

				//GPIO    M2--PA12--CM     M2-PA11-BM
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_11 | GPIO_Pin_12 ;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;//普通输出模式
	GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;//推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//上拉
	GPIO_Init(GPIOA, &GPIO_InitStructure);//初始化GPIOD

	//GPIO  //FG and RD   all feedback
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_9|  GPIO_Pin_13;	//输入
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN;//普通输入模式
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//
	GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化GPIOD

		//GPIO  // M2--PC8--RD  M2--FG--PC14
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_8 | GPIO_Pin_14;	//输入
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN;//普通输入模式
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_UP;//
	GPIO_Init(GPIOC, &GPIO_InitStructure);//初始化GPIOD

	//GPIO  // CMTMOD--PD10
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_10|GPIO_Pin_11;	//输入
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;//普通输入模式
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_100MHz;//100MHz
	GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_DOWN;//
	GPIO_Init(GPIOD, &GPIO_InitStructure);//初始化GPIOD


	TIM_TimeBaseStructure.TIM_Period= arr-1;
	TIM_TimeBaseStructure.TIM_Prescaler= pre-1;
	TIM_TimeBaseStructure.TIM_CounterMode=TIM_CounterMode_Up;
	TIM_TimeBaseStructure.TIM_ClockDivision=TIM_CKD_DIV1;
	TIM_TimeBaseInit(TIM12,&TIM_TimeBaseStructure);	 //TIM12

	TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1;
	TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;
	TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High;

//	TIM_DeInit(TIM12);

	TIM_OC1Init(TIM12, &TIM_OCInitStructure);//初始化外设TIM1 OC1--OC4
	TIM_OC2Init(TIM12, &TIM_OCInitStructure);
	TIM_OC3Init(TIM12, &TIM_OCInitStructure);
	TIM_OC4Init(TIM12, &TIM_OCInitStructure);

	TIM_OC1PreloadConfig(TIM12, TIM_OCPreload_Enable);//使能预装载寄存器
	TIM_OC2PreloadConfig(TIM12, TIM_OCPreload_Enable);
  TIM_OC3PreloadConfig(TIM12, TIM_OCPreload_Enable);
	TIM_OC4PreloadConfig(TIM12, TIM_OCPreload_Enable);

	TIM_ARRPreloadConfig(TIM12,ENABLE);

	TIM_Cmd(TIM12, ENABLE);

	//M1
	// PD12--CM
	GPIO_ResetBits(GPIOD, GPIO_Pin_10 );//PD10---FR  PD11---BM

	GPIO_SetBits(GPIOD, GPIO_Pin_12 );// PD12--CM

	//M2
	GPIO_ResetBits(GPIOA, GPIO_Pin_11 );// PA11--BM
	GPIO_SetBits(GPIOA, GPIO_Pin_12 );// PD12--CM

}

三.如何判断芯片时候损坏

当VM供12V电时，如果VINT没有5V输出，就可以认为芯片坏了
