GD32F4XX SPI DMA容易被中断打断导致传输异常问题

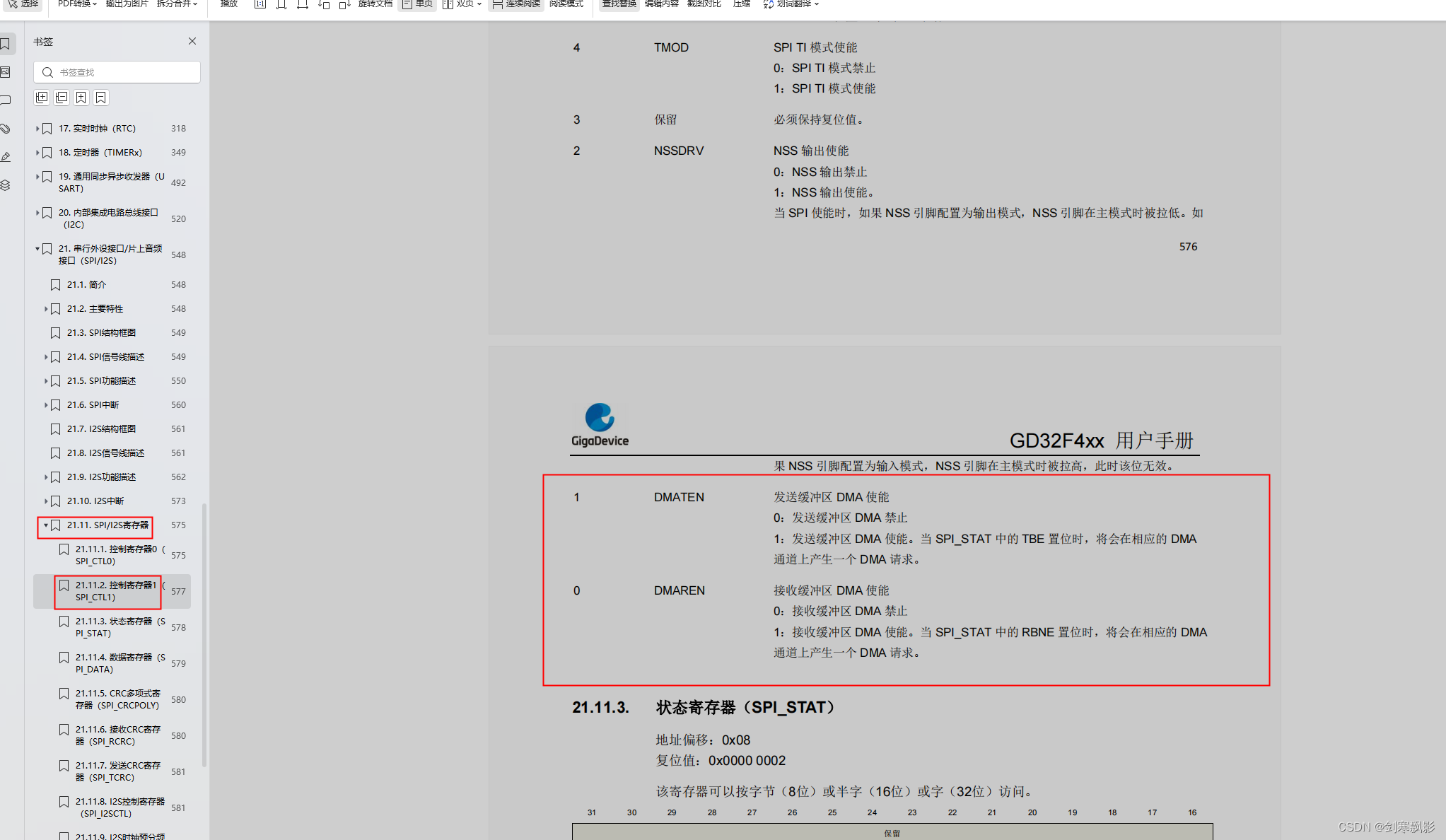

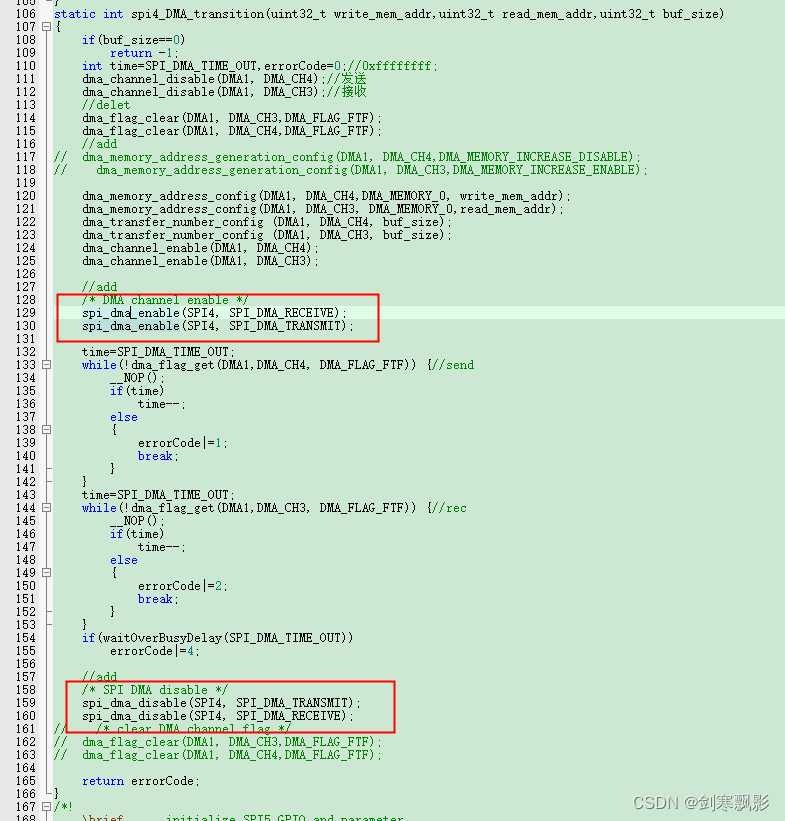

主要注意点在（2.dma触发spi传输函数）部分。如下图加入这个后就稳定了。

1.初始化代码

void spi4_dma_config(void)
{
    dma_single_data_parameter_struct dma_init_struct;

    /* configure SPI4 transmit dma */
    dma_deinit(DMA1, DMA_CH4);
    dma_init_struct.periph_addr         = (uint32_t)&SPI_DATA(SPI4);
    dma_init_struct.memory0_addr        = NULL;
    dma_init_struct.direction           = DMA_MEMORY_TO_PERIPH;
    dma_init_struct.periph_memory_width = DMA_PERIPH_WIDTH_8BIT;
    dma_init_struct.priority            = DMA_PRIORITY_LOW;
    dma_init_struct.number              = 0;
    dma_init_struct.periph_inc          = DMA_PERIPH_INCREASE_DISABLE;
    dma_init_struct.memory_inc          = DMA_MEMORY_INCREASE_ENABLE;
    dma_init_struct.circular_mode       = DMA_CIRCULAR_MODE_DISABLE;
    dma_single_data_mode_init(DMA1, DMA_CH4, &dma_init_struct);
    dma_channel_subperipheral_select(DMA1, DMA_CH4, DMA_SUBPERI2);

    /* configure SPI4 receive dma */
    dma_deinit(DMA1, DMA_CH3);
    dma_init_struct.periph_addr  = (uint32_t)&SPI_DATA(SPI4);
    dma_init_struct.memory0_addr = NULL;
    dma_init_struct.direction    = DMA_PERIPH_TO_MEMORY;
    dma_init_struct.priority     = DMA_PRIORITY_HIGH;
    dma_single_data_mode_init(DMA1, DMA_CH3, &dma_init_struct);
    dma_channel_subperipheral_select(DMA1, DMA_CH3, DMA_SUBPERI2);

	spi_dma_enable(SPI4, SPI_DMA_TRANSMIT);
    spi_dma_enable(SPI4, SPI_DMA_RECEIVE);
}
void spi_flash_init(void)
{
	rcu_periph_clock_enable(RCU_SPI4);
	rcu_periph_clock_enable(RCU_DMA1);

	spi4_dma_config();

    spi_parameter_struct spi_init_struct;
    /* chip select invalid */
    SPI_FLASH_CS_HIGH();
    /* SPI5 parameter config */
    spi_init_struct.trans_mode           = SPI_TRANSMODE_FULLDUPLEX;
    spi_init_struct.device_mode          = SPI_MASTER;
    spi_init_struct.frame_size           = SPI_FRAMESIZE_8BIT;
    spi_init_struct.clock_polarity_phase = SPI_CK_PL_LOW_PH_1EDGE;
    spi_init_struct.nss                  = SPI_NSS_SOFT;
    spi_init_struct.prescale             = SPI_PSC_2;
    spi_init_struct.endian               = SPI_ENDIAN_MSB;
    spi_init(SPI4, &spi_init_struct);
    /* enable SPI5 */
    spi_enable(SPI4);
}

2.dma触发spi传输函数

static int spi4_DMA_transition(uint32_t write_mem_addr,uint32_t read_mem_addr,uint32_t buf_size)
{
	if(buf_size==0)
		return -1;
	int time=SPI_DMA_TIME_OUT,errorCode=0;//0xffffffff;
	dma_channel_disable(DMA1, DMA_CH4);//发送
	dma_channel_disable(DMA1, DMA_CH3);//接收
	//delet 对比FAE给出的需要删除的
	dma_flag_clear(DMA1, DMA_CH3,DMA_FLAG_FTF);
	dma_flag_clear(DMA1, DMA_CH4,DMA_FLAG_FTF);
	//add 对比FAE给出的需要添加的
//	dma_memory_address_generation_config(DMA1, DMA_CH4,DMA_MEMORY_INCREASE_DISABLE);
//    dma_memory_address_generation_config(DMA1, DMA_CH3,DMA_MEMORY_INCREASE_ENABLE);

	dma_memory_address_config(DMA1, DMA_CH4,DMA_MEMORY_0, write_mem_addr);
	dma_memory_address_config(DMA1, DMA_CH3, DMA_MEMORY_0,read_mem_addr);
	dma_transfer_number_config (DMA1, DMA_CH4, buf_size);
	dma_transfer_number_config (DMA1, DMA_CH3, buf_size);
	dma_channel_enable(DMA1, DMA_CH4);
	dma_channel_enable(DMA1, DMA_CH3);

	//add
	/* DMA channel enable */
    spi_dma_enable(SPI4, SPI_DMA_RECEIVE);
    spi_dma_enable(SPI4, SPI_DMA_TRANSMIT);//1.配置完成先开启一次

	time=SPI_DMA_TIME_OUT;
	while(!dma_flag_get(DMA1,DMA_CH4, DMA_FLAG_FTF)) {//send
		__NOP();
		if(time)
			time--;
		else
		{
			errorCode|=1;
			break;
		}
	}
	time=SPI_DMA_TIME_OUT;
	while(!dma_flag_get(DMA1,DMA_CH3, DMA_FLAG_FTF)) {//rec
		__NOP();
		if(time)
			time--;
		else
		{
			errorCode|=2;
			break;
		}
	}
	if(waitOverBusyDelay(SPI_DMA_TIME_OUT))
		errorCode|=4;

	//add
    /* SPI DMA disable */
    spi_dma_disable(SPI4, SPI_DMA_TRANSMIT);//2.传输完成再关闭，，，这两条不加入有中断就可能导致传输异常
    spi_dma_disable(SPI4, SPI_DMA_RECEIVE);
//    /* clear DMA channel flag */
//	dma_flag_clear(DMA1, DMA_CH3,DMA_FLAG_FTF);
//	dma_flag_clear(DMA1, DMA_CH4,DMA_FLAG_FTF);

	return errorCode;
}

3.对外封装例如flash读取

void spi_flash_buffer_read(uint8_t* pbuffer, uint32_t read_addr, uint32_t num_byte_to_read)
{
    SPI_FLASH_CS_LOW();
	if(norFlashUseDma)
	{
		uint32_t packLen=32768;//max 65535
		uint32_t group=num_byte_to_read/packLen,remain=num_byte_to_read%packLen,g=0,errorCode=0,reLen=0;
		uint8_t buf[4]={0};
		buf[0]=READ;
		buf[1]=(read_addr & 0xFF0000) >> 16;
		buf[2]=(read_addr & 0xFF00) >> 8;
		buf[3]=read_addr & 0xFF;
		errorCode=spi4_DMA_transition((uint32_t)buf,(uint32_t)DMA_CHMADDR_RESET_VALUE,4);
		while(errorCode)
		{
			//------方案1-重发此包-------
			errorCode=spi4_DMA_transition((uint32_t)buf,(uint32_t)DMA_CHMADDR_RESET_VALUE,4);
			//-----方案2-接着走-------
//			reLen=getDmaRemainLen(DMA1);//还剩下的长度
//			reLen=4-reLen;//未发送的长度
//			errorCode=spi4_DMA_transition((uint32_t)(buf+reLen),(uint32_t)DMA_CHMADDR_RESET_VALUE,reLen);
		}
		for(g=0;g<group;g++)
		{
			errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(pbuffer+(g*packLen)),packLen);
			while(errorCode)
			{
				//------方案1-重发此包-------
				errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(pbuffer+(g*packLen)),packLen);
				//-----方案2-接着走-------
//				reLen=getDmaRemainLen(DMA1);
//				reLen=65535-reLen;
//				errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(buf+(g*65535)+reLen),reLen);
			}
		}
		if(remain)
		{
			errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(pbuffer+(g*packLen)),remain);
			while(errorCode)
			{
				//------方案1-重发此包-------
				errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(pbuffer+(g*packLen)),remain);
				//-----方案2-接着走-------
//				reLen=getDmaRemainLen(DMA1);
//				reLen=remain-reLen;
//				errorCode=spi4_DMA_transition((uint32_t)DMA_CHMADDR_RESET_VALUE,(uint32_t)(buf+(g*65535)+reLen),reLen);
			}
		}
	}else
	{
		if((read_addr>=FLASH_IMAGE_START_ADDR)&&(read_addr<FLASH_IMAGE_START_ADDR+FLASH_PIC_TEXT_SIZE))
		{
			norFlashUseDma=norFlashUseDma;
		}
		/* send "read from memory " instruction */
		spi_flash_send_byte(READ);
		/* send read_addr high nibble address byte to read from */
		spi_flash_send_byte((read_addr & 0xFF0000) >> 16);
		/* send read_addr medium nibble address byte to read from */
		spi_flash_send_byte((read_addr& 0xFF00) >> 8);
		/* send read_addr low nibble address byte to read from */
		spi_flash_send_byte(read_addr & 0xFF);
		/* while there is data to be read */
		while(num_byte_to_read--){
			/* read a byte from the flash */
			*pbuffer = spi_flash_send_byte(DUMMY_BYTE);
			/* point to the next location where the byte read will be saved */
			pbuffer++;
		}
	}
    SPI_FLASH_CS_HIGH();
}
