Android MediaRecoder
一.MediaRecorder整体架构

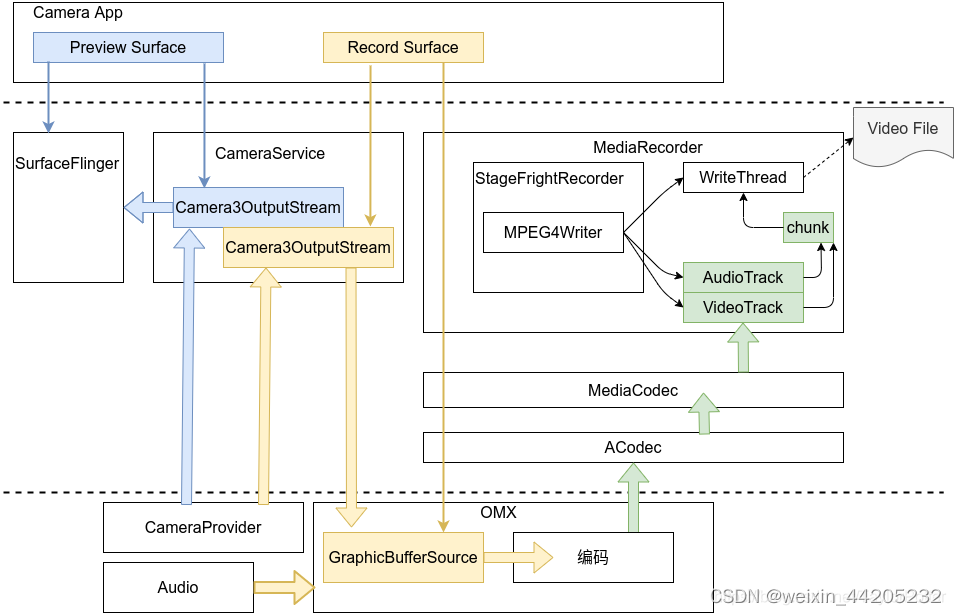

1.1 MediaRecorder录制数据流框架
简单过程:
1.Camera应用中至少有两个Surface,一个使用于preview的,另一个使用来record的,record的surface是PersistentSurface类型,PersistentSurface中的GraphicBufferSource类型的成员变量mBufferSource最终由编码器创建引用;
2.CameraServer中持有Record Surface的producer引用和Preview Surface的producer引用,因此预览和录制CameraServer都充当着生产者的角色;
3.在向CameraProvider发request的时候先dequeueBuffer送至HAL去填充,填充完HAL发回result这时queueBuffer将数据填充至BufferQueue中,由BufferQueue的原理,可知这时候BufferQueue的Consumer将回调onFrameAvailable函数去收到数据准备完成通知,接下来Consumer使用acquireBuffer去消费即可,消费完即releaseBuffer去释放Buffer;
4.对于preview,消费者就是Surfaceflinger了,合成消费后拿去显示,对于record,消费者就是编码器了,举例OMX一种,编码器获取到数据消费用于编码;
5.编码器编完码之后将调用Framework中MediaServer的回调,将编码后的数据传递至MediaRecorder;
6.MediaRecorder在start之后将启动一个WriteThread,两个TrackThread(分别是Video和Audio),当TrackThread跟踪到有相应数据后将video或audio的数据分装成Chunk数据结构,保存在MPEG4Writer成员变量mChunks中.这时WriteThread发现有数据可写会将mChunks中的chunk写到文件中.
以上参考 Android MediaRecorder框架简洁梳理
二、MediaRecoder的相关流程
2.1 MediaRecoder的创建
在Android Camera(一)的4.2中会创建一个MediaRecoder对象。
/frameworks/base/media/java/android/media/MediaRecorder.java
141 @Deprecated
142 public MediaRecorder() {
143 this(ActivityThread.currentApplication());
144 }
145
146 /**
147 * Default constructor.
148 *
149 * @param context Context the recorder belongs to
150 */
151 public MediaRecorder(@NonNull Context context) {
152 Objects.requireNonNull(context);
153 Looper looper;
154 if ((looper = Looper.myLooper()) != null) {
155 mEventHandler = new EventHandler(this, looper);
156 } else if ((looper = Looper.getMainLooper()) != null) {
157 mEventHandler = new EventHandler(this, looper);
158 } else {
159 mEventHandler = null;
160 }
161
162 mChannelCount = 1;
163 /* Native setup requires a weak reference to our object.
164 * It's easier to create it here than in C++.
165 */
166 try (ScopedParcelState attributionSourceState = context.getAttributionSource()
167 .asScopedParcelState()) {
168 native_setup(new WeakReference<>(this), ActivityThread.currentPackageName(),
169 attributionSourceState.getParcel());
170 }
171 }
在加载MediaRecoder的类时会加载media_jni的库接着调用native_init初始化meida
/frameworks/base/media/java/android/media/MediaRecorder.java
106 static {
107 System.loadLibrary("media_jni");
108 native_init();
109 }
在MediaRecoder的构造函数中则是调用了native_setup。
native_init和native_setup时JNI函数最终会调用到下面的两个函数：
/frameworks/base/media/jni/android_media_MediaRecorder.cpp
580 static void
581 android_media_MediaRecorder_native_init(JNIEnv *env)
582 {
583 jclass clazz;
584 //native_init只是将native的成员变量和java的成员变量关联起来
585 clazz = env->FindClass("android/media/MediaRecorder");
586 if (clazz == NULL) {
587 return;
588 }
589
590 fields.context = env->GetFieldID(clazz, "mNativeContext", "J");
591 if (fields.context == NULL) {
592 return;
593 }
594
595 fields.surface = env->GetFieldID(clazz, "mSurface", "Landroid/view/Surface;");
596 if (fields.surface == NULL) {
597 return;
598 }
599
600 jclass surface = env->FindClass("android/view/Surface");
601 if (surface == NULL) {
602 return;
603 }
604
605 fields.post_event = env->GetStaticMethodID(clazz, "postEventFromNative",
606 "(Ljava/lang/Object;IIILjava/lang/Object;)V");
607 if (fields.post_event == NULL) {
608 return;
609 }
610
611 clazz = env->FindClass("java/util/ArrayList");
612 if (clazz == NULL) {
613 return;
614 }
615 gArrayListFields.add = env->GetMethodID(clazz, "add", "(Ljava/lang/Object;)Z");
616 gArrayListFields.classId = static_cast<jclass>(env->NewGlobalRef(clazz));
617 }
618
619
620 static void
621 android_media_MediaRecorder_native_setup(JNIEnv *env, jobject thiz, jobject weak_this,
622 jstring packageName, jobject jAttributionSource)
623 {
624 ALOGV("setup");
625
626 Parcel* parcel = parcelForJavaObject(env, jAttributionSource);
627 android::content::AttributionSourceState attributionSource;
628 attributionSource.readFromParcel(parcel);
//创建native层的MediaRecorder
629 sp<MediaRecorder> mr = new MediaRecorder(attributionSource);
630
631 if (mr == NULL) {
632 jniThrowException(env, "java/lang/RuntimeException", "Out of memory");
633 return;
634 }
635 if (mr->initCheck() != NO_ERROR) {
636 jniThrowException(env, "java/lang/RuntimeException", "Unable to initialize media recorder");
637 return;
638 }
639
640 // create new listener and give it to MediaRecorder
//创建一个回调监听，当有回调时会调用到java层的postEventFromNative
641 sp<JNIMediaRecorderListener> listener = new JNIMediaRecorderListener(env, thiz, weak_this);
642 mr->setListener(listener);
643
644 // Convert client name jstring to String16
645 const char16_t *rawClientName = reinterpret_cast<const char16_t*>(
646 env->GetStringChars(packageName, NULL));
647 jsize rawClientNameLen = env->GetStringLength(packageName);
648 String16 clientName(rawClientName, rawClientNameLen);
649 env->ReleaseStringChars(packageName,
650 reinterpret_cast<const jchar*>(rawClientName));
651
652 // pass client package name for permissions tracking
653 mr->setClientName(clientName);
654
655 setMediaRecorder(env, thiz, mr);
656 }
2.1.1 native层的MediaRecorder
/frameworks/av/media/libmedia/mediarecorder.cpp
763 MediaRecorder::MediaRecorder(const AttributionSourceState &attributionSource)
764 : mSurfaceMediaSource(NULL)
765 {
766 ALOGV("constructor");
767 //通过binder连接到MediaPlayerService来创建一个MediaRecorder
768 const sp<IMediaPlayerService> service(getMediaPlayerService());
769 if (service != NULL) {
770 mMediaRecorder = service->createMediaRecorder(attributionSource);
771 }
772 if (mMediaRecorder != NULL) {
773 mCurrentState = MEDIA_RECORDER_IDLE;
774 }
775
776 //设置一些变量为false
777 doCleanUp();
778 }
从上面我们知道了native层的MediaRecoder最终会调用到MediaPlayerService中创建MediaRecorder从这里开始就跨进程了，从app进程到media server进程(MediaPlayerService时运行在media server进程中的)
/frameworks/av/media/libmediaplayerservice/MediaPlayerService.cpp
458 sp<IMediaRecorder> MediaPlayerService::createMediaRecorder(
459 const AttributionSourceState& attributionSource)
460 {
461 // TODO b/182392769: use attribution source util
462 AttributionSourceState verifiedAttributionSource = attributionSource;
463 verifiedAttributionSource.uid = VALUE_OR_FATAL(
464 legacy2aidl_uid_t_int32_t(IPCThreadState::self()->getCallingUid()));
465 verifiedAttributionSource.pid = VALUE_OR_FATAL(
466 legacy2aidl_pid_t_int32_t(IPCThreadState::self()->getCallingPid()));
//创建一个MediaRecorderClient并返回给app进程
467 sp<MediaRecorderClient> recorder =
468 new MediaRecorderClient(this, verifiedAttributionSource);
469 wp<MediaRecorderClient> w = recorder;
470 Mutex::Autolock lock(mLock);
471 mMediaRecorderClients.add(w);
472 ALOGV("Create new media recorder client from pid %s",
473 verifiedAttributionSource.toString().c_str());
474 return recorder;
475 }
/frameworks/av/media/libmediaplayerservice/MediaRecorderClient.cpp
380 MediaRecorderClient::MediaRecorderClient(const sp<MediaPlayerService>& service,
381 const AttributionSourceState& attributionSource)
382 {
383 ALOGV("Client constructor");
384 // attribution source already validated in createMediaRecorder
385 mAttributionSource = attributionSource;
//创建一个StagefrightRecorder
386 mRecorder = new StagefrightRecorder(attributionSource);
387 mMediaPlayerService = service;
388 }
所以media recorder最终是创建了StagefrightRecorder来做media recorder的工作。
2.2 设置MediaRecorder
media recorder的设置主要在Android Camera模块(一)的4.2 其中设置了很多相关的属性
1146 mMediaRecorder.setCamera(camera); //对应StagefrightRecorder 的 setCamera
1147 mMediaRecorder.setAudioSource(MediaRecorder.AudioSource.CAMCORDER);//对应StagefrightRecorder 的 setAudioSource
1148 mMediaRecorder.setVideoSource(MediaRecorder.VideoSource.CAMERA);//对应StagefrightRecorder 的 setVideoSource
1149 mMediaRecorder.setProfile(mProfile);//设置默认的各种参数
1150 mMediaRecorder.setVideoSize(mProfile.videoFrameWidth, mProfile.videoFrameHeight);//对应StagefrightRecorder 的 setVideoSize
1151 mMediaRecorder.setMaxDuration(mMaxVideoDurationInMs);//对应StagefrightRecorder 的 setParameters
...
1203 Location loc = mLocationManager.getCurrentLocation();
1204 if (loc != null) {
1205 mMediaRecorder.setLocation((float) loc.getLatitude(),
1206 (float) loc.getLongitude());//对应StagefrightRecorder 的 setParameters
1207 }
1156 if (mVideoFileDescriptor != null) {
1157 mMediaRecorder.setOutputFile(mVideoFileDescriptor.getFileDescriptor());//对应StagefrightRecorder 的 setOutputFile
1158 } else {
1159 releaseMediaRecorder();
1160 throw new RuntimeException("No valid video file descriptor");
1161 }
1169 try {
1170 mMediaRecorder.setMaxFileSize(maxFileSize);//对应StagefrightRecorder 的 setParameters
1171 } catch (RuntimeException exception) {
1172 // We are going to ignore failure of setMaxFileSize here, as
1173 // a) The composer selected may simply not support it, or
1174 // b) The underlying media framework may not handle 64-bit range
1175 // on the size restriction.
1176 }
1184 mMediaRecorder.setOrientationHint(rotation);//对应StagefrightRecorder 的 setParameters
从上面的代码中可以看到MediaRecorder设置的VideoSource为CAMERA，AudioSource是CAMCORDER 因为VideoSource不是SURFACE，所以不需要传Surface进去。
2.3 MediaRecorder.prepare
根据上面所描述的 MediaRecorder.prepare的调用分为两种情况，
1.MediaRecorder持有Surface的情况
2.MediaRecorder没有Surface的情况
主要区别在于jni的调用流程不同
/frameworks/base/media/jni/android_media_MediaRecorder.cpp
438 static void
439 android_media_MediaRecorder_prepare(JNIEnv *env, jobject thiz)
440 {
441 ALOGV("prepare");
442 sp<MediaRecorder> mr = getMediaRecorder(env, thiz);
443 if (mr == NULL) {
444 jniThrowException(env, "java/lang/IllegalStateException", NULL);
445 return;
446 }
447
448 jobject surface = env->GetObjectField(thiz, fields.surface);
449 if (surface != NULL) {
//如果java层的MeidaRecorder持有sufrace,那么prepare最终会调用到StagefrightRecorder的setPreviewSurface
450 const sp<Surface> native_surface = get_surface(env, surface);
451
452 // The application may misbehave and
453 // the preview surface becomes unavailable
454 if (native_surface.get() == 0) {
455 ALOGE("Application lost the surface");
456 jniThrowException(env, "java/io/IOException", "invalid preview surface");
457 return;
458 }
459
460 ALOGI("prepare: surface=%p", native_surface.get());
461 if (process_media_recorder_call(env, mr->setPreviewSurface(native_surface->getIGraphicBufferProducer()), "java/lang/RuntimeException", "setPreviewSurface failed.")) {
462 return;
463 }
464 }
//java层的MeidaRecorder持有sufrace为null，调用StagefrightRecorder的prepare
465 process_media_recorder_call(env, mr->prepare(), "java/io/IOException", "prepare failed.");
466 }
在JNI的android_media_MediaRecorder_prepare函数调用中如果如果java层的MeidaRecorder持有sufrace,那么prepare最终会调用到StagefrightRecorder的setPreviewSurface，将surface设置给StagefrightRecorder的成员变量mPreviewSurface，但是如果没有surface那么就会调用StagefrightRecorder的prepare
/frameworks/av/media/libmediaplayerservice/StagefrightRecorder.cpp
1204 status_t StagefrightRecorder::prepare() {
1205 ALOGV("prepare");
1206 Mutex::Autolock autolock(mLock);
1207 if (mVideoSource == VIDEO_SOURCE_SURFACE) {
1208 return prepareInternal();
1209 }
1210 return OK;
1211 }
1212
由于我们这里的mVideoSource == VIDEO_SOURCE_CAMERA(因为我们设置的VideoSource是MediaRecorder.VideoSource.CAMERA)所以相当于什么也没做。
2.4 MediaRecorder.start
同样的 MediaRecorder.start最终也是调用到StagefrightRecorder的start函数
/frameworks/av/media/libmediaplayerservice/StagefrightRecorder.cpp
1213 status_t StagefrightRecorder::start() {
1214 ALOGV("start");
1215 Mutex::Autolock autolock(mLock);
1216 if (mOutputFd < 0) {
1217 ALOGE("Output file descriptor is invalid");
1218 return INVALID_OPERATION;
1219 }
1220
1221 status_t status = OK;
1222 //我们的mVideoSource是VIDEO_SOURCE_CAMERA 所以这边会调用prepareInternal去根据输出文件的格式来设置这里以mWriter
1223 if (mVideoSource != VIDEO_SOURCE_SURFACE) {
1224 status = prepareInternal();
1225 if (status != OK) {
1226 return status;
1227 }
1228 }
1229
1230 if (mWriter == NULL) {
1231 ALOGE("File writer is not avaialble");
1232 return UNKNOWN_ERROR;
1233 }
1234 //同样需要根据输出文件格式设置MetaData接着调用对应的writer的start函数开始录制
1235 switch (mOutputFormat) {
//这里以MPEG4为例介绍 文件封装为mp4
1236 case OUTPUT_FORMAT_DEFAULT:
1237 case OUTPUT_FORMAT_THREE_GPP:
1238 case OUTPUT_FORMAT_MPEG_4:
1239 case OUTPUT_FORMAT_WEBM:
1240 {
1241 bool isMPEG4 = true;
1242 if (mOutputFormat == OUTPUT_FORMAT_WEBM) {
1243 isMPEG4 = false;
1244 }
1245 sp<MetaData> meta = new MetaData;
1246 setupMPEG4orWEBMMetaData(&meta);
1247 status = mWriter->start(meta.get());
1248 break;
1249 }
1250
...
1276
1277 default:
1278 {
1279 ALOGE("Unsupported output file format: %d", mOutputFormat);
1280 status = UNKNOWN_ERROR;
1281 break;
1282 }
1283 }
1284
1285 if (status != OK) {
1286 mWriter.clear();
1287 mWriter = NULL;
1288 }
1289
1290 if ((status == OK) && (!mStarted)) {
1291 mAnalyticsDirty = true;
1292 mStarted = true;
1293
1294 mStartedRecordingUs = systemTime() / 1000;
1295
1296 uint32_t params = IMediaPlayerService::kBatteryDataCodecStarted;
1297 if (mAudioSource != AUDIO_SOURCE_CNT) {
1298 params |= IMediaPlayerService::kBatteryDataTrackAudio;
1299 }
1300 if (mVideoSource != VIDEO_SOURCE_LIST_END) {
1301 params |= IMediaPlayerService::kBatteryDataTrackVideo;
1302 }
1303
1304 addBatteryData(params);
1305 }
1306
1307 return status;
1308 }
1153 status_t StagefrightRecorder::prepareInternal() {
1154 ALOGV("prepare");
1155 if (mOutputFd < 0) {
1156 ALOGE("Output file descriptor is invalid");
1157 return INVALID_OPERATION;
1158 }
1159
1160 status_t status = OK;
1161
1162 switch (mOutputFormat) {
1163 case OUTPUT_FORMAT_DEFAULT:
1164 case OUTPUT_FORMAT_THREE_GPP:
1165 case OUTPUT_FORMAT_MPEG_4:
1166 case OUTPUT_FORMAT_WEBM:
//调用setupMPEG4orWEBMRecording来新建MediaWriter
1167 status = setupMPEG4orWEBMRecording();
1168 break;
1169 ...
1191
1192 default:
1193 ALOGE("Unsupported output file format: %d", mOutputFormat);
1194 status = UNKNOWN_ERROR;
1195 break;
1196 }
1197
1198 ALOGV("Recording frameRate: %d captureFps: %f",
1199 mFrameRate, mCaptureFps);
1200
1201 return status;
1202 }
2146 status_t StagefrightRecorder::setupMPEG4orWEBMRecording() {
2147 mWriter.clear();
2148 mTotalBitRate = 0;
2149
2150 status_t err = OK;
2151 sp<MediaWriter> writer;
2152 sp<MPEG4Writer> mp4writer;
2153 if (mOutputFormat == OUTPUT_FORMAT_WEBM) {
2154 writer = new WebmWriter(mOutputFd);
2155 } else {
2156 writer = mp4writer = new MPEG4Writer(mOutputFd);
2157 }
2158 //mVideoSource == VIDEO_SOURCE_CAMERA < VIDEO_SOURCE_LIST_END
2159 if (mVideoSource < VIDEO_SOURCE_LIST_END) {
2160 setDefaultVideoEncoderIfNecessary();
2161
2162 sp<MediaSource> mediaSource;
//当前是录像所以这边的mediaSource返回的是Camera的数据
2163 err = setupMediaSource(&mediaSource);
2164 if (err != OK) {
2165 return err;
2166 }
2167
2168 sp<MediaCodecSource> encoder;
//设置H264/mpeg_4-avc编码
2169 err = setupVideoEncoder(mediaSource, &encoder);
2170 if (err != OK) {
2171 return err;
2172 }
2173 //将视频编码器包装成Track加入到MPEG4Writer中的mTracks
2174 writer->addSource(encoder);
2175 mVideoEncoderSource = encoder;
2176 mTotalBitRate += mVideoBitRate;
2177 }
2178
2179 // Audio source is added at the end if it exists.
2180 // This help make sure that the "recoding" sound is suppressed for
2181 // camcorder applications in the recorded files.
2182 // disable audio for time lapse recording
2183 const bool disableAudio = mCaptureFpsEnable && mCaptureFps < mFrameRate;
2184 if (!disableAudio && mAudioSource != AUDIO_SOURCE_CNT) {
//设置音频解码器并包装成Track加入到MPEG4Writer中的mTracks
2185 err = setupAudioEncoder(writer);
2186 if (err != OK) return err;
2187 mTotalBitRate += mAudioBitRate;
2188 }
2189
2190 if (mOutputFormat != OUTPUT_FORMAT_WEBM) {
2191 if (mCaptureFpsEnable) {
2192 mp4writer->setCaptureRate(mCaptureFps);
2193 }
2194
2195 if (mInterleaveDurationUs > 0) {
2196 mp4writer->setInterleaveDuration(mInterleaveDurationUs);
2197 }
2198 if (mLongitudex10000 > -3600000 && mLatitudex10000 > -3600000) {
2199 mp4writer->setGeoData(mLatitudex10000, mLongitudex10000);
2200 }
2201 }
2202 if (mMaxFileDurationUs != 0) {
2203 writer->setMaxFileDuration(mMaxFileDurationUs);
2204 }
2205 if (mMaxFileSizeBytes != 0) {
2206 writer->setMaxFileSize(mMaxFileSizeBytes);
2207 }
2208 if (mVideoSource == VIDEO_SOURCE_DEFAULT
2209 || mVideoSource == VIDEO_SOURCE_CAMERA) {
2210 mStartTimeOffsetMs = mEncoderProfiles->getStartTimeOffsetMs(mCameraId);
2211 } else if (mVideoSource == VIDEO_SOURCE_SURFACE) {
2212 // surface source doesn't need large initial delay
2213 mStartTimeOffsetMs = 100;
2214 }
2215 if (mStartTimeOffsetMs > 0) {
2216 writer->setStartTimeOffsetMs(mStartTimeOffsetMs);
2217 }
2218
2219 writer->setListener(mListener);
2220 mWriter = writer;
2221 return OK;
2222 }
在StagefrightRecorder::start函数由于我们设置的Video的资源类型是Camera，所以我们是在start函数中调用了prepareInternal来设置我们的writer，但是如果你传入了 surface 并设置Video的资源类型是Surface，那么其实在调用MediaRecorder.prepare时就会设置writer了。此外我们一般使用的是MP4格式，所以对应的mOutputFormat是OUTPUT_FORMAT_MPEG_4，所以我们创建的writer是MPEG4Writer。接着还需要设置视频和音频的解码器到MPEG4Writer中。
2.4.1 设置视频编码器
代码如下：
2146 status_t StagefrightRecorder::setupMPEG4orWEBMRecording() {
...
2159 if (mVideoSource < VIDEO_SOURCE_LIST_END) {
2160 setDefaultVideoEncoderIfNecessary();
2161
2162 sp<MediaSource> mediaSource;
2163 err = setupMediaSource(&mediaSource);
2164 if (err != OK) {
2165 return err;
2166 }
2167
2168 sp<MediaCodecSource> encoder;
2169 err = setupVideoEncoder(mediaSource, &encoder);
2170 if (err != OK) {
2171 return err;
2172 }
2173
2174 writer->addSource(encoder);
2175 mVideoEncoderSource = encoder;
2176 mTotalBitRate += mVideoBitRate;
2177 }
...
}
可以看到上面的流程主要是三步：
1.设置媒体资源 （可能是camera传过来的数据，也可能是surface的数据）
2.设置视频解码器
3.将解码器加入到MPEG4Writer中
先看第一步设置媒体资源
/frameworks/av/media/libmediaplayerservice/StagefrightRecorder.cpp
1857 status_t StagefrightRecorder::setupMediaSource(
1858 sp<MediaSource> *mediaSource) {
//由于我们这里是Camera的资源，所以走if分支
1859 if (mVideoSource == VIDEO_SOURCE_DEFAULT
1860 || mVideoSource == VIDEO_SOURCE_CAMERA) {
1861 sp<CameraSource> cameraSource;
1862 status_t err = setupCameraSource(&cameraSource);
1863 if (err != OK) {
1864 return err;
1865 }
1866 *mediaSource = cameraSource;
1867 } else if (mVideoSource == VIDEO_SOURCE_SURFACE) {
1868 *mediaSource = NULL;
1869 } else {
1870 return INVALID_OPERATION;
1871 }
1872 return OK;
1873 }
1875 status_t StagefrightRecorder::setupCameraSource(
1876 sp<CameraSource> *cameraSource) {
1877 status_t err = OK;
1878 if ((err = checkVideoEncoderCapabilities()) != OK) {
1879 return err;
1880 }
1881 Size videoSize;
1882 videoSize.width = mVideoWidth;
1883 videoSize.height = mVideoHeight;
1884 uid_t uid = VALUE_OR_RETURN_STATUS(aidl2legacy_int32_t_uid_t(mAttributionSource.uid));
1885 pid_t pid = VALUE_OR_RETURN_STATUS(aidl2legacy_int32_t_pid_t(mAttributionSource.pid));
1886 String16 clientName = VALUE_OR_RETURN_STATUS(
1887 aidl2legacy_string_view_String16(mAttributionSource.packageName.value_or("")));
//这里一般走else 和 MediaRecorder.java的setCaptureRate函数是否调用有关
1888 if (mCaptureFpsEnable) {
1889 if (!(mCaptureFps > 0.)) {
1890 ALOGE("Invalid mCaptureFps value: %lf", mCaptureFps);
1891 return BAD_VALUE;
1892 }
1893
1894 mCameraSourceTimeLapse = CameraSourceTimeLapse::CreateFromCamera(
1895 mCamera, mCameraProxy, mCameraId, clientName, uid, pid,
1896 videoSize, mFrameRate, mPreviewSurface,
1897 std::llround(1e6 / mCaptureFps));
1898 *cameraSource = mCameraSourceTimeLapse;
1899 } else {
//创建CameraSource
1900 *cameraSource = CameraSource::CreateFromCamera(
1901 mCamera, mCameraProxy, mCameraId, clientName, uid, pid,
1902 videoSize, mFrameRate,
1903 mPreviewSurface);
1904 }
1905 mCamera.clear();
1906 mCameraProxy.clear();
1907 if (*cameraSource == NULL) {
1908 return UNKNOWN_ERROR;
1909 }
1910
1911 if ((*cameraSource)->initCheck() != OK) {
1912 (*cameraSource).clear();
1913 *cameraSource = NULL;
1914 return NO_INIT;
1915 }
1916
1917 // When frame rate is not set, the actual frame rate will be set to
1918 // the current frame rate being used.
1919 if (mFrameRate == -1) {
1920 int32_t frameRate = 0;
1921 CHECK ((*cameraSource)->getFormat()->findInt32(
1922 kKeyFrameRate, &frameRate));
1923 ALOGI("Frame rate is not explicitly set. Use the current frame "
1924 "rate (%d fps)", frameRate);
1925 mFrameRate = frameRate;
1926 }
1927
1928 CHECK(mFrameRate != -1);
1929
1930 mMetaDataStoredInVideoBuffers =
1931 (*cameraSource)->metaDataStoredInVideoBuffers();
1932
1933 return OK;
1934 }
setupCameraSource主要就是创建CameraSource对象，接着需要将CameraSource设置给视频编码器，
1936 status_t StagefrightRecorder::setupVideoEncoder(
1937 const sp<MediaSource> &cameraSource,
1938 sp<MediaCodecSource> *source) {
1939 source->clear();
1940
1941 sp<AMessage> format = new AMessage();
1942
//设置各种参数给format
...
//把CameraSource传入创建编码器
2094 sp<MediaCodecSource> encoder = MediaCodecSource::Create(
2095 mLooper, format, cameraSource, mPersistentSurface, flags);
2096 if (encoder == NULL) {
2097 ALOGE("Failed to create video encoder");
2098 // When the encoder fails to be created, we need
2099 // release the camera source due to the camera's lock
2100 // and unlock mechanism.
2101 if (cameraSource != NULL) {
2102 cameraSource->stop();
2103 }
2104 return UNKNOWN_ERROR;
2105 }
2106
2107 if (cameraSource == NULL) {
2108 mGraphicBufferProducer = encoder->getGraphicBufferProducer();
2109 }
2110
2111 *source = encoder;
2112
2113 return OK;
2114 }
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
453 MediaCodecSource::MediaCodecSource(
454 const sp<ALooper> &looper,
455 const sp<AMessage> &outputFormat,
456 const sp<MediaSource> &source,
457 const sp<PersistentSurface> &persistentSurface,
458 uint32_t flags)
459 ... {
476 CHECK(mLooper != NULL);
477
478 if (!(mFlags & FLAG_USE_SURFACE_INPUT)) {
479 mPuller = new Puller(source);
480 }
481 }
109 MediaCodecSource::Puller::Puller(const sp<MediaSource> &source)
110 : mSource(source),
111 mLooper(new ALooper()),
112 mIsAudio(false)
113 {
114 sp<MetaData> meta = source->getFormat();
115 const char *mime;
116 CHECK(meta->findCString(kKeyMIMEType, &mime));
117
118 mIsAudio = !strncasecmp(mime, "audio/", 6);
119
120 mLooper->setName("pull_looper");
121 }
从上面可以知道视频编码器对象就是MediaCodecSource对象，而CameraSource对象则被传给了Puller的成员变量mSource
接着会将创建的视频编码器对象(MediaCodecSource)加入到MPEG4Writer中
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
653 status_t MPEG4Writer::addSource(const sp<MediaSource> &source) {
...
678
679 // This is a metadata track or the first track of either audio or video
680 // Go ahead to add the track.
//将编码器包装成Track放到mTracks中
681 Track *track = new Track(this, source, 1 + mTracks.size());
682 mTracks.push_back(track);
683
684 mHasMoovBox |= !track->isHeic();
685 mHasFileLevelMeta |= track->isHeic();
686
687 return OK;
688 }
2128 MPEG4Writer::Track::Track(
2129 MPEG4Writer *owner, const sp<MediaSource> &source, uint32_t aTrackId)
2130 : mOwner(owner),
2131 mMeta(source->getFormat()),
2132 mSource(source),
...
}
所以在MPEG4Writer中视频编码器被包装成了Track并且被赋给了Track的mSource成员变量
2.4.2 设置音频资源
设置音频资源其实和视频资源类似核心代码如下：
/frameworks/av/media/libmediaplayerservice/StagefrightRecorder.cpp
2146 status_t StagefrightRecorder::setupMPEG4orWEBMRecording() {
...
2179 // Audio source is added at the end if it exists.
2180 // This help make sure that the "recoding" sound is suppressed for
2181 // camcorder applications in the recorded files.
2182 // disable audio for time lapse recording
2183 const bool disableAudio = mCaptureFpsEnable && mCaptureFps < mFrameRate;
2184 if (!disableAudio && mAudioSource != AUDIO_SOURCE_CNT) {
//设置音频编码器
2185 err = setupAudioEncoder(writer);
2186 if (err != OK) return err;
2187 mTotalBitRate += mAudioBitRate;
2188 }
...
}
2116 status_t StagefrightRecorder::setupAudioEncoder(const sp<MediaWriter>& writer) {
2117 status_t status = BAD_VALUE;
2135 //创建音频编码器
2136 sp<MediaCodecSource> audioEncoder = createAudioSource();
2137 if (audioEncoder == NULL) {
2138 return UNKNOWN_ERROR;
2139 }
2140 //将编码器加入到writer中
2141 writer->addSource(audioEncoder);
2142 mAudioEncoderSource = audioEncoder;
2143 return OK;
2144 }
1310 sp<MediaCodecSource> StagefrightRecorder::createAudioSource() {
1311 int32_t sourceSampleRate = mSampleRate;
1312
...
1355 //创建音频资源
1356 sp<AudioSource> audioSource =
1357 new AudioSource(
1358 &attr,
1359 mAttributionSource,
1360 sourceSampleRate,
1361 mAudioChannels,
1362 mSampleRate,
1363 mSelectedDeviceId,
1364 mSelectedMicDirection,
1365 mSelectedMicFieldDimension);
1366
1367 status_t err = audioSource->initCheck();
1368
1369 if (err != OK) {
1370 ALOGE("audio source is not initialized");
1371 return NULL;
1372 }
1373 //设置编码的格式
...
1424 //以音频资源为参数创建编码器
1425 sp<MediaCodecSource> audioEncoder =
1426 MediaCodecSource::Create(mLooper, format, audioSource);
1427 sp<AudioSystem::AudioDeviceCallback> callback = mAudioDeviceCallback.promote();
1428 if (mDeviceCallbackEnabled && callback != 0) {
1429 audioSource->addAudioDeviceCallback(callback);
1430 }
1431 mAudioSourceNode = audioSource;
1432
1433 if (audioEncoder == NULL) {
1434 ALOGE("Failed to create audio encoder");
1435 }
1436
1437 return audioEncoder;
1438 }
可以看到和视频编码器的流程是一样的。
2.4.3 MPEG4Writer.start
接着会调用MPEG4Writer的start开启录制流程。
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
849 status_t MPEG4Writer::start(MetaData *param) {
850 if (mInitCheck != OK) {
851 return UNKNOWN_ERROR;
852 }
853 mStartMeta = param;
854
...
971 //启动 writer线程
972 err = startWriterThread();
973 if (err != OK) {
974 return err;
975 }
976 //设置并启动Looper
977 err = setupAndStartLooper();
978 if (err != OK) {
979 return err;
980 }
981 //写入录制文件的文件头部信息
982 writeFtypBox(param);
983
...
1021
1022 mOffset = mMdatOffset;
1023 seekOrPostError(mFd, mMdatOffset, SEEK_SET);
1024 write("\x00\x00\x00\x01mdat????????", 16);
1025
1026 /* Confirm whether the writing of the initial file atoms, ftyp and free,
1027 * are written to the file properly by posting kWhatNoIOErrorSoFar to the
1028 * MP4WtrCtrlHlpLooper that's handling write and seek errors also. If there
1029 * was kWhatIOError, the following two scenarios should be handled.
1030 * 1) If kWhatIOError was delivered and processed, MP4WtrCtrlHlpLooper
1031 * would have stopped all threads gracefully already and posting
1032 * kWhatNoIOErrorSoFar would fail.
1033 * 2) If kWhatIOError wasn't delivered or getting processed,
1034 * kWhatNoIOErrorSoFar should get posted successfully. Wait for
1035 * response from MP4WtrCtrlHlpLooper.
1036 */
1037 sp<AMessage> msg = new AMessage(kWhatNoIOErrorSoFar, mReflector);
1038 sp<AMessage> response;
1039 err = msg->postAndAwaitResponse(&response);
1040 if (err != OK || !response->findInt32("err", &err) || err != OK) {
1041 return ERROR_IO;
1042 }
1043 //开启音视频序列
1044 err = startTracks(param);
1045 if (err != OK) {
1046 return err;
1047 }
1048
1049 mStarted = true;
1050 return OK;
1051 }
2.4.4 startWriterThread
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
2829 status_t MPEG4Writer::startWriterThread() {
2830 ALOGV("startWriterThread");
2831
2832 mDone = false;
2833 mIsFirstChunk = true;
2834 mDriftTimeUs = 0;
//前面加入的音频和视频的编码器会被包装成track放到mTracks
2835 for (List<Track *>::iterator it = mTracks.begin();
2836 it != mTracks.end(); ++it) {
2837 ChunkInfo info;
2838 info.mTrack = *it;
2839 info.mPrevChunkTimestampUs = 0;
2840 info.mMaxInterChunkDurUs = 0;
//这里取出再包装成ChunkInfo放到mChunkInfos中
2841 mChunkInfos.push_back(info);
2842 }
2843
2844 pthread_attr_t attr;
2845 pthread_attr_init(&attr);
2846 pthread_attr_setdetachstate(&attr, PTHREAD_CREATE_JOINABLE);
//创建子线程mThread，并在子线程中执行MPEG4Writer的ThreadWrapper函数
2847 pthread_create(&mThread, &attr, ThreadWrapper, this);
2848 pthread_attr_destroy(&attr);
2849 mWriterThreadStarted = true;
2850 return OK;
2851 }
2671 // static
2672 void *MPEG4Writer::ThreadWrapper(void *me) {
2673 ALOGV("ThreadWrapper: %p", me);
2674 MPEG4Writer *writer = static_cast<MPEG4Writer *>(me);
2675 writer->threadFunc();
2676 return NULL;
2677 }
2789 void MPEG4Writer::threadFunc() {
2790 ALOGV("threadFunc");
2791
2792 prctl(PR_SET_NAME, (unsigned long)"MPEG4Writer", 0, 0, 0);
2793
2794 if (mIsBackgroundMode) {
2795 // Background priority for media transcoding.
2796 androidSetThreadPriority(0 /* tid (0 = current) */, ANDROID_PRIORITY_BACKGROUND);
2797 }
2798
2799 Mutex::Autolock autoLock(mLock);
2800 while (!mDone) {
2801 Chunk chunk;
2802 bool chunkFound = false;
2803 //findChunkToWrite寻找需要写入的数据块
2804 while (!mDone && !(chunkFound = findChunkToWrite(&chunk))) {
//等待mChunkReadyCondition信号
2805 mChunkReadyCondition.wait(mLock);
2806 }
2807
2808 // In real time recording mode, write without holding the lock in order
2809 // to reduce the blocking time for media track threads.
2810 // Otherwise, hold the lock until the existing chunks get written to the
2811 // file.
2812 if (chunkFound) {
2813 if (mIsRealTimeRecording) {
2814 mLock.unlock();
2815 }
//写入chunk到file中
2816 writeChunkToFile(&chunk);
2817 if (mIsRealTimeRecording) {
2818 mLock.lock();
2819 }
2820 }
2821 }
2822
2823 writeAllChunks();
2824 ALOGV("threadFunc mOffset:%lld, mMaxOffsetAppend:%lld", (long long)mOffset,
2825 (long long)mMaxOffsetAppend);
2826 mOffset = std::max(mOffset, mMaxOffsetAppend);
2827 }
2.4.5 startTracks
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
690 status_t MPEG4Writer::startTracks(MetaData *params) {
691 if (mTracks.empty()) {
692 ALOGE("No source added");
693 return INVALID_OPERATION;
694 }
695
696 for (List<Track *>::iterator it = mTracks.begin();
697 it != mTracks.end(); ++it) {
698 status_t err = (*it)->start(params);
699
700 if (err != OK) {
701 for (List<Track *>::iterator it2 = mTracks.begin();
702 it2 != it; ++it2) {
703 (*it2)->stop();
704 }
705
706 return err;
707 }
708 }
709 return OK;
710 }
2854 status_t MPEG4Writer::Track::start(MetaData *params) {
2855 if (!mDone && mPaused) {
2856 mPaused = false;
2857 mResumed = true;
2858 return OK;
2859 }
2860
2861 int64_t startTimeUs;
2862 if (params == NULL || !params->findInt64(kKeyTime, &startTimeUs)) {
2863 startTimeUs = 0;
2864 }
2865 mStartTimeRealUs = startTimeUs;
2866
2867 int32_t rotationDegrees;
2868 if ((mIsVideo || mIsHeic) && params &&
2869 params->findInt32(kKeyRotation, &rotationDegrees)) {
2870 mRotation = rotationDegrees;
2871 }
2872 if (mIsHeic) {
2873 // Reserve the item ids, so that the item ids are ordered in the same
2874 // order that the image tracks are added.
2875 // If we leave the item ids to be assigned when the sample is written out,
2876 // the original track order may not be preserved, if two image tracks
2877 // have data around the same time. (This could happen especially when
2878 // we're encoding with single tile.) The reordering may be undesirable,
2879 // even if the file is well-formed and the primary picture is correct.
2880
2881 // Reserve item ids for samples + grid
2882 size_t numItemsToReserve = mNumTiles + (mNumTiles > 0);
2883 status_t err = mOwner->reserveItemId_l(numItemsToReserve, &mItemIdBase);
2884 if (err != OK) {
2885 return err;
2886 }
2887 }
2888
2889 initTrackingProgressStatus(params);
2890
2891 sp<MetaData> meta = new MetaData;
2892 if (mOwner->isRealTimeRecording() && mOwner->numTracks() > 1) {
2893 /*
2894 * This extra delay of accepting incoming audio/video signals
2895 * helps to align a/v start time at the beginning of a recording
2896 * session, and it also helps eliminate the "recording" sound for
2897 * camcorder applications.
2898 *
2899 * If client does not set the start time offset, we fall back to
2900 * use the default initial delay value.
2901 */
2902 int64_t startTimeOffsetUs = mOwner->getStartTimeOffsetMs() * 1000LL;
2903 if (startTimeOffsetUs < 0) { // Start time offset was not set
2904 startTimeOffsetUs = kInitialDelayTimeUs;
2905 }
2906 startTimeUs += startTimeOffsetUs;
2907 ALOGI("Start time offset: %" PRId64 " us", startTimeOffsetUs);
2908 }
2909
2910 meta->setInt64(kKeyTime, startTimeUs);
2911 //调用对应的解码器的start函数，音视频的解码器都是MediaCodecSource类型继承于MediaSource
2912 status_t err = mSource->start(meta.get());
2913 if (err != OK) {
2914 mDone = mReachedEOS = true;
2915 return err;
2916 }
2917
2918 pthread_attr_t attr;
2919 pthread_attr_init(&attr);
2920 pthread_attr_setdetachstate(&attr, PTHREAD_CREATE_JOINABLE);
2921
2922 mDone = false;
2923 mStarted = true;
2924 mTrackDurationUs = 0;
2925 mReachedEOS = false;
2926 mEstimatedTrackSizeBytes = 0;
2927 mMdatSizeBytes = 0;
2928 mMaxChunkDurationUs = 0;
2929 mLastDecodingTimeUs = -1;
2930 //为每个track创建一个子线程执行 track的ThreadWrapper函数
2931 pthread_create(&mThread, &attr, ThreadWrapper, this);
2932 pthread_attr_destroy(&attr);
2933
2934 return OK;
2935 }
track指的是一个音频或者视频序列，是在设置writer时构建的音视频的编码器包装成track，而编码器创建时就是MediaCodecSource对象，这里的mSource是MediaCodecSource对象，所以会调用MediaCodecSource的start函数，如下：
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
373 status_t MediaCodecSource::start(MetaData* params) {
//native的Amessage是一个状态机转换这里最终会调用到 MediaCodecSource::onStart
374 sp<AMessage> msg = new AMessage(kWhatStart, mReflector);
375 msg->setObject("meta", params);
376 return postSynchronouslyAndReturnError(msg);
377 }
804 status_t MediaCodecSource::onStart(MetaData *params) {
...
831
832 ALOGI("MediaCodecSource (%s) starting", mIsVideo ? "video" : "audio");
833
834 status_t err = OK;
835 //视频track由于我们没有传入surface所以这边走else分支 音频本就没有surface，所以也是走else
836 if (mFlags & FLAG_USE_SURFACE_INPUT) {
...
845 } else {
846 CHECK(mPuller != NULL);
847 sp<MetaData> meta = params;
848 if (mSetEncoderFormat) {
849 if (meta == NULL) {
850 meta = new MetaData;
851 }
852 meta->setInt32(kKeyPixelFormat, mEncoderFormat);
853 meta->setInt32(kKeyColorSpace, mEncoderDataSpace);
854 }
855
856 sp<AMessage> notify = new AMessage(kWhatPullerNotify, mReflector);
//puller start也和上面时一种机制，最终会调用到 MediaCodecSource::Puller::onMessageReceived
857 err = mPuller->start(meta.get(), notify);
858 if (err != OK) {
859 return err;
860 }
861 }
862
863 ALOGI("MediaCodecSource (%s) started", mIsVideo ? "video" : "audio");
864
865 mStarted = true;
866 return OK;
867 }
在MediaCodecSource::Puller::onMessageReceived则会走到kWhatStart分支,如下：
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
230 void MediaCodecSource::Puller::onMessageReceived(const sp<AMessage> &msg) {
231 switch (msg->what()) {
232 case kWhatStart:
233 {
234 sp<RefBase> obj;
235 CHECK(msg->findObject("meta", &obj));
236
237 {
238 Mutexed<Queue>::Locked queue(mQueue);
239 queue->mPulling = true;
240 }
241 //这里的mSource则是设置给编码器的media source 视频track是CameraSource 音频track则是AudioSource
242 status_t err = mSource->start(static_cast<MetaData *>(obj.get()));
243
244 if (err == OK) {
245 schedulePull();
246 }
247
248 sp<AMessage> response = new AMessage;
249 response->setInt32("err", err);
250
251 sp<AReplyToken> replyID;
252 CHECK(msg->senderAwaitsResponse(&replyID));
253 response->postReply(replyID);
254 break;
255 }
其中设置音视频的编码器是在StagefrightRecorder::setupMPEG4orWEBMRecording函数中。具体的start做了什么，我们先省略掉，接着看整体流程。
在调用Track的mSource —> start 后会为每一个Truck创建一个子线程去执行Track的ThreadWrapper函数，
2.4.6 Track::ThreadWrapper
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
2983 void *MPEG4Writer::Track::ThreadWrapper(void *me) {
2984 Track *track = static_cast<Track *>(me);
2985
2986 status_t err = track->threadEntry();
2987 return (void *)(uintptr_t)err;
2988 }
3364 status_t MPEG4Writer::Track::threadEntry() {
//一些变量的初始化
...
3389 //1.当前的子线程命名并设置优先级
3390 if (mIsAudio) {
3391 prctl(PR_SET_NAME, (unsigned long)"MP4WtrAudTrkThread", 0, 0, 0);
3392 } else if (mIsVideo) {
3393 prctl(PR_SET_NAME, (unsigned long)"MP4WtrVidTrkThread", 0, 0, 0);
3394 } else {
3395 prctl(PR_SET_NAME, (unsigned long)"MP4WtrMetaTrkThread", 0, 0, 0);
3396 }
3397
3398 if (mOwner->isRealTimeRecording()) {
3399 androidSetThreadPriority(0, ANDROID_PRIORITY_AUDIO);
3400 } else if (mOwner->isBackgroundMode()) {
3401 // Background priority for media transcoding.
3402 androidSetThreadPriority(0 /* tid (0 = current) */, ANDROID_PRIORITY_BACKGROUND);
3403 }
3404
3405 sp<MetaData> meta_data;
3406
3407 status_t err = OK;
3408 MediaBufferBase *buffer;
3409 const char *trackName = getTrackType();
//2.这里的mSource是MediaCodecSource对象 循环从MediaCodecSource中读取buffer
3410 while (!mDone && (err = mSource->read(&buffer)) == OK) {
3411 ALOGV("read:buffer->range_length:%lld", (long long)buffer->range_length());
3412 ...
3450
3451 int32_t isCodecConfig;
3452 if (buffer->meta_data().findInt32(kKeyIsCodecConfig, &isCodecConfig)
3453 && isCodecConfig) {
3454 // if config format (at track addition) already had CSD, keep that
3455 // UNLESS we have not received any frames yet.
3456 // TODO: for now the entire CSD has to come in one frame for encoders, even though
3457 // they need to be spread out for decoders.
3458 if (mGotAllCodecSpecificData && nActualFrames > 0) {
3459 ALOGI("ignoring additional CSD for video track after first frame");
3460 } else {
//为不同的编码格式写入不同的数据
3461 mMeta = mSource->getFormat(); // get output format after format change
3462 status_t err;
3463 if (mIsAvc) {
//h264/avc编码写入的特殊数据
3464 err = makeAVCCodecSpecificData(
3465 (const uint8_t *)buffer->data()
3466 + buffer->range_offset(),
3467 buffer->range_length());
3468 } else if (mIsHevc || mIsHeic) {
3469 err = makeHEVCCodecSpecificData(
3470 (const uint8_t *)buffer->data()
3471 + buffer->range_offset(),
3472 buffer->range_length());
3473 } else if (mIsMPEG4) {
3474 err = copyCodecSpecificData((const uint8_t *)buffer->data() + buffer->range_offset(),
3475 buffer->range_length());
3476 }
3477 }
3478
3479 buffer->release();
3480 buffer = NULL;
3481 if (OK != err) {
3482 mSource->stop();
3483 mIsMalformed = true;
3484 uint32_t trackNum = (mTrackId.getId() << 28);
3485 mOwner->notify(MEDIA_RECORDER_TRACK_EVENT_ERROR,
3486 trackNum | MEDIA_RECORDER_TRACK_ERROR_GENERAL, err);
3487 break;
3488 }
3489
3490 mGotAllCodecSpecificData = true;
3491 continue;
3492 }
3493
3494 // Per-frame metadata sample's size must be smaller than max allowed.
3495 if (!mIsVideo && !mIsAudio && !mIsHeic &&
3496 buffer->range_length() >= kMaxMetadataSize) {
3497 ALOGW("Buffer size is %zu. Maximum metadata buffer size is %lld for %s track",
3498 buffer->range_length(), (long long)kMaxMetadataSize, trackName);
3499 buffer->release();
3500 mSource->stop();
3501 mIsMalformed = true;
3502 break;
3503 }
3504
3505 bool isExif = false;
3506 uint32_t tiffHdrOffset = 0;
3507 int32_t isMuxerData;
3508 if (buffer->meta_data().findInt32(kKeyIsMuxerData, &isMuxerData) && isMuxerData) {
3509 // We only support one type of muxer data, which is Exif data block.
3510 isExif = isExifData(buffer, &tiffHdrOffset);
3511 if (!isExif) {
3512 ALOGW("Ignoring bad Exif data block");
3513 buffer->release();
3514 buffer = NULL;
3515 continue;
3516 }
3517 }
3518 if (!buffer->meta_data().findInt64(kKeySampleFileOffset, &sampleFileOffset)) {
3519 sampleFileOffset = -1;
3520 }
3521 int64_t lastSample = -1;
3522 if (!buffer->meta_data().findInt64(kKeyLastSampleIndexInChunk, &lastSample)) {
3523 lastSample = -1;
3524 }
3525 ALOGV("sampleFileOffset:%lld", (long long)sampleFileOffset);
3526
3527 /*
3528 * Reserve space in the file for the current sample + to be written MOOV box. If reservation
3529 * for a new sample fails, preAllocate(...) stops muxing session completely. Stop() could
3530 * write MOOV box successfully as space for the same was reserved in the prior call.
3531 * Release the current buffer/sample here.
3532 */
3533 if (sampleFileOffset == -1 && !mOwner->preAllocate(buffer->range_length())) {
3534 buffer->release();
3535 buffer = nullptr;
3536 break;
3537 }
3538
3539 ++nActualFrames;
3540
3541 // Make a deep copy of the MediaBuffer and Metadata and release
3542 // the original as soon as we can
3543 MediaBuffer *copy = new MediaBuffer(buffer->range_length());
3544 if (sampleFileOffset != -1) {
3545 copy->meta_data().setInt64(kKeySampleFileOffset, sampleFileOffset);
3546 } else {
//从buffer中拷贝数据到MediaBuffer中
3547 memcpy(copy->data(), (uint8_t*)buffer->data() + buffer->range_offset(),
3548 buffer->range_length());
3549 }
3550 copy->set_range(0, buffer->range_length());
3551
...
3604 int32_t isSync = false;
3605 meta_data->findInt32(kKeyIsSyncFrame, &isSync);
3606 CHECK(meta_data->findInt64(kKeyTime, ×tampUs));
3607 timestampUs += mFirstSampleStartOffsetUs;
3608
3609 // For video, skip the first several non-key frames until getting the first key frame.
3610 if (mIsVideo && !mGotStartKeyFrame && !isSync) {
3611 ALOGD("Video skip non-key frame");
3612 copy->release();
3613 continue;
3614 }
//3.从得到同步信号开始的frame开始算作第一帧
3615 if (mIsVideo && isSync) {
3616 mGotStartKeyFrame = true;
3617 }
3618
...
3834 if (!hasMultipleTracks) {
3835 size_t bytesWritten;
//如果当前只有一个truck那么进入下一个循环
3836 off64_t offset = mOwner->addSample_l(
3837 copy, usePrefix, tiffHdrOffset, &bytesWritten);
3838
3839 if (mIsHeic) {
3840 addItemOffsetAndSize(offset, bytesWritten, isExif);
3841 } else {
3842 if (mCo64TableEntries->count() == 0) {
3843 addChunkOffset(offset);
3844 }
3845 }
3846 copy->release();
3847 copy = NULL;
3848 continue;
3849 }
3850 //将当前帧加入到mChunkSamples中
3851 mChunkSamples.push_back(copy);
3852 if (mIsHeic) {
3853 bufferChunk(0 /*timestampUs*/);
3854 ++nChunks;
3855 } else if (interleaveDurationUs == 0) {
//根据间隔时间决定是否执行bufferChunk
3856 addOneStscTableEntry(++nChunks, 1);
//bufferChunk其实就是每一个timestampUs的mChunkSamples的状态
3857 bufferChunk(timestampUs);
3858 } else {
3859 if (chunkTimestampUs == 0) {
3860 chunkTimestampUs = timestampUs;
3861 } else {
3862 int64_t chunkDurationUs = timestampUs - chunkTimestampUs;
3863 if (chunkDurationUs > interleaveDurationUs || lastSample > 1) {
3864 ALOGV("lastSample:%lld", (long long)lastSample);
3865 if (chunkDurationUs > mMaxChunkDurationUs) {
3866 mMaxChunkDurationUs = chunkDurationUs;
3867 }
3868 ++nChunks;
3869 if (nChunks == 1 || // First chunk
3870 lastSamplesPerChunk != mChunkSamples.size()) {
3871 lastSamplesPerChunk = mChunkSamples.size();
3872 addOneStscTableEntry(nChunks, lastSamplesPerChunk);
3873 }
3874 bufferChunk(timestampUs);
3875 chunkTimestampUs = timestampUs;
3876 }
3877 }
3878 }
3879 }
3880
...
3946
3947 if (err == ERROR_END_OF_STREAM) {
3948 return OK;
3949 }
3950 return err;
3951 }
void MPEG4Writer::Track::bufferChunk(int64_t timestampUs) {
4109 ALOGV("bufferChunk");
4110
4111 Chunk chunk(this, timestampUs, mChunkSamples);
4112 mOwner->bufferChunk(chunk);
4113 mChunkSamples.clear();
4114 }
2679 void MPEG4Writer::bufferChunk(const Chunk& chunk) {
2680 ALOGV("bufferChunk: %p", chunk.mTrack);
2681 Mutex::Autolock autolock(mLock);
2682 CHECK_EQ(mDone, false);
2683 //这里的mChunkInfos是音视频对应的Track的包装
2684 for (List<ChunkInfo>::iterator it = mChunkInfos.begin();
2685 it != mChunkInfos.end(); ++it) {
2686
2687 if (chunk.mTrack == it->mTrack) { // Found owner
2688 it->mChunks.push_back(chunk);
//发送mChunkReadyCondition信号
2689 mChunkReadyCondition.signal();
2690 return;
2691 }
2692 }
2693
2694 CHECK(!"Received a chunk for a unknown track");
2695 }
每一个Track都有一个子线程，在子线程中循环读取MediaCodecSource的数据并push到mChunkSamples,接着将这些数据都组成块放到对应的Track的mChunks中。
在上面2.2.4的startWriterThread函数中有句代码在等待mChunkReadyCondition信号的产生，
2789 void MPEG4Writer::threadFunc() {
2790 ALOGV("threadFunc");
2791
2792 prctl(PR_SET_NAME, (unsigned long)"MPEG4Writer", 0, 0, 0);
2793
2794 if (mIsBackgroundMode) {
2795 // Background priority for media transcoding.
2796 androidSetThreadPriority(0 /* tid (0 = current) */, ANDROID_PRIORITY_BACKGROUND);
2797 }
2798
2799 Mutex::Autolock autoLock(mLock);
2800 while (!mDone) {
2801 Chunk chunk;
2802 bool chunkFound = false;
2803 //findChunkToWrite寻找需要写入的数据块
2804 while (!mDone && !(chunkFound = findChunkToWrite(&chunk))) {
//等待mChunkReadyCondition信号
2805 mChunkReadyCondition.wait(mLock);
2806 }
2807
2808 // In real time recording mode, write without holding the lock in order
2809 // to reduce the blocking time for media track threads.
2810 // Otherwise, hold the lock until the existing chunks get written to the
2811 // file.
2812 if (chunkFound) {
2813 if (mIsRealTimeRecording) {
2814 mLock.unlock();
2815 }
//写入数据块到file中
2816 writeChunkToFile(&chunk);
2817 if (mIsRealTimeRecording) {
2818 mLock.lock();
2819 }
2820 }
2821 }
2822 //把上面循环中没有写入的数据块都写入文件中
2823 writeAllChunks();
2824 ALOGV("threadFunc mOffset:%lld, mMaxOffsetAppend:%lld", (long long)mOffset,
2825 (long long)mMaxOffsetAppend);
2826 mOffset = std::max(mOffset, mMaxOffsetAppend);
2827 }
当有信号产生时就会接着走循环，但是这时已经有chunk写入，所以会跳出while循环将数据块写入到文件，接着进行下一次循环等待mChunkReadyCondition的信号产生。至此录像的启动流程就分析完毕了
2.5 MediaRecorder.stop
当需要停止录像时会调用MediaRecorder.stop最终也是StagefrightRecorder去完成停止的任务。
/frameworks/av/media/libmediaplayerservice/StagefrightRecorder.cpp
2026 status_t StagefrightRecorder::stop() {
2027 ALOGV("stop");
2028 Mutex::Autolock autolock(mLock);
2029 status_t err = OK;
2030
2031 if (mCaptureFpsEnable && mCameraSourceTimeLapse != NULL) {
2032 mCameraSourceTimeLapse->startQuickReadReturns();
2033 mCameraSourceTimeLapse = NULL;
2034 }
2035
2036 int64_t stopTimeUs = systemTime() / 1000;
2037 for (const auto &source : { mAudioEncoderSource, mVideoEncoderSource }) {
2038 if (source != nullptr && OK != source->setStopTimeUs(stopTimeUs)) {
2039 ALOGW("Failed to set stopTime %lld us for %s",
2040 (long long)stopTimeUs, source->isVideo() ? "Video" : "Audio");
2041 }
2042 }
2043 //停止MPEG4 writer
2044 if (mWriter != NULL) {
2045 err = mWriter->stop();
2046 mWriter.clear();
2047 }
2096 return err;
2097 }
StagefrightRecorder的stop主要就是停止MPEG4 writer线程，而MPEG4Writer的stop则是在头文件里调用了reset；
/frameworks/av/media/libstagefright/include/media/stagefright/MPEG4Writer.h
virtual status_t stop() { return reset(); }
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
1069 status_t MPEG4Writer::reset(bool stopSource) {
1070 if (mInitCheck != OK) {
1071 return OK;
1072 } else {
1073 if (!mWriterThreadStarted ||
1074 !mStarted) {
1075 if (mWriterThreadStarted) {
1076 stopWriterThread();
1077 }
1078 release();
1079 return OK;
1080 }
1081 }
1082
1083 status_t err = OK;
1084 int64_t maxDurationUs = 0;
1085 int64_t minDurationUs = 0x7fffffffffffffffLL;
1086 int32_t nonImageTrackCount = 0;
1087 for (List<Track *>::iterator it = mTracks.begin();
1088 it != mTracks.end(); ++it) {
//停止两个 track
1089 status_t status = (*it)->stop(stopSource);
1090 if (err == OK && status != OK) {
1091 err = status;
1092 }
1093
1094 // skip image tracks
1095 if ((*it)->isHeic()) continue;
1096 nonImageTrackCount++;
1097
1098 int64_t durationUs = (*it)->getDurationUs();
1099 if (durationUs > maxDurationUs) {
1100 maxDurationUs = durationUs;
1101 }
1102 if (durationUs < minDurationUs) {
1103 minDurationUs = durationUs;
1104 }
1105 }
1106
1107 if (nonImageTrackCount > 1) {
1108 ALOGD("Duration from tracks range is [%" PRId64 ", %" PRId64 "] us",
1109 minDurationUs, maxDurationUs);
1110 }
1111 //停止WriterThread
1112 stopWriterThread();
1113
1114 // Do not write out movie header on error.
1115 if (err != OK) {
1116 release();
1117 return err;
1118 }
1119
1120 // Fix up the size of the 'mdat' chunk.
1121 if (mUse32BitOffset) {
1122 lseek64(mFd, mMdatOffset, SEEK_SET);
1123 uint32_t size = htonl(static_cast<uint32_t>(mOffset - mMdatOffset));
1124 ::write(mFd, &size, 4);
1125 } else {
1126 lseek64(mFd, mMdatOffset + 8, SEEK_SET);
1127 uint64_t size = mOffset - mMdatOffset;
1128 size = hton64(size);
1129 ::write(mFd, &size, 8);
1130 }
1131 lseek64(mFd, mOffset, SEEK_SET);
1132
1133 // Construct file-level meta and moov box now
1134 mInMemoryCacheOffset = 0;
1135 mWriteBoxToMemory = mStreamableFile;
1136 if (mWriteBoxToMemory) {
1137 // There is no need to allocate in-memory cache
1138 // if the file is not streamable.
1139
1140 mInMemoryCache = (uint8_t *) malloc(mInMemoryCacheSize);
1141 CHECK(mInMemoryCache != NULL);
1142 }
1143 //更新mp4文件的相关box
1144 if (mHasFileLevelMeta) {
1145 writeFileLevelMetaBox();
1146 if (mWriteBoxToMemory) {
1147 writeCachedBoxToFile("meta");
1148 } else {
1149 ALOGI("The file meta box is written at the end.");
1150 }
1151 }
1152
1153 if (mHasMoovBox) {
1154 writeMoovBox(maxDurationUs);
1155 // mWriteBoxToMemory could be set to false in
1156 // MPEG4Writer::write() method
1157 if (mWriteBoxToMemory) {
1158 writeCachedBoxToFile("moov");
1159 } else {
1160 ALOGI("The mp4 file will not be streamable.");
1161 }
1162 }
1163 mWriteBoxToMemory = false;
1164 //释放内存
1165 // Free in-memory cache for box writing
1166 if (mInMemoryCache != NULL) {
1167 free(mInMemoryCache);
1168 mInMemoryCache = NULL;
1169 mInMemoryCacheOffset = 0;
1170 }
1171
1172 CHECK(mBoxes.empty());
1173 //调用relase关闭文件句柄 释放内存等操作
1174 release();
1175 return err;
1176 }
MPEG4Writer::reset主要干了两件事情：1.停止之前启动的Track 2.停止writer线程，接着就是更新了MP4文件的相关box，最后释放内存，重点看一下Track的停止和writer线程停止。
2.5.1 Track::stop
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
2452 status_t MPEG4Writer::Track::stop(bool stopSource) {
...
2462
2463 if (stopSource) {
2464 ALOGD("%s track source stopping", getTrackType());
//这里的mSource是MediaCodecSource对象对应的是音视频的编码器
2465 mSource->stop();
2466 ALOGD("%s track source stopped", getTrackType());
2467 }
...
2478 return err;
2479 }
Track的stop对象主要是调用MediaCodecSource的stop函数
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
386 status_t MediaCodecSource::stop() {
//发送kWhatStop的message
387 sp<AMessage> msg = new AMessage(kWhatStop, mReflector);
388 return postSynchronouslyAndReturnError(msg);
389 }
840 void MediaCodecSource::onMessageReceived(const sp<AMessage> &msg) {
...
999 case kWhatStop:
1000 {
1001 ALOGI("encoder (%s) stopping", mIsVideo ? "video" : "audio");
1002
1003 sp<AReplyToken> replyID;
1004 CHECK(msg->senderAwaitsResponse(&replyID));
1005
1006 if (mOutput.lock()->mEncoderReachedEOS) {
1007 // if we already reached EOS, reply and return now
1008 ALOGI("encoder (%s) already stopped",
1009 mIsVideo ? "video" : "audio");
1010 (new AMessage)->postReply(replyID);
1011 break;
1012 }
1013
1014 mStopReplyIDQueue.push_back(replyID);
1015 if (mStopping) {
1016 // nothing to do if we're already stopping, reply will be posted
1017 // to all when we're stopped.
1018 break;
1019 }
1020
1021 mStopping = true;
1022
1023 int64_t timeoutUs = kStopTimeoutUs;
1024 // if using surface, signal source EOS and wait for EOS to come back.
1025 // otherwise, stop puller (which also clears the input buffer queue)
1026 // and wait for the EOS message. We cannot call source->stop() because
1027 // the encoder may still be processing input buffers.
//由于我们一直用的Camera的资源，没有传入Surface，所以走else分支
1028 if (mFlags & FLAG_USE_SURFACE_INPUT) {
...
1046 } else {
//这里又调用了puller的stop
1047 mPuller->stop();
1048 }
1049
1050 // complete stop even if encoder/puller stalled
1051 sp<AMessage> timeoutMsg = new AMessage(kWhatStopStalled, mReflector);
1052 timeoutMsg->setInt32("generation", mGeneration);
1053 timeoutMsg->post(timeoutUs);
1054 break;
1055 }
...
}
189 void MediaCodecSource::Puller::stop() {
190 bool interrupt = false;
191 {
192 // mark stopping before actually reaching kWhatStop on the looper, so the pulling will
193 // stop.
//把当前队列的mPulling置为 false 等待下一次从source读取数据时就会发送一条消息给MediaCodecSource的Looper
194 Mutexed<Queue>::Locked queue(mQueue);
195 queue->mPulling = false;
//如果距离上次读取数据的时间不超过1s那么interrupt 为true
196 interrupt = queue->mReadPendingSince && (queue->mReadPendingSince < ALooper::GetNowUs() - 1000000);
197 queue->flush(); // flush any unprocessed pulled buffers
198 }
199
200 if (interrupt) {
//中断资源
201 interruptSource();
202 }
203 }
MediaCodecSource则是通过发送消息给Puller，然后puller在将mPulling置成fasle后 如果上次读取的时间距离现在比较长，那么就调用interruptSource停止相应的资源，比如，音频时AudioSource，视频则是CameraSource 否则在下次读取文件时当检测到mPulling为false会发送EOS消息给MediaCodecSource，MediaCodecSource在接收到消息后会调用。具体的代码分析后面在详细分析MediaCodecSource时再了解。
2.5.2 stopWriterThread
/frameworks/av/media/libstagefright/MPEG4Writer.cpp
966 void MPEG4Writer::stopWriterThread() {
967 ALOGD("Stopping writer thread");
968 if (!mWriterThreadStarted) {
969 return;
970 }
971
972 {
973 Mutex::Autolock autolock(mLock);
//通过将mDone置成true来停止WriterThread的循环
975 mDone = true;
//防止线程卡在等待mChunkReadyCondition的信号的地方
976 mChunkReadyCondition.signal();
977 }
978
979 void *dummy;
980 pthread_join(mThread, &dummy);
981 mWriterThreadStarted = false;
982 ALOGD("Writer thread stopped");
983 }
三、MediaCodecSource相关流程
MediaCodecSource是录像流程中非常重要的一个类，他作为媒体的编码器存在，接受Camera传过来的视频数据和麦克风传来的音频数据，并编码后提供媒体数据给MPEG4Writer去写入文件。
3.1 MediaCodecSource的初始化
在2.4.1和2.4.2 设置媒体编码器中我们已经知道了MediaCodecSource是如何创建的，下面就来具体分析一下MediaCodecSource的具体创建过程
2094 sp<MediaCodecSource> encoder = MediaCodecSource::Create(
2095 mLooper, format, mSource, mPersistentSurface, flags);
目前创建编码器都是调用MediaCodecSource的Create函数去创建的，对于音视频不同的就是编码格式format和资源mSource，对于视频track来说mSource就是CameraSource，对于音频来说就是AudioSource。
3.1.1 MediaCodecSource::Create
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
348 sp<MediaCodecSource> MediaCodecSource::Create(
349 const sp<ALooper> &looper,
350 const sp<AMessage> &format,
351 const sp<MediaSource> &source,
352 const sp<PersistentSurface> &persistentSurface,
353 uint32_t flags) {
//创建MediaCodecSource对象并执行init函数
354 sp<MediaCodecSource> mediaSource = new MediaCodecSource(
355 looper, format, source, persistentSurface, flags);
356
357 if (mediaSource->init() == OK) {
358 return mediaSource;
359 }
360 return NULL;
361 }
MediaCodecSource::Create主要就是以传入的参数创建一个MediaCodecSource对象，接着调用init完成初始化
3.1.2 MediaCodecSource::init
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
473 status_t MediaCodecSource::init() {
474 status_t err = initEncoder();
475
476 if (err != OK) {
477 releaseEncoder();
478 }
479
480 return err;
481 }
483 status_t MediaCodecSource::initEncoder() {
484
485 mReflector = new AHandlerReflector<MediaCodecSource>(this);
486 mLooper->registerHandler(mReflector);
487 //创建ALooper并启动 name是codec_looper
488 mCodecLooper = new ALooper;
489 mCodecLooper->setName("codec_looper");
490 mCodecLooper->start();
491
492 if (mFlags & FLAG_USE_SURFACE_INPUT) {
493 mOutputFormat->setInt32("create-input-buffers-suspended", 1);
494 }
495 //取出编码方式 mOutputFormat就是我们传进来的format编码格式
496 AString outputMIME;
497 CHECK(mOutputFormat->findString("mime", &outputMIME));
498 mIsVideo = outputMIME.startsWithIgnoreCase("video/");
499
500 AString name;
501 status_t err = NO_INIT;
//if分支是测试使用的，我们一般走else分支
502 if (mOutputFormat->findString("testing-name", &name)) {
503 mEncoder = MediaCodec::CreateByComponentName(mCodecLooper, name);
504
505 mEncoderActivityNotify = new AMessage(kWhatEncoderActivity, mReflector);
506 mEncoder->setCallback(mEncoderActivityNotify);
507
508 err = mEncoder->configure(
509 mOutputFormat,
510 NULL /* nativeWindow */,
511 NULL /* crypto */,
512 MediaCodec::CONFIGURE_FLAG_ENCODE);
513 } else {
//根据而我们传的编码方式匹配编码器
514 Vector<AString> matchingCodecs;
515 MediaCodecList::findMatchingCodecs(
516 outputMIME.c_str(), true /* encoder */,
517 ((mFlags & FLAG_PREFER_SOFTWARE_CODEC) ? MediaCodecList::kPreferSoftwareCodecs : 0),
518 &matchingCodecs);
519 //为匹配上的编码器创建编码器，但是只会使用最后创建的
520 for (size_t ix = 0; ix < matchingCodecs.size(); ++ix) {
521 mEncoder = MediaCodec::CreateByComponentName(
522 mCodecLooper, matchingCodecs[ix]);
523
524 if (mEncoder == NULL) {
525 continue;
526 }
527
528 ALOGV("output format is '%s'", mOutputFormat->debugString(0).c_str());
529 //把kWhatEncoderActivity的消息给了mEncoder，当mEncoder有消息需要发送给MediaCodecSource时会发送kWhatEncoderActivity消息
530 mEncoderActivityNotify = new AMessage(kWhatEncoderActivity, mReflector);
531 mEncoder->setCallback(mEncoderActivityNotify);
532 //配置编码器
533 err = mEncoder->configure(
534 mOutputFormat,
535 NULL /* nativeWindow */,
536 NULL /* crypto */,
537 MediaCodec::CONFIGURE_FLAG_ENCODE);
538
539 if (err == OK) {
540 break;
541 }
542 mEncoder->release();
543 mEncoder = NULL;
544 }
545 }
546
547 if (err != OK) {
548 return err;
549 }
550 //获取到编码器的编码格式
551 mEncoder->getOutputFormat(&mOutputFormat);
552 sp<MetaData> meta = new MetaData;
553 convertMessageToMetaData(mOutputFormat, meta);
554 mMeta.lock().set(meta);
555
...
572
573 sp<AMessage> inputFormat;
574 int32_t usingSwReadOften;
575 mSetEncoderFormat = false;
576 if (mEncoder->getInputFormat(&inputFormat) == OK) {
577 mSetEncoderFormat = true;
578 if (inputFormat->findInt32("using-sw-read-often", &usingSwReadOften)
579 && usingSwReadOften) {
580 // this is a SW encoder; signal source to allocate SW readable buffers
581 mEncoderFormat = kDefaultSwVideoEncoderFormat;
582 } else {
583 mEncoderFormat = kDefaultHwVideoEncoderFormat;
584 }
585 if (!inputFormat->findInt32("android._dataspace", &mEncoderDataSpace)) {
586 mEncoderDataSpace = kDefaultVideoEncoderDataSpace;
587 }
588 ALOGV("setting dataspace %#x, format %#x", mEncoderDataSpace, mEncoderFormat);
589 }
590 //启动编码器
591 err = mEncoder->start();
592
593 if (err != OK) {
594 return err;
595 }
596
597 {
598 Mutexed<Output>::Locked output(mOutput);
599 output->mEncoderReachedEOS = false;
600 output->mErrorCode = OK;
601 }
602
603 return OK;
604 }
MediaCodecSource::init主要是调用initEncoder去初始化编码器，主要做的工作是创建配置并启动编码器
目前Android仅支持三种encoder
- c2. (CCodec.cpp 在libstagefright_ccodec中 )
- omx. (ACodec.cpp)
- android.filter. (MediaFilter.cpp)
这里以最常见的omx编码器来介绍。
3.1.3 创建Encoder
上面提到创建Encoder走的是MediaCodec::CreateByComponentName
/frameworks/av/media/libstagefright/MediaCodec.cpp
468 // static
469 sp<MediaCodec> MediaCodec::CreateByComponentName(
470 const sp<ALooper> &looper, const AString &name, status_t *err, pid_t pid, uid_t uid) {
//创建MediaCodec并初始化
471 sp<MediaCodec> codec = new MediaCodec(looper, pid, uid);
472
473 const status_t ret = codec->init(name);
474 if (err != NULL) {
475 *err = ret;
476 }
477 return ret == OK ? codec : NULL; // NULL deallocates codec.
478 }
862 //static
863 sp<CodecBase> MediaCodec::GetCodecBase(const AString &name) {
864 if (name.startsWithIgnoreCase("c2.")) {
865 return CreateCCodec();
866 } else if (name.startsWithIgnoreCase("omx.")) {
867 // at this time only ACodec specifies a mime type.
868 return new ACodec;
869 } else if (name.startsWithIgnoreCase("android.filter.")) {
870 return new MediaFilter;
871 } else {
872 return NULL;
873 }
874 }
876 status_t MediaCodec::init(const AString &name) {
877 mResourceManagerService->init();
878
879 // save init parameters for reset
880 mInitName = name;
881
882 // Current video decoders do not return from OMX_FillThisBuffer
883 // quickly, violating the OpenMAX specs, until that is remedied
884 // we need to invest in an extra looper to free the main event
885 // queue.
886 //根据名称创建不同的编码器codec 赋给MediaCodec对象的mCodec
887 mCodec = GetCodecBase(name);
888 if (mCodec == NULL) {
889 return NAME_NOT_FOUND;
890 }
891
892 mCodecInfo.clear();
...
924
925 if (mIsVideo) {
//视频编码器需要专门的Looper
926 // video codec needs dedicated looper
927 if (mCodecLooper == NULL) {
928 mCodecLooper = new ALooper;
929 mCodecLooper->setName("CodecLooper");
930 mCodecLooper->start(false, false, ANDROID_PRIORITY_AUDIO);
931 }
932
933 mCodecLooper->registerHandler(mCodec);
934 } else {
935 mLooper->registerHandler(mCodec);
936 }
937
938 mLooper->registerHandler(this);
939 //设置一些回调的消息
940 mCodec->setCallback(
941 std::unique_ptr<CodecBase::CodecCallback>(
942 new CodecCallback(new AMessage(kWhatCodecNotify, this))));
//获取缓冲区通道
943 mBufferChannel = mCodec->getBufferChannel();
944 mBufferChannel->setCallback(
945 std::unique_ptr<CodecBase::BufferCallback>(
946 new BufferCallback(new AMessage(kWhatCodecNotify, this))));
947
948 sp<AMessage> msg = new AMessage(kWhatInit, this);
949 msg->setObject("codecInfo", mCodecInfo);
950 // name may be different from mCodecInfo->getCodecName() if we stripped
951 // ".secure"
952 msg->setString("name", name);
953
...
1460 sp<AMessage> response;
1461 err = PostAndAwaitResponse(msg, &response);
980 return err;
981 }
Encoder的创建是通过创建MediaCodec对象实现的，不过真正的编码器则是器成员函数mCodec 根据名称创建的，omx编码器则是ACodec对象，如果编码视频还是需要创建新的Looper。接着发送kWhatInit消息调用ACodec的initiateAllocateComponent创建一个omx的节点mOMXNode,同时创建了一个CodecObserver
来接受Omx框架的消息。
3.1.4 设置Encoder
在3.2.2小节中Encoder的设置时调用MediaCodec的configure函数
/frameworks/av/media/libstagefright/MediaCodec.cpp
997 status_t MediaCodec::configure(
998 const sp<AMessage> &format,
999 const sp<Surface> &nativeWindow,
1000 const sp<ICrypto> &crypto,
1001 uint32_t flags) {
1002 return configure(format, nativeWindow, crypto, NULL, flags);
1003 }
1005 status_t MediaCodec::configure(
1006 const sp<AMessage> &format,
1007 const sp<Surface> &surface,
1008 const sp<ICrypto> &crypto,
1009 const sp<IDescrambler> &descrambler,
1010 uint32_t flags) {
//构建kWhatConfigure消息
1011 sp<AMessage> msg = new AMessage(kWhatConfigure, this);
...
//将参数设置给msg
1053 msg->setMessage("format", format);
1054 msg->setInt32("flags", flags);
1055 msg->setObject("surface", surface);
...
//发送msg
1092 err = PostAndAwaitResponse(msg, &response);
1107 return err;
1108 }
发送kWhatConfigure的消息看一下如何处理的
1762 void MediaCodec::onMessageReceived(const sp<AMessage> &msg) {
2374 case kWhatConfigure:
...
2383 //取出msg中的参数
2384 sp<RefBase> obj;
2385 CHECK(msg->findObject("surface", &obj));
2386
2387 sp<AMessage> format;
2388 CHECK(msg->findMessage("format", &format));
2389
2390 int32_t push;
2391 if (msg->findInt32("push-blank-buffers-on-shutdown", &push) && push != 0) {
2392 mFlags |= kFlagPushBlankBuffersOnShutdown;
2393 }
...
2440 //这里的mCodec就是创建Encoder时根据名称创建的ACodec对象
2441 mCodec->initiateConfigureComponent(format);
2442 break;
2443 }
}
调用ACodec的initiateConfigureComponent 在Acodec中也是发送了kWhatConfigureComponent的msg，主要看一下如何处理的
/frameworks/av/media/libstagefright/ACodec.cpp
6575 bool ACodec::LoadedState::onMessageReceived(const sp<AMessage> &msg) {
6576 bool handled = false;
6577
6578 switch (msg->what()) {
6579 case ACodec::kWhatConfigureComponent:
6580 {
6581 onConfigureComponent(msg);
6582 handled = true;
6583 break;
6584 }
6585
}
6634 bool ACodec::LoadedState::onConfigureComponent(
6635 const sp<AMessage> &msg) {
6636 ALOGV("onConfigureComponent");
6637
6638 CHECK(mCodec->mOMXNode != NULL);
6639
6640 status_t err = OK;
6641 AString mime;
6642 if (!msg->findString("mime", &mime)) {
6643 err = BAD_VALUE;
6644 } else {
//这里的mCodec就是Acodec对象
6645 err = mCodec->configureCodec(mime.c_str(), msg);
6646 }
6647 if (err != OK) {
6648 ALOGE("[%s] configureCodec returning error %d",
6649 mCodec->mComponentName.c_str(), err);
6650
6651 mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
6652 return false;
6653 }
6654 //回调mCallback的onComponentConfigured将编码器的输入和输出的格式返回给MediaCodec最后返回给MediaCodecSource
6655 mCodec->mCallback->onComponentConfigured(mCodec->mInputFormat, mCodec->mOutputFormat);
6656
6657 return true;
6658 }
最终调用mCodec->configureCodec去设置编码器，而设置编码器最后则是向omx的node中设置一系列参数(无论音频还是视频，编码还是解码)。
mOMXNode->setParameter();
3.1.5 启动编码器
启动编码器调用的是MediaCodec的start函数
/frameworks/av/media/libstagefright/MediaCodec.cpp
2254 status_t MediaCodec::start() {
//发送kWhatStart msg
2255 sp<AMessage> msg = new AMessage(kWhatStart, this);
...
2298
2299 sp<AMessage> response;
2300 err = PostAndAwaitResponse(msg, &response);
....
2305 return err;
2306 }
2964 void MediaCodec::onMessageReceived(const sp<AMessage> &msg) {
3881 case kWhatStart:
3882 {
...
3912 mCodec->initiateStart();
3913 break;
3914 }
}
MediaCodec的start函数同样是通过Amessage调用到了Acodec的initiateStart，在Acodec的initiateStart函数中也是通过Amessage机制调用到Acodec的onStart函数
/frameworks/av/media/libstagefright/ACodec.cpp
7282 void ACodec::LoadedState::onStart() {
7283 ALOGV("onStart");
7284 //向mOMXNode发送命令使编码器处于Idle状态
7285 status_t err = mCodec->mOMXNode->sendCommand(OMX_CommandStateSet, OMX_StateIdle);
7286 if (err != OK) {
7287 mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
7288 } else {
7289 mCodec->changeState(mCodec->mLoadedToIdleState);
7290 }
7291 }
编码器的启动就是调用mOMXNode的sendCommand函数将编码器的状态设置成Idle状态
3.2 MediaCodecSource的启动
在上面的2.4.5小节中我们知道在启动track时会调用MediaCodecSource的start函数，接着根据我们在CameraApp中设置的VideoSource会走Puller.start
在puller.start中则有会调用mSource -->start，这里的mSource根据不同的资源类型是不同的对象，比如视频资源在这里就是CameraSource,音频资源则是AudioSource。如下：
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
230 void MediaCodecSource::Puller::onMessageReceived(const sp<AMessage> &msg) {
231 switch (msg->what()) {
232 case kWhatStart:
233 {
234 sp<RefBase> obj;
235 CHECK(msg->findObject("meta", &obj));
236
237 {
238 Mutexed<Queue>::Locked queue(mQueue);
239 queue->mPulling = true;
240 }
241 //这里的mSource则是设置给编码器的media source 视频track是CameraSource 音频track则是AudioSource
242 status_t err = mSource->start(static_cast<MetaData *>(obj.get()));
243
244 if (err == OK) {
//开始读取数据
245 schedulePull();
246 }
247
248 sp<AMessage> response = new AMessage;
249 response->setInt32("err", err);
250
251 sp<AReplyToken> replyID;
252 CHECK(msg->senderAwaitsResponse(&replyID));
253 response->postReply(replyID);
254 break;
255 }
所以上面的mSource->start对于视频来说是CameraSource -->start 对于音频来说则是AudioSource.start
3.2.1 CameraSource::start
/frameworks/av/media/libstagefright/CameraSource.cpp
647 status_t CameraSource::start(MetaData *meta) {
...
//调用startCameraRecording开启录像
686 status_t err;
687 if ((err = startCameraRecording()) == OK) {
688 mStarted = true;
689 }
690
691 return err;
692 }
609 status_t CameraSource::startCameraRecording() {
610 ALOGV("startCameraRecording");
611 // Reset the identity to the current thread because media server owns the
612 // camera and recording is started by the applications. The applications
613 // will connect to the camera in ICameraRecordingProxy::startRecording.
614 int64_t token = IPCThreadState::self()->clearCallingIdentity();
615 status_t err;
616 //初始化BufferQueue
617 // Initialize buffer queue.
618 err = initBufferQueue(mVideoSize.width, mVideoSize.height, mEncoderFormat,
619 (android_dataspace_t)mEncoderDataSpace,
620 mNumInputBuffers > 0 ? mNumInputBuffers : 1);
621 if (err != OK) {
622 ALOGE("%s: Failed to initialize buffer queue: %s (err=%d)", __FUNCTION__,
623 strerror(-err), err);
624 return err;
625 }
626
627 // Start data flow
628 err = OK;
629 if (mCameraFlags & FLAGS_HOT_CAMERA) {
630 mCamera->unlock();
631 mCamera.clear();
632 if ((err = mCameraRecordingProxy->startRecording()) != OK) {
633 ALOGE("Failed to start recording, received error: %s (%d)",
634 strerror(-err), err);
635 }
636 } else {
//这里的mCamera则是CameraDevice的代理对象调用Camera的startRecording
637 mCamera->startRecording();
638 if (!mCamera->recordingEnabled()) {
639 err = -EINVAL;
640 ALOGE("Failed to start recording");
641 }
642 }
643 IPCThreadState::self()->restoreCallingIdentity(token);
644 return err;
645 }
在 CameraSource::startCameraRecording中首先调用initBufferQueue初始化了一个BufferQueue作为传输数据的通道，并把生产者设置给了Camera
/frameworks/av/media/libstagefright/CameraSource.cpp
458 status_t CameraSource::initBufferQueue(uint32_t width, uint32_t height,
459 uint32_t format, android_dataspace dataSpace, uint32_t bufferCount) {
460 ALOGV("initBufferQueue");
461
462 if (mVideoBufferConsumer != nullptr || mVideoBufferProducer != nullptr) {
463 ALOGE("%s: Buffer queue already exists", __FUNCTION__);
464 return ALREADY_EXISTS;
465 }
466
467 // Create a buffer queue.
468 sp<IGraphicBufferProducer> producer;
469 sp<IGraphicBufferConsumer> consumer;
470 BufferQueue::createBufferQueue(&producer, &consumer);
471
472 uint32_t usage = GRALLOC_USAGE_SW_READ_OFTEN;
473 if (format == HAL_PIXEL_FORMAT_IMPLEMENTATION_DEFINED) {
474 usage = GRALLOC_USAGE_HW_VIDEO_ENCODER;
475 }
476
477 bufferCount += kConsumerBufferCount;
478
479 mVideoBufferConsumer = new BufferItemConsumer(consumer, usage, bufferCount);
480 mVideoBufferConsumer->setName(String8::format("StageFright-CameraSource"));
481 mVideoBufferProducer = producer;
482 ...
503 //把生产者设置给camera
504 res = mCamera->setVideoTarget(mVideoBufferProducer);
505 if (res != OK) {
506 ALOGE("%s: Failed to set video target: %s (%d)", __FUNCTION__, strerror(-res), res);
507 return res;
508 }
509
510 // Create memory heap to store buffers as VideoNativeMetadata.
511 createVideoBufferMemoryHeap(sizeof(VideoNativeMetadata), bufferCount);
512 //以消费者为参数创建一个BufferQueueListener并启动
513 mBufferQueueListener = new BufferQueueListener(mVideoBufferConsumer, this);
514 res = mBufferQueueListener->run("CameraSource-BufferQueueListener");
515 if (res != OK) {
516 ALOGE("%s: Could not run buffer queue listener thread: %s (%d)", __FUNCTION__,
517 strerror(-res), res);
518 return res;
519 }
520
521 return OK;
522 }
CameraSource初始化BufferQueue时把IGraphicBufferProducer(生产者)给了Camera，Camera拿到IGraphicBufferProducer后以IGraphicBufferProducer为参数创建了surface并设置给了 mStreamingProcessor，接着以IGraphicBufferConsumer(消费者)为参数创建的了BufferQueueListener(继承了Thread类)并调用run函数启动线程，会循环执行BufferQueueListenerd的ThreadLoop函数，ThreadLoop函数会等待mFrameAvailableSignal的到来
/frameworks/av/services/camera/libcameraservice/api1/Camera2Client.cpp
2206 status_t Camera2Client::setVideoTarget(const sp<IGraphicBufferProducer>& bufferProducer) {
...
2212
2213 sp<IBinder> binder = IInterface::asBinder(bufferProducer);
2214 if (binder == mVideoSurface) {
2215 ALOGV("%s: Camera %d: New video window is same as old video window",
2216 __FUNCTION__, mCameraId);
2217 return NO_ERROR;
2218 }
2219
2220 sp<Surface> window;
2221 int format;
2222 android_dataspace dataSpace;
2223
2224 if (bufferProducer != nullptr) {
2225 // Using controlledByApp flag to ensure that the buffer queue remains in
2226 // async mode for the old camera API, where many applications depend
2227 // on that behavior.
//以CameraSource传入的生产者为参数创建surface
2228 window = new Surface(bufferProducer, /*controlledByApp*/ true);
2229 //从surface中获取ANativeWindow
2230 ANativeWindow *anw = window.get();
...
2242 }
2243
//把surface 设置给mStreamingProcessor
2267 mVideoSurface = binder;
2268 res = mStreamingProcessor->setRecordingWindow(window);
2269 if (res != OK) {
2270 ALOGE("%s: Unable to set new recording window: %s (%d)",
2271 __FUNCTION__, strerror(-res), res);
2272 return res;
2273 }
2274
2275 {
2276 SharedParameters::Lock l(mParameters);
2277 l.mParameters.videoFormat = format;
2278 l.mParameters.videoDataSpace = dataSpace;
2279 }
2280
2281 return OK;
2282 }
3.2.2 Camera数据流向
(1) 从Camera Server到MediaServer的CameraSource
这样当Camera的hal层有数据上来时就会调用到CameraSource的BufferQueueListener的onFrameAvailable
/frameworks/av/media/libstagefright/CameraSource.cpp
992 void CameraSource::BufferQueueListener::onFrameAvailable(const BufferItem& /*item*/) {
993 ALOGV("%s: onFrameAvailable", __FUNCTION__);
994
995 Mutex::Autolock l(mLock);
996
997 if (!mFrameAvailable) {
998 mFrameAvailable = true;
//发出mFrameAvailableSignal信号
999 mFrameAvailableSignal.signal();
1000 }
1001 }
BufferQueueListener的onFrameAvailable在收到有准备好的数据时就会将mFrameAvailable置为true同时发送mFrameAvailableSignal信号，这样BufferQueueListener的ThreadLoop函数收到mFrameAvailableSignal信号后就会继续向下执行，
1003 bool CameraSource::BufferQueueListener::threadLoop() {
1004 if (mConsumer == nullptr || mCameraSource == nullptr) {
1005 return false;
1006 }
1007
1008 {
1009 Mutex::Autolock l(mLock);
1010 while (!mFrameAvailable) {
1011 if (mFrameAvailableSignal.waitRelative(mLock, kFrameAvailableTimeout) == TIMED_OUT) {
1012 return true;
1013 }
1014 }
1015 mFrameAvailable = false;
1016 }
1017
1018 BufferItem buffer;
1019 while (mConsumer->acquireBuffer(&buffer, 0) == OK) {
1020 mCameraSource->processBufferQueueFrame(buffer);
1021 }
1022
1023 return true;
1024 }
当有数据准备好后mConsumer就会从buffrQueue取出准备好的数据，接着调用CameraSource->processBufferQueueFrame去处理数据，
/frameworks/av/media/libstagefright/CameraSource.cpp
1026 void CameraSource::processBufferQueueFrame(BufferItem& buffer) {
1027 Mutex::Autolock autoLock(mLock);
1028
1029 int64_t timestampUs = buffer.mTimestamp / 1000;
1030 if (shouldSkipFrameLocked(timestampUs)) {
1031 mVideoBufferConsumer->releaseBuffer(buffer);
1032 return;
1033 }
1034
1035 while (mMemoryBases.empty()) {
//如果mMemoryBases为空证明没有内存用来存放接受到的camera的数据需要等待使用的内存释放
1036 if (mMemoryBaseAvailableCond.waitRelative(mLock, kMemoryBaseAvailableTimeoutNs) ==
1037 TIMED_OUT) {
1038 ALOGW("Waiting on an available memory base timed out. Dropping a recording frame.");
1039 mVideoBufferConsumer->releaseBuffer(buffer);
1040 return;
1041 }
1042 }
1043
1044 ++mNumFramesReceived;
1045 //寻找一块内存buffer来存camera传过来的视频数据
1046 // Find a available memory slot to store the buffer as VideoNativeMetadata.
1047 sp<IMemory> data = *mMemoryBases.begin();
1048 mMemoryBases.erase(mMemoryBases.begin());
1049 mBufferDataSpace = buffer.mDataSpace;
1050
1051 ssize_t offset;
1052 size_t size;
1053 sp<IMemoryHeap> heap = data->getMemory(&offset, &size);
1054 VideoNativeMetadata *payload = reinterpret_cast<VideoNativeMetadata*>(
1055 (uint8_t*)heap->getBase() + offset);
1056 memset(payload, 0, sizeof(VideoNativeMetadata));
1057 payload->eType = kMetadataBufferTypeANWBuffer;
1058 payload->pBuffer = buffer.mGraphicBuffer->getNativeBuffer();
1059 payload->nFenceFd = -1;
1060
1061 // Add the mapping so we can find the corresponding buffer item to release to the buffer queue
1062 // when the encoder returns the native window buffer.
1063 mReceivedBufferItemMap.add(payload->pBuffer, buffer);
1064 //将接受到的数据存放到mFramesReceived中
1065 mFramesReceived.push_back(data);
1066 int64_t timeUs = mStartTimeUs + (timestampUs - mFirstFrameTimeUs);
1067 mFrameTimes.push_back(timeUs);
1068 ALOGV("initial delay: %" PRId64 ", current time stamp: %" PRId64,
1069 mStartTimeUs, timeUs);
//发送mFrameAvailableCondition信号
1070 mFrameAvailableCondition.signal();
1071 }
CameraSource对于数据的处理就是找一块buffer存放数据并把数据放到mFramesReceived中接着发送mFrameAvailableCondition通知MediaCodecSoure去读。
(2)从CameraSource到MediaCodecSource
MediaCodecSource在启动时会调用mSource-> start 先开启对应的数据流，接着会调用schedulePull 发送一个kWhatPull消息，这样MediaCodecSource就会调用到MediaCodecSource::Puller::onMessageReceived的 kWhatPull分支如下：
void MediaCodecSource::Puller::onMessageReceived(const sp<AMessage> &msg) {
case kWhatPull:
285 {
286 Mutexed<Queue>::Locked queue(mQueue);
287 queue->mReadPendingSince = ALooper::GetNowUs();
288 if (!queue->mPulling) {
289 handleEOS();
290 break;
291 }
292
293 queue.unlock();
294 MediaBufferBase *mbuf = NULL;
//这里的mSource 对于视频来说时CameraSource 对于音频来说是AudioSource
//从CameraSource中读取数据并放到mbuf中
295 status_t err = mSource->read(&mbuf);
296 queue.lock();
297
298 queue->mReadPendingSince = 0;
299 // if we need to discard buffer
300 if (!queue->mPulling || queue->mPaused || err != OK) {
301 if (mbuf != NULL) {
302 mbuf->release();
303 mbuf = NULL;
304 }
305 if (queue->mPulling && err == OK) {
306 msg->post(); // if simply paused, keep pulling source
307 break;
308 } else if (err == ERROR_END_OF_STREAM) {
309 ALOGV("stream ended, mbuf %p", mbuf);
310 } else if (err != OK) {
311 ALOGE("error %d reading stream.", err);
312 }
313 }
314
315 if (mbuf != NULL) {
//将数据放到queue中
316 queue->pushBuffer(mbuf);
317 }
318
319 queue.unlock();
320
321 if (mbuf != NULL) {
//这里的mNotify是Puller start时传入的MediaCodecSource的kWhatPullerNotify消息
322 mNotify->post();
//msg则是Puller对象的kWhatPull消息 从而形成循环
323 msg->post();
324 } else {
325 handleEOS();
326 }
327 break;
328 }
}
MediaCodecSource收到kWhatPull的消息后会调用对应的source的read去读取数据 接着将数据push到queue中，发送mNotify(MediaCodecSource的kWhatPullerNotify消息)交给MediaCodecSource去进行下一步工作，同时给自己发送kWhatPull消息形成读取数据的循环
/frameworks/av/media/libstagefright/CameraSource.cpp
863 status_t CameraSource::read(
864 MediaBufferBase **buffer, const ReadOptions *options) {
865 ALOGV("read");
866
867 *buffer = NULL;
868
869 int64_t seekTimeUs;
870 ReadOptions::SeekMode mode;
871 if (options && options->getSeekTo(&seekTimeUs, &mode)) {
872 return ERROR_UNSUPPORTED;
873 }
874
875 sp<IMemory> frame;
876 int64_t frameTime;
877
878 {
879 Mutex::Autolock autoLock(mLock);
880 while (mStarted && !mEos && mFramesReceived.empty()) {
881 if (NO_ERROR !=
//这里在等待上面提到的mFrameAvailableCondition
882 mFrameAvailableCondition.waitRelative(mLock,
883 mTimeBetweenFrameCaptureUs * 1000LL + CAMERA_SOURCE_TIMEOUT_NS)) {
884 if (mCameraRecordingProxy != 0 &&
885 !IInterface::asBinder(mCameraRecordingProxy)->isBinderAlive()) {
886 ALOGW("camera recording proxy is gone");
887 return ERROR_END_OF_STREAM;
888 }
889 ALOGW("Timed out waiting for incoming camera video frames: %" PRId64 " us",
890 mLastFrameTimestampUs);
891 }
892 }
893 if (!mStarted) {
894 return OK;
895 }
896 if (mFramesReceived.empty()) {
897 return ERROR_END_OF_STREAM;
898 }
//从mFramesReceived中获取数据 并构建MediaBuffer返回给MediaCodecSource::Puller对象
899 frame = *mFramesReceived.begin();
900 mFramesReceived.erase(mFramesReceived.begin());
901
902 frameTime = *mFrameTimes.begin();
903 mFrameTimes.erase(mFrameTimes.begin());
904 mFramesBeingEncoded.push_back(frame);
905 // TODO: Using unsecurePointer() has some associated security pitfalls
906 // (see declaration for details).
907 // Either document why it is safe in this case or address the
908 // issue (e.g. by copying).
909 *buffer = new MediaBuffer(frame->unsecurePointer(), frame->size());
910 (*buffer)->setObserver(this);
911 (*buffer)->add_ref();
912 (*buffer)->meta_data().setInt64(kKeyTime, frameTime);
913 if (mBufferDataSpace != mEncoderDataSpace) {
914 ALOGD("Data space updated to %x", mBufferDataSpace);
915 (*buffer)->meta_data().setInt32(kKeyColorSpace, mBufferDataSpace);
916 mEncoderDataSpace = mBufferDataSpace;
917 }
918 }
919 return OK;
920 }
当MediaCodecSource接受到kWhatPullerNotify消息后会调用MediaCodecSource::onMessageReceived
(3)从MeidaCodecSource到MediaCodec
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
883 void MediaCodecSource::onMessageReceived(const sp<AMessage> &msg) {
884 switch (msg->what()) {
885 case kWhatPullerNotify:
886 {
887 int32_t eos = 0;
888 if (msg->findInt32("eos", &eos) && eos) {
889 ALOGI("puller (%s) reached EOS", mIsVideo ? "video" : "audio");
890 signalEOS();
891 break;
892 }
893
894 if (mEncoder == NULL) {
895 ALOGV("got msg '%s' after encoder shutdown.", msg->debugString().c_str());
896 break;
897 }
898 //把Camera传过来的数据送到编码器里编码
899 feedEncoderInputBuffers();
900 break;
901 }
}
}
705 status_t MediaCodecSource::feedEncoderInputBuffers() {
706 MediaBufferBase* mbuf = NULL;
//从mPuller的mQueue中读取数据到mbuf
707 while (!mAvailEncoderInputIndices.empty() && mPuller->readBuffer(&mbuf)) {
708 if (!mEncoder) {
709 return BAD_VALUE;
710 }
//获取编码器中空闲buffer的index
711 size_t bufferIndex = *mAvailEncoderInputIndices.begin();
712 mAvailEncoderInputIndices.erase(mAvailEncoderInputIndices.begin());
713
...
749 //根绝index从编码器中获取一块buffer
750 sp<MediaCodecBuffer> inbuf;
751 status_t err = mEncoder->getInputBuffer(bufferIndex, &inbuf);
752
753 if (err != OK || inbuf == NULL || inbuf->data() == NULL
754 || mbuf->data() == NULL || mbuf->size() == 0) {
755 mbuf->release();
756 signalEOS();
757 break;
758 }
759
760 size = mbuf->size();
761 //将Camera的数据拷贝到编码器提供的buffer中
762 memcpy(inbuf->data(), mbuf->data(), size);
763
764 if (mIsVideo) {
765 int32_t ds = 0;
766 if (mbuf->meta_data().findInt32(kKeyColorSpace, &ds)
767 && ds != HAL_DATASPACE_UNKNOWN) {
...
//给编码器设置参数
779 mEncoder->setParameters(msg);
780 }
781
782 // video encoder will release MediaBuffer when done
783 // with underlying data.
784 inbuf->meta()->setObject("mediaBufferHolder", new MediaBufferHolder(mbuf));
785 mbuf->release();
786 } else {
787 mbuf->release();
788 }
789 } else {
790 flags = MediaCodec::BUFFER_FLAG_EOS;
791 }
792 //将承载数据的buffer入队
793 status_t err = mEncoder->queueInputBuffer(
794 bufferIndex, 0, size, timeUs, flags);
795
796 if (err != OK) {
797 return err;
798 }
799 }
800
801 return OK;
802 }
feedEncoderInputBuffers主要是从MediaCodec中获取一块空闲的buffer然后从Puller的mQueue中将Camera的数据取出拷贝到buffer中接着将buffer放到MediaCodec的队列中。MediaCodec的queueInputBuffer方法则是通过发送kWhatQueueInputBuffer消息执行到MediaCodec::onMessageReceived的kWhatQueueInputBuffer分支，
/frameworks/av/media/libstagefright/MediaCodec.cpp
void MediaCodec::onMessageReceived(const sp<AMessage> &msg) {
....
4162 case kWhatQueueInputBuffer:
4163 {
...
4175 status_t err = UNKNOWN_ERROR;
//这里一般走else
4176 if (!mLeftover.empty()) {
4177 mLeftover.push_back(msg);
4178 size_t index;
4179 msg->findSize("index", &index);
4180 err = handleLeftover(index);
4181 } else {
4182 err = onQueueInputBuffer(msg);
4183 }
...
4187 }
(4)从MeidaCodec到ACodec的BufferChannel
MediaCodec的onQueueInputBuffer会通过传过来的index取出buffer再放入到ACodec的BufferChannel中
/frameworks/av/media/libstagefright/MediaCodec.cpp
4754 status_t MediaCodec::onQueueInputBuffer(const sp<AMessage> &msg) {
//1. 获取各种参数
4755 size_t index;
4756 size_t offset;
4757 size_t size;
4758 int64_t timeUs;
4759 uint32_t flags;
4760 CHECK(msg->findSize("index", &index));
4761 CHECK(msg->findInt64("timeUs", &timeUs));
4762 CHECK(msg->findInt32("flags", (int32_t *)&flags));
...
4828 //根据index找到我们存放数据的buffer
4829 BufferInfo *info = &mPortBuffers[kPortIndexInput][index];
4830 sp<MediaCodecBuffer> buffer = info->mData;
4831 ...
4888 //这里一般走else
4889 if (mTunneled) {
4890 ...
4941 } else {
//这里的mBufferChannel是从ACodec中获取到的
4942 err = mBufferChannel->queueInputBuffer(buffer);
...
4947 }
4948 ...
4957
4958 return err;
4959 }
Acodec的mBufferChannel在调用queueInputBuffer后会发送一条kWhatInputBufferFilled消息让ACodec将Buffer传给omxNode去编码，当编码完毕后omx会通过创建omxNode时传入的CodecObserver回调给ACodec，接着ACodec则将omx回传的messageList构建了一条kWhatOMXMessageList消息发送出去，Acodec接收到kWhatOMXMessageList消息后再通过ACodec::BaseState::onOMXMessage根据对应的类型一条一条处理。这里我们只关注FILL_BUFFER_DONE消息，他会调用onOMXFillBufferDone函数，在onOMXFillBufferDone函数会通过调用mBufferChannel的drainThisBuffer回调到MediaCodec的onOutputBufferAvailable函数
(5)从Omx回传给MediaCodec
/frameworks/av/media/libstagefright/MediaCodec.cpp
0 void BufferCallback::onOutputBufferAvailable(
491 size_t index, const sp<MediaCodecBuffer> &buffer) {
492 sp<AMessage> notify(mNotify->dup());
493 notify->setInt32("what", kWhatDrainThisBuffer);
494 notify->setSize("index", index);
495 notify->setObject("buffer", buffer);
496 notify->post();
497 }
2964 void MediaCodec::onMessageReceived(const sp<AMessage> &msg) {
...
3503 case kWhatDrainThisBuffer:
3504 { //把编码好的数据放到 mPortBuffers中
3505 /* size_t index = */updateBuffers(kPortIndexOutput, msg);
3506
3507 if (mState == FLUSHING
3508 || mState == STOPPING
3509 || mState == RELEASING) {
3510 returnBuffersToCodecOnPort(kPortIndexOutput);
3511 break;
3512 }
3513
3514 if (mFlags & kFlagIsAsync) {
3515 sp<RefBase> obj;
3516 CHECK(msg->findObject("buffer", &obj));
3517 sp<MediaCodecBuffer> buffer = static_cast<MediaCodecBuffer *>(obj.get());
3518
3519 // In asynchronous mode, output format change is processed immediately.
3520 handleOutputFormatChangeIfNeeded(buffer);
//调用onOutputBufferAvailable发送消息通知MediaCodecSource
3521 onOutputBufferAvailable();
3522 } else if (mFlags & kFlagDequeueOutputPending) {
3523 CHECK(handleDequeueOutputBuffer(mDequeueOutputReplyID));
3524
3525 ++mDequeueOutputTimeoutGeneration;
3526 mFlags &= ~kFlagDequeueOutputPending;
3527 mDequeueOutputReplyID = 0;
3528 } else {
3529 postActivityNotificationIfPossible();
3530 }
3531
3532 break;
3533 }
3534
}
5199 void MediaCodec::onOutputBufferAvailable() {
5200 int32_t index;
5201 while ((index = dequeuePortBuffer(kPortIndexOutput)) >= 0) {
//获取到编码好的Camera数据
5202 const sp<MediaCodecBuffer> &buffer =
5203 mPortBuffers[kPortIndexOutput][index].mData;
5204 sp<AMessage> msg = mCallback->dup();
//设置callbackID 为 CB_OUTPUT_AVAILABLE
5205 msg->setInt32("callbackID", CB_OUTPUT_AVAILABLE);
5206 msg->setInt32("index", index);
5207 msg->setSize("offset", buffer->offset());
5208 msg->setSize("size", buffer->size());
...
5221 //这里的msg则是MediaCodecSource在调用initEncoder时在设置Encoder前set的kWhatEncoderActivity消息
5222 msg->post();
5223 }
5224 }
所以最后调用到了MediaCodecSource的onMessageReceived的kWhatEncoderActivity分支
883 void MediaCodecSource::onMessageReceived(const sp<AMessage> &msg) {
902 case kWhatEncoderActivity:
903 {
904 if (mEncoder == NULL) {
905 break;
906 }
907
908 int32_t cbID;
909 CHECK(msg->findInt32("callbackID", &cbID));
910 if (cbID == MediaCodec::CB_INPUT_AVAILABLE) {
911 ...
916 } else if (cbID == MediaCodec::CB_OUTPUT_FORMAT_CHANGED) {
917 ...
925 } else if (cbID == MediaCodec::CB_OUTPUT_AVAILABLE) {
926 int32_t index;
927 size_t offset;
928 size_t size;
929 int64_t timeUs;
930 int32_t flags;
931
932 CHECK(msg->findInt32("index", &index));
933 CHECK(msg->findSize("offset", &offset));
934 CHECK(msg->findSize("size", &size));
935 CHECK(msg->findInt64("timeUs", &timeUs));
936 CHECK(msg->findInt32("flags", &flags));
937
938 if (flags & MediaCodec::BUFFER_FLAG_EOS) {
939 mEncoder->releaseOutputBuffer(index);
940 signalEOS();
941 break;
942 }
943 //从MediaCodec中获取到编码好的数据
944 sp<MediaCodecBuffer> outbuf;
945 status_t err = mEncoder->getOutputBuffer(index, &outbuf);
946 if (err != OK || outbuf == NULL || outbuf->data() == NULL
947 || outbuf->size() == 0) {
948 signalEOS();
949 break;
950 }
951 //包装成MediaBuffer
952 MediaBufferBase *mbuf = new MediaBuffer(outbuf->size());
953 mbuf->setObserver(this);
954 mbuf->add_ref();
955
...//一系列设置
//拷贝出数据
1006 memcpy(mbuf->data(), outbuf->data(), outbuf->size());
1007
1008 {
1009 Mutexed<Output>::Locked output(mOutput);
1010 output->mBufferQueue.push_back(mbuf);
//发送mCond.signal
1011 output->mCond.signal();
1012 }
1013
1014 mEncoder->releaseOutputBuffer(index);
1015 } else if (cbID == MediaCodec::CB_ERROR) {
1016 ...
1025 }
1026 break;
1027 }
}
在上面的2.4.6小节 在 Track::ThreadWrapper函数中会循环调用mSource->read来读取buffer这里的mSource是MediaCodecSource，
/frameworks/av/media/libstagefright/MediaCodecSource.cpp
408 status_t MediaCodecSource::read(
409 MediaBufferBase** buffer, const ReadOptions* /* options */) {
410 Mutexed<Output>::Locked output(mOutput);
411
412 *buffer = NULL;
413 while (output->mBufferQueue.size() == 0 && !output->mEncoderReachedEOS) {
//这里会一直等待output->mCond的信号
414 output.waitForCondition(output->mCond);
415 }
416 if (!output->mEncoderReachedEOS) {
417 *buffer = *output->mBufferQueue.begin();
418 output->mBufferQueue.erase(output->mBufferQueue.begin());
419 return OK;
420 }
421 return output->mErrorCode;
422 }
至此Camera的编码的数据就会传给MPEG4Writer去写入文件中。
录制时的数据流向简图如下：
Audio的流程和上面时类似的，这里就不在展开阐述了，有兴趣的可以自己研究一下。
2004
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
