本文介绍了一种0.96寸OLED屏的SPI接口驱动方法，涵盖了七针和六针OLED屏的引脚定义及驱动程序实现。通过实例演示了如何在51单片机上实现OLED屏的文字与图片显示。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

目录

STC实验箱4
IAP15W4K58S4
Keil uVision V5.29.0.0
PK51 Prof.Developers Kit Version:9.60.0.0

DMA控制见【0.96寸 OLED屏实现1500Fps的帧率】STM32 软件、硬件SPI、I2C驱动总结

OLED SPI 端口定义

本节引自STM32驱动0.96寸OLED液晶屏(12864液晶屏) —— 小牧同学
在这里插入图片描述
两种屏幕的引脚数不一样，左边的有7个引脚，而右边的只有6个。其次，端口的标号也不完全一样，第一个分别标为GND，VCC，D0，D1，RES，DC和CS第二个分别标为GND，VCC，SCL，SDA，RST，D/C。

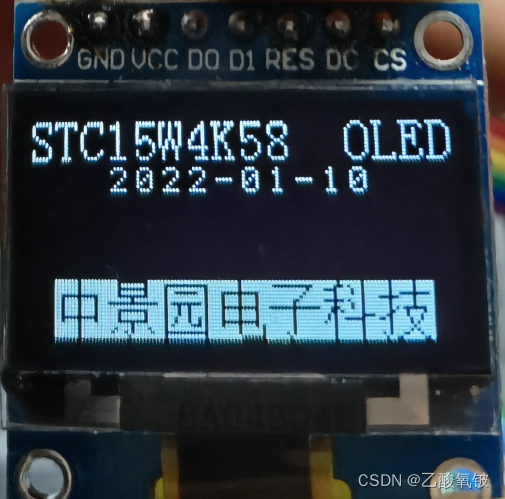

七针OLED引脚定义

GND — 接地端口
VCC — 接3.3V电源端口
D0 — CLK时钟信号(等同于上面的SCL)
D1 — 数据端口(等同于上面的SDA)
RES — 复位端口(等同于上面的RST)
DC — 数据/命令选择引脚(等同于上面的D/C)
CS — 片选引脚(低电平有效，也就是所需要接低电平，我实际试验过不接该引脚也是可以正常使用的)

六针OLED引脚定义

GND — 接地端口
VCC — 接3.3V电源端口
SCL — CLK时钟信号端口
SDA — MOSI数据端口
RST — 复位端口
D/C — 数据/命令选择引脚

在这里插入图片描述

驱动程序

       指令解读见【51单片机快速入门指南】4.2： SSD1306 OLED屏（0.96寸、1.3寸）的I2C控制详解
       软件SPI程序见【51单片机快速入门指南】5：软件SPI

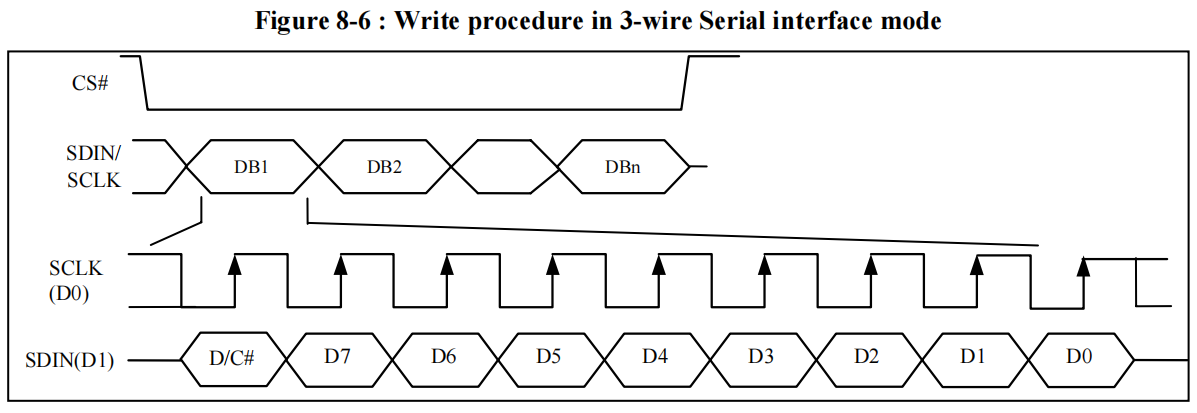

       SPI选择模式1或2均可，实测模式0也行。
       51内核单片机所用的stdint.h见【51单片机快速入门指南】1：基础知识和工程创建

oled.c

#include "./SPI_OLED/oled.h"
#include "./SPI_OLED/oledfont.h"
#include "./Soft_SPI/Soft_SPI.h"
#include "./Drivers/delay.h"

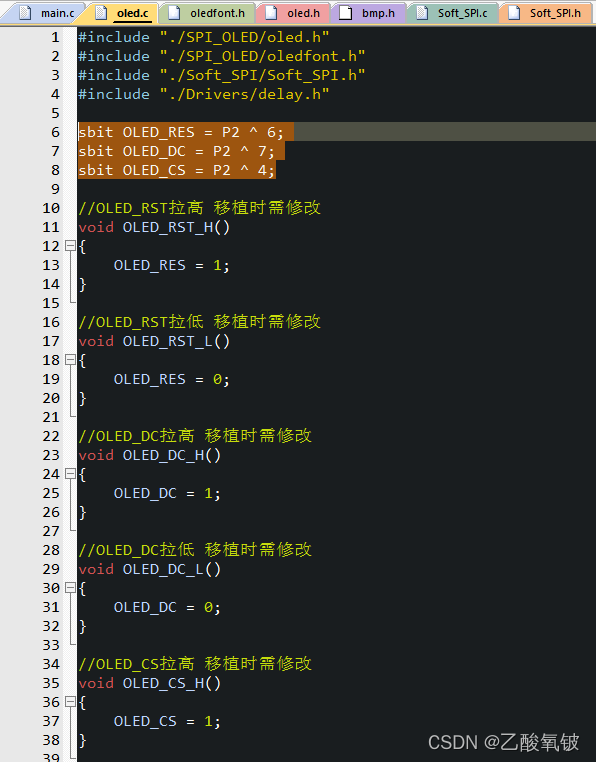

sbit OLED_RES = P2 ^ 6;
sbit OLED_DC = P2 ^ 7;
sbit OLED_CS = P2 ^ 4;

//OLED_RST拉高 移植时需修改
void OLED_RST_H()
{
    OLED_RES = 1;
}

//OLED_RST拉低 移植时需修改
void OLED_RST_L()
{
    OLED_RES = 0;
}

//OLED_DC拉高 移植时需修改
void OLED_DC_H()
{
    OLED_DC = 1;
}

//OLED_DC拉低 移植时需修改
void OLED_DC_L()
{
    OLED_DC = 0;
}

//OLED_CS拉高 移植时需修改
void OLED_CS_H()
{
    OLED_CS = 1;
}

//OLED_CS拉低 移植时需修改
void OLED_CS_L()
{
    OLED_CS = 0;
}

//OLED的显存
//存放格式如下.
//[0]0 1 2 3 ... 127
//[1]0 1 2 3 ... 127
//[2]0 1 2 3 ... 127
//[3]0 1 2 3 ... 127
//[4]0 1 2 3 ... 127
//[5]0 1 2 3 ... 127
//[6]0 1 2 3 ... 127
//[7]0 1 2 3 ... 127

#if OLED_BUFFER_MODE

uint8_t OLED_GRAM[Max_Row / 8][Max_Column] = {0};

#endif

/**************************************************************************
 Function: Refresh the OLED screen
 Input   : none
 Output  : none
 函数功能：刷新OLED屏幕
 入口参数：无
 返回  值：无
 **************************************************************************/

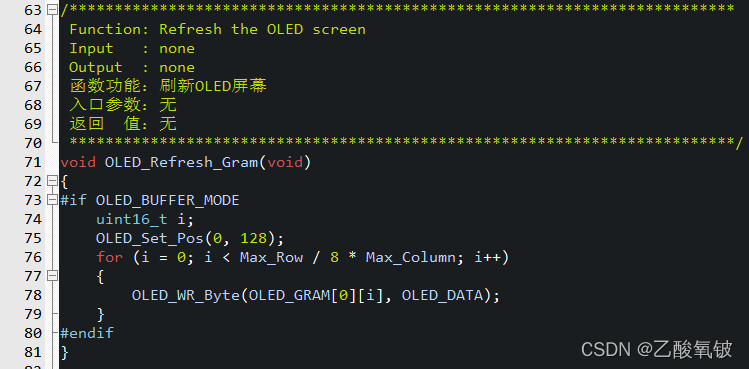

void OLED_Refresh_Gram(void)
{
#if OLED_BUFFER_MODE
    uint16_t i;
    OLED_Set_Pos(0, 128);
    for (i = 0; i < Max_Row / 8 * Max_Column; i++)
    {
        OLED_WR_Byte(OLED_GRAM[0][i], OLED_DATA);
    }
#endif
}

/**
* @brief 向SSD1306写入一个字节
* @param dat:要写入的数据/命令 cmd:数据/命令标志 0,表示命令;1,表示数据;
* @retval None
*/
void OLED_WR_Byte(uint8_t dat, uint8_t cmd)
{
    OLED_CS_L();
    if (cmd)
        OLED_DC_H();
    else
        OLED_DC_L();
    SOFT_SPI_RW_MODE2(dat);
    OLED_DC_H();
    OLED_CS_H();
}

/**************************************************************************
 Function: Set the coordinates (position) displayed on the screen.
 Input   : x, y: starting point coordinates
 Output  : none
 函数功能：设置汉字在屏幕上显示的坐标（位置）
 入口参数: x,y :起点坐标
 返回  值：无
 **************************************************************************/
void OLED_Set_Pos(uint8_t x, uint8_t y)
{
    OLED_WR_Byte(0xb0 + y, OLED_CMD);
    OLED_WR_Byte(((x & 0xf0) >> 4) | 0x10, OLED_CMD);
    OLED_WR_Byte((x & 0x0f), OLED_CMD);
}

/**
* @brief 开启OLED显示
* @param None
* @retval None
*/
void OLED_Display_On(void)
{
    OLED_WR_Byte(0X8D, OLED_CMD);  //SET DCDC命令
    OLED_WR_Byte(0X14, OLED_CMD);  //DCDC ON
    OLED_WR_Byte(0XAF, OLED_CMD);  //DISPLAY ON
}

/**
* @brief 关闭OLED显示
* @param None
* @retval None
*/
void OLED_Display_Off(void)
{
    OLED_WR_Byte(0X8D, OLED_CMD);  //SET DCDC命令
    OLED_WR_Byte(0X10, OLED_CMD);  //DCDC OFF
    OLED_WR_Byte(0XAE, OLED_CMD);  //DISPLAY OFF
}

/**
* @brief 清屏函数,清完屏,整个屏幕是黑色的!和没点亮一样
* @param None
* @retval None
*/
void OLED_Clear(void)
{
#if OLED_BUFFER_MODE
    uint16_t i;
    for (i = 0; i < Max_Row / 8 * Max_Column; i++)
    {
        OLED_GRAM[0][i] = 0;
    }
    OLED_Refresh_Gram(); //Update the display //更新显示
#else
    uint8_t i, n;
    for (i = 0; i<8; i++)
    {
        OLED_WR_Byte(0xb0 + i, OLED_CMD);    //设置页地址（0~7）
        OLED_WR_Byte(0x00, OLED_CMD);      //设置显示位置—列低地址
        OLED_WR_Byte(0x10, OLED_CMD);      //设置显示位置—列高地址
        for (n = 0; n<Max_Column; n++)
            OLED_WR_Byte(0, OLED_DATA);
    }//更新显示
#endif
}

/**
* @brief 在指定位置显示一个字符,包括部分字符
* @param x:0~127   y:0~63   Is_Reverse:1,反白显示  0,正常显示	 charSize:选择字体 16/6
* @retval None
*/
void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t charSize, uint8_t Is_Reverse)
{
    uint8_t i = 0;
    chr -= ' ';	//得到偏移后的值
    if (x > Max_Column - 1)
    {
        x = 0;
        y = y + 2;
    }
#if OLED_BUFFER_MODE
    if(charSize == 16)
    {
		for(i = 0; i < 8; i++)
		{
			OLED_GRAM[y][x+i] = Is_Reverse == 0?F8X16[chr][i]:~F8X16[chr][i];
			OLED_GRAM[y+1][x+i] = Is_Reverse == 0?F8X16[chr][i+8]:~F8X16[chr][i+8];
		}
    }
    else if(charSize == 6)
    {
		for(i=0; i<6; i++)
		{
			OLED_GRAM[y][x+i] = Is_Reverse == 0?F8X6[chr][i]:~F8X6[chr][i];
		}
    }
#else
    if (charSize == 16)
    {
        OLED_Set_Pos(x, y);
        for (i = 0; i<8; i++)
            OLED_WR_Byte(Is_Reverse == 0?F8X16[chr][i]:~F8X16[chr][i], OLED_DATA);
        OLED_Set_Pos(x, y + 1);
        for (i = 0; i<8; i++)
            OLED_WR_Byte(Is_Reverse == 0?F8X16[chr][i + 8]:~F8X16[chr][i + 8], OLED_DATA);
    }
    else if(charSize == 6)
    {
        OLED_Set_Pos(x, y);
        for (i = 0; i<6; i++)
            OLED_WR_Byte(Is_Reverse == 0?F8X6[chr][i]:~F8X6[chr][i], OLED_DATA);
    }
#endif
}

/**
* @brief m^n函数
* @param None
* @retval None
*/
uint32_t oled_pow(uint8_t m, uint8_t n)
{
    uint32_t result = 1;
    while (n--)result *= m;
    return result;
}

/**
* @brief 显示2个数字
* @param x,y :起点坐标
*				 len :数字的位数，即显示几位有效数字
*				 Size:字体大小
*				 mode:模式	0,填充模式;1,叠加模式
*        num:数值(0~4294967295);
* @retval None
*/
void OLED_ShowNum(uint8_t x, uint8_t y, uint32_t num, uint8_t len, uint8_t Size, uint8_t Is_Reverse)
{
    uint8_t t, temp;
    uint8_t enshow = 0;
    for (t = 0; t < len; t++)
    {
        temp = (num / oled_pow(10, len - t - 1)) % 10;
        if (enshow == 0 && t < (len - 1))
        {
            if (temp == 0)
            {
                OLED_ShowChar(x + 8 * t, y, ' ', Size, Is_Reverse);
                continue;
            }
            else
                enshow = 1;

        }
        OLED_ShowChar(x + 8 * t, y, temp + '0', Size, Is_Reverse);
    }
}

/**
* @brief 显示一个字符号串
* @param
* @retval None
*/
void OLED_ShowString(uint8_t x, uint8_t y, char *chr, uint8_t charSize, uint8_t Is_Reverse)
{
    uint8_t j = 0;
    while (chr[j] != '\0')
    {
        OLED_ShowChar(x, y, chr[j], charSize, Is_Reverse);
        x += 8;
        if (x>120)
        {
            x = 0;
            y += 2;
        }
        j++;
    }
}

/**
* @brief 显示汉字
* @param
* @retval None
*/
void OLED_ShowChinese(uint8_t x, uint8_t y, uint8_t no, uint8_t Is_Reverse)
{
    uint8_t i;
#if OLED_BUFFER_MODE
    for (i = 0; i < 16; i++)
    {
		OLED_GRAM[y][x+i] = Is_Reverse == 0?Hzk[2 * no][i]:~Hzk[2 * no][i];
		OLED_GRAM[y+1][x+i] = Is_Reverse == 0?Hzk[2 * no + 1][i]:~Hzk[2 * no + 1][i];
    }
#else
    OLED_Set_Pos(x, y);
    for (i = 0; i < 16; i++)
    {
        OLED_WR_Byte(Is_Reverse == 0?Hzk[2 * no][i]:~Hzk[2 * no][i], OLED_DATA);
    }
    OLED_Set_Pos(x, y + 1);
    for (i = 0; i<16; i++)
    {
        OLED_WR_Byte(Is_Reverse == 0?Hzk[2 * no + 1][i]:~Hzk[2 * no + 1][i], OLED_DATA);
    }
#endif
}

/**
* @brief 显示显示BMP图片
* @param 显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7
* @retval None
*/
void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t BMP[], uint8_t Is_Reverse)
{
    uint16_t j = 0;
    uint8_t x, y;

    if (y1 % 8 == 0)
		y = y1 / 8;
    else
		y = y1 / 8 + 1;
#if OLED_BUFFER_MODE
    for (y = y0; y<y1; y++)
    {
        for (x = x0; x<x1; x++)
        {
			OLED_GRAM[y][x] = Is_Reverse == 0?BMP[j++]:~BMP[j++];
        }
    }
#else
    for (y = y0; y<y1; y++)
    {
        OLED_Set_Pos(x0, y);
        for (x = x0; x<x1; x++)
        {
            OLED_WR_Byte(Is_Reverse == 0?BMP[j++]:~BMP[j++], OLED_DATA);
        }
    }
#endif
}

/**
* @brief 初始化SSD1306
* @param None
* @retval None
*/
void OLED_Init(void)
{
    OLED_RST_H();
    delay_ms(10);
    OLED_RST_L();
    delay_ms(100);
    OLED_RST_H();

    OLED_WR_Byte(0xAE, OLED_CMD);//--turn off oled panel 设置显示关

    OLED_WR_Byte(0x00, OLED_CMD);//---set low column address	设置低列地址
    OLED_WR_Byte(0x10, OLED_CMD);//---set high column address 设置高列地址

    OLED_WR_Byte(0x40, OLED_CMD);//--set start line address  Set Mapping RAM Display Start Line (0x40~0x7F) 设置显示开始行

    OLED_WR_Byte(0xDA, OLED_CMD);//--set com pins hardware configuration 设置 COM 引脚硬件配置
    OLED_WR_Byte(0x12, OLED_CMD);

#if OLED_BUFFER_MODE
    OLED_WR_Byte(0x20, OLED_CMD);//-Set Page Addressing Mode (0x00/0x01/0x02) 设置内存地址模式
    OLED_WR_Byte(0x00, OLED_CMD);//

    OLED_WR_Byte(0xD3, OLED_CMD);//-set display offset	Shift Mapping RAM Counter (0x00~0x3F)	设置显示偏移
    OLED_WR_Byte(0x00/*±8的倍数*/,OLED_CMD);
#else
    OLED_WR_Byte(0x20, OLED_CMD);//-Set Page Addressing Mode (0x00/0x01/0x02) 设置内存地址模式
    OLED_WR_Byte(0x02, OLED_CMD);//

    OLED_WR_Byte(0xD3, OLED_CMD);//-set display offset	Shift Mapping RAM Counter (0x00~0x3F)	设置显示偏移
    OLED_WR_Byte(0x00/*±8的倍数*/, OLED_CMD);//-not offset
#endif
    OLED_WR_Byte(0xA1, OLED_CMD);//--Set SEG/Column Mapping     0xa0左右反置 0xa1正常
    OLED_WR_Byte(0xC8, OLED_CMD);//Set COM/Row Scan Direction   0xc0上下反置 0xc8正常

    OLED_WR_Byte(0xDB, OLED_CMD);//--set vcomh	设置 Vcomh 取消选择水平
    OLED_WR_Byte(0x30, OLED_CMD);//Set VCOM Deselect Level

    OLED_WR_Byte(0xD8,OLED_CMD);//set area color mode off
    OLED_WR_Byte(0x05,OLED_CMD);//

    OLED_WR_Byte(0x81, OLED_CMD);//--set contrast control register 为 BANK0 设置对比度控制
    OLED_WR_Byte(Brightness, OLED_CMD); //1~ 255; Default 0x7f (brightness Settings, the bigger the brighter) //1~255;默认0X7F (亮度设置,越大越亮)

    OLED_WR_Byte(0xA8, OLED_CMD);//--set multiplex ratio(1 to 64)	设置复用率
    OLED_WR_Byte(0x3f, OLED_CMD);//--1/64 duty

    OLED_WR_Byte(0xd5, OLED_CMD);//--set display clock divide ratio/oscillator frequency	设置显示时钟分频率、振荡器频率
    OLED_WR_Byte(0x80, OLED_CMD);//--set divide ratio, Set Clock as 100 Frames/Sec

    OLED_WR_Byte(0xD9, OLED_CMD);//--set pre-charge period 设置重充电周期
    OLED_WR_Byte(0xF1, OLED_CMD);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock

    OLED_WR_Byte(0x8D, OLED_CMD);//--set Charge Pump enable/disable 升压允许
    OLED_WR_Byte(0x14, OLED_CMD);//--set(0x10) disable

    OLED_WR_Byte(0xA4, OLED_CMD);// Disable Entire Display On (0xa4/0xa5) 全部显示开启
    OLED_WR_Byte(0xA6, OLED_CMD);// Disable Inverse Display On (0xa6/a7) 设置正常显示

    OLED_WR_Byte(0xAF, OLED_CMD);// display ON 设置显示开
    OLED_Clear();
    OLED_Set_Pos(0, 0);
}

oled.h

#ifndef __OLED_H
#define __OLED_H

#include <stdint.h>
#include "./Drivers/config.h"

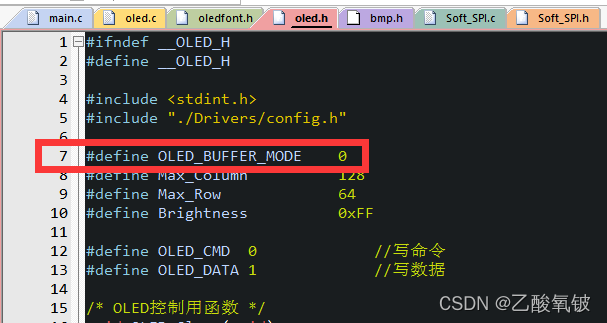

#define OLED_BUFFER_MODE	0
#define Max_Column			128
#define Max_Row				64
#define	Brightness			0xFF

#define OLED_CMD  0				//写命令
#define OLED_DATA 1				//写数据

/* OLED控制用函数 */
void OLED_Clear(void);																																											 /* OLED清屏 */
void OLED_Display_On(void);                                                         /* OLED开 */
void OLED_ShowPosture(void);																																								 /* 提示信息 */
void OLED_Display_Off(void);                                                        /* OLED关 */
void OLED_Init(void);                                                               /* OLED初始化 */
void OLED_WR_Byte(uint8_t dat, uint8_t cmd);	                                    /* 写字节 */
void OLED_Set_Pos(uint8_t x, uint8_t y);											/* 设置坐标 */
void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t charSize, uint8_t Is_Reverse);            /* 显示字符 */
void OLED_ShowString(uint8_t x, uint8_t y, char *p, uint8_t charSize, uint8_t Is_Reverse);	            /* 显示字符串 */
void OLED_ShowChinese(uint8_t x, uint8_t y, uint8_t no, uint8_t Is_Reverse);                            /* 显示中文 */
void OLED_ShowNum(uint8_t x, uint8_t y, uint32_t num, uint8_t len, uint8_t Size, uint8_t Is_Reverse);   /* 显示数字 */
void OLED_DrawBMP(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint8_t BMP[], uint8_t Is_Reverse);	/* 显示图片 */

void OLED_Refresh_Gram(void);

#endif  /* __OLED_H */

oledfont.h

#ifndef __OLEDFONT_H
#define __OLEDFONT_H

/************************************8*6的点阵************************************/
code unsigned char F8X6[][6] =
{
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
    0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
    0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
    0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
    0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
    0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
    0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
    0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
    0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
    0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
    0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
    0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
    0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
    0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
    0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
    0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
    0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
    0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
    0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
    0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
    0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
    0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
    0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
    0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
    0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
    0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
    0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
    0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
    0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
    0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
    0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
    0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
    0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
    0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
    0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
    0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
    0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
    0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
    0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
    0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
    0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
    0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
    0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
    0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
    0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
    0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
    0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
    0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
    0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
    0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
    0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
    0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
    0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
    0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
    0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// /
    0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
    0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
    0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
    0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
    0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
    0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
    0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
    0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
    0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
    0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
    0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
    0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
    0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
    0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
    0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
    0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
    0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
    0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
    0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
    0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
    0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
    0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
    0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
    0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
    0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
    0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
    0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
    0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
    0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// ~
};

//阴码 列行式 逆向
code unsigned char F8X16[][16]=
{
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//  0
    0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
    0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
    0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
    0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
    0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
    0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
    0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
    0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
    0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
    0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
    0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
    0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
    0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
    0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
    0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
    0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
    0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
    0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
    0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
    0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
    0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
    0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
    0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
    0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
    0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
    0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
    0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
    0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
    0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
    0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
    0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
    0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
    0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
    0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
    0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
    0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
    0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
    0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
    0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
    0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
    0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
    0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
    0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
    0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
    0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
    0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
    0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
    0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
    0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
    0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
    0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
    0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
    0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
    0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
    0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
    0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
    0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
    0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
    0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
    0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
    0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
    0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
    0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
    0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
    0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
    0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
    0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
    0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
    0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
    0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
    0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
    0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
    0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
    0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
    0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
    0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
    0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
    0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
    0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
    0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
    0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
    0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
    0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
    0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
    0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
    0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
    0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
    0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

code unsigned char Hzk[][32]=
{
    {0x00,0x00,0xF0,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0xF0,0x00,0x00,0x00},
    {0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x0F,0x00,0x00,0x00},/*"中",0*/

    {0x40,0x40,0x40,0x5F,0x55,0x55,0x55,0x75,0x55,0x55,0x55,0x5F,0x40,0x40,0x40,0x00},
    {0x00,0x40,0x20,0x0F,0x09,0x49,0x89,0x79,0x09,0x09,0x09,0x0F,0x20,0x40,0x00,0x00},/*"景",1*/

    {0x00,0xFE,0x02,0x42,0x4A,0xCA,0x4A,0x4A,0xCA,0x4A,0x4A,0x42,0x02,0xFE,0x00,0x00},
    {0x00,0xFF,0x40,0x50,0x4C,0x43,0x40,0x40,0x4F,0x50,0x50,0x5C,0x40,0xFF,0x00,0x00},/*"园",2*/

    {0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x88,0xF8,0x00,0x00,0x00},
    {0x00,0x00,0x1F,0x08,0x08,0x08,0x08,0x7F,0x88,0x88,0x88,0x88,0x9F,0x80,0xF0,0x00},/*"电",3*/

    {0x80,0x82,0x82,0x82,0x82,0x82,0x82,0xE2,0xA2,0x92,0x8A,0x86,0x82,0x80,0x80,0x00},
    {0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"子",4*/

    {0x24,0x24,0xA4,0xFE,0xA3,0x22,0x00,0x22,0xCC,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
    {0x08,0x06,0x01,0xFF,0x00,0x01,0x04,0x04,0x04,0x04,0x04,0xFF,0x02,0x02,0x02,0x00},/*"科",5*/

    {0x10,0x10,0x10,0xFF,0x10,0x90,0x08,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x08,0x00},
    {0x04,0x44,0x82,0x7F,0x01,0x80,0x80,0x40,0x43,0x2C,0x10,0x28,0x46,0x81,0x80,0x00},/*"技",6*/

};

#endif

使用

按需修改引脚
在这里插入图片描述
在这里插入图片描述

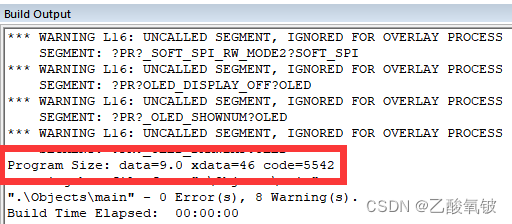

oled.h中的OLED_BUFFER_MODE为0时为普通模式，RAM占用少
在这里插入图片描述在这里插入图片描述

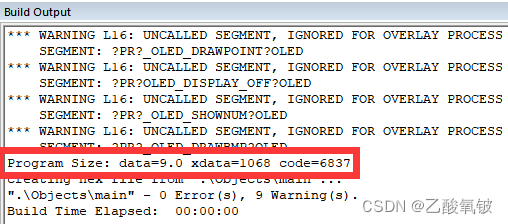

oled.h中的OLED_BUFFER_MODE为1时使用大小为1024的RAM作为显存，并使用连续写入的方法更新屏幕。
在这里插入图片描述
在这里插入图片描述

main.c

#include "./Drivers/config.h"
#include "./Drivers/delay.h"

#include "./Drivers/GPIO.h"
#include "./SPI_OLED/oled.h"

void GPIO_config(void)
{
	GPIO_InitTypeDef GPIO_InitStructure;					//结构定义
	GPIO_InitStructure.Mode = GPIO_OUT_PP;					//指定IO的输入或输出方式,GPIO_PullUp,GPIO_HighZ,GPIO_OUT_OD,GPIO_OUT_PP
	GPIO_InitStructure.Pin  = GPIO_Pin_3 | GPIO_Pin_4 | GPIO_Pin_5 | GPIO_Pin_6 | GPIO_Pin_7;//指定要初始化的IO, 或操作
	GPIO_Inilize(GPIO_P2,&GPIO_InitStructure);				//初始化为推挽输出
}

void main(void)
{
	uint8_t i;
	GPIO_config();

	OLED_Init();
	OLED_Clear();
	OLED_Display_On();
	OLED_ShowString(0, 0, "STC15W4K58  OLED", 16, 0);
	OLED_ShowString(0, 2, "   2022-01-10", 6, 0);

	for(i = 0; i < 7; ++i)
		OLED_ShowChinese(8 + 16 * i, 6, i, 1);

	OLED_Refresh_Gram();

	while(1)
	{

	}
}

实验现象

在这里插入图片描述

STM32F103系列_OLED屏幕（SSD1306、SSD1315驱动）SPI驱动【DMA】（高刷）
星达拉的博客
07-04 2万+
基于STM32F10x的OLED高刷屏驱动
1.3寸OLED_SPI_ STM32F407驱动 中景园例程.rar
06-05
1.3寸OLED_SPI_ STM32F407驱动 中景园例程
BK7258 SPI驱动OLED屏幕
最新发布
qq_49542794的博客
04-03 128
【代码】BK7258 SPI驱动OLED屏幕。
惠特自动化的1.3寸SPI的OLED屏幕驱动
04-22
之前的惠特自动化给的屏幕驱动有问题，STM32不能控制显示，本人更改后可以显示 其中有Arduino，AVR，C51，STM32F103的历程 该屏幕用的是SH1106
使用STM32的DMA驱动4线SPI接口OLED高速显示
csaaa2005的专栏
02-28 3848
解决这个问题源于市面上一种常见的OLED显示屏，使用的是SSD13XX系列的接口，可以通过8080，8086，I2C，3/4 wire SPI进行传输显示。 在开发SPI显示的过程中发现，3线的SPI，DC线使用数据帧传输，那么数据传输就变成了9位，如果使用4线的SPI (DC,CS,MOSI,CLK(其中CS可省略))可以使用8位数据，但是需要D/C线的电平来决定传输的命令或是数据。 在大多...
STM32F103驱动SSD1353主控OLED程序 使用硬件SPI+DMA，帧率可达50Hz
04-02
STM32F103驱动SSD1353OLED程序，使用硬件SPI+DMA，帧率50Hz左右
1.3寸OLED模块的6PIN SPI显示屏电路原理图.pdf
04-04
1.3寸OLED模块的6PIN SPI显示屏电路原理图 接口配置方法： 4线SPI接口焊接：R3 IIC接口焊接：R1，R6，R7，R8 R8可不焊接，官方手册要求焊接
stm32f103驱动0.96寸OLED显示屏，hal库版本
04-11
0.96英寸的OLED屏通常采用I2C或SPI接口与微控制器通信，而在这个项目中，我们使用的是模拟I2C（Software I2C）方式，这种方法灵活性高，但需要额外的GPIO引脚来模拟SCL和SDA信号。 首先，我们需要配置STM32CUBEMX...
linux 软件spi协议驱动0.96寸OLED
08-30
在本场景中，我们关注的是如何在Linux系统中利用软件SPI驱动来控制0.96寸的OLED显示屏。OLED（Organic Light-Emitting Diode）屏幕是一种自发光显示技术，因其高对比度、快速响应速度和薄型设计而被广泛应用。 软件...
七针0.96寸OLED显示配置(SPI + DMA)
05-21
【STM32+HAL】七针0.96寸OLED显示配置(SPI + DMA)是关于使用STM32微控制器通过SPI接口和DMA（直接内存访问）来驱动0.96英寸OLED显示屏的教程。这篇教程将涵盖STM32微控制器的基础知识，OLED显示屏的工作原理，SPI...
OLED 显示驱动（I2C/SPI/整合版）
11-21
本资源提供了0.96寸OLED屏幕的三种驱动方式：I2C、SPI以及它们的整合版，以满足不同硬件接口需求。下面将详细介绍这三个驱动方式及其应用。 1. I2C (Inter-Integrated Circuit) 驱动： I2C是一种多主控通信协议，它...
中景园电子1.3寸OLED显示屏_C51系列_SPI_例程
05-08
中景园电子1.3寸OLED显示屏 _C51系列 _SPI_ 例程
STM32F4系列（F1类似），使用DMA驱动硬件8位SPI 高速推动OLED屏
02-28
STM32F4系列（F1类似），使用DMA驱动硬件SPI 高速推动OLED屏。 提供的是经过改进后的OLED.C这个文件，明白的人看了就会用。 zhuOLED_DrawPoint函数需要自行修改
F103_HAL_OLED_SPI_DMA.zip
08-02
七针OLED 0.96屏幕DMA + SPI驱动，超高写入频率，刷新率达到屏幕上限，文件仅核心代码，SPI 18M频率。stm32f103 HAL库编程，显示主要操作显存，循环写入显存，
基于STM32的OLED显示屏SPI驱动程序, 移植方便(只有驱动程序, 无工程文件)
04-04
基于STM32的OLED显示屏SPI驱动程序, 移植方便(只有驱动程序, 无工程文件).移植只需修改头文件宏定义即可.（设置为免积分下载，但是系统老是自己调整积分，无语...）
1.3寸和0.96寸IIC OLED SSD1106图形库显示.rar
04-01
1.3寸和0.96寸IIC OLED SSD1106图形库显示
中景园0.96寸4线spi OLED屏例程源码分析
uuu7777的博客
03-28 480
这个图是MCU通过SPI传输数据到gram的规则图，从上下俩图可以看到，当传输一个字节的时候，第一个传输的位会被写到GRAM的最下面，最后一个传输的位会被写到最上面。SPI先传字模字节的高位到GRAM的下面， 低位到最上面，最后显示的图像和字模图像符合。也就是说最上面的一个点会被点亮。好了这个就是从MCU到屏幕的映射规则。比如：在0页0列传输0x01这个数据。SPI传输的方式是先传高位然后再低位。2.源码字模取值规则。
0.96寸OLED(二)SPI+DMA刷新OLED
qq_15504787的博客
01-31 8423
SPI+DMA刷新OLED 文章目录SPI+DMA刷新OLED原理简介一、修改缓存区大小二、修改SSD1306的指令三、替换原来的刷新函数验证结果 原理简介 OLED屏幕有三种刷新方式分别为页地址模式, 水平地址模式和垂直地址模式,。市面上厂家提供的历程为页刷新，这种刷新方式需要用户自己手动进行行列的切换，这种操作方式我个人感觉比较麻烦。三种刷新方式的具体方式可以参考厂家的文档。我这里参考了另一个人的博客，具体连接如下。 https://blog.csdn.net/gengyuchao/article/
STM32 HAL库 SPI驱动1.3寸 OLED屏幕
Kasen‘s experience on reserch & study
10-29 1330
中景园1.3OLED。
STM32快速刷新0.96寸OLED屏幕的DMA+SPI技术
描述中提到的知识点较为丰富，涉及到STM32F103微控制器、直接内存访问（DMA）、串行外设接口（SPI）、0.96寸OLED屏幕以及数据传输和存储的概念。以下将对这些知识点进行详细说明： 1. **STM32F103微控制器**： STM...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

乙酸氧铍

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
