前言
Springboot项目中，现场每个工位配备一台海康相机MV-CU120-0UC（USB连接）和一台平板电脑/工控机（工位客户端），工位与服务器通讯，服务器部署有一套工位管理系统，工人需要在客户端登录工位管理系统进行作业，在工位管理系统前端界面进行相机拍照、录像、实时监控操作并显示，图片和视频需要按照指定路径保存在客户端本地，并上传到服务器，因相机安装在工位上，要想在服务器端进行相机操作，需要在工位客户端另起一个相机程序操控相机，涉及到相机二次开发。
主要参考文献

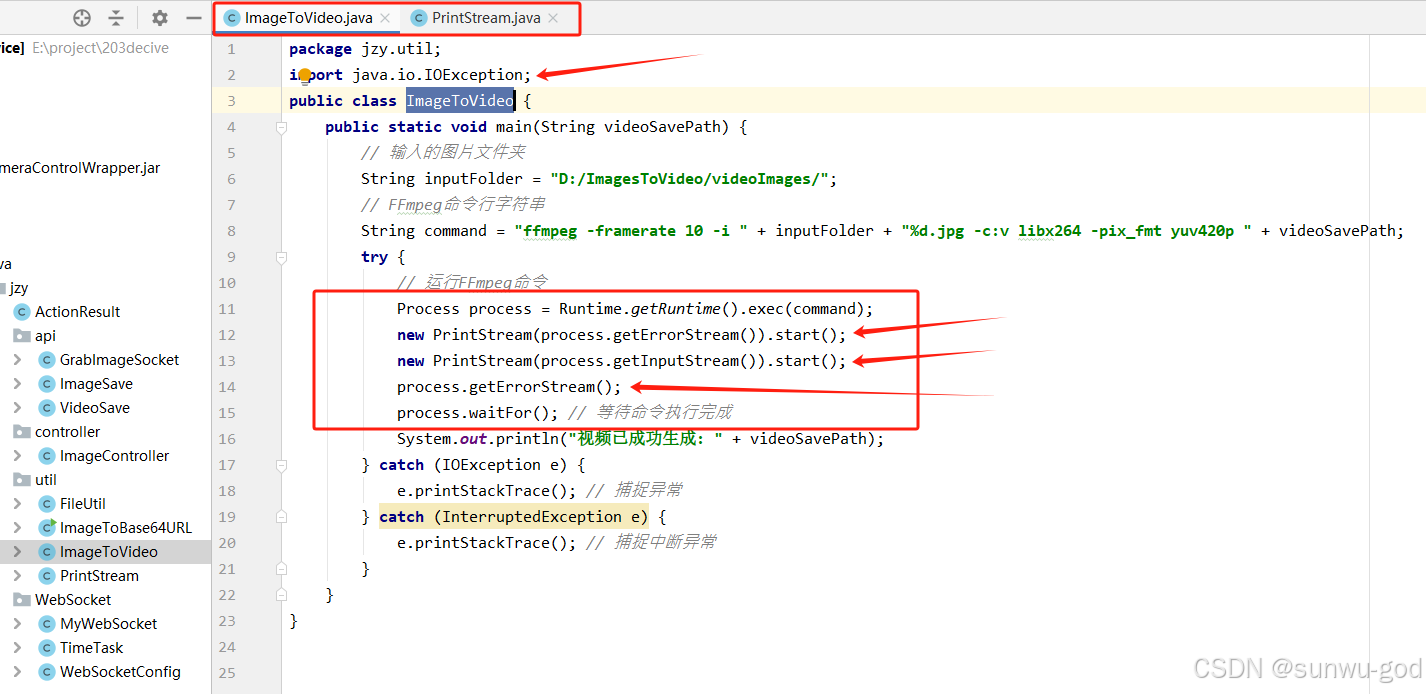

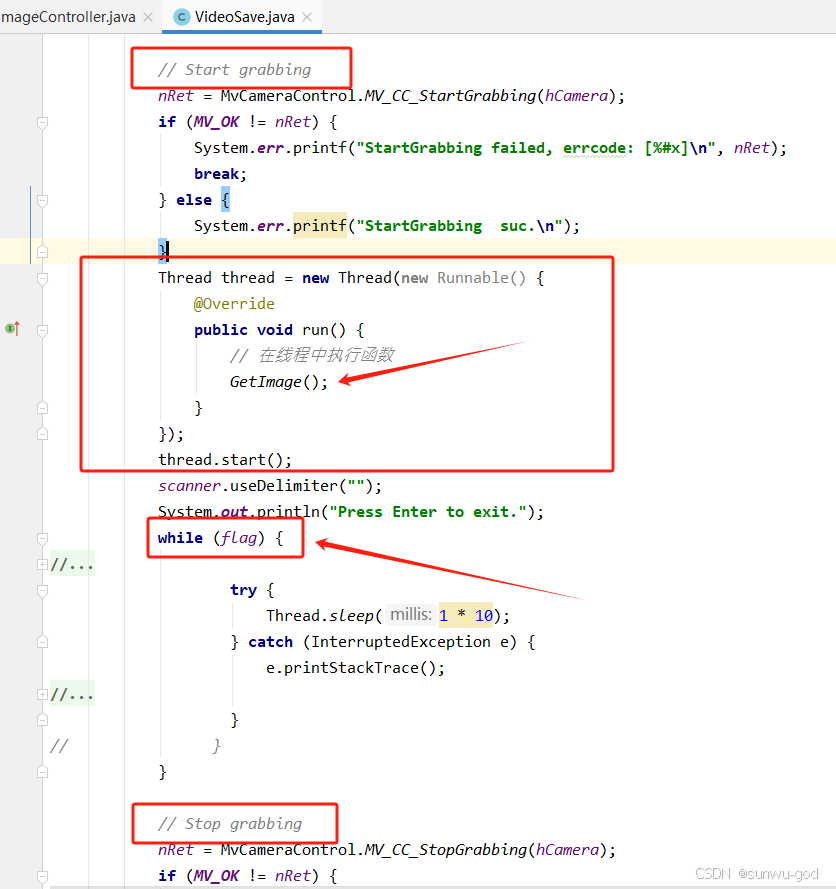

1、相机二次开发主要参考这篇，海康二次开发SDK里面也有完成的demo示例，后面我自己加了录像功能，这款相机并不具备录像功能，录像功能其实是连续拍图片，MVS录像也是如此
海康威视相机SDK二次开发（JAVA语言）_海康sdk二次开发-CSDN博客

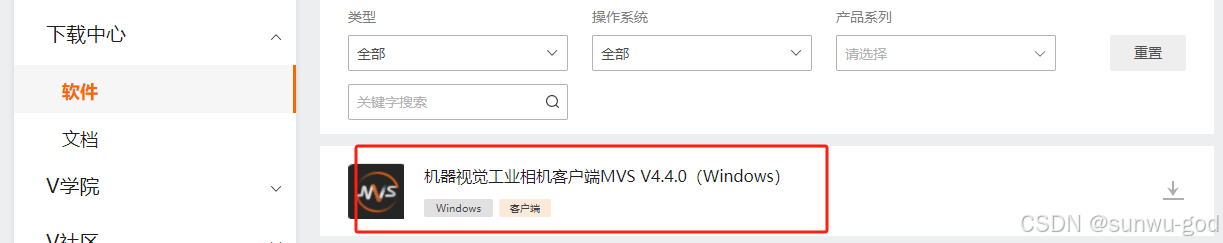

2、补充下MVS官网下载链接，MVS是海康官网提供的相机测试软件，也可以进行实体或者虚拟相机测试，安装使用网上有很多示例
【Tools】机器视觉工业相机客户端安装详解教程_机器视觉工业相机客户端mvs v3.3.1-CSDN博客
官方demo
以下是安装MVS后安装目录里提供的SDK二次开发demo示例，ImageSave.java、Grab_Callback.java、GrabImage.java就是抓图并保存、抓图回调、连续抓图等示例，可直接复制到项目中运行。

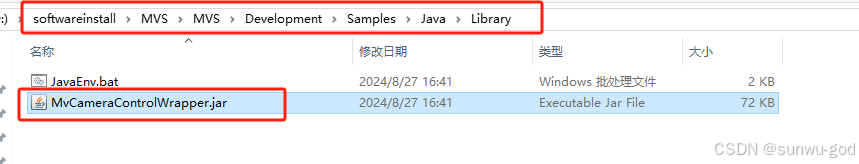

这个就是官方提供的SDK包，可以直接放到项目中调用，具体参考上面链接

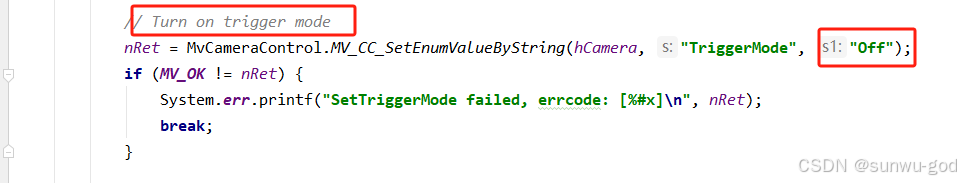

注意：使用真实相机设备时，这里是Off，表示内触发模式，相机从设备内部给出的信号采集图像，虚拟相机时是On，表示外触发模式。

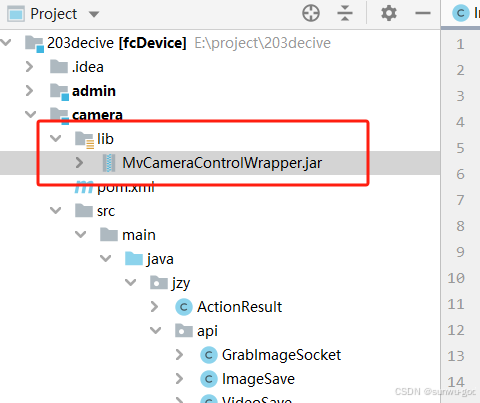

项目结构

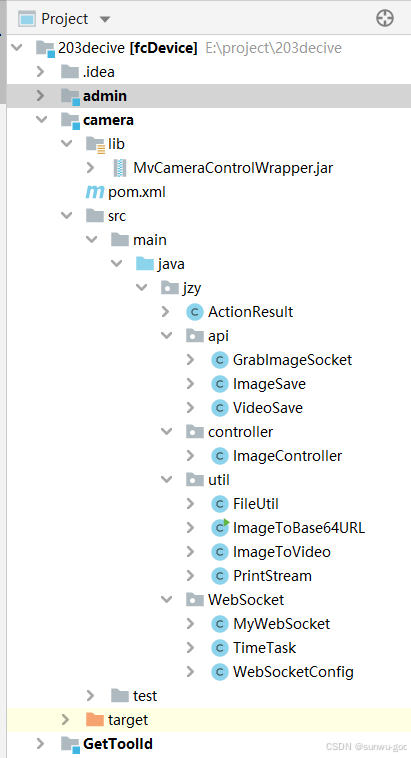

客户端运行的相机二次开发小程序项目结构如下
二次开发
拍照

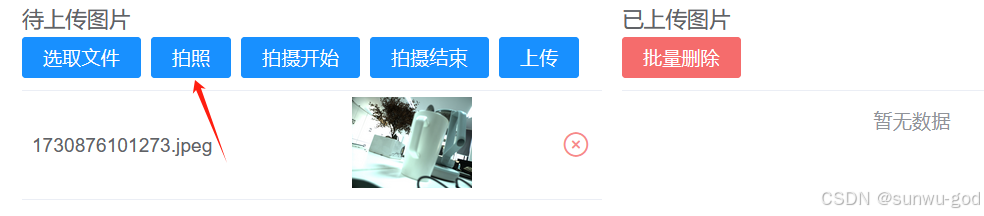

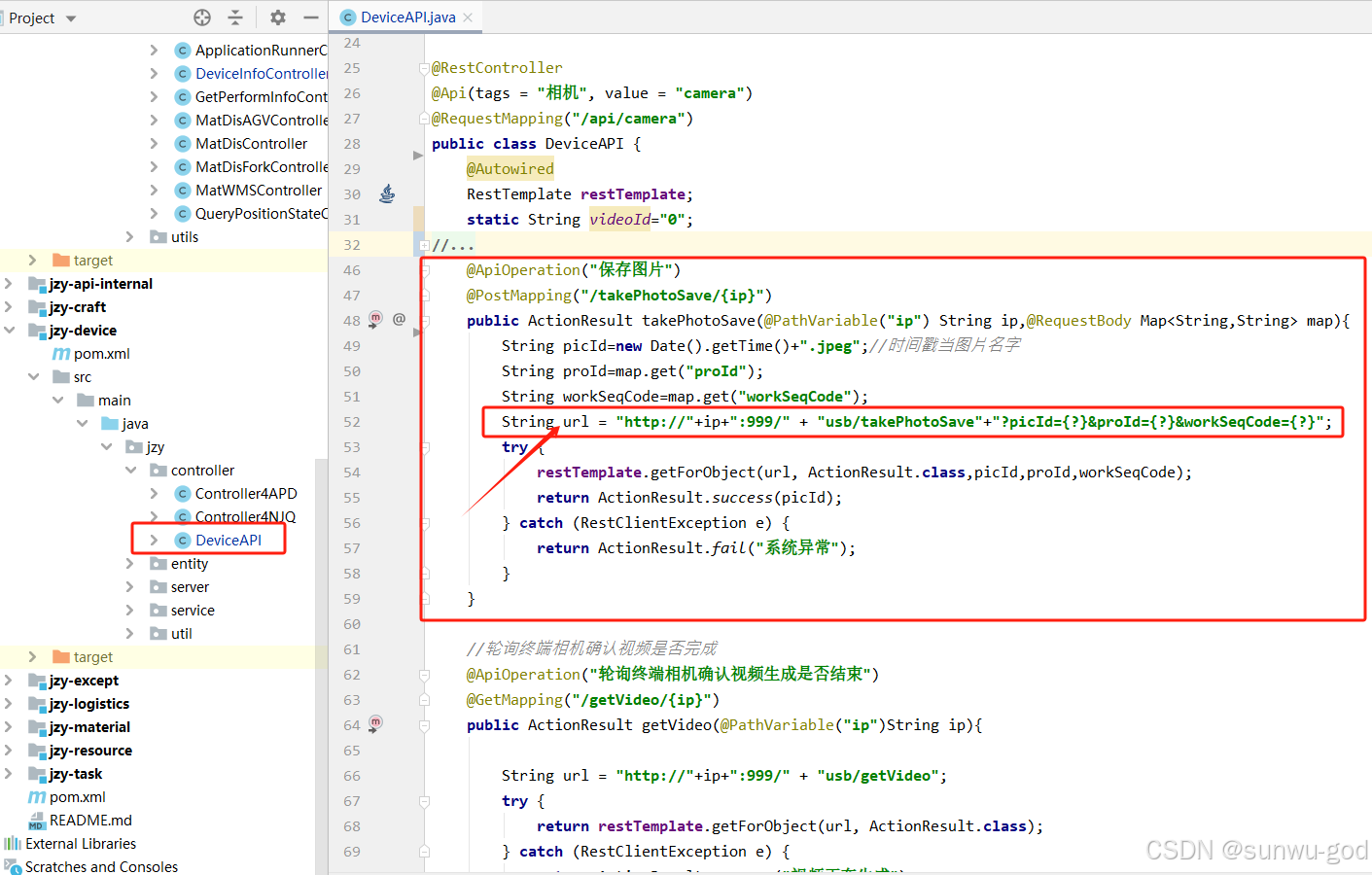

在工位管理系统前端界面点击拍照，会调用工位管理系统的后端DeviceAPI下的takePhotoSave接口，接口里url就是要调用的工位客户端运行的二次开发的相机小程序接口路径

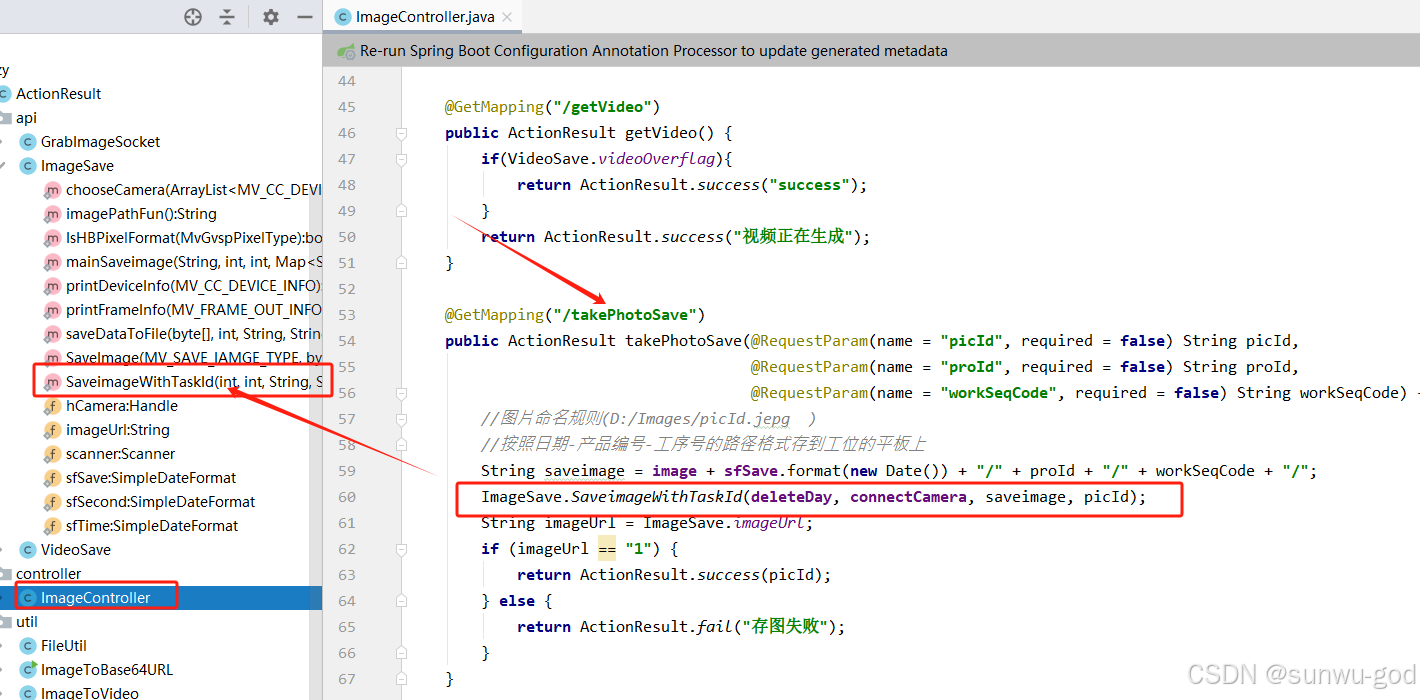

url调用相机小程序后触发ImageSave.SaveimageWithTaskId()方法进行相机拍照

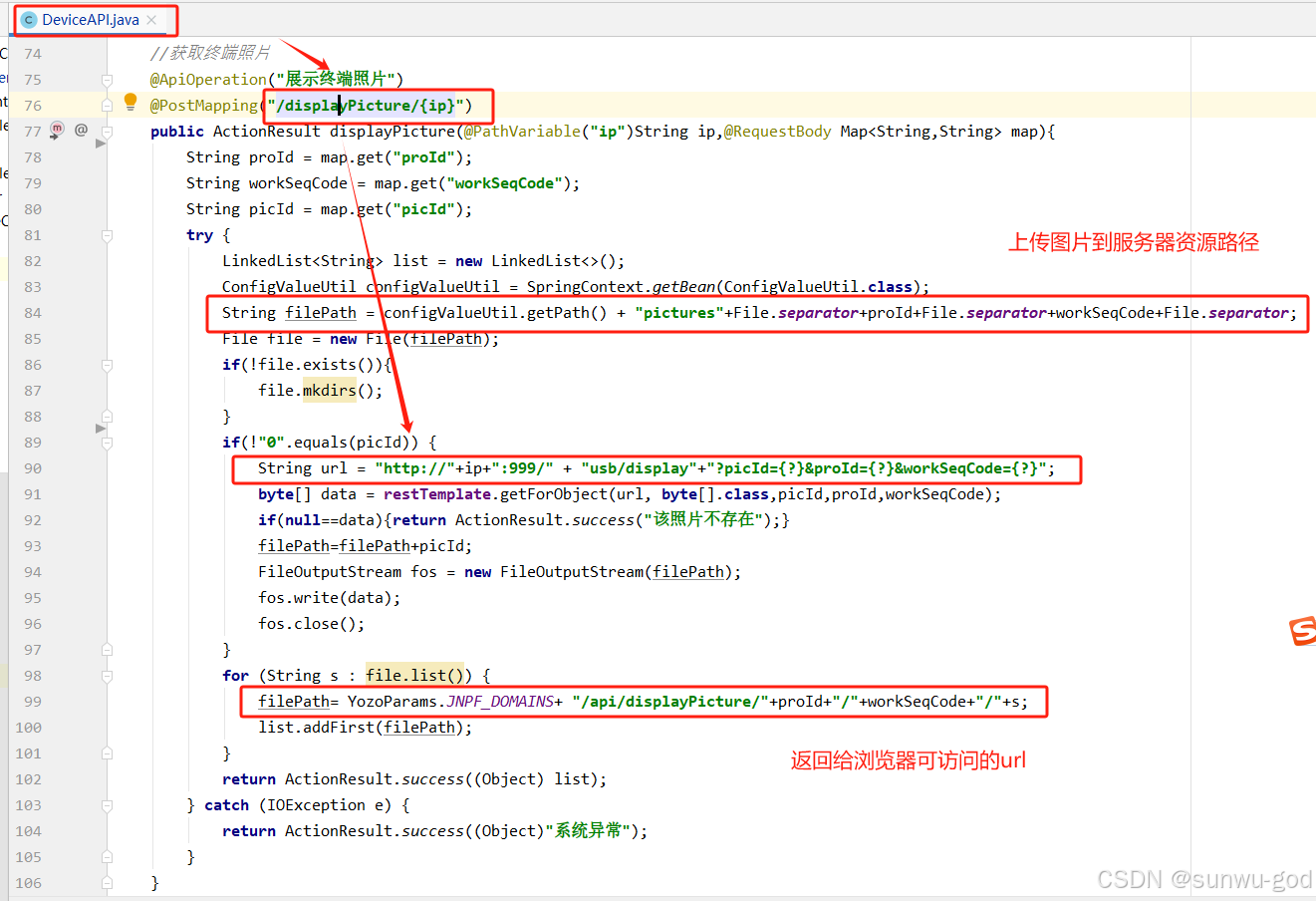

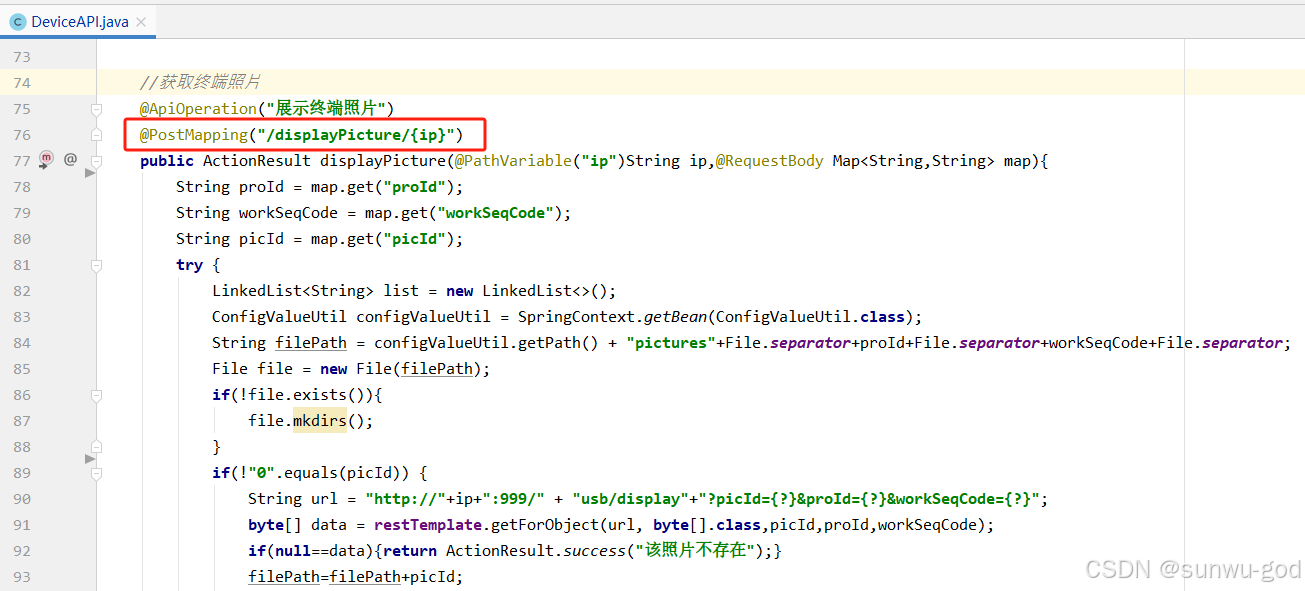

拍好的照片存在客户端本地，要想在工位管理系统前端展示，需要调用服务器工位管理系统后端接口displayPicture将本地图片上传到服务器项目资源路径下，这个需要在工位管理系统进行有关配置
此接口不会直接返回图片字节数组，而是将图片上传到服务器资源路径下，并接口返回浏览器可访问的url，前端拿到url后通过资源映射，直接去服务器资源路径下找到图片并前端展示，其中涉及资源映射配置，主要是配置参考如下

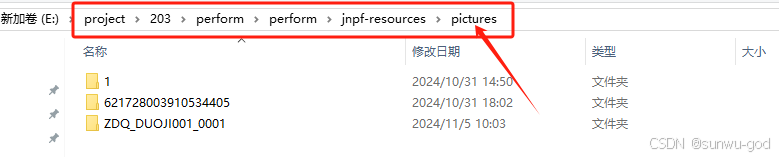

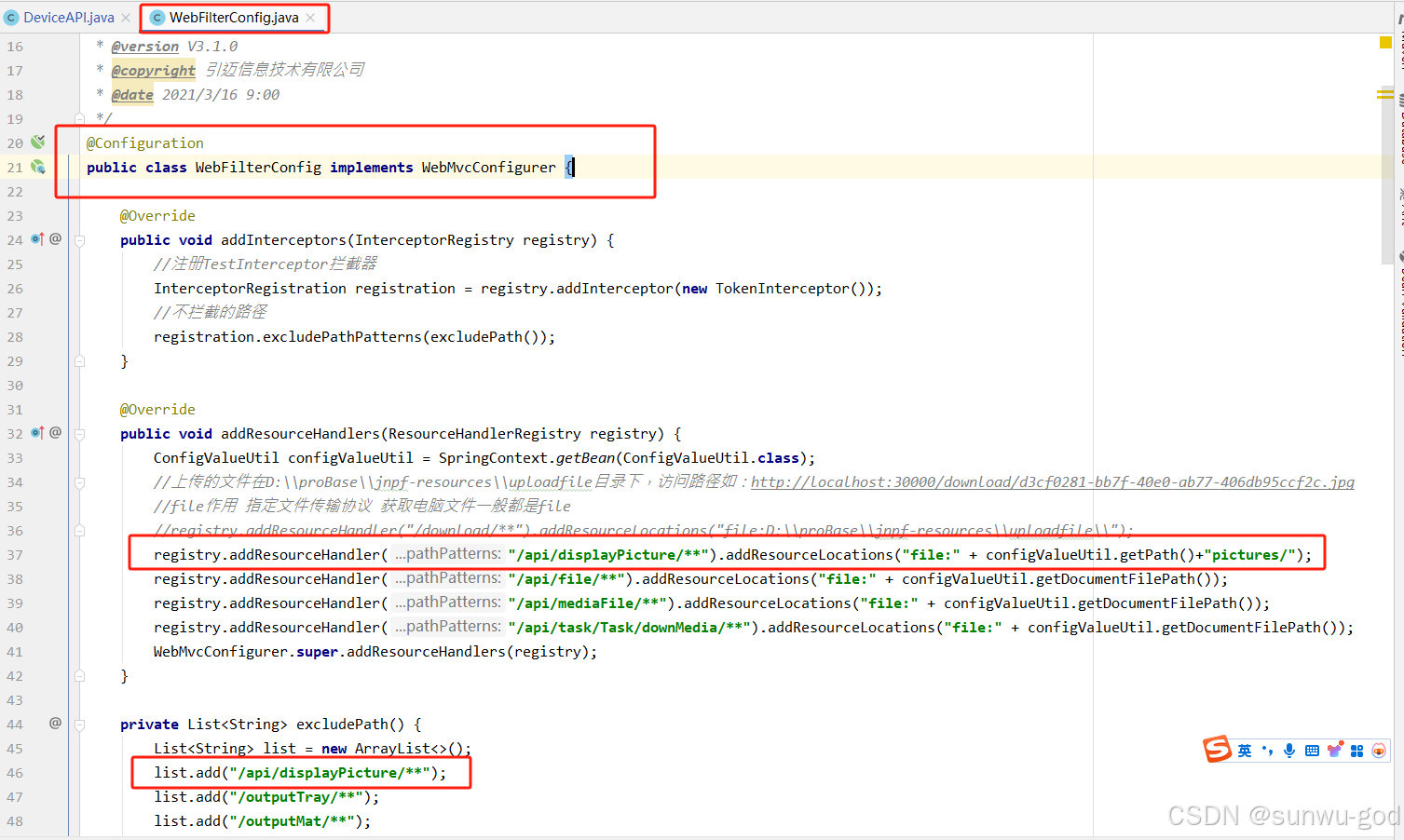

这里就是图片上传到服务器的资源路径，具体资源跳转配置参考文献
springboot映射的配置文件在哪 springboot地址映射_mob64ca1418aeab的技术博客_51CTO博客

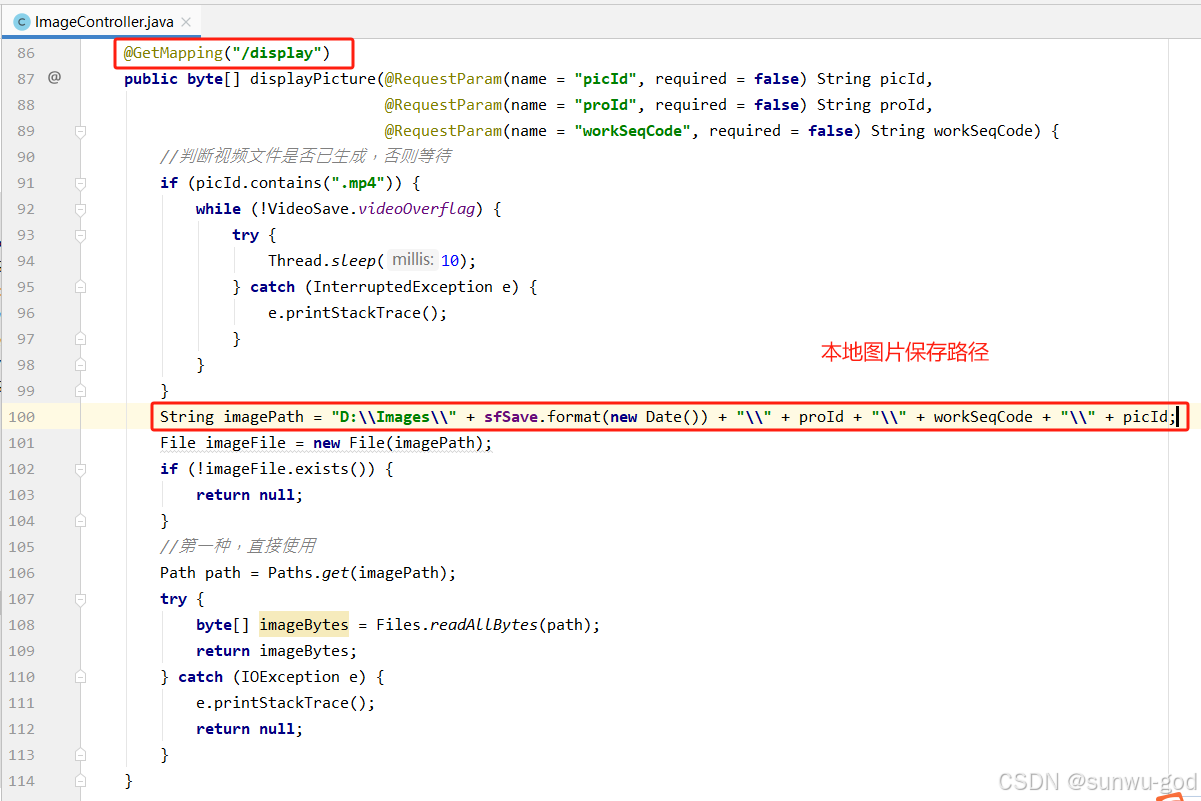

其中，通过url形式访问客户端相机小程序接口获取图片字节数组，从而写入到服务器对应资源路径下
完整的拍照demo示例如下
package jzy.api; /***************************************************************************************************
* @file ImageSave.java
* @breif This demo show how to save raw/jpeg/bmp/tiff image to local
* @author **
* @date 2024/07/26
*
**************************************************************************************************/
import MvCameraControlWrapper.CameraControlException;
import MvCameraControlWrapper.MvCameraControl;
import jzy.util.FileUtil;
import jzy.util.ImageToBase64URL;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.*;
import static MvCameraControlWrapper.MvCameraControlDefines.*;
public class ImageSave
{
private static SimpleDateFormat sfSecond = new SimpleDateFormat("yyyy-M-d_HH-mm-dd-SSS");
private static SimpleDateFormat sfTime = new SimpleDateFormat("HH:mm:ss");
private static SimpleDateFormat sfSave = new SimpleDateFormat("yyyy-M-d");
public static String imageUrl;
public static Handle hCamera = null;
public static Scanner scanner;
/**
* 根据年月日计算图片的路径
* @return
*/
private static String imagePathFun(){
SimpleDateFormat sfDate = new SimpleDateFormat("yyyy-M-d");
return "/home/hello/MVS/catch_image/"+sfDate.format(new Date())+"/";
}
private static boolean IsHBPixelFormat(MvGvspPixelType ePixelType)
{
switch (ePixelType)
{
case PixelType_Gvsp_HB_Mono8:
case PixelType_Gvsp_HB_Mono10:
case PixelType_Gvsp_HB_Mono10_Packed:
case PixelType_Gvsp_HB_Mono12:
case PixelType_Gvsp_HB_Mono12_Packed:
case PixelType_Gvsp_HB_Mono16:
case PixelType_Gvsp_HB_RGB8_Packed:
case PixelType_Gvsp_HB_BGR8_Packed:
case PixelType_Gvsp_HB_RGBA8_Packed:
case PixelType_Gvsp_HB_BGRA8_Packed:
case PixelType_Gvsp_HB_RGB16_Packed:
case PixelType_Gvsp_HB_BGR16_Packed:
case PixelType_Gvsp_HB_RGBA16_Packed:
case PixelType_Gvsp_HB_BGRA16_Packed:
case PixelType_Gvsp_HB_YUV422_Packed:
case PixelType_Gvsp_HB_YUV422_YUYV_Packed:
case PixelType_Gvsp_HB_BayerGR8:
case PixelType_Gvsp_HB_BayerRG8:
case PixelType_Gvsp_HB_BayerGB8:
case PixelType_Gvsp_HB_BayerBG8:
case PixelType_Gvsp_HB_BayerRBGG8:
case PixelType_Gvsp_HB_BayerGB10:
case PixelType_Gvsp_HB_BayerGB10_Packed:
case PixelType_Gvsp_HB_BayerBG10:
case PixelType_Gvsp_HB_BayerBG10_Packed:
case PixelType_Gvsp_HB_BayerRG10:
case PixelType_Gvsp_HB_BayerRG10_Packed:
case PixelType_Gvsp_HB_BayerGR10:
case PixelType_Gvsp_HB_BayerGR10_Packed:
case PixelType_Gvsp_HB_BayerGB12:
case PixelType_Gvsp_HB_BayerGB12_Packed:
case PixelType_Gvsp_HB_BayerBG12:
case PixelType_Gvsp_HB_BayerBG12_Packed:
case PixelType_Gvsp_HB_BayerRG12:
case PixelType_Gvsp_HB_BayerRG12_Packed:
case PixelType_Gvsp_HB_BayerGR12:
case PixelType_Gvsp_HB_BayerGR12_Packed:
return true;
default:
return false;
}
}
private static void printDeviceInfo(MV_CC_DEVICE_INFO stDeviceInfo)
{
if (null == stDeviceInfo) {
System.out.println("stDeviceInfo is null");
return;
}
if ((stDeviceInfo.transportLayerType == MV_GIGE_DEVICE)||( stDeviceInfo.transportLayerType == MV_GENTL_GIGE_DEVICE))
{
System.out.println("\tCurrentIp: " + stDeviceInfo.gigEInfo.currentIp);
System.out.println("\tModel: " + stDeviceInfo.gigEInfo.modelName);
System.out.println("\tUserDefinedName: " + stDeviceInfo.gigEInfo.userDefinedName);
}
else if (stDeviceInfo.transportLayerType == MV_USB_DEVICE) {
System.out.println("\tUserDefinedName: " + stDeviceInfo.usb3VInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.usb3VInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.usb3VInfo.deviceNumber);
}
else if (stDeviceInfo.transportLayerType == MV_GENTL_CAMERALINK_DEVICE)
{
System.out.println("\tUserDefinedName: " + stDeviceInfo.cmlInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.cmlInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.cmlInfo.DeviceID);
}
else if (stDeviceInfo.transportLayerType == MV_GENTL_CXP_DEVICE)
{
System.out.println("\tUserDefinedName: " + stDeviceInfo.cxpInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.cxpInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.cxpInfo.DeviceID);
}
else if (stDeviceInfo.transportLayerType == MV_GENTL_XOF_DEVICE)
{
System.out.println("\tUserDefinedName: " + stDeviceInfo.xofInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.xofInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.xofInfo.DeviceID);
}
else {
System.err.print("Device is not supported! \n");
}
System.out.println("\tAccessible: "
+ MvCameraControl.MV_CC_IsDeviceAccessible(stDeviceInfo, MV_ACCESS_Exclusive));
System.out.println("");
}
private static void printFrameInfo(MV_FRAME_OUT_INFO stFrameInfo)
{
if (null == stFrameInfo)
{
System.err.println("stFrameInfo is null");
return;
}
StringBuilder frameInfo = new StringBuilder("");
frameInfo.append(("\tFrameNum[" + stFrameInfo.frameNum + "]"));
frameInfo.append("\tWidth[" + stFrameInfo.width + "]");
frameInfo.append("\tHeight[" + stFrameInfo.height + "]");
frameInfo.append(String.format("\tPixelType[%#x]", stFrameInfo.pixelType.getnValue()));
System.out.println(frameInfo.toString());
}
public static void saveDataToFile(byte[] dataToSave, int dataSize, String fileName,String savePath)
{
OutputStream os = null;
try
{
if((null == dataToSave)||(dataSize <= 0))
{
System.out.println("saveDataToFile param error.");
return;
}
// Create directory
/*
* savePath参数为图片保存路径，在调用方法时通过参数传入
*/
File tempFile = new File(savePath);
if (!tempFile.exists()) {
tempFile.mkdirs();
}
os = new FileOutputStream(tempFile.getPath() + File.separator + fileName);
if(null != os)
{
os.write(dataToSave, 0, dataSize);
/*
* 图片保存成功后，输出当前时间
*/
System.out.println("--- " + sfTime.format(new Date()) + " Save Image succeed ---");
}
}
catch (IOException e)
{
e.printStackTrace();
}
finally
{
// close file stream
try
{
if(os != null)
{
os.close();
}
} catch (IOException e)
{
e.printStackTrace();
}
}
}
public static int chooseCamera(ArrayList<MV_CC_DEVICE_INFO> stDeviceList,int camIndex)
{
if (null == stDeviceList)
{
return -1;
}
// Choose a device to operate
// int camIndex = -1;
while (true)
{
// System.out.print("Please input camera index:");
try
{
// camIndex = scanner.nextInt();
if ((camIndex >= 0 && camIndex < stDeviceList.size()) || -1 == camIndex)
{
break;
}
else
{
System.out.println("Input error: " + camIndex + " Over Range:( 0 - " + (stDeviceList.size()-1) + " )");
camIndex = -1;
break;
}
}
catch (Exception e)
{
System.out.println("Input not number.");
e.printStackTrace();
camIndex = -1;
break;
}
}
if (-1 == camIndex) {
System.out.println("Input error.exit");
return camIndex;
}
if (0 <= camIndex && stDeviceList.size() > camIndex)
{
if ((MV_GIGE_DEVICE == stDeviceList.get(camIndex).transportLayerType)||(MV_GENTL_GIGE_DEVICE == stDeviceList.get(camIndex).transportLayerType))
{
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).gigEInfo.userDefinedName);
}
else if (MV_USB_DEVICE == stDeviceList.get(camIndex).transportLayerType)
{
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).usb3VInfo.userDefinedName);
}
else if (MV_GENTL_CAMERALINK_DEVICE == stDeviceList.get(camIndex).transportLayerType)
{
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).cmlInfo.DeviceID);
}
else if (MV_GENTL_CXP_DEVICE == stDeviceList.get(camIndex).transportLayerType)
{
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).cxpInfo.DeviceID);
}
else if (MV_GENTL_XOF_DEVICE == stDeviceList.get(camIndex).transportLayerType)
{
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).xofInfo.DeviceID);
}
else
{
System.out.println("Device is not supported.");
}
}
else
{
System.out.println("Invalid index " + camIndex);
camIndex = -1;
}
return camIndex;
}
public static int SaveImage(MV_SAVE_IAMGE_TYPE enSaveImageType,byte[] dataToSave,MV_FRAME_OUT_INFO stImageInfo,String savePath)
{
MV_SAVE_IMAGE_TO_FILE_PARAM_EX stSaveFileParam = new MV_SAVE_IMAGE_TO_FILE_PARAM_EX();
stSaveFileParam.imageType = enSaveImageType; // ch:需要保存的图像类型 | en:Image format to save
stSaveFileParam.pixelType = stImageInfo.pixelType; // ch:相机对应的像素格式 | en:Camera pixel type
stSaveFileParam.width = stImageInfo.ExtendWidth; // ch:相机对应的宽 | en:Width
stSaveFileParam.height = stImageInfo.ExtendHeight; // ch:相机对应的高 | en:Height
stSaveFileParam.dataLen = stImageInfo.frameLen;
stSaveFileParam.data = dataToSave;
stSaveFileParam.methodValue = 1;
// ch:jpg图像质量范围为(50-99]| en:jpg image nQuality range is (50-99]
stSaveFileParam.jpgQuality = 99;
if (MV_SAVE_IAMGE_TYPE.MV_Image_Bmp == stSaveFileParam.imageType)
{
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.bmp", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
}
else if (MV_SAVE_IAMGE_TYPE.MV_Image_Jpeg == stSaveFileParam.imageType)
{
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.jpg", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
// stSaveFileParam.imagePath = savePath;
}
else if (MV_SAVE_IAMGE_TYPE.MV_Image_Tif == stSaveFileParam.imageType)
{
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.tif", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
}
else if (MV_SAVE_IAMGE_TYPE.MV_Image_Png == stSaveFileParam.imageType)
{
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.png", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
}
int nRet = MvCameraControl.MV_CC_SaveImageToFileEx(hCamera,stSaveFileParam);
return nRet;
}
public static void SaveimageWithTaskId( int deleteDay, int camIndex, String imagePath,String picId) {
int nRet = MV_OK;
Handle hCamera = null;
ArrayList<MV_CC_DEVICE_INFO> stDeviceList=null;
boolean needConnectDevice = true;
while (needConnectDevice) {
System.out.println("SDK Version " + MvCameraControl.MV_CC_GetSDKVersion());
// Enuerate GigE and USB devices
try {
stDeviceList = MvCameraControl.MV_CC_EnumDevices(MV_GIGE_DEVICE | MV_USB_DEVICE | MV_GENTL_GIGE_DEVICE | MV_GENTL_CAMERALINK_DEVICE | MV_GENTL_CXP_DEVICE | MV_GENTL_XOF_DEVICE);
if (0 >= stDeviceList.size()) {
System.out.println("No devices found!");
}
int i = 0;
for (MV_CC_DEVICE_INFO stDeviceInfo : stDeviceList) {
System.out.println("[camera " + (i++) + "]");
printDeviceInfo(stDeviceInfo);
}
} catch (CameraControlException e) {
System.err.println("Enumrate devices failed!" + e.toString());
e.printStackTrace();
}
// choose camera
camIndex = chooseCamera(stDeviceList,camIndex);
if (camIndex == -1) {
}
// Create handle
try {
hCamera = MvCameraControl.MV_CC_CreateHandle(stDeviceList.get(camIndex));
} catch (CameraControlException e) {
System.err.println("Create handle failed!" + e.toString());
e.printStackTrace();
hCamera = null;
}
// Open device
nRet = MvCameraControl.MV_CC_OpenDevice(hCamera);
if (MV_OK != nRet) {
System.err.printf("Connect to camera failed, errcode: [%#x]\n", nRet);
}
if(MV_OK == nRet){
needConnectDevice=false;
break;
}
try {
Thread.sleep(2000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
/*
测试线路选择器
*/
// Make sure that trigger mode is off
nRet = MvCameraControl.MV_CC_SetEnumValueByString(hCamera, "TriggerMode", "Off");
if (MV_OK != nRet) {
System.err.printf("SetTriggerMode failed, errcode: [%#x]\n", nRet);
}
// Get payload size
MVCC_INTVALUE stParam = new MVCC_INTVALUE();
nRet = MvCameraControl.MV_CC_GetIntValue(hCamera, "PayloadSize", stParam);
if (MV_OK != nRet) {
System.err.printf("Get PayloadSize fail, errcode: [%#x]\n", nRet);
}
// Start grabbing
nRet = MvCameraControl.MV_CC_StartGrabbing(hCamera);
if (MV_OK != nRet) {
System.err.printf("Start Grabbing fail, errcode: [%#x]\n", nRet);
}
// Get one frame
MV_FRAME_OUT_INFO stImageInfo = new MV_FRAME_OUT_INFO();
byte[] pData = new byte[(int) stParam.curValue];
nRet = MvCameraControl.MV_CC_GetOneFrameTimeout(hCamera, pData, stImageInfo, 1000);
if (MV_OK != nRet) {
System.err.printf("GetOneFrameTimeout fail, errcode:[%#x]\n", nRet);
}
printFrameInfo(stImageInfo);
int imageLen = stImageInfo.width * stImageInfo.height * 3; // Every RGB pixel takes 3 bytes
byte[] imageBuffer = new byte[imageLen];
// Call MV_CC_SaveImage to save image as JPEG
MV_SAVE_IMAGE_PARAM_EX3 stSaveParam = new MV_SAVE_IMAGE_PARAM_EX3();
stSaveParam.width = stImageInfo.width; // image width
stSaveParam.height = stImageInfo.height; // image height
stSaveParam.data = pData; // image data
stSaveParam.dataLen = stImageInfo.frameLen; // image data length
stSaveParam.pixelType = stImageInfo.pixelType; // image pixel format
stSaveParam.imageBuffer = imageBuffer; // output image buffer
stSaveParam.imageType = MV_SAVE_IAMGE_TYPE.MV_Image_Jpeg; // output image pixel format
stSaveParam.methodValue = 0; // Interpolation method that converts Bayer format to RGB24. 0-Neareast 1-double linear 2-Hamilton
stSaveParam.jpgQuality = 60; // JPG endoding quality(50-99]
nRet = MvCameraControl.MV_CC_SaveImageEx3(hCamera, stSaveParam);
if (MV_OK != nRet) {
//System.err.printf("SaveImage fail, errcode: [%#x]\n", nRet);
// System.out.println(sfTime.format(new Date())+" "+ nRet + " No Image Need Save...");
// break;
//continue;
} else {
// 保存照片的方法 Save buffer content to file
saveDataToFile(imageBuffer, stSaveParam.imageLen, picId,imagePath);
imageUrl="1";//成功保存
}
// Stop grabbing
nRet = MvCameraControl.MV_CC_StopGrabbing(hCamera);
if (MV_OK != nRet) {
System.err.printf("StopGrabbing fail, errcode: [%#x]\n", nRet);
}
if (null != hCamera) {
// Destroy handle
nRet = MvCameraControl.MV_CC_DestroyHandle(hCamera);
if (MV_OK != nRet) {
System.err.printf("DestroyHandle failed, errcode: [%#x]\n", nRet);
}
}
}
}
录像
说明，类似MVS的阉割版，目前代码实现一秒存8张图片，再转成视频10帧一秒，可以拍摄静物或者小幅度移动的物体，不然会画面失真，MVS实时显示也就8帧每秒，java怎么优化需要考虑。

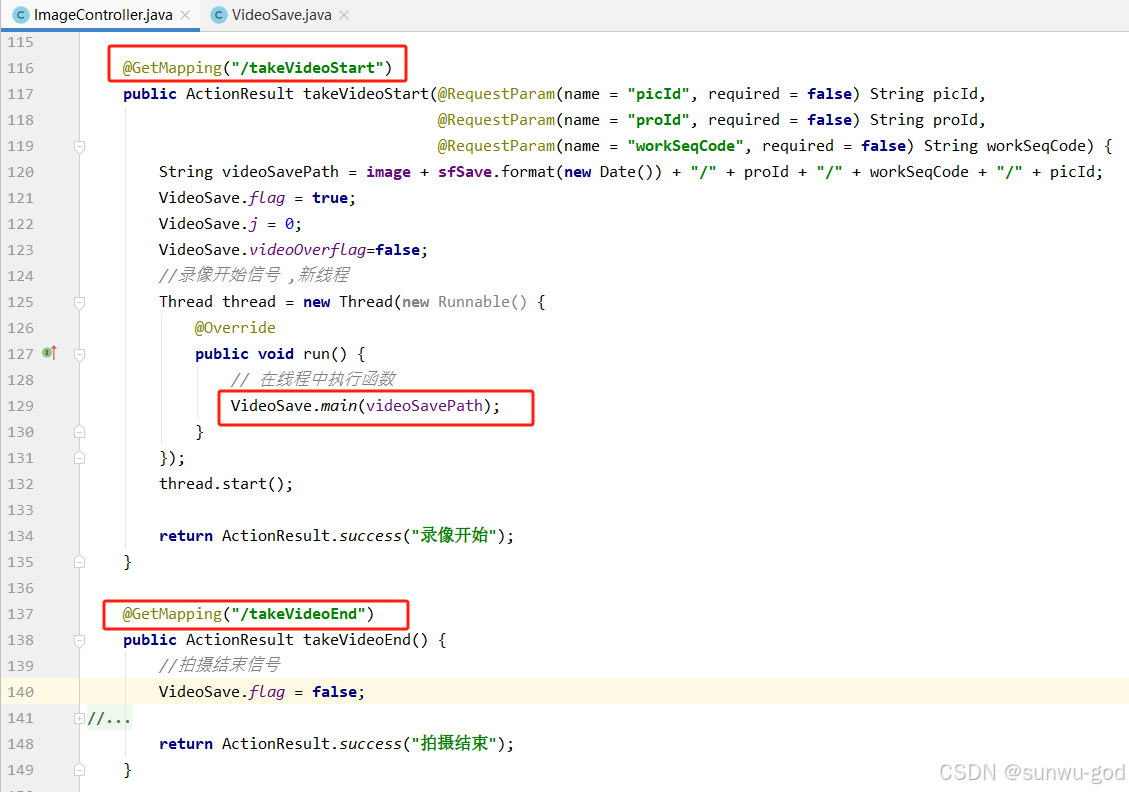

工位管理系统前端点击拍摄开始/结束，调用服务器工位管理系统后端接口， 再去调用客户端相机小程序接口进行相机录像操作，具体过程和拍照类似
相机小程序接收到拍摄开始信号时，新启线程执行相机录像方法VideoSave.main(videoSavePath)
videoSavePath是视频待保存的路径，VideoSave.main()方法执行时，VideoSave.flag会一直是true,当接收到拍摄结束信号时，再置成false，从而结束录像方法
VideoSave类完整代码如下：
package jzy.api; /***************************************************************************************************
* @file Grab_Callback.java
* @breif Use functions provided in MvCameraControlWrapper.jar to grab images
* @author zhanglei72
* @date 2020/01/12
*
* @warning
* @version V1.0.0 2020/01/12 Create this file
* V1.0.1 2020/02/10 add parameter checking
* @since 2020/02/10
**************************************************************************************************/
import MvCameraControlWrapper.CameraControlException;
import MvCameraControlWrapper.MvCameraControl;
import jzy.util.FileUtil;
import jzy.util.ImageToVideo;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.Scanner;
import static MvCameraControlWrapper.MvCameraControlDefines.*;
//@Component
public class VideoSave {
private static SimpleDateFormat sfSave = new SimpleDateFormat("yyyy-M-d");
private static SimpleDateFormat sfTime = new SimpleDateFormat("HH:mm:ss");
public static Scanner scanner;
static Handle hCamera = null;
static int nRet = MV_OK;
public static boolean flag = true;
public static boolean videoOverflag=false;
static int camIndex = -1;
public static int j=0;
@Value("${device.camera.imagesInputFolder}") //D:/ImagesToVideo/videoImages/ 拍摄视频图片存放位置
static String imagesInputFolder;
@Value("${device.camera.outputVideo}") //D:/Videos/2024-11-04/proId/craftId/ 1.mp4 视频本地存放位置
static String outputVideo;
private static void printDeviceInfo(MV_CC_DEVICE_INFO stDeviceInfo) {
if (null == stDeviceInfo) {
System.out.println("stDeviceInfo is null");
return;
}
if ((stDeviceInfo.transportLayerType == MV_GIGE_DEVICE) || (stDeviceInfo.transportLayerType == MV_GENTL_GIGE_DEVICE)) {
System.out.println("\tCurrentIp: " + stDeviceInfo.gigEInfo.currentIp);
System.out.println("\tModel: " + stDeviceInfo.gigEInfo.modelName);
System.out.println("\tUserDefinedName: " + stDeviceInfo.gigEInfo.userDefinedName);
} else if (stDeviceInfo.transportLayerType == MV_USB_DEVICE) {
System.out.println("\tUserDefinedName: " + stDeviceInfo.usb3VInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.usb3VInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.usb3VInfo.deviceNumber);
} else if (stDeviceInfo.transportLayerType == MV_GENTL_CAMERALINK_DEVICE) {
System.out.println("\tUserDefinedName: " + stDeviceInfo.cmlInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.cmlInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.cmlInfo.DeviceID);
} else if (stDeviceInfo.transportLayerType == MV_GENTL_CXP_DEVICE) {
System.out.println("\tUserDefinedName: " + stDeviceInfo.cxpInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.cxpInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.cxpInfo.DeviceID);
} else if (stDeviceInfo.transportLayerType == MV_GENTL_XOF_DEVICE) {
System.out.println("\tUserDefinedName: " + stDeviceInfo.xofInfo.userDefinedName);
System.out.println("\tSerial Number: " + stDeviceInfo.xofInfo.serialNumber);
System.out.println("\tDevice Number: " + stDeviceInfo.xofInfo.DeviceID);
} else {
System.err.print("Device is not supported! \n");
}
System.out.println("\tAccessible: "
+ MvCameraControl.MV_CC_IsDeviceAccessible(stDeviceInfo, MV_ACCESS_Exclusive));
System.out.println("");
}
public static int chooseCamera(ArrayList<MV_CC_DEVICE_INFO> stDeviceList) {
if (null == stDeviceList) {
return -1;
}
// Choose a device to operate
int camIndex = 0;
while (true) {
try {
if ((camIndex >= 0 && camIndex < stDeviceList.size()) || -1 == camIndex) {
break;
} else {
System.out.println("Input error: " + camIndex + " Over Range:( 0 - " + (stDeviceList.size() - 1) + " )");
}
} catch (NumberFormatException e) {
System.out.println("Input not number.");
camIndex = -1;
break;
}
}
if (-1 == camIndex) {
System.out.println("Input error.exit");
return camIndex;
}
if (0 <= camIndex && stDeviceList.size() > camIndex) {
if ((MV_GIGE_DEVICE == stDeviceList.get(camIndex).transportLayerType) || (MV_GENTL_GIGE_DEVICE == stDeviceList.get(camIndex).transportLayerType)) {
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).gigEInfo.userDefinedName);
} else if (MV_USB_DEVICE == stDeviceList.get(camIndex).transportLayerType) {
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).usb3VInfo.userDefinedName);
} else if (MV_GENTL_CAMERALINK_DEVICE == stDeviceList.get(camIndex).transportLayerType) {
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).cmlInfo.DeviceID);
} else if (MV_GENTL_CXP_DEVICE == stDeviceList.get(camIndex).transportLayerType) {
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).cxpInfo.DeviceID);
} else if (MV_GENTL_XOF_DEVICE == stDeviceList.get(camIndex).transportLayerType) {
System.out.println("Connect to camera[" + camIndex + "]: " + stDeviceList.get(camIndex).xofInfo.DeviceID);
} else {
System.out.println("Device is not supported.");
}
} else {
System.out.println("Invalid index " + camIndex);
camIndex = -1;
}
return camIndex;
}
public static int SaveImage(MV_SAVE_IAMGE_TYPE enSaveImageType, byte[] dataToSave, MV_FRAME_OUT_INFO stImageInfo) {
MV_SAVE_IMAGE_TO_FILE_PARAM_EX stSaveFileParam = new MV_SAVE_IMAGE_TO_FILE_PARAM_EX();
stSaveFileParam.imageType = enSaveImageType; // ch:需要保存的图像类型 | en:Image format to save
stSaveFileParam.pixelType = stImageInfo.pixelType; // ch:相机对应的像素格式 | en:Camera pixel type
stSaveFileParam.width = stImageInfo.ExtendWidth; // ch:相机对应的宽 | en:Width
stSaveFileParam.height = stImageInfo.ExtendHeight; // ch:相机对应的高 | en:Height
stSaveFileParam.dataLen = stImageInfo.frameLen;
stSaveFileParam.data = dataToSave;
stSaveFileParam.methodValue = 1;
// ch:jpg图像质量范围为(50-99]| en:jpg image nQuality range is (50-99]
stSaveFileParam.jpgQuality = 99;
if (MV_SAVE_IAMGE_TYPE.MV_Image_Bmp == stSaveFileParam.imageType) {
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.bmp", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
} else if (MV_SAVE_IAMGE_TYPE.MV_Image_Jpeg == stSaveFileParam.imageType) {
// stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.jpg", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
System.out.println("D:/ImagesToVideo/videoImages/"+j+".jpg");
stSaveFileParam.imagePath ="D:/ImagesToVideo/videoImages/"+j+".jpg";
} else if (MV_SAVE_IAMGE_TYPE.MV_Image_Tif == stSaveFileParam.imageType) {
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.tif", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
} else if (MV_SAVE_IAMGE_TYPE.MV_Image_Png == stSaveFileParam.imageType) {
stSaveFileParam.imagePath = String.format("Image_w%d_h%d_fn%d.png", stImageInfo.ExtendWidth, stImageInfo.ExtendHeight, stImageInfo.frameNum);
}
int nRet = MvCameraControl.MV_CC_SaveImageToFileEx(hCamera, stSaveFileParam);
return nRet;
}
public static void GetImage() {
MV_FRAME_OUT stFrameOut = new MV_FRAME_OUT();
while (flag) {
nRet = MvCameraControl.MV_CC_GetImageBuffer(hCamera, stFrameOut, 1000);
// ch:获取一帧图像 | en:Get one image
if (MV_OK == nRet) {
// System.out.println("\n Get Image Buffer Width:" + stFrameOut.mvFrameOutInfo.ExtendWidth
// + " Height: " + stFrameOut.mvFrameOutInfo.ExtendHeight
// + " FrameNum: " + stFrameOut.mvFrameOutInfo.frameNum);
nRet = SaveImage(MV_SAVE_IAMGE_TYPE.MV_Image_Jpeg, stFrameOut.buffer, stFrameOut.mvFrameOutInfo);
j++;
nRet = MvCameraControl.MV_CC_FreeImageBuffer(hCamera, stFrameOut);
// try {
// Thread.sleep(50);
// } catch (InterruptedException e) {
// e.printStackTrace();
// }
if (MV_OK != nRet) {
System.err.printf("\n Free ImageBuffer failed, errcode: [%#x]\n", nRet);
}
}
}
}
public static void main(String videoSavePath) {
ArrayList<MV_CC_DEVICE_INFO> stDeviceList = null;
scanner = new Scanner(System.in);
do {
System.out.println("SDK Version " + MvCameraControl.MV_CC_GetSDKVersion());
// Initialize SDK
nRet = MvCameraControl.MV_CC_Initialize();
if (MV_OK != nRet) {
System.err.printf("Initialize SDK fail! nRet [0x%x]\n\n", nRet);
break;
}
// Enumerate devices
try {
stDeviceList = MvCameraControl.MV_CC_EnumDevices(MV_GIGE_DEVICE | MV_USB_DEVICE | MV_GENTL_GIGE_DEVICE | MV_GENTL_CAMERALINK_DEVICE | MV_GENTL_CXP_DEVICE | MV_GENTL_XOF_DEVICE);
} catch (CameraControlException e) {
System.err.println("Enumrate devices failed!" + e.toString());
e.printStackTrace();
break;
}
if (0 >= stDeviceList.size()) {
System.out.println("No devices found!");
break;
}
int i = 0;
for (MV_CC_DEVICE_INFO stDeviceInfo : stDeviceList) {
if (null == stDeviceInfo) {
continue;
}
System.out.println("[camera " + (i++) + "]");
printDeviceInfo(stDeviceInfo);
}
// choose camera
camIndex = chooseCamera(stDeviceList);
if (-1 == camIndex) {
break;
}
// Create device handle
try {
hCamera = MvCameraControl.MV_CC_CreateHandle(stDeviceList.get(camIndex));
} catch (CameraControlException e) {
System.err.println("Create handle failed!" + e.toString());
e.printStackTrace();
hCamera = null;
break;
}
// Open selected device
nRet = MvCameraControl.MV_CC_OpenDevice(hCamera);
if (MV_OK != nRet) {
System.err.printf("Connect to camera failed, errcode: [%#x]\n", nRet);
break;
} else {
System.err.printf("Connect suc.\n");
}
// Turn on trigger mode
nRet = MvCameraControl.MV_CC_SetEnumValueByString(hCamera, "TriggerMode", "Off");
if (MV_OK != nRet) {
System.err.printf("SetTriggerMode failed, errcode: [%#x]\n", nRet);
break;
}
// Start grabbing
nRet = MvCameraControl.MV_CC_StartGrabbing(hCamera);
if (MV_OK != nRet) {
System.err.printf("StartGrabbing failed, errcode: [%#x]\n", nRet);
break;
} else {
System.err.printf("StartGrabbing suc.\n");
}
Thread thread = new Thread(new Runnable() {
@Override
public void run() {
// 在线程中执行函数
GetImage();
}
});
thread.start();
scanner.useDelimiter("");
System.out.println("Press Enter to exit.");
while (flag) {
// String input = scanner.nextLine();
// if (scanner.hasNextLine()) {
// flag = false;
// break;
//
// } else {
try {
Thread.sleep(1 * 10);
} catch (InterruptedException e) {
e.printStackTrace();
// flag = false;
// break;
}
// }
}
// Stop grabbing
nRet = MvCameraControl.MV_CC_StopGrabbing(hCamera);
if (MV_OK != nRet) {
System.err.printf("StopGrabbing failed, errcode: [%#x]\n", nRet);
break;
}
// close device
nRet = MvCameraControl.MV_CC_CloseDevice(hCamera);
if (MV_OK != nRet) {
System.err.printf("CloseDevice failed, errcode: [%#x]\n", nRet);
break;
}
} while (false);
if (null != hCamera) {
// Destroy handle
nRet = MvCameraControl.MV_CC_DestroyHandle(hCamera);
if (MV_OK != nRet) {
System.err.printf("DestroyHandle failed, errcode: [%#x]\n", nRet);
}
}
MvCameraControl.MV_CC_Finalize();
scanner.close();
//将图片转视频
// 输出的视频文件

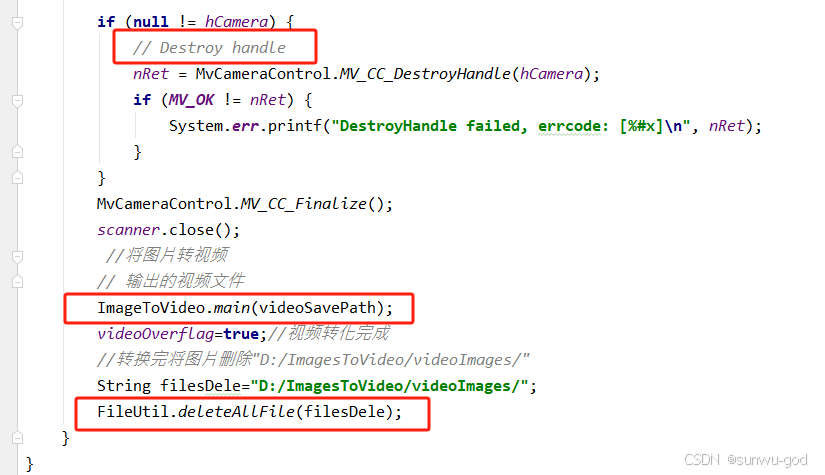

ImageToVideo.main(videoSavePath);
videoOverflag=true;//视频转化完成
//转换完将图片删除"D:/ImagesToVideo/videoImages/"
String filesDele="D:/ImagesToVideo/videoImages/";
FileUtil.deleteAllFile(filesDele);
}
}
VideoSave主要流程是，Start grabbing开始抓图后，新启线程执行循环保存图片的方法，当拍摄结束后while(flag)才会放行，相机接着stop grabbing,关闭设备，Destroy handle，再然后将保存的图片通过ImageToVideo.main(videoSavePath)方法转成视频保存在设定的路径下，再delete刚循环保存的图片。

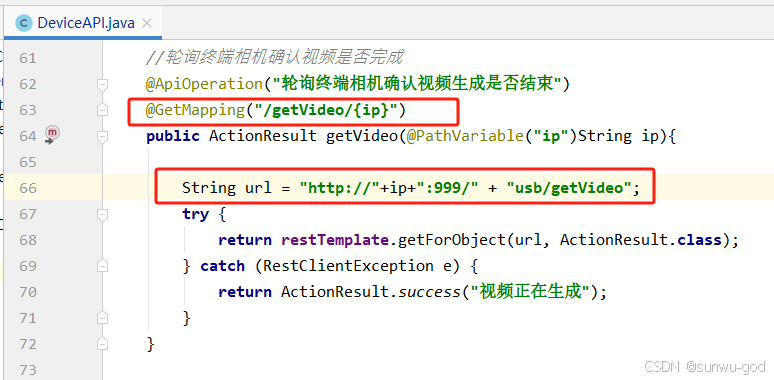

在相机结束拍摄时，工位管理系统开始轮询确认相机小程序图片转成视频是否结束，因为图片转视频时间较长，防止获取视频接口超时异常，加入前端轮询功能，当确认转换视频完成，

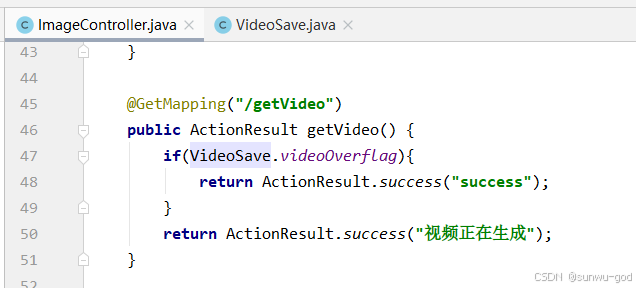

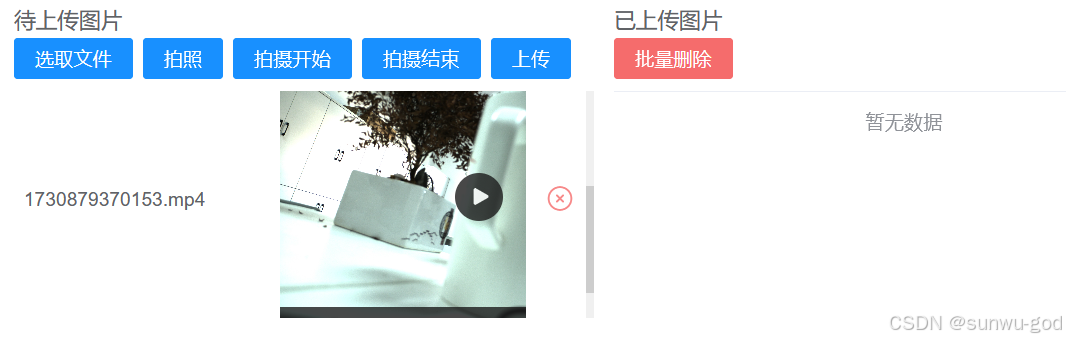

VideoSave.videoOverflag为true,前端再调用displayPicture接口将客户端本地保存的视频上传到服务器资源路径下，这里资源映射和图片一样。视频功能就完成啦
其中，图片转视频需要用的到工具类ImageToVideo：
package jzy.util;
import java.io.IOException;
public class ImageToVideo {
public static void main(String videoSavePath) {
// 输入的图片文件夹
String inputFolder = "D:/ImagesToVideo/videoImages/";
// FFmpeg命令行字符串
String command = "ffmpeg -framerate 10 -i " + inputFolder + "%d.jpg -c:v libx264 -pix_fmt yuv420p " + videoSavePath;
try {
// 运行FFmpeg命令
Process process = Runtime.getRuntime().exec(command);
new PrintStream(process.getErrorStream()).start();
new PrintStream(process.getInputStream()).start();
process.getErrorStream();
process.waitFor(); // 等待命令执行完成
System.out.println("视频已成功生成: " + videoSavePath);
} catch (IOException e) {
e.printStackTrace(); // 捕捉异常
} catch (InterruptedException e) {
e.printStackTrace(); // 捕捉中断异常
}
}
}
转换视频过程中信息打印工具类PrintStream：
package jzy.util;
public class PrintStream extends Thread {
java.io.InputStream __is = null;
public PrintStream(java.io.InputStream is) {
__is = is;
}
public void run() {
try {
while (this != null) {
int _ch = __is.read();
if (_ch != -1)
System.out.print((char) _ch);
else break;
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
执行图片删除的工具类deleteAllFile：
package jzy.util;
import java.io.File;
public class FileUtil {
public static void deleteAllFile(String dir){
File dirFile = new File(dir);
// 判断dir是否是目录且dir是否存在
if (!dirFile.exists()||(!dirFile.isDirectory())) {
// System.out.println("目录："+dir+" 不存在");
return;
}
// 删除文件夹中所有的文件，包括子文件夹
File[] files = dirFile.listFiles();
for (int i = 0; i < files.length; i++) {
if (files[i].isFile()) {
// 如果是文件直接删除
files[i].delete();
}else if(files[i].isDirectory()){
// 如果是目录，则通过递归删除
deleteAllFile(files[i].getAbsolutePath());
}
}
// 最后删除当前文件夹
// dirFile.delete();
}
}
实时画面
目前项目中没有硬性需求要做实时显示相机画面功能，这个待补充，大致就是通过SDK提供的GrabImage.java循环读取图片流，并通过WebSocket实时推送给前端显示
FFmpeg
录像功能中，图片转视频需要用到FFmpeg，包含了处理视频的强大工具和库，具体下载安装使用参考文献：
FFmpeg 简介及其下载安装步骤_ffmpeg安装-CSDN博客
在刚开始使用FFmpeg的过程中出现过FFmpeg长时间未响应的问题（死锁），参照下篇文献已解决，目前给出的代码示例可正常使用
javaweb中ffmpeg视频转码h264出现卡住不执行的解决办法（看到最后面就是答案了）_java执行ffmpeg命令卡住-CSDN博客
以下代码示例解决了死锁问题，由于JVM只提供有限缓存空间，当外部程序（子进程）的输出流超出了这个有限空间而父进程又不读出这些数据，子进程会被阻塞waitFor()永远都不会返回，就会造成死锁。在Process类中，getInputStream用来获取进程的输出流，getOutputStream用来获取进程的输入流，getErrorStream用来获取进程的错误信息流。为了保险起见，在读出的时候，最好把子进程的输出流和错误流都读出来，这样可以保证清空缓存区。
不明觉厉，向大佬努力
打包
相机开发完后，需要达成jar包在工位客户端运行，由于我是通过将MvCameraControlWrapper.jar放在项目lib文件夹的形式引人SDK包的，打包的时候发现能正常打包，但是以jar包形式运行就会报错，提示找不到MvCameraControlWrapper类，原因是这种方式导入的SDK打包时并没有打包进meaven仓库，参考以下文献将其导入到本地meaven仓库后再打包程序，可正常运行。
一键搞定！用Maven命令把本地JAR包装进Maven仓库_maven install jar包到仓库-CSDN博客
扫一扫
3704
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
