MIMIC IV数据库衍生表格配置

---

一、MIMIC IV数据库衍生表格(mimic_derived)简介

MIMIC IV数据库衍生表格实际上就是对数据库数据进一步归纳整理后的数据。由于mimic_derived 参与了很多内容的查询，熟悉这个模块的内容还是很有必要的，但是官方对这个模块缺乏详细的介绍。模块mimic_derived, 而且这个模块仅存在与谷歌云的mimic数据库中, 本地建立的数据库中虽然有这个模块，但是没有内容，需要自己根据官方提供的代码生成。

二、衍生表格示例

1.age，为患者入院（admission）时的年龄，存储在age列。

SELECT
	ad.subject_id
	, ad.hadm_id
	, ad.admittime
	, pa.anchor_age
	, pa.anchor_year
	, DATETIME_DIFF(ad.admittime, DATETIME(pa.anchor_year, 1, 1, 0, 0,0),'YEAR') + pa.anchor_age AS age
FROM mimic_core.admissions ad
INNER JOIN mimic_core.patients pa
ON ad.subject_id = pa.subject_id
;

2.weight_duration, ICU期间体重的变化，体重是反应患者营养状况的重要因素。

-- THIS SCRIPT IS AUTOMATICALLY GENERATED. DO NOT EDIT IT DIRECTLY.
DROP TABLE IF EXISTS weight_durations; CREATE TABLE weight_durations AS
-- This query extracts weights for adult ICU patients with start/stop times
-- if an admission weight is given, then this is assigned from intime to outtime
WITH wt_stg as
(
    SELECT
        c.stay_id
      , c.charttime
      , case when c.itemid = 226512 then 'admit'
          else 'daily' end as weight_type
      -- TODO: eliminate obvious outliers if there is a reasonable weight
      , c.valuenum as weight
    FROM mimic_icu.chartevents c
    WHERE c.valuenum IS NOT NULL
      AND c.itemid in
      (
          226512 -- Admit Wt
          , 224639 -- Daily Weight
      )
      AND c.valuenum > 0
)
-- assign ascending row number
, wt_stg1 as
(
  select
      stay_id
    , charttime
    , weight_type
    , weight
    , ROW_NUMBER() OVER (partition by stay_id, weight_type order by charttime) as rn
  from wt_stg
  WHERE weight IS NOT NULL
)
-- change charttime to intime for the first admission weight recorded
, wt_stg2 AS
(
  SELECT
      wt_stg1.stay_id
    , ie.intime, ie.outtime
    , wt_stg1.weight_type
    , case when wt_stg1.weight_type = 'admit' and wt_stg1.rn = 1
        then DATETIME_SUB(ie.intime, INTERVAL '2' HOUR)
      else wt_stg1.charttime end as starttime
    , wt_stg1.weight
  from wt_stg1
  INNER JOIN mimic_icu.icustays ie
    on ie.stay_id = wt_stg1.stay_id
)
, wt_stg3 as
(
  select
    stay_id
    , intime, outtime
    , starttime
    , coalesce(
        LEAD(starttime) OVER (PARTITION BY stay_id ORDER BY starttime),
        DATETIME_ADD(outtime, INTERVAL '2' HOUR)
      ) as endtime
    , weight
    , weight_type
  from wt_stg2
)
-- this table is the start/stop times from admit/daily weight in charted data
, wt1 as
(
  select
      stay_id
    , starttime
    , coalesce(endtime,
      LEAD(starttime) OVER (partition by stay_id order by starttime),
      -- impute ICU discharge as the end of the final weight measurement
      -- plus a 2 hour "fuzziness" window
      DATETIME_ADD(outtime, INTERVAL '2' HOUR)
    ) as endtime
    , weight
    , weight_type
  from wt_stg3
)
-- if the intime for the patient is < the first charted daily weight
-- then we will have a "gap" at the start of their stay
-- to prevent this, we look for these gaps and backfill the first weight
-- this adds (153255-149657)=3598 rows, meaning this fix helps for up to 3598 stay_id
, wt_fix as
(
  select ie.stay_id
    -- we add a 2 hour "fuzziness" window
    , DATETIME_SUB(ie.intime, INTERVAL '2' HOUR) as starttime
    , wt.starttime as endtime
    , wt.weight
    , wt.weight_type
  from mimic_icu.icustays ie
  inner join
  -- the below subquery returns one row for each unique stay_id
  -- the row contains: the first starttime and the corresponding weight
  (
    SELECT wt1.stay_id, wt1.starttime, wt1.weight
    , weight_type
    , ROW_NUMBER() OVER (PARTITION BY wt1.stay_id ORDER BY wt1.starttime) as rn
    FROM wt1
  ) wt
    ON  ie.stay_id = wt.stay_id
    AND wt.rn = 1
    and ie.intime < wt.starttime
)
-- add the backfill rows to the main weight table
SELECT
wt1.stay_id
, wt1.starttime
, wt1.endtime
, wt1.weight
, wt1.weight_type
FROM wt1
UNION ALL
SELECT
wt_fix.stay_id
, wt_fix.starttime
, wt_fix.endtime
, wt_fix.weight
, wt_fix.weight_type
FROM wt_fix;

3.GCS评分， 神经系统功能评分。

with base as
(
  select
    subject_id
  , ce.stay_id, ce.charttime
  -- pivot each value into its own column
  , max(case when ce.ITEMID = 223901 then ce.valuenum else null end) as GCSMotor
  , max(case
      when ce.ITEMID = 223900 and ce.VALUE = 'No Response-ETT' then 0
      when ce.ITEMID = 223900 then ce.valuenum
      else null
    end) as GCSVerbal
  , max(case when ce.ITEMID = 220739 then ce.valuenum else null end) as GCSEyes
  -- convert the data into a number, reserving a value of 0 for ET/Trach
  , max(case
      -- endotrach/vent is assigned a value of 0
      -- flag it here to later parse specially
      when ce.ITEMID = 223900 and ce.VALUE = 'No Response-ETT' then 1 -- metavision
    else 0 end)
    as endotrachflag
  , ROW_NUMBER ()
          OVER (PARTITION BY ce.stay_id ORDER BY ce.charttime ASC) as rn
  from mimic_icu.chartevents ce
  -- Isolate the desired GCS variables
  where ce.ITEMID in
  (
    -- GCS components, Metavision
    223900, 223901, 220739
  )
  group by ce.subject_id, ce.stay_id, ce.charttime
)
, gcs as (
  select b.*
  , b2.GCSVerbal as GCSVerbalPrev
  , b2.GCSMotor as GCSMotorPrev
  , b2.GCSEyes as GCSEyesPrev
  -- Calculate GCS, factoring in special case when they are intubated and prev vals
  -- note that the coalesce are used to implement the following if:
  --  if current value exists, use it
  --  if previous value exists, use it
  --  otherwise, default to normal
  , case
      -- replace GCS during sedation with 15
      when b.GCSVerbal = 0
        then 15
      when b.GCSVerbal is null and b2.GCSVerbal = 0
        then 15
      -- if previously they were intub, but they aren't now, do not use previous GCS values
      when b2.GCSVerbal = 0
        then
            coalesce(b.GCSMotor,6)
          + coalesce(b.GCSVerbal,5)
          + coalesce(b.GCSEyes,4)
      -- otherwise, add up score normally, imputing previous value if none available at current time
      else
            coalesce(b.GCSMotor,coalesce(b2.GCSMotor,6))
          + coalesce(b.GCSVerbal,coalesce(b2.GCSVerbal,5))
          + coalesce(b.GCSEyes,coalesce(b2.GCSEyes,4))
      end as GCS

  from base b
  -- join to itself within 6 hours to get previous value
  left join base b2
    on b.stay_id = b2.stay_id
    and b.rn = b2.rn+1
    and b2.charttime > DATETIME_ADD(b.charttime, INTERVAL '6' HOUR)
)
-- combine components with previous within 6 hours
-- filter down to cohort which is not excluded
-- truncate charttime to the hour
, gcs_stg as
(
  select
    subject_id
  , gs.stay_id, gs.charttime
  , GCS
  , coalesce(GCSMotor,GCSMotorPrev) as GCSMotor
  , coalesce(GCSVerbal,GCSVerbalPrev) as GCSVerbal
  , coalesce(GCSEyes,GCSEyesPrev) as GCSEyes
  , case when coalesce(GCSMotor,GCSMotorPrev) is null then 0 else 1 end
  + case when coalesce(GCSVerbal,GCSVerbalPrev) is null then 0 else 1 end
  + case when coalesce(GCSEyes,GCSEyesPrev) is null then 0 else 1 end
    as components_measured
  , EndoTrachFlag
  from gcs gs
)
-- priority is:
--  (i) complete data, (ii) non-sedated GCS, (iii) lowest GCS, (iv) charttime
, gcs_priority as
(
  select
      subject_id
    , stay_id
    , charttime
    , gcs
    , gcsmotor
    , gcsverbal
    , gcseyes
    , EndoTrachFlag
    , ROW_NUMBER() over
      (
        PARTITION BY stay_id, charttime
        ORDER BY components_measured DESC, endotrachflag, gcs, charttime DESC
      ) as rn
  from gcs_stg
)
select
  gs.subject_id
  , gs.stay_id
  , gs.charttime
  , GCS AS gcs
  , GCSMotor AS gcs_motor
  , GCSVerbal AS gcs_verbal
  , GCSEyes AS gcs_eyes
  , EndoTrachFlag AS gcs_unable
from gcs_priority gs
where rn = 1
;

4.sofa评分。

WITH co AS
(
  select ih.stay_id, ie.hadm_id
  , hr
  -- start/endtime can be used to filter to values within this hour
  , DATETIME_SUB(ih.endtime, INTERVAL '1' HOUR) AS starttime
  , ih.endtime
  from mimic_derived.icustay_hourly ih
  INNER JOIN mimic_icu.icustays ie
    ON ih.stay_id = ie.stay_id
)
, pafi as
(
  -- join blood gas to ventilation durations to determine if patient was vent
  select ie.stay_id
  , bg.charttime
  -- because pafi has an interaction between vent/PaO2:FiO2, we need two columns for the score
  -- it can happen that the lowest unventilated PaO2/FiO2 is 68, but the lowest ventilated PaO2/FiO2 is 120
  -- in this case, the SOFA score is 3, *not* 4.
  , case when vd.stay_id is null then pao2fio2ratio else null end pao2fio2ratio_novent
  , case when vd.stay_id is not null then pao2fio2ratio else null end pao2fio2ratio_vent
  FROM mimic_icu.icustays ie
  inner join mimic_derived.bg bg
    on ie.subject_id = bg.subject_id
  left join mimic_derived.ventilation vd
    on ie.stay_id = vd.stay_id
    and bg.charttime >= vd.starttime
    and bg.charttime <= vd.endtime
    and vd.ventilation_status = 'InvasiveVent'
  WHERE specimen = 'ART.'
)
, vs AS
(

  select co.stay_id, co.hr
  -- vitals
  , min(vs.mbp) as meanbp_min
  from co
  left join mimic_derived.vitalsign vs
    on co.stay_id = vs.stay_id
    and co.starttime < vs.charttime
    and co.endtime >= vs.charttime
  group by co.stay_id, co.hr
)
, gcs AS
(
  select co.stay_id, co.hr
  -- gcs
  , min(gcs.gcs) as gcs_min
  from co
  left join mimic_derived.gcs gcs
    on co.stay_id = gcs.stay_id
    and co.starttime < gcs.charttime
    and co.endtime >= gcs.charttime
  group by co.stay_id, co.hr
)
, bili AS
(
  select co.stay_id, co.hr
  , max(enz.bilirubin_total) as bilirubin_max
  from co
  left join mimic_derived.enzyme enz
    on co.hadm_id = enz.hadm_id
    and co.starttime < enz.charttime
    and co.endtime >= enz.charttime
  group by co.stay_id, co.hr
)
, cr AS
(
  select co.stay_id, co.hr
  , max(chem.creatinine) as creatinine_max
  from co
  left join mimic_derived.chemistry chem
    on co.hadm_id = chem.hadm_id
    and co.starttime < chem.charttime
    and co.endtime >= chem.charttime
  group by co.stay_id, co.hr
)
, plt AS
(
  select co.stay_id, co.hr
  , min(cbc.platelet) as platelet_min
  from co
  left join mimic_derived.complete_blood_count cbc
    on co.hadm_id = cbc.hadm_id
    and co.starttime < cbc.charttime
    and co.endtime >= cbc.charttime
  group by co.stay_id, co.hr
)
, pf AS
(
  select co.stay_id, co.hr
  , min(pafi.pao2fio2ratio_novent) AS pao2fio2ratio_novent
  , min(pafi.pao2fio2ratio_vent) AS pao2fio2ratio_vent
  from co
  -- bring in blood gases that occurred during this hour
  left join pafi
    on co.stay_id = pafi.stay_id
    and co.starttime < pafi.charttime
    and co.endtime  >= pafi.charttime
  group by co.stay_id, co.hr
)
-- sum uo separately to prevent duplicating values
, uo as
(
  select co.stay_id, co.hr
  -- uo
  , MAX(
      CASE WHEN uo.uo_tm_24hr >= 22 AND uo.uo_tm_24hr <= 30
          THEN uo.urineoutput_24hr / uo.uo_tm_24hr * 24
  END) as uo_24hr
  from co
  left join mimic_derived.urine_output_rate uo
    on co.stay_id = uo.stay_id
    and co.starttime < uo.charttime
    and co.endtime >= uo.charttime
  group by co.stay_id, co.hr
)
-- collapse vasopressors into 1 row per hour
-- also ensures only 1 row per chart time
, vaso AS
(
    SELECT
        co.stay_id
        , co.hr
        , MAX(epi.vaso_rate) as rate_epinephrine
        , MAX(nor.vaso_rate) as rate_norepinephrine
        , MAX(dop.vaso_rate) as rate_dopamine
        , MAX(dob.vaso_rate) as rate_dobutamine
    FROM co
    LEFT JOIN mimic_derived.epinephrine epi
        on co.stay_id = epi.stay_id
        and co.endtime > epi.starttime
        and co.endtime <= epi.endtime
    LEFT JOIN mimic_derived.norepinephrine nor
        on co.stay_id = nor.stay_id
        and co.endtime > nor.starttime
        and co.endtime <= nor.endtime
    LEFT JOIN mimic_derived.dopamine dop
        on co.stay_id = dop.stay_id
        and co.endtime > dop.starttime
        and co.endtime <= dop.endtime
    LEFT JOIN mimic_derived.dobutamine dob
        on co.stay_id = dob.stay_id
        and co.endtime > dob.starttime
        and co.endtime <= dob.endtime
    WHERE epi.stay_id IS NOT NULL
    OR nor.stay_id IS NOT NULL
    OR dop.stay_id IS NOT NULL
    OR dob.stay_id IS NOT NULL
    GROUP BY co.stay_id, co.hr
)
, scorecomp as
(
  select
      co.stay_id
    , co.hr
    , co.starttime, co.endtime
    , pf.pao2fio2ratio_novent
    , pf.pao2fio2ratio_vent
    , vaso.rate_epinephrine
    , vaso.rate_norepinephrine
    , vaso.rate_dopamine
    , vaso.rate_dobutamine
    , vs.meanbp_min
    , gcs.gcs_min
    -- uo
    , uo.uo_24hr
    -- labs
    , bili.bilirubin_max
    , cr.creatinine_max
    , plt.platelet_min
  from co
  left join vs
    on co.stay_id = vs.stay_id
    and co.hr = vs.hr
  left join gcs
    on co.stay_id = gcs.stay_id
    and co.hr = gcs.hr
  left join bili
    on co.stay_id = bili.stay_id
    and co.hr = bili.hr
  left join cr
    on co.stay_id = cr.stay_id
    and co.hr = cr.hr
  left join plt
    on co.stay_id = plt.stay_id
    and co.hr = plt.hr
  left join pf
    on co.stay_id = pf.stay_id
    and co.hr = pf.hr
  left join uo
    on co.stay_id = uo.stay_id
    and co.hr = uo.hr
  left join vaso
    on co.stay_id = vaso.stay_id
    and co.hr = vaso.hr
)
, scorecalc as
(
  -- Calculate the final score
  -- note that if the underlying data is missing, the component is null
  -- eventually these are treated as 0 (normal), but knowing when data is missing is useful for debugging
  select scorecomp.*
  -- Respiration
  , case
      when pao2fio2ratio_vent   < 100 then 4
      when pao2fio2ratio_vent   < 200 then 3
      when pao2fio2ratio_novent < 300 then 2
      when pao2fio2ratio_vent   < 300 then 2
      when pao2fio2ratio_novent < 400 then 1
      when pao2fio2ratio_vent   < 400 then 1
      when coalesce(pao2fio2ratio_vent, pao2fio2ratio_novent) is null then null
      else 0
    end as respiration

  -- Coagulation
  , case
      when platelet_min < 20  then 4
      when platelet_min < 50  then 3
      when platelet_min < 100 then 2
      when platelet_min < 150 then 1
      when platelet_min is null then null
      else 0
    end as coagulation

  -- Liver
  , case
      -- Bilirubin checks in mg/dL
        when bilirubin_max >= 12.0 then 4
        when bilirubin_max >= 6.0  then 3
        when bilirubin_max >= 2.0  then 2
        when bilirubin_max >= 1.2  then 1
        when bilirubin_max is null then null
        else 0
      end as liver

  -- Cardiovascular
  , case
      when rate_dopamine > 15 or rate_epinephrine >  0.1 or rate_norepinephrine >  0.1 then 4
      when rate_dopamine >  5 or rate_epinephrine <= 0.1 or rate_norepinephrine <= 0.1 then 3
      when rate_dopamine >  0 or rate_dobutamine > 0 then 2
      when meanbp_min < 70 then 1
      when coalesce(meanbp_min, rate_dopamine, rate_dobutamine, rate_epinephrine, rate_norepinephrine) is null then null
      else 0
    end as cardiovascular

  -- Neurological failure (GCS)
  , case
      when (gcs_min >= 13 and gcs_min <= 14) then 1
      when (gcs_min >= 10 and gcs_min <= 12) then 2
      when (gcs_min >=  6 and gcs_min <=  9) then 3
      when  gcs_min <   6 then 4
      when  gcs_min is null then null
      else 0
    end as cns

  -- Renal failure - high creatinine or low urine output
  , case
    when (creatinine_max >= 5.0) then 4
    when uo_24hr < 200 then 4
    when (creatinine_max >= 3.5 and creatinine_max < 5.0) then 3
    when uo_24hr < 500 then 3
    when (creatinine_max >= 2.0 and creatinine_max < 3.5) then 2
    when (creatinine_max >= 1.2 and creatinine_max < 2.0) then 1
    when coalesce (uo_24hr, creatinine_max) is null then null
    else 0
  end as renal
  from scorecomp
)
, score_final as
(
  select s.*
    -- Combine all the scores to get SOFA
    -- Impute 0 if the score is missing
   -- the window function takes the max over the last 24 hours
    , coalesce(
        MAX(respiration) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0) as respiration_24hours
     , coalesce(
         MAX(coagulation) OVER (PARTITION BY stay_id ORDER BY HR
         ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
        ,0) as coagulation_24hours
    , coalesce(
        MAX(liver) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0) as liver_24hours
    , coalesce(
        MAX(cardiovascular) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0) as cardiovascular_24hours
    , coalesce(
        MAX(cns) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0) as cns_24hours
    , coalesce(
        MAX(renal) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0) as renal_24hours

    -- sum together data for final SOFA
    , coalesce(
        MAX(respiration) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
     + coalesce(
         MAX(coagulation) OVER (PARTITION BY stay_id ORDER BY HR
         ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
     + coalesce(
        MAX(liver) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
     + coalesce(
        MAX(cardiovascular) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
     + coalesce(
        MAX(cns) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
     + coalesce(
        MAX(renal) OVER (PARTITION BY stay_id ORDER BY HR
        ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING)
      ,0)
    as sofa_24hours
  from scorecalc s
  WINDOW W as
  (
    PARTITION BY stay_id
    ORDER BY hr
    ROWS BETWEEN 23 PRECEDING AND 0 FOLLOWING
  )
)
select * from score_final
where hr >= 0;

只是简单列举了几个常用表格，具体的表格说明可以查询github上官方源代码中的concept文件夹内的代码和注释。

三、衍生表格配置

1.参考前面数据安装步骤，打开命令界面，进入mimiciv数据库，配置数据库函数。

 set search_path to mimic_derived;

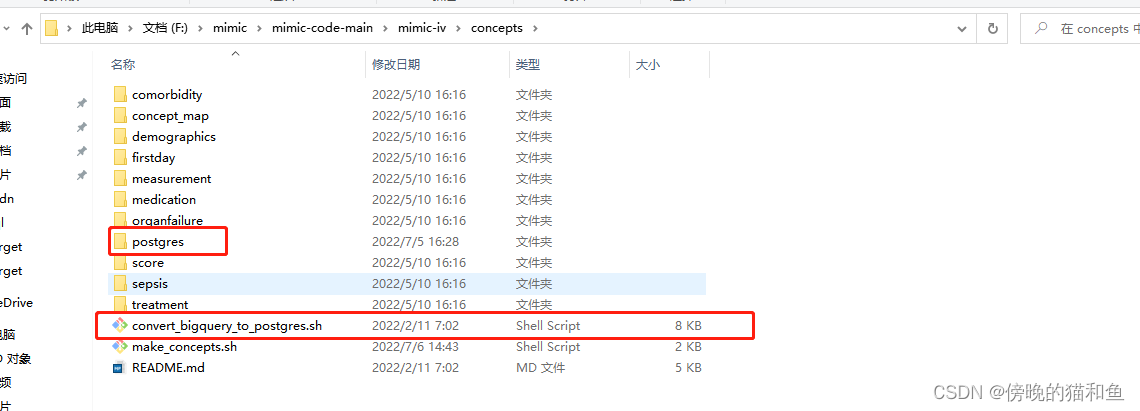

2.运行shell脚本生成衍生表格数据文件夹postgres(windows运行shell脚本可通过安装git运行,可自行百度安装)。

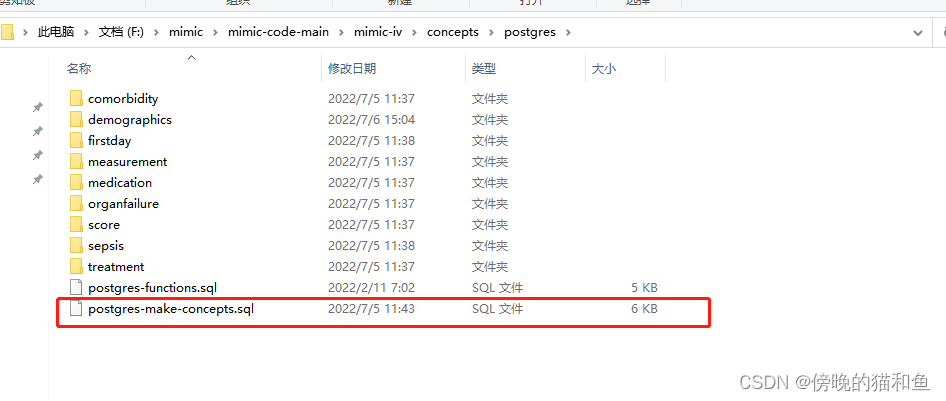

3.衍生表格数据。

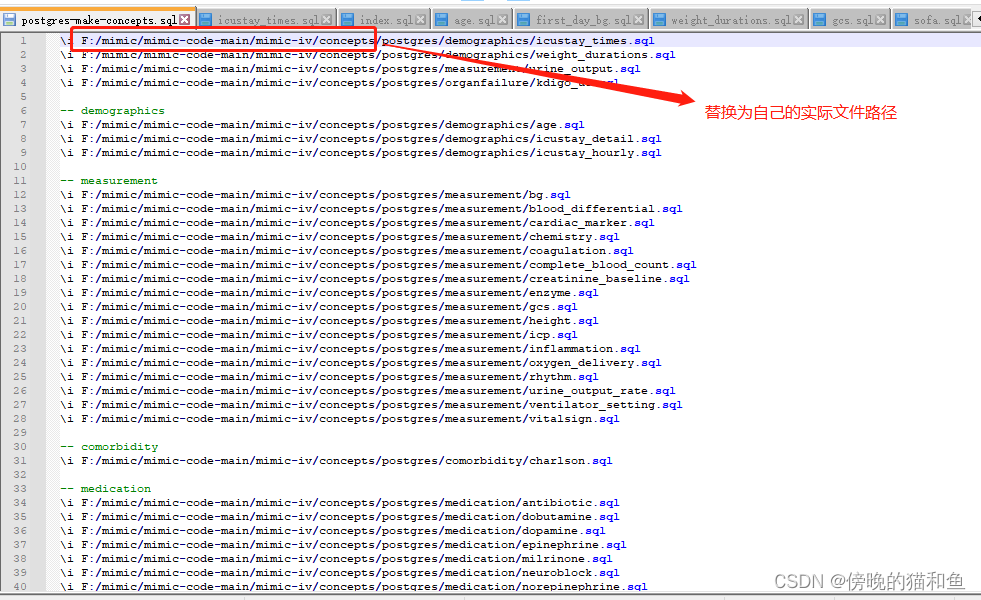

4.修改postgres-make-concepts.sql文件。

5.运行postgres-make-concepts.sql文件（注意替换为自己的文件路径）。

 set search_path to mimic_derived;
 \encoding 'UTF-8';
  \i F:/mimic/mimic-code-main/mimic-iv/concepts/postgres/postgres-make-concepts.sql;

运行时间有点长，耐心等待。

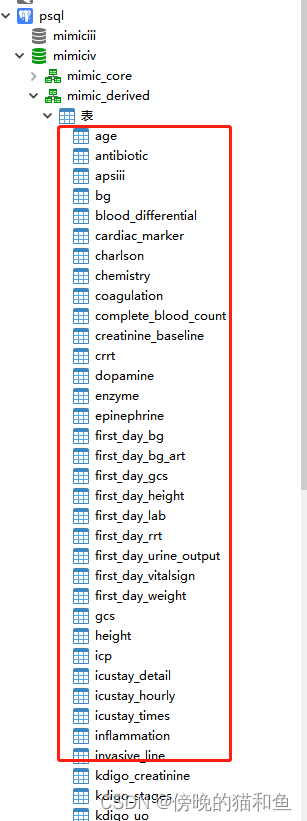

6.表格生成成功，一共54个表格。

想获取mimiciv数据文件或者有问题的小伙伴可私信，谢谢！
