高德地图设置电子围栏

需求

给地图上人员锚点设置围栏区域，如果在此区域内则是在线状态，不在此区域内则是离线状态

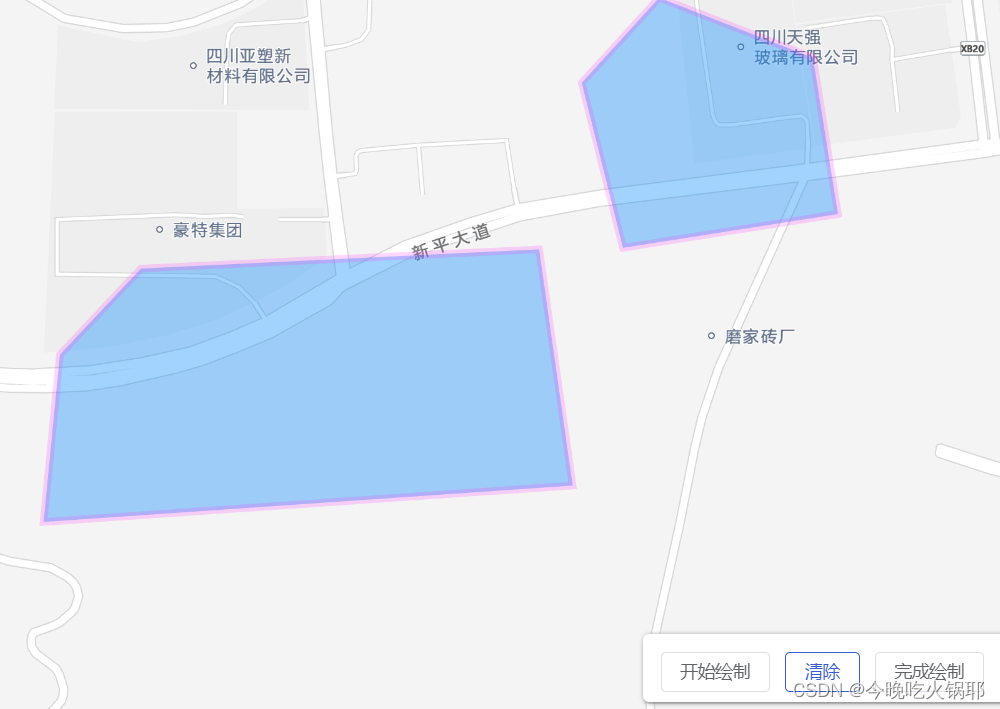

效果图

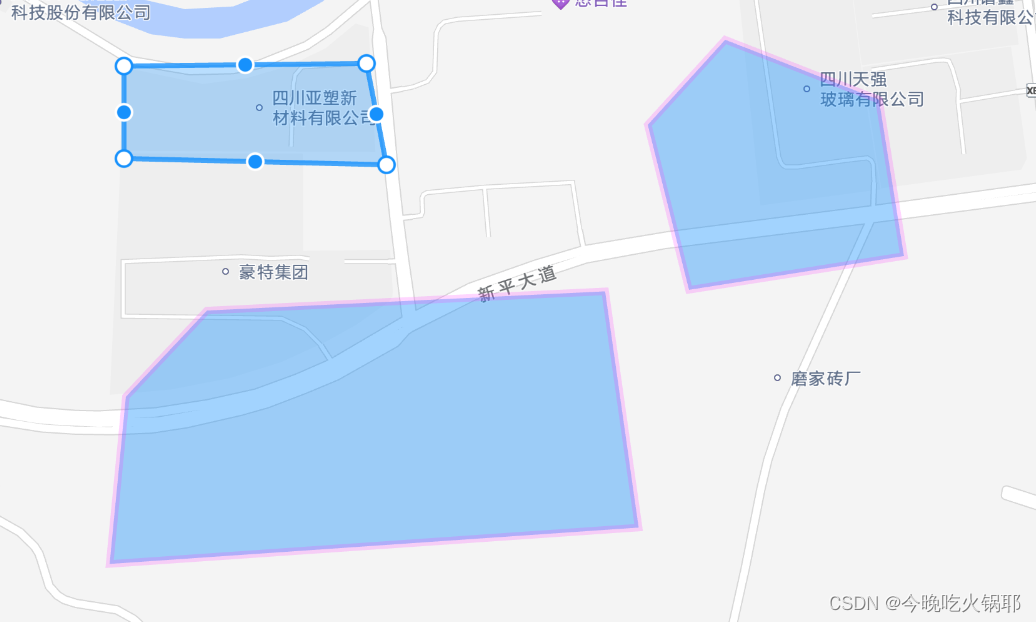

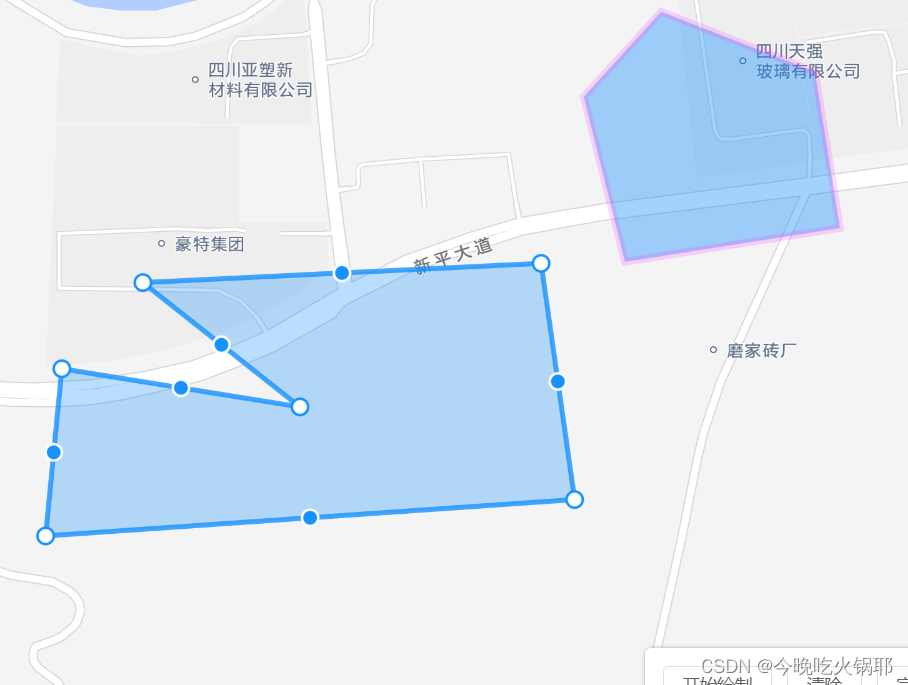

双击可编辑或清除当前围栏

代码实现

前端实现区域框选：

//引入高德地图sdk
 "@amap/amap-jsapi-loader": "^1.0.1"
//html 展示操作按钮
<el-button type="primary" class="sub-btn" @click="handleStart">开始建围栏</el-button> //点击开始建立围栏后，围栏操作按钮才可见


<div class="map-paint-box2" v-show="clickBox">
      <el-button plain @click="startWrite">开始绘制</el-button>
      <el-button plain @click="clearWrite">清除</el-button>
      <el-button plain @click="finishWrite">完成绘制</el-button>
</div>
//初始化地图：
function initMap() {
    AMapLoader.load({
        key:"",   // 申请好的Web端开发者Key，首次调用 load 时必填
        version:"2.0", // 指定要加载的 JSAPI 的版本，缺省时默认1.4.15
        AMapUI: {
            version: '1.1',
            plugins:['control/BasicControl']
        }      // 需要使用的的插件列表，如比例尺'AMap.Scale'等
    }).then((AMap)=>{
        map.value = new AMap.Map("container",{  //设置地图容器id
            resizeEnable: true, //是否监控地图容器尺寸变化
            zoom: 16, //初始化地图层级、
            center: [104.560920999, 31.4560470000]
        });
    }).catch(e=>{
        console.log(e);
    })
}
//初始化围栏信息
function handleStart() {
	allPoly = []
	//先从后端获取已经建立的围栏，展示在地图上存到currentOrgWeilan
	clickBox.value = true //展示操作按钮
	AMapLoader.load({
      key:"",  // 申请好的Web端开发者Key，首次调用 load 时必填
      version:"2.0",
      plugins:['AMap.PolygonEditor','AMap.Polygon'], // 需要使用的的插件列表，如比例尺'AMap.Scale'等
    }).then((AMap)=>{
        polyEditor = new AMap.PolygonEditor(map.value);
        if (currentOrgWeilan.length > 0) {
            // 复现该组织下的围栏数据
            for (let one of  currentOrgWeilan ) {
                let path = []
                let arr = one.regionScope.split(',')
                for (var i of arr) {
                    let itemLatLng = []
                    let oneArr = i.split('_')
                    itemLatLng.push(Number(oneArr[0]), Number(oneArr[1]))
                    path.push(itemLatLng)
                }
                //围栏数据处理 并展示
                var polygon = new AMap.Polygon({
                    path: path
                })
                allPoly.push(polygon)
            }
            map.value.add(allPoly)
            map.value.setFitView(allPoly);
            polyEditor.addAdsorbPolygons(allPoly)
            for (let one of allPoly) {
           		// 双击某个围栏可以进行编辑
                one.on('dblclick', () => {
                    polyOverlays = []
                    currentPoly = one
                    polyEditor.setTarget(one);
                    polyOverlays.push(one)
                    polyEditor.open();
                })
            }
        }
       // 直接在地图建立新的围栏
        polyEditor.on('add', function (data:any) {
            var polygon = data.target;
            polyEditor.addAdsorbPolygons(polygon);
            polyOverlays = []
            polyOverlays.push(polygon)
            allPoly.push(polygon)
            currentPoly = polygon // currentPoly 存放当前双击围栏，不然点其他操作时总是会操作到最后创建的围栏
            polygon.on('dblclick', () => {
                polyOverlays = []
                currentPoly = polygon
                polyEditor.setTarget(polygon);
                polyOverlays.push(polygon)
                polyEditor.open();
            })
        })

    }).catch(e=>{
        console.log(e);
    })

}
function startWrite() {
    polyEditor.close();
    polyEditor.setTarget();
    polyEditor.open();
    polyPointArr = []
}
function clearWrite() {
    allPoly.some((one,index)=> {
        if (one==currentPoly) {
            allPoly.splice(index,1)
            return true
        }
    })
    map.value.remove(polyOverlays)
    polyEditor.close()
}

async function finishWrite() {
    polyEditor.close()
    for (var item of allPoly) {
        let polyAr = item.getPath()
        let str = '',allStrArr = [], allStr=''
        for (var one of polyAr) {
            str = one.lng+'_'+one.lat
            allStrArr.push(str)
        }
        allStr=allStrArr.join(',');
        polyPointArr.push(allStr)
    }
  //polyPointArr是围栏角坐标集合，可以传给后端判断是否在坐标围栏内
}
