OpenCV是计算机视觉中经典的专用库，其支持多语言、跨平台，功能强大 ；
本篇具体介绍如何利用OpenCV内部的不同 图像处理函数 ；
文章目录
改变颜色空间
改变颜色空间
BGR↔灰度图 ：cv.COLOR_BGR2GRAY
BGR↔HSV： cv.COLOR_BGR2HSV
所有的颜色空间转换方法 ：
import cv2 as cv
flags = [i for i in dir(cv) if i.startswith('COLOR_')]
print( flags )
['COLOR_BAYER_BG2BGR',
'COLOR_BAYER_BG2BGRA',
... ... # 超过150种方法
'COLOR_YUV420sp2RGBA',
'COLOR_mRGBA2RGBA']
对象追踪
cv.cvtColor()
cv.inRange()
在视频中提取一个蓝色的对象，在HSV中比在BGR颜色空间中更容易表示颜色 ：
import cv2 as cv
import numpy as np
cap = cv.VideoCapture(0)
while(1):
# 读取帧
_, frame = cap.read()
# 转换颜色空间 BGR 到 HSV
hsv = cv.cvtColor(frame, cv.COLOR_BGR2HSV)
# 定义HSV中蓝色的范围
lower_blue = np.array([110,50,50])
upper_blue = np.array([130,255,255])
# 设置HSV的阈值使得只取蓝色
mask = cv.inRange(hsv, lower_blue, upper_blue)
# 将掩膜和图像逐像素相加
res = cv.bitwise_and(frame,frame, mask= mask)
cv.imshow('Original Frame',frame)
cv.imshow('Mask Image',mask)
cv.imshow('Final Result',res)
k = cv.waitKey(5) & 0xFF
if k == 27:
break
cv.destroyAllWindows()

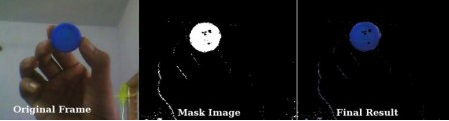

运行结果：
追踪HSV值
green = np.uint8([[[0,255,0 ]]])
hsv_green = cv.cvtColor(green,cv.COLOR_BGR2HSV)
print( hsv_green )
运行结果：
[[[ 60 255 255]]]
则查找的Green颜色的 HSV 值的 上下限 为：[60-10, 255, 255] 和 [60+10, 255, 255]
图像的几何变换
缩放
cv.resize()
import numpy as np
import cv2 as cv
img = cv.imread('./001.png')
print(img.shape)
res = cv.resize(img, None, fx=2, fy=2, interpolation = cv.INTER_CUBIC) # fx fy：缩放比
print(res.shape)
运行结果：
(118, 100, 3)
(236, 200, 3)
或 ：
import numpy as np
import cv2 as cv
img = cv.imread('./001.png')
print(img.shape)
height, width = img.shape[:2]
res = cv.resize(img, (2*width, 2*height), interpolation = cv.INTER_CUBIC)
print(res.shape)
运行结果：
(118, 100, 3)
(236, 200, 3)
平移
cv2.warpAffine(src, M, dsize)
src ： 输入图像
M ： 2×3，2行3列变换矩阵
dsize ： 输出图像的大小
import numpy as np
import cv2 as cv
img = cv.imread('./001.png', 0)
rows,cols = img.shape
M = np.float32([[1,0,50], [0,1,20]]) # 偏移量为(50, 20)
dst = cv.warpAffine(img, M, (cols,rows)) # 输出图像大小 (cols,rows)
cv.imshow('img', dst)
cv.waitKey(0)
cv.destroyAllWindows()

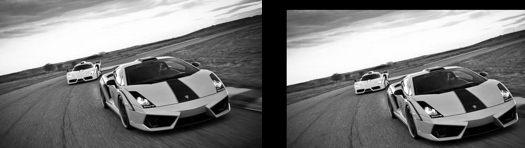

运行结果：

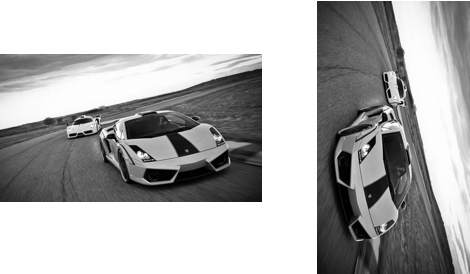

旋转
cv2.getRotationMatrix2D(center, angle, scale)
center：旋转中心位置
angle ：旋转角度
scale ：缩放比例，不缩放时为1
import cv2 as cv
img = cv.imread('./001.png', 0)
rows,cols = img.shape
center=((rows-1)/2.0, (rows-1)/2.0)
M = cv.getRotationMatrix2D(center, 90, 1)
dst = cv.warpAffine(img,M,(cols,rows))
cv.imshow('img', dst)
cv.waitKey(0)
cv.destroyAllWindows()

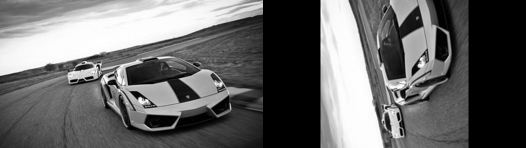

运行结果：
方法2：
cv2.rotate(src, rotateCode)
cv2.ROTATE_90_CLOCKWISE ：顺时针旋转90度
cv2.ROTATE_180 ：旋转180度，不区分顺时针或逆时针，效果一样
cv2.ROTATE_90_COUNTERCLOCKWISE ：逆时针旋转90度，等同于顺时针270度
import cv2 as cv
img = cv.imread('./001.png', 0)
dst = cv.rotate(img, cv.ROTATE_90_CLOCKWISE)
cv.imshow('img', dst)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
仿射变换
cv.getAffineTransform()
原始图像中的所有平行线在输出图像中仍将平行，需要输入图像中的三个点及其在输出图像中的对应位置 ：
img = cv.imread('drawing.png')
rows,cols,ch = img.shape
pts1 = np.float32([[50,50],[200,50],[50,200]])
pts2 = np.float32([[10,100],[200,50],[100,250]])
M = cv.getAffineTransform(pts1,pts2)
dst = cv.warpAffine(img,M,(cols,rows))
plt.subplot(121),plt.imshow(img),plt.title('Input')
plt.subplot(122),plt.imshow(dst),plt.title('Output')

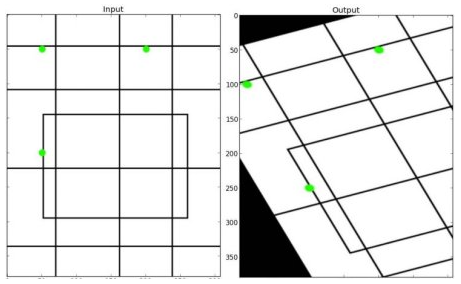

运行结果：
透视变换
cv.getPerspectiveTransform()
需要在输入图像上有4个点，在输出图像上需要相应的点，且其中三个不应共线 ：
img = cv.imread('sudoku.png')
rows,cols,ch = img.shape
pts1 = np.float32([[56,65],[368,52],[28,387],[389,390]])
pts2 = np.float32([[0,0],[300,0],[0,300],[300,300]])
M = cv.getPerspectiveTransform(pts1,pts2)
dst = cv.warpPerspective(img,M,(300,300))
plt.subplot(121),plt.imshow(img),plt.title('Input')
plt.subplot(122),plt.imshow(dst),plt.title('Output')
plt.show()

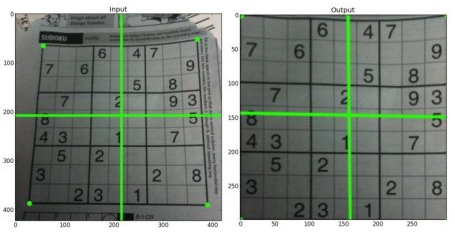

运行结果：

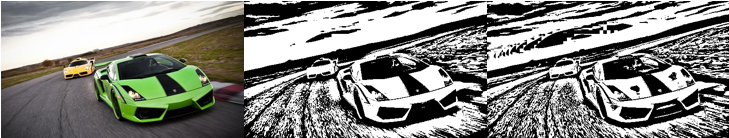

图像阈值
简单阈值
cv2.threshold(src, thresh, maxval, type)
src：源图像
thresh：比较的阈值
maxval：阈值化方法为THRESH_BINARY和THRESH_BINARY_INV时单个像素转换后的最大值
type：阈值化类型
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png', 0)
ret,thresh1 = cv.threshold(img, 127, 255, cv.THRESH_BINARY)
ret,thresh2 = cv.threshold(img, 127, 255, cv.THRESH_BINARY_INV)
ret,thresh3 = cv.threshold(img, 127, 255, cv.THRESH_TRUNC)
ret,thresh4 = cv.threshold(img, 127, 255, cv.THRESH_TOZERO)
ret,thresh5 = cv.threshold(img, 127, 255, cv.THRESH_TOZERO_INV)
titles = ['Original Image','BINARY','BINARY_INV','TRUNC','TOZERO','TOZERO_INV']
images = [img, thresh1, thresh2, thresh3, thresh4, thresh5]
for i in range(6):
plt.figure(figsize=(20,20))
plt.subplot(2,3,i+1), plt.imshow(images[i], 'gray')
plt.title(titles[i])
plt.xticks([]),plt.yticks([])
plt.show()

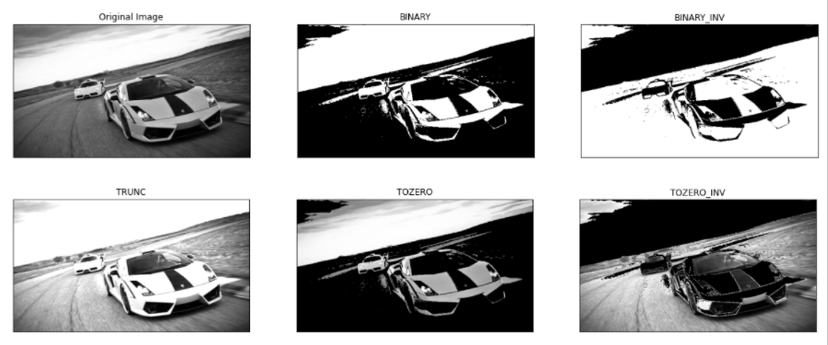

运行结果：
自适应阈值
cv2.adaptiveThreshold(src, maxValue, adaptiveMethod, thresholdType, blockSize, C)
src ：源图像
maxValue ：单个像素转换后的最大值
adaptiveMethod ：自适应方法
thresholdType ：阈值化类型，THRESH_BINARY 或 THRESH_BINARY_INV
blockSize ：计算某个像素使用的阈值时采用的窗口大小，奇数值
C ：平均值或加权平均值减去的常量值；可以为正值，0或负值
cv.ADAPTIVE_THRESH_MEAN_C ：平均阈值是邻近区域的平均值减去常数C
cv.ADAPTIVE_THRESH_GAUSSIAN_C ：高斯阈值是邻域值的高斯加权总和减去常数C
import cv2 as cv
img = cv.imread('./001.png')
img_gray=cv.cvtColor(img,cv.COLOR_BGR2GRAY)
img_ret1 = cv.adaptiveThreshold(img_gray, 255, cv.ADAPTIVE_THRESH_MEAN_C,
cv.THRESH_BINARY, 55, 0 )
img_ret2 = cv.adaptiveThreshold(img_gray, 255, cv.ADAPTIVE_THRESH_GAUSSIAN_C,
cv.THRESH_BINARY, 55, 0 )
cv.imshow('img',img)
cv.imshow('MEAN',img_ret1)
cv.imshow('GAUSSIAN',img_ret2)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
Otsu二值化
在全局阈值化中，我们使用任意选择的值作为阈值；
而在Otsu的方法中从图像直方图中确定最佳全局阈值：
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./002.jpg',0)
# 全局阈值
ret1,th1 = cv.threshold(img, 127, 255, cv.THRESH_BINARY)
# Otsu阈值
ret2,th2 = cv.threshold(img, 0, 255, cv.THRESH_BINARY+cv.THRESH_OTSU)
# 高斯滤波后再采用Otsu阈值
blur = cv.GaussianBlur(img, (5,5), 0)
ret3,th3 = cv.threshold(blur, 0, 255, cv.THRESH_BINARY+cv.THRESH_OTSU)
# 绘制所有图像及其直方图
images = [img, 0, th1,
img, 0, th2,
blur, 0, th3]
titles = ['Original Noisy Image','Histogram','Global Thresholding (v=127)',
'Original Noisy Image','Histogram',"Otsu's Thresholding",
'Gaussian filtered Image','Histogram',"Otsu's Thresholding"]
for i in range(3):
plt.subplot(3,3,i*3+1), plt.imshow(images[i*3], 'gray')
plt.title(titles[i*3]), plt.xticks([]), plt.yticks([])
plt.subplot(3,3,i*3+2), plt.hist(images[i*3].ravel(), 256)
plt.title(titles[i*3+1]), plt.xticks([]), plt.yticks([])
plt.subplot(3,3,i*3+3), plt.imshow(images[i*3+2], 'gray')
plt.title(titles[i*3+2]), plt.xticks([]), plt.yticks([])
plt.show()

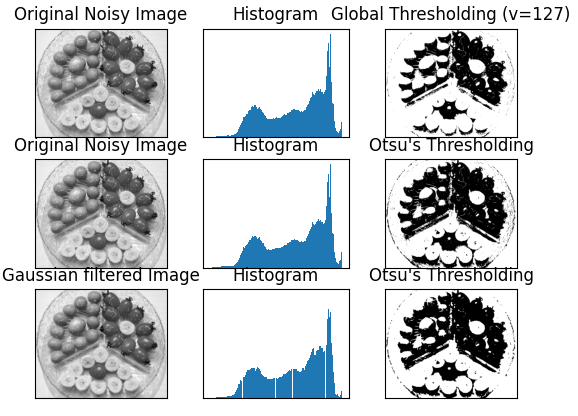

运行结果：
图像平滑
2D卷积（图像过滤）
cv.filter2D()：对图像进行卷积操作；
低通滤波器(LPF)：消除噪声，使图像模糊；
高通滤波器(HPF)：在图像中找到边缘；
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
kernel = np.ones((5,5), np.float32)/25
dst = cv.filter2D(img, -1, kernel)
fig = plt.figure(figsize=(15, 15))
plt.subplot(121), plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122), plt.imshow(dst),plt.title('Averaging')
plt.xticks([]), plt.yticks([])
plt.show()

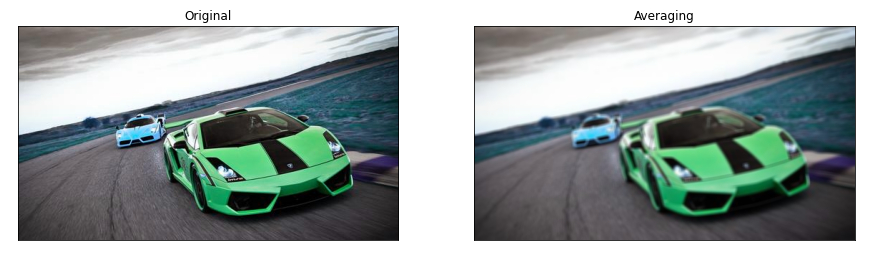

运行结果：

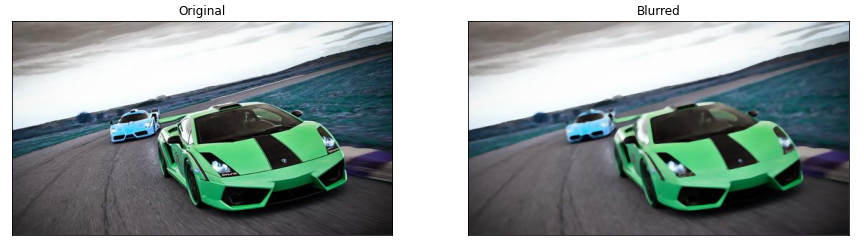

图像模糊
平均滤波
cv.blur() ：获取内核区域下所有像素的平均值，并替换中心元素；
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
blur = cv.blur(img,(5,5))
fig = plt.figure(figsize=(15, 15))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(blur),plt.title('Blurred')
plt.xticks([]), plt.yticks([])
plt.show()

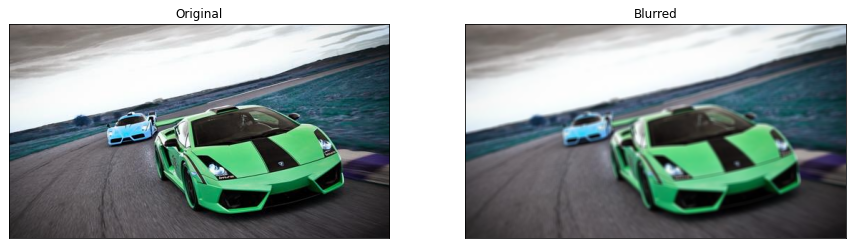

运行结果：
高斯滤波
cv.GaussianBlur()：使用高斯核代替盒式滤波器，宽度和高度应为正数和奇数，对于从图像中去除高斯噪声非常有效；
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
blur = cv.GaussianBlur(img,(5,5),0)
fig = plt.figure(figsize=(15, 15))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(blur),plt.title('Blurred')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
中位滤波
cv.medianBlur()：提取内核区域下所有像素的中值，并将中心元素替换为该中值，内核大小应为正奇数整数，对于椒盐噪声非常有效；
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
median = cv.medianBlur(img,5)
fig = plt.figure(figsize=(15, 15))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(median),plt.title('Blurred')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
双边滤波
cv.bilateralFilter()：去除噪声的同时保持边缘清晰锐利；
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
blur = cv.bilateralFilter(img,9,75,75)
fig = plt.figure(figsize=(15, 15))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(blur),plt.title('Blurred')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
形态转换
图像腐蚀
cv.erode()
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5,5), np.uint8)
erosion = cv.erode(img, kernel, iterations = 1)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(erosion),plt.title('Erosion')
plt.xticks([]), plt.yticks([])
plt.show()

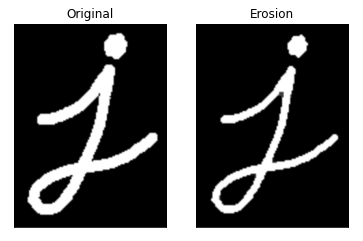

运行结果：
图像膨胀
cv.dilate()
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5,5), np.uint8)
dilation = cv.dilate(img, kernel, iterations = 1)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(dilation),plt.title('Dilation')
plt.xticks([]), plt.yticks([])
plt.show()

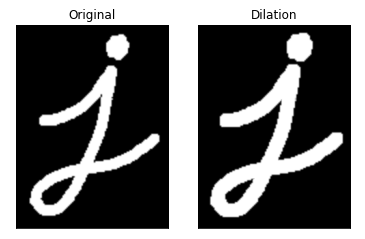

运行结果：

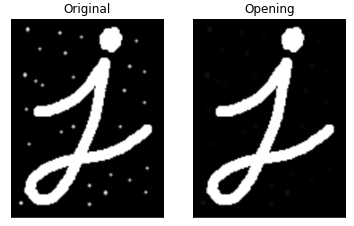

开运算
cv.morphologyEx() cv.MORPH_OPEN ：先腐蚀后膨胀，用于消除噪声；
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5,5), np.uint8)
opening = cv.morphologyEx(img, cv.MORPH_OPEN, kernel)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(opening),plt.title('Opening')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
闭运算
cv.morphologyEx() cv.MORPH_CLOSE ：先膨胀后腐蚀，用于关闭前景对象内部的小孔或对象上的小黑点；
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5,5), np.uint8)
closing = cv.morphologyEx(img, cv.MORPH_CLOSE, kernel)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(closing),plt.title('Closing')
plt.xticks([]), plt.yticks([])
plt.show()

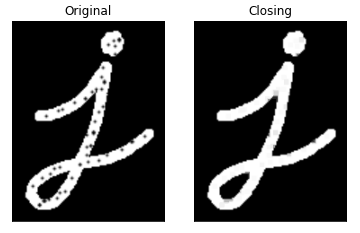

运行结果：
形态学梯度
cv.morphologyEx() cv.MORPH_GRADIENT ：图像腐蚀与膨胀之差；
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5,5), np.uint8)
gradient = cv.morphologyEx(img, cv.MORPH_GRADIENT, kernel)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(gradient),plt.title('Gradient')
plt.xticks([]), plt.yticks([])
plt.show()

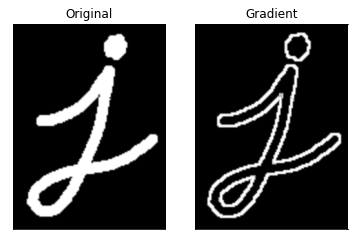

运行结果：

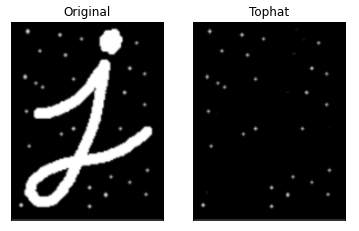

顶帽
cv.morphologyEx() cv.MORPH_TOPHAT ：输入图像和图像开运算之差；
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5, 5), np.uint8)
tophat = cv.morphologyEx(img, cv.MORPH_TOPHAT, kernel)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(tophat),plt.title('Tophat')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：

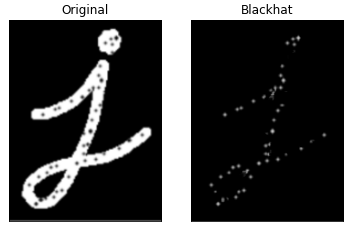

黑帽
cv.morphologyEx() cv.MORPH_BLACKHAT ：输入图像和图像闭运算之差；
import cv2 as cv
import numpy as np
img = cv.imread('./002.png')
kernel = np.ones((5, 5), np.uint8)
blackhat = cv.morphologyEx(img, cv.MORPH_BLACKHAT, kernel)
fig = plt.figure(figsize=(6, 6))
plt.subplot(121),plt.imshow(img),plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(blackhat),plt.title('Blackhat')
plt.xticks([]), plt.yticks([])
plt.show()
运行结果：

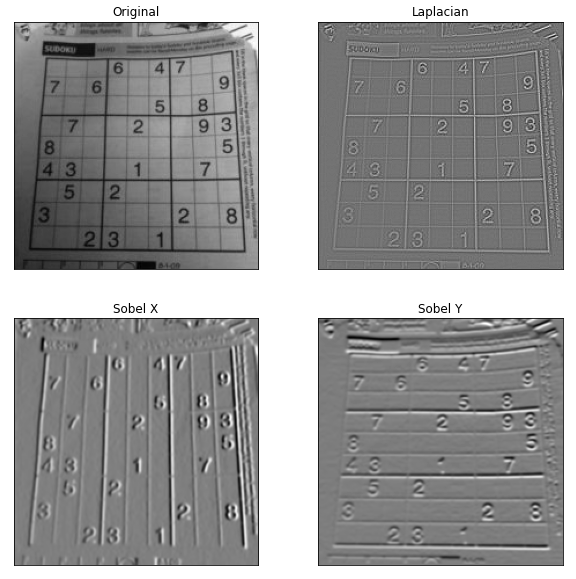

图像梯度
cv.Sobel() 和 cv.Scharr() ：ksize = -1，则使用 3x3 Scharr 滤波器；
cv.Laplacian()
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./003.png', 0)
laplacian = cv.Laplacian(img, cv.CV_64F)
sobelx = cv.Sobel(img, cv.CV_64F, 1,0, ksize=5) # 水平导数方向
sobely = cv.Sobel(img, cv.CV_64F, 0,1, ksize=5) # 垂直导数方向
fig = plt.figure(figsize=(10, 10))
plt.subplot(2,2,1),plt.imshow(img, cmap = 'gray')
plt.title('Original'), plt.xticks([]), plt.yticks([])
plt.subplot(2,2,2),plt.imshow(laplacian, cmap = 'gray')
plt.title('Laplacian'), plt.xticks([]), plt.yticks([])
plt.subplot(2,2,3),plt.imshow(sobelx, cmap = 'gray')
plt.title('Sobel X'), plt.xticks([]), plt.yticks([])
plt.subplot(2,2,4),plt.imshow(sobely, cmap = 'gray')
plt.title('Sobel Y'), plt.xticks([]), plt.yticks([])
plt.show()
运行结果：

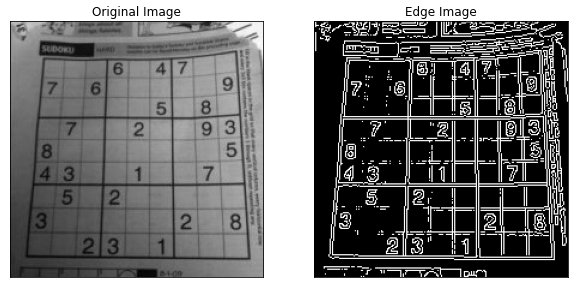

Canny边缘检测
cv.Canny()
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./003.png',0)
edges = cv.Canny(img, 100, 100)
fig = plt.figure(figsize=(10, 10))
plt.subplot(121),plt.imshow(img,cmap = 'gray')
plt.title('Original Image'), plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(edges,cmap = 'gray')
plt.title('Edge Image'), plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
图像轮廓
轮廓
cv.findContours()
cv.drawContours()
import numpy as np
import cv2 as cv
img = cv.imread('./001.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours, hierarchy = cv.findContours(thresh, cv.RETR_TREE, cv.CHAIN_APPROX_SIMPLE)
cv.drawContours(img, contours, -1, (255,0,0), 1) # -1表示绘制所有轮廓
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()

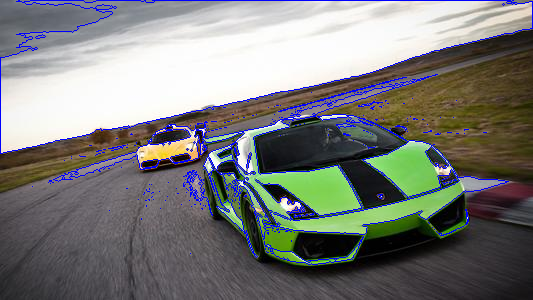

运行结果：
轮廓特征
特征矩
import numpy as np
import cv2 as cv
img = cv.imread('./005.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cv.drawContours(img, contours, 0, (255,0,0), 3) # 0表示绘制所有轮廓
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()
cnt = contours[0]
M = cv.moments(cnt)
print(M)
cx = int(M['m10']/M['m00']) # 对应对象的重心
cy = int(M['m01']/M['m00'])
print((cx, cy))
运行结果：
{'m00': 33499.0,
'm10': 8384054.0,
'm01': 8793702.666666666,
... ...
'nu12': 8.823186369609854e-06,
'nu03': 5.661727831836976e-06}
(250, 262)
轮廓面积
area = cv.contourArea(cnt)
运行结果：
33499.0
轮廓周长
perimeter = cv.arcLength(cnt,True) ：闭合轮廓 (True)
运行结果：
974.1463149785995
轮廓近似
import numpy as np
import cv2 as cv
img = cv.imread('./004.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
epsilon = 0.1*cv.arcLength(cnt,True) # 显示ε=弧长10％的近似曲线
approx = cv.approxPolyDP(cnt,epsilon,True)
print(approx)
cv.polylines(img, [approx], True, (255, 0, 0), 3)
cv.imshow('img', img) # 原图、0.1、0.01
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：

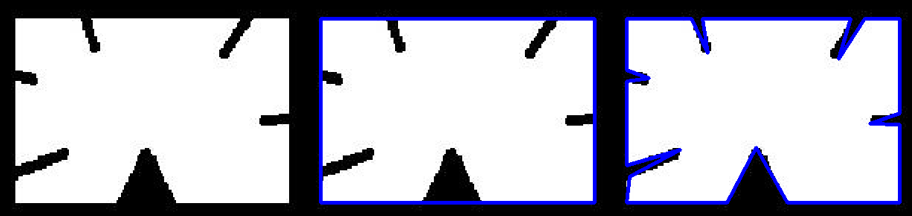

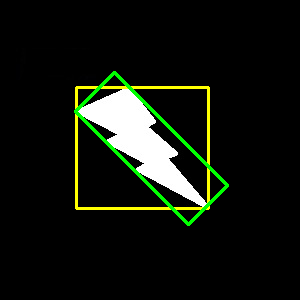

边界矩形
import numpy as np
import cv2 as cv
img = cv.imread('./006.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
x,y,w,h = cv.boundingRect(cnt)
cv.rectangle(img,(x,y),(x+w,y+h),(0,255,255),2) # 绘制第一个矩形边框（黄色）
rect = cv.minAreaRect(cnt)
box = cv.boxPoints(rect)
box = np.int0(box)
cv.drawContours(img,[box],0,(0,255,0),2) # 绘制第二个矩形边框（绿色）
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
最小闭合圈
import numpy as np
import cv2 as cv
img = cv.imread('./006.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
(x,y),radius = cv.minEnclosingCircle(cnt)
center = (int(x),int(y))
radius = int(radius)
cv.circle(img,center,radius,(0,255,0),2)
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()

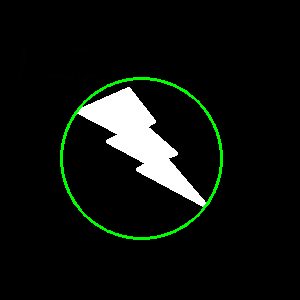

运行结果：

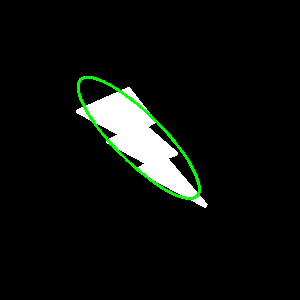

拟合椭圆
import numpy as np
import cv2 as cv
img = cv.imread('./006.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
ellipse = cv.fitEllipse(cnt)
cv.ellipse(img,ellipse,(0,255,0),2)
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：

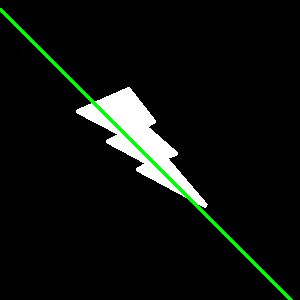

拟合直线
import numpy as np
import cv2 as cv
img = cv.imread('./006.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
rows,cols = img.shape[:2]
[vx,vy,x,y] = cv.fitLine(cnt, cv.DIST_L2,0,0.01,0.01)
lefty = int((-x*vy/vx) + y)
righty = int(((cols-x)*vy/vx)+y)
cv.line(img,(cols-1,righty),(0,lefty),(0,255,0),2)
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
轮廓属性
长宽
x,y,w,h = cv.boundingRect(cnt)
掩码
import numpy as np
import cv2 as cv
img = cv.imread('./005.png')
imgray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
ret, thresh = cv.threshold(imgray, 127, 255, 0)
contours,hierarchy = cv.findContours(thresh, 1, 2)
cnt = contours[0]
mask = np.zeros(imgray.shape,np.uint8)
cv.drawContours(mask, [cnt], 0, 255, -1)
cv.imshow('mask', mask)
cv.waitKey(0)
cv.destroyAllWindows()

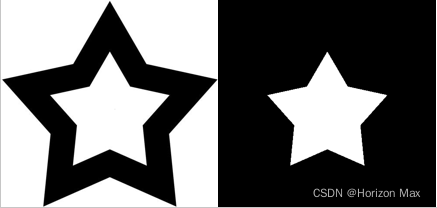

运行结果：
直方图
通过直方图可以总体了解图像的该图像的对比度，亮度，强度分布等；
X轴上具有像素值（不总是从0到255的范围），在Y轴上具有图像中相应像素数的图；
OpenCV中的直方图
cv.calcHist（images，channels，mask，histSize，ranges [，hist [，accumulate]]）
images：它是uint8或float32类型的源图像；
channels：计算直方图通道的索引；
对于灰度图像，则其值为[0]；
对于彩色图像，[0]，[1]或[2]分别代表计算蓝色，绿色或红色通道的直方图
mask：图像掩码；
histSize：BIN计数，需要放在方括号中，对于全尺寸，我们通过[256]；
ranges：RANGE，通常为[0,256]；

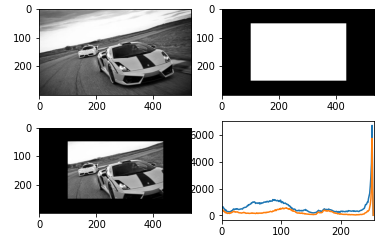

import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./001.png',0)
# create a mask
mask = np.zeros(img.shape[:2], np.uint8)
mask[50:250, 100:433] = 255
masked_img = cv.bitwise_and(img,img,mask = mask)
hist_full = cv.calcHist([img],[0],None,[256],[0,256])
hist_mask = cv.calcHist([img],[0],mask,[256],[0,256])
plt.subplot(221), plt.imshow(img, 'gray')
plt.subplot(222), plt.imshow(mask,'gray')
plt.subplot(223), plt.imshow(masked_img, 'gray')
plt.subplot(224), plt.plot(hist_full), plt.plot(hist_mask)
plt.xlim([0,256])
plt.show()
运行结果：

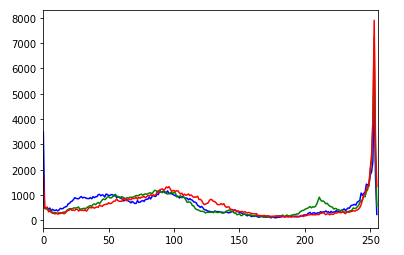

多通道显示：
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./001.png')
color = ('b','g','r')
for i,col in enumerate(color):
histr = cv.calcHist([img],[i],None,[256],[0,256])
plt.plot(histr,color = col)
plt.xlim([0,256])
plt.show()
运行结果：

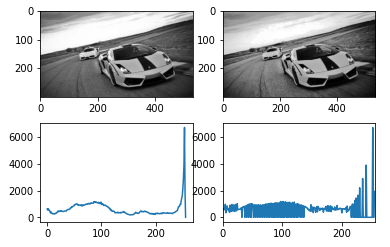

直方图均衡
直方图均衡
cv.equalizeHist()
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./001.png',0)
equ = cv.equalizeHist(img)
hist_img = cv.calcHist([img],[0],None,[256],[0,256])
hist_equ = cv.calcHist([equ],[0],None,[256],[0,256])
plt.subplot(221), plt.imshow(img, 'gray')
plt.subplot(222), plt.imshow(equ,'gray')
plt.subplot(223), plt.plot(hist_img)
plt.subplot(224), plt.plot(hist_equ)
plt.xlim([0,256])
plt.show()
运行结果：

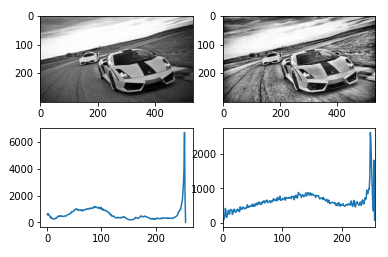

自适应直方图均衡
cv2.createCLAHE()
clipLimit：对比对限制阈值，默认为40；
tileGridSize：直方图均衡的栅格尺寸，默认为8×8；
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
img = cv.imread('./001.png',0)
clahe = cv.createCLAHE(clipLimit=5.0, tileGridSize=(8,8))
img_clahe = clahe.apply(img)
hist_img = cv.calcHist([img],[0],None,[256],[0,256])
hist_clahe = cv.calcHist([img_clahe],[0],None,[256],[0,256])
plt.subplot(221), plt.imshow(img, 'gray')
plt.subplot(222), plt.imshow(img_clahe,'gray')
plt.subplot(223), plt.plot(hist_img)
plt.subplot(224), plt.plot(hist_clahe)
plt.xlim([0,256])
plt.show()
运行结果：

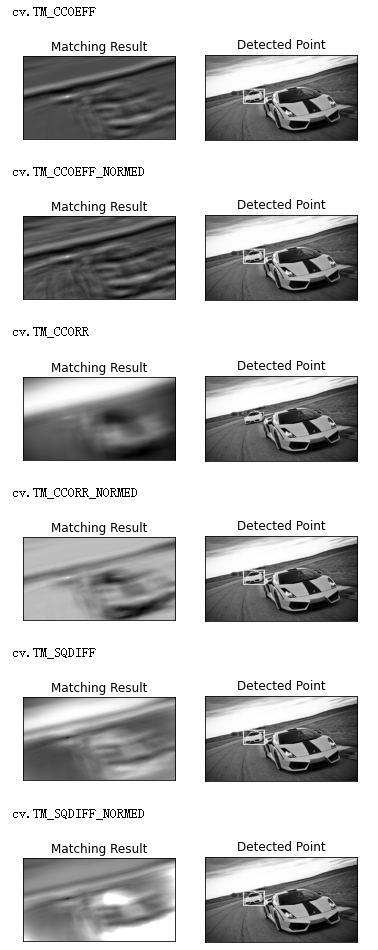

模板匹配
cv.matchTemplate()
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('./001.png',0)
img2 = img.copy()
template = cv.imread('./0001.png',0)
w, h = template.shape[::-1]
# 6种方法比较
methods = ['cv.TM_CCOEFF', 'cv.TM_CCOEFF_NORMED', 'cv.TM_CCORR',
'cv.TM_CCORR_NORMED', 'cv.TM_SQDIFF', 'cv.TM_SQDIFF_NORMED']
for meth in methods:
img = img2.copy()
method = eval(meth)
# 模板匹配
res = cv.matchTemplate(img,template,method)
min_val, max_val, min_loc, max_loc = cv.minMaxLoc(res)
if method in [cv.TM_SQDIFF, cv.TM_SQDIFF_NORMED]:
top_left = min_loc
else:
top_left = max_loc
bottom_right = (top_left[0] + w, top_left[1] + h)
print(meth)
cv.rectangle(img,top_left, bottom_right, 255, 2)
plt.subplot(121),plt.imshow(res,cmap = 'gray')
plt.title('Matching Result'), plt.xticks([]), plt.yticks([])
plt.subplot(122),plt.imshow(img,cmap = 'gray')
plt.title('Detected Point'), plt.xticks([]), plt.yticks([])
plt.show()
运行结果：
多对象的模板匹配
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img_rgb = cv.imread('./001.png')
img_gray = cv.cvtColor(img_rgb, cv.COLOR_BGR2GRAY)
template = cv.imread('./0001.png',0)
w, h = template.shape[::-1]
res = cv.matchTemplate(img_gray,template,cv.TM_CCOEFF_NORMED)
threshold = 0.8
loc = np.where( res >= threshold)
for pt in zip(*loc[::-1]):
cv.rectangle(img_rgb, pt, (pt[0] + w, pt[1] + h), (0,0,255), 2)
cv.imwrite('res.png',img_rgb)

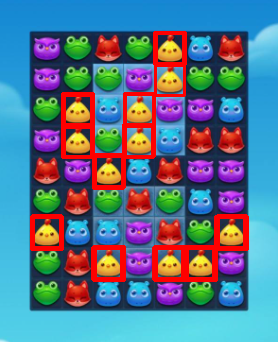

运行结果：
霍夫变换
霍夫直线变换
cv.HoughLines()
应用霍夫变换之前，需先使用阈值或使用Canny边缘检测；
import cv2 as cv
import numpy as np
img = cv.imread(cv.samples.findFile('./001.png'))
gray = cv.cvtColor(img,cv.COLOR_BGR2GRAY)
edges = cv.Canny(gray,50,150,apertureSize = 3)
lines = cv.HoughLines(edges,1,np.pi/180,200)
for line in lines:
rho,theta = line[0]
a = np.cos(theta)
b = np.sin(theta)
x0 = a*rho
y0 = b*rho
x1 = int(x0 + 1000*(-b))
y1 = int(y0 + 1000*(a))
x2 = int(x0 - 1000*(-b))
y2 = int(y0 - 1000*(a))
cv.line(img,(x1,y1),(x2,y2),(0,0,255),2)
cv.imshow('img', img)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
霍夫圆圈变换
cv.HoughCircles
import numpy as np
import cv2 as cv
img = cv.imread('./001.png',0)
img = cv.medianBlur(img,5)
cimg = cv.cvtColor(img,cv.COLOR_GRAY2BGR)
circles = cv.HoughCircles(img,cv.HOUGH_GRADIENT,1,20,
param1=50,param2=30,minRadius=0,maxRadius=0)
circles = np.uint16(np.around(circles))
for i in circles[0,:]:
# 绘制外圆
cv.circle(cimg,(i[0],i[1]),i[2],(0,255,0),2)
# 绘制圆心
cv.circle(cimg,(i[0],i[1]),2,(0,0,255),3)
cv.imshow('circles',cimg)
cv.waitKey(0)
cv.destroyAllWindows()
运行结果：
OpenCV官方文档链接🔗 ：OpenCV-Python 官方文档
OpenCV系列链接🔗：会变魔术的 OpenCV
会变魔术的 OpenCV_01 简介与安装
会变魔术的 OpenCV_02 GUI特性
会变魔术的 OpenCV_03 核心操作
会变魔术的 OpenCV_04 图像处理
会变魔术的 OpenCV_05 实例分析
604
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
