Nacos2.2.0适配达梦DM8数据源

Nacos 从 2.2.0 版本开始,可通过 SPI 机制注入多数据源实现插件,并在引入对应数据源实现后,便可在 Nacos 启动时通过读取 application.properties 配置文件中 spring.datasource.platform 配置项选择加载对应多数据源插件.

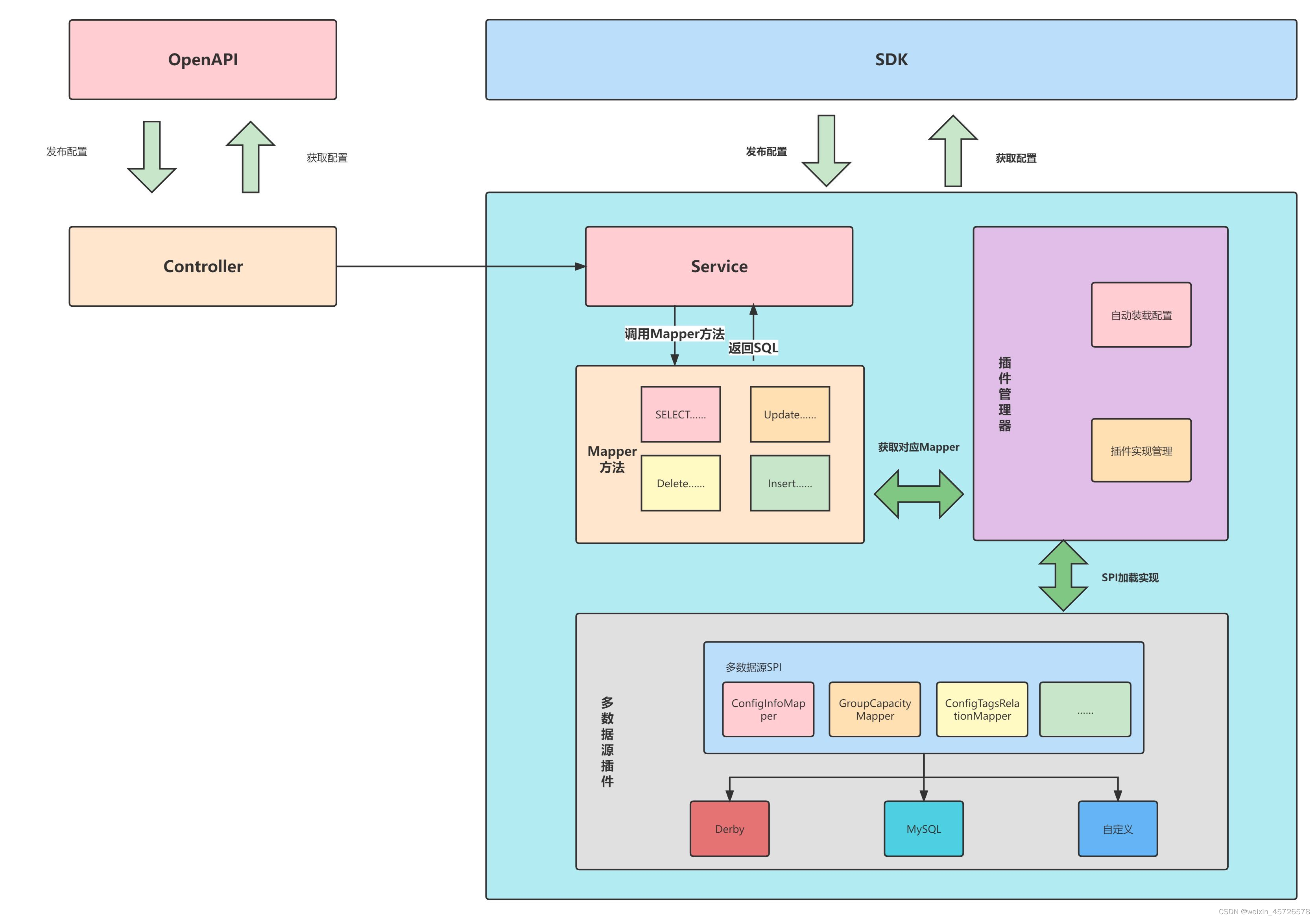

在这里插入图片描述
Nacos 官方默认实现 MySQL、Derby ，其他类型数据库接入需要参考下文自己扩展。

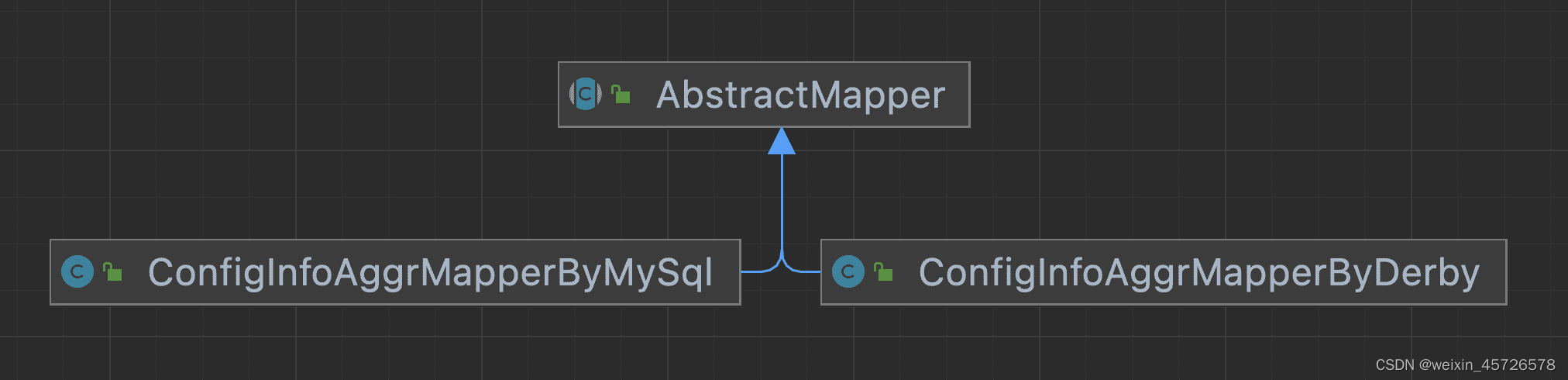

在这里插入图片描述

文章目录

一、Nacos官方文档

Nacos整体介绍可看Nacos官方文档

二、实现步骤

下面，重点讲解如何通过修改源码实现DM8适配

2.1 2.2.0版本源码下载

2.2.0版本源码下载

2.2 引入DM8驱动包

根据适配版本选择对应驱动包

2.2.1 nacos-all pom.xml

<dm.version>8.1.2.79</dm.version>

 <!--DM8-->
 <dependency>
       <groupId>com.dameng</groupId>
       <artifactId>DmJdbcDriver18</artifactId>
       <version>${dm.version}</version>
   </dependency>

2.2.2 nacos-config pom.xml

 <!--DM8-->
 <dependency>
   <groupId>com.dameng</groupId>
     <artifactId>DmJdbcDriver18</artifactId>
 </dependency>

2.3 nacos-config模块修改

修改类config/src/main/java/com/alibaba/nacos/config/server/service/datasource/ExternalDataSourceProperties.java

修改后的代码如下：

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with
 * the License. You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on
 * an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the
 * specific language governing permissions and limitations under the License.
 */

package com.alibaba.nacos.config.server.service.datasource;

import com.alibaba.nacos.common.utils.Preconditions;
import com.alibaba.nacos.common.utils.StringUtils;
import com.zaxxer.hikari.HikariDataSource;
import org.apache.commons.collections.CollectionUtils;
import org.springframework.boot.context.properties.bind.Bindable;
import org.springframework.boot.context.properties.bind.Binder;
import org.springframework.core.env.Environment;

import java.util.ArrayList;
import java.util.List;
import java.util.Objects;

import static com.alibaba.nacos.common.utils.CollectionUtils.getOrDefault;

/**
 * Properties of external DataSource.
 *
 * @author Nacos
 */
public class ExternalDataSourceProperties {

    private String jdbcDriverName = "dm.jdbc.driver.DmDriver";

    private String testQuery = "SELECT 1";

    private Integer num;

    private List<String> url = new ArrayList<>();

    private List<String> user = new ArrayList<>();

    private List<String> password = new ArrayList<>();

    public void setNum(Integer num) {
        this.num = num;
    }

    public void setUrl(List<String> url) {
        this.url = url;
    }

    public void setUser(List<String> user) {
        this.user = user;
    }

    public void setPassword(List<String> password) {
        this.password = password;
    }

    /**
     * Build serveral HikariDataSource.
     *
     * @param environment {@link Environment}
     * @param callback    Callback function when constructing data source
     * @return List of {@link HikariDataSource}
     */
    List<HikariDataSource> build(Environment environment, Callback<HikariDataSource> callback) {
        List<HikariDataSource> dataSources = new ArrayList<>();
        Binder.get(environment).bind("db", Bindable.ofInstance(this));
        Preconditions.checkArgument(Objects.nonNull(num), "db.num is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(user), "db.user or db.user.[index] is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(password), "db.password or db.password.[index] is null");
        for (int index = 0; index < num; index++) {
            int currentSize = index + 1;
            Preconditions.checkArgument(url.size() >= currentSize, "db.url.%s is null", index);
            DataSourcePoolProperties poolProperties = DataSourcePoolProperties.build(environment);
            if (StringUtils.isEmpty(poolProperties.getDataSource().getDriverClassName())) {
                poolProperties.setDriverClassName(jdbcDriverName);
            }
            poolProperties.setJdbcUrl(url.get(index).trim());
            poolProperties.setUsername(getOrDefault(user, index, user.get(0)).trim());
            poolProperties.setPassword(getOrDefault(password, index, password.get(0)).trim());
            HikariDataSource ds = poolProperties.getDataSource();
            if (StringUtils.isEmpty(ds.getConnectionTestQuery())) {
                ds.setConnectionTestQuery(testQuery);
            }
            dataSources.add(ds);
            callback.accept(ds);
        }
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(dataSources), "no datasource available");
        return dataSources;
    }

    interface Callback<D> {

        /**
         * Perform custom logic.
         *
         * @param datasource dataSource.
         */
        void accept(D datasource);
    }
}

2.4 nacos-datasource-plugin模块修改

2.4.1 DataSourceConstant类修改

修改类：plugin/datasource/src/main/java/com/alibaba/nacos/plugin/datasource/constants/DataSourceConstant.java

修改后的代码如下：

/*
 * Copyright 1999-2022 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.alibaba.nacos.plugin.datasource.constants;

/**
 * The data source name.
 *
 * @author czf
 **/

public class DataSourceConstant {
    public static final String MYSQL = "mysql";

    public static final String DERBY = "derby";

    public static final String DM = "dameng";
}

2.4.2 增加DM8的mapper实现类

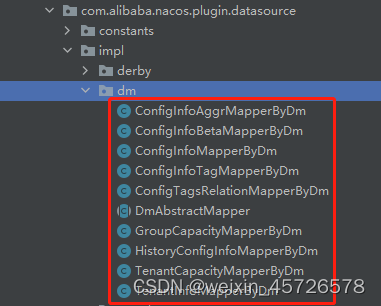

先上截图，如下新增10个类：
在这里插入图片描述
在plugin/datasource/src/main/java/com/alibaba/nacos/plugin/datasource/impl/目录新建dm目录，再在dm目录新增实现类，各个类代码如下：
1、DmAbstractMapper

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;

import java.util.List;

/**
 * The mysql implementation of DmAbstractMapper.
 *
 * @author czf
 */
public abstract class DmAbstractMapper extends AbstractMapper {

    @Override
    public String select(List<String> columns, List<String> where) {
        StringBuilder sql = new StringBuilder("SELECT ");

        for (int i = 0; i < columns.size(); i++) {
            sql.append(columns.get(i));
            if (i == columns.size() - 1) {
                sql.append(" ");
            } else {
                sql.append(",");
            }
        }
        sql.append("FROM ");
        sql.append(getTableName());
        sql.append(" ");

        if (where.size() == 0) {
            return sql.toString();
        }

        sql.append("WHERE ");
        for (int i = 0; i < where.size(); i++) {
            String column = where.get(i);

            // 租户列特殊处理 避免前端传空字符串是Oracle查询不到数据
            if ("tenant_id".equalsIgnoreCase(column)) {
                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            } else {
                sql.append(column).append(" = ").append("?");
            }

            if (i != where.size() - 1) {
                sql.append(" AND ");
            }
        }
        return sql.toString();
    }

    @Override
    public String update(List<String> columns, List<String> where) {
        StringBuilder sql = new StringBuilder();
        String method = "UPDATE ";
        sql.append(method);
        sql.append(getTableName()).append(" ").append("SET ");

        for (int i = 0; i < columns.size(); i++) {
            sql.append(columns.get(i)).append(" = ").append("?");
            if (i != columns.size() - 1) {
                sql.append(",");
            }
        }

        if (where.size() == 0) {
            return sql.toString();
        }

        sql.append(" WHERE ");

        for (int i = 0; i < where.size(); i++) {
            String column = where.get(i);
            if ("tenant_id".equalsIgnoreCase(column)) {
                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            } else {
                sql.append(column).append(" = ").append("?");
            }
            if (i != where.size() - 1) {
                sql.append(" AND ");
            }
        }
        return sql.toString();
    }

    @Override
    public String delete(List<String> params) {
        StringBuilder sql = new StringBuilder();
        String method = "DELETE ";
        sql.append(method).append("FROM ").append(getTableName()).append(" ").append("WHERE ");
        for (int i = 0; i < params.size(); i++) {
            String column = params.get(i);
            if ("tenant_id".equalsIgnoreCase(column)) {
                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            } else {
                sql.append(column).append(" = ").append("?");
            }
            if (i != params.size() - 1) {
                sql.append("AND ");
            }
        }

        return sql.toString();
    }

    @Override
    public String count(List<String> where) {
        StringBuilder sql = new StringBuilder();
        String method = "SELECT ";
        sql.append(method);
        sql.append("COUNT(*) FROM ");
        sql.append(getTableName());
        sql.append(" ");

        if (null == where || where.size() == 0) {
            return sql.toString();
        }

        sql.append("WHERE ");
        for (int i = 0; i < where.size(); i++) {
            String column = where.get(i);
            if ("tenant_id".equalsIgnoreCase(column)) {
                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            } else {
                sql.append(column).append(" = ").append("?");
            }
            if (i != where.size() - 1) {
                sql.append(" AND ");
            }
        }
        return sql.toString();
    }

    public String buildPaginationSql(String originalSql, int startRow, int pageSize) {
        return "SELECT * FROM ( SELECT TMP2.* FROM (SELECT TMP.*, ROWNUM ROW_ID FROM ( " + originalSql
                + " ) TMP) TMP2 WHERE ROWNUM <=" + (startRow + pageSize) + ") WHERE ROW_ID > " + startRow;
    }

    @Override
    public abstract String getTableName();

    @Override
    public abstract String getDataSource();

}

2、ConfigInfoAggrMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoAggrMapper;

import java.util.List;

/**
 * The mysql implementation of ConfigInfoAggrMapperByDm.
 *
 * @author czf
 */
public class ConfigInfoAggrMapperByDm extends DmAbstractMapper implements ConfigInfoAggrMapper {

    @Override
    public String batchRemoveAggr(List<String> datumList) {
        final StringBuilder datumString = new StringBuilder();
        for (String datum : datumList) {
            datumString.append('\'').append(datum).append("',");
        }
        datumString.deleteCharAt(datumString.length() - 1);
        return "DELETE FROM config_info_aggr WHERE data_id = ? AND group_id = ? AND (tenant_id = ? OR tenant_id IS NULL) AND datum_id IN ("
                + datumString + ")";
    }

    @Override
    public String aggrConfigInfoCount(int size, boolean isIn) {
        StringBuilder sql = new StringBuilder(
                "SELECT count(*) FROM config_info_aggr WHERE data_id = ? AND group_id = ? AND (tenant_id = ? OR tenant_id IS NULL) AND datum_id");
        if (isIn) {
            sql.append(" IN (");
        } else {
            sql.append(" NOT IN (");
        }
        for (int i = 0; i < size; i++) {
            if (i > 0) {
                sql.append(", ");
            }
            sql.append('?');
        }
        sql.append(')');

        return sql.toString();
    }

    @Override
    public String findConfigInfoAggrIsOrdered() {
        return "SELECT data_id,group_id,tenant_id,datum_id,app_name,content FROM "
                + "config_info_aggr WHERE data_id = ? AND group_id = ? AND (tenant_id = ? OR tenant_id IS NULL) ORDER BY datum_id";
    }

    @Override
    public String findConfigInfoAggrByPageFetchRows(int startRow, int pageSize) {
        String sql = "SELECT data_id,group_id,tenant_id,datum_id,app_name,content FROM config_info_aggr WHERE data_id= ? AND "
                + "group_id= ? AND (tenant_id= ? OR tenant_id IS NULL) ORDER BY datum_id";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findAllAggrGroupByDistinct() {
        return "SELECT DISTINCT data_id, group_id, tenant_id FROM config_info_aggr";
    }

    @Override
    public String getTableName() {
        return TableConstant.CONFIG_INFO_AGGR;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

3、ConfigInfoBetaMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoBetaMapper;

/**
 * The mysql implementation of ConfigInfoBetaMapperByDm.
 *
 * @author czf
 */
public class ConfigInfoBetaMapperByDm extends DmAbstractMapper implements ConfigInfoBetaMapper {

    @Override
    public String updateConfigInfo4BetaCas() {
        return "UPDATE config_info_beta SET content = ?,md5 = ?,beta_ips = ?,src_ip = ?,src_user = ?,gmt_modified = ?,app_name = ? "
                + "WHERE data_id = ? AND group_id = ? AND (tenant_id = ? OR tenant_id IS NULL) AND (md5 = ? or md5 is null or md5 = '')";
    }

    @Override
    public String findAllConfigInfoBetaForDumpAllFetchRows(int startRow, int pageSize) {
        return " SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5,gmt_modified,beta_ips,encrypted_data_key "
                + " FROM ( SELECT rownum ROW_ID,id FROM config_info_beta  WHERE  ROW_ID<=  " + (startRow + pageSize)
                + " ORDER BY id )" + " g, config_info_beta t WHERE g.id = t.id AND g.ROW_ID >" + startRow;
    }

    @Override
    public String getTableName() {
        return TableConstant.CONFIG_INFO_BETA;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

4、ConfigInfoMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoMapper;

import java.sql.Timestamp;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * The mysql implementation of ConfigInfoMapperByDm.
 *
 * @author czf
 */
public class ConfigInfoMapperByDm extends DmAbstractMapper implements ConfigInfoMapper {

    private static final String DATA_ID = "dataId";

    private static final String GROUP = "group";

    private static final String APP_NAME = "appName";

    private static final String CONTENT = "content";

    private static final String TENANT = "tenant";

    @Override
    public String findConfigMaxId() {
        return "SELECT MAX(id) FROM config_info";
    }

    @Override
    public String findAllDataIdAndGroup() {
        return "SELECT DISTINCT data_id, group_id FROM config_info";
    }

    @Override
    public String findConfigInfoByAppCountRows() {
        return "SELECT count(*) FROM config_info WHERE (tenant_id LIKE ? OR tenant_id IS NULL) AND app_name= ?";
    }

    @Override
    public String findConfigInfoByAppFetchRows(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content FROM config_info"
                + " WHERE (tenant_id LIKE ? OR tenant_id IS NULL) AND app_name= ?";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String configInfoLikeTenantCount() {
        return "SELECT count(*) FROM config_info WHERE (tenant_id LIKE ? OR tenant_id IS NULL)";
    }

    @Override
    public String getTenantIdList(int startRow, int pageSize) {
        String sql = "SELECT tenant_id FROM config_info WHERE tenant_id IS NOT NULL GROUP BY tenant_id ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String getGroupIdList(int startRow, int pageSize) {
        String sql = "SELECT group_id FROM config_info WHERE tenant_id IS NULL GROUP BY group_id ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findAllConfigKey(int startRow, int pageSize) {
        String sql = " SELECT id,data_id,group_id,app_name FROM config_info WHERE (tenant_id LIKE ? OR tenant_id IS NULL)  ORDER BY id ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findAllConfigInfoBaseFetchRows(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,content,md5 FROM  config_info  ORDER BY id  ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findAllConfigInfoFragment(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,md5,gmt_modified,type,encrypted_data_key "
                + "FROM config_info WHERE id > ? ORDER BY id ASC ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findChangeConfig() {
        return "SELECT data_id, group_id, tenant_id, app_name, content, gmt_modified,encrypted_data_key "
                + "FROM config_info WHERE gmt_modified >= ? AND gmt_modified <= ?";
    }

    @Override
    public String findChangeConfigCountRows(Map<String, String> params, final Timestamp startTime,
                                            final Timestamp endTime) {
        final String tenant = params.get(TENANT);
        final String dataId = params.get(DATA_ID);
        final String group = params.get(GROUP);
        final String appName = params.get(APP_NAME);
        final String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant;
        final String sqlCountRows = "SELECT count(*) FROM config_info WHERE ";
        String where = " 1=1 ";
        if (!StringUtils.isBlank(dataId)) {
            where += " AND data_id LIKE ? ";
        }
        if (!StringUtils.isBlank(group)) {
            where += " AND group_id LIKE ? ";
        }

        if (!StringUtils.isBlank(tenantTmp)) {
            where += " AND (tenant_id = ? OR tenant_id IS NULL) ";
        }

        if (!StringUtils.isBlank(appName)) {
            where += " AND app_name = ? ";
        }
        if (startTime != null) {
            where += " AND gmt_modified >=? ";
        }
        if (endTime != null) {
            where += " AND gmt_modified <=? ";
        }
        return sqlCountRows + where;
    }

    @Override
    public String findChangeConfigFetchRows(Map<String, String> params, final Timestamp startTime,
                                            final Timestamp endTime, int startRow, int pageSize, long lastMaxId) {
        final String tenant = params.get(TENANT);
        final String dataId = params.get(DATA_ID);
        final String group = params.get(GROUP);
        final String appName = params.get(APP_NAME);
        final String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant;
        final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,app_name,content,type,md5,gmt_modified FROM config_info WHERE ";
        String where = " 1=1 ";
        if (!StringUtils.isBlank(dataId)) {
            where += " AND data_id LIKE ? ";
        }
        if (!StringUtils.isBlank(group)) {
            where += " AND group_id LIKE ? ";
        }

        if (!StringUtils.isBlank(tenantTmp)) {
            where += " AND (tenant_id = ? OR tenant_id IS NULL) ";
        }

        if (!StringUtils.isBlank(appName)) {
            where += " AND app_name = ? ";
        }
        if (startTime != null) {
            where += " AND gmt_modified >=? ";
        }
        if (endTime != null) {
            where += " AND gmt_modified <=? ";
        }

        String sql = sqlFetchRows + where + " AND id > " + lastMaxId + " ORDER BY id ASC";
        return buildPaginationSql(sql, 0, pageSize);
    }

    @Override
    public String listGroupKeyMd5ByPageFetchRows(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,md5,type,gmt_modified,encrypted_data_key  config_info  ORDER BY id ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findAllConfigInfo4Export(List<Long> ids, Map<String, String> params) {
        String tenant = params.get("tenant");
        String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant;
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,type,md5,gmt_create,gmt_modified,src_user,src_ip,"
                + "c_desc,c_use,effect,c_schema,encrypted_data_key FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        List<Object> paramList = new ArrayList<>();
        if (!CollectionUtils.isEmpty(ids)) {
            where.append(" id IN (");
            for (int i = 0; i < ids.size(); i++) {
                if (i != 0) {
                    where.append(", ");
                }
                where.append('?');
                paramList.add(ids.get(i));
            }
            where.append(") ");
        } else {
            where.append(" (tenant_id= ? OR tenant_id IS NULL)");
            paramList.add(tenantTmp);
            if (!StringUtils.isBlank(params.get(DATA_ID))) {
                where.append(" AND data_id LIKE ? ");
            }
            if (StringUtils.isNotBlank(params.get(GROUP))) {
                where.append(" AND group_id= ? ");
            }
            if (StringUtils.isNotBlank(params.get(APP_NAME))) {
                where.append(" AND app_name= ? ");
            }
        }
        return sql + where;
    }

    @Override
    public String findConfigInfoBaseLikeCountRows(Map<String, String> params) {
        final String sqlCountRows = "SELECT count(*) FROM config_info WHERE ";
        String where = " 1=1 AND (tenant_id='' OR tenant_id IS NULL) ";

        if (!StringUtils.isBlank(params.get(DATA_ID))) {
            where += " AND data_id LIKE ? ";
        }
        if (!StringUtils.isBlank(params.get(GROUP))) {
            where += " AND group_id LIKE ";
        }
        if (!StringUtils.isBlank(params.get(CONTENT))) {
            where += " AND content LIKE ? ";
        }
        return sqlCountRows + where;
    }

    @Override
    public String findConfigInfoBaseLikeFetchRows(Map<String, String> params, int startRow, int pageSize) {
        final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,content FROM config_info WHERE ";
        String where = " 1=1 AND (tenant_id='' OR tenant_id IS NULL) ";
        if (!StringUtils.isBlank(params.get(DATA_ID))) {
            where += " AND data_id LIKE ? ";
        }
        if (!StringUtils.isBlank(params.get(GROUP))) {
            where += " AND group_id LIKE ";
        }
        if (!StringUtils.isBlank(params.get(CONTENT))) {
            where += " AND content LIKE ? ";
        }
        String sql = sqlFetchRows + where;
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findConfigInfo4PageCountRows(Map<String, String> params) {
        final String appName = params.get(APP_NAME);
        final String dataId = params.get(DATA_ID);
        final String group = params.get(GROUP);
        final String sqlCount = "SELECT count(*) FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        where.append(" ( tenant_id= ?  or tenant_id is NULL ）");
        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND app_name=? ");
        }
        return sqlCount + where;
    }

    @Override
    public String findConfigInfo4PageFetchRows(Map<String, String> params, int startRow, int pageSize) {
        final String appName = params.get(APP_NAME);
        final String dataId = params.get(DATA_ID);
        final String group = params.get(GROUP);
        final String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,type,encrypted_data_key FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        where.append(" ( tenant_id= ?  or tenant_id is NULL ） ");
        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND app_name=? ");
        }
        return buildPaginationSql(sql + where, startRow, pageSize);
    }

    @Override
    public String findConfigInfoBaseByGroupFetchRows(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,content FROM config_info WHERE group_id=? AND ( tenant_id= ?  or tenant_id is NULL ）";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findConfigInfoLike4PageCountRows(Map<String, String> params) {
        String dataId = params.get(DATA_ID);
        String group = params.get(GROUP);
        final String appName = params.get(APP_NAME);
        final String content = params.get(CONTENT);
        final String sqlCountRows = "SELECT count(*) FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        where.append(" (tenant_id LIKE ? OR tenant_id IS NULL) ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND content LIKE ? ");
        }
        return sqlCountRows + where;
    }

    @Override
    public String findConfigInfoLike4PageFetchRows(Map<String, String> params, int startRow, int pageSize) {
        String dataId = params.get(DATA_ID);
        String group = params.get(GROUP);
        final String appName = params.get(APP_NAME);
        final String content = params.get(CONTENT);
        final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,app_name,content,encrypted_data_key FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        where.append(" (tenant_id LIKE ? OR tenant_id IS NULL) ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND content LIKE ? ");
        }
        return buildPaginationSql(sqlFetchRows + where, startRow, pageSize);
    }

    @Override
    public String findAllConfigInfoFetchRows(int startRow, int pageSize) {
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,md5 "
                + " FROM  config_info WHERE (tenant_id LIKE ? OR tenant_id IS NULL) ORDER BY id ";
        return buildPaginationSql(sql, startRow, pageSize);
    }

    @Override
    public String findConfigInfosByIds(int idSize) {
        StringBuilder sql = new StringBuilder(
                "SELECT ID,data_id,group_id,tenant_id,app_name,content,md5 FROM config_info WHERE ");
        sql.append("id IN (");
        for (int i = 0; i < idSize; i++) {
            if (i != 0) {
                sql.append(", ");
            }
            sql.append('?');
        }
        sql.append(") ");
        return sql.toString();
    }

    @Override
    public String removeConfigInfoByIdsAtomic(int size) {
        StringBuilder sql = new StringBuilder("DELETE FROM config_info WHERE ");
        sql.append("id IN (");
        for (int i = 0; i < size; i++) {
            if (i != 0) {
                sql.append(", ");
            }
            sql.append('?');
        }
        sql.append(") ");
        return sql.toString();
    }

    @Override
    public String updateConfigInfoAtomicCas() {
        return "UPDATE config_info SET "
                + "content=?, md5 = ?, src_ip=?,src_user=?,gmt_modified=?, app_name=?,c_desc=?,c_use=?,effect=?,type=?,c_schema=? "
                + "WHERE data_id=? AND group_id=? AND (tenant_id=? OR tenant_id IS NULL) AND (md5=? OR md5 IS NULL OR md5='')";
    }

    @Override
    public String getTableName() {
        return TableConstant.CONFIG_INFO;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

5、ConfigInfoTagMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoTagMapper;

/**
 * The mysql implementation of ConfigInfoTagMapperByDm.
 *
 * @author czf
 */
public class ConfigInfoTagMapperByDm extends DmAbstractMapper implements ConfigInfoTagMapper {

    @Override
    public String updateConfigInfo4TagCas() {
        return "UPDATE config_info_tag SET content = ?, md5 = ?, src_ip = ?,src_user = ?"
                + ",gmt_modified = ?,app_name = ? "
                + "WHERE data_id = ? AND group_id = ? AND"
                + " (tenant_id = ? OR tenant_id IS NULL) AND tag_id = ? AND (md5 = ? OR md5 IS NULL OR md5 = '')";
    }

    @Override
    public String findAllConfigInfoTagForDumpAllFetchRows(int startRow, int pageSize) {
        return " SELECT t.id,data_id,group_id,tenant_id,tag_id,app_name,content,md5,gmt_modified "
                + " FROM (  SELECT id FROM config_info_tag WHERE  ROWNUM > " + startRow + " AND ROWNUM <="
                + (startRow + pageSize) + "ORDER BY id   " + " ) " + "g, config_info_tag t  WHERE g.id = t.id  ";
    }

    @Override
    public String getTableName() {
        return TableConstant.CONFIG_INFO_TAG;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

6、ConfigTagsRelationMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigTagsRelationMapper;

import java.util.Map;

/**
 * The mysql implementation of ConfigTagsRelationMapperByDm.
 *
 * @author czf
 */
public class ConfigTagsRelationMapperByDm extends DmAbstractMapper implements ConfigTagsRelationMapper {

    @Override
    public String findConfigInfo4PageCountRows(final Map<String, String> params, final int tagSize) {
        final String appName = params.get("appName");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlCount = "SELECT count(*) FROM config_info  a LEFT JOIN config_tags_relation b ON a.id=b.id";
        where.append(" (a.tenant_id=? OR a.tenant_id IS NULL)");
        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND a.data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND a.group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND a.app_name=? ");
        }
        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlCount + where;
    }

    @Override
    public String findConfigInfo4PageFetchRows(Map<String, String> params, int tagSize, int startRow, int pageSize) {
        final String appName = params.get("appName");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sql = "SELECT a.id,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content FROM config_info  a LEFT JOIN "
                + "config_tags_relation b ON a.id=b.id";

        where.append("( a.tenant_id=? OR tenant_id IS NULL)");

        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND a.data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND a.group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND a.app_name=? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sql + where + " AND  ROWNUM > " + sql + " AND ROWNUM <= " + (startRow + pageSize);
    }

    @Override
    public String findConfigInfoLike4PageCountRows(final Map<String, String> params, int tagSize) {
        final String appName = params.get("appName");
        final String content = params.get("content");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlCountRows = "SELECT count(*) FROM config_info  a LEFT JOIN config_tags_relation b ON a.id=b.id ";

        where.append(" a.(tenant_id LIKE ? OR tenant_id IS NULL) ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND a.data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND a.group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND a.app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND a.content LIKE ? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlCountRows + where;
    }

    @Override
    public String findConfigInfoLike4PageFetchRows(final Map<String, String> params, int tagSize, int startRow,
                                                   int pageSize) {
        final String appName = params.get("appName");
        final String content = params.get("content");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlFetchRows = "SELECT a.id,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content "
                + "FROM config_info a LEFT JOIN config_tags_relation b ON a.id=b.id ";

        where.append(" a.(tenant_id LIKE ? OR tenant_id IS NULL) ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND a.data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND a.group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND a.app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND a.content LIKE ? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlFetchRows + where + " AND ROWNUM > " + startRow + " AND ROWNUM <= " + (startRow + pageSize);
    }

    @Override
    public String getTableName() {
        return TableConstant.CONFIG_TAGS_RELATION;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

7、GroupCapacityMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.GroupCapacityMapper;

/**
 * The mysql implementation of GroupCapacityMapperByDm.
 *
 * @author czf
 */
public class GroupCapacityMapperByDm extends DmAbstractMapper implements GroupCapacityMapper {

    @Override
    public String insertIntoSelect() {
        return "INSERT INTO group_capacity (group_id, quota, `usage`, `max_size`, max_aggr_count, max_aggr_size,gmt_create,"
                + " gmt_modified) SELECT ?, ?, count(*), ?, ?, ?, ?, ? FROM config_info";
    }

    @Override
    public String insertIntoSelectByWhere() {
        return "INSERT INTO group_capacity (group_id, quota,`usage`, `max_size`, max_aggr_count, max_aggr_size, gmt_create,"
                + " gmt_modified) SELECT ?, ?, count(*), ?, ?, ?, ?, ? FROM config_info WHERE group_id=? AND tenant_id = ''";
    }

    @Override
    public String incrementUsageByWhereQuotaEqualZero() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ? AND `usage` < ? AND quota = 0";
    }

    @Override
    public String incrementUsageByWhereQuotaNotEqualZero() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ? AND `usage` < quota AND quota != 0";
    }

    @Override
    public String incrementUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ?";
    }

    @Override
    public String decrementUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = `usage` - 1, gmt_modified = ? WHERE group_id = ? AND `usage` > 0";
    }

    @Override
    public String updateUsage() {
        return "UPDATE group_capacity SET `usage` = (SELECT count(*) FROM config_info), gmt_modified = ? WHERE group_id = ?";
    }

    @Override
    public String updateUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = (SELECT count(*) FROM config_info WHERE group_id=? AND tenant_id = ''),"
                + " gmt_modified = ? WHERE group_id= ?";
    }

    @Override
    public String selectGroupInfoBySize() {
        return "SELECT id, group_id FROM group_capacity WHERE id > ? ROWNUM > ?";
    }

    @Override
    public String getTableName() {
        return TableConstant.GROUP_CAPACITY;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

8、HistoryConfigInfoMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.HistoryConfigInfoMapper;

/**
 * The mysql implementation of HistoryConfigInfoMapperByDm.
 * @author czf
 */
public class HistoryConfigInfoMapperByDm extends DmAbstractMapper implements HistoryConfigInfoMapper {

    @Override
    public String removeConfigHistory() {
        return "DELETE FROM his_config_info WHERE gmt_modified < ? AND ROWNUM > ?";
    }

    @Override
    public String findConfigHistoryCountByTime() {
        return "SELECT count(*) FROM his_config_info WHERE gmt_modified < ?";
    }

    @Override
    public String findDeletedConfig() {
        return "SELECT DISTINCT data_id, group_id, tenant_id FROM his_config_info WHERE op_type = 'D' AND gmt_modified >= ? AND gmt_modified <= ?";
    }

    @Override
    public String findConfigHistoryFetchRows() {
        return "SELECT nid,data_id,group_id,tenant_id,app_name,src_ip,src_user,op_type,gmt_create,gmt_modified FROM his_config_info "
                + "WHERE data_id = ? AND group_id = ? AND (tenant_id = ? OR tenant_id IS NULL) ORDER BY nid DESC";
    }

    @Override
    public String detailPreviousConfigHistory() {
        return "SELECT nid,data_id,group_id,tenant_id,app_name,content,md5,src_user,src_ip,op_type,gmt_create,gmt_modified "
                + "FROM his_config_info WHERE nid = (SELECT max(nid) FROM his_config_info WHERE id = ?) ";
    }

    @Override
    public String getTableName() {
        return TableConstant.HIS_CONFIG_INFO;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

9、TenantCapacityMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.TenantCapacityMapper;

/**
 * The mysql implementation of TenantCapacityMapperByDm.
 *
 * @author czf
 */
public class TenantCapacityMapperByDm extends DmAbstractMapper implements TenantCapacityMapper {

    @Override
    public String incrementUsageWithDefaultQuotaLimit() {
        return "UPDATE tenant_capacity SET `usage` = `usage` + 1,"
                + " gmt_modified = ? WHERE ((tenant_id = ? OR tenant_id IS NULL) OR tenant_id IS NULL) AND `usage` <"
                + " ? AND quota = 0";
    }

    @Override
    public String incrementUsageWithQuotaLimit() {
        return "UPDATE tenant_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE (tenant_id = ? OR tenant_id IS NULL) AND `usage` < "
                + "quota AND quota != 0";
    }

    @Override
    public String incrementUsage() {
        return "UPDATE tenant_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE (tenant_id = ? OR tenant_id IS NULL)";
    }

    @Override
    public String decrementUsage() {
        return "UPDATE tenant_capacity SET `usage` = `usage` - 1, gmt_modified = ? WHERE (tenant_id = ? OR tenant_id IS NULL) AND `usage` > 0";
    }

    @Override
    public String correctUsage() {
        return "UPDATE tenant_capacity SET `usage` = (SELECT count(*) FROM config_info WHERE (tenant_id = ? OR tenant_id IS NULL)), "
                + "gmt_modified = ? WHERE (tenant_id = ? OR tenant_id IS NULL)";
    }

    @Override
    public String getCapacityList4CorrectUsage() {
        return "SELECT id, tenant_id FROM tenant_capacity WHERE id> AND  ROWNUM > ?";
    }

    @Override
    public String insertTenantCapacity() {
        return "INSERT INTO tenant_capacity (tenant_id, quota, `usage`, `max_size`, max_aggr_count, max_aggr_size, "
                + "gmt_create, gmt_modified) SELECT ?, ?, count(*), ?, ?, ?, ?, ? FROM config_info WHERE tenant_id=? OR tenant_id IS NULL;";
    }

    @Override
    public String getTableName() {
        return TableConstant.TENANT_CAPACITY;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

10、TenantInfoMapperByDm

package com.alibaba.nacos.plugin.datasource.impl.dm;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.TenantInfoMapper;

/**
 * The mysql implementation of TenantInfoMapperByDm.
 *
 * @author czf
 */
public class TenantInfoMapperByDm extends DmAbstractMapper implements TenantInfoMapper {

    @Override
    public String getTableName() {
        return TableConstant.TENANT_INFO;
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.DM;
    }

}

2.4.3 com.alibaba.nacos.plugin.datasource.mapper.Mapper修改

修改类：plugin/datasource/src/main/resources/META-INF/services/com.alibaba.nacos.plugin.datasource.mapper.Mapper

#
# Copyright 1999-2022 Alibaba Group Holding Ltd.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

com.alibaba.nacos.plugin.datasource.impl.mysql.ConfigInfoAggrMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.ConfigInfoBetaMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.ConfigInfoMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.ConfigInfoTagMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.ConfigTagsRelationMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.HistoryConfigInfoMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.TenantInfoMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.TenantCapacityMapperByMySql
com.alibaba.nacos.plugin.datasource.impl.mysql.GroupCapacityMapperByMysql

com.alibaba.nacos.plugin.datasource.impl.derby.ConfigInfoAggrMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.ConfigInfoBetaMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.ConfigInfoMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.ConfigInfoTagMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.ConfigInfoTagsRelationMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.HistoryConfigInfoMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.TenantInfoMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.TenantCapacityMapperByDerby
com.alibaba.nacos.plugin.datasource.impl.derby.GroupCapacityMapperByDerby

com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoAggrMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoBetaMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoTagMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigTagsRelationMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.HistoryConfigInfoMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.TenantInfoMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.TenantCapacityMapperByDm
com.alibaba.nacos.plugin.datasource.impl.dm.GroupCapacityMapperByDm

2.5 nacos-console模块修改

修改配置文件：console/src/main/resources/application.properties

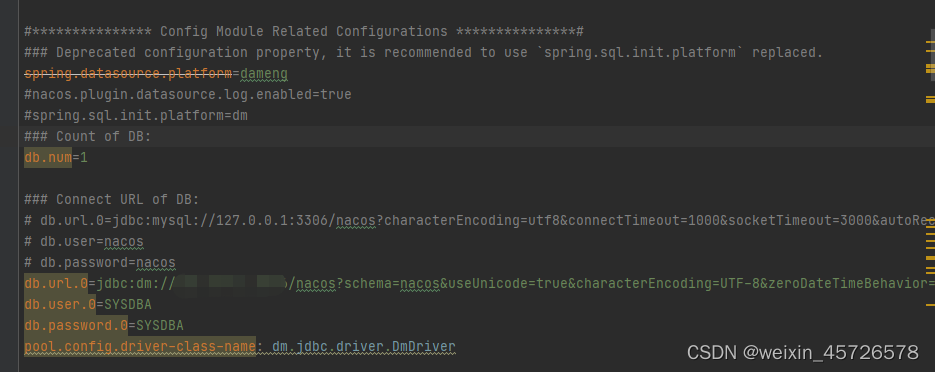

只修改一部分，数据源连接信息，截图如下：
在这里插入图片描述

#*************** Config Module Related Configurations ***************#
### Deprecated configuration property, it is recommended to use `spring.sql.init.platform` replaced.
spring.datasource.platform=dameng
#nacos.plugin.datasource.log.enabled=true
#spring.sql.init.platform=dm
### Count of DB:
db.num=1

### Connect URL of DB:
# db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
# db.user=nacos
# db.password=nacos
db.url.0=jdbc:dm://127.0.0.1:5236/nacos?schema=nacos&useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&allowMultiQueries=true
db.user.0=SYSDBA
db.password.0=SYSDBA
pool.config.driver-class-name: dm.jdbc.driver.DmDriver

2.6 Nacos2.2.0适配DM8建表ddl语句

Nacos2.2.0适配DM8建表ddl语句

2.7 启动测试

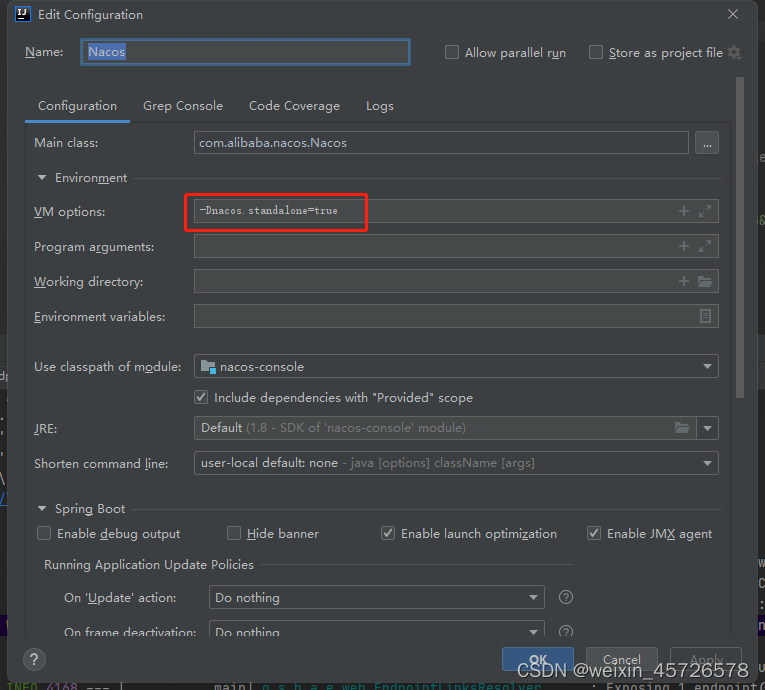

启动主类加入 -Dnacos.standalone=true 参数，以单机模式启动
在这里插入图片描述
在这里插入图片描述

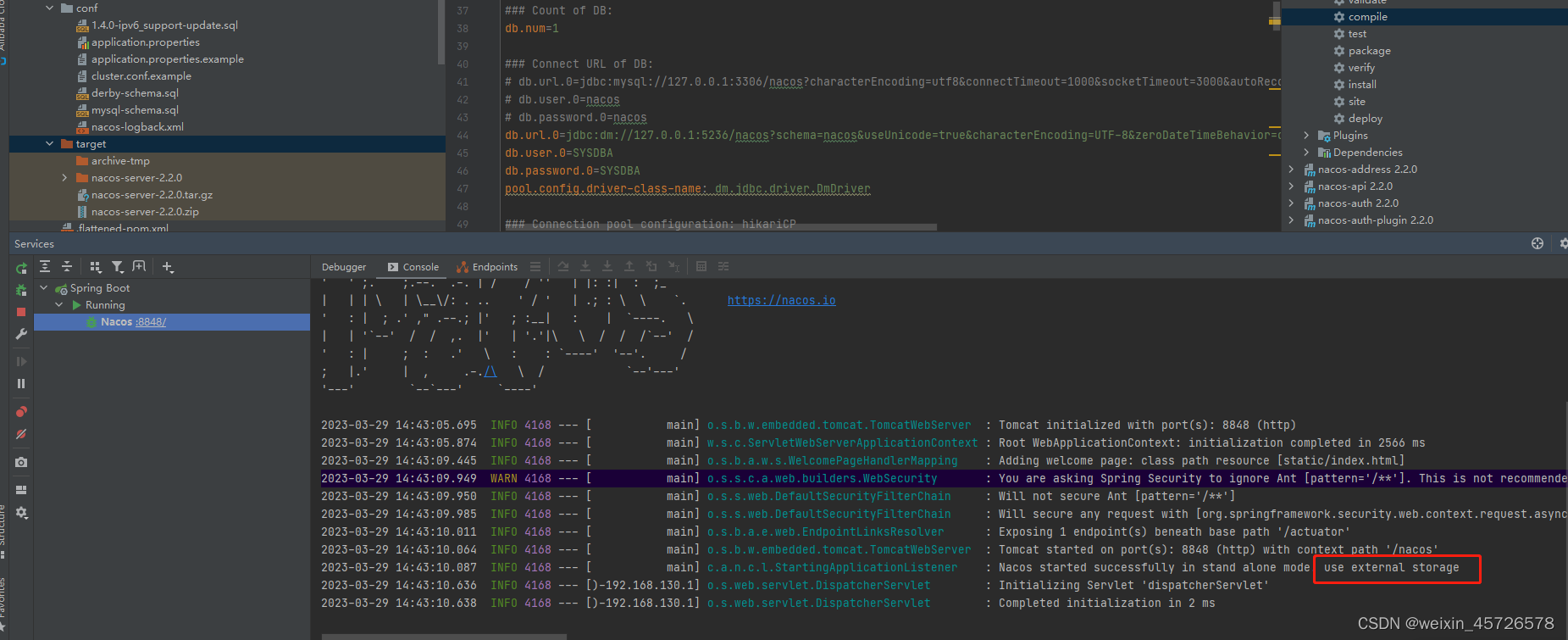

如果出现 use external storage 说明你全部配置正确，如果没有，请仔细检查操作步骤。

访问http://localhost:8848/nacos
在这里插入图片描述

2.8 打包

在nacos-all目录下执行mvn命令

mvn -Prelease-nacos -Dmaven.test.skip=true -Dpmd.skip=true -Drat.skip=true -Dcheckstyle.skip=true clean install -U

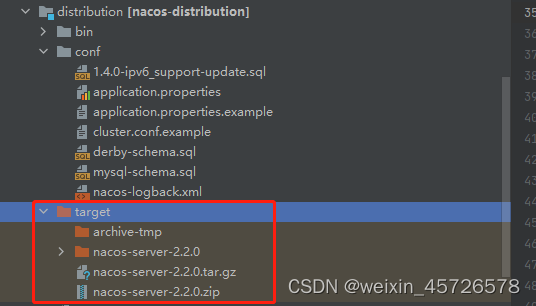

最后在distributioni目录下的target就会出现压缩文件了，这样就相当于从nacos官网直接下载的压缩包，具体nacos配置可以自行完成。
在这里插入图片描述

闷骚码农
关注
  • 3
    点赞
  • 踩
  • 16
    收藏
    觉得还不错? 一键收藏
  • 1
    评论
信创迁移适配实战-修改Nacos2.0.4源码以连接达梦数据库DM8
Heartsuit的博客
03-27 1917
背景 因信创迁移适配需要，我们需要将服务部署在国产化平台上。其中涉及到 Nacos 连接国产数据库的问题，这里以达梦数据库为例，使用CV大法（复制、粘贴）完成对 Nacos 源码修改，来实现对达梦数据库 DM8 的连接支持。 如果直接通过官方版本连接国产化数据库，或者MariaDB，便会报错（以下错误会在无法连接数据库时抛出，可能是端口未开放、数据库不允许远程连接等，反正就是不能成功与数据库建立连接。。）： Nacos Server did not start because dumpservice be
nacos-server-2.1.1 适配达梦数据库
09-29
该版本根据nacos源码调整后适配达梦数据库 ，支持windows linux 支持多数据源配置，默认连接mysql。如果需要连接oracle、dm8 等，需要更改配置文件 打开\nacos\conf\application.properties,修改如下： spring.datasource.platform=mysql ### Count of DB: db.num=1 db.jdbcDriverName=dm.jdbc.driver.DmDriver ### Connect URL of DB: db.url.0=jdbc:dm://127.0.0.1:5236/NACOS?STU&zeroDateTimeBehavior=convertToNull&useUnicode=true&characterEncoding=utf-8 db.user.0=nacos db.password.0=123456789 替换数据库连接字符串，以及用户密码
nacos2.2.0适配DM达梦数据库源码
04-27
nacos2.2.0适配DM达梦数据库源码
Nacos2.x 适配达梦数据源，2.x版本都可以用这套，只是拿2.3.2举例
最新发布
發發的博客
05-30 1013
【代码】Nacos2.x 适配达梦数据源，2.x版本都可以用这套，只是拿2.3.2举例。
Nacos2.2.0适配DM8建表ddl语句
weixin_45726578的博客
03-29 422
【代码】Nacos2.2.0适配DM8建表ddl语句。
nacos2.1集成达梦数据库DM8
qq_38618691的博客
10-08 2234
1、下载源码 git clone https://github.com/alibaba/nacos.git 2、主pom.xml添加 达梦8的JDBC驱动类库的 声明 <dependencyManagement> <dependencies> <dependency> <groupId>com.dameng</groupId> <a
Nacos支持达梦数据库方法
qq_35568494的博客
02-13 4880
nacos适配达梦数据库
Nacos2.1.2适配达梦8数据库
10-21
nacos2.1.2修复上一个版本中注册服务...增加国产数据库达梦8的适配 需在conf/application.properties 文件中更新数据库配置，配置如下： db.jdbcDriverName=dm.jdbc.driver.DmDriver db.url.0=jdbc:dm://127.0.0.1:5236
nacos适配达梦数据源
02-22
nacos适配达梦数据源，包含window linux版可直接使用，包含源码部分可自行修改内容自行编译。可导入idea自行编译，已编译好可直接使用的从nacos-2.1.2\distribution\target拷贝使用内含脚本sql文件自行导入达梦...
nacos适配dm达梦数据库
01-28
这里的`db.url.0`指向了DM数据库的连接地址，`db.num`表示数据源的数量，`db.user`和`db.password`是数据库的登录凭证。 4. **测试连接**：修改配置后，重启Nacos服务，通过Nacos的控制台尝试连接到DM数据库。如果...
nacos dameng 达梦数据源 插件开发
weixin_44824765的博客
02-15 1361
nacos 2.2.x dameng 达梦数据源插件 的基础原理、学习心得、安装步骤(含插件包和达梦sql)，涉及源码地址：https://gitee.com/tangjingshan/nacos
nacos2.2.3 适配达梦详细教程
qq_42980015的博客
10-03 1778
nacos2.2.3 适配达梦8，登录没有登录页面，参考鉴权配置
nacos适配达梦数据库
yy1209357299的博客
03-14 5867
1、nacos源码 地址：https://github.com/alibaba/nacos/releases/tag/1.4.1 2、修改主pom.xml 引入dm包 3、修改console下的配置文件 spring.datasource.platform=dm ### Count of DB: db.num=1 db.jdbcDriverName=dm.jdbc.driver.DmDriver ### Connect URL of DB: db.url.0=jdbc:dm://ip:5236/N
Nacos使用达梦数据库，并制作docker镜像
zhilianxian2212的博客
12-22 3520
nacos适配达梦数据库，并制作docker镜像
NACOS整合DM8
wei_lanSe的博客
07-26 400
nacos 与 dm整合
nacos2.1集成达梦数据库
梦昼初
08-29 1162
nacos集成适配达梦数据库dm
nacos适配达梦、瀚高、人大金仓数据库及部分源码探究
码猿手
07-21 1724
nacos适配达梦、瀚高、人大金仓数据库
Nacos适配达梦数据库8
这里是火火火的世界
04-13 1768
从2.2.0版本开始，nacos可通过SPI机制注入多数据源实现插件,并在引入对应数据源实现后,便可在Nacos启动时通过读取application.properties配置文件中spring.datasource.platform配置项选择加载对应多数据源插件。
nacos2.2.0适配达梦数据库
07-28
Nacos 2.2.0可以通过以下方式适配达梦数据库： 1. 配置JDBC驱动程序：首先确保达梦数据库的JDBC驱动程序已经正确安装在您的机器上。将达梦数据库的JDBC驱动程序文件（通常是一个.jar文件）添加到Nacos的lib目录中。 2. 修改Nacos配置文件：打开Nacos的配置文件（通常是nacos/conf/application.properties），找到与数据库相关的配置项。您需要修改以下配置项来适配达梦数据库： - spring.datasource.platform：将其设置为"dm"，表示使用达梦数据库。 - spring.datasource.driver-class-name：设置为达梦数据库的JDBC驱动程序的完整类名。 - spring.datasource.url：设置为达梦数据库的连接URL，包括数据库的主机地址、端口号、数据库名等信息。 - spring.datasource.username：设置为连接达梦数据库的用户名。 - spring.datasource.password：设置为连接达梦数据库的密码。 根据您的具体需求和配置，您可能还需要修改其他与数据库相关的配置项，如连接池的大小、连接超时等。 3. 重启Nacos：完成以上配置后，保存配置文件并重新启动Nacos服务。Nacos将会使用达梦数据库作为其底层存储。 请注意，以上步骤仅适用于Nacos 2.2.0及以上版本。在适配达梦数据库之前，请确保您已经了解并熟悉达梦数据库的使用和配置方法，并充分测试各项功能以确保正常运行。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
