Nacos2.2.0适配金仓Kingbase8数据源

Nacos2.2.0适配金仓Kingbase8数据源

Nacos 从 2.2.0 版本开始,可通过 SPI 机制注入多数据源实现插件,并在引入对应数据源实现后,便可在 Nacos 启动时通过读取 application.properties 配置文件中 spring.datasource.platform 配置项选择加载对应多数据源插件.

Nacos 官方默认实现 MySQL、Derby ，其他类型数据库接入需要参考下文自己扩展。

一、Nacos官方文档

Nacos整体介绍可看Nacos官方文档

二、实现步骤

下面，重点讲解如何通过修改源码实现金仓KINGBASE8适配

2.1 2.2.0版本源码下载

2.2.0版本源码下载

2.2 引入Kingbase8驱动包

根据适配版本选择对应驱动包

2.2.1 nacos-all pom.xml

<kingbase-connector-java.version>8.6.0</kingbase-connector-java.version>

     <dependency>
         <groupId>com.kingbase8</groupId>
         <artifactId>kingbase8</artifactId>
         <version>${kingbase-connector-java.version}</version>
     </dependency>

2.2.2 nacos-config pom.xml

	 <dependency>
         <groupId>com.kingbase8</groupId>
         <artifactId>kingbase8</artifactId>
     </dependency>

2.3 nacos-config模块修改

修改类config/src/main/java/com/alibaba/nacos/config/server/service/datasource/ExternalDataSourceProperties.java

修改后的代码如下：

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with
 * the License. You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on
 * an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the
 * specific language governing permissions and limitations under the License.
 */

package com.alibaba.nacos.config.server.service.datasource;

import com.alibaba.nacos.common.utils.Preconditions;
import com.alibaba.nacos.common.utils.StringUtils;
import com.zaxxer.hikari.HikariDataSource;
import org.apache.commons.collections.CollectionUtils;
import org.springframework.boot.context.properties.bind.Bindable;
import org.springframework.boot.context.properties.bind.Binder;
import org.springframework.core.env.Environment;

import java.util.ArrayList;
import java.util.List;
import java.util.Objects;

import static com.alibaba.nacos.common.utils.CollectionUtils.getOrDefault;

/**
 * Properties of external DataSource.
 *
 * @author Nacos
 */
public class ExternalDataSourceProperties {


    private String jdbcDriverName = "com.kingbase8.Driver";

    private String testQuery = "SELECT 1";

    private Integer num;

    private List<String> url = new ArrayList<>();

    private List<String> user = new ArrayList<>();

    private List<String> password = new ArrayList<>();

    public void setNum(Integer num) {

        this.num = num;
    }

    public void setUrl(List<String> url) {

        this.url = url;
    }

    public void setUser(List<String> user) {

        this.user = user;
    }

    public void setPassword(List<String> password) {

        this.password = password;
    }

    /**
     * Build serveral HikariDataSource.
     *
     * @param environment {
   @link Environment}
     * @param callback    Callback function when constructing data source
     * @return List of {
   @link HikariDataSource}
     */
    List<HikariDataSource> build(Environment environment, Callback<HikariDataSource> callback) {

        List<HikariDataSource> dataSources = new ArrayList<>();
        Binder.get(environment).bind("db", Bindable.ofInstance(this));
        Preconditions.checkArgument(Objects.nonNull(num), "db.num is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(user), "db.user or db.user.[index] is null");
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(password), "db.password or db.password.[index] is null");
        for (int index = 0; index < num; index++) {

            int currentSize = index + 1;
            Preconditions.checkArgument(url.size() >= currentSize, "db.url.%s is null", index);
            DataSourcePoolProperties poolProperties = DataSourcePoolProperties.build(environment);
            if (StringUtils.isEmpty(poolProperties.getDataSource().getDriverClassName())) {

                poolProperties.setDriverClassName(jdbcDriverName);
            }
            poolProperties.setJdbcUrl(url.get(index).trim());
            poolProperties.setUsername(getOrDefault(user, index, user.get(0)).trim());
            poolProperties.setPassword(getOrDefault(password, index, password.get(0)).trim());
            HikariDataSource ds = poolProperties.getDataSource();
            if (StringUtils.isEmpty(ds.getConnectionTestQuery())) {

                ds.setConnectionTestQuery(testQuery);
            }
            dataSources.add(ds);
            callback.accept(ds);
        }
        Preconditions.checkArgument(CollectionUtils.isNotEmpty(dataSources), "no datasource available");
        return dataSources;
    }

    interface Callback<D> {


        /**
         * Perform custom logic.
         *
         * @param datasource dataSource.
         */
        void accept(D datasource);
    }
}

2.4 nacos-datasource-plugin模块修改

2.4.1 DataSourceConstant类修改

修改类：plugin/datasource/src/main/java/com/alibaba/nacos/plugin/datasource/constants/DataSourceConstant.java

修改后的代码如下：

/*
 * Copyright 1999-2022 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.alibaba.nacos.plugin.datasource.constants;

/**
 * The data source name.
 *
 * @author czf
 **/

public class DataSourceConstant {

    public static final String MYSQL = "mysql";

    public static final String DERBY = "derby";

    public static final String KINGBASE = "kingbase8";

}

2.4.2 增加KINGBASE8的mapper实现类

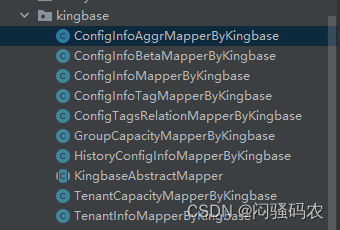

先上截图，如下新增10个类：

在plugin/datasource/src/main/java/com/alibaba/nacos/plugin/datasource/impl/目录新建kingbase目录，再在dm目录新增实现类，各个类代码如下：
1、KingbaseAbstractMapper

package com.alibaba.nacos.plugin.datasource.impl.kingbase;


import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;

import java.util.List;

/**
 * @author czf
 */
public abstract class KingbaseAbstractMapper extends AbstractMapper {


    @Override
    public String select(List<String> columns, List<String> where) {

        StringBuilder sql = new StringBuilder("SELECT ");

        for (int i = 0; i < columns.size(); i++) {

            sql.append(columns.get(i));
            if (i == columns.size() - 1) {

                sql.append(" ");
            }
            else {

                sql.append(",");
            }
        }
        sql.append("FROM ");
        sql.append(getTableName());
        sql.append(" ");

        if (where.size() == 0) {

            return sql.toString();
        }

        sql.append("WHERE ");
        for (int i = 0; i < where.size(); i++) {

            String column = where.get(i);

            // 租户列特殊处理 避免前端传空字符串是Oracle查询不到数据
            if ("tenant_id".equalsIgnoreCase(column)) {

                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            }
            else {

                sql.append(column).append(" = ").append("?");
            }

            if (i != where.size() - 1) {

                sql.append(" AND ");
            }
        }
        return sql.toString();
    }

    @Override
    public String update(List<String> columns, List<String> where) {

        StringBuilder sql = new StringBuilder();
        String method = "UPDATE ";
        sql.append(method);
        sql.append(getTableName()).append(" ").append("SET ");

        for (int i = 0; i < columns.size(); i++) {

            sql.append(columns.get(i)).append(" = ").append("?");
            if (i != columns.size() - 1) {

                sql.append(",");
            }
        }

        if (where.size() == 0) {

            return sql.toString();
        }

        sql.append(" WHERE ");

        for (int i = 0; i < where.size(); i++) {

            String column = where.get(i);
            if ("tenant_id".equalsIgnoreCase(column)) {

                sql.append("(");
                sql.append(column).append(" = ").append("?");
                sql.append(" OR ");
                sql.append(column).append(" IS NULL ");
                sql.append(")");
            }
            else {

                sql.append(column).append(" = ").append("?");
            }
            if (i != where.size() - 1) {

                sql.append(" AND ");
            }
        }
        return sql.toString();
    }

    @Override
    public String delete(List<String> params)
