话不多说,直接上图!
读图
![93c5bc3eaf32d347ac5b6f1830879267.png](https://img-blog.csdnimg.cn/img_convert/93c5bc3eaf32d347ac5b6f1830879267.png)
效果展示
![2b487aecc34ec5826cc72d6aec1c3a7c.png](https://img-blog.csdnimg.cn/img_convert/2b487aecc34ec5826cc72d6aec1c3a7c.png)
❝本期示例数据为文章附件,大家可以通过以下链接下载:
https://static-content.springer.com/esm/art%3A10.1038%2Fs41467-022-31780-9/MediaObjects/41467_2022_31780_MOESM9_ESM.xlsx
由于
❞ComplexHeatmap
包自带的rowAnnotation
柱状图注释效果有限,所以这里师兄用ggplot2
绘制了左侧的堆积柱状图,最后用AI将两者拼接在一起!大家也可以自己尝试用ComplexHeatmap
绘制,但是效果可能没这个好看。
R包载入和数据预处理
library(xlsx)
library(ComplexHeatmap)
library(tidyverse)
library(ggplot2)
library(circlize)
library(patchwork)
library(ggplotify)
# 读取文章附件数据:
data <- read.xlsx("41467_2022_31780_MOESM9_ESM.xlsx", sheetIndex = 1)
data <- data[-c(1:2), ]
colnames(data) <- data[1,]
data <- data[-1,]
# 数据预处理:
data_mat <- as.data.frame(table(data$Gene, data$`Abbreviation of Tumor Type`)) %>%
pivot_wider(names_from = Var2, values_from = Freq) %>%
column_to_rownames("Var1")
data_mat <- data_mat[,order(colSums(data_mat), decreasing = T)]
data_mat <- data_mat[order(rowSums(data_mat), decreasing = T),]
data_mat2 <- as.matrix(data_mat)
data_mat2[which(data_mat2 == 0)] <- NA

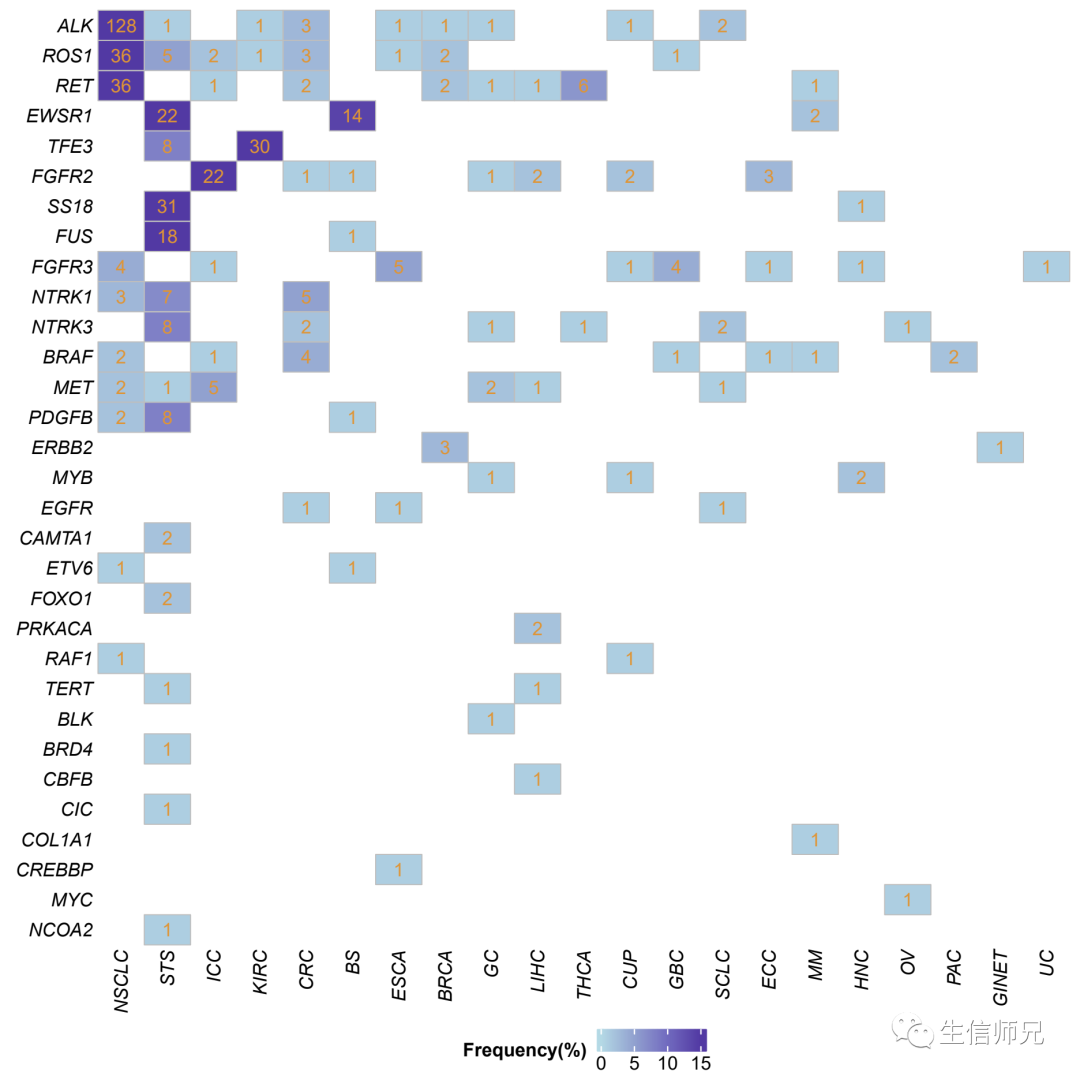

热图
# 基础热图:
Heatmap(data_mat2,
na_col = "white",
# 去掉行列聚类:
cluster_rows = F,
cluster_columns = F)
# 修改颜色+添加文字和描边
col_fun = colorRamp2(c(0, 5, 10, 15), c("#b4d9e5", "#91a1cf", "#716bbf","#5239a3"))
p1 <- Heatmap(data_mat2,
col = col_fun,
na_col = "white",
# 去掉行列聚类:
cluster_rows = F,
cluster_columns = F,
row_names_side = "left",
# 图例
heatmap_legend_param = list(
title = "Frequency(%)",
title_position = "leftcenter",
legend_direction = "horizontal"
),
# 行名和列名:
row_names_gp = gpar(fontsize = 10, font = 3),
column_names_gp = gpar(fontsize = 10, font = 3),
# 添加文字注释:
cell_fun = function(j, i, x, y, width, height, fill) {
if (!is.na(data_mat2[i,j])) {
grid.text(sprintf("%1.f", data_mat2[i, j]), x, y,
gp = gpar(fontsize = 10, col = "#df9536"))
grid.rect(x, y, width, height,
gp = gpar(col = "grey", fill = NA, lwd = 0.8))
}
})
pdf("Heatmap.pdf", height = 8, width = 8)
draw(p1, heatmap_legend_side = "bottom")
dev.off()
![e592b74cebccb551e08afd016c9a2c62.png](https://img-blog.csdnimg.cn/img_convert/e592b74cebccb551e08afd016c9a2c62.png)

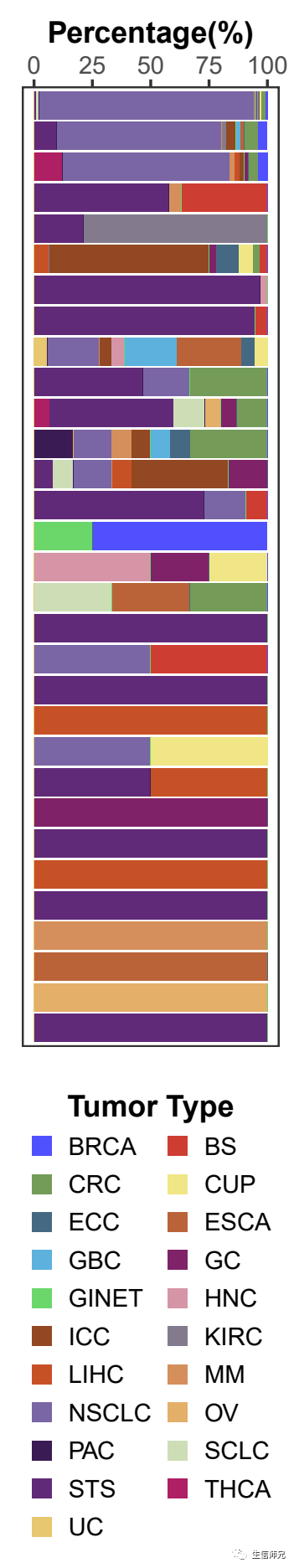

堆积柱状图
# 添加左侧堆积柱状图:
data_mat3 <- as_tibble(data_mat/rowSums(data_mat)) %>%
pivot_longer(cols = everything(), names_to = "CancerType",
values_to = "value")
data_mat3$Gene <- factor(rep(rownames(data_mat), each = 21),
levels = rev(rownames(data_mat)))
p2 <- ggplot(data_mat3)+
geom_bar(aes(x = Gene, y = value, fill = CancerType),
position = "stack", stat = "identity")+
scale_y_continuous(labels = seq(0,100,25),position = "right")+
ggsci::scale_fill_igv()+
ylab("Percentage(%)")+
theme_bw()+
theme(panel.grid = element_blank(),
axis.title.y = element_blank(),
axis.text.y = element_blank(),
axis.ticks.y = element_blank(),
axis.title.x = element_text(face = "bold"),
legend.position = "bottom",
legend.key.size = unit(0.3, 'cm'),
legend.title=element_text(face="bold")
)+
labs(fill = "Tumor Type")+
guides(fill = guide_legend(title.position = "top",
title.hjust = 0.5, ncol = 2,
byrow = TRUE))+
coord_flip()
p2
ggsave("Stack_Barplot.pdf", height = 8, width = 1.5)
![b34bb41db4956b33473edf5c15c583eb.png](https://img-blog.csdnimg.cn/img_convert/b34bb41db4956b33473edf5c15c583eb.png)

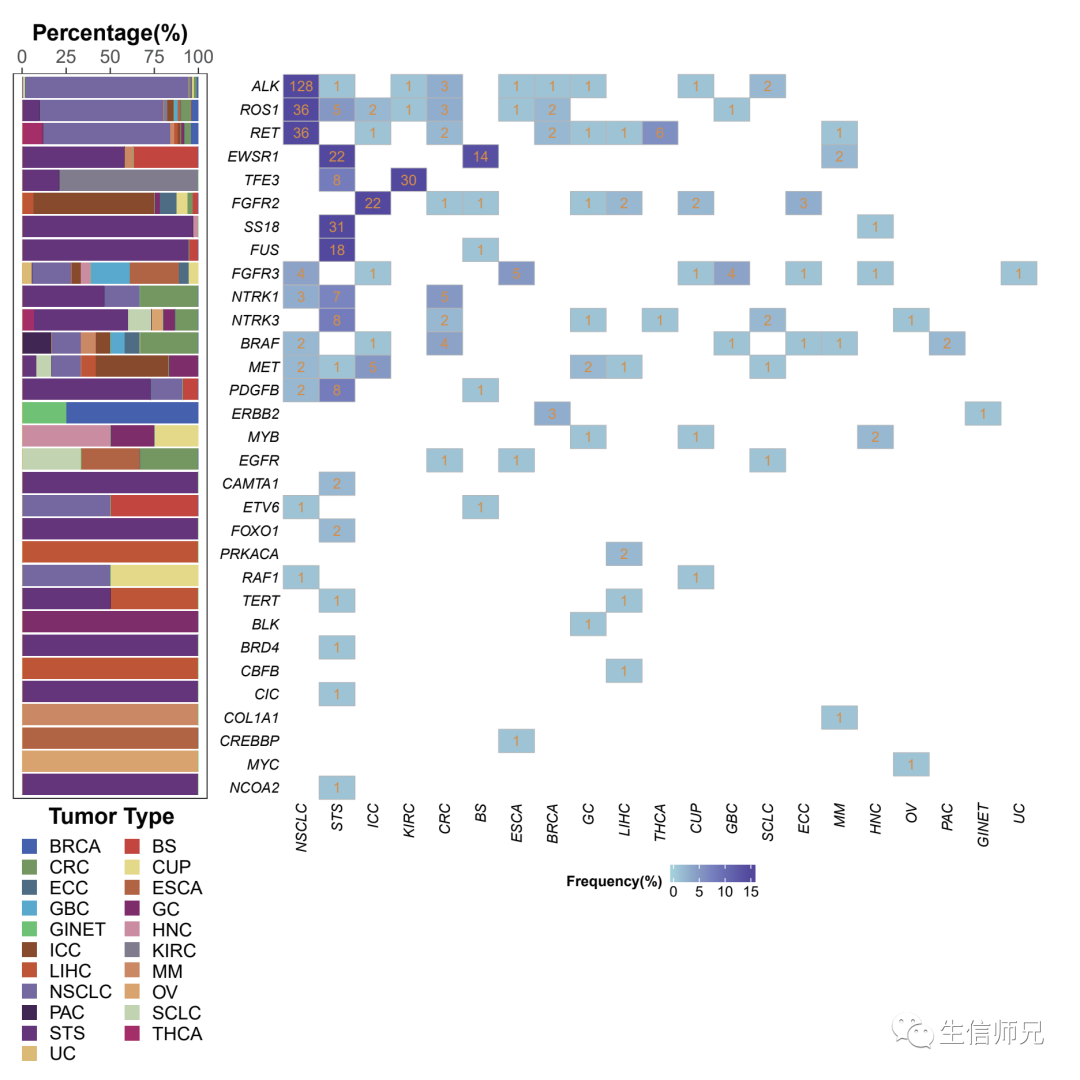

AI拼图效果展示
![56fb4745c88da7995ade3ebefcfc9823.png](https://img-blog.csdnimg.cn/img_convert/56fb4745c88da7995ade3ebefcfc9823.png)
