霹雳吧啦Wz:使用pytorch搭建MobileNetV2并基于迁移学习训练
MobileNetV2: Inverted Residuals and Linear Bottlenecks
MobileNet v2模型结构

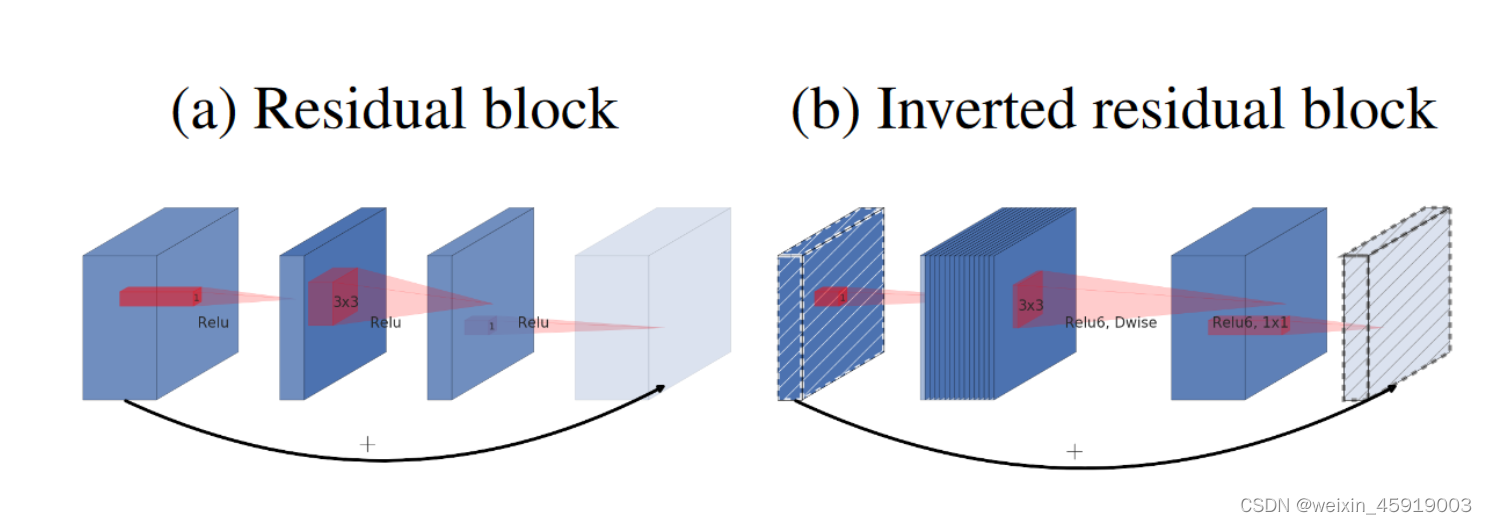

倒残差结构
先升维,后降维;
将激活函数从relu改为relu6;
最后一个1 x 1卷积后使用线性激活函数(relu对低维特征信息造成较大损失)

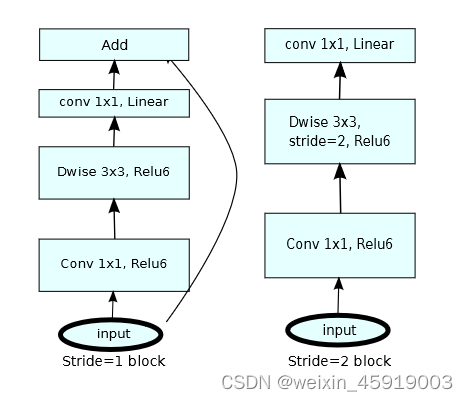

倒残差模块结构(bottleneck)
其中shortcut连接只有当stride=1并且输入特征矩阵与输出特征矩阵shape相同时才有。stride=1保证了输出特征矩阵宽高不变,因此shape相同特指输入输出特征矩阵的深度
k
=
k
′
k = k'
k=k′

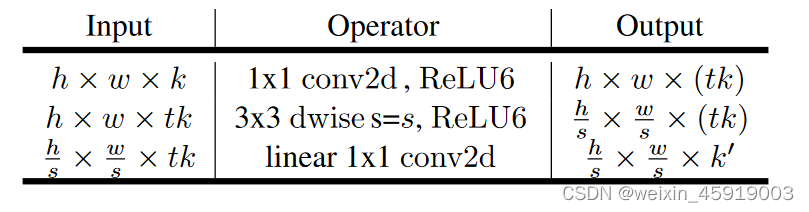

表中 t 为扩展因子,第一个1 x 1的卷积核个数为tk;第二层dw卷积s(stride为给定的),输出长宽变成1/s倍,深度不变;第三层1 x 1的卷积,降维操作,宽高不变,深度变为k’。
整体模型结构

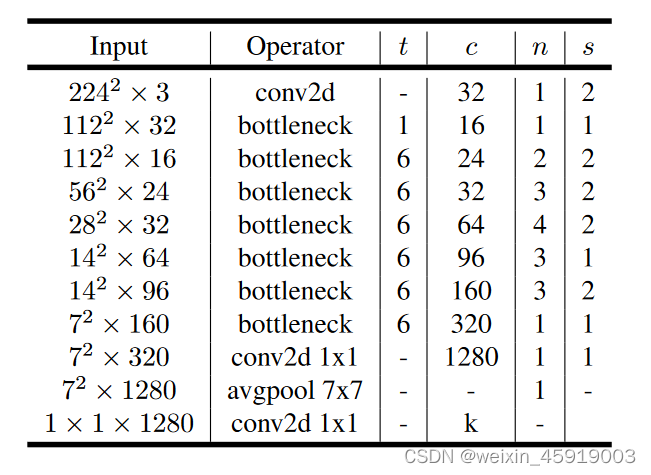

表中参数:t 是扩展因子;c 是输出特征矩阵深度(前面的k’); n是bottleneck的重复次数;s 是步距(针对每一个block第一层bottleneck的步距,其他为1)
第一个t = 1,在pytorch实现中去掉了第一个1x1卷积(因为没有任何变化)
在输入为14x14x64的block中有三个bottleneck,s=1,但是并没有shortcut,这是因为输入深度64,输出深度为96,无法进行相加。
最后的一个卷积层相当于一个全连接层,k代表分类的类别个数
pytorch实现
定义ConvBNReLU
conv+bn+relu共同组成,除了残差结构中最后一层使用的先行激活层,其余基本都一样
class ConvBNReLU(nn.Sequential):
def __init__(self, in_channel, out_channel, kernel_size=3, stride=1, groups=1):
padding = (kernel_size - 1) // 2
super(ConvBNReLU, self).__init__(
nn.Conv2d(in_channel, out_channel, kernel_size, stride, padding, groups=groups, bias=False),
nn.BatchNorm2d(out_channel),
nn.ReLU6(inplace=True)
)
- 继承来自nn.Sequential,不需要写forward函数

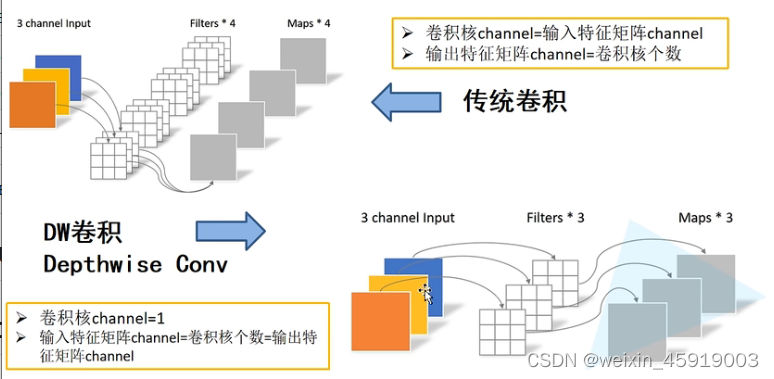

- 初始化参数传入了groups,在pytorch中dw卷积也是调用的conv2d类进行实现的,groups=1则为普通卷积,groups设置成输入特征矩阵的深度则为dw卷积;padding根据kernel_size来设置。
InvertedResidual
倒残差结构继承于nn.Module父类
class InvertedResidual(nn.Module):
def __init__(self, in_channel, out_channel, stride, expand_ratio):
super(InvertedResidual, self).__init__()
hidden_channel = in_channel * expand_ratio
self.use_shortcut = stride == 1 and in_channel == out_channel
layers = [] # 定义层列表
if expand_ratio != 1:
# 1x1 pointwise conv
layers.append(ConvBNReLU(in_channel, hidden_channel, kernel_size=1))
layers.extend([
# 3x3 depthwise conv
ConvBNReLU(hidden_channel, hidden_channel, stride=stride, groups=hidden_channel),
# 1x1 pointwise conv(linear)
nn.Conv2d(hidden_channel, out_channel, kernel_size=1, bias=False),
nn.BatchNorm2d(out_channel),
])
self.conv = nn.Sequential(*layers)
def forward(self, x):
if self.use_shortcut:
return x + self.conv(x)
else:
return self.conv(x)
初始化:
- use_shortcut :需要满足两个条件,stride == 1并且 in_channel == out_channel
- layer的第一层:判断expand_ratio 是否为1,如果为1则不需要这一层,若不为1则输入为in_channel,输出为hidden_channel(就是这一层的卷积核个数),kernel_size=1
- layer的第二层:dw卷积,因此设置groups=hidden_channel,即group为输入通道数
- layer的第三层:没有直接使用前面定义的ConvBNReLU类,这是一因为最后一层没有使用relu激活函数。因为线性层相当与y=x,因此不需要额外添加一个线性层。
- 将layer通过位置参数传入Sequential(),打包组合在一起取名叫self.conv
正向传播过程:
- use_shortcut 为true则有shortcut分支,输出为x + self.conv(x);为false则无shortcut分支,输出为self.conv(x)。
定义MobileNetV2结构
类继承于nn.Module
class MobileNetV2(nn.Module):
def __init__(self, num_classes=1000, alpha=1.0, round_nearest=8):
super(MobileNetV2, self).__init__()
block = InvertedResidual
input_channel = _make_divisible(32 * alpha, round_nearest) # 将卷积核个数调整到最接近8的整数倍数
last_channel = _make_divisible(1280 * alpha, round_nearest)
inverted_residual_setting = [
# t, c, n, s
[1, 16, 1, 1],
[6, 24, 2, 2],
[6, 32, 3, 2],
[6, 64, 4, 2],
[6, 96, 3, 1],
[6, 160, 3, 2],
[6, 320, 1, 1],
]
features = []
# conv1 layer
features.append(ConvBNReLU(3, input_channel, stride=2))
# building inverted residual residual blockes
for t, c, n, s in inverted_residual_setting:
output_channel = _make_divisible(c * alpha, round_nearest)
for i in range(n):
stride = s if i == 0 else 1
features.append(block(input_channel, output_channel, stride, expand_ratio=t))
input_channel = output_channel
# building last several layers
features.append(ConvBNReLU(input_channel, last_channel, 1))
# combine feature layers
self.features = nn.Sequential(*features)
# building classifier
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
self.classifier = nn.Sequential(
nn.Dropout(0.2),
nn.Linear(last_channel, num_classes)
)
# weight initialization
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight, mode='fan_out')
if m.bias is not None:
nn.init.zeros_(m.bias)
elif isinstance(m, nn.BatchNorm2d):
nn.init.ones_(m.weight) # 初始化均值为0
nn.init.zeros_(m.bias) # 初始化方差为1
elif isinstance(m, nn.Linear):
nn.init.normal_(m.weight, 0, 0.01)
nn.init.zeros_(m.bias)
def forward(self, x):
x = self.features(x)
x = self.avgpool(x)
x = torch.flatten(x, 1)
x = self.classifier(x)
return x
def _make_divisible(ch, divisor=8, min_ch=None):
"""
This function is taken from the original tf repo.
It ensures that all layers have a channel number that is divisible by 8
It can be seen here:
https://github.com/tensorflow/models/blob/master/research/slim/nets/mobilenet/mobilenet.py
"""
if min_ch is None:
min_ch = divisor
new_ch = max(min_ch, int(ch + divisor / 2) // divisor * divisor)
# Make sure that round down does not go down by more than 10%.
if new_ch < 0.9 * ch:
new_ch += divisor
return new_ch
初始化:
- 参数:num_classes为分类个数;alpha为v1中提出的超参数,用来控制卷积核个数的倍率;round_nearest
- 将定义的InvertedResidual类传给block
- 定义input_channel:使用了_make_divisible函数,输入32 x alpha,将其调整为最接近round_nearest的整数倍,也就是8的整数倍。
– _make_divisible函数中:就是给ch加一个0.5倍的divisor,实现四舍五入的操作,将ch调整为最接近8的整数倍 - 最后一层的输入为1280,同样使用_make_divisible函数
- 创建一个list列表,对应上面整体模型结构表格中的t、c、n、s
- 定义空列表features:
- 先添加第一层卷积,输入为3,输出为前面定义的input_channel,s=2;
- 然后使用循环遍历t、c、n、s,并将输出output_channel使用_make_divisible函数进行调整,将c调整为最接近8的整数倍;
- 循环n次block,即n次残差结构
– 因为表格中s代表的是block中的第一层,其余层为1,因此进行判断,如果i=0则stride = s,否则stride = 1
– 接下来就在features例表中添加一系列倒残差结构
– 然后将output_channel传给input_channel作为下一层的输入 - 使用循环将所有的bottleneck定义完后,使用ConvBNReLU类定义后面的卷积层,输出为前面的last_channel
- 到这里特征提取部分已经全部完成,使用nn.Sequential将features通过位置参数传入,打包成一个整体。
- 最后的定义的分类器部分,就是一个平均池化下采样(自适应的,参数为高和宽均为1),一个全连接层(将dropout层和全连接层组合在一起定义为分类器)
- 初始化权重流程:遍历每一个子模块。子模块如果是conv2d,将权重进行初始化,存在bias则置零;如果是bn,将方差设置为1,均值设置为0;如果是全连接层,对权重初始化为均值为0,方差为1的一个正态分布,bias设置为0.
正向传播:
- features
- 平均池化下采样
- 将输出展平
- 最后通过分类器
模型训练
预训练下载
import torchvision.models.mobilenetv2
进入后找到预训练模型下载连接:
https://download.pytorch.org/models/mobilenet_v2-b0353104.pth
从model文件中导入MobileNetV2网络结构
from model import MobileNetV2
net = MobileNetV2(num_classes=5)
pre_weights = torch.load(model_weight_path, map_location='cpu')
pre_dict = {k: v for k, v in pre_weights.items() if net.state_dict()[k].numel() == v.numel()}
missing_keys, unexpected_keys = net.load_state_dict(pre_dict, strict=False)
# freeze features weights
for param in net.features.parameters():
param.requires_grad = False
net.to(device)
- 实例化模型,定义类别个数为5,载入预训练模型参数,因为分类类别个数不同,因此最后一层用不了
- 所以遍历权重字典,看权重名称中是否有classifier,如果有则是最后一层全连接层的参数,如果不在就进行保存到pre_dict
- 再通过load_state_dict将权重字典pre_dict进行载入
- 实现除了最后一层参数外全部载入进去
- 冻结特征提取部分的所有权中,遍历net.features.parameters()下所有参数,将requires_grad 全部设置为 False,这样就不会对其进行求导,也不会进行参数更新。
预测
# create model
model = MobileNetV2(num_classes=5).to(device)
# load model weights
model_weight_path = "./MobileNetV2.pth"
model.load_state_dict(torch.load(model_weight_path, map_location=device))
model.eval()
with torch.no_grad():
# predict class
output = torch.squeeze(model(img.to(device))).cpu()
predict = torch.softmax(output, dim=0)
predict_cla = torch.argmax(predict).numpy()
模型输出通过squeeze函数压缩batch维度,再通过softmax将输出转化成概率分布
