本篇文章想通过历史的销量数据来预测未来几个月的数据，用以定目标和供运营、供应链人员备货需求参考，本文通过SARIMA模型来实现，预测下一个月的销量相对误差在17%，预测结果仅供参考，具体还得结合运营人员经验共同预测得出，后续也会尝试其他模型来提高预测准确性

一、导入需要的包

from __future__ import division
from datetime import datetime, timedelta,date
import pandas as pd
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
#import statsmodels as sm
#from tqdm import tqdm_notebook
from statsmodels.graphics.tsaplots import plot_pacf
from statsmodels.graphics.tsaplots import plot_acf
from statsmodels.tsa.stattools import adfuller
from statsmodels.stats.diagnostic import acorr_ljungbox
from statsmodels.tsa.statespace.sarimax import SARIMAX
import warnings
warnings.filterwarnings("ignore")

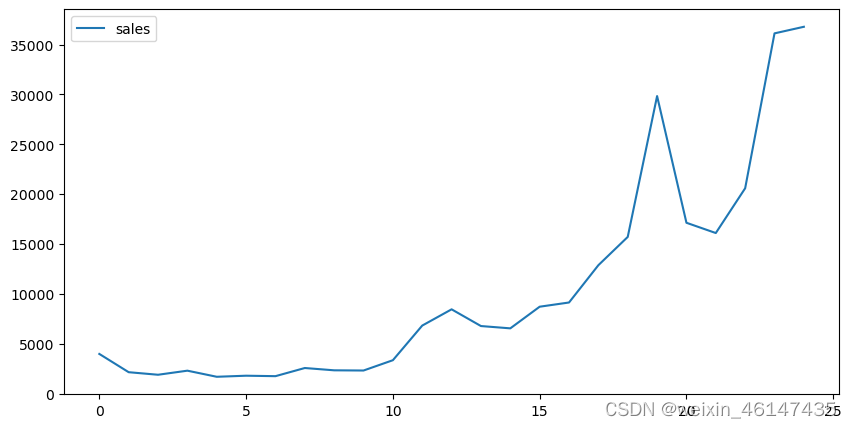

二、导入历史数据

df = pd.read_excel("C:\\Users\\10237\\Desktop\\F7NP历史销量.xlsx")

plt.figure(figsize=(10,5))
df["sales"].plot()
plt.legend(["sales"])
plt.show()

在这里插入图片描述

三、自相关图

df["sales"]=df["sales"].astype("float")

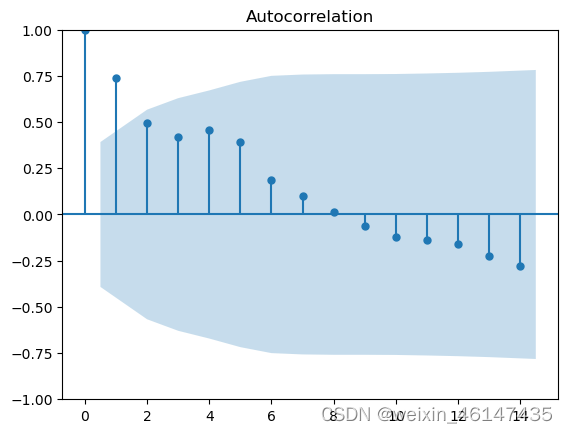

plot_acf(df["sales"]).show()

在这里插入图片描述

自相关系数

平稳序列通常具有短期相关性，即随着延迟期数k的增加，平稳序列的自相关系数会很快地衰减向零，而非平稳序列的自相关系数的衰减速度会比较慢，这就是我们利用自相关图判断平稳性的标准。
其横轴表示延迟期数，纵轴表示自相关系数，从图中可以看出自相关系数衰减到零的速度比较缓慢，在很长的延迟期内，自相关系数一直为正，然后为负，呈现出三角对称性，这是具有单调趋势的非平稳序列的一种典型的自相关图形式

四、平稳性检验

adfuller(df["sales"])

(1.8408412567719112,
 0.9984266704565955,
 8,
 16,
 {'1%': -3.9240193847656246, '5%': -3.0684982031250003, '10%': -2.67389265625},
 283.93234809442)

P值为0.99大于显著性水平0.05，接受原假设（非平稳序列），说明原始序列是非平稳序列

五、一阶差分序列的检验

df1 = df.diff(periods=1,axis=0).dropna()
df1 = df1["sales"]

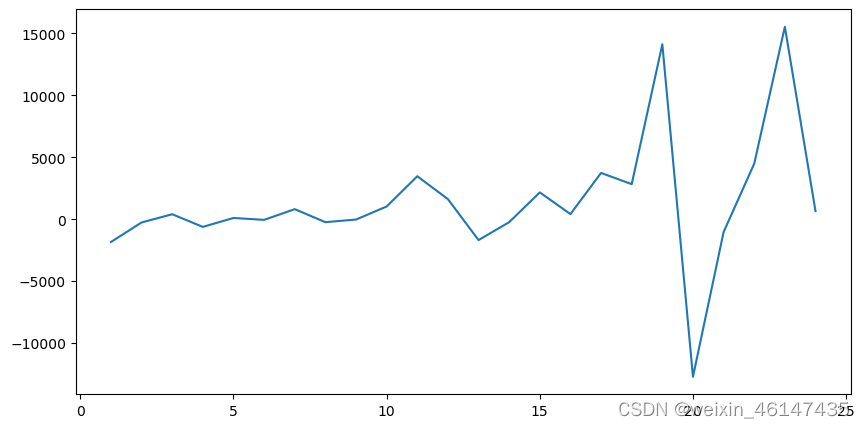

plt.figure(figsize=(10,5))
df1.plot()
#解读：在均值附近比较平稳波动

在这里插入图片描述

#自相关图

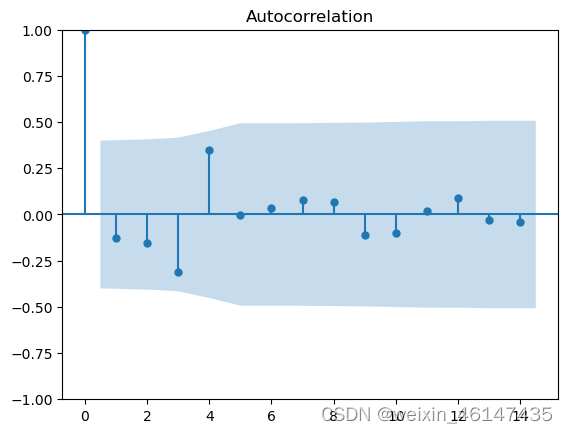

plot_acf(df1).show()
#解读：有短期相关性，但趋向于零

在这里插入图片描述

#平稳性检验
adfuller(df1)
#解读：P值为0.98大于显著性水平，接受原假设，说明一阶差分非平稳序列

(0.6199434003434391,
 0.9880970219599929,
 7,
 16,
 {'1%': -3.9240193847656246, '5%': -3.0684982031250003, '10%': -2.67389265625},
 267.98692610966367)

可见原始序列波动太大，直接差分意义不大，所以下面先取对数把数值控制在较小的波动区间内，再进行差分序列容易平稳

六、取对数进行差分

df["npsales"]=np.log(df["sales"])
df["diffsales"]=df["npsales"].diff().dropna()
df2 = df.drop(df.index[0])

df

	date	sales	npsales	diffsales
0	2021-12-01	3972.0	8.287025	NaN
1	2022-01-01	2140.0	7.668561	-0.618464
2	2022-02-01	1884.0	7.541152	-0.127409
3	2022-03-01	2293.0	7.737616	0.196464
4	2022-04-01	1681.0	7.427144	-0.310472
5	2022-05-01	1788.0	7.488853	0.061709
6	2022-06-01	1742.0	7.462789	-0.026064
7	2022-07-01	2560.0	7.847763	0.384973
8	2022-08-01	2329.0	7.753194	-0.094568
9	2022-09-01	2309.0	7.744570	-0.008624
10	2022-10-01	3343.0	8.114624	0.370054
11	2022-11-01	6817.0	8.827175	0.712551
12	2022-12-01	8446.0	9.041448	0.214273
13	2023-01-01	6769.0	8.820109	-0.221340
14	2023-02-01	6538.0	8.785387	-0.034722
15	2023-03-01	8709.0	9.072112	0.286726
16	2023-04-01	9131.0	9.119430	0.047318
17	2023-05-01	12873.0	9.462887	0.343457
18	2023-06-01	15708.0	9.661925	0.199038
19	2023-07-01	29836.0	10.303471	0.641546
20	2023-08-01	17128.0	9.748470	-0.555001
21	2023-09-01	16098.0	9.686450	-0.062020
22	2023-10-01	20588.0	9.932464	0.246013
23	2023-11-01	36124.0	10.494713	0.562249
24	2023-12-01	36785.0	10.512845	0.018133

plt.figure(figsize=[15,7.5])
plt.plot(df["diffsales"])

在这里插入图片描述

plot_acf(df2["diffsales"]).show()

在这里插入图片描述

adfuller(df2["diffsales"])

(-1.9799606891943407,
 0.2954281636375788,
 8,
 15,
 {'1%': -3.9644434814814815,
  '5%': -3.0849081481481484,
  '10%': -2.6818144444444445},
 -2.6195422547466265)

P值0.29大于显著性水平0.05，接受原假设，一阶差分不平稳，继续二阶差分

df2["diff2sales"] = df["diffsales"].diff(1)
df3 = df2.drop([1,2],axis=0).reset_index(drop=True)

df3

	date	sales	npsales	diffsales	diff2sales
0	2022-03-01	2293.0	7.737616	0.196464	0.323872
1	2022-04-01	1681.0	7.427144	-0.310472	-0.506936
2	2022-05-01	1788.0	7.488853	0.061709	0.372181
3	2022-06-01	1742.0	7.462789	-0.026064	-0.087773
4	2022-07-01	2560.0	7.847763	0.384973	0.411037
5	2022-08-01	2329.0	7.753194	-0.094568	-0.479542
6	2022-09-01	2309.0	7.744570	-0.008624	0.085944
7	2022-10-01	3343.0	8.114624	0.370054	0.378679
8	2022-11-01	6817.0	8.827175	0.712551	0.342497
9	2022-12-01	8446.0	9.041448	0.214273	-0.498277
10	2023-01-01	6769.0	8.820109	-0.221340	-0.435613
11	2023-02-01	6538.0	8.785387	-0.034722	0.186618
12	2023-03-01	8709.0	9.072112	0.286726	0.321448
13	2023-04-01	9131.0	9.119430	0.047318	-0.239407
14	2023-05-01	12873.0	9.462887	0.343457	0.296139
15	2023-06-01	15708.0	9.661925	0.199038	-0.144419
16	2023-07-01	29836.0	10.303471	0.641546	0.442508
17	2023-08-01	17128.0	9.748470	-0.555001	-1.196547
18	2023-09-01	16098.0	9.686450	-0.062020	0.492982
19	2023-10-01	20588.0	9.932464	0.246013	0.308033
20	2023-11-01	36124.0	10.494713	0.562249	0.316236
21	2023-12-01	36785.0	10.512845	0.018133	-0.544116

plt.figure(figsize=[15,7.5])
plt.plot(df3["diff2sales"])

在这里插入图片描述

plot_acf(df3["diff2sales"]).show()

在这里插入图片描述

adfuller(df3["diff2sales"])

(-4.377278173091498,
 0.00032555635791855304,
 9,
 12,
 {'1%': -4.137829282407408,
  '5%': -3.1549724074074077,
  '10%': -2.7144769444444443},
 -26.776419186897854)

P值0.0003小于显著性0.05，拒绝原假设，说明二阶差分是平稳序列

七、白噪声检验

acorr_ljungbox(df3["diff2sales"],lags=[6,12,20])

	lb_stat	lb_pvalue
6	17.270867	0.008338
12	30.720564	0.002173
20	52.256762	0.000104

P值均小于0.05，拒绝原假设，说明二阶差分序列非白噪声序列

八、拟合参数

plot_acf(df3['diff2sales']).show()
plot_pacf(df3['diff2sales'],lags=10).show()

在这里插入图片描述

import itertools
import warnings
p = q = range(0, 4)
d = range(0,4)
pdq = list(itertools.product(p, d, q))
seasonal_pdq = [(x[0], x[1], x[2], 12) for x in list(itertools.product(p, d, q))]
warnings.filterwarnings("ignore") # 忽略警告信息
for param in pdq:
    for param_seasonal in seasonal_pdq:
        try:
            mod = sm.tsa.statespace.SARIMAX(df3["diff2sales"],
                                            order=param,
                                            seasonal_order=param_seasonal,
                                            enforce_stationarity=False,
                                            enforce_invertibility=False)
            results = mod.fit()
            print('SARIMA{}x{} - AIC:{}'.format(param, param_seasonal, results.aic))
        except:
            continue
#之前是可以运行出结果的，后来不知道咋了结果死活运行不出，结果中找到最小的AIC

综上，我们得知SARIMA模型使AIC最小的参数组合为：SARIMA(0,0,0)(0,2,0)s s=12

best_model1 = SARIMAX(df3['diff2sales'], order=(0, 0, 0), seasonal_order=(0, 2, 0, 12)).fit(dis=-1)
print(best_model1.summary())

                                SARIMAX Results
================================================================================
Dep. Variable:               diff2sales   No. Observations:                   22
Model:             SARIMAX(0, 2, 0, 12)   Log Likelihood                   0.000
Date:                  Wed, 07 Feb 2024   AIC                              2.000
Time:                          13:59:29   BIC                                nan
Sample:                               0   HQIC                               nan
                                   - 22
Covariance Type:                    opg
==============================================================================
                 coef    std err          z      P>|z|      [0.025      0.975]
------------------------------------------------------------------------------
sigma2          1e-10         -0       -inf      0.000       1e-10       1e-10
===================================================================================
Ljung-Box (L1) (Q):                    nan   Jarque-Bera (JB):                  nan
Prob(Q):                               nan   Prob(JB):                          nan
Heteroskedasticity (H):                nan   Skew:                              nan
Prob(H) (two-sided):                   nan   Kurtosis:                          nan
===================================================================================

Warnings:
[1] Covariance matrix calculated using the outer product of gradients (complex-step).
[2] Covariance matrix is singular or near-singular, with condition number    inf. Standard errors may be unstable.

df3['sarima_model'] = best_model1.fittedvalues
df3['sarima_model'][:11+1] = np.NaN
forecast = best_model1.predict(start=df3.shape[0], end=df3.shape[0] + 12)
forecast = df3['sarima_model'].append(forecast)
plt.figure(figsize=(15, 7.5))
plt.plot(forecast, color='r', label='model')
plt.axvspan(df3.index[-1], forecast.index[-1], alpha=0.5, color='lightgrey')
plt.plot(df3['diff2sales'], label='actual')
plt.legend()
plt.show()

在这里插入图片描述

从预测值与实际值的曲线来看，误差不大相对吻合

forecast

0          NaN
1          NaN
2          NaN
3          NaN
4          NaN
5          NaN
6          NaN
7          NaN
8          NaN
9          NaN
10         NaN
11         NaN
12    0.485809
13   -0.760404
14    0.558271
15   -0.131659
16    0.616556
17   -0.719312
18    0.128916
19    0.568018
20    0.513745
21   -0.747416
22   -0.653420
23    0.279926
24    0.319023
25    0.028121
26    0.220096
27   -0.201065
28    0.473978
29   -1.913552
30    0.900020
31    0.237387
32    0.289975
33   -0.589955
34   -0.871226
dtype: float64

df4 = pd.concat([df3,forecast],axis=1)

df4

	date	sales	npsales	diffsales	diff2sales	sarima_model	0
0	2022-03-01	2293.0	7.737616	0.196464	0.323872	NaN	NaN
1	2022-04-01	1681.0	7.427144	-0.310472	-0.506936	NaN	NaN
2	2022-05-01	1788.0	7.488853	0.061709	0.372181	NaN	NaN
3	2022-06-01	1742.0	7.462789	-0.026064	-0.087773	NaN	NaN
4	2022-07-01	2560.0	7.847763	0.384973	0.411037	NaN	NaN
5	2022-08-01	2329.0	7.753194	-0.094568	-0.479542	NaN	NaN
6	2022-09-01	2309.0	7.744570	-0.008624	0.085944	NaN	NaN
7	2022-10-01	3343.0	8.114624	0.370054	0.378679	NaN	NaN
8	2022-11-01	6817.0	8.827175	0.712551	0.342497	NaN	NaN
9	2022-12-01	8446.0	9.041448	0.214273	-0.498277	NaN	NaN
10	2023-01-01	6769.0	8.820109	-0.221340	-0.435613	NaN	NaN
11	2023-02-01	6538.0	8.785387	-0.034722	0.186618	NaN	NaN
12	2023-03-01	8709.0	9.072112	0.286726	0.321448	0.485809	0.485809
13	2023-04-01	9131.0	9.119430	0.047318	-0.239407	-0.760404	-0.760404
14	2023-05-01	12873.0	9.462887	0.343457	0.296139	0.558271	0.558271
15	2023-06-01	15708.0	9.661925	0.199038	-0.144419	-0.131659	-0.131659
16	2023-07-01	29836.0	10.303471	0.641546	0.442508	0.616556	0.616556
17	2023-08-01	17128.0	9.748470	-0.555001	-1.196547	-0.719312	-0.719312
18	2023-09-01	16098.0	9.686450	-0.062020	0.492982	0.128916	0.128916
19	2023-10-01	20588.0	9.932464	0.246013	0.308033	0.568018	0.568018
20	2023-11-01	36124.0	10.494713	0.562249	0.316236	0.513745	0.513745
21	2023-12-01	36785.0	10.512845	0.018133	-0.544116	-0.747416	-0.747416
22	NaT	NaN	NaN	NaN	NaN	NaN	-0.653420
23	NaT	NaN	NaN	NaN	NaN	NaN	0.279926
24	NaT	NaN	NaN	NaN	NaN	NaN	0.319023
25	NaT	NaN	NaN	NaN	NaN	NaN	0.028121
26	NaT	NaN	NaN	NaN	NaN	NaN	0.220096
27	NaT	NaN	NaN	NaN	NaN	NaN	-0.201065
28	NaT	NaN	NaN	NaN	NaN	NaN	0.473978
29	NaT	NaN	NaN	NaN	NaN	NaN	-1.913552
30	NaT	NaN	NaN	NaN	NaN	NaN	0.900020
31	NaT	NaN	NaN	NaN	NaN	NaN	0.237387
32	NaT	NaN	NaN	NaN	NaN	NaN	0.289975
33	NaT	NaN	NaN	NaN	NaN	NaN	-0.589955
34	NaT	NaN	NaN	NaN	NaN	NaN	-0.871226

九、还原预测值

def diff1_reduction(y_pred_test_1, y_train_real):
    '''
    :param y_pred_test_1: 一阶差分后测试集的预测结果
    :param y_train_real: 训练集的输出
    :return: 测试集的真实预测结果（未经差分）
    '''
    y_test_real = y_pred_test_1.cumsum() + y_train_real.values[-1]
    return y_test_real.dropna()


def diff2_reduction(y_pred_test_2, y_train_real):
    '''
    :param y_pred_test_2: 二阶差分后测试集的预测结果
    :param y_train_real: 训练集的输出
    :return: 测试集的真实预测结果（未经差分）
    '''

    data_diff_1_reduction = y_pred_test_2.cumsum() + (
                y_train_real.values[-1] - y_train_real.values[-2])  # 先还原到y_pred_test_1
    y_test_real = diff1_reduction(data_diff_1_reduction, y_train_real)
    return y_test_real


def diff3_reduction(y_pred_test_3, y_train_real):
    '''
    :param y_pred_test_3: 三阶差分后测试集的预测结果
    :param y_train_real: 训练集的输出
    :return: 测试集的真实预测结果（未经差分）
    '''

    data_diff_2_reduction = y_pred_test_3.cumsum() + (
               y_train_real.values[-1] -2*y_train_real.values[-2]+ y_train_real.values[-3])  # 先还原到y_pred_test_2
    y_test_real = diff2_reduction(data_diff_2_reduction, y_train_real)
    return y_test_real

y_return = diff2_reduction(forecast[22:], df3["npsales"])

# 二阶差分还原
y_return

22     9.877559
23     9.522198
24     9.485860
25     9.477644
26     9.689524
27     9.700338
28    10.185131
29     8.756372
30     8.227632
31     7.936280
32     7.934902
33     7.343569
34     5.881009
dtype: float64

# 对数还原
np.exp(y_return)

22    19488.085127
23    13659.601305
24    13172.153768
25    13064.368259
26    16147.550146
27    16323.129592
28    26506.122567
29     6351.027108
30     3742.960429
31     2796.935436
32     2793.084329
33     1546.220029
34      358.170530
dtype: float64
