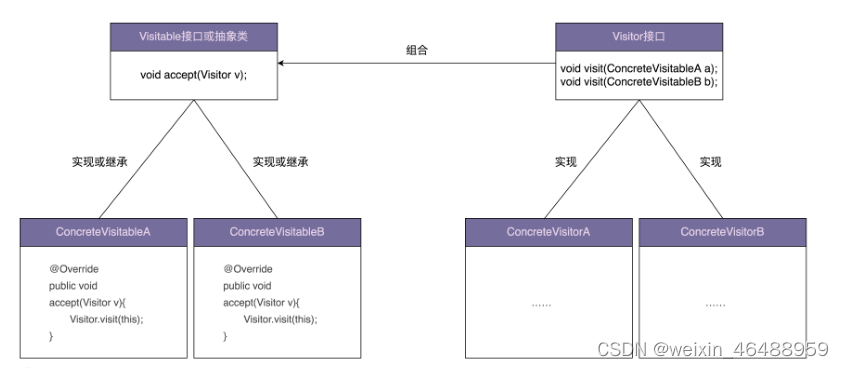

访问者模式
允许一个或者多个操作应用到一组对象上,解耦操作和对象本身,保持类职责单一、满足开闭原则以及应对代码的复杂性。
多态是一种动态绑定,可以在运行时获取对象的实际类型,来运行实际类型对应的方法。而函数重载是一种静态绑定,在编译时并不能获取对象的实际类型,而是根据声明类型执行声明类型对应的方法。
public abstract class ResourceFile {
protected String filePath;
public ResourceFile(String filePath) {
this.filePath = filePath;
}
abstract public void accept(Visitor vistor);
}
public class PdfFile extends ResourceFile {
public PdfFile(String filePath) {
super(filePath);
}
@Override
public void accept(Visitor visitor) {
visitor.visit(this);
}
//...
}
public interface Visitor {
void visit(PdfFile pdfFile);
void visit(PPTFile pdfFile);
void visit(WordFile pdfFile);
}
public class Extractor implements Visitor {
@Override
public void visit(PPTFile pptFile) {
//...
System.out.println("Extract PPT.");
}
@Override
public void visit(PdfFile pdfFile) {
//...
System.out.println("Extract PDF.");
}
@Override
public void visit(WordFile wordFile) {
//...
System.out.println("Extract WORD.");
}
}
public class Compressor implements Visitor {
@Override
public void visit(PPTFile pptFile) {
//...
System.out.println("Compress PPT.");
}
@Override
public void visit(PdfFile pdfFile) {
//...
System.out.println("Compress PDF.");
}
@Override
public void visit(WordFile wordFile) {
//...
System.out.println("Compress WORD.");
}
}
public class ToolApplication {
public static void main(String[] args) {
Extractor extractor = new Extractor();
List<ResourceFile> resourceFiles = listAllResourceFiles(args[0]);
for (ResourceFile resourceFile : resourceFiles) {
resourceFile.accept(extractor);
}
Compressor compressor = new Compressor();
for (ResourceFile resourceFile : resourceFiles) {
resourceFile.accept(compressor);
}
}
private static List<ResourceFile> listAllResourceFiles(String resourceDirectory) {
List<ResourceFile> resourceFiles = new ArrayList<>();
//...根据后缀(pdf/ppt/word)由工厂方法创建不同的类对象(PdfFile/PPTFile/WordFile)
resourceFiles.add(new PdfFile("a.pdf"));
resourceFiles.add(new WordFile("b.word"));
resourceFiles.add(new PPTFile("c.ppt"));
return resourceFiles;
}
}
public abstract class ResourceFile {
protected String filePath;
public ResourceFile(String filePath) {
this.filePath = filePath;
}
public abstract ResourceFileType getType();
}
public class PdfFile extends ResourceFile {
public PdfFile(String filePath) {
super(filePath);
}
@Override
public ResourceFileType getType() {
return ResourceFileType.PDF;
}
//...
}
public interface Extractor {
void extract2txt(ResourceFile resourceFile);
}
public class PdfExtractor implements Extractor {
@Override
public void extract2txt(ResourceFile resourceFile) {
//...
}
}
public class ExtractorFactory {
private static final Map<ResourceFileType, Extractor> extractors = new HashMap();
static {
extractors.put(ResourceFileType.PDF, new PdfExtractor());
extractors.put(ResourceFileType.PPT, new PPTExtractor());
extractors.put(ResourceFileType.WORD, new WordExtractor());
}
public static Extractor getExtractor(ResourceFileType type) {
return extractors.get(type);
}
}
public class ToolApplication {
public static void main(String[] args) {
List<ResourceFile> resourceFiles = listAllResourceFiles(args[0]);
for (ResourceFile resourceFile : resourceFiles) {
Extractor extractor = ExtractorFactory.getExtractor(resourceFile.getType);
extractor.extract2txt(resourceFile);
}
}
private static List<ResourceFile> listAllResourceFiles(String resourceDirectory) {
List<ResourceFile> resourceFiles = new ArrayList<>();
//...根据后缀(pdf/ppt/word)由工厂方法创建不同的类对象(PdfFile/PPTFile/WordFile)
resourceFiles.add(new PdfFile("a.pdf"));
resourceFiles.add(new WordFile("b.word"));
resourceFiles.add(new PPTFile("c.ppt"));
return resourceFiles;
}
}
- 双分派
指的是执行哪个对象的方法,根据对象的运行时类型来决定;执行对象的哪个方法,根据方法参数的运行时类型来决定。Java 支持多态特性,代码可以在运行时获得对象的实际类型,然后根据实际类型决定调用哪个方法。但 Java 设计的函数重载的语法规则是在编译时,根据传递进函数的参数的声明类型,来决定调用哪个重载函数。也就是说,具体执行哪个对象的哪个方法,只跟对象的运行时类型有关,跟参数的运行时类型无关。所以,Java 语言只支持 Single Dispatch。
备忘录模式
在不违背封装原则的前提下,捕获一个对象的内部状态,并在该对象之外保存这个状态,以便之后恢复对象为先前的状态。这个模式的定义表达了两部分内容:一部分是,存储副本以便后期恢复;另一部分是,要在不违背封装原则的前提下,进行对象的备份和恢复。
eg: 用户输入文本时,程序将其追加存储在内存文本中;用户输入“:list”,程序在命令行中输出内存文本的内容;用户输入“:undo”,程序会撤销上一次输入的文本,也就是从内存文本中将上次输入的文本删除掉。
public class InputText {
private StringBuilder text = new StringBuilder();
public String getText() {
return text.toString();
}
public void append(String input) {
text.append(input);
}
public Snapshot createSnapshot() {
return new Snapshot(text.toString());
}
public void restoreSnapshot(Snapshot snapshot) {
this.text.replace(0, this.text.length(), snapshot.getText());
}
}
public class Snapshot {
private String text;
public Snapshot(String text) {
this.text = text;
}
public String getText() {
return this.text;
}
}
public class SnapshotHolder {
private Stack<Snapshot> snapshots = new Stack<>();
public Snapshot popSnapshot() {
return snapshots.pop();
}
public void pushSnapshot(Snapshot snapshot) {
snapshots.push(snapshot);
}
}
public class ApplicationMain {
public static void main(String[] args) {
InputText inputText = new InputText();
SnapshotHolder snapshotsHolder = new SnapshotHolder();
Scanner scanner = new Scanner(System.in);
while (scanner.hasNext()) {
String input = scanner.next();
if (input.equals(":list")) {
System.out.println(inputText.toString());
} else if (input.equals(":undo")) {
Snapshot snapshot = snapshotsHolder.popSnapshot();
inputText.restoreSnapshot(snapshot);
} else {
snapshotsHolder.pushSnapshot(inputText.createSnapshot());
inputText.append(input);
}
}
}
}
命令模式
命令模式将请求(命令)封装为一个对象,这样可以使用不同的请求参数化其他对象(将不同请求依赖注入到其他对象),并且能够支持请求(命令)的排队执行、记录日志、撤销等(附加控制)功能。
命令模式用的最核心的实现手段,是将函数封装成对象。具体来说就是,设计一个包含这个函数的类,实例化一个对象传来传去,这样就可以实现把函数像对象一样使用。
命令模式的主要作用和应用场景,是用来控制命令的执行,比如,异步、延迟、排队执行命令、撤销重做命令、存储命令、给命令记录日志等等。
整个手游后端服务器轮询获取客户端发来的请求,获取到请求之后,借助命令模式,把请求包含的数据和处理逻辑封装为命令对象,并存储在内存队列中。然后,再从队列中取出一定数量的命令来执行。执行完成之后,再重新开始新的一轮轮询。具体的示例代码如下所示:
public interface Command {
void execute();
}
public class GotDiamondCommand implements Command {
// 省略成员变量
public GotDiamondCommand(/*数据*/) {
//...
}
@Override
public void execute() {
// 执行相应的逻辑
}
}
//GotStartCommand/HitObstacleCommand/ArchiveCommand类省略
public class GameApplication {
private static final int MAX_HANDLED_REQ_COUNT_PER_LOOP = 100;
private Queue<Command> queue = new LinkedList<>();
public void mainloop() {
while (true) {
List<Request> requests = new ArrayList<>();
//省略从epoll或者select中获取数据,并封装成Request的逻辑,
//注意设置超时时间,如果很长时间没有接收到请求,就继续下面的逻辑处理。
for (Request request : requests) {
Event event = request.getEvent();
Command command = null;
if (event.equals(Event.GOT_DIAMOND)) {
command = new GotDiamondCommand(/*数据*/);
} else if (event.equals(Event.GOT_STAR)) {
command = new GotStartCommand(/*数据*/);
} else if (event.equals(Event.HIT_OBSTACLE)) {
command = new HitObstacleCommand(/*数据*/);
} else if (event.equals(Event.ARCHIVE)) {
command = new ArchiveCommand(/*数据*/);
} // ...一堆else if...
queue.add(command);
}
int handledCount = 0;
while (handledCount < MAX_HANDLED_REQ_COUNT_PER_LOOP) {
if (queue.isEmpty()) {
break;
}
Command command = queue.poll();
command.execute();
}
}
}
}
解释器模式
解释器模式为某个语言定义它的语法(或者叫文法)表示,并定义一个解释器用来处理这个语法。
核心思想,就是将语法解析的工作拆分到各个小类中,以此来避免大而全的解析类。一般的做法是,将语法规则拆分成一些小的独立的单元,然后对每个单元进行解析,最终合并为对整个语法规则的解析。
/**
*
* “ 8 3 2 4 - + * ”这样一个表达式,解析成(8-3+2)*4
*/
public interface Expression {
long interpret();
}
public class NumberExpression implements Expression {
private long number;
public NumberExpression(long number) {
this.number = number;
}
public NumberExpression(String number) {
this.number = Long.parseLong(number);
}
@Override
public long interpret() {
return this.number;
}
}
public class AdditionExpression implements Expression {
private Expression exp1;
private Expression exp2;
public AdditionExpression(Expression exp1, Expression exp2) {
this.exp1 = exp1;
this.exp2 = exp2;
}
@Override
public long interpret() {
return exp1.interpret() + exp2.interpret();
}
}
public class ExpressionInterpreter {
private Deque<Expression> numbers = new LinkedList<>();
public long interpret(String expression) {
String[] elements = expression.split(" ");
int length = elements.length;
for (int i = 0; i < (length + 1) / 2; ++i) {
numbers.addLast(new NumberExpression(elements[i]));
}
for (int i = (length + 1) / 2; i < length; ++i) {
String operator = elements[i];
boolean isValid = "+".equals(operator) || "-".equals(operator)
|| "*".equals(operator) || "/".equals(operator);
if (!isValid) {
throw new RuntimeException("Expression is invalid: " + expression);
}
Expression exp1 = numbers.pollFirst();
Expression exp2 = numbers.pollFirst();
Expression combinedExp = null;
if (operator.equals("+")) {
combinedExp = new AdditionExpression(exp1, exp2);
} else if (operator.equals("-")) {
combinedExp = new AdditionExpression(exp1, exp2);
} else if (operator.equals("*")) {
combinedExp = new AdditionExpression(exp1, exp2);
} else if (operator.equals("/")) {
combinedExp = new AdditionExpression(exp1, exp2);
}
long result = combinedExp.interpret();
numbers.addFirst(new NumberExpression(result));
}
if (numbers.size() != 1) {
throw new RuntimeException("Expression is invalid: " + expression);
}
return numbers.pop().interpret();
}
}
中介模式
中介模式定义了一个单独的(中介)对象,来封装一组对象之间的交互。将这组对象之间的交互委派给与中介对象交互,来避免对象之间的直接交互。
原本业务逻辑会分散在各个控件中,现在都集中到了中介类中。好处是简化了控件之间的交互,坏处是中介类有可能会变成大而复杂的“上帝类”(God Class)。
只有当参与者之间的交互关系错综复杂,维护成本很高的时候,我们才考虑使用中介模式。
public interface Mediator {
void handleEvent(Component component, String event);
}
public class LandingPageDialog implements Mediator {
private Button loginButton;
private Button regButton;
private Selection selection;
private Input usernameInput;
private Input passwordInput;
private Input repeatedPswdInput;
private Text hintText;
@Override
public void handleEvent(Component component, String event) {
if (component.equals(loginButton)) {
String username = usernameInput.text();
String password = passwordInput.text();
//校验数据...
//做业务处理...
} else if (component.equals(regButton)) {
//获取usernameInput、passwordInput、repeatedPswdInput数据...
//校验数据...
//做业务处理...
} else if (component.equals(selection)) {
String selectedItem = selection.select();
if (selectedItem.equals("login")) {
usernameInput.show();
passwordInput.show();
repeatedPswdInput.hide();
hintText.hide();
//...省略其他代码
} else if (selectedItem.equals("register")) {
//....
}
}
}
}
public class UIControl {
private static final String LOGIN_BTN_ID = "login_btn";
private static final String REG_BTN_ID = "reg_btn";
private static final String USERNAME_INPUT_ID = "username_input";
private static final String PASSWORD_INPUT_ID = "pswd_input";
private static final String REPEATED_PASSWORD_INPUT_ID = "repeated_pswd_input_id";
private static final String HINT_TEXT_ID = "hint_text";
private static final String SELECTION_ID = "selection";
public static void main(String[] args) {
Button loginButton = (Button) findViewById(LOGIN_BTN_ID);
Button regButton = (Button) findViewById(REG_BTN_ID);
Input usernameInput = (Input) findViewById(USERNAME_INPUT_ID);
Input passwordInput = (Input) findViewById(PASSWORD_INPUT_ID);
Input repeatedPswdInput = (Input) findViewById(REPEATED_PASSWORD_INPUT_ID);
Text hintText = (Text) findViewById(HINT_TEXT_ID);
Selection selection = (Selection) findViewById(SELECTION_ID);
Mediator dialog = new LandingPageDialog();
dialog.setLoginButton(loginButton);
dialog.setRegButton(regButton);
dialog.setUsernameInput(usernameInput);
dialog.setPasswordInput(passwordInput);
dialog.setRepeatedPswdInput(repeatedPswdInput);
dialog.setHintText(hintText);
dialog.setSelection(selection);
loginButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
dialog.handleEvent(loginButton, "click");
}
});
regButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
dialog.handleEvent(regButton, "click");
}
});
//....
}
}
dialog.setSelection(selection);
loginButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
dialog.handleEvent(loginButton, "click");
}
});
regButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
dialog.handleEvent(regButton, "click");
}
});
//....
}
}
