处理Flickr8k数据集
数据集下载链接:https://www.kaggle.com/datasets/adityajn105/flickr8k?resource=download
包括8091张图像,1个文本文件包含对每张图像的5个描述。
目的:只是借此数据集记录一下文本处理基础方法,如果开展相应的项目,应该参考官方的数据集处理和数据集分割方式。
流程如下:
0、数据集情况

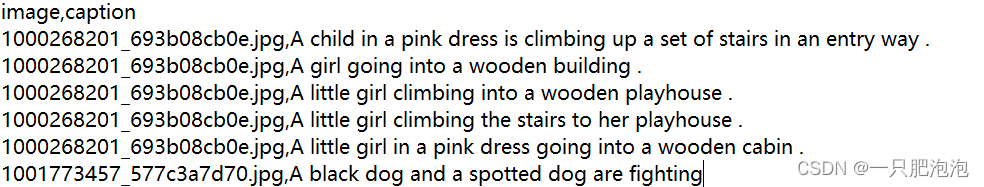

文本存储在 captions.txt 中,记录方式如下: 第一行给出的表示方式为 “image, caption”。

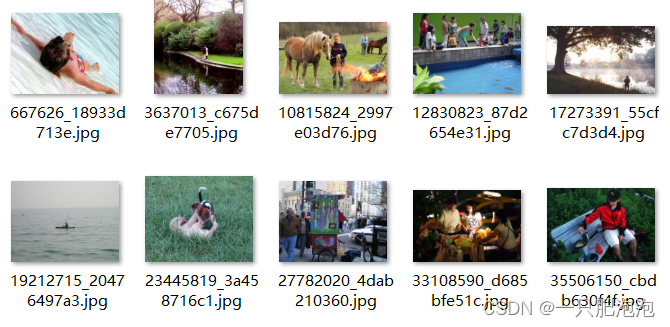

图像数据:
1、读取文本并将每张图像的caption group到一起
import os
import json
import random
from collections import defaultdict, Counter
from PIL import Image
from matplotlib import pyplot as plt
import string
### 读取文件为list
def read_txt_as_list(txt_path):
f = open(txt_path)
f_list = []
for line in f:
f_list.append(line.strip())
return f_list
caption_path = './flickr8k/captions.txt'
caption_txt = read_txt_as_list(caption_path)
### 创建一个字典,key为img_name,value为5个对应的caption
flickr8k_dict = defaultdict(list) # 用defaultdict的好处是值默认初始化
for i in range(1, len(caption_txt)): # 从1开始因为第一行为标识表示
comma_pos = caption_txt[i].find(',') # 第一个逗号分隔name和caption
img_name = caption_txt[i][:comma_pos]
img_caption = caption_txt[i][comma_pos+1:]
flickr8k_dict[img_name].append(img_caption)
2、随机分割数据集
### 获得所有的图像名称即keys
all_img_names = list(flickr8k_dict.keys())
### shuffle
random.shuffle(all_img_names)
### 按照一定比例划分train val test set
train_img_names = all_img_names[:int(len(all_img_names) * 0.7)]
val_img_names = all_img_names[int(len(all_img_names) * 0.7):int(len(all_img_names) * 0.9)]
test_img_names = all_img_names[int(len(all_img_names) * 0.9):]
3、构造词典
(1)将句子分割成单词list,单词都小写,且忽略标点。
### 定义提取token的函数
def get_token_from_sent(sentence):
words = sentence.translate(str.maketrans('', '', string.punctuation)).split() # 前两个参数没有定义映射表,第三个参数将标点映射到None;然后分割单词
for i in range(len(words)): # 将单词都存为小写
words[i] = words[i].lower()
return words
(2)用训练集构造词典(只将至少出现min_word_count次的次加入词典)
def build_vocab(data_dict, train_keys, min_word_count=5):
"""
:param data_dict: key=imgname value=caption的字典
:param train_keys: train_img_names list
:param min_word_count: 只将出现了多次的词加入词典
:return: vocab 词典
"""
vocab = Counter()
for i in range(len(train_keys)):
img_name = train_keys[i]
sents = data_dict[img_name]
for j in range(len(sents)):
words = get_token_from_sent(sents[j])
vocab.update(words)
words = [w for w in vocab.keys() if vocab[w] >= min_word_count] # 保存出现了最小次数以上的单词
vocab = {k: v + 1 for v, k in enumerate(words)} # 为每个词分配一个编号
vocab['<pad>'] = 0 # 增加占位标识符<pad>
vocab['<unk>'] = len(vocab) # 未登录词标识符<unk>
vocab['<start>'] = len(vocab) # 句子首尾标识符<start>和<end>
vocab['<end>'] = len(vocab)
return vocab
train_vocab = build_vocab(flickr8k_dict, train_img_names)
# 存储词典
# with open('vocab.json', 'w') as fw:
# json.dump(train_vocab, fw)
4、对数据集中的样本的描述用词典编码
结构化数据,关键在于“多则截取,少则补全”。
def get_imgname_captioncode(data_dict, set_keys, vocab, captions_per_image=5, max_len=30):
"""
:param data_dict: key=imgname value=caption的字典
:param set_keys: 数据集的keys
:param captions_per_image: 每张图像包含的主题句子描述的数目
:param max_len: 文本描述包含的最大单词数,如果文本描述超过该值,则截断
:return: ret_imgname, ret_captioncode 图像名称list,文本编码list
"""
### 初始化
ret_imgname = []
ret_captioncode = []
### 对每个样本执行
for i in range(len(set_keys)):
img_name = set_keys[i] # 图像名字
sents = data_dict[img_name] # 相应的文本描述们
### 将sents转为words tokens
tokens = []
for j in range(len(sents)): # 提取样本的每个描述为token
tok = get_token_from_sent(sents[j])
if(len(tok) <= max_len): # 如果token数目过多,则截断
tokens.append(tok)
else:
tokens.append(tok[:max_len])
### 如果该图片对应的描述数量不足,则补足
if len(tokens) < captions_per_image:
captions = tokens + [random.choice(tokens) for _ in range(captions_per_image - len(tokens))]
### 如果该图片对应的描述数量多了,则随机采样
else:
captions = random.sample(tokens, k=captions_per_image)
assert len(captions) == captions_per_image
### 用词典对文本进行编码
enc_captions = []
for k, c in enumerate(captions):
enc_c = [vocab['<start>']] + [vocab.get(word, vocab['<unk>']) for word in c] + [vocab['<end>']] # list
enc_c = enc_c + [vocab['<pad>']] * (max_len + 2 - len(enc_c)) # 不足的位置用pad补全
enc_captions.append(enc_c)
# 存储到列表中
ret_imgname.append(img_name)
ret_captioncode.append(enc_captions)
return ret_imgname, ret_captioncode
# 对训练集进行:
train_ret_names, train_ret_captioncode = get_imgname_captioncode(flickr8k_dict, train_img_names, train_vocab)
检查一下是否正确:
其中一个描述:‘A child in a striped shirt gleefully plays among some water fountains .’
sent = 'A child in a striped shirt gleefully plays among some water fountains .'
word = get_token_from_sent(sent)
# ['a', 'child', 'in', 'a', 'striped', 'shirt', 'gleefully', 'plays', 'among', 'some', 'water', 'fountains']
word_code = [train_vocab.get(w, train_vocab['<unk>']) for w in word]
# [1, 2, 3, 1, 4, 5, 2208, 6, 7, 8, 9, 10]
查找编码好的列表中可得(因为shuffle过和random sample过,所以不是原来的顺序了,只能手动查找)
# [2209, 1, 2, 3, 1, 4, 5, 2208, 6, 7, 8, 9, 10, 2210, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
对比可知,二者是匹配的,2209对应’<start>‘,2210对应’<end>‘,0对应’<pad>'。
参考:飞桨多模态大模型学习课程https://aistudio.baidu.com/projectdetail/7758527
