整合 GraphQL Schema、Elasticsearch8.11、SpringBoot3实现基本操作

最近项目上 ES相关的操作采用了GraphQL接口 其它采用Restful接口
做一个简单得demo

依赖相关

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.1</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>es-graphql-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>es-graphql-demo</name>
    <description>es-graphql-demo</description>
    <url/>
    <licenses>
        <license/>
    </licenses>
    <developers>
        <developer/>
    </developers>
    <scm>
        <connection/>
        <developerConnection/>
        <tag/>
        <url/>
    </scm>
    <properties>
        <java.version>21</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- GraphQL Spring Boot Starter -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-graphql</artifactId>
            <scope>runtime</scope>
        </dependency>


        <!-- Elasticsearch -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
        </dependency>

        <!-- Lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.graphql</groupId>
            <artifactId>spring-graphql</artifactId>
            <version>1.2.4</version>
        </dependency>


    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

相关配置

server:
  port: 8989
spring:
  application:
    name: es-graphql-demo
  elasticsearch:
    uris: http://localhost:9200
  graphql:
    graphiql:
      enabled: true
      path: /graphiql
    schema:
      printer:
        enabled: true
      locations: classpath:graphql/

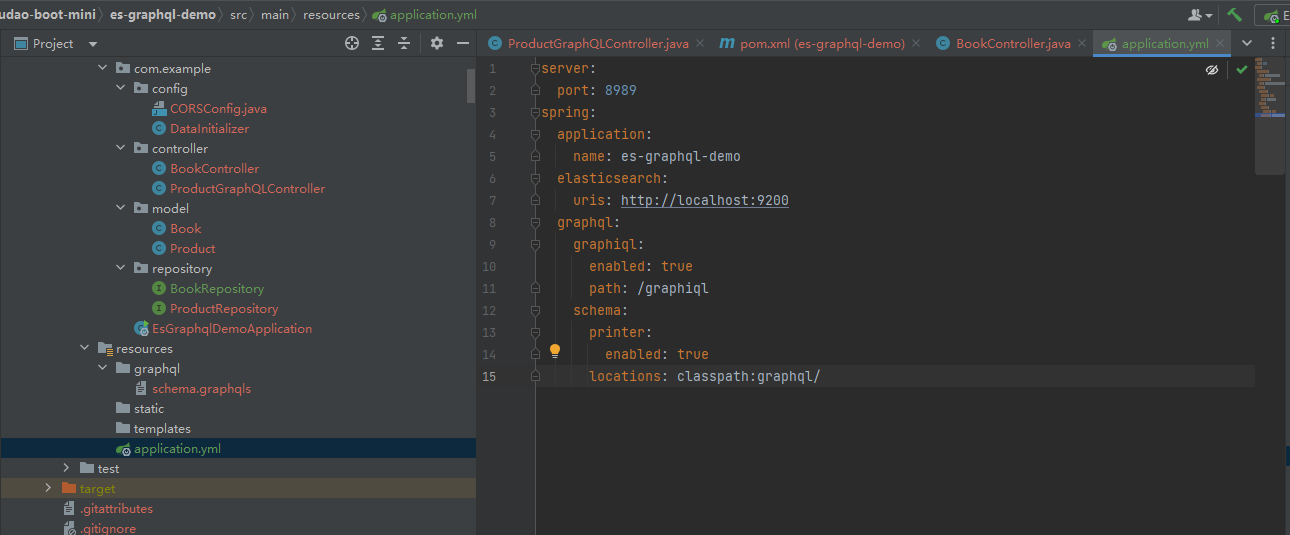

代码结构

Graphql Schema配置
es-graphql-demo\src\main\resources\graphql

type Query {
    books(query: String, genre: String, year: Int): [Book]
    book(id: ID!): Book
    products: [Product]!
    # 简单分页查询
    pageProducts(
        page: Int! = 1,
        size: Int! = 10
    ): ProductPage!
    product(id: ID!): Product
    searchProducts(keyword: String!): [Product]!
}

type Mutation {
    addBook(title: String!, author: String!, publishedYear: Int!, genre: String!): Book
    updateBook(id: ID!, title: String, author: String, publishedYear: Int, genre: String): Book
    deleteBook(id: ID!): Boolean
    createProduct(input: ProductInput!): Product!
    updateProduct(id: ID!, input: ProductInput!): Product!
    deleteProduct(id: ID!): Boolean!
}

type Book {
    id: ID!
    title: String!
    author: String!
    publishedYear: Int!
    genre: String!
}

type Product {
    id: ID!
    name: String!
    price: Float!
    description: String
}

type ProductPage {
    totalCount: Int!
    items: [Product]!
}


input ProductInput {
    name: String!
    price: Float!
    description: String
}

package com.example.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.data.annotation.Id;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;

/**
 * @author Administrator
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
@Document(indexName = "books")
public class Book {
    @Id
    private String id;

    @Field(type = FieldType.Text)
    private String title;

    @Field(type = FieldType.Text)
    private String author;

    @Field(type = FieldType.Integer)
    private Integer publishedYear;

    @Field(type = FieldType.Keyword)
    private String genre;
}

package com.example.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.data.annotation.Id;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;

/**
 * @author Administrator
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
@Document(indexName = "products")
public class Product {
    @Id
    private String id;

    @Field(type = FieldType.Text)
    private String name;

    @Field(type = FieldType.Double)
    private Double price;

    @Field(type = FieldType.Text)
    private String description;
}

数据初始化

package com.example.config;

import com.example.model.Book;
import com.example.repository.BookRepository;
import org.springframework.boot.CommandLineRunner;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class DataInitializer {

    @Bean
    public CommandLineRunner initData(BookRepository bookRepository) {
        return args -> {
            bookRepository.deleteAll();

            Book book1 = new Book();
            book1.setTitle("Java Programming");
            book1.setAuthor("John Doe");
            book1.setPublishedYear(2020);
            book1.setGenre("Programming");

            Book book2 = new Book();
            book2.setTitle("GraphQL in Action");
            book2.setAuthor("Jane Smith");
            book2.setPublishedYear(2021);
            book2.setGenre("Programming");

            Book book3 = new Book();
            book3.setTitle("Elasticsearch Basics");
            book3.setAuthor("Bob Johnson");
            book3.setPublishedYear(2019);
            book3.setGenre("Database");

            bookRepository.save(book1);
            bookRepository.save(book2);
            bookRepository.save(book3);
        };
    }
}

package com.example.repository;

import org.springframework.data.elasticsearch.repository.ElasticsearchRepository;
import org.springframework.stereotype.Repository;
import  com.example.model.Book;

import java.util.List;

/**
 * @author Administrator
 */
@Repository
public interface BookRepository extends ElasticsearchRepository<Book, String> {
    List<Book> findByTitleContainingOrAuthorContaining(String title, String author);
    List<Book> findByGenre(String genre);
    List<Book> findByPublishedYear(Integer year);
}

package com.example.repository;

import com.example.model.Product;
import org.springframework.data.elasticsearch.repository.ElasticsearchRepository;
import org.springframework.stereotype.Repository;

import java.util.List;

/**
 * @author Administrator
 */
@Repository
public interface ProductRepository extends ElasticsearchRepository<Product, String> {
    List<Product> findByNameContainingOrDescriptionContaining(String name, String description);
}

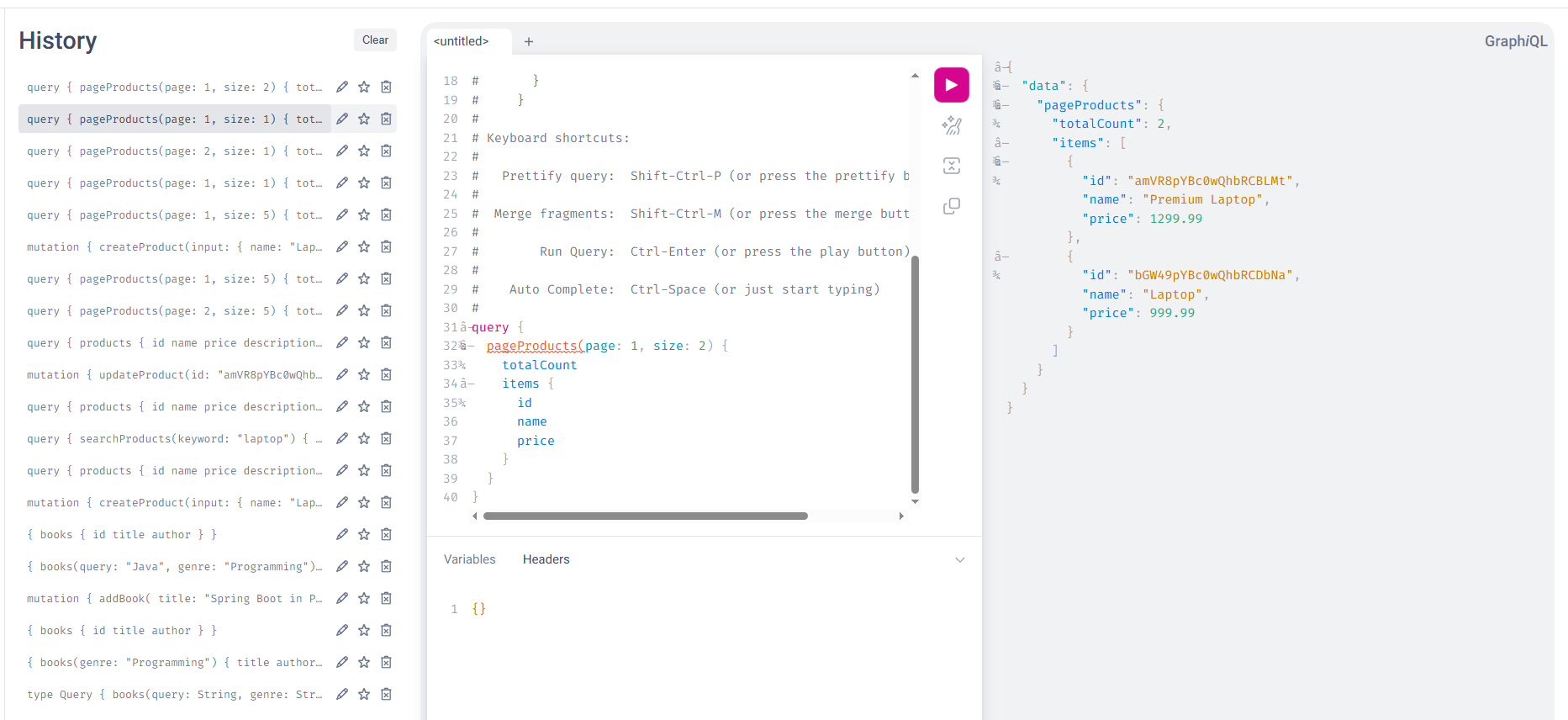

Graphql API

package com.example.controller;

import com.example.model.Product;
import com.example.repository.ProductRepository;

import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageImpl;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.graphql.data.method.annotation.Argument;
import org.springframework.graphql.data.method.annotation.MutationMapping;
import org.springframework.graphql.data.method.annotation.QueryMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class ProductGraphQLController {

    private final ProductRepository productRepository;

    public ProductGraphQLController(ProductRepository productRepository) {
        this.productRepository = productRepository;
    }


    @QueryMapping
    public PageImpl<Product> products() {
        return (PageImpl<Product>) productRepository.findAll();
    }

    // 简单分页查询
    @QueryMapping
    public ProductPage pageProducts(
            @Argument Integer page,
            @Argument Integer size) {

        Pageable pageable = PageRequest.of(page - 1, size);
        Page<Product> productPage = productRepository.findAll(pageable);

        return new ProductPage(
                (int) productPage.getTotalElements(),
                productPage.getContent()
        );
    }

    @QueryMapping
    public Product product(@Argument String id) {
        return productRepository.findById(id).orElse(null);
    }

    @QueryMapping
    public List<Product> searchProducts(@Argument String keyword) {
        // 这里可以添加更复杂的搜索逻辑
        return productRepository.findByNameContainingOrDescriptionContaining(keyword, keyword);
    }

    @MutationMapping
    public Product createProduct(@Argument("input") ProductInput input) {
        Product product = new Product();
        product.setName(input.name());
        product.setPrice(input.price());
        product.setDescription(input.description());
        return productRepository.save(product);
    }

    @MutationMapping
    public Product updateProduct(@Argument String id, @Argument("input") ProductInput input) {
        return productRepository.findById(id)
                .map(existingProduct -> {
                    existingProduct.setName(input.name());
                    existingProduct.setPrice(input.price());
                    existingProduct.setDescription(input.description());
                    return productRepository.save(existingProduct);
                })
                .orElseThrow(() -> new RuntimeException("Product not found with id: " + id));
    }

    @MutationMapping
    public Boolean deleteProduct(@Argument String id) {
        productRepository.deleteById(id);
        return true;
    }

    // 定义输入记录
    public record ProductInput(String name, Double price, String description) {}
    public record  ProductPage(int totalCount,List<Product> items){}
}

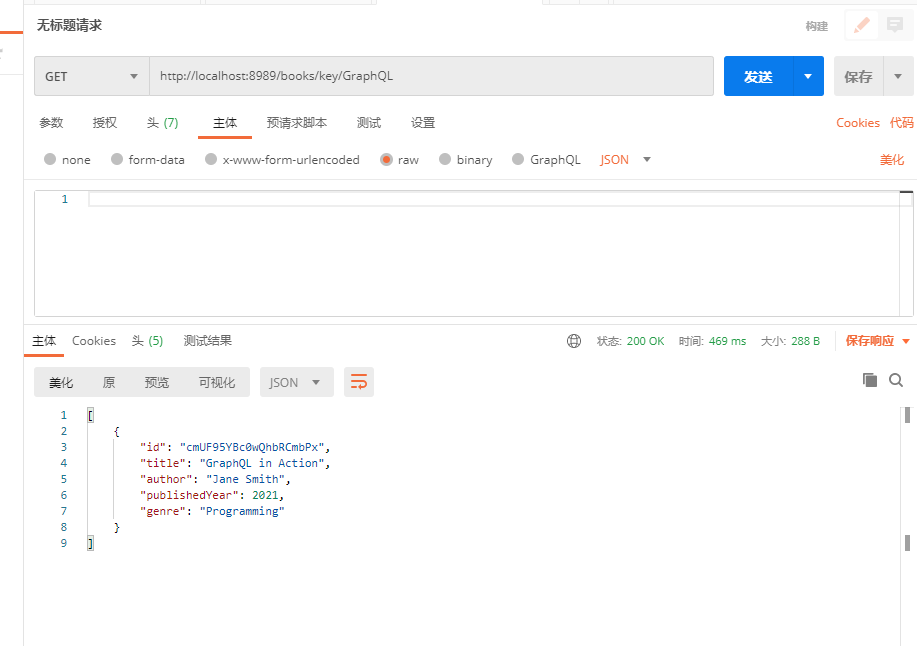

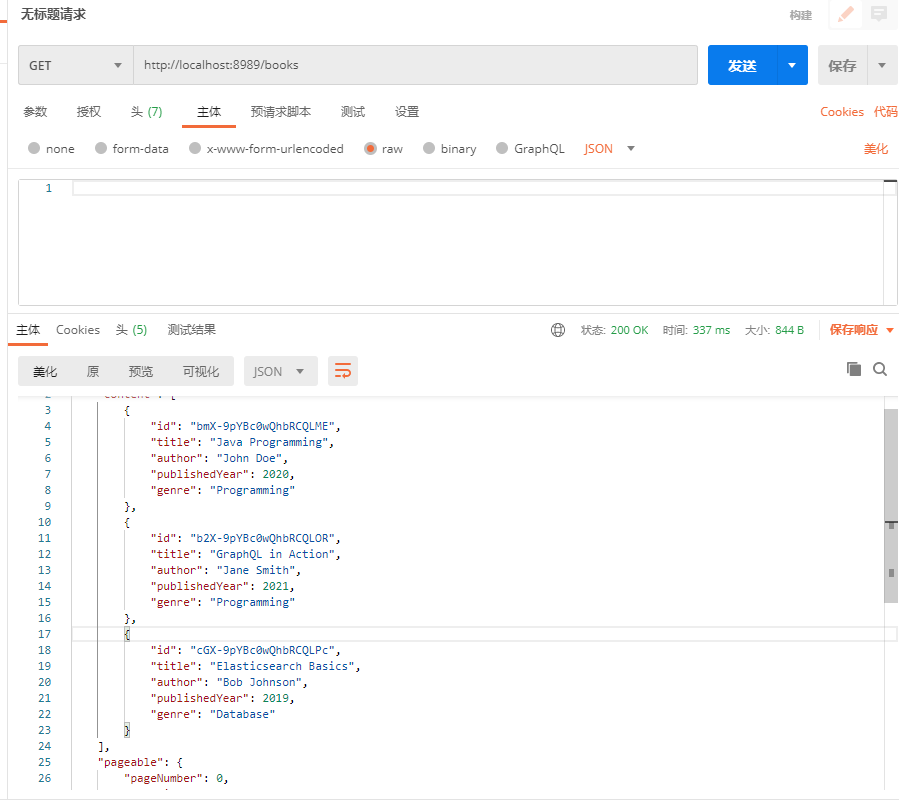

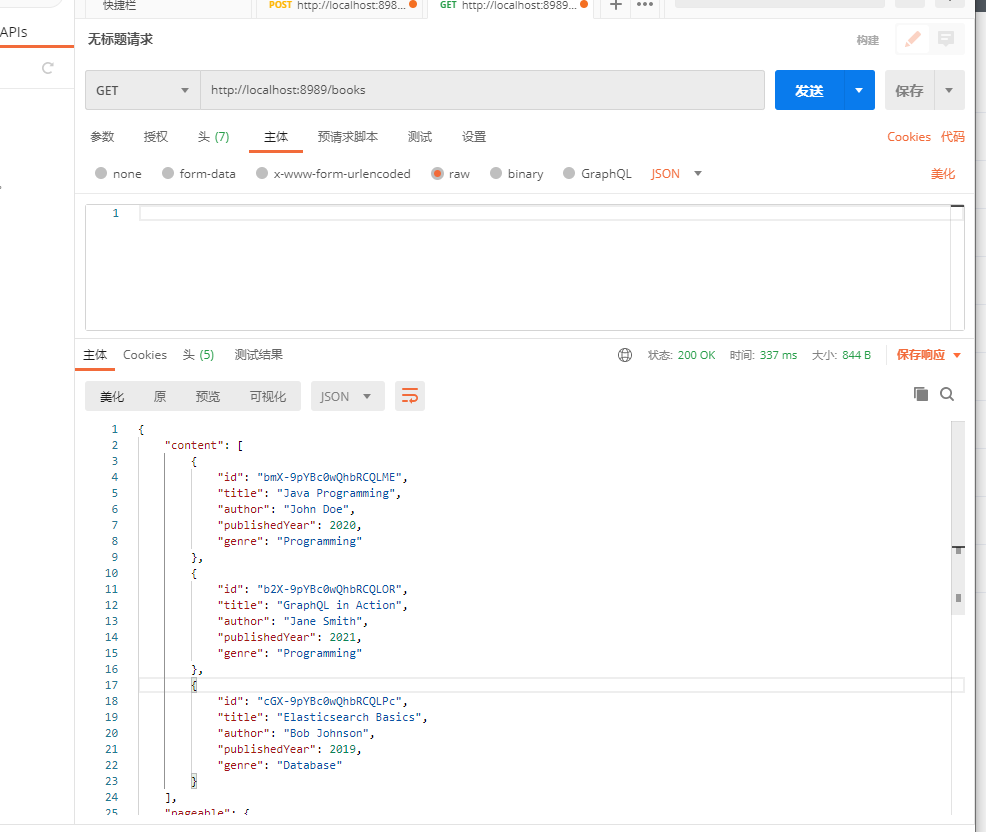

Restful api

package com.example.controller;

import com.example.model.Book;
import com.example.model.Product;
import com.example.repository.BookRepository;
import com.example.repository.ProductRepository;
import org.springframework.data.domain.PageImpl;
import org.springframework.graphql.data.method.annotation.Argument;
import org.springframework.graphql.data.method.annotation.MutationMapping;
import org.springframework.graphql.data.method.annotation.QueryMapping;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * @author Administrator
 */
@RestController
public class BookController {

    private final BookRepository bookRepository;

    public BookController(BookRepository bookRepository) {
        this.bookRepository = bookRepository;
    }


    @RequestMapping("/books")
    public PageImpl<Book> products() {
        return (PageImpl<Book>) bookRepository.findAll();
    }

    @RequestMapping("/books/{id}")
    public Book product( @PathVariable String id) {
        return bookRepository.findById(id).orElse(null);
    }

    @RequestMapping("/books/{keyword}")
    public List<Book> searchProducts(@PathVariable String keyword) {
        // 这里可以添加更复杂的搜索逻辑
        return bookRepository.findByTitleContainingOrAuthorContaining(keyword, keyword);
    }

    @RequestMapping(value = "/book",method = RequestMethod.POST)
    public Book createProduct(@RequestBody Book input) {
        Book book = new Book();
        book.setAuthor(input.getAuthor());
        book.setTitle(input.getTitle());
        book.setPublishedYear(input.getPublishedYear()) ;
        book.setGenre(input.getGenre());
       return bookRepository.save(book);
    }


}

如果需要完整代码 可以给我留言
