题目要求:

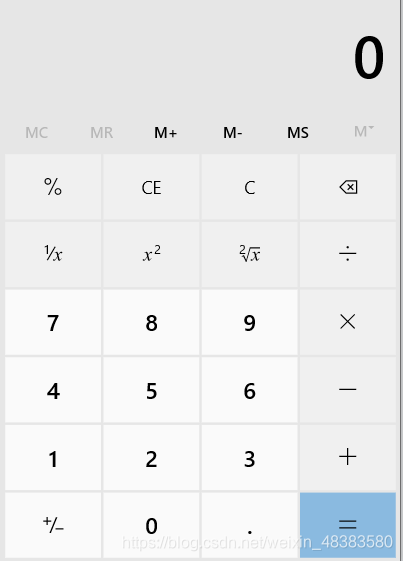

分别用布局管理器LinearLayout,TableLayout,ConstraintLayout设计计算器的界面如图所示,基本组件有TextView、Button。通过本次作业,熟悉每种布局管理的特点及适用场景,掌握layout_weight的方法和使用。
一. LinearLayout
首先,我们需要明白LinearLayout布局的意思。这是一个线性布局。属性有水平或者竖直。接下来,开始完成任务。
第一步,先建一个LinearLayout。在res/layout/下新建一个calumniate_LinearLayout.xml的布局文件。(操作步骤为右击res目录下的layout,选择new Resource File,这里要注意把Root element修改为LinearLayout)
第二步,先加入代码:android:orientation=“vertical”,设置我们的线性布局是垂直方向的。
这是线性布局必须要设置的!!!
第三步,先设置“0”的显示,加入一个TextView, android:layout_width=“match_parent”
android:layout_height=“0dp”
android:layout_weight=“0.229”
android:gravity=“right|bottom”
android:text=“0”
android:textSize=“65dp”
第四步,开始写下面的7行布局,因为结构都是一样的,这里我就写第一行,剩下的自行修改即可。具体为先嵌套一个LinearLayout,然后加入Button按钮,设置权重以及显示的内容,代码如下:
<按钮
android:layout_width=“0dp”
android:layout_height=“match_parent”
android:layout_marginLeft=“3dp”
android:layout_marginBottom=“1dp”
android:layout_weight=“0.167”
android:text=“MC” />
注:按钮就是Button,因为CSDN不好打出来。
第五步,按照上面的步骤继续写6个LinearLayout就好了。
全部代码如下:
// LinearLayout布局
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:background="#C0C0C0">
<TextView
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.229"
android:gravity="right|bottom"
android:text="0"
android:textSize="65dp" />
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.073">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="MC" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="MR" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="M+" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="M-" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="MS" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.167"
android:text="M*" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="%" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="√" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="x²" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="1/x" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="CE" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="C" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="×" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="÷" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="7" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="8" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="9" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="X" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="4" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="5" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="6" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="-" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="1" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="2" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="3" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="1dp"
android:layout_weight="0.25"
android:text="+" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.116">
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="3dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="3dp"
android:layout_weight="0.25"
android:text="±" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="3dp"
android:layout_weight="0.25"
android:text="0" />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginBottom="3dp"
android:layout_weight="0.25"
android:text="." />
<Button
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_marginLeft="2dp"
android:layout_marginTop="1dp"
android:layout_marginRight="3dp"
android:layout_marginBottom="3dp"
android:layout_weight="0.25"
android:text="=" />
</LinearLayout>
</LinearLayout>
二.TableLayout
这里也是同理,先设置TableLayout的xml文件,然后开始完成任务。
这里我们需要注意的是:一个TableRow代表一行。
其他的原理同LinearLayout。
全部代码如下:
// TableLayout
<?xml version="1.0" encoding="utf-8"?>
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#C0C0C0">
<TableRow
android:layout_height="0dp"
android:layout_weight="3.55">
<TextView
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:gravity="right|bottom"
android:text="0"
android:textSize="50dp" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="MC" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="MR" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="M+" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="M-" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="MS" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="M*" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="%" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="√" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="x²" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="1/x" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="CE" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="C" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="×" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="÷" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="7" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="8" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="9" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="X" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="4" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="5" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="6" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="-" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="1" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="2" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="3" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="+" />
</TableRow>
<TableRow
android:layout_height="0dp"
android:layout_weight="1.66">
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="±" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="0" />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="." />
<Button
android:layout_width="0dp"
android:layout_weight="1"
android:layout_height="match_parent"
android:text="=" />
</TableRow>
</TableLayout>
三.ConstraintLayout
这个约束布局就是比较简单了,可以直接在布局文件里面通过拉动组件来拉出来。
全部代码如下:
// ConstraintLayout
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent">
<Button
android:id="@+id/button"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginTop="136dp"
android:text="MC"
app:layout_constraintEnd_toStartOf="@+id/button2"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<Button
android:id="@+id/button2"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:text="MR"
app:layout_constraintEnd_toStartOf="@+id/button3"
app:layout_constraintStart_toEndOf="@+id/button"
app:layout_constraintTop_toTopOf="@+id/button" />
<Button
android:id="@+id/button3"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:text="M+"
app:layout_constraintEnd_toStartOf="@+id/button4"
app:layout_constraintStart_toEndOf="@+id/button2"
app:layout_constraintTop_toTopOf="@+id/button" />
<Button
android:id="@+id/button4"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:text="M-"
app:layout_constraintEnd_toStartOf="@+id/button5"
app:layout_constraintStart_toEndOf="@+id/button3"
app:layout_constraintTop_toTopOf="@+id/button3" />
<Button
android:id="@+id/button5"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:text="MS"
app:layout_constraintEnd_toEndOf="@+id/button6"
app:layout_constraintStart_toEndOf="@+id/button4"
app:layout_constraintTop_toTopOf="@+id/button4" />
<Button
android:id="@+id/button6"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:text="M*"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button5"
app:layout_constraintTop_toTopOf="@+id/button5" />
<Button
android:id="@+id/button7"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="%"
app:layout_constraintBottom_toTopOf="@+id/button15"
app:layout_constraintEnd_toStartOf="@+id/button8"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button"
app:layout_constraintVertical_bias="0.77" />
<Button
android:id="@+id/button8"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="√"
app:layout_constraintEnd_toStartOf="@+id/button9"
app:layout_constraintStart_toEndOf="@+id/button7"
app:layout_constraintTop_toTopOf="@+id/button7" />
<Button
android:id="@+id/button9"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="x²"
app:layout_constraintEnd_toStartOf="@+id/button10"
app:layout_constraintStart_toEndOf="@+id/button8"
app:layout_constraintTop_toTopOf="@+id/button8" />
<Button
android:id="@+id/button10"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="1/x"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button9"
app:layout_constraintTop_toTopOf="@+id/button9" />
<Button
android:id="@+id/button15"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="CE"
app:layout_constraintBottom_toTopOf="@+id/button19"
app:layout_constraintEnd_toStartOf="@+id/button16"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button7" />
<Button
android:id="@+id/button16"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="C"
app:layout_constraintEnd_toStartOf="@+id/button17"
app:layout_constraintStart_toEndOf="@+id/button15"
app:layout_constraintTop_toTopOf="@+id/button15" />
<Button
android:id="@+id/button17"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="×"
app:layout_constraintEnd_toStartOf="@+id/button18"
app:layout_constraintStart_toEndOf="@+id/button16"
app:layout_constraintTop_toTopOf="@+id/button16" />
<Button
android:id="@+id/button18"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="÷"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button17"
app:layout_constraintTop_toTopOf="@+id/button17" />
<Button
android:id="@+id/button19"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="7"
app:layout_constraintBottom_toTopOf="@+id/button23"
app:layout_constraintEnd_toStartOf="@+id/button20"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button15" />
<Button
android:id="@+id/button20"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="8"
app:layout_constraintEnd_toStartOf="@+id/button21"
app:layout_constraintStart_toEndOf="@+id/button19"
app:layout_constraintTop_toTopOf="@+id/button19" />
<Button
android:id="@+id/button21"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="9"
app:layout_constraintEnd_toStartOf="@+id/button22"
app:layout_constraintStart_toEndOf="@+id/button20"
app:layout_constraintTop_toTopOf="@+id/button20" />
<Button
android:id="@+id/button22"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="X"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button21"
app:layout_constraintTop_toTopOf="@+id/button21" />
<Button
android:id="@+id/button23"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="4"
app:layout_constraintBottom_toTopOf="@+id/button32"
app:layout_constraintEnd_toStartOf="@+id/button29"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button19" />
<Button
android:id="@+id/button29"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="5"
app:layout_constraintEnd_toStartOf="@+id/button30"
app:layout_constraintStart_toEndOf="@+id/button23"
app:layout_constraintTop_toTopOf="@+id/button23" />
<Button
android:id="@+id/button31"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="6"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button30"
app:layout_constraintTop_toTopOf="@+id/button30" />
<Button
android:id="@+id/button30"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="-"
app:layout_constraintEnd_toStartOf="@+id/button31"
app:layout_constraintStart_toEndOf="@+id/button29"
app:layout_constraintTop_toTopOf="@+id/button29" />
<Button
android:id="@+id/button32"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="1"
app:layout_constraintBottom_toTopOf="@+id/button36"
app:layout_constraintEnd_toStartOf="@+id/button33"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button23" />
<Button
android:id="@+id/button33"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="2"
app:layout_constraintEnd_toStartOf="@+id/button34"
app:layout_constraintStart_toEndOf="@+id/button32"
app:layout_constraintTop_toTopOf="@+id/button32" />
<Button
android:id="@+id/button34"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="3"
app:layout_constraintEnd_toStartOf="@+id/button35"
app:layout_constraintStart_toEndOf="@+id/button33"
app:layout_constraintTop_toTopOf="@+id/button33" />
<Button
android:id="@+id/button35"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="+"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button34"
app:layout_constraintTop_toTopOf="@+id/button34" />
<Button
android:id="@+id/button36"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="±"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toStartOf="@+id/button37"
app:layout_constraintHorizontal_chainStyle="spread"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/button32" />
<Button
android:id="@+id/button37"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="0"
app:layout_constraintEnd_toStartOf="@+id/button38"
app:layout_constraintStart_toEndOf="@+id/button36"
app:layout_constraintTop_toTopOf="@+id/button36" />
<Button
android:id="@+id/button38"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="."
app:layout_constraintEnd_toStartOf="@+id/button39"
app:layout_constraintStart_toEndOf="@+id/button37"
app:layout_constraintTop_toTopOf="@+id/button37" />
<Button
android:id="@+id/button39"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="="
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/button38"
app:layout_constraintTop_toTopOf="@+id/button38" />
<TextView
android:id="@+id/textView"
android:layout_width="361dp"
android:layout_height="134dp"
android:gravity="right|bottom"
android:text="0"
android:textSize="50dp"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
说明
该文章仅供大家学习交流使用,如有哪里不妥,请大家批评指正。
对代码有哪里不理解的,可以留言评论,不定时回复!
