文章目录

概要

个人使用Latex过程中的一些tip

缘由

之前打数学建模比赛，队友负责写论文时使用了Latex，看起来像写代码一样，还有模板可用，于是产生兴趣想要体验一下。

安装教程

1.安装texlive（必须）+ texstudio（可选）
【LaTex】LaTex的下载与安装（2024新手小白超详细、超简洁 Windows系统）
下载使用清华源的话还好，安装比较耗时间，至少得一个小时
2.texlive+vscode配置
我喜欢将它作为编程工具一般使用，所以进行了在vscode上的配置
texlive2023+vscode安装与配置（简洁版）

模板寻找

借此学习过程，完成一下课程作业

找到知乎上一篇文章，作为本次中文论文的模板：一种期刊论文LaTex模板（中文，XeLaTex适用）

使用体验

虽然找到了模板，但使用起来不是很顺心（经常error
不过作者提供的模板的文章结构、标题等模板是效果不错的

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\title{\fontsize{18pt}{27pt}\selectfont% 小四字号，1.5倍行距
    {\heiti% 黑体
    基于机器学习的对抗样本研究}}% 题目
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\author{\fontsize{12pt}{18pt}\selectfont% 小四字号，1.5倍行距
    {\fangsong% 仿宋
        赫敏}\\% 标题栏脚注
    \fontsize{10.5pt}{15.75pt}\selectfont% 五号字号，1.5倍行距
    {\fangsong% 仿宋
        福州大学计算机与大数据学院， 福建~福州~350002}}% 作者单位，“~”表示空格

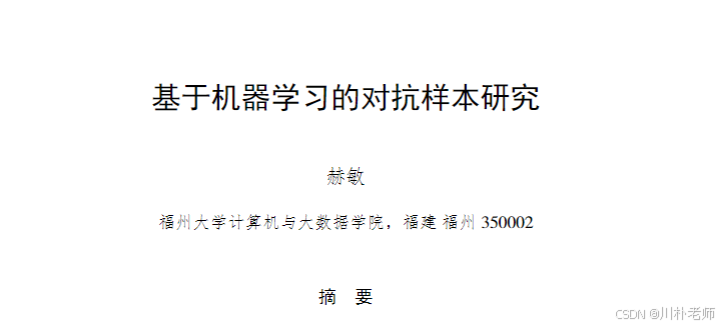

在这里插入图片描述

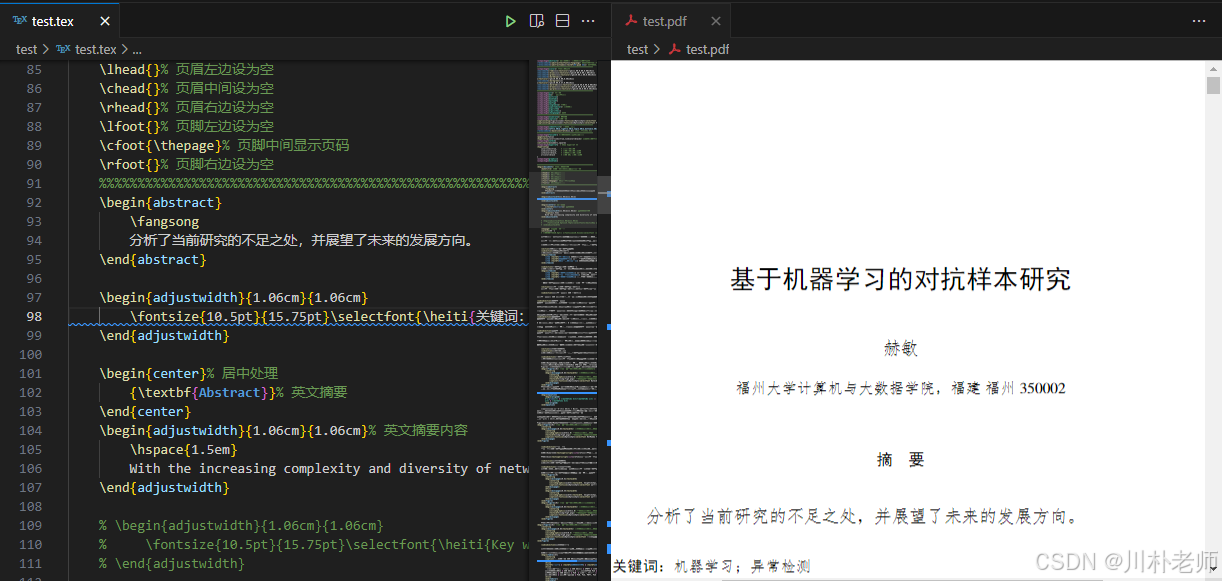

同时，在vscode中，你可以同时打开tex文件和pdf文件（pdf右键：Split Right），在tex修改保存后，tex插件会自动重新编译生成新的pdf文件，也就是右边的pdf文件类似于热加载可看到修改后的变化。

在tex中，%是注释符号，那么我们写的文字中若是有诸如“精确率达到90%以上”时，该怎么办？
很简单
在%号前加上\即可

添加后

\%

前者表示注释，后者表示%号这个符号，这样的运用还会在其他地方体现。

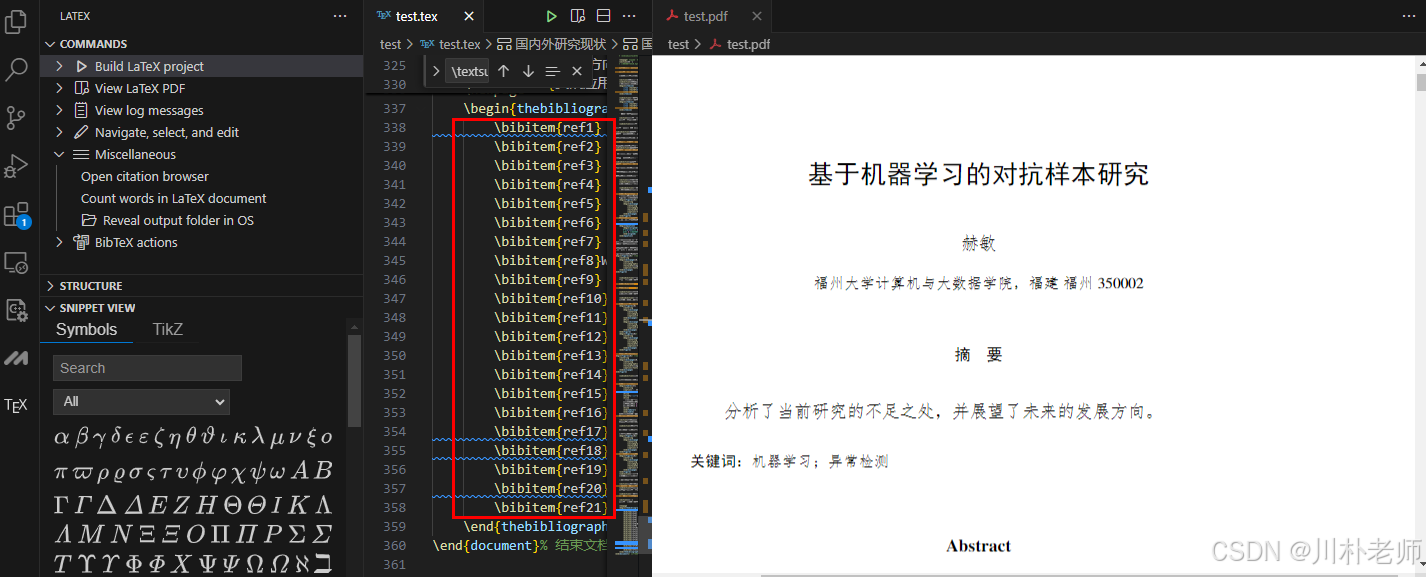

插件使用上，我比较常用以下两个功能

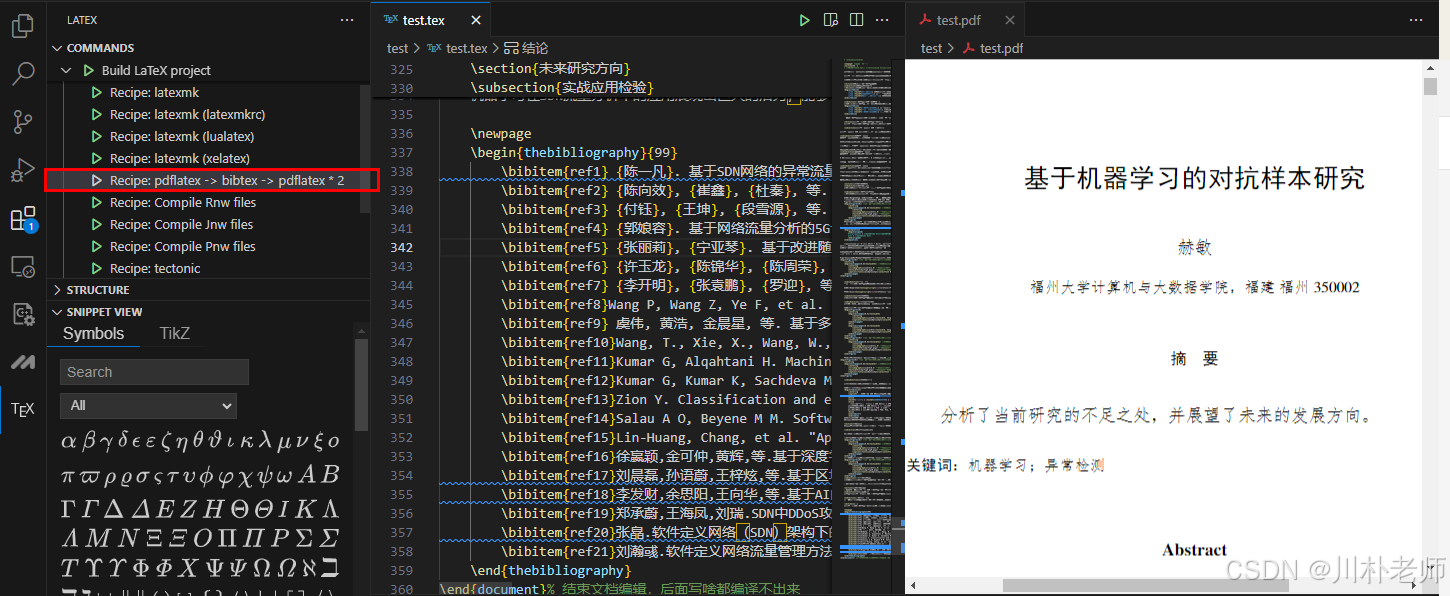

1.将写好的tex文件一键编译生成pdf文件
在这里插入图片描述
2.统计tex文件中，正文字数的多少

自用模板

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\documentclass[12pt,a4paper]{article}% 文档格式
\usepackage{ctex,hyperref}% 输出汉字
\usepackage{times}% 英文使用Times New Roman
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\title{\fontsize{18pt}{27pt}\selectfont% 小四字号，1.5倍行距
    {\heiti% 黑体
    基于机器学习的对抗样本研究}}% 题目
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\author{\fontsize{12pt}{18pt}\selectfont% 小四字号，1.5倍行距
    {\fangsong% 仿宋
        赫敏}\\% 标题栏脚注
    \fontsize{10.5pt}{15.75pt}\selectfont% 五号字号，1.5倍行距
    {\fangsong% 仿宋
        福州大学计算机与大数据学院， 福建~福州~350002}}% 作者单位，“~”表示空格
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\date{}% 日期（这里避免生成日期）
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{amsmath,amsfonts,amssymb}% 为公式输入创造条件的宏包
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{graphicx}% 图片插入宏包
\usepackage{subfigure}% 并排子图
\usepackage{float}% 浮动环境，用于调整图片位置
\usepackage[export]{adjustbox}% 防止过宽的图片
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{bibentry}
\usepackage{natbib}% 以上2个为参考文献宏包
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{abstract}% 两栏文档，一栏摘要及关键字宏包
\renewcommand{\abstracttextfont}{\fangsong}% 摘要内容字体为仿宋
\renewcommand{\abstractname}{\textbf{摘\quad 要}}% 更改摘要二字的样式
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{xcolor}% 字体颜色宏包
\newcommand{\red}[1]{\textcolor[rgb]{1.00,0.00,0.00}{#1}}
\newcommand{\blue}[1]{\textcolor[rgb]{0.00,0.00,1.00}{#1}}
\newcommand{\green}[1]{\textcolor[rgb]{0.00,1.00,0.00}{#1}}
\newcommand{\darkblue}[1]
{\textcolor[rgb]{0.00,0.00,0.50}{#1}}
\newcommand{\darkgreen}[1]
{\textcolor[rgb]{0.00,0.37,0.00}{#1}}
\newcommand{\darkred}[1]{\textcolor[rgb]{0.60,0.00,0.00}{#1}}
\newcommand{\brown}[1]{\textcolor[rgb]{0.50,0.30,0.00}{#1}}
\newcommand{\purple}[1]{\textcolor[rgb]{0.50,0.00,0.50}{#1}}% 为使用方便而编辑的新指令
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{url}% 超链接
\usepackage{bm}% 加粗部分公式
\usepackage{multirow}
\usepackage{booktabs}
\usepackage{epstopdf}
\usepackage{epsfig}
\usepackage{longtable}% 长表格
\usepackage{supertabular}% 跨页表格
\usepackage{algorithm}
\usepackage{algorithmic}
\usepackage{changepage}% 换页
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{enumerate}% 短编号
\usepackage{caption}% 设置标题
\captionsetup[figure]{name=\fontsize{10pt}{15pt}\selectfont Figure}% 设置图片编号头
\captionsetup[table]{name=\fontsize{10pt}{15pt}\selectfont Table}% 设置表格编号头
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{indentfirst}% 中文首行缩进
\usepackage[left=2.50cm,right=2.50cm,top=2.80cm,bottom=2.50cm]{geometry}% 页边距设置
\renewcommand{\baselinestretch}{1.5}% 定义行间距（1.5）
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{fancyhdr} %设置全文页眉、页脚的格式
\pagestyle{fancy}
\hypersetup{colorlinks=true,linkcolor=black}% 去除引用红框，改变颜色
\usepackage{natbib}
\setcitestyle{numbers,square}
\usepackage{hyperref}  % 引入 hyperref 包
\hypersetup{
    colorlinks=true,    % 启用链接颜色
    linkcolor=black,    % 设置链接颜色为黑色
    citecolor=black,    % 设置引用颜色为黑色
    urlcolor=black      % 设置 URL 颜色为黑色
}
\usepackage{graphicx}
\usepackage{booktabs}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\begin{document}% 以下为正文内容
    \maketitle% 产生标题，没有它无法显示标题
    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
    \lhead{}% 页眉左边设为空
    \chead{}% 页眉中间设为空
    \rhead{}% 页眉右边设为空
    \lfoot{}% 页脚左边设为空
    \cfoot{\thepage}% 页脚中间显示页码
    \rfoot{}% 页脚右边设为空
    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
    \begin{abstract}
        \fangsong
        随着互联网的迅猛发展，远程医疗、电子商务等新兴服务对网络安全和管理提出了更高要求。
    \end{abstract}

    \begin{adjustwidth}{1.06cm}{1.06cm}
        \fontsize{10.5pt}{15.75pt}\selectfont{\heiti{关键词：}\fangsong{机器学习；异常检测}}\\
    \end{adjustwidth}

    \begin{center}% 居中处理
        {\textbf{Abstract}}% 英文摘要
    \end{center}
    \begin{adjustwidth}{1.06cm}{1.06cm}% 英文摘要内容
        \hspace{1.5em}
        With the rapid development of the internet, emerging services such as telemedicine and e-commerce have raised higher demands for network security and management.
    \end{adjustwidth}

    % \begin{adjustwidth}{1.06cm}{1.06cm}
    %     \fontsize{10.5pt}{15.75pt}\selectfont{\heiti{Key words:}\fangsong{Software-Defined Networking (SDN), Traffic Analysis, Machine Learning, Traffic Classification, Anomaly Detection}}\\
    % \end{adjustwidth}

    \newpage% 从新的一页继续
    \section{引言}
    % 设置5号字（10.5pt\) {\fontsize{10.5}{12}\selectfont \songti}


    \section{国内外研究概况}
    \subsection{国外研究现状}

    \begin{table}[ht]
        \centering
        \caption{Summary of scenario-based IDS reviews}
        \label{tab:ids_reviews}
        \begin{tabular}{lll}
        \toprule
        \textbf{Study} & \textbf{Domain} & \textbf{ML techniques} \\
        \midrule
        Garcia-Teodoro et al. [24] & Networks & ML techniques \\
        Kumar et al. [4]           & Networks & AI-based techniques \\
        Zhang et al. [25]          & Networks & Anomaly detection techniques \\
        Tsai et al. [26]           & Networks & ML techniques \\
        Wu et al. [27]             & Networks & Computational intelligence based techniques \\
        Buczak et al. [28]         & Networks & Data mining and ML algorithms \\
        Drasar et al. [29]         & Networks & Flow-based techniques \\
        Vasilomanolakis et al. [33] & Networks & Collaborative intrusion detection techniques \\
        Patcha et al. [31]         & Networks & Supervised and unsupervised learning \\
        Hodo et al. [32]           & Networks & Supervised and unsupervised learning \\
        Nguyen et al. [34]         & Networks & Supervised and unsupervised learning \\
        \bottomrule
        \end{tabular}
        \end{table}

        IDS被定义为“一种有效的安全技术，可以检测、预防并可能对计算机攻击做出反应”，是安全基础设施中的标准组件之一\textsuperscript{\cite{ref1}}

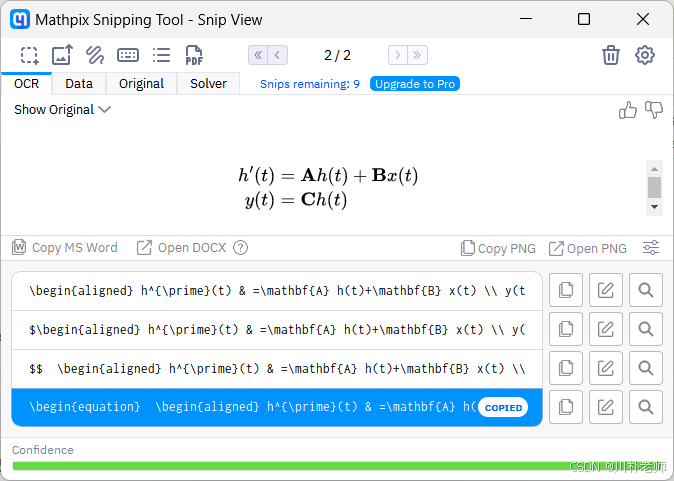

        \begin{equation}
            \begin{aligned}
            h^{\prime}(t) & =\mathbf{A} h(t)+\mathbf{B} x(t) \\
            y(t) & =\mathbf{C} h(t)
            \end{aligned}
        \end{equation}

    \newpage
    \begin{thebibliography}{99}
        \bibitem{ref1} {陈一凡}. 基于SDN网络的异常流量防御与仿真验证[D]. 西安工业大学, 2024. DOI:10.27391/d.cnki.gxagu.2024.000253.
    \end{thebibliography}
\end{document}% 结束文档编辑，后面写啥都编译不出来
