使用GameplayEffect修改属性

一、直接使用GameplayEffect

1.ApplyGameplayEffectToSelf

直接使用GameplayEffect修改自身属性
函数定义:

FActiveGameplayEffectHandle UAbilitySystemComponent::ApplyGameplayEffectToSelf(
  const UGameplayEffect *GameplayEffect,
  float Level,
  const FGameplayEffectContextHandle& EffectContext,
  FPredictionKey PredictionKey = FPredictionKey()
)

参数:

• GameplayEffect: 使用的GameplayEffect类
• Level: 触发这个GE的等级, GE中使用CurveTable中哪个等级的数值
• EffectContext: 设置一些信息 比如触发这个GE的Actor、Ability是什么
• PredictionKey: 预测键 主要为了确保客户端与服务端的结果一致

示例：

UPROPERTY(EditDefaultsOnly, Category = "StartUpData")
TArray<TSubclassOf<UGameplayEffect>> StartUpGameplayEffects;
...
for (const TSubclassOf<UGameplayEffect>& EffectClass : StartUpGameplayEffects)
{
	if (!EffectClass) continue;
	UGameplayEffect* EffectCDO=EffectClass->GetDefaultObject<UGameplayEffect>();

	InASCToGive->ApplyGameplayEffectToSelf(
		EffectCDO,
		ApplyLevel,
		InASCToGive->MakeEffectContext()
	);
}

2.ApplyGameplayEffectToTarget

直接使用GameplayEffect修改目标属性 逻辑与上相同
函数定义:

FActiveGameplayEffectHandle UAbilitySystemComponent::ApplyGameplayEffectToTarget(
  UGameplayEffect *GameplayEffect,
  UAbilitySystemComponent *Target,
  float Level,
  FGameplayEffectContextHandle Context,
  FPredictionKey PredictionKey
)

参数:

• Target：传入目标的ASC

---

二、使用GameplayEffectSpec

使用GameplayEffectSpec 修改属性
其实前两个函数也是在内部创建了GameplayEffectSpec

1.MakeOutgoingSpec

创建一个可用的GameplayEffectSpec 并返回其Handle

函数定义:

virtual FGameplayEffectSpecHandle UAbilitySystemComponent::MakeOutgoingSpec(
	TSubclassOf<UGameplayEffect> GameplayEffectClass,
	float Level,
	FGameplayEffectContextHandle Context
) const;

参数与上相同

2.ApplyGameplayEffectSpecToSelf

使用GameplayEffectSpec修改自身属性
函数定义:

virtual FActiveGameplayEffectHandle UAbilitySystemComponent::ApplyGameplayEffectSpecToSelf(
	const FGameplayEffectSpec& GameplayEffect,
	FPredictionKey PredictionKey = FPredictionKey()
);

传入的GameplayEffectSpec 可通过*GameplayEffectSpecHandle.Data获得

3.ApplyGameplayEffectSpecToTarget

使用GameplayEffectSpec修改目标属性
函数定义:

virtual FActiveGameplayEffectHandle UAbilitySystemComponent::ApplyGameplayEffectSpecToTarget(
	const FGameplayEffectSpec& GameplayEffect,
	UAbilitySystemComponent *Target,
	FPredictionKey PredictionKey=FPredictionKey()
);

传入GameplayEffectSpec和目标的ASC

4.示例

首先MakeOutgoingSpec
然后ApplyGameplayEffectSpecToTarget
可以结合FGameplayEffectContext和SetByCaller传递更多信息

//MyAbility.cpp

//创建FGameplayEffectContext
FGameplayEffectContextHandle ContextHandle = MyASC->MakeEffectContext();
ContextHandle.SetAbility(this);
ContextHandle.AddSourceObject(AvatorActor);
ContextHandle.AddInstigator(AvatorActor,AvatorActor);

//MakeOutgoingSpec
FGameplayEffectSpecHandle  EffectSpecHandle = MyASC->MakeOutgoingSpec(
	EffectClass,
	GetAbilityLevel(),
	ContextHandle
);

//SetByCaller
EffectSpecHandle.Data->SetSetByCallerMagnitude(
	MyGameplayTags::SetByCaller_BaseDamage,
	BaseDamage
);

//ApplyGameplayEffectSpecToTarget
MyASC->ApplyGameplayEffectSpecToTarget(
		*EffectSpecHandle.Data,
		TargetASC
);

三、移除GameplayEffect

对于持续性的GE 有时我们需要手动移除它

1. 通过GameplayEffect类移除

示例：

TSubclassOf<UGameplayEffect> EffectClass = UMyGameplayEffect::StaticClass();
AbilitySystemComponent->RemoveActiveGameplayEffectBySourceEffect(EffectClass);

2.使用ActiveGameplayEffectHandle移除

virtual bool RemoveActiveGameplayEffect(
	FActiveGameplayEffectHandle Handle,
	int32 StacksToRemove=-1
);

ActiveGameplayEffectHandle可以通过ApplyEffect…函数的返回值获得
StacksToRemove表示移除几层 为-1则表示全部移除
示例：

AbilitySystemComponent->RemoveActiveGameplayEffect(ActiveHandle);

3.通过GameplayEffect的自身的标签移除

如果不知道Handle还可以用Tag移除
GameplayEffect有两种标签:
Asset Tags:用于标识 GameplayEffect的标签 这是我们现在需要的
Granted Tags:附加到目标角色ASC上的标签 比如可以标识角色进入了中毒状态

为GE添加标签:

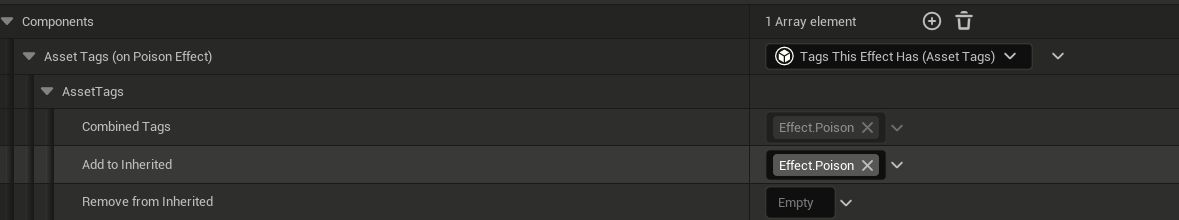

蓝图方式:
在GameplayEffect下的Component中

c++方式

UGameplayEffect* PoisonEffect = NewObject();

PoisonEffect->InheritableGameplayEffectTags.AddTag(MyGameplayTag::Effect_Poison);

用标签移除GE

AbilitySystemComponent->RemoveActiveEffectsWithTags(  \
	MyGameplayTag::Effect_Poison.GetSingleTagContainer()  \
);

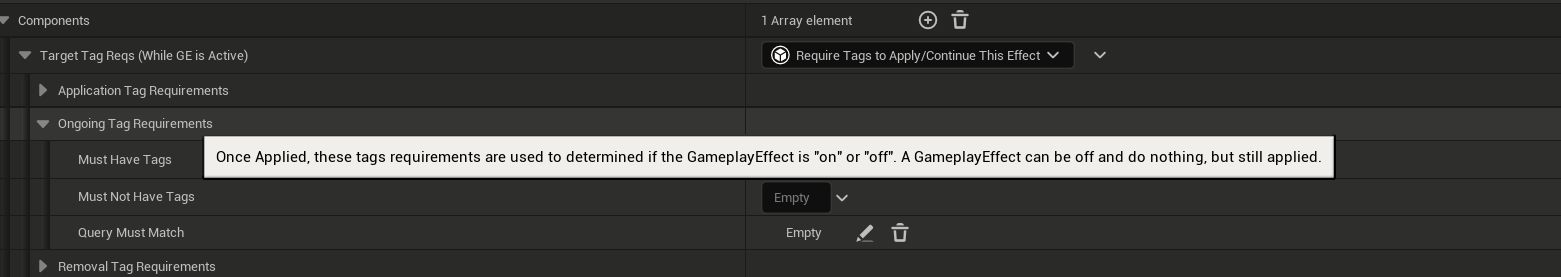

4.移除目标角色身上的标签 以停止GE

要求目标身上必须由标签 GE才能继续运行
移除标签之后GE停止 注意 这时候GE并没有被移除
