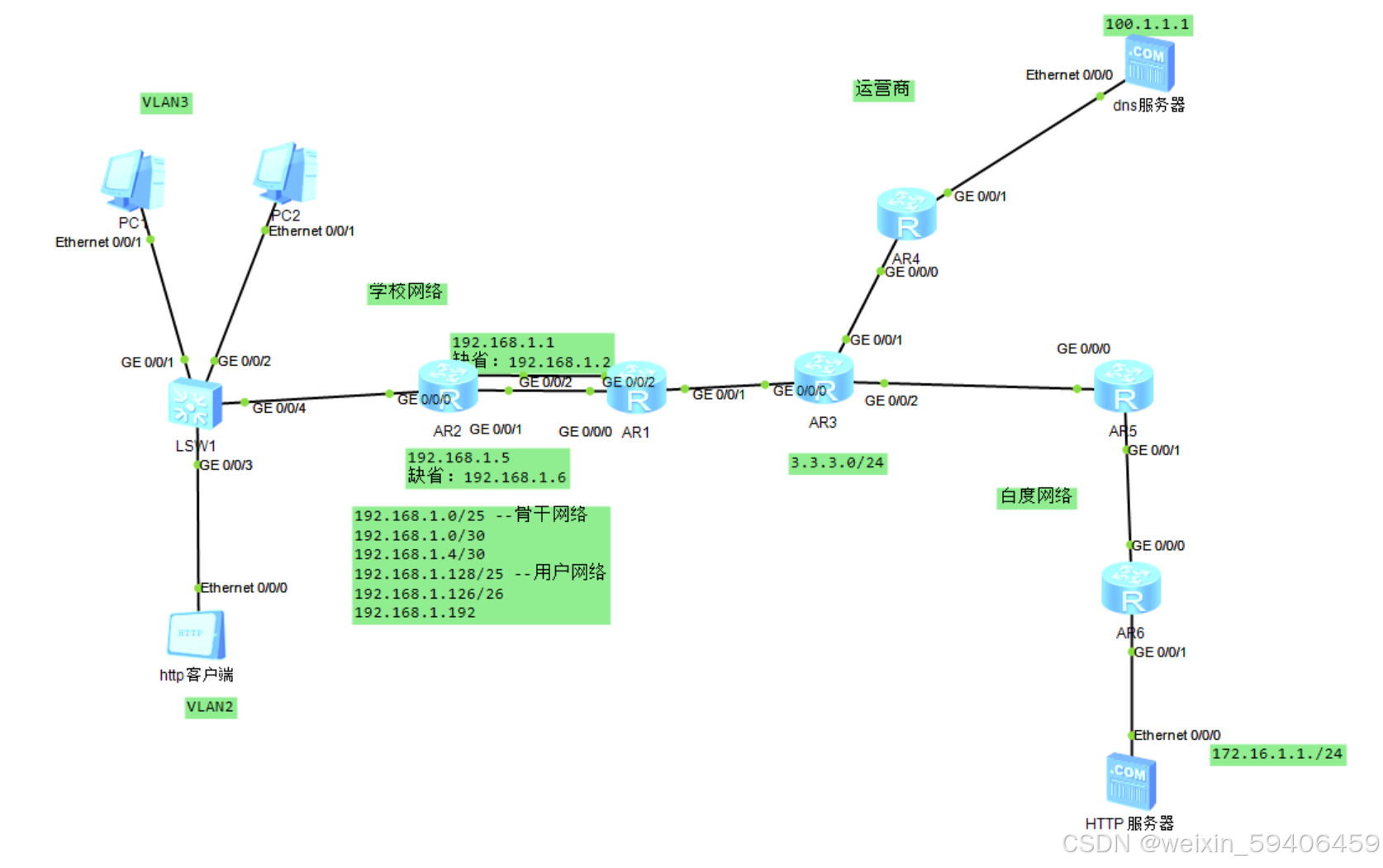

1.实验拓扑

2.实验需求

1，学校内部的HTTP客户端可以正常通过域名www.baidu.com访问到白度网络中的HTTP服务器

2，学校网络内部网段基于192.168.1.0/24划分，PC1可以正常访问3.3.3.0/24网段，但是PC2不允许访问3.3.3.3

3，学校内部路由使用静态路由，R1和R2之间两条链路进行浮动静态

4，运营商网络内部使用动态路由协议
5，AR1可以被telnet远程控制

3.实验需求分析

ip分配分层预留
1—>DNS
2—>VLAN,ACL
3—>静态路由，浮动静态
4—>动态路由协议,NAL
5—>Telnet
4.实验配置内容（每一个设备的每一步操作）
ip分配分层预留

内网设置

[R1-GigabitEthernet0/0/0]ip address 192.168.1.6 30

[R1-GigabitEthernet0/0/2]ip address 192.168.1.2 30

[r2-GigabitEthernet0/0/2]ip address 192.168.1.1 30

[r2-GigabitEthernet0/0/1]ip address 192.168.1.5 30

[r2]int g0/0/0.2
[r2-GigabitEthernet0/0/0.2]dot1q termination vid 2
[r2-GigabitEthernet0/0/0.2]ip address 192.168.1.129 26
[r2-GigabitEthernet0/0/0.2]int g0/0/0.3

[r2-GigabitEthernet0/0/0.3]dot1q termination vid 3

[r2-GigabitEthernet0/0/0.3]ip address 192.168.1.193 26

R3:

[R3]int g0/0/0

[R3-GigabitEthernet0/0/0]ip address 13.0.0.3 24

[R3-GigabitEthernet0/0/0]int g0/0/1

[R3-GigabitEthernet0/0/1]ip address 34.0.0.3 24

[R3-GigabitEthernet0/0/1]int g0/0/2

[R3-GigabitEthernet0/0/2]ip address 35.0.0.3 24

R4:

[r4]int g0/0/0

[r4-GigabitEthernet0/0/0]ip address 34.0.0.4 24

[r4-GigabitEthernet0/0/0]int g0/0/1

[r4-GigabitEthernet0/0/1]ip address 100.1.1.254 24

R5:

[R5-GigabitEthernet0/0/0]ip address 35.0.0.5 24

[R5-GigabitEthernet0/0/0]int g0/0/1

[R5-GigabitEthernet0/0/1]ip address 56.0.0.5 24

R6:

[R6]int g0/0/0
[R6-GigabitEthernet0/0/0]ip address 56.0.0.6 24

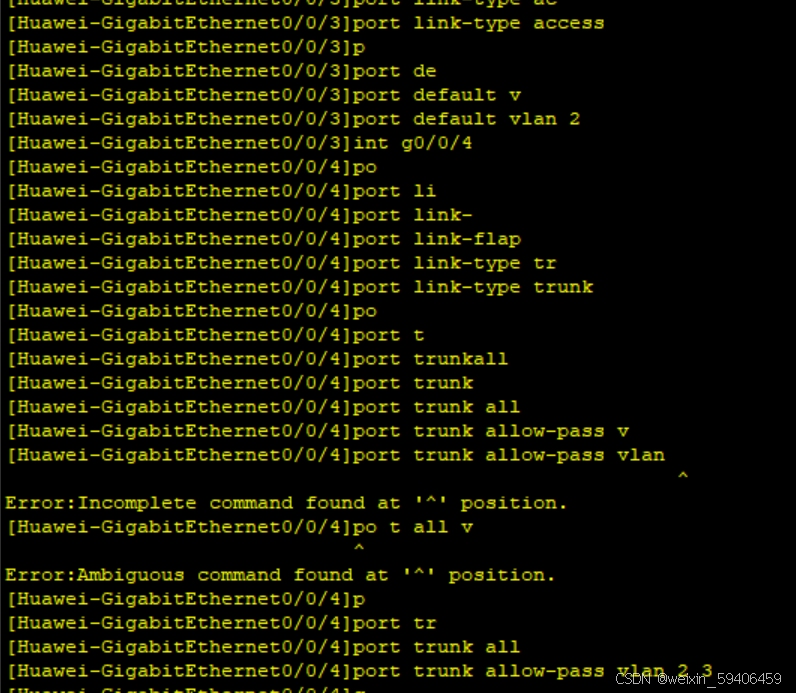

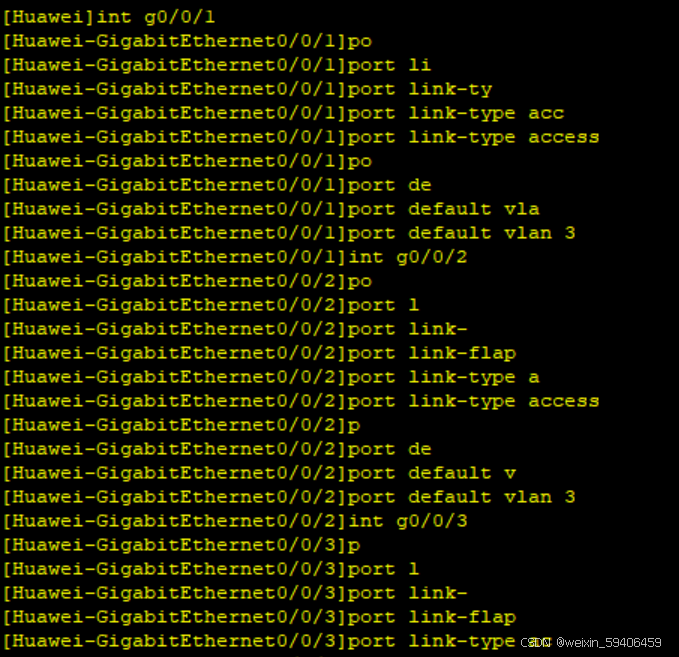

lsw1

[Huawei]vlan batch 2 3

int g0/0/1

[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 3

[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 3

[Huawei-GigabitEthernet0/0/2]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 2

[Huawei-GigabitEthernet0/0/3]int g0/0/4
[Huawei-GigabitEthernet0/0/4]port link-type trunk
[Huawei-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3

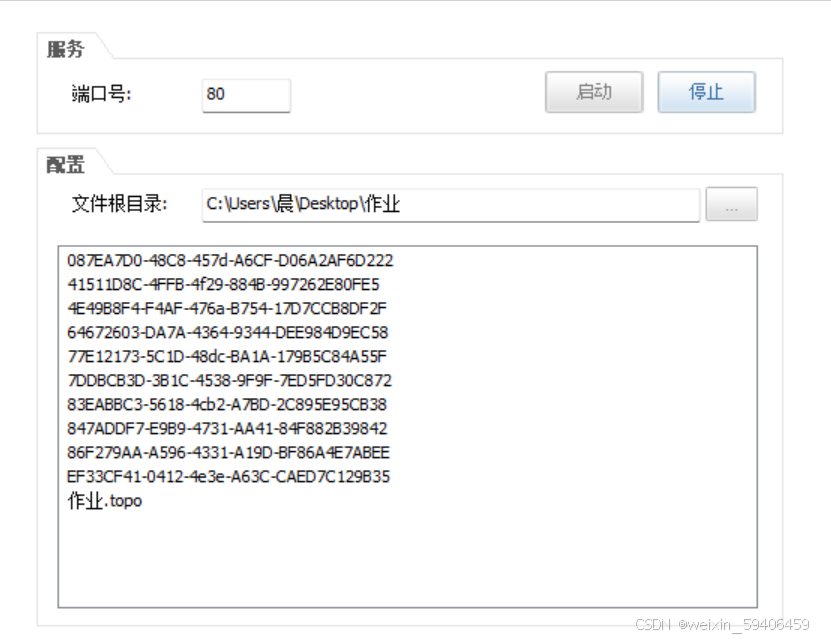

http服务器

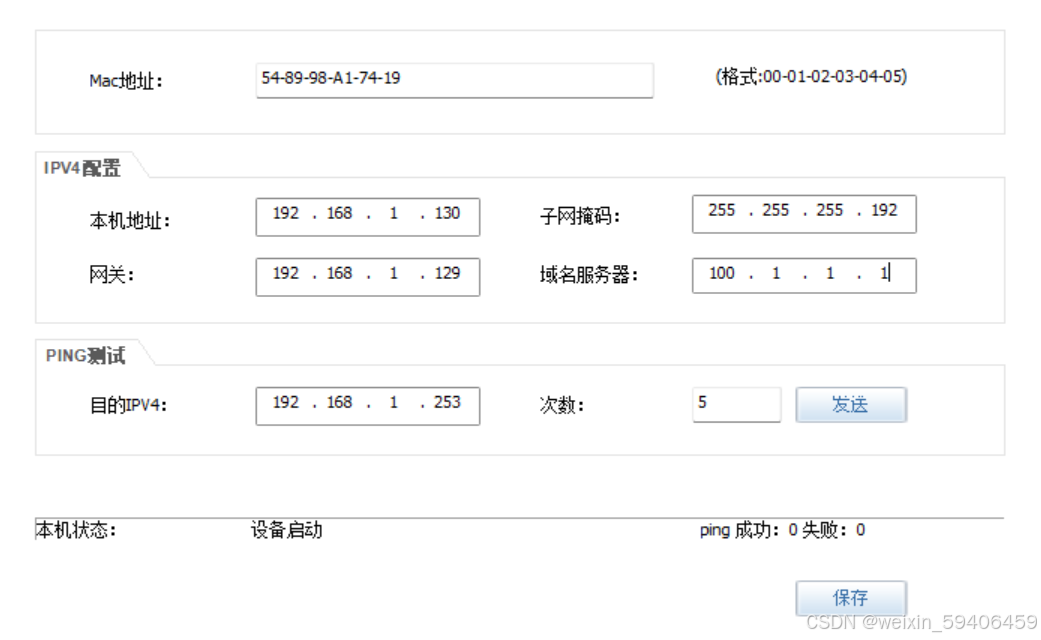

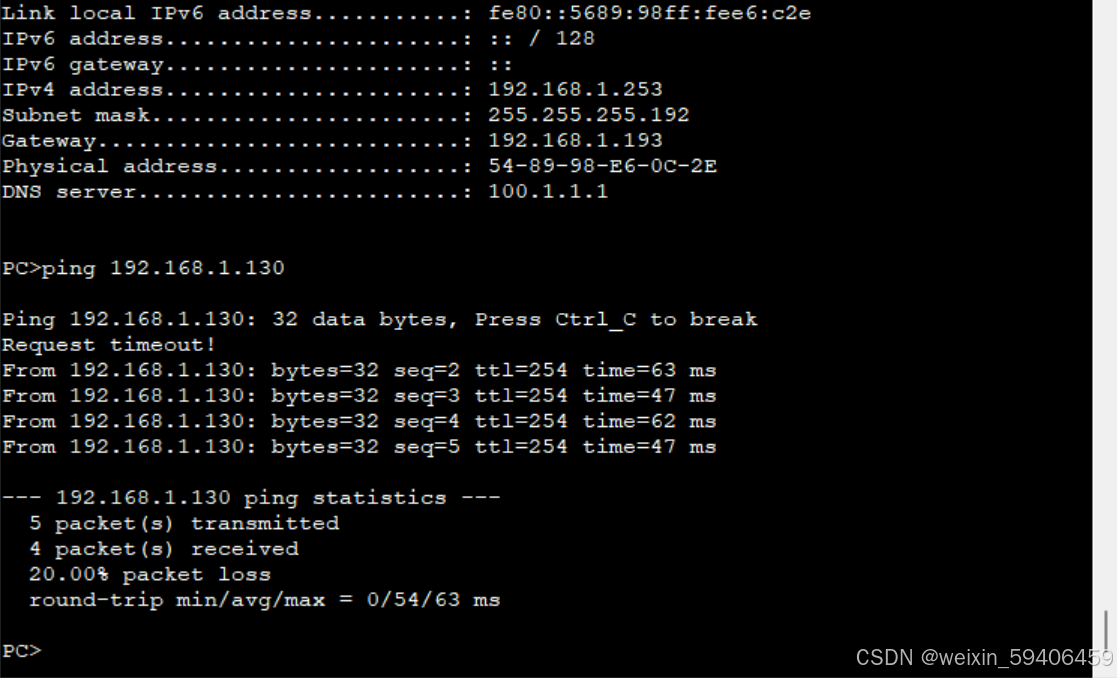

DHCP地址池

[r2]dhcp enable

[r2]ip pool vlan3

[r2-ip-pool-vlan3]network 192.168.1.128 mask 26 设置网关及掩码

[r2-ip-pool-vlan3]dns-list 100.1.1.1 设置DNS

[r2]int g0/0/0.3

[r2-GigabitEthernet0/0/0.3]dhcp select global 激活全局配置

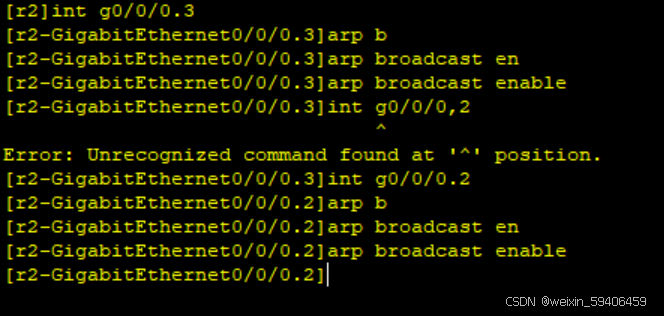

[r2-GigabitEthernet0/0/0.3]arp broadcast enable --打开广播应答功能
[r2-GigabitEthernet0/0/0.2]arp broadcast enable

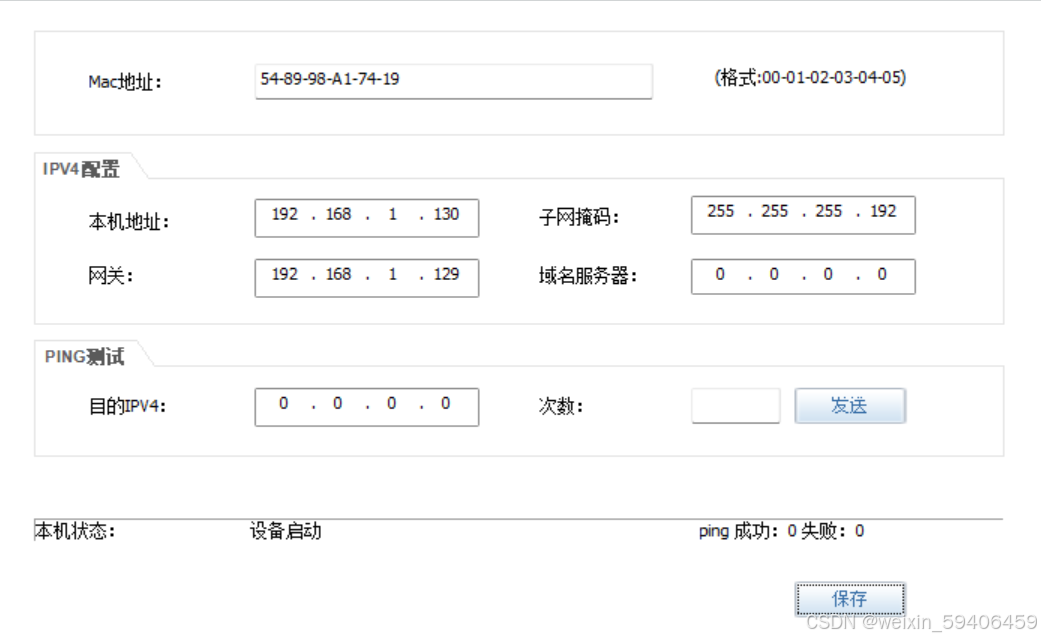

之后PC1和2就可以访问HTTP服务器了

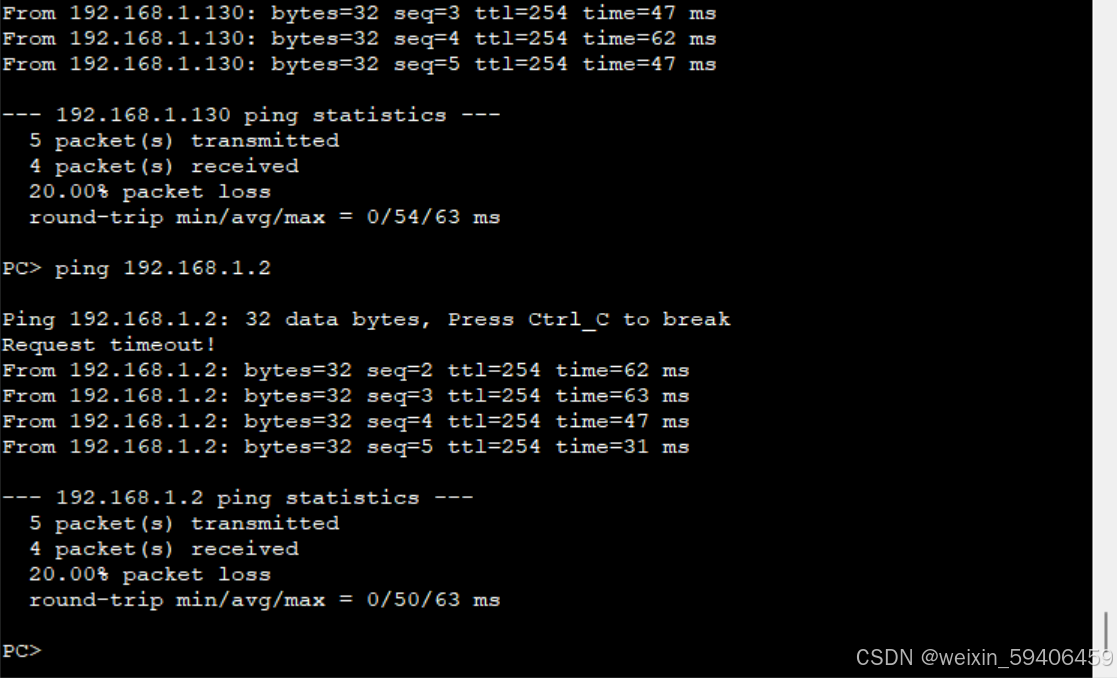

PC访问R1

编辑缺省路由

[r2]ip route-static 0.0.0.0 0 192.168.1.2
[r2]ip route-static 0.0.0.0 0 192.168.1.6 preference 61

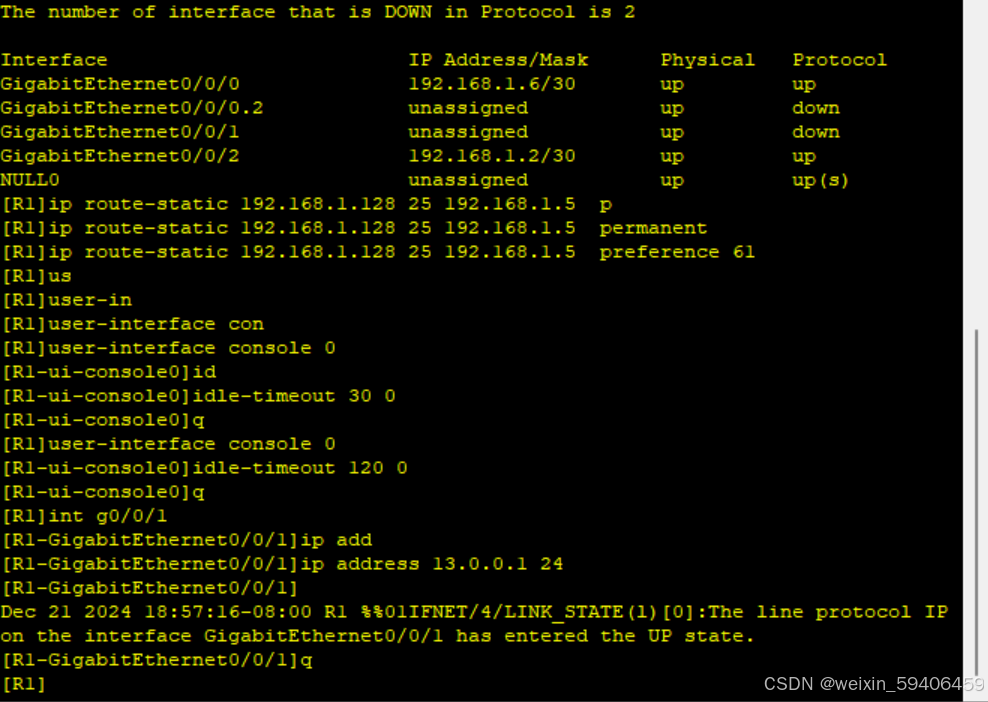

[R1]ip route-static 192.168.1.128 25( 192.168.1.1
[R1]ip route-static 192.168.1.128 25 192.168.1.5 preference 61

运营商网络：

IP配置

[R1]int g0/0/1
[R1-GigabitEthernet0/0/1]ip address 13.0.0.1 24

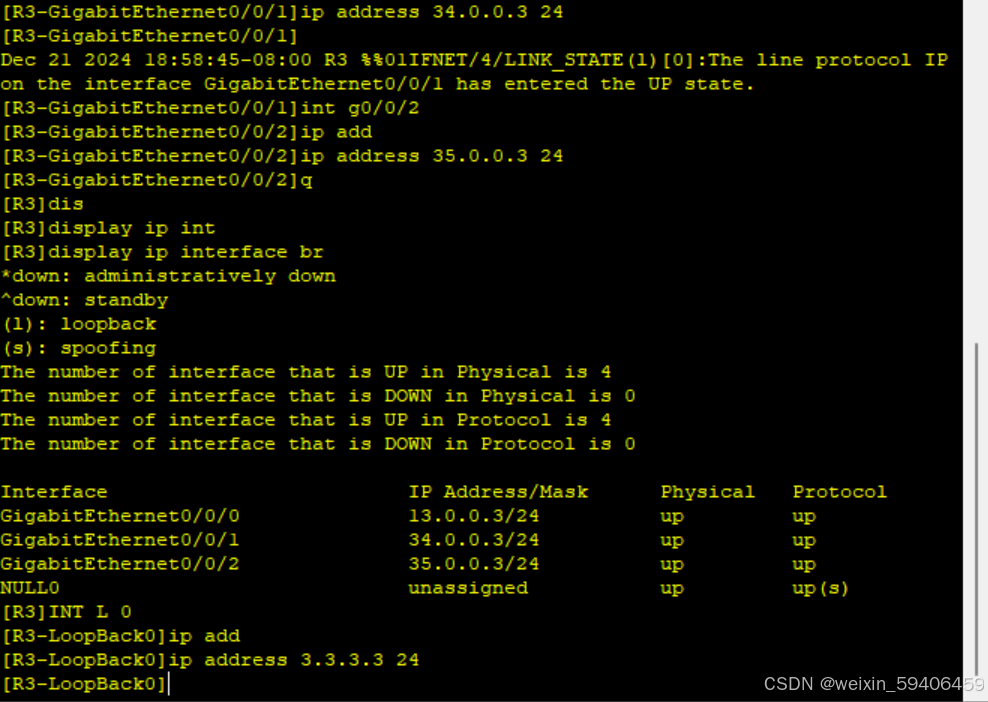

[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip address 13.0.0.3 24
[R3-GigabitEthernet0/0/0]int g0/0/1

[R3-GigabitEthernet0/0/1]ip address 34.0.0.3 24

[R3-GigabitEthernet0/0/1]int g0/0/2

[R3-GigabitEthernet0/0/2]ip address 35.0.0.3 24

R3环回：

[R3]INT L 0
[R3-LoopBack0]ip address 3.3.3.3 24

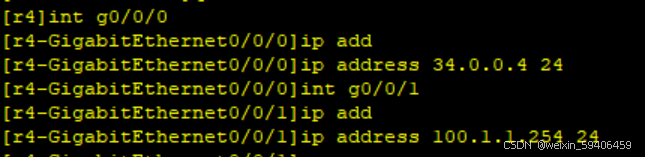

R4：

[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip address 34.0.0.4 24
[r4-GigabitEthernet0/0/1]ip address 100.1.1.254 24

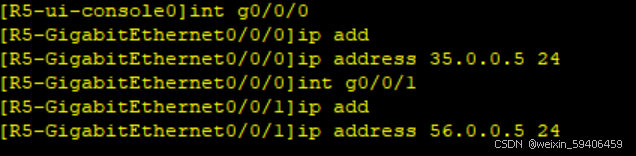

R5:

[R5-GigabitEthernet0/0/0]ip address 35.0.0.5 24
[R5-GigabitEthernet0/0/0]int g0/0/1
[R5-GigabitEthernet0/0/1]ip address 56.0.0.5 24

内部网络设置：

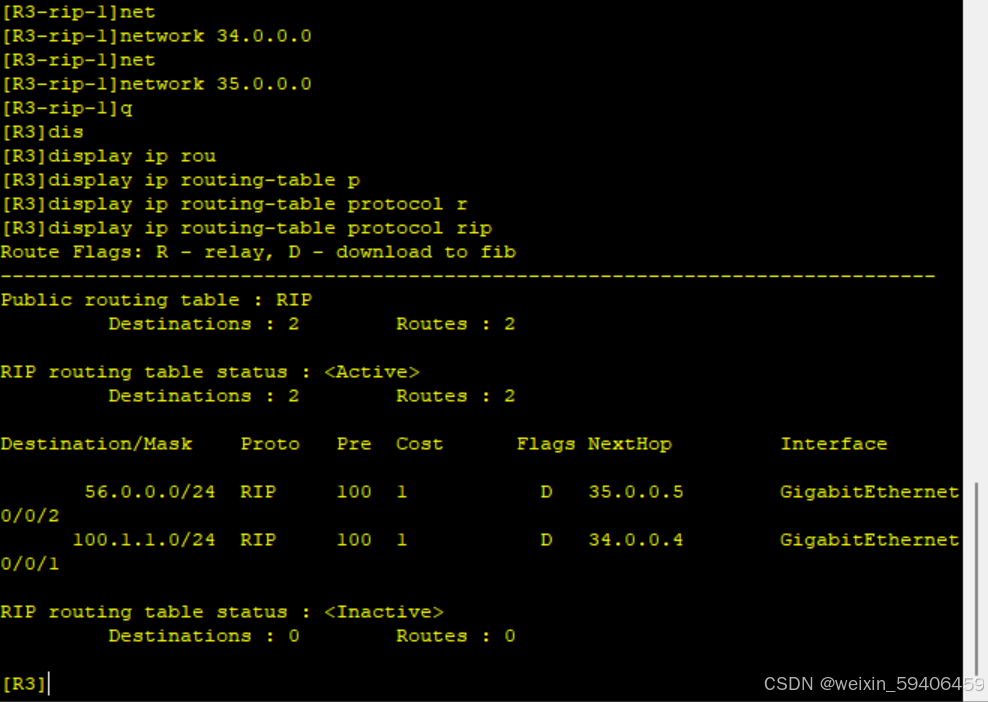

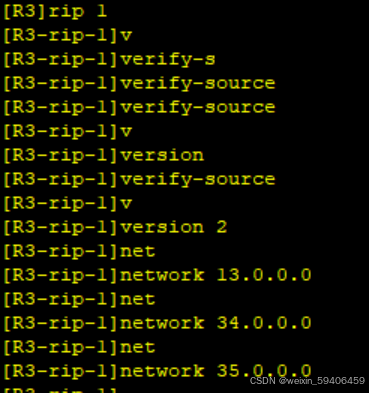

R3:

[R3]rip 1
[R3-rip-1]verify-source
[R3-rip-1]version 2
[R3-rip-1]network 13.0.0.0
[R3-rip-1]network 34.0.0.0
[R3-rip-1]network 35.0.0.0

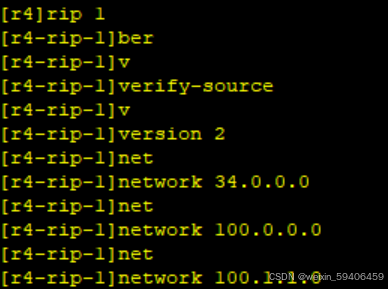

R4:

[r4]rip 1
[r4-rip-1]verify-source
[r4-rip-1]version 2
[r4-rip-1]network 34.0.0.0
[r4-rip-1]network 100.0.0.0
[r4-rip-1]network 100.1.1.0

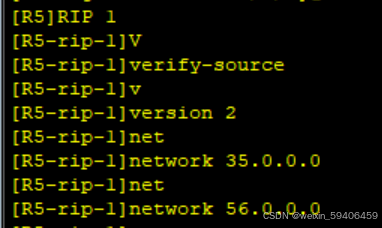

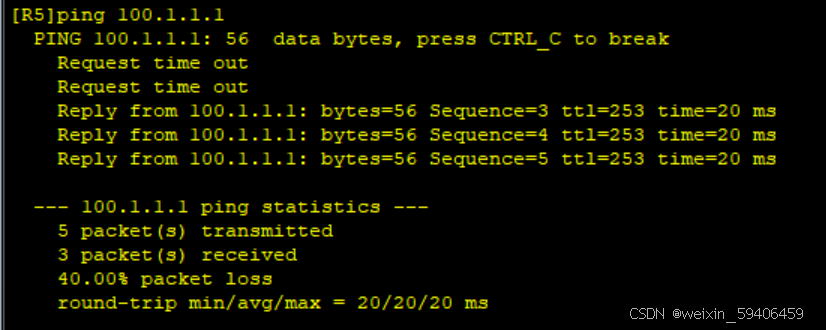

R5:

[R5]RIP 1
[R5-rip-1]verify-source
[R5-rip-1]version 2
[R5-rip-1]network 35.0.0.0
[R5-rip-1]network 56.0.0.0

百度网络设置：

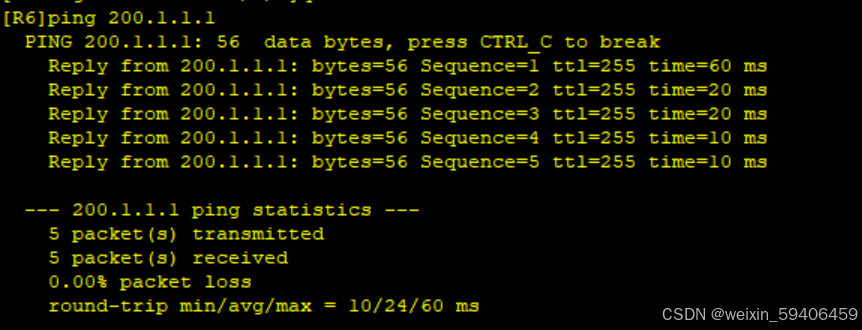

R6:

[R6]int g0/0/1
[R6-GigabitEthernet0/0/1]ip add
[R6-GigabitEthernet0/0/1]ip address 200.1.1.254 24

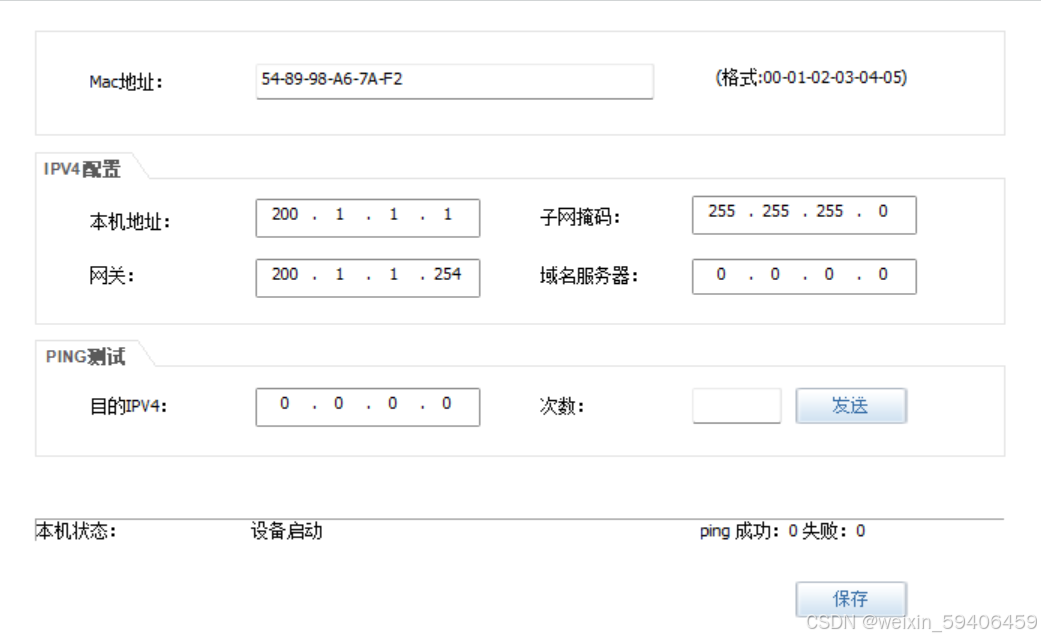

百度服务器：

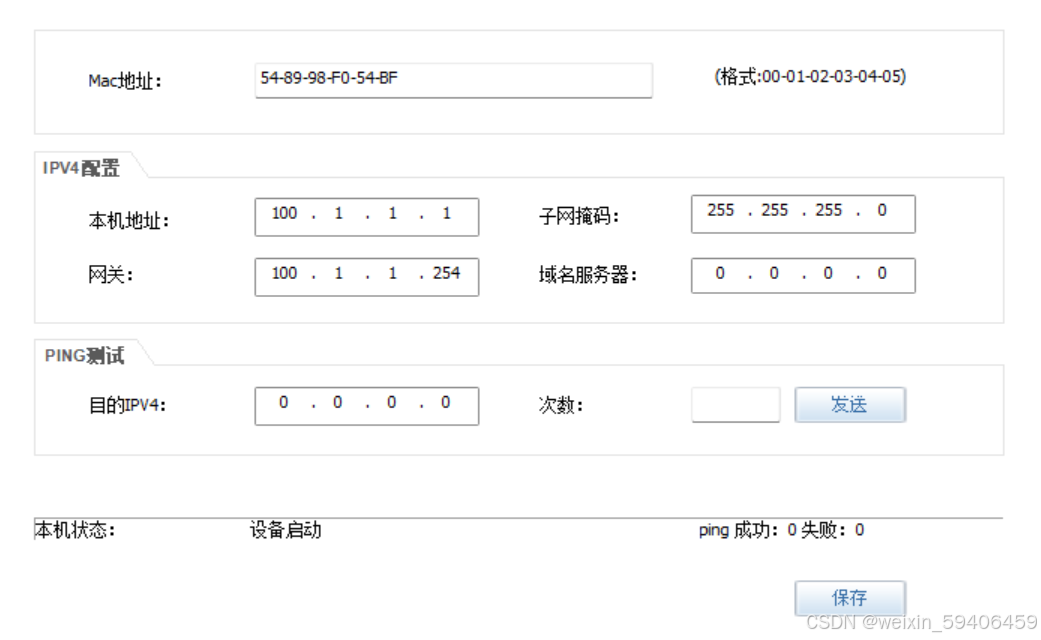

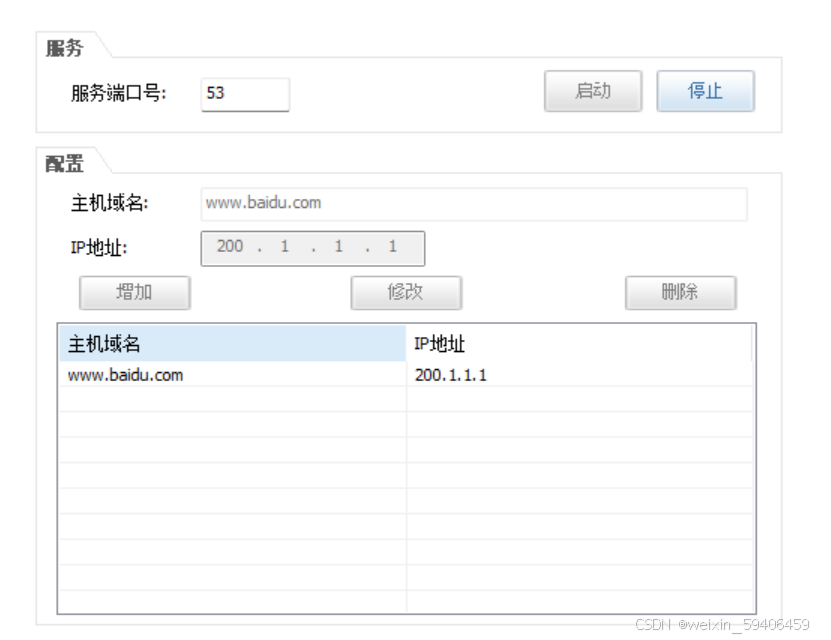

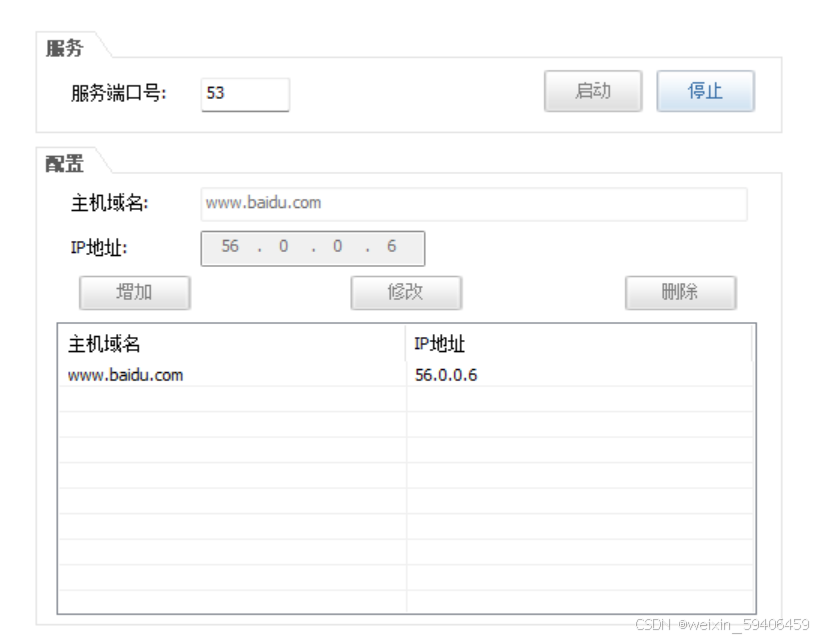

DNS服务器：

内部就可以通讯了

区域互通：

缺省路由：

[R1]ip route-static 0.0.0.0 0 13.0.0.3

NAT：先抓流量，再做地址转换

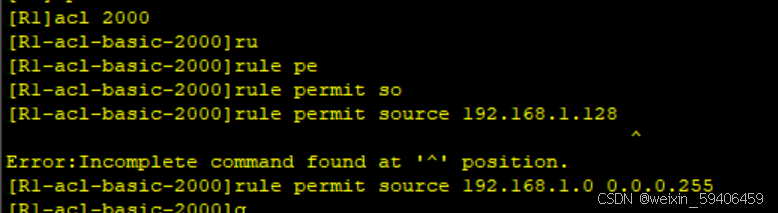

[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255

设定一个nat的地址池包含公有IP地址

[R1]nat address-group 1 13.0.0.10 13.0.0.10

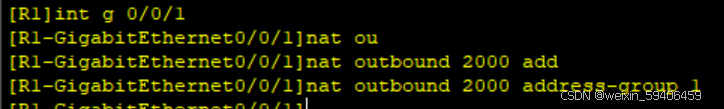

[R1]int g 0/0/1
[R1-GigabitEthernet0/0/1]nat outbound 2000 address-group 1

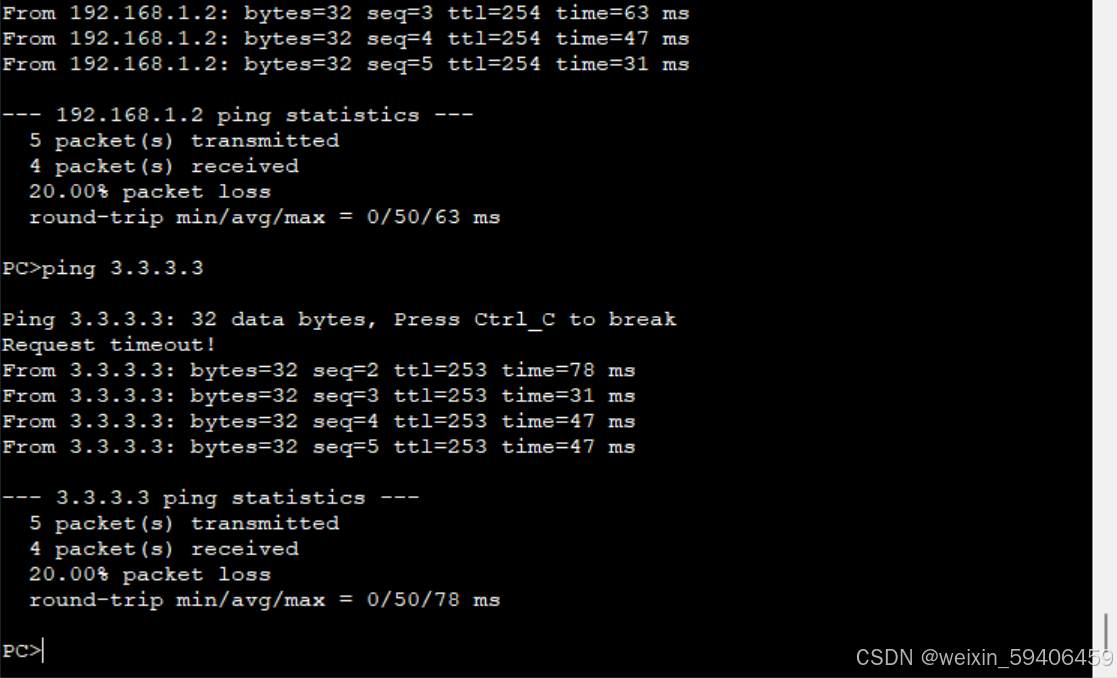

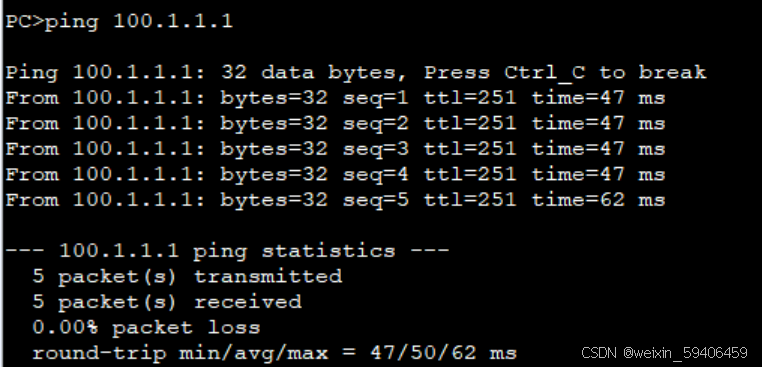

PC就可以连接3.3.3.3和DNS网络了

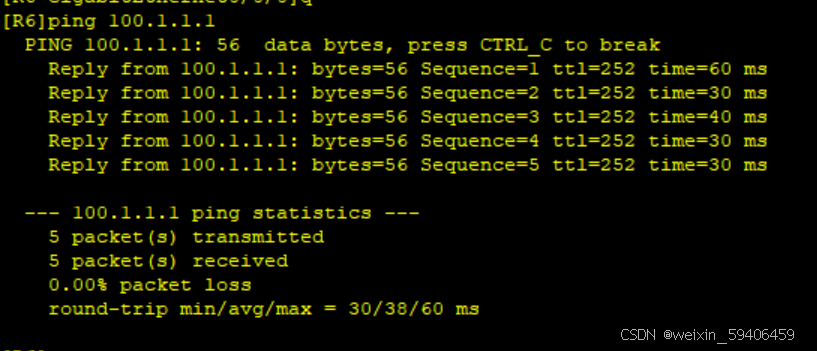

R6路由：

[R6]ip route-static 0.0.0.0 0 56.0.0.5，补充完后就可以连接DNS服务器

修改百度的http服务器地址：

配置R6的端口：

[R6]int g0/0/1
[R6-GigabitEthernet0/0/1]ip address 172.16.1.254 24

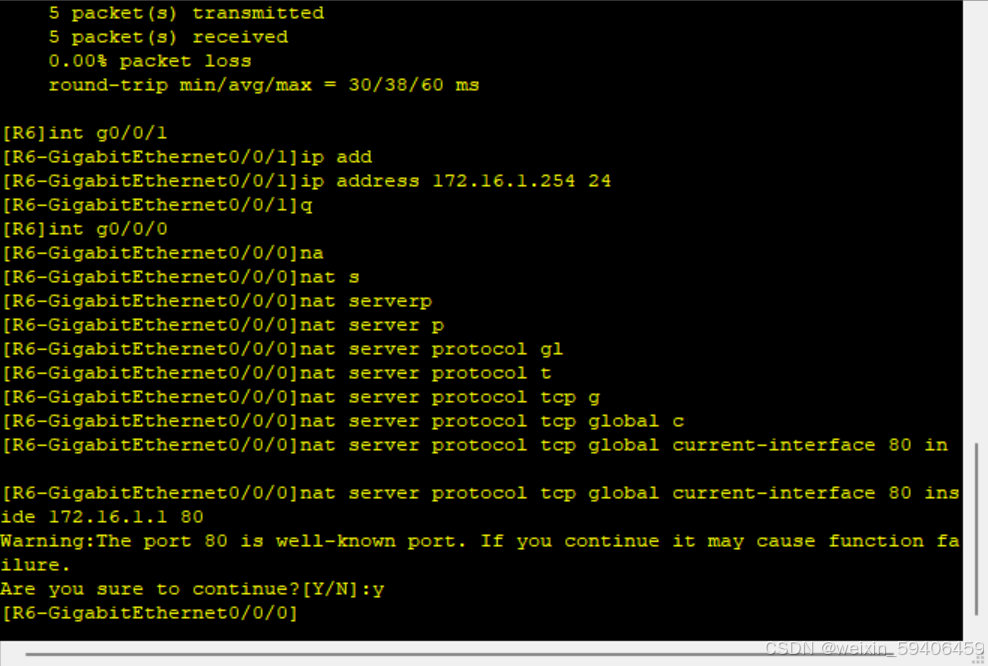

设置端口映射：

[R6]int g0/0/0

[R6-GigabitEthernet0/0/0]nat server protocol tcp global current-interface 80 ins
ide 172.16.1.1 80

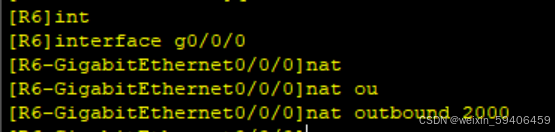

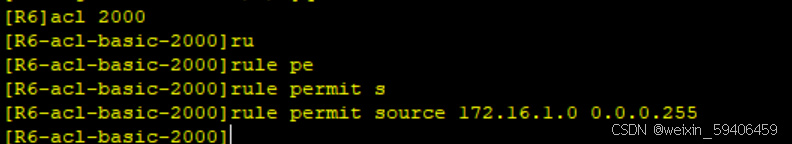

设置NAT:

R6]acl 2000

[R6-acl-basic-2000]rule permit source 172.16.1.0 0.0.0.255

[R6]interface g0/0/0

[R6-GigabitEthernet0/0/0]nat outbound 2000

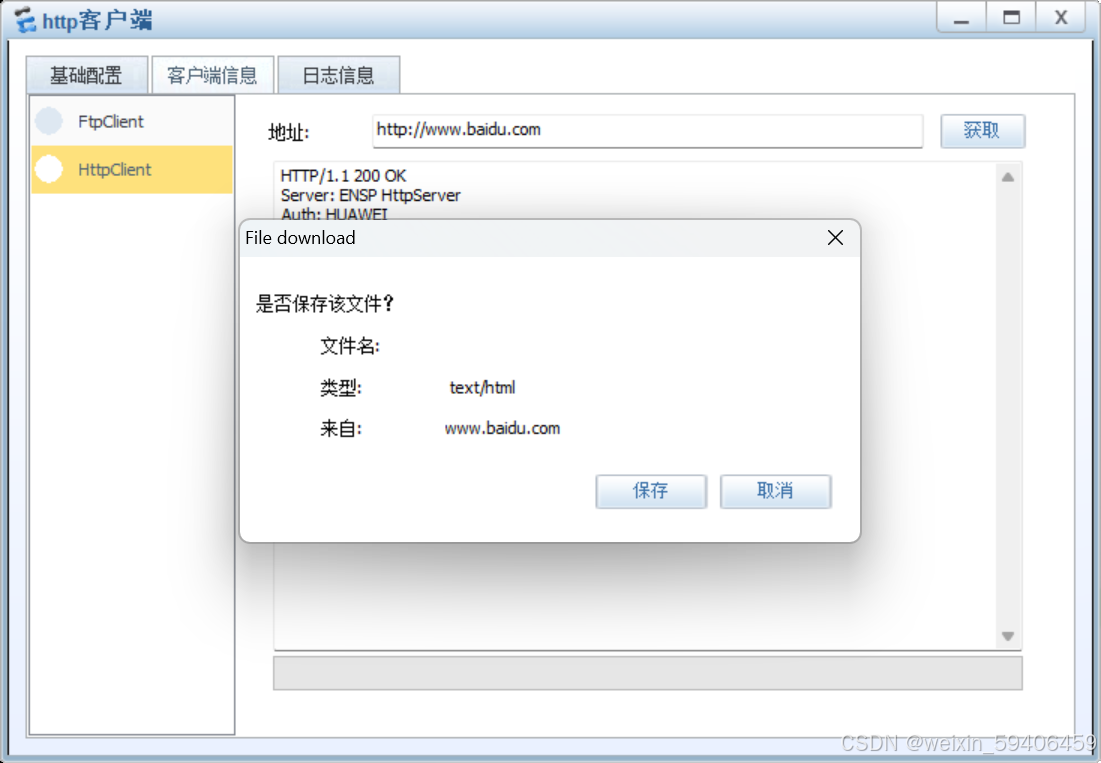

校园网服务器就可以访问百度服务器了

修改DNS和校园网服务器

可以连接了

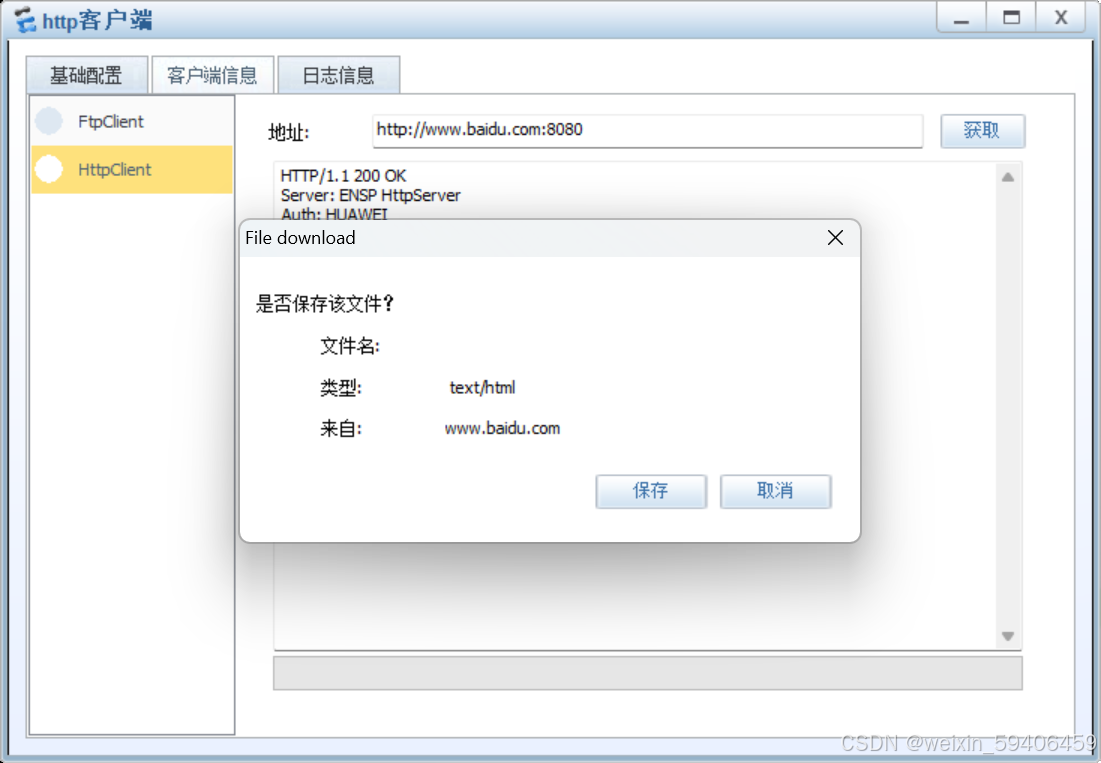

拓展：

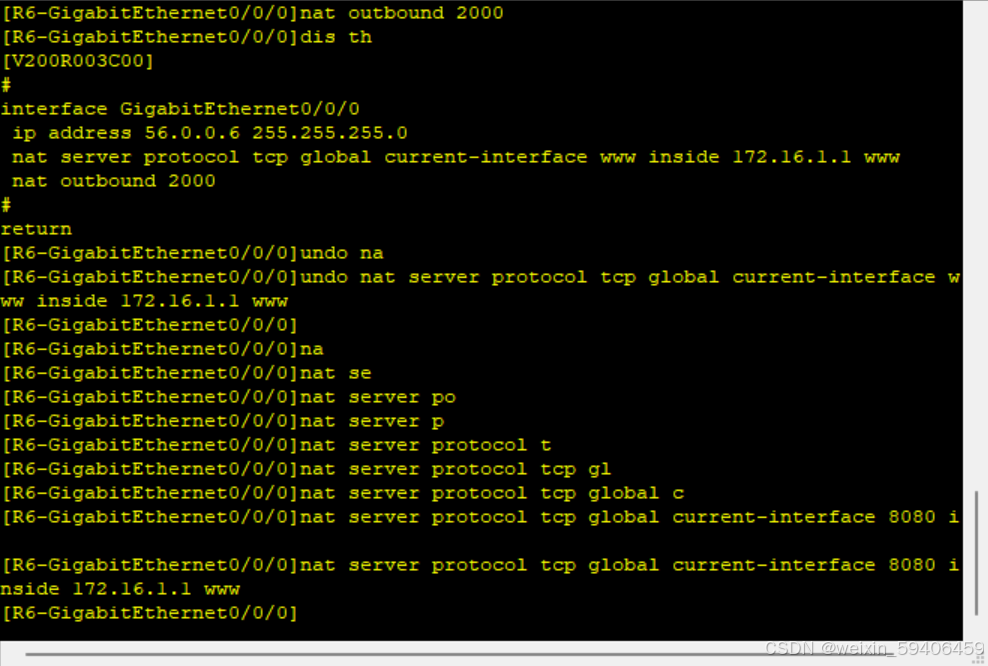

先删除原本设置的端口映射

[R6]interface g0/0/0

[R6-GigabitEthernet0/0/0]dis th

[R6-GigabitEthernet0/0/0]undo nat server protocol tcp global current-interface www inside 172.16.1.1 www

修改为：

[R6-GigabitEthernet0/0/0]nat server protocol tcp global current-interface 8080 i
nside 172.16.1.1 www

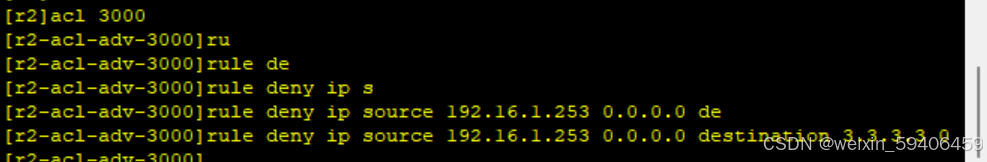

PC2不允许访问3.3.3.3

[r2]acl 3000
[r2-acl-adv-3000]rule deny ip source 192.16.1.253 0.0.0.0 destination 3.3.3.3 0

[r2]int g0/0/0.3

[r2-GigabitEthernet0/0/0.3]traffic-filter inbound acl 3000

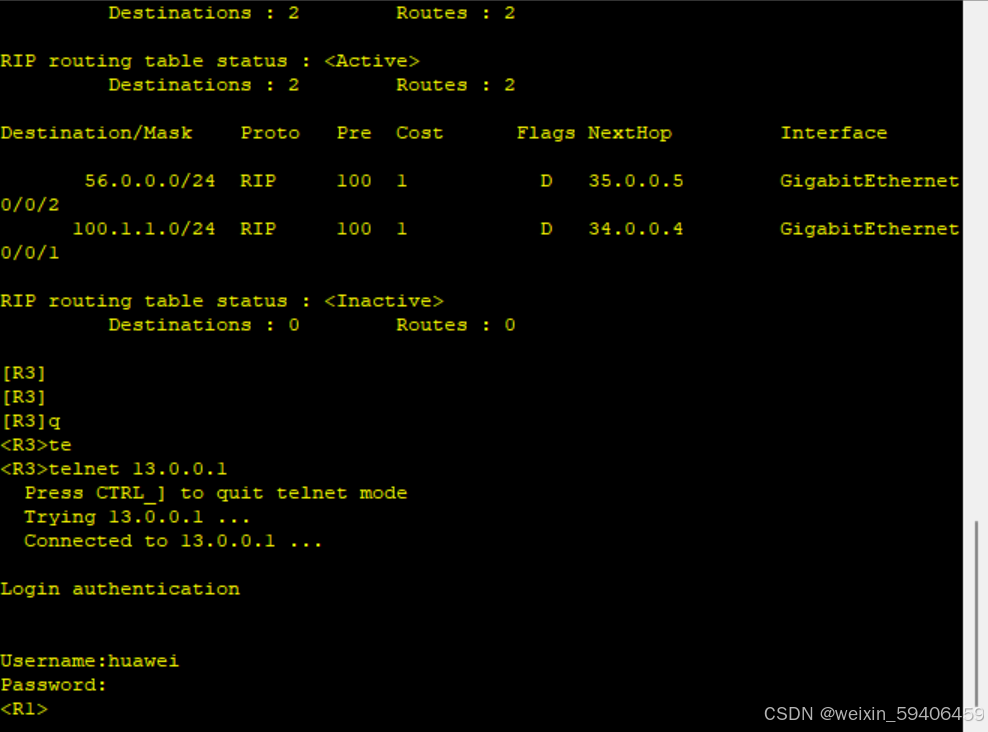

AR1可以被telnet远程控制

aaa是认证授权计费

[R1]user-interface vty 0 4

[R1-ui-vty0-4]authentication-mode aaa

cipher密文文本形式保存

[R1]aaa

[R1-aaa]local-user huawei password cipher 123456

[R1-aaa]local-user huawei privilege level 15

修改服务类型：

[R1-aaa]local-user huawei service-type telnet
