组建旁挂式三层无线无线局域网

目录

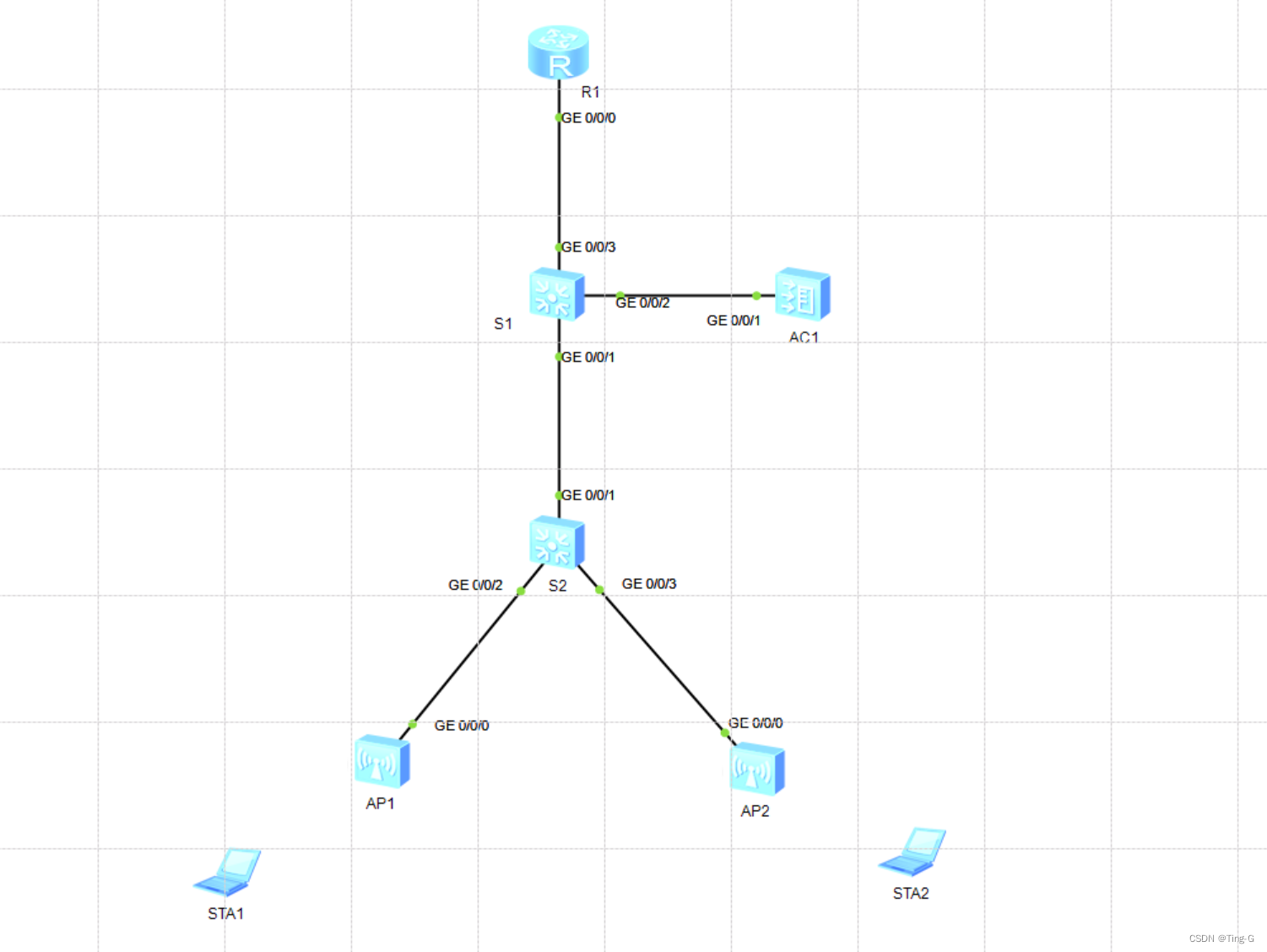

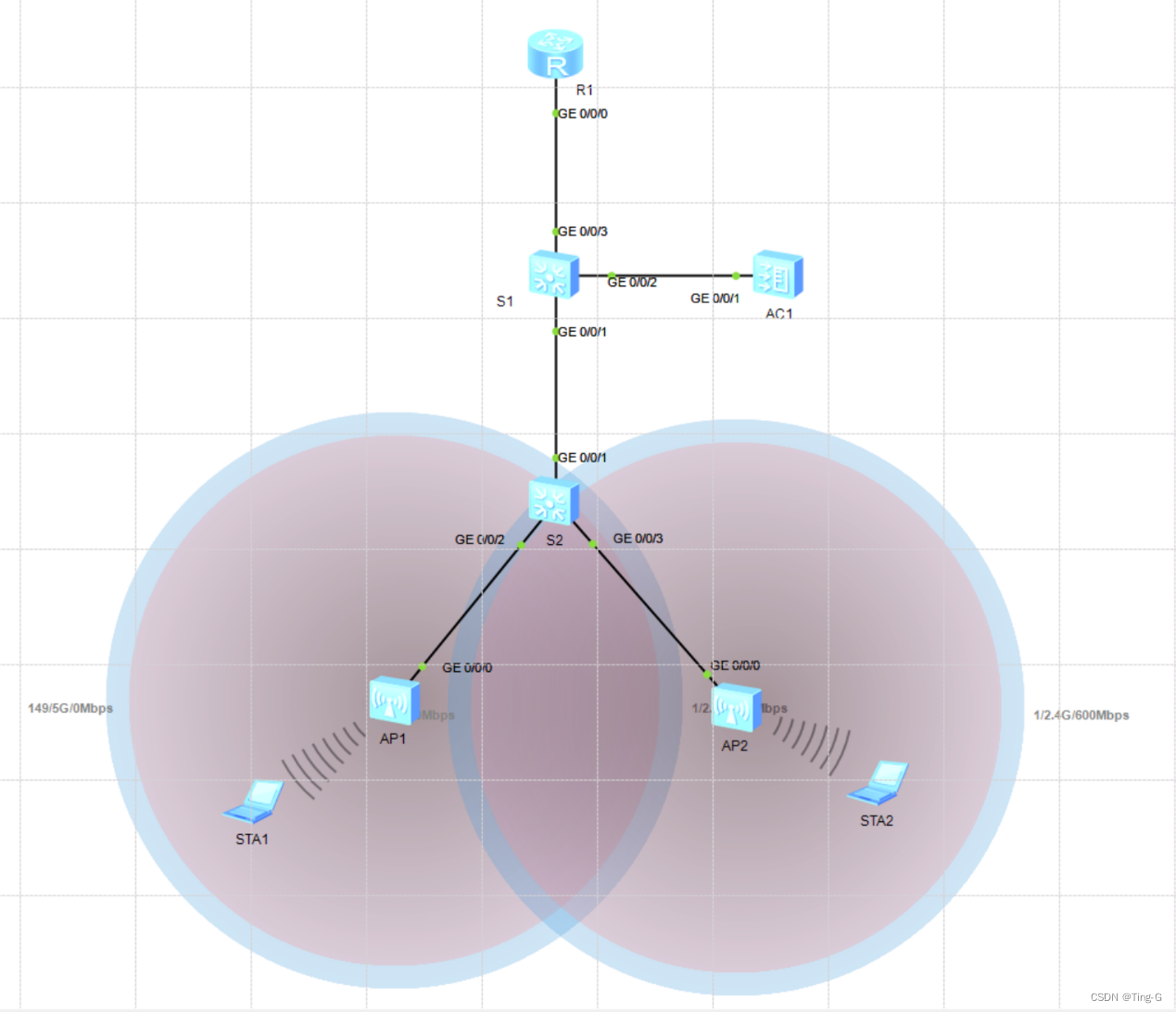

实验拓扑

实验步骤：

vlan部署

检查vlan配置

IP地址的部署

检查IP地址的配置

OSPF的部署，在AC、三层交换机、R1上配置OSPF，使得全网互通。

DHCP的配置

检查DHCP配置

AC的配置

测试连通性：

---

实验拓扑

实验步骤：

1.VLAN部署：在交换机以及AC上配置VLAN、Trunk。

2.IP地址部署： AC、R1上配置IP地址。

3.VLAN间路由部署：在AC、三层交换机、R1上配置OSPF，使得全网互通。

4.DHCP服务部署：在AC上部署DHCP服务，为AP和无线终端提供IP地址；在S1上配置DHCP代理。

5.创建AP组：用于将相同配置的AP都加入同一AP组中。

6.AP上线：配置AP认证方式，把AP加入组，AP上电，确认AP找到AC

7.配置WLAN业务参数：配置安全模板、SSID模板、VAP模板

8.配置AP射频的信道和功率：配置2.4G和5G视频信道和功率优化

vlan部署

S1:

vlan batch 10 100 to 102

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk allow-pass vlan 10 101 to 102

interface GigabitEthernet0/0/2

 port link-type trunk

 port trunk allow-pass vlan 100 to 102

interface GigabitEthernet0/0/3

 port link-type trunk

 port trunk allow-pass vlan 101 to 102

S2:

vlan batch 10 101 to 102

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk allow-pass vlan 10 101 to 102

interface GigabitEthernet0/0/2

 port link-type trunk

 port trunk pvid vlan 10

 port trunk allow-pass vlan 10 101 to 102

interface GigabitEthernet0/0/3

 port link-type trunk

 port trunk pvid vlan 10

 port trunk allow-pass vlan 10 101 to 102

AC:

vlan batch 100 to 102

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk allow-pass vlan 100 to 102

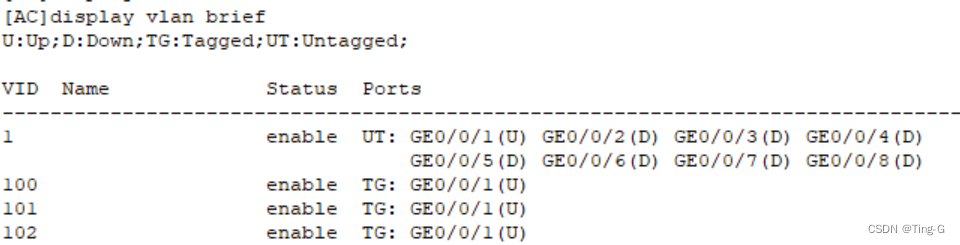

检查vlan配置

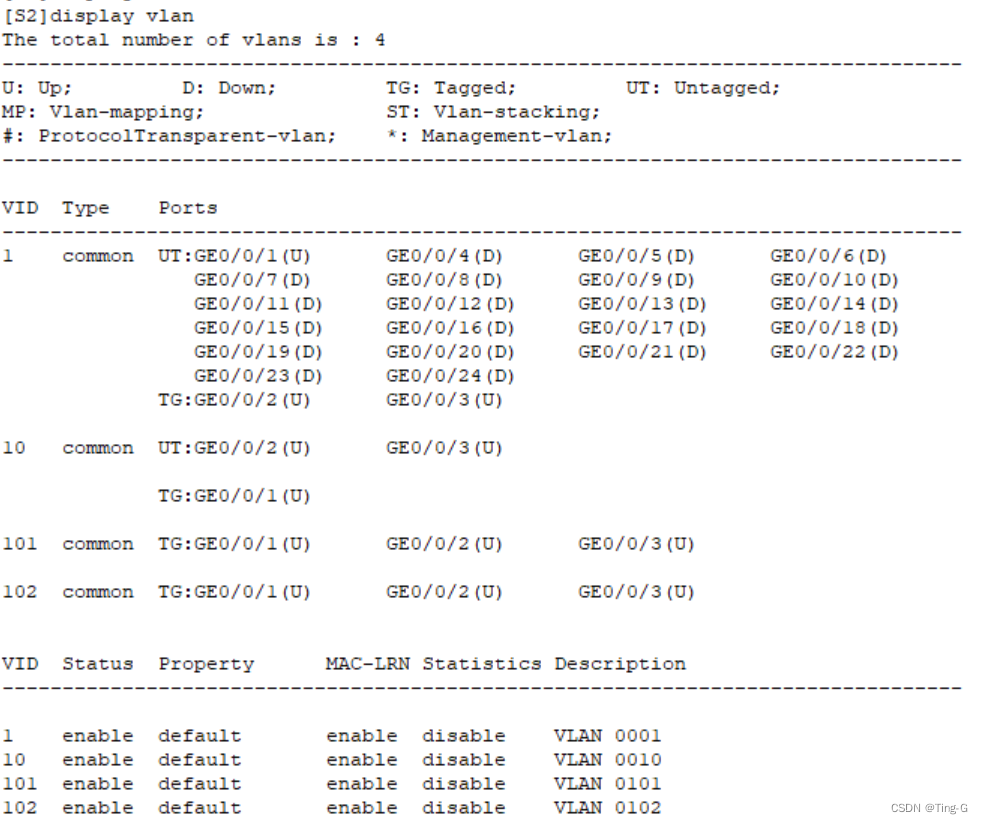

S1:

S2:

AC:

IP地址的部署

R1:

interface GigabitEthernet0/0/0.101

 dot1q termination vid 101

 ip address 10.23.101.2 255.255.255.0

 arp broadcast enable

interface GigabitEthernet0/0/0.102

 dot1q termination vid 102

 ip address 10.23.102.2 255.255.255.0

 arp broadcast enable

interface LoopBack0

 ip address 10.10.10.10 255.255.255.0

S1:

interface Vlanif10

 ip address 10.23.10.1 255.255.255.0

interface Vlanif100

 ip address 10.23.100.1 255.255.255.0

interface Vlanif101

 ip address 10.23.101.1 255.255.255.0

interface Vlanif102

 ip address 10.23.102.1 255.255.255.0

AC:

interface Vlanif100

 ip address 10.23.100.2 255.255.255.0

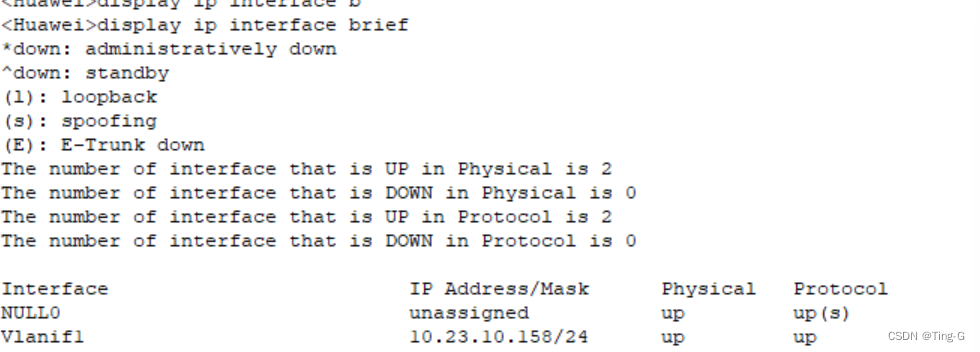

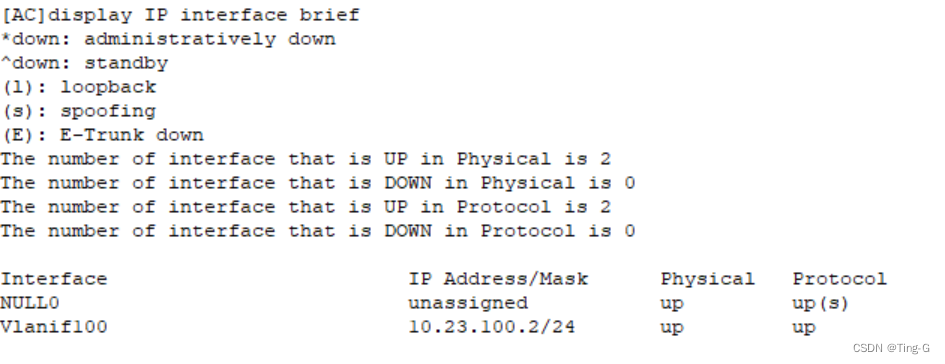

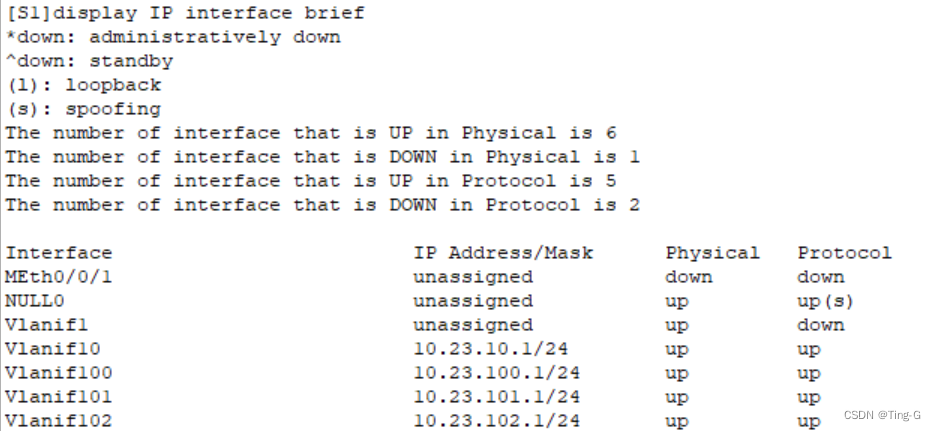

检查IP地址的配置

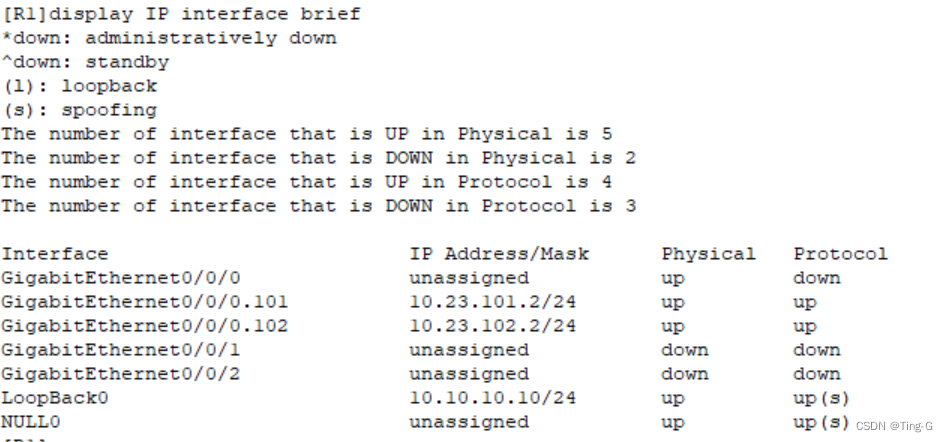

R1:

S1:

AC:

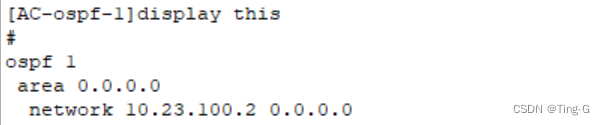

OSPF的部署，在AC、三层交换机、R1上配置OSPF，使得全网互通。

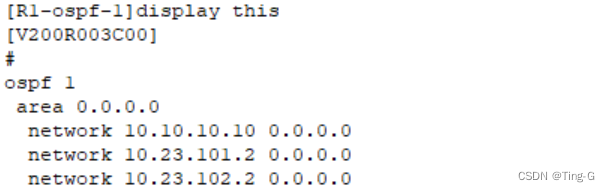

R1:

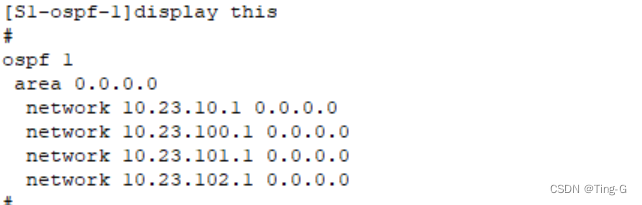

S1:

AC:

DHCP的配置

在AC上创建3个全局地址池。地址池pool huawei为AP提供地址，这个地址池要设置option 43为AP指明AC的IP地址。地址池pool vlan101为VLAN 101的STA提供地址，地址池pool vlan102为VLAN 102的STA提供地址。

AC:

dhcp enable

ip pool ap

 gateway-list 10.23.10.1

 network 10.23.10.0 mask 255.255.255.0

 option 43 sub-option 3 ascii 10.23.100.2

ip pool vlan101

 gateway-list 10.23.101.1

 network 10.23.101.0 mask 255.255.255.0

 dns-list 10.10.10.10

ip pool vlan102

 gateway-list 10.23.102.1

 network 10.23.102.0 mask 255.255.255.0

 dns-list 10.10.10.10

S1:

dhcp enable

interface Vlanif10

dhcp select relay

 dhcp relay server-ip 10.23.100.2

interface Vlanif101

dhcp select relay

 dhcp relay server-ip 10.23.100.2

interface Vlanif102

dhcp select relay

 dhcp relay server-ip 10.23.100.2

接口应用：

AC:

interface Vlanif100

 ip address 10.23.100.2 255.255.255.0

 dhcp select global

检查DHCP配置

检查DHCP配置在两个ap上进行测试，查看是都获取到ip地址

AC的配置

[AC]capwap source interface Vlanif 100   //不要忘记

[AC-wlan-view]ssid-profile  name ap1     //ap信号的名字

[AC-wlan-ssid-prof-ap1]ssid ap1

[AC-wlan-view]ssid-profile  name ap2

[AC-wlan-ssid-prof-ap2]ssid ap2

[AC-wlan-view]security-profile name ap1     // ap信号的密码

[AC-wlan-sec-prof-ap1]security open

[AC-wlan-view]security-profile name ap2

[AC-wlan-sec-prof-ap2]security wpa-wpa2 psk pass-phrase 12345678 aes

[AC-wlan-view]vap-profile name ap1             //ap信号的vap设置
[AC-wlan-vap-prof-ap1]service-vlan vlan-id 101    //关联的业务vlan

[AC-wlan-vap-prof-ap1]ssid-profile ap1            //关联的ssid名称

[AC-wlan-vap-prof-ap1]security-profile ap1         //关联的security

[AC-wlan-view]vap-profile name ap2

[AC-wlan-vap-prof-ap2]service-vlan vlan-id 102

[AC-wlan-vap-prof-ap2] ssid-profile ap2

[AC-wlan-vap-prof-ap2] security-profile ap2

[AC-wlan-view]ap-group name ap                         //ap组

[AC-wlan-ap-group-ap]vap-profile ap1 wlan 1 radio 0

[AC-wlan-ap-group-ap]vap-profile ap1 wlan 1 radio 1

[AC-wlan-ap-group-ap]vap-profile ap2 wlan 2 radio 0

[AC-wlan-ap-group-ap]vap-profile ap2 wlan 2 radio 1

[AC-wlan-view]ap-id 0 ap-mac 00e0-fcc3-1670        //mac地址，可在ap上进行dis arp查看

[AC-wlan-ap-0]ap-name a                           //上线ap的名称

[AC-wlan-ap-0]ap-group ap                         //上线ap所属组

[AC-wlan-view]ap-id 1 ap-mac 00e0-fc8c-5670

[AC-wlan-ap-1]ap-name b

[AC-wlan-ap-1]ap-group ap

创建AP组，用于将相同配置的AP都加入同一AP组中，ap1发射的信号是vlan101的，ap2发射的信号是vlan102的，

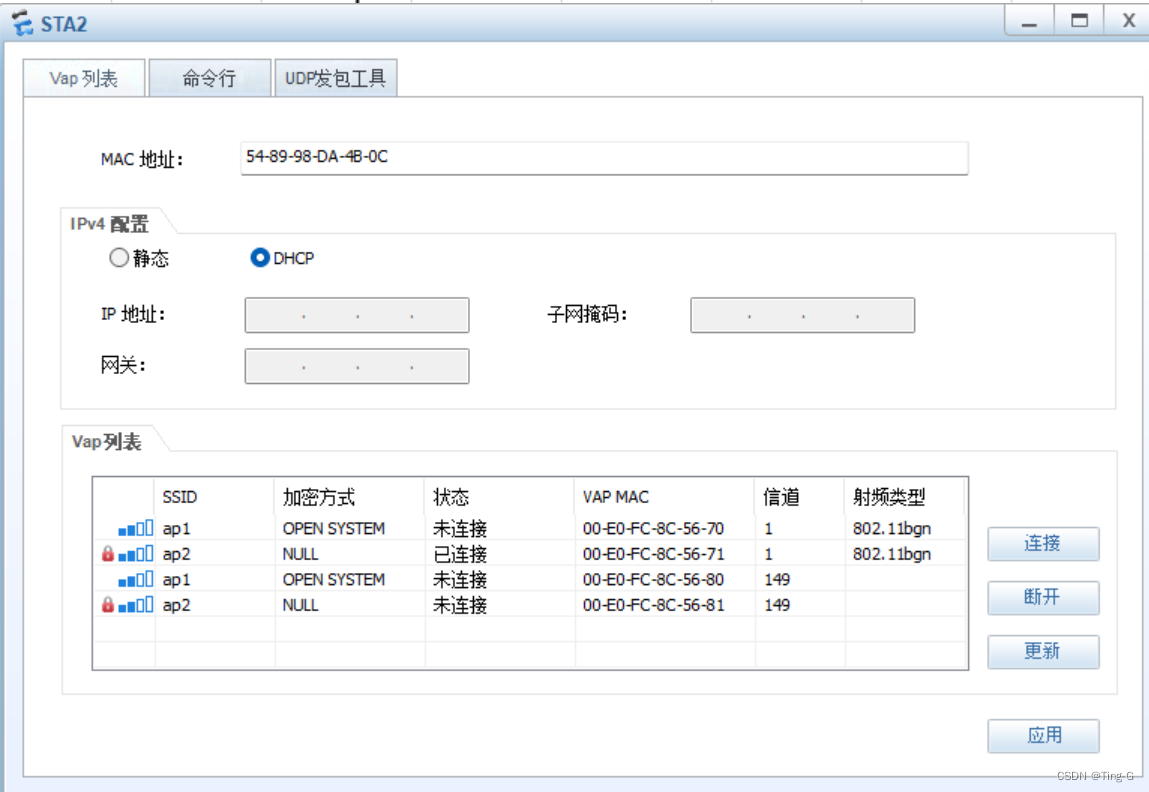

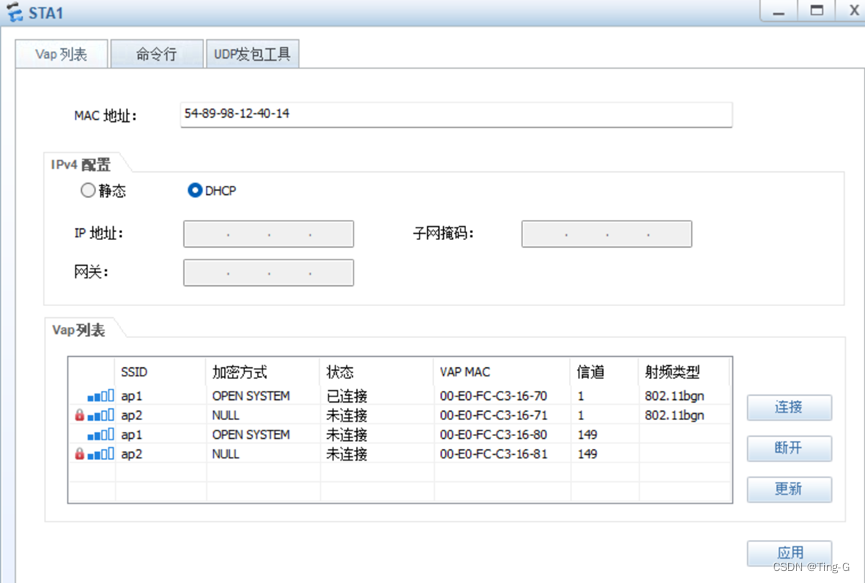

测试连通性：
