1、前言

一生一芯预学习 中需要安装4.210版本Verilator，通过git方式下载所需要版本。

2、步骤

1、官网链接: link.

2、代码

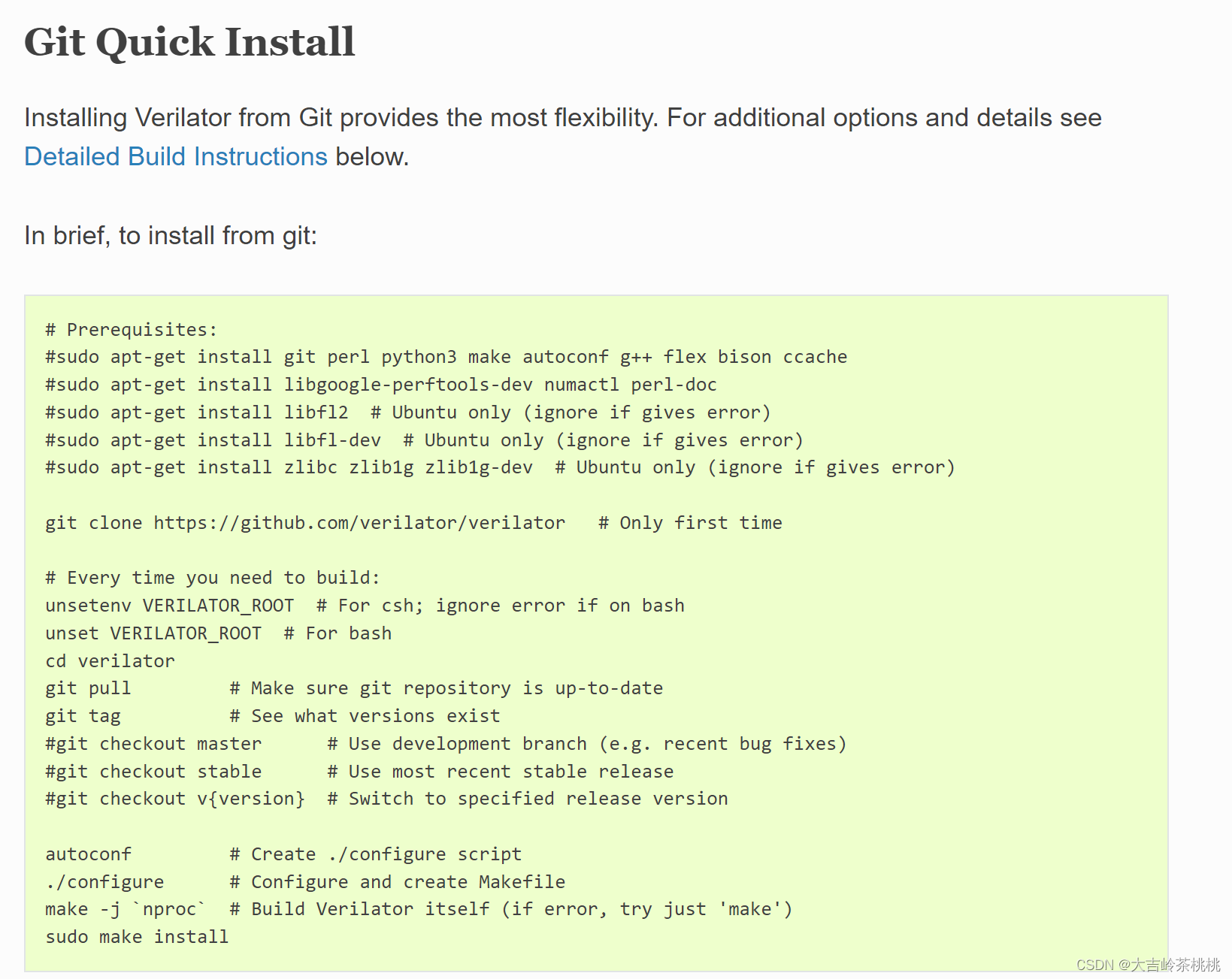

#Prerequisites:
sudo apt-get install git perl python3 make autoconf g++ flex bison ccache
sudo apt-get install libgoogle-perftools-dev numactl perl-doc
sudo apt-get install libfl2 # Ubuntu only (ignore if gives error)
sudo apt-get install libfl-dev # Ubuntu only (ignore if gives error)
sudo apt-get install zlibc zlib1g zlib1g-dev # Ubuntu only (ignore if gives >error)

git clone https://github.com/verilator/verilator # Only first time

#Every time you need to build:
unsetenv VERILATOR_ROOT # For csh; ignore error if on bash
unset VERILATOR_ROOT # For bash
cd verilator
git pull # Make sure git repository is up-to-date
git tag # See what versions exist
#git checkout master # Use development branch (e.g. recent bug fixes)
#git checkout stable # Use most recent stable release
git checkout v4.210 # Switch to specified release version

autoconf # Create ./configure script
./configure # Configure and create Makefile
make -j nproc # Build Verilator itself (if error, try just ‘make’)
sudo make install

3 、查看版本

verilator --version

若输出：

Verilator 4.210 2021-07-07 rev v4.210

则表示安装成功.

4、C++例子

C++例子 官方步骤非常详细。

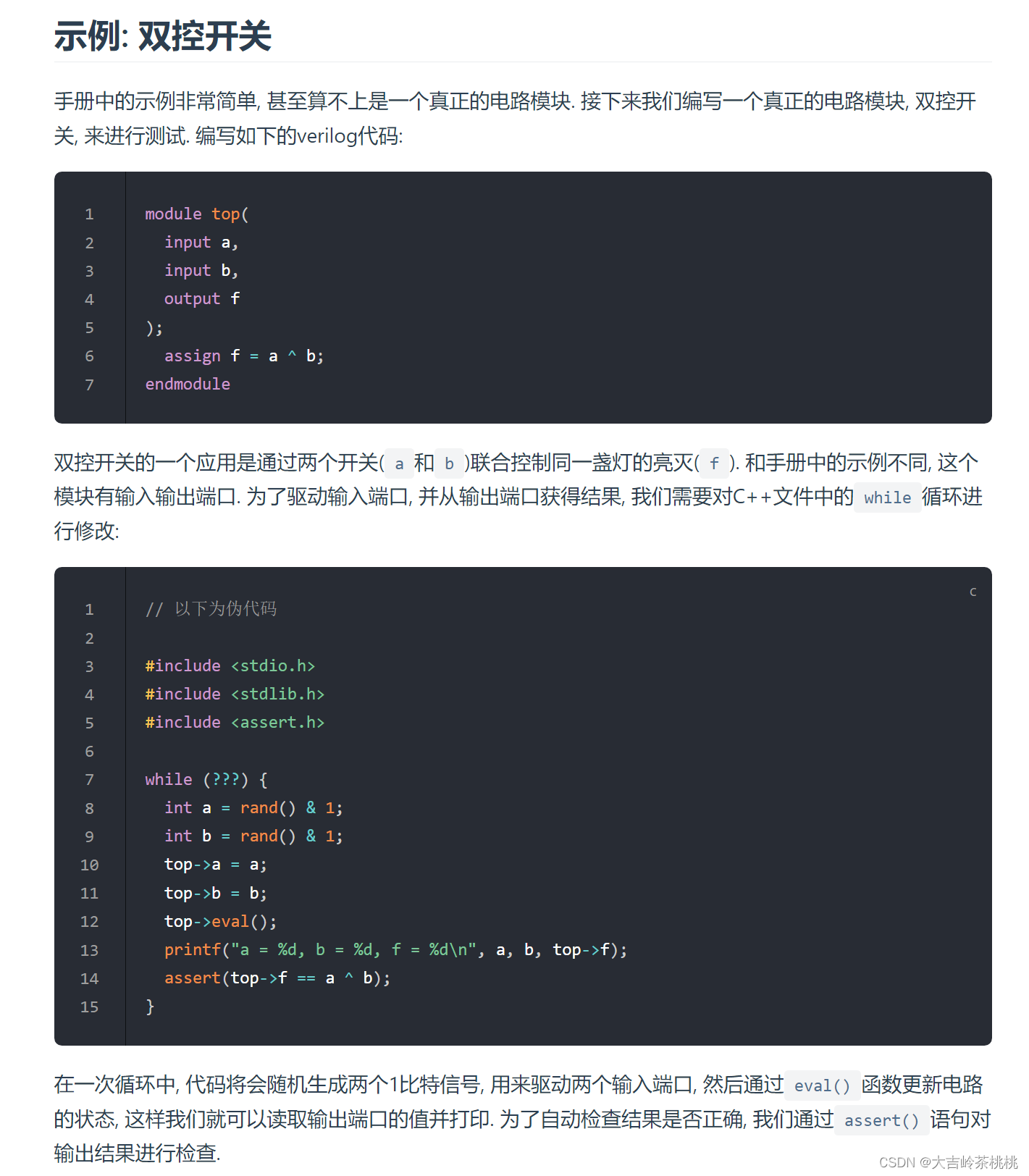

5、示例：双控开关

http://www.icfgblog.com/index.php/Digital/317.html
题目：
