【MyBatis】创建Maven项目型MyBatis

①Eclipse 中打开 【File】----【New】选择【Other】
②选择【 Maven】 下的 【Maven Project】，点击【Next 】
③选择【Create a simple project (skip archetype selection ）】前的复选框，点击【Next】
④输入 Group Id（tk.mybatis ）、 Artifact Id (simpleMaven)、 Version (0.0.1-SNAPSHOT), 点击 【Finish】

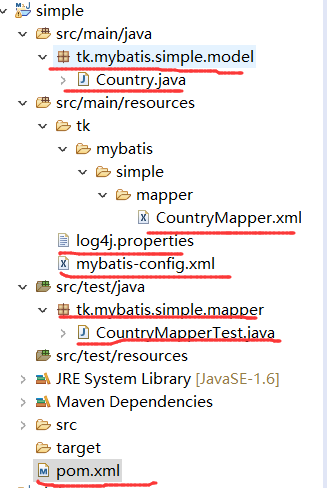

Maven创建完成，如图。

pom.xml配置如下：在内加入

<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
        https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>tk.mybatis</groupId>
  <artifactId>simple</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
  <build>
  <plugins>
     <plugin>
       <artifactId>maven-compiler-plugin</artifactId>
       <configuration>
         <source>1.6</source>
         <target>1.6</target>
       </configuration>
     </plugin>
  </plugins>
</build>
  <dependencies>
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.3.0</version>
</dependency>
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
    <scope>test</scope>
  </dependency>
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.38</version>
  </dependency>
  <dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
    <version>1.7.12</version>
  </dependency>
  <dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-log4j12</artifactId>
    <version>1.7.12</version>
  </dependency>
  <dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
  </dependency>
</dependencies>

①准备数据库

CREATE TABLE country(
id int NOT NULL auto_increment,       //auto_increment主键自动增长
countryname varchar(255)NULL,
countrycode varchar(255)NULL,
PRIMARY KEY(id)
);

insert country(countryname,countrycode)
values('中国','CN'),
      ('美国','US'),
      ('俄罗斯','RU'),
      ('英国','GB'),
      ('法国','FR');

–全局配置文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
       PUBLIC  "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <settings>
    <setting name="logImpl" value="LOG4J"/>
  </settings>
  <typeAliases>
    <package name="model"/>
  </typeAliases>
  <environments default="development">
    <environment id="development">
     <transactionManager type="JDBC">
       <property name="" value=""/>
     </transactionManager>
     <dataSource type="UNPOOLED">
        <property name="driver" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/mybatis"/>
        <property name="username" value="root"/>
        <property name="password" value="root"/>
     </dataSource>
  </environment>
</environments>
<mappers>
    <mapper resource="tk/mybatis/simpleMaven/mapper/CountryMapper.xml"/>
</mappers>
</configuration>

③创建实体类和Mapper.xml文件
src/main/java下创个model包，据DB表country ，在 model 包下创建实体类 Country

package model;
public class Country {
private Long id;
private String countryname;
private String countrycode;
public void setId(Long id) {this.id=id;}
public Long getId() {return id;}
public void setCountryname(String countryname) {this.countryname=countryname;}
public String getCountryname() {return countryname;}

public void setCountrycode(String countrycode) {this.countrycode=countrycode;}
public String getCountrycode() {return countrycode;}
}

src/main/resources 下面创tk/mybatis/simpleMaven/mapper 目录，再在该目录下面创CountryMapper.xml文件，添加如下

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
                    "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="tk.mybatis.simpleMaven.mapper.CountryMapper">
  <select id="selectAll" resultType="Country">
         select id,countryname,countrycode from country;
  </select>
</mapper>

④配置Log4j，以便查看MyBatis操作DB的过程

#全局配置
log4j.rootLogger=ERROR,stdout
#MyBatis日志配置
log4j.logger.tk.mybatis.simpleMaven.mapper.CountryMapper=DEBUG
#控制台输出配置
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p[%t]-%m%n

⑤编写测试代码，运行MyBatis：首先在 src/test/java中创建mapper 包，后创建 CountryMapperTest测试类，代码如下。

package mapper;
import java.io.IOException;
import java.io.Reader;
import java.util.List;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.BeforeClass;
import org.junit.Test;

import model.Country;

public class CountryMapperTest{
 private static SqlSessionFactory sqlSessionFactory;
@BeforeClass
 public static void init(){
 try{
   Reader reader=Resources.getResourceAsReader("mybatis-config.xml");
   sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
   reader.close();
  }
  catch(IOException ignore){ignore.printStackTrace();}
}
@Test
public void testSelectAll(){
SqlSession sqlSession= sqlSessionFactory.openSession();
  try{
List<Country> countryList=sqlSession.selectList("selectAll");
printCountryList(countryList);}
  finally{
//不要忘记关闭 sqlSession
sqlSession.close();
  }

}
private void printCountryList(List<Country> countryList){
for(Country country:countryList){
     System.out.printf("%-4d%4s%4s\n",country.getId(),
    		 country.getCountryname(),country.getCountrycode());
    }
  }
}
