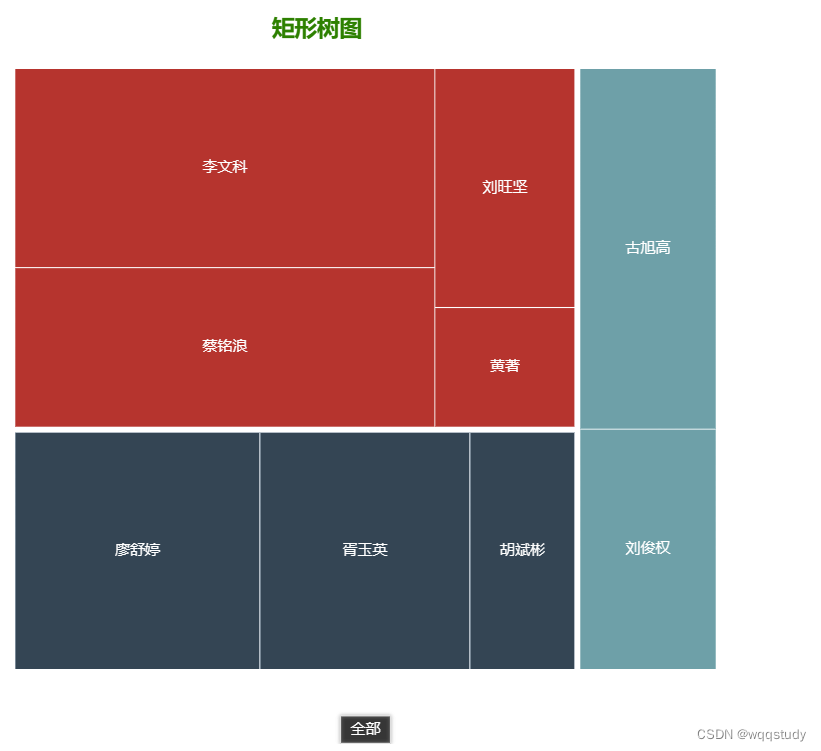

矩形树图(Treemap)是用于展现有群组、层次关系的比例数据的一种分析工具。 它不仅可以通过矩形的面积、排列和颜色来显示复杂的数据关系,并具有群组、层级关系展现的功能,而且能够直观地体现同级之间的比较,呈现树状结构的数据比例关系。
某公司中各销售经理带领的销售代表某月接待客户人数数据,如表所示
<html>
<head>
<meta charset="utf-8">
<!-- 引入 ECharts 文件 -->
<script src="echarts.js"></script>
<title>4-15 矩形树图</title>
</head>
<body>
<!---为ECharts准备一个具备大小(宽高)的DOM--->
<div id="main" style="width: 700px; height: 600px"></div>
<script type="text/javascript">
//基于准备好的DOM,初始化ECharts图表
var myChart = echarts.init(document.getElementById("main"));
//指定图表的配置项和数据
function getLevelOption() {
return [
{
itemStyle: {
borderWidth: 0,
gapWidth: 5
}
},
{
itemStyle: {
gapWidth: 1
}
},
{
colorSaturation: [0.35, 0.5],
itemStyle: {
gapWidth: 1,
borderColorSaturation: 0.6
}
}
];
}
var option = { //指定图表的配置项和数据
title: { //配置标题组件
text: '矩形树图', top: 15,
textStyle: { color: 'green' }, left: 270
},
series: [{
name: '全部',
type: 'treemap',
levels: getLevelOption(),
data: [{
name: '王斌', //First tree
value: 24,
children: [{
name: '黄著', //First leaf of first tree
value: 2
}, {
name: '刘旺坚', //Second leaf of first tree
value: 4
}, {
name: '李文科', //Second leaf of first tree
value: 10
}, {
name: '蔡铭浪', //Second leaf of first tree
value: 8
}]
}, {
name: '刘倩', //First tree
value: 16,
children: [{
name: '胡斌彬', //First leaf of first tree
value: 3
}, {
name: '廖舒婷', //Second leaf of first tree
value: 7
}, {
name: '胥玉英', //Second leaf of first tree
value: 6
}]
}, {
name: '袁波', //First tree
value: 10,
children: [{
name: '刘俊权', //First leaf of first tree
value: 4
}, {
name: '古旭高', //Second leaf of first tree
value: 6
}]
}]
}]
};
//使用刚指定的配置项和数据显示图表
myChart.setOption(option);
</script>
</body>
</html>
