QTableView及QTableWidget实现自适应调整表格单元格的的宽度以及高度,具体实现效果如下:
一、宽度自适应调整:
1、当表格的宽度大于内容的总宽度时,能够根据每个单元格内容的宽度比例,自动拉伸每列的宽度,来填满整个表格视图宽度;
2、如果表格宽度小于单元格内容或最小宽度之和,单元格宽度将不再继续缩小,将自动显示水平滚动条来显示表格内容。

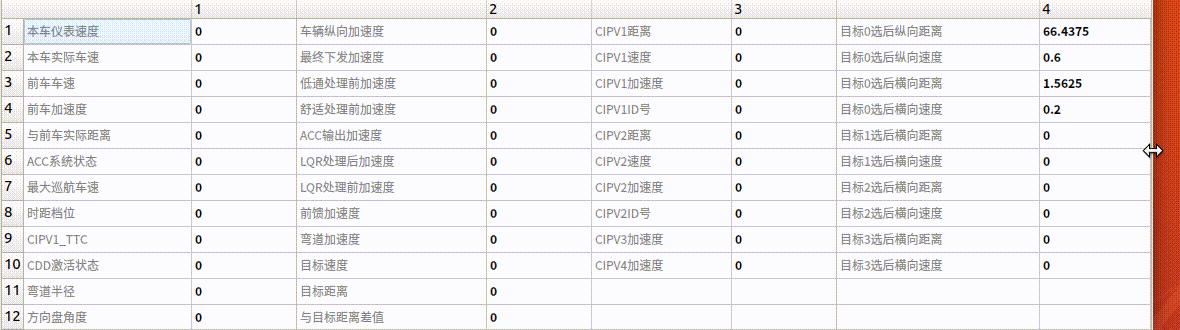

实现效果如下:
具体实现代码如下:
void CustomTableView::autoAdjustTableItemWidth()
{
// 设置水平滚动条策略为按需显示
this->setHorizontalScrollBarPolicy(Qt::ScrollBarAsNeeded);
// 获取水平表头
QHeaderView *hHeaderView = this->horizontalHeader();
// 设置列的调整模式为根据内容自动调整大小
hHeaderView->setSectionResizeMode(QHeaderView::ResizeToContents);
// 计算所有列的总宽度
int section_total_width = 0;
for (int col = 0; col < hHeaderView->count(); ++col)
section_total_width += hHeaderView->sectionSize(col);
// 恢复列的调整模式为交互式
hHeaderView->setSectionResizeMode(QHeaderView::Interactive);
// 获取水平表头的宽度
int hHeaderWidth = hHeaderView->width();
// 如果水平表头的宽度大于所有列的总宽度
if (hHeaderWidth > section_total_width){
// 计算缩放比例
float scale = hHeaderWidth / float(section_total_width);
int width_sum = 0;
// 根据缩放比例调整每列的宽度
for (int col = 0; col < hHeaderView->count() - 1; ++col) {
int cell_width = hHeaderView->sectionSize(col) * scale;
hHeaderView->resizeSection(col, cell_width);
width_sum += cell_width;
}
// 调整最后一列的宽度,确保总宽度与表头宽度一致
hHeaderView->resizeSection(hHeaderView->count() - 1, hHeaderWidth - width_sum);
}
}
二、高度自适应调整:
1、当表格高度大于单元格最小高度之和,并且小于单元格最大高度之和时,将自动拉伸表格单元格的高度,来填满整个表格视图高度;
2、当表格高度小于单元格最小高度之和,单元格高度将不再继续缩小,将自动显示垂直滚动条来显示表格内容;
3、当表格高度大于单元格最大高度之和,单元格高度将不再继续放大,表格下方留白显示。

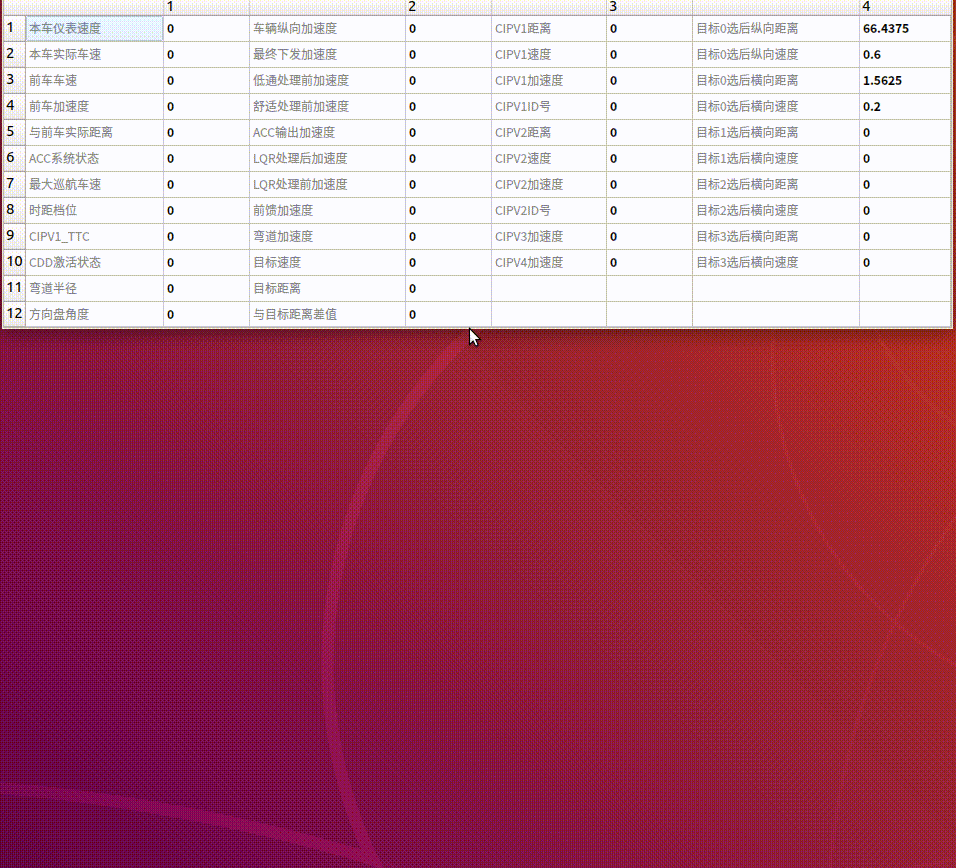

实现效果如下:
具体实现代码如下:
void CustomTableView::autoAdjustTableItemHeight()
{
// 获取垂直表头
QHeaderView *vHeaderView = this->verticalHeader();
// 获取垂直表头的高度
int vHeaderHeight = vHeaderView->height();
// 计算每行的理论高度,以保证均匀分配表头高度
int cell_height = vHeaderHeight / vHeaderView->count();
// 如果每行的理论高度大于最大值
if(cell_height > vHeaderView->maximumSectionSize()){
// 将表头的调整模式设置为交互式
vHeaderView->setSectionResizeMode(QHeaderView::Interactive);
// 将所有行的高度设置为最大值
for(int row = 0; row < vHeaderView->count(); row++)
vHeaderView->resizeSection(row, vHeaderView->maximumSectionSize());
}
else{
// 如果理论高度小于等于最大值,将表头的调整模式设置为拉伸(Stretch)
vHeaderView->setSectionResizeMode(QHeaderView::Stretch);
}
}
然后在表格的显示事件(showEvent)以及大小改变事件(resizeEvent)中调用这两个自适应调整函数,即可实现表格单元格自适应拉伸效果。完整代码如下:
- CustomTableView.h:
#pragma once
#include <QTableView>
class CustomTableView : public QTableView
{
Q_OBJECT
public:
CustomTableView(QWidget *parent=nullptr);
void autoAdjustTableItemWidth();
void autoAdjustTableItemHeight();
protected:
void resizeEvent(QResizeEvent *event);
void showEvent(QShowEvent *event);
};
- CustomTableView.cpp:
#include "CustomTableView.h"
#include <QHeaderView>
CustomTableView::CustomTableView(QWidget *parent) : QTableView (parent)
{
this->horizontalHeader()->setMinimumWidth(60);//设置水平单元格最小宽度
this->verticalHeader()->setMinimumSectionSize(18);//设置垂直单元格最小高度
this->verticalHeader()->setMaximumSectionSize(30);//设置垂直单元格最大高度
}
void CustomTableView::resizeEvent(QResizeEvent *event)
{
QTableView::resizeEvent(event);
autoAdjustTableItemWidth();
autoAdjustTableItemHeight();
}
void CustomTableView::showEvent(QShowEvent *event)
{
QTableView::showEvent(event);
autoAdjustTableItemWidth();
autoAdjustTableItemHeight();
}
void CustomTableView::autoAdjustTableItemWidth()
{
// 设置水平滚动条策略为按需显示
this->setHorizontalScrollBarPolicy(Qt::ScrollBarAsNeeded);
// 获取水平表头
QHeaderView *hHeaderView = this->horizontalHeader();
// 设置列的调整模式为根据内容自动调整大小
hHeaderView->setSectionResizeMode(QHeaderView::ResizeToContents);
// 计算所有列的总宽度
int section_total_width = 0;
for (int col = 0; col < hHeaderView->count(); ++col)
section_total_width += hHeaderView->sectionSize(col);
// 恢复列的调整模式为交互式
hHeaderView->setSectionResizeMode(QHeaderView::Interactive);
// 获取水平表头的宽度
int hHeaderWidth = hHeaderView->width();
// 如果水平表头的宽度大于所有列的总宽度
if (hHeaderWidth > section_total_width){
// 计算缩放比例
float scale = hHeaderWidth / float(section_total_width);
int width_sum = 0;
// 根据缩放比例调整每列的宽度
for (int col = 0; col < hHeaderView->count() - 1; ++col) {
int cell_width = hHeaderView->sectionSize(col) * scale;
hHeaderView->resizeSection(col, cell_width);
width_sum += cell_width;
}
// 调整最后一列的宽度,确保总宽度与表头宽度一致
hHeaderView->resizeSection(hHeaderView->count() - 1, hHeaderWidth - width_sum);
// 关闭水平滚动条,因为此时表头宽度已经足够显示所有列
this->setHorizontalScrollBarPolicy(Qt::ScrollBarAlwaysOff);
}
}
void CustomTableView::autoAdjustTableItemHeight()
{
// 获取垂直表头
QHeaderView *vHeaderView = this->verticalHeader();
// 获取垂直表头的高度
int vHeaderHeight = vHeaderView->height();
// 计算每行的理论高度,以保证均匀分配表头高度
int cell_height = vHeaderHeight / vHeaderView->count();
// 如果每行的理论高度大于最大值
if(cell_height > vHeaderView->maximumSectionSize()){
// 将表头的调整模式设置为交互式
vHeaderView->setSectionResizeMode(QHeaderView::Interactive);
// 将所有行的高度设置为最大值
for(int row = 0; row < vHeaderView->count(); row++)
vHeaderView->resizeSection(row, vHeaderView->maximumSectionSize());
}
else{
// 如果理论高度小于等于最大值,将表头的调整模式设置为拉伸(Stretch)
vHeaderView->setSectionResizeMode(QHeaderView::Stretch);
}
}
