在OpenCV的学习中,经常会用到文件的输入输出,特别是XML和YAML格式的输出文件,如果大家有做过人脸识别就可以体会到,用主分量分析法得到的特征脸、平均脸等等数据都会被保存成为XML格式,方便下次使用时调用,OpenCV2版本比OpenCV1版本省去了很多函数,大家通过OpenCV中文网就可以查到,而且OpenCV2版本的输入输出使用与STL相同的 <</>> 输入/输出操作符,实现起来非常简单,在学习的过程中要特别注意,输入输出是map数据结构还是sequence数据结构,这两种结构上的操作会有所不同,现在我们就看看范例吧。
1、代码实现
- #include "stdafx.h"
-
-
- #include <opencv2/core/core.hpp>
- #include <iostream>
- #include <string>
-
- using namespace cv;
- using namespace std;
-
- static void help()
- {
- cout << endl
- <<" shows the usage of the OpenCV serialization functionality." << endl
- << "usage: " << endl
- << " outputfile.yml.gz" << endl
- << "The output file may be either XML (xml) or YAML (yml/yaml). You can even compress it by "
- << "specifying this in its extension like xml.gz yaml.gz etc... " << endl
- << "With FileStorage you can serialize objects in OpenCV by using the << and >> operators" << endl
- << "For example: - create a class and have it serialized" << endl
- << " - use it to read and write matrices." << endl;
- }
-
- class MyData
- {
- public:
- MyData() : A(0), X(0), id()
- {}
- explicit MyData(int) : A(97), X(CV_PI), id("mydata1234")
- {}
- void write(FileStorage& fs) const
- {
- fs << "{" << "A" << A << "X" << X << "id" << id << "}";
- }
- void read(const FileNode& node)
- {
- A = (int)node["A"];
- X = (double)node["X"];
- id = (string)node["id"];
- }
- public:
- int A;
- double X;
- string id;
- };
-
-
- static void write(FileStorage& fs, const std::string&, const MyData& x)
- {
- x.write(fs);
- }
- static void read(const FileNode& node, MyData& x, const MyData& default_value = MyData()){
- if(node.empty())
- x = default_value;
- else
- x.read(node);
- }
-
-
- static ostream& operator<<(ostream& out, const MyData& m)
- {
- out << "{ id = " << m.id << ", ";
- out << "X = " << m.X << ", ";
- out << "A = " << m.A << "}";
- return out;
- }
-
- int main(int ac, char** av)
- {
-
- string filename = "F:\\OpenCV2.4.8\\file_input_output\\file_input_output\\input_output.xml";
- {
- Mat R = Mat_<uchar>::eye(3, 3),
- T = Mat_<double>::zeros(3, 1);
- MyData m(1);
-
- FileStorage fs(filename, FileStorage::WRITE);
-
- fs << "iterationNr" << 100;
- fs << "strings" << "[";
- fs << "image1.jpg" << "Awesomeness" << "baboon.jpg";
- fs << "]";
-
- fs << "Mapping";
- fs << "{" << "One" << 1;
- fs << "Two" << 2 << "}";
-
- fs << "R" << R;
- fs << "T" << T;
-
- fs << "MyData" << m;
-
- fs.release();
- cout << "Write Done." << endl;
- }
-
- {
- cout << endl << "Reading: " << endl;
- FileStorage fs;
- fs.open(filename, FileStorage::READ);
-
- int itNr;
-
- itNr = (int) fs["iterationNr"];
- cout << itNr;
- if (!fs.isOpened())
- {
- cerr << "Failed to open " << filename << endl;
- help();
- return 1;
- }
-
- FileNode n = fs["strings"];
- if (n.type() != FileNode::SEQ)
- {
- cerr << "strings is not a sequence! FAIL" << endl;
- return 1;
- }
-
- FileNodeIterator it = n.begin(), it_end = n.end();
- for (; it != it_end; ++it)
- cout << (string)*it << endl;
-
-
- n = fs["Mapping"];
- cout << "Two " << (int)(n["Two"]) << "; ";
- cout << "One " << (int)(n["One"]) << endl << endl;
-
-
- MyData m;
- Mat R, T;
-
- fs["R"] >> R;
- fs["T"] >> T;
- fs["MyData"] >> m;
-
- cout << endl
- << "R = " << R << endl;
- cout << "T = " << T << endl << endl;
- cout << "MyData = " << endl << m << endl << endl;
-
-
- cout << "Attempt to read NonExisting (should initialize the data structure with its default).";
- fs["NonExisting"] >> m;
- cout << endl << "NonExisting = " << endl << m << endl;
- }
-
- cout << endl
- << "Tip: Open up " << filename << " with a text editor to see the serialized data." << endl;
- char ch=NULL;
- while (ch!='c')
- {
- cin>>ch;
- }
- return 0;
- }
2、运行结果

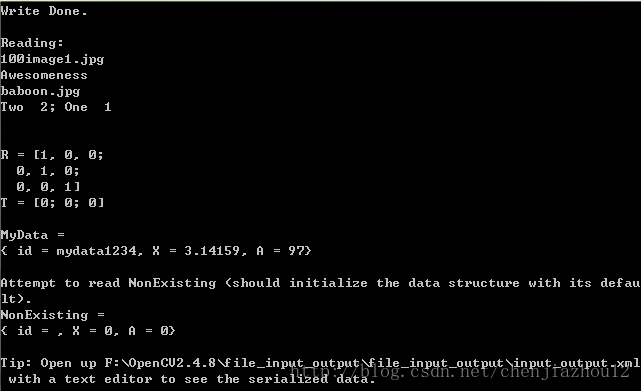

图1、运行结果

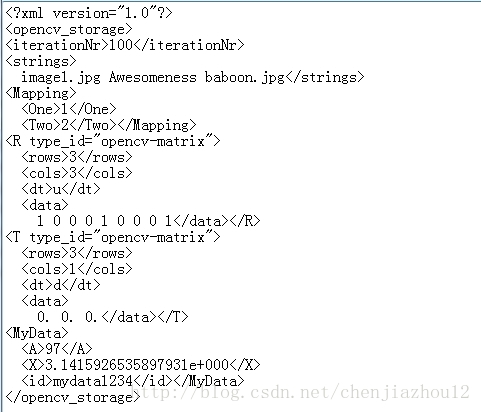

图2、文件格式
3、总结
范例很简单,大家看看就可以明白了,这里强调的两点是:
①、输入输出是sequence还是map
sequence:输入操作:在第一个元素前输出“[”字符,并在最后一个元素后输出“]”字符。如:
- fs << "strings" << "[";
- fs << "image1.jpg" << "Awesomeness" << "baboon.jpg";
- fs << "]";
输出操作:
可使用
FileNode
和
FileNodeIterator
数据结构。
FileStorage
的[] 操作符将返回一个
FileNode
数据类型。如果这个节点是序列化的,我们可以使用
FileNodeIterator
来迭代遍历所有元素。如:
- FileNode n = fs["strings"];
- if (n.type() != FileNode::SEQ)
- {
- cerr << "strings is not a sequence! FAIL" << endl;
- return 1;
- }
-
- FileNodeIterator it = n.begin(), it_end = n.end();
- for (; it != it_end; ++it)
- cout << (string)*it << endl;
map: 输入操作:
采用”{“和”}“作为分隔符。如:
- fs << "Mapping";
- fs << "{" << "One" << 1;
- fs << "Two" << 2 << "}";
输出操作:
可以用 [] 操作符访问指定的元素(或者 >> 操作符)。如:
- n = fs["Mapping"];
- cout << "Two " << (int)(n["Two"]) << "; ";
- cout << "One " << (int)(n["One"]) << endl << endl;
②、读写自定义类型
读写自定义类型时,需要自己写内部和外部的读写函数,学完后就可以使用OpenCV I/O XML/YAML接口对其进行序列化(就像对OpenCV数据结构进行序列化一样)。
4、用到的类和函数
FileStorage:
功能:文件存储结构
当OpenCV想打开或保存文件时,可以使用FileStorage的构造函数,或者用open()函数
- string filename = "I.xml";
- FileStorage fs(filename, FileStorage::WRITE);
- \\...
- fs.open(filename, FileStorage::READ);
无论以哪种方式绑定,函数中的第二个参数都以常量形式指定你要对文件进行操作的类型,包括:WRITE, READ 或 APPEND。文件扩展名决定了你将采用的输出格式。如果你指定扩展名如
.xml.gz
,输出甚至可以是压缩文件。
当 FileStorage对象被销毁时,文件将自动关闭。当然你也可以显示调用 release 函数:
FileNode:
功能:体现了文件存储的每一个元素。
FileStorage 的[] 操作符将返回一个 FileNode 数据类型,它可以是一个矩阵、数据、头结点等等,包含了所有的文件内容,而文件节点的类型可以通过 FileNode::type()方法获得。
FileNodeIterator:
功能:文件迭代遍历
可以通过它迭代遍历所有元素,具体功能见前面代码,之前博客也有介绍过迭代遍历,功能、方法都差不多。
转自 chenjianzhou12的专栏
