本文详细介绍了ROS_Control中的hardware_interface模块，包括其主要数据结构如resource_handle、hardware_interface和RobotHW等，以及如何通过自定义实现扩展功能。同时给出了具体的代码示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

hardware_interface在ros_control中占有重要地位，controller通过hardware_interface与机器人硬件获得连接。

1 hardware_interface主要数据结构

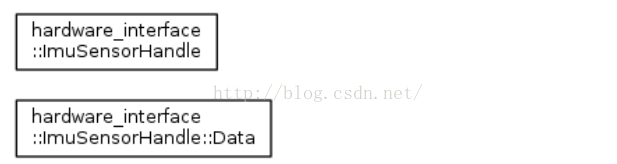

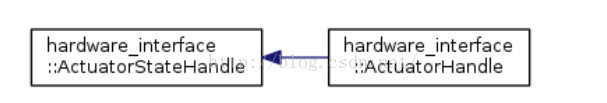

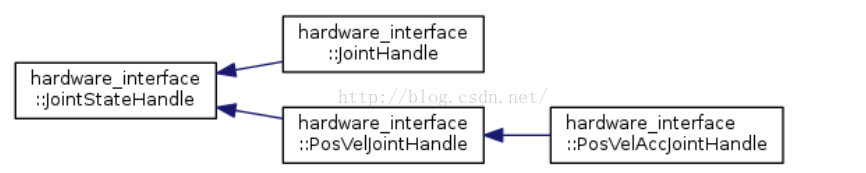

1.1 resource handle

这些handle主要功能包括存入resource，并提供相应获取resource接口。

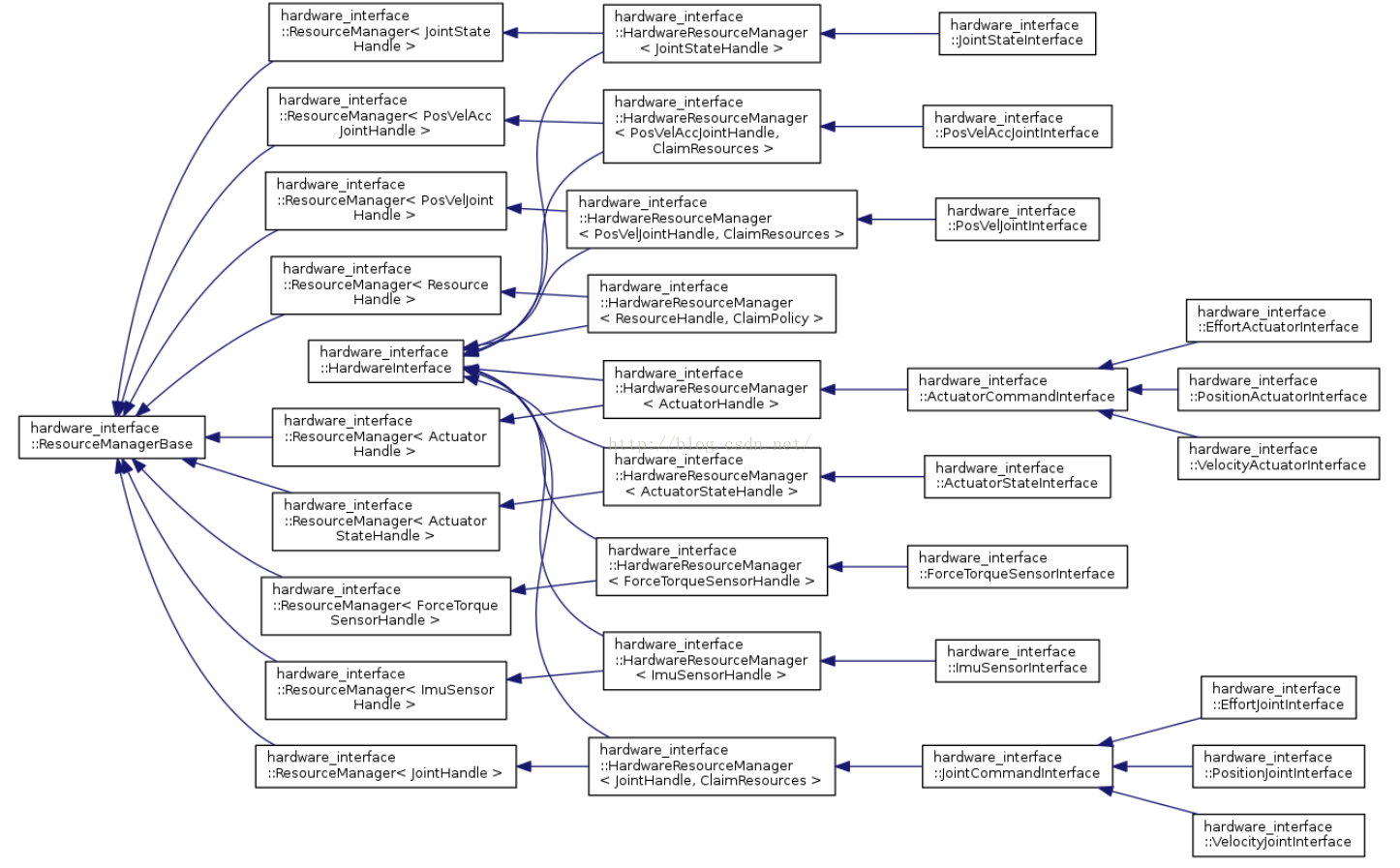

1.2 hardware interface

这些硬件接口主要功能有register handle/get handle/和claim resource/clearclaim/getclaims等。

1.3 RobotHW

定义了一些框架接口如下，用户可以填充实现。

a）hardware interface切换：

virtual bool init (ros::NodeHandle &root_nh,ros::NodeHandle &robot_hw_nh)

virtual bool prepareSwitch (const std::list< ControllerInfo > &start_list, const std::list< ControllerInfo > &stop_list)

virtual void doSwitch (const std::list< ControllerInfo > &, const std::list< ControllerInfo > &)

virtual void read (const ros::Time &time, constros::Duration &period)

virtual void write (const ros::Time &time, constros::Duration &period)

b）resource管理

virtual bool checkForConflict (const std::list< ControllerInfo > &info) const

另外由于该接口继承了hardware_interface::InterfaceManager所以还支持：

T * get ()

std::vector< std::string > getInterfaceResources (std::string iface_type) const

std::vector< std::string > getNames () const

void registerInterface (T *iface)

void registerInterfaceManager (InterfaceManager *iface_man)

2 应用示例

这里参考了ROS wiki给出如何定义自己robot并使用controller manager控制它。

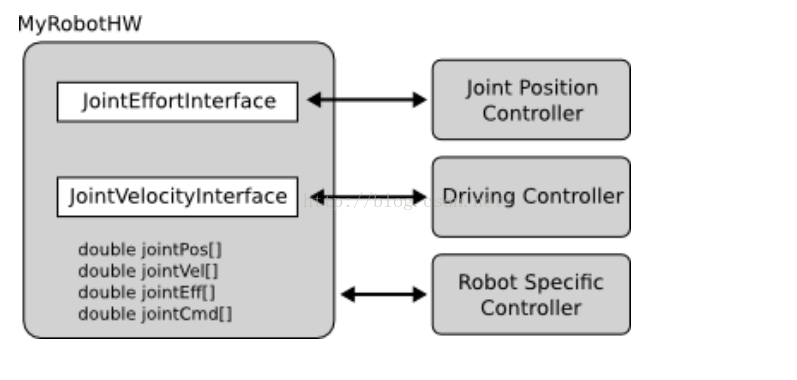

目前ros_control已经支持了一些常用标准hardware interface和controller，如果能满足需求可以直接使用，如果不能满足需求可以自定义扩展自己的接口和controller，如下示意图所示：

上图中白色框中接口是ros_control已经支持的标准hardware接口，对应是已经支持的controller，下面Robot Specific controller是用户扩展定义的controller。

#include <hardware_interface/joint_command_interface.h>
#include <hardware_interface/joint_state_interface.h>
#include <hardware_interface/robot_hw.h>

class MyRobot : public hardware_interface::RobotHW
{
public:
  MyRobot()
 {

   //register and use existing robot standard hardware interfaces
   // connect and register the joint state interface
   hardware_interface::JointStateHandle state_handle_a("A", &pos[0], &vel[0], &eff[0]);
   jnt_state_interface.registerHandle(state_handle_a);

   hardware_interface::JointStateHandle state_handle_b("B", &pos[1], &vel[1], &eff[1]);
   jnt_state_interface.registerHandle(state_handle_b);

   registerInterface(&jnt_state_interface);

   // connect and register the joint position interface
   hardware_interface::JointHandle pos_handle_a(jnt_state_interface.getHandle("A"), &cmd[0]);
   jnt_pos_interface.registerHandle(pos_handle_a);

   hardware_interface::JointHandle pos_handle_b(jnt_state_interface.getHandle("B"), &cmd[1]);
   jnt_pos_interface.registerHandle(pos_handle_b);

   registerInterface(&jnt_pos_interface);

      //register some robot specific interfaces
  registerInterface(&cool_interface);
  //Implement robot-specific resouce management
  bool checkForConflict(const std::list<ControllerInfo>& info) const
  {       // this list of controllers cannot be running at the same time
      ...        return true;
         // this list of controller can be running at the same time
      ...
               return false;
  }

 }

 private: hardware_interface::JointStateInterface jnt_state_interface; //standard hardware interface
 hardware_interface::PositionJointInterface jnt_pos_interface;//standard hardware interface
 MyCustomInterface cool_interface; //custom specific hardware interface
 double cmd[2]; double pos[2]; double vel[2]; double eff[2];

}

以上添加了custom hardware interface来支持用特定controller做特定控制；另一种方式是在MyRobot仅仅添加一些特定函数接口实现特定控制（没有定义特定硬件接口class），通过MyRobot类自注册实现这些接口的可访问如下，

#include <hardware_interface/joint_command_interface.h>
#include <hardware_interface/joint_state_interface.h>
#include <hardware_interface/robot_hw.h>

class MyRobot : public hardware_interface::RobotHW， public hardware_interface::HardwareInterface
{
public:
MyRobot()
{
   //register and use existing robot standard hardware interfaces
   // connect and register the joint state interface
   hardware_interface::JointStateHandle state_handle_a("A", &pos[0], &vel[0], &eff[0]);
   jnt_state_interface.registerHandle(state_handle_a);

   hardware_interface::JointStateHandle state_handle_b("B", &pos[1], &vel[1], &eff[1]);
   jnt_state_interface.registerHandle(state_handle_b);

   registerInterface(&jnt_state_interface);

   // connect and register the joint position interface
   hardware_interface::JointHandle pos_handle_a(jnt_state_interface.getHandle("A"), &cmd[0]);
   jnt_pos_interface.registerHandle(pos_handle_a);

   hardware_interface::JointHandle pos_handle_b(jnt_state_interface.getHandle("B"), &cmd[1]);
   jnt_pos_interface.registerHandle(pos_handle_b);

   registerInterface(&jnt_pos_interface);

    // register the MyRobot class itself to make the 'someCoolFunction' available
    // the MyRobot class inherits from HardwareInterface to make this possible

     registerInterface(this);

     void someCoolFunction();

   // Implement robot-specific resouce management
    bool checkForConflict(const std::list<ControllerInfo>& info) const
    {
       // this list of controllers cannot be running at the same time
       ...
       return true;

       // this list of controller can be running at the same time
       ...
       return false;
    }

}

private:
hardware_interface::JointStateInterface jnt_state_interface; //standard hardware interface
hardware_interface::PositionJointInterface jnt_pos_interface;//standard hardware interface
double cmd[2]; double pos[2]; double vel[2]; double eff[2];

};

以上的MyRbot class通过如下代码，就可以被controller manager和controller使用了：

main()
{
   MyRobot robot;
controller_manager::ControllerManager cm(&robot);

while (true)
{
     robot.read(); //to access hardware driver， generally need do some wrap and customization in MyRobot class
     cm.update(robot.get_time(), robot.get_period());
     robot.write(); //to access hardware driver， generally need do some wrap and customization in MyRobot class
     sleep();
}
}

3 参考文献

参考ROS WiKi改编。
