施耐德Lexium 32 EthernetIP Rockwell PLC

Hardware:

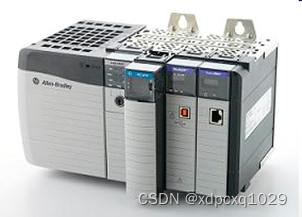

1. Master: Rockell CompactLogix or ControlLogixPLC with an Ethernet module or Ethernet on board.

●

2. Lexium32M + Option Module EthernetIP (SLOT 3)

SoftwareTools :

1. Rockwell RSLogix5000
Programming tool for Rockwell PLCs
 (at least Version V16)

Additional LXM32 Files:

1. “SE_Motion_LXM32_EIP_V2110.ACD”

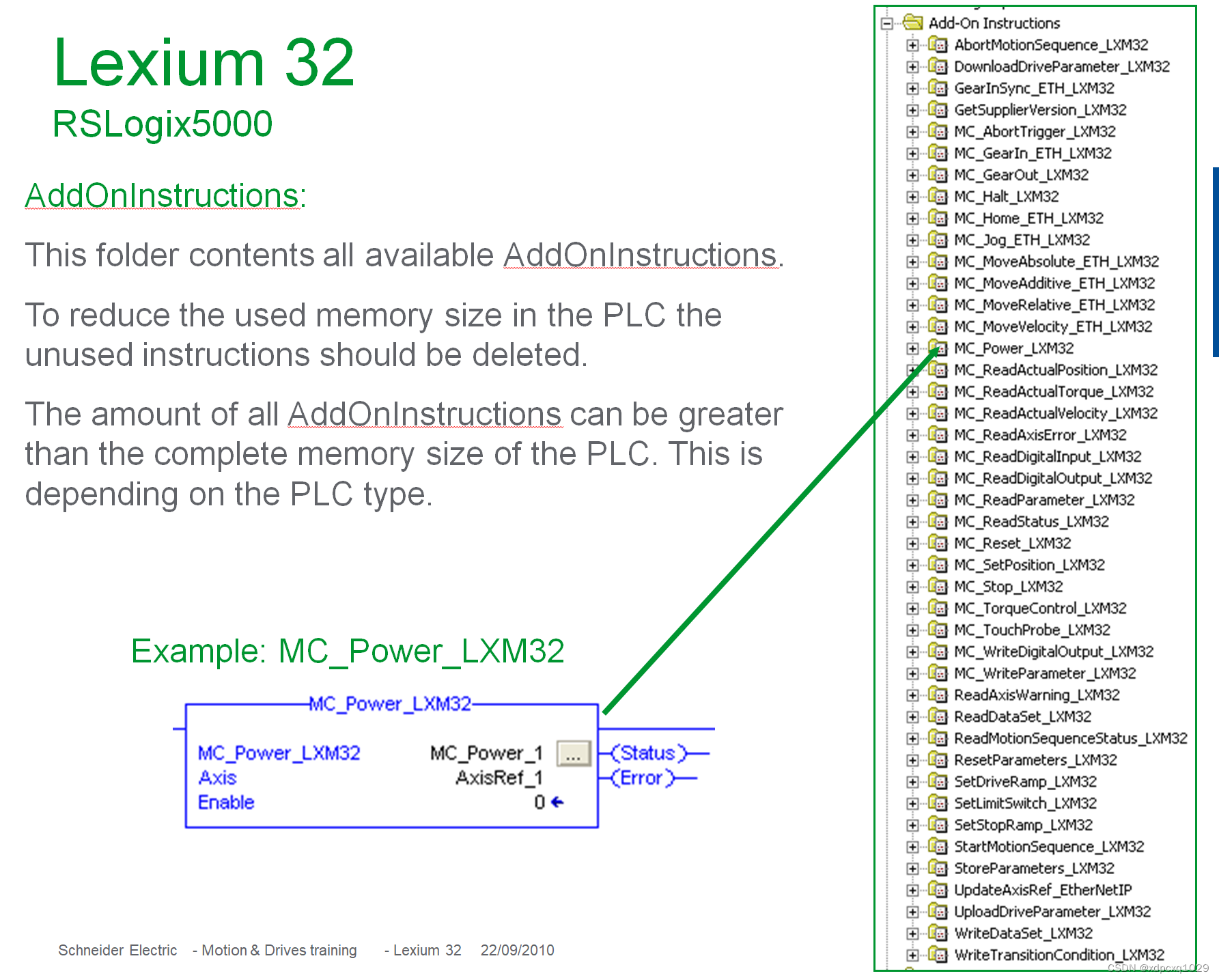

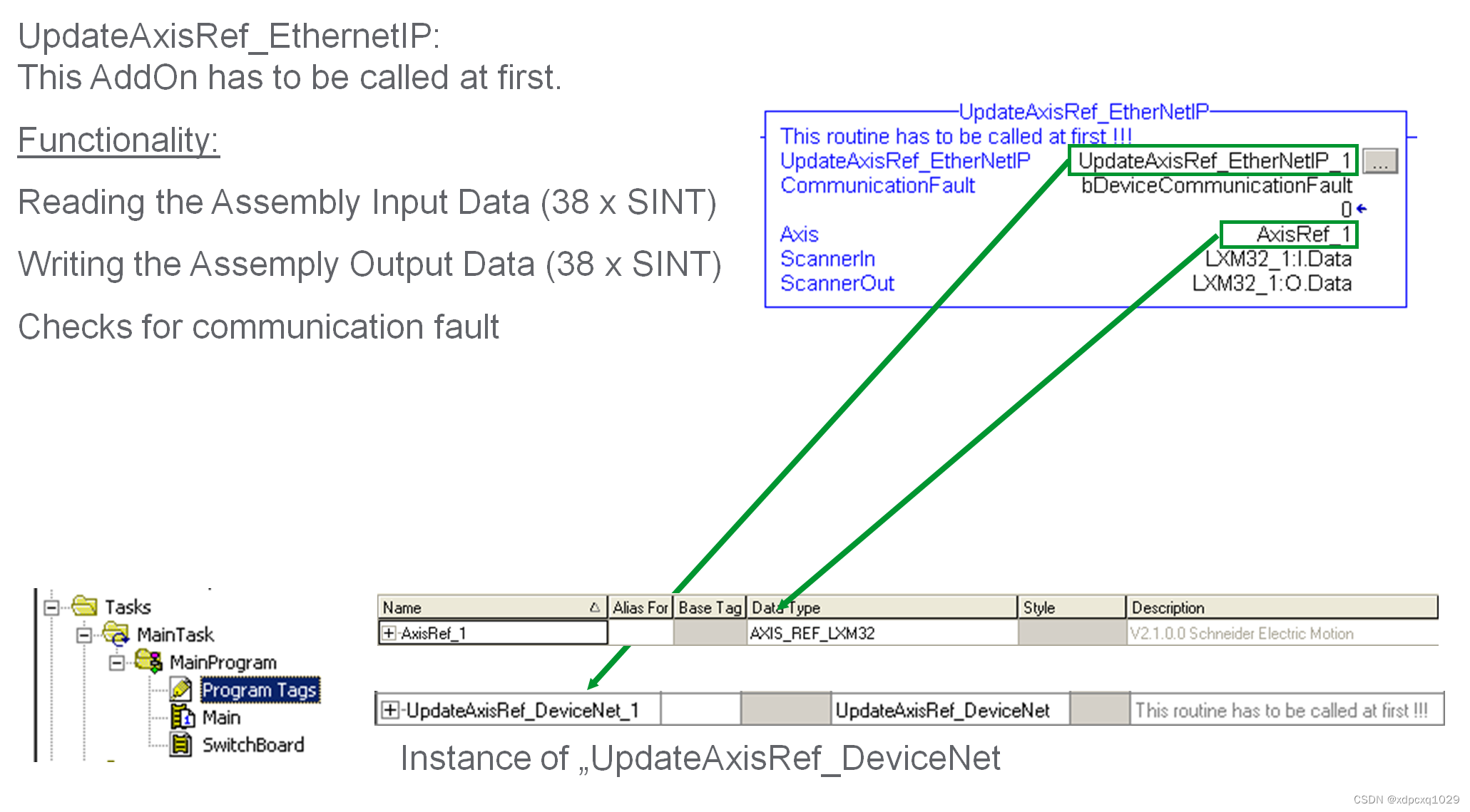

RSLogix5000 file which contents all available
  AddOnInstructions and data types

●

2. “EthernetIP_Library_Guide_V203_xx.CHM”
Library guide available in English and German language.

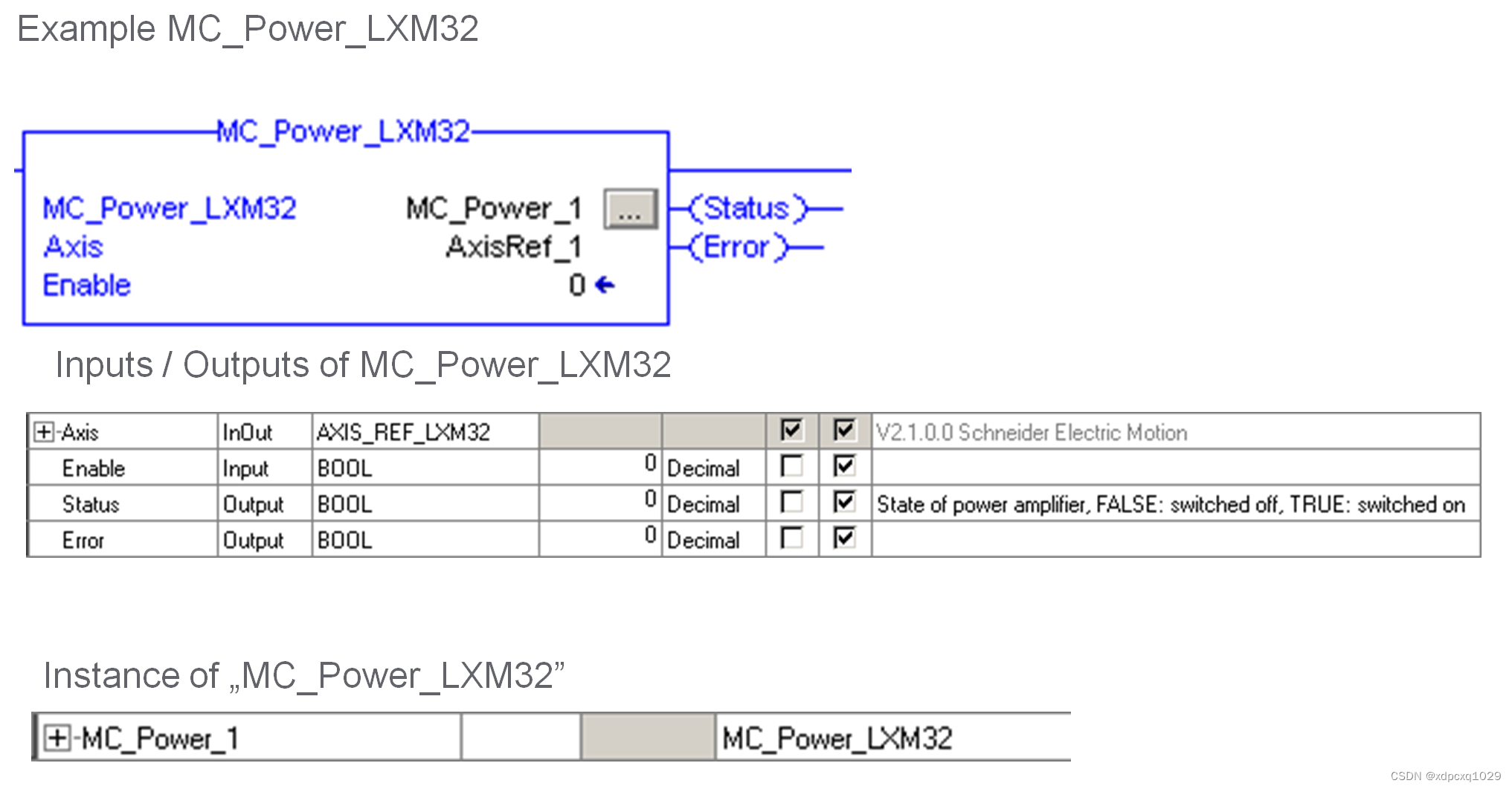

Common Library guide which contents the description
of all available PLCopen function blocks.

●

3. “SE_Motion_LXM32M_EIP_PLCopen_AddOnInstructions_V101.PDF”
Manual for EthernetIP Configuration (LXM32 + RSLogix5000)

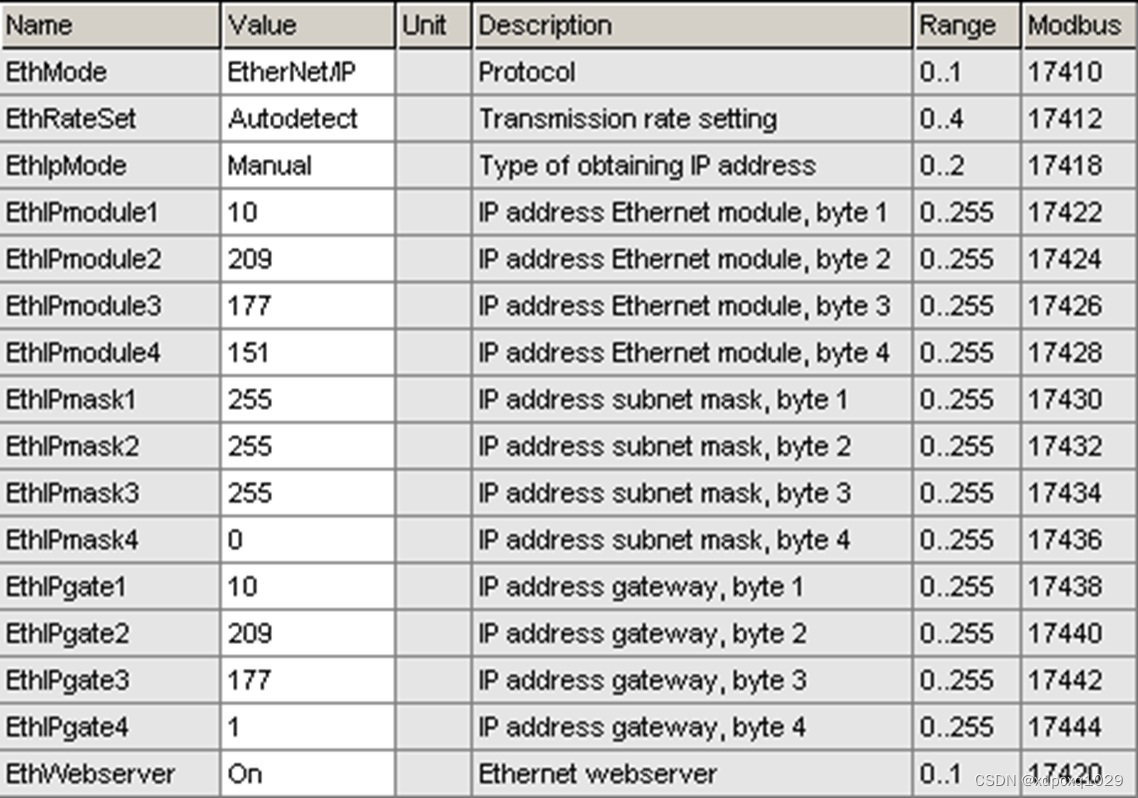

EthernetIP communication parameters

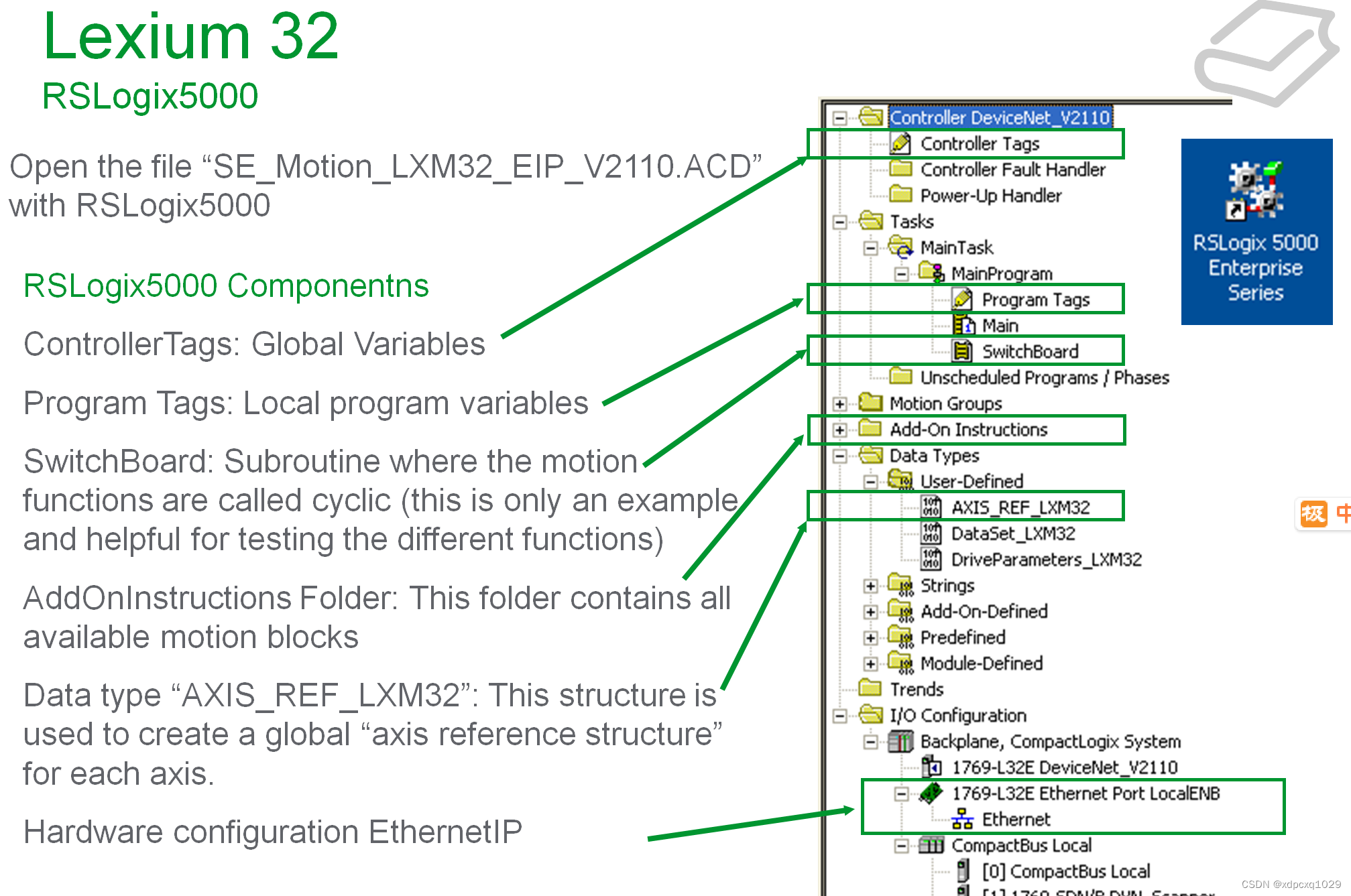

Open the file “SE_Motion_LXM32_EIP_V2110.ACD” with RSLogix5000

IO Configuration of LXM32 EIP

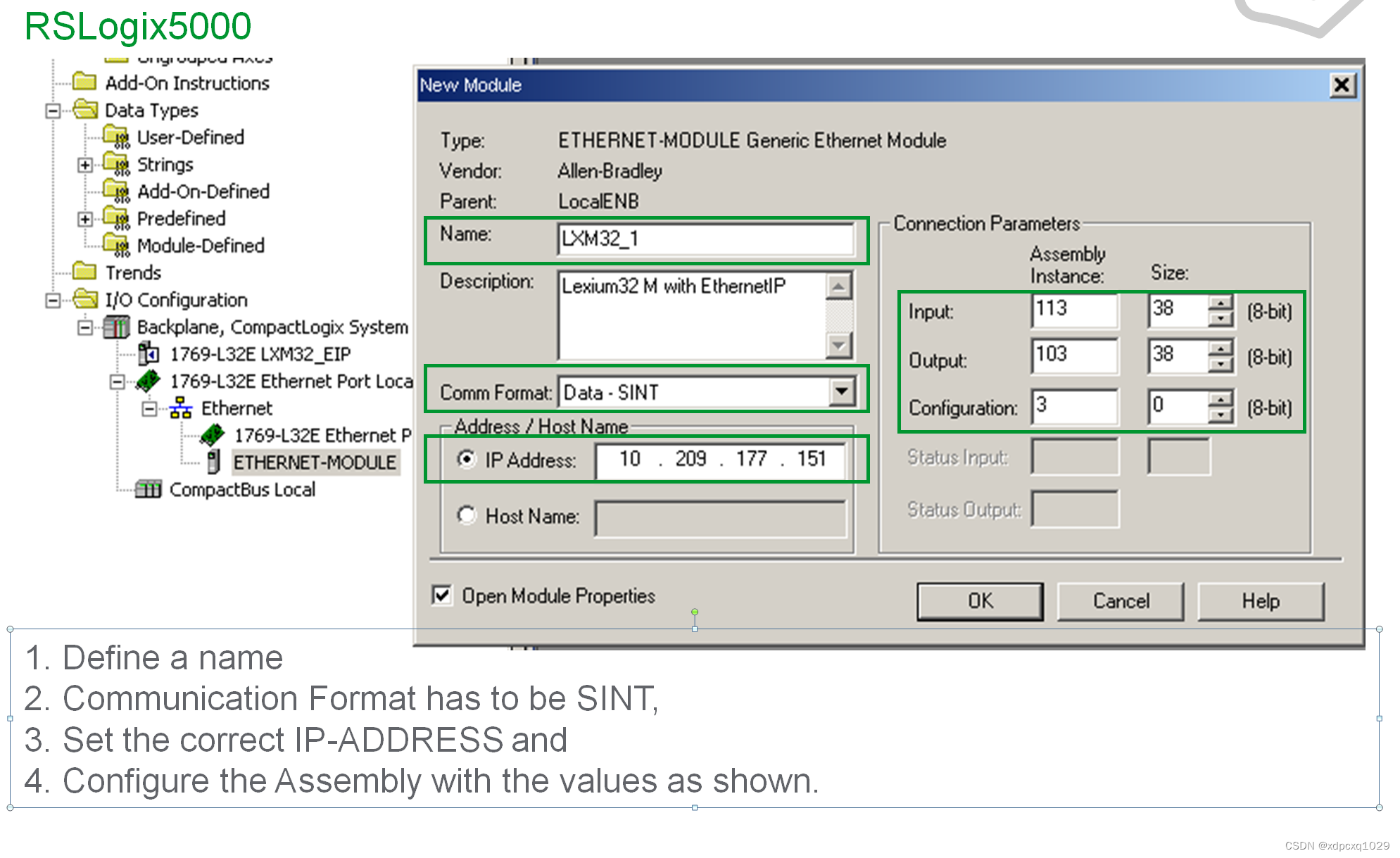

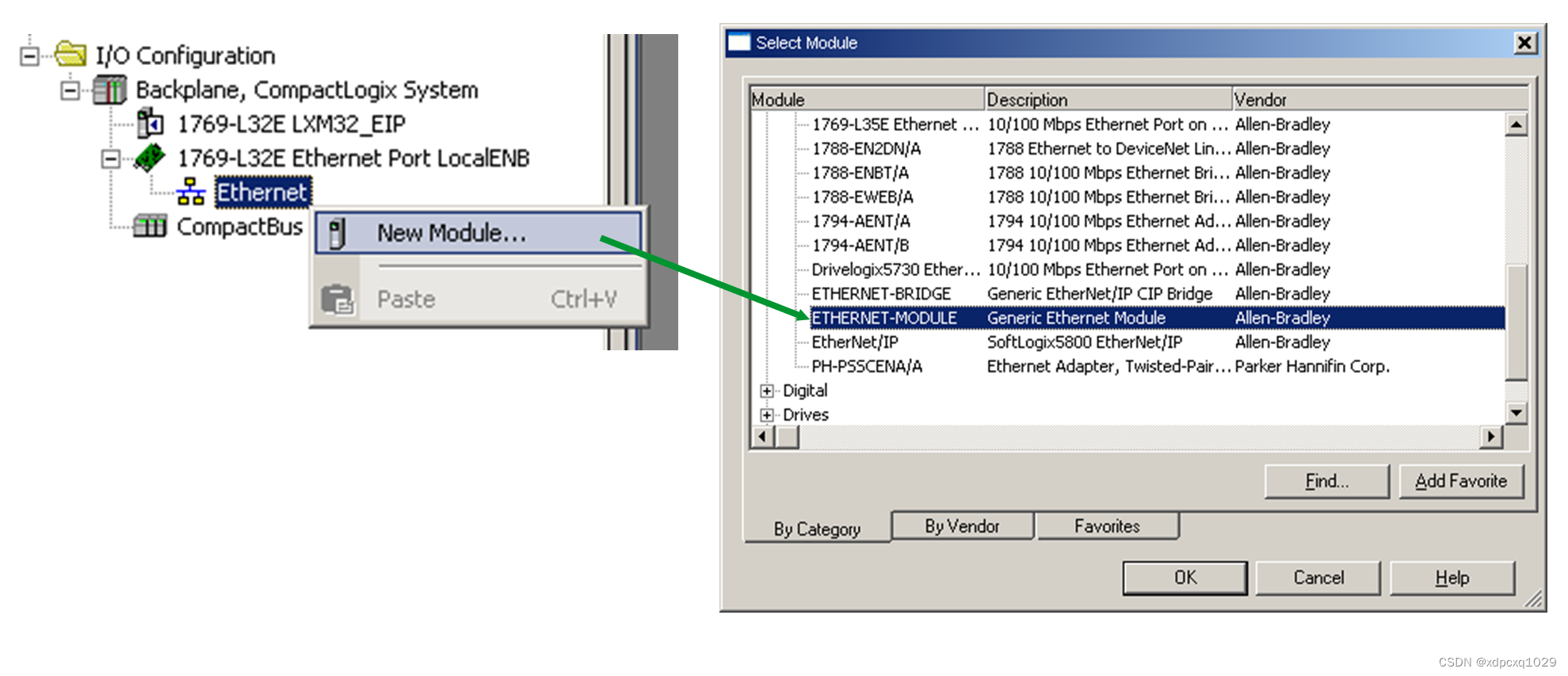

Create a new Module:
Communications-> ETHERNET-MODULE / Generic Ethernet Modul

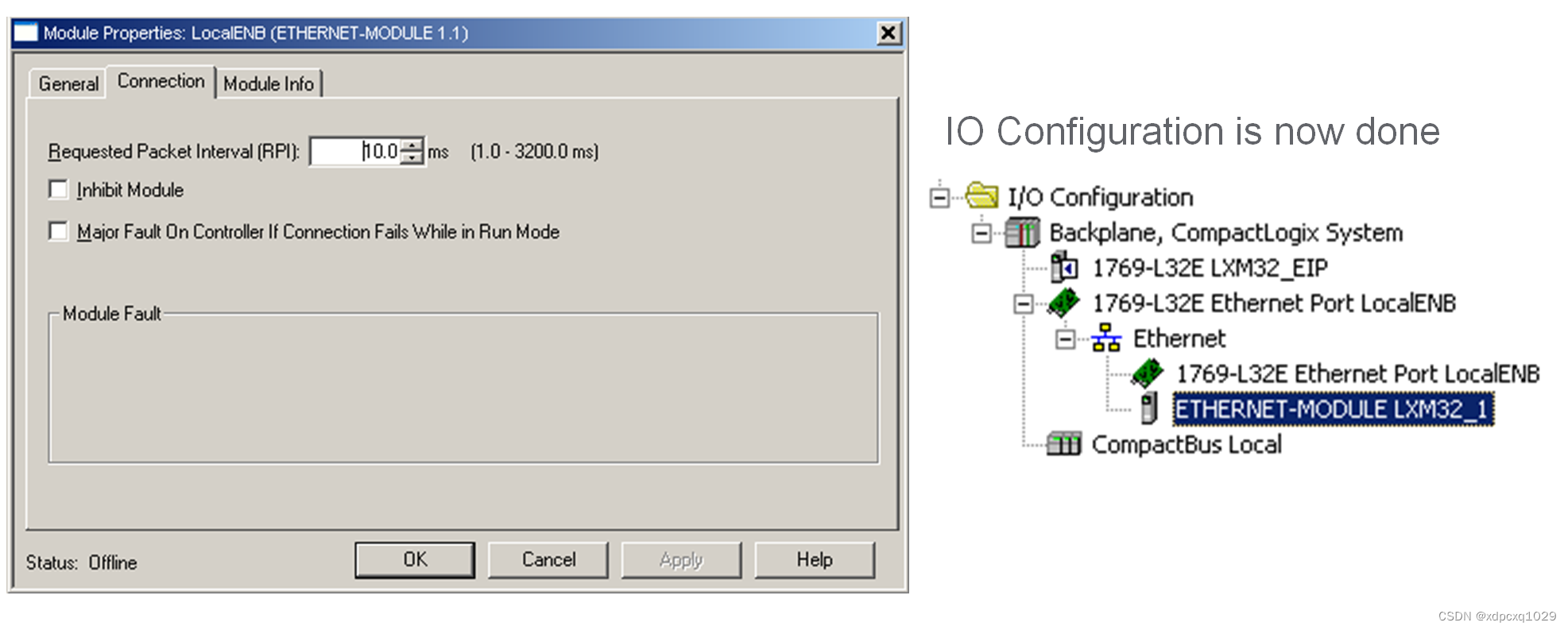

Set the RPI value to 2….3200ms.
(RPI is also named API Actual Packet Interval) Default value is 10ms

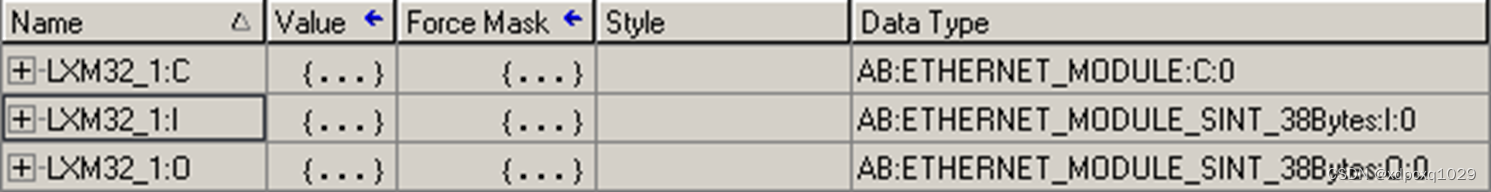

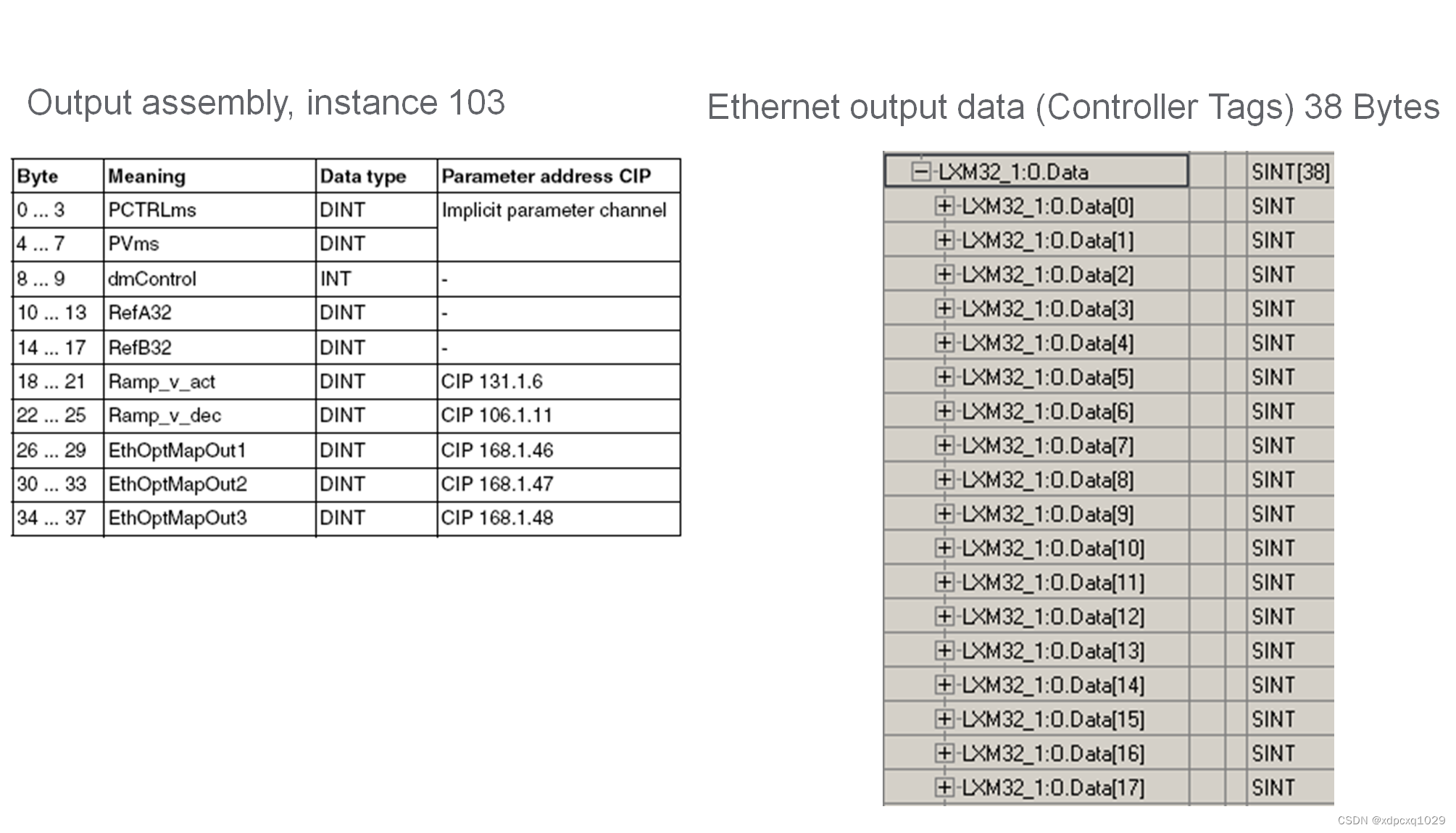

 Ethernet Slave  – Controller Tags
In the Controller Tags the Input and Output tags are automatically defined after the Ethernet slave is configured in the IO Configuration.
