施耐德LXM32M 驱动第三方电机

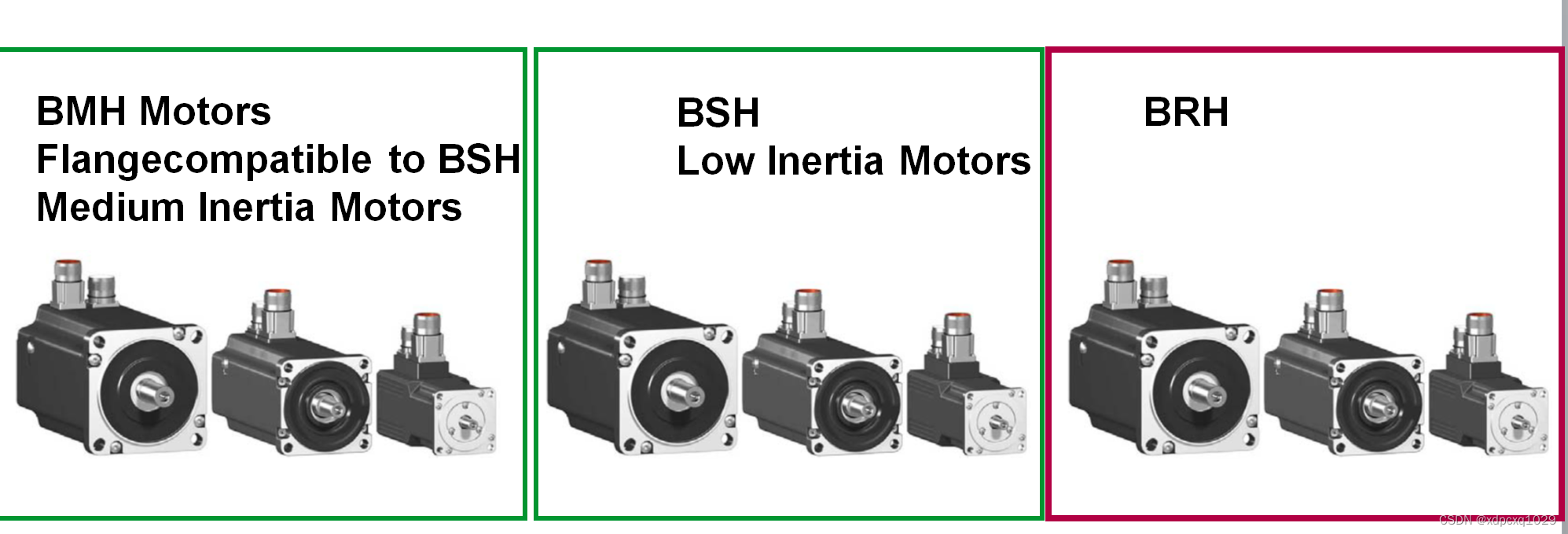

3rd Party Motors are all Motors except the Standards like:

Mandatory parameters …-> depending on encoder / motor type

-> have to be typed in (or selected file of database) via LexCT tool

Procedure of commissioning

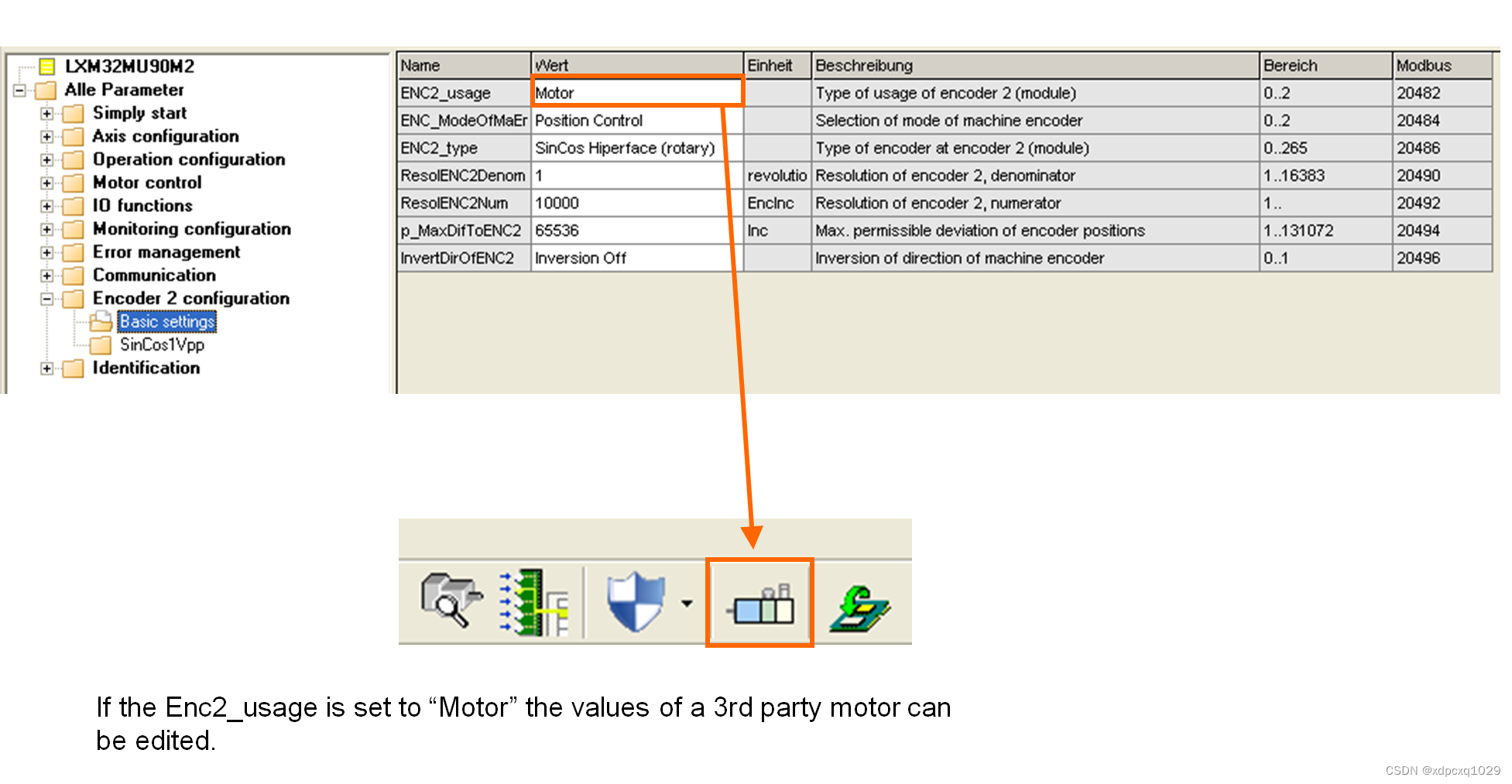

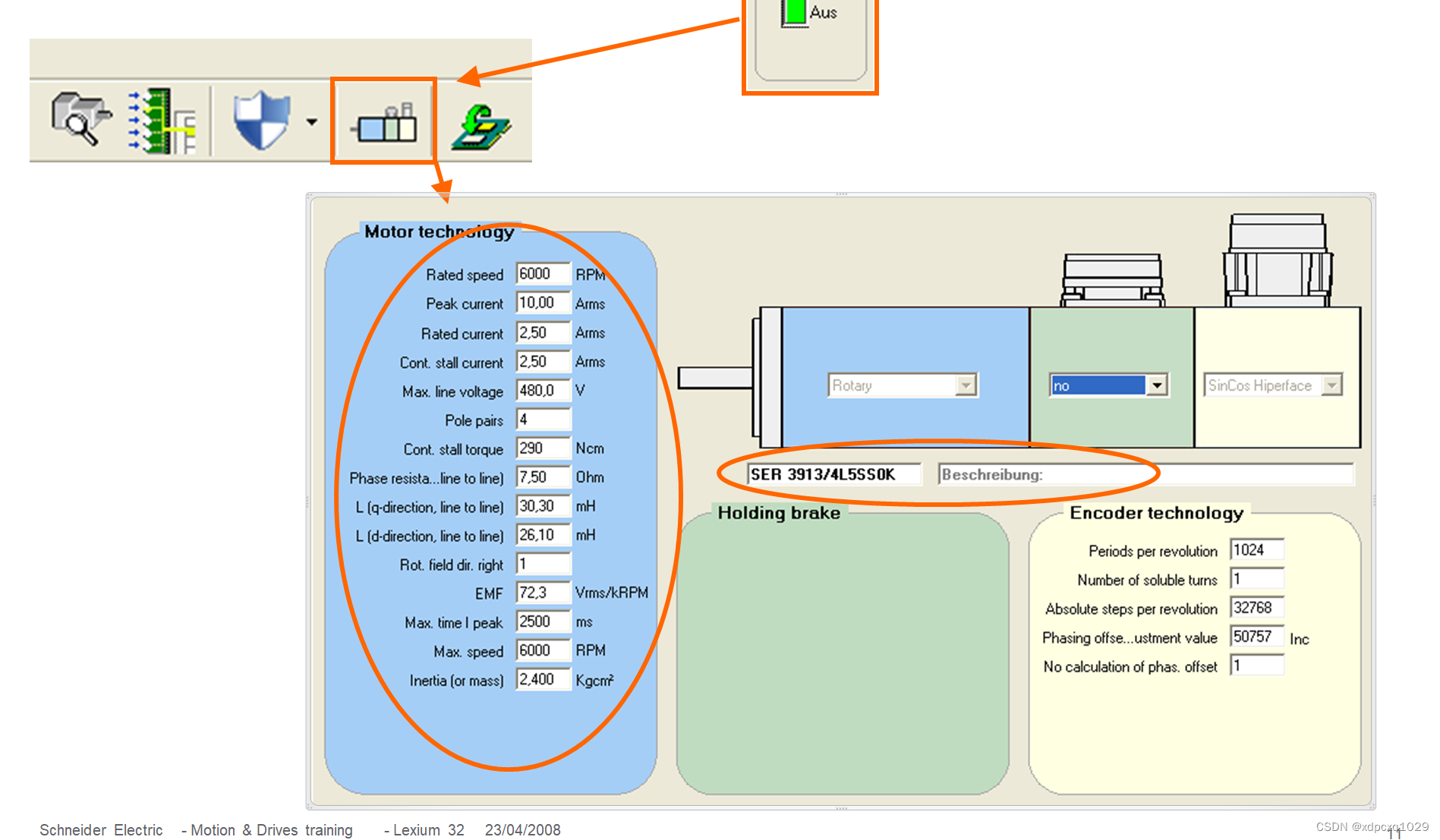

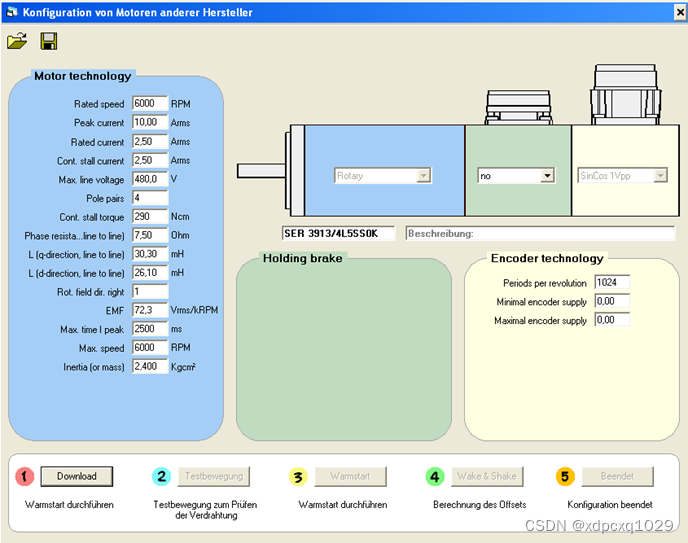

1)Open edit window 3rd party motor

2) Enter mandatory data:  - motor

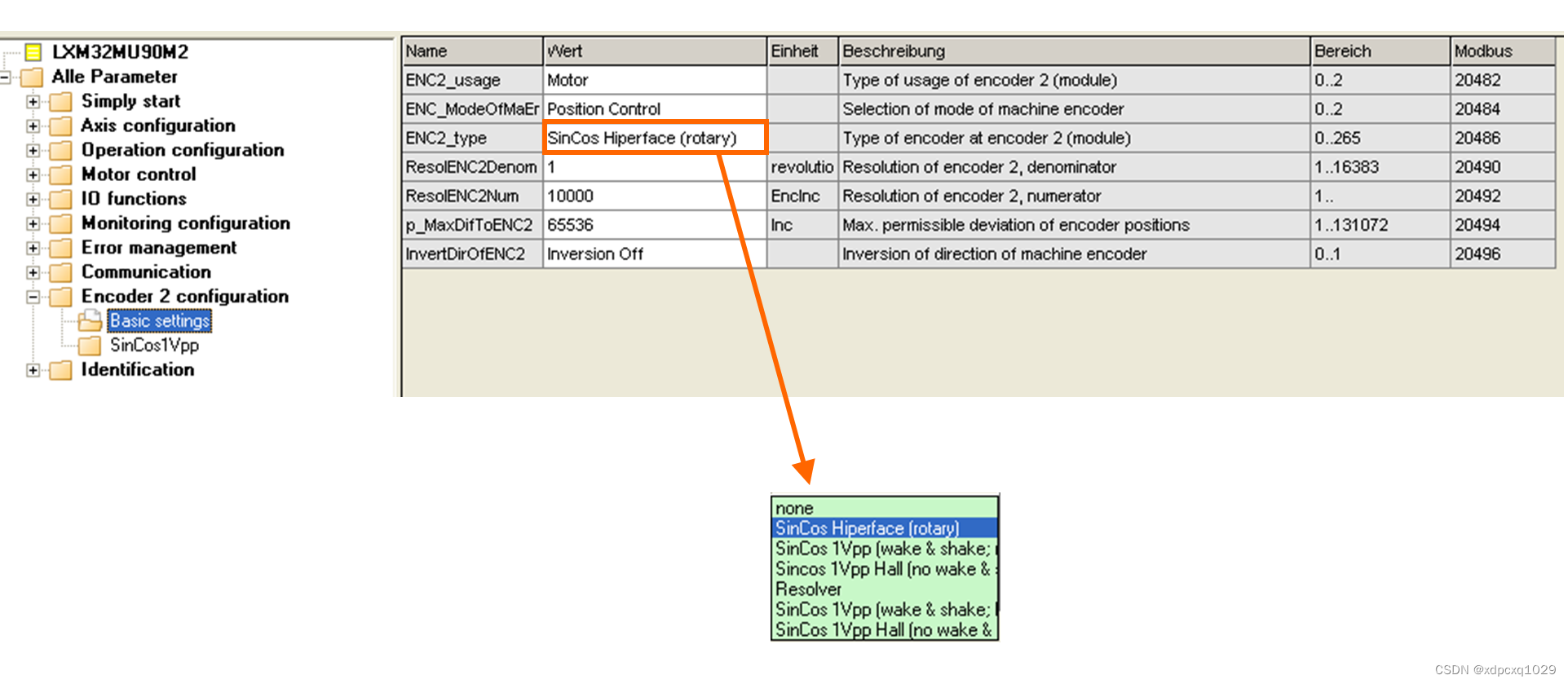

  - holding brake  - encoder type

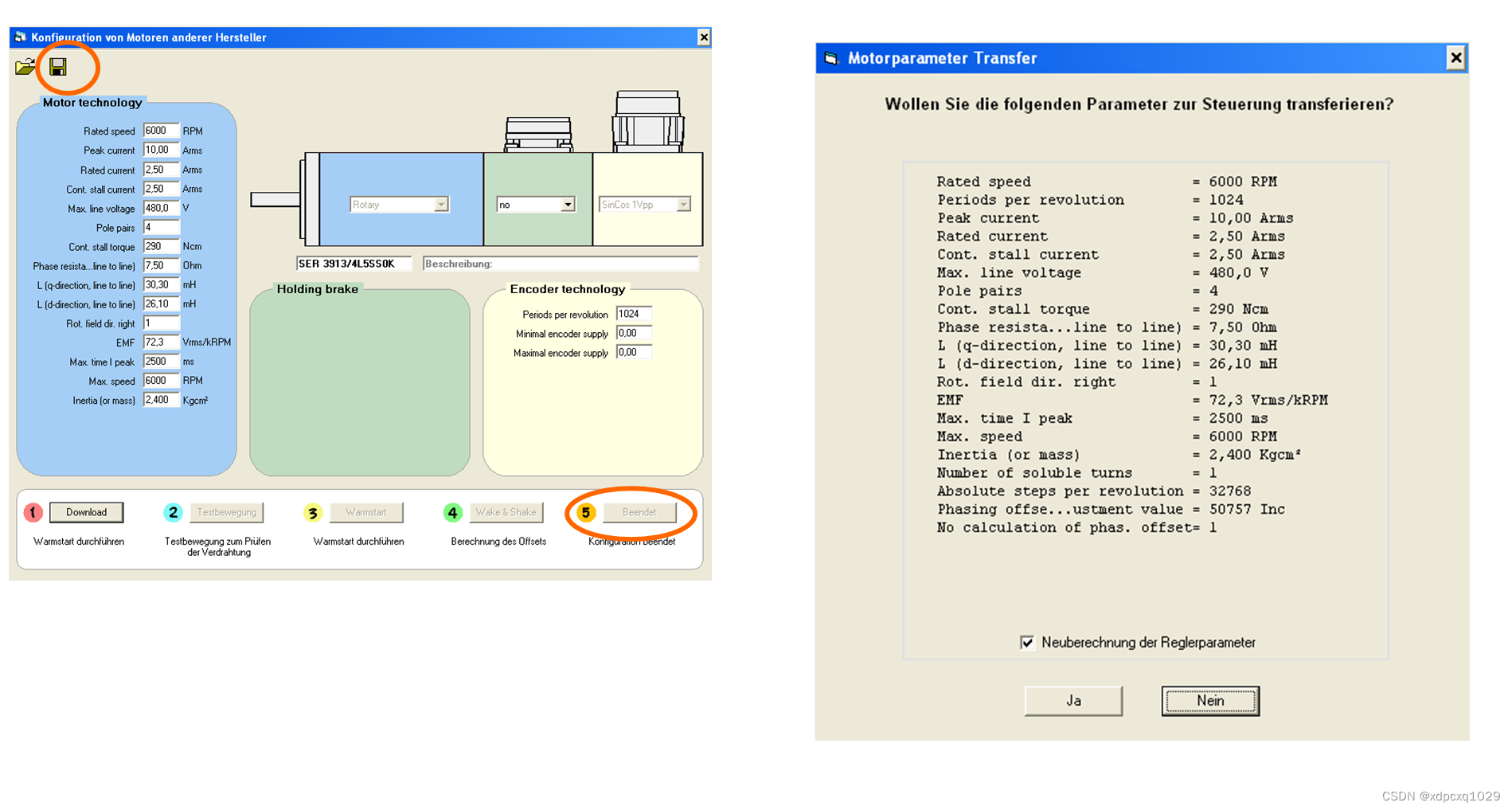

3) Download data in device

4) If necessary -> wake and shake (if data of encoder offset is missing) enter the result manually and download

5) Tuning manual/auto

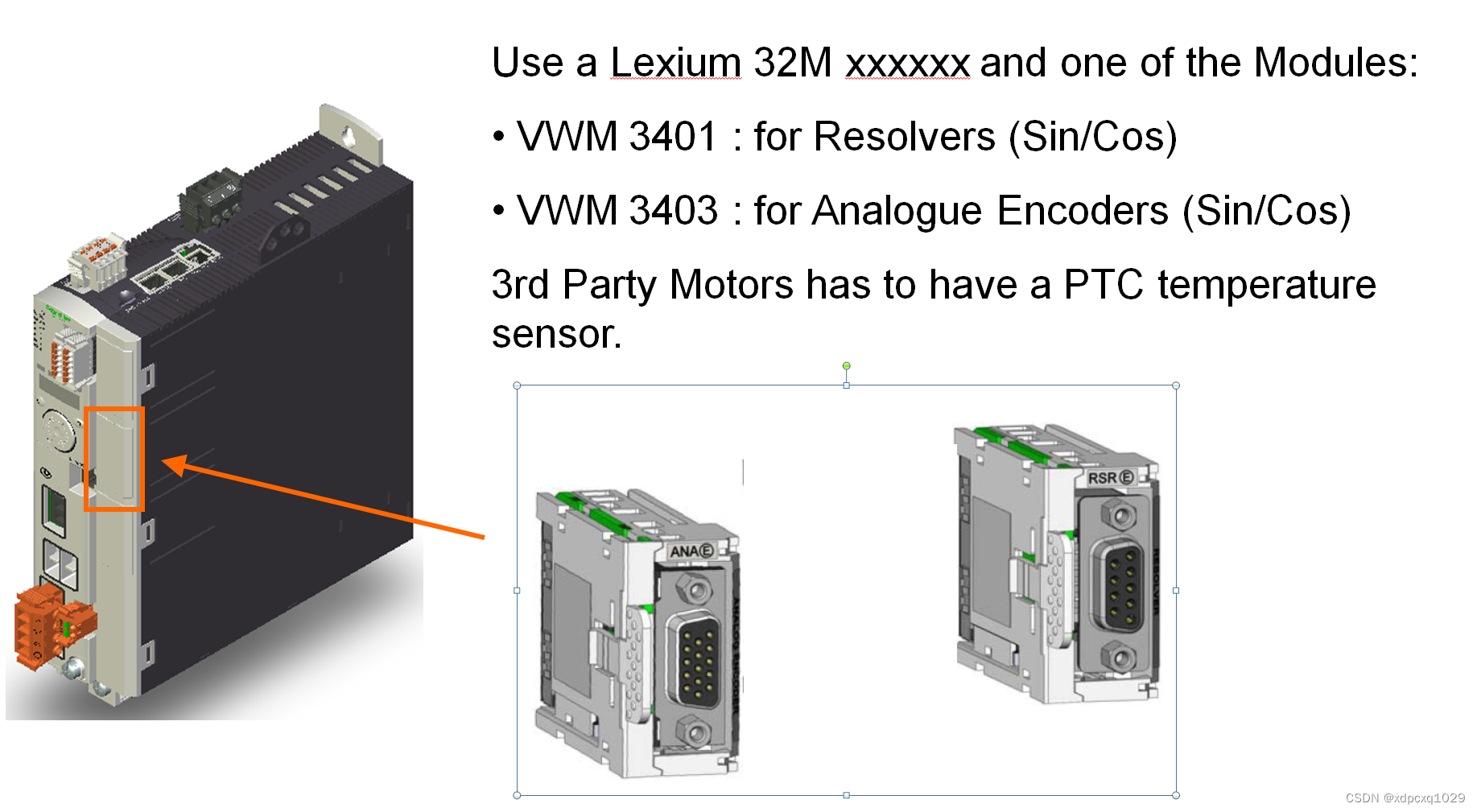

Use a Lexium 32M xxxxxx and one of the Modules:

• VWM 3401 : for Resolvers (Sin/Cos)

• VWM 3403 : for Analogue Encoders (Sin/Cos)

3rd Party Motors has to have a PTC temperature sensor.

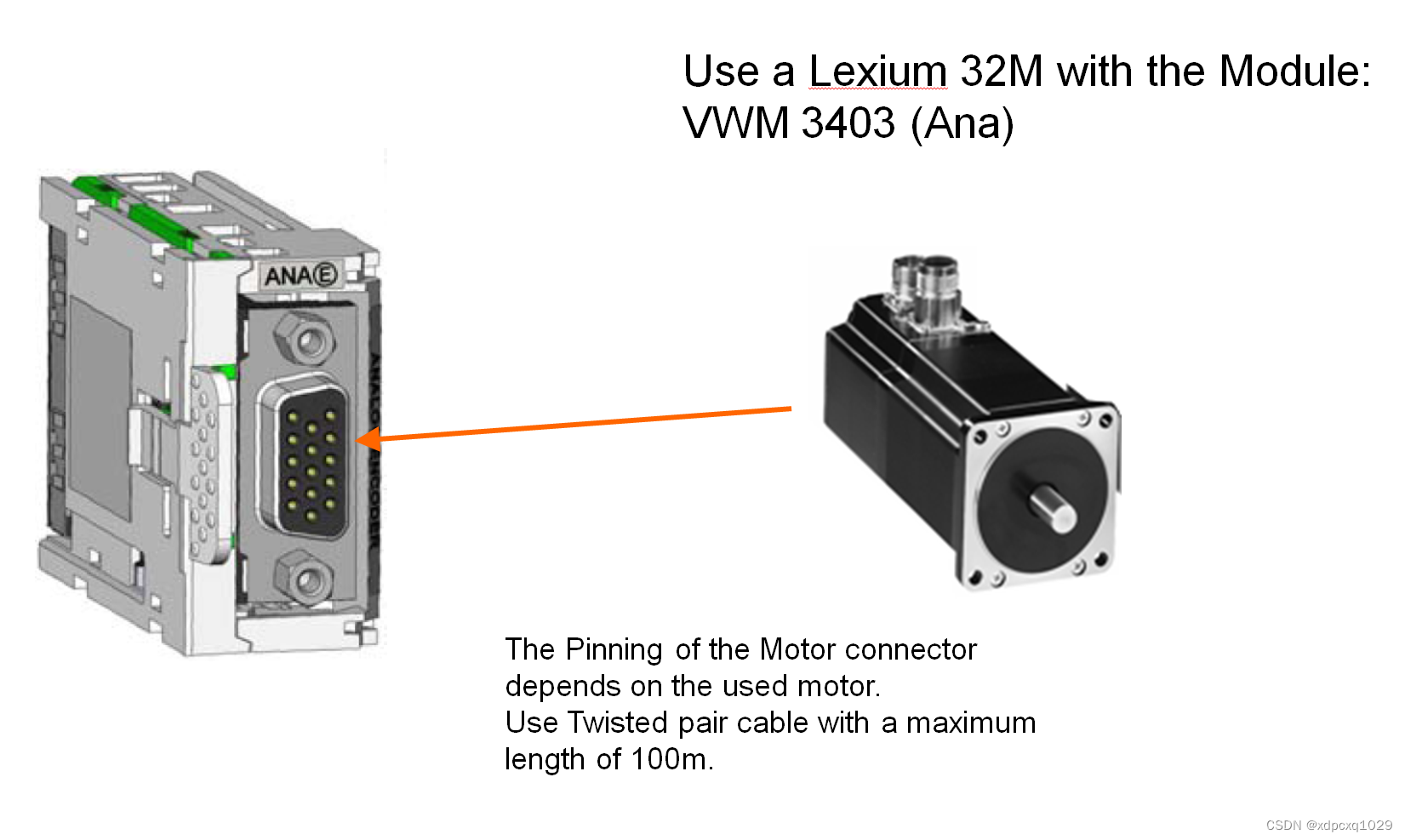

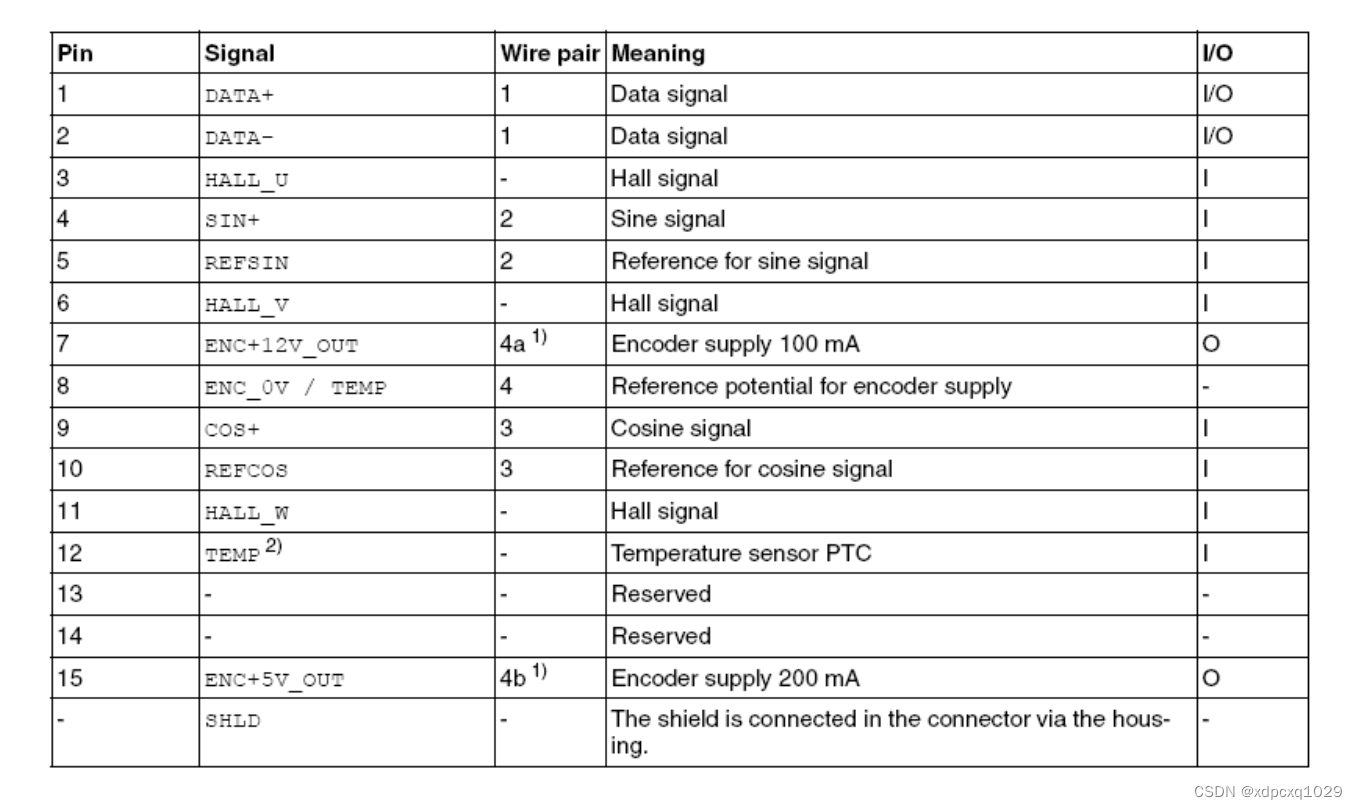

Use a Lexium 32M with the Module:
VWM 3403 (Ana)

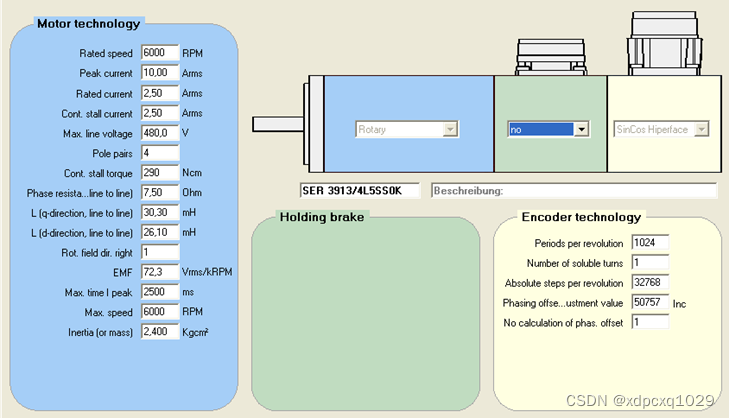

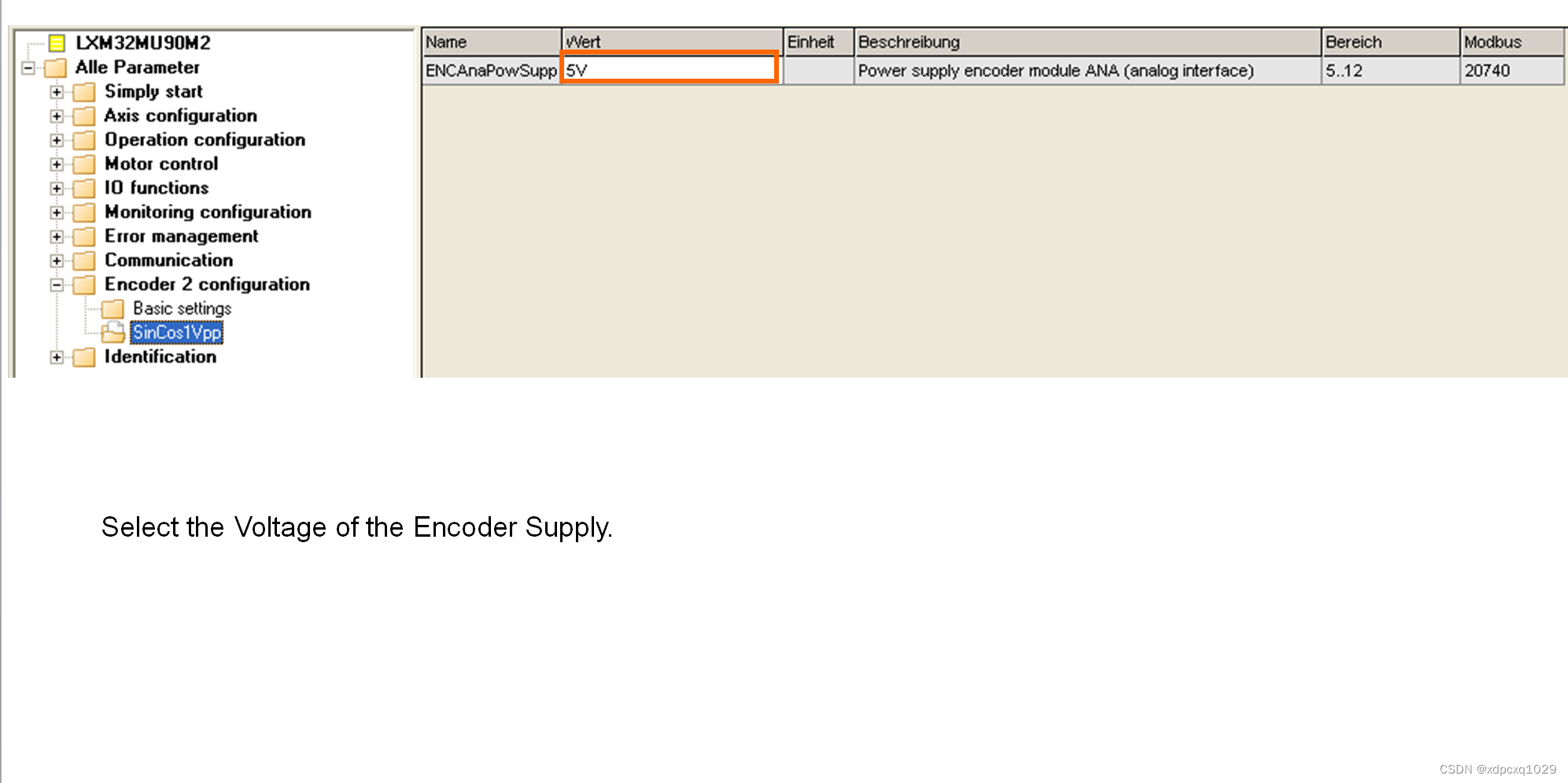

Enter the data of the feedback system:

Additional Explanation:
Periods per revolution  =  =  1024
Number of soluble turns  = for single turn Enc.  =  1
  = for multi turn Enc.  =  4096
Absolute steps per revolution  =  32768

To determine the absolute steps per revolution:

The SRS 50 / SRM 50 Encoder of the Company Stegmann has Steps per Sine / Cosine period.

So the calculation is:

Absolute Steps per revolution   = Number of Sine / Cosine periods * Number of steps per period

Absolute Steps per revolution   = 1024 periods * 32 Steps  = 32768
