概要
研究目的：实现高速可编程任意数字信号发生器
高速数字信号发生器可以理解为逻辑分析仪的逆设备，通过上位机写入数据缓存器，发生器便可源源不断产生数字码，根据项目需求，可以设置只发送一次还是不间断循环发送。本文体验大佬的开源项目PicoAWG，简单测试运行效果，方便后续开发与改进。
项目地址
硬件
https://github.com/leidawt/PicoAWG-Firmware
软件
https://github.com/leidawt/PicoAWG-Software
快速体验
只需要一块树莓派pico开发板，一台逻辑分析仪，剩下的全靠软件。
先在树莓派pico中文站下载micropython最新板固件
https://micropython.org/download/rp2-pico/rp2-pico-latest.uf2
树莓派pico上电前按住boot按钮，上电后可以看到虚拟磁盘RPI-RP2，直接把这个uf2文件拖进去即可，简直不要太方便。
建议先简单体验一下micropython，再开始开发。
固件开发

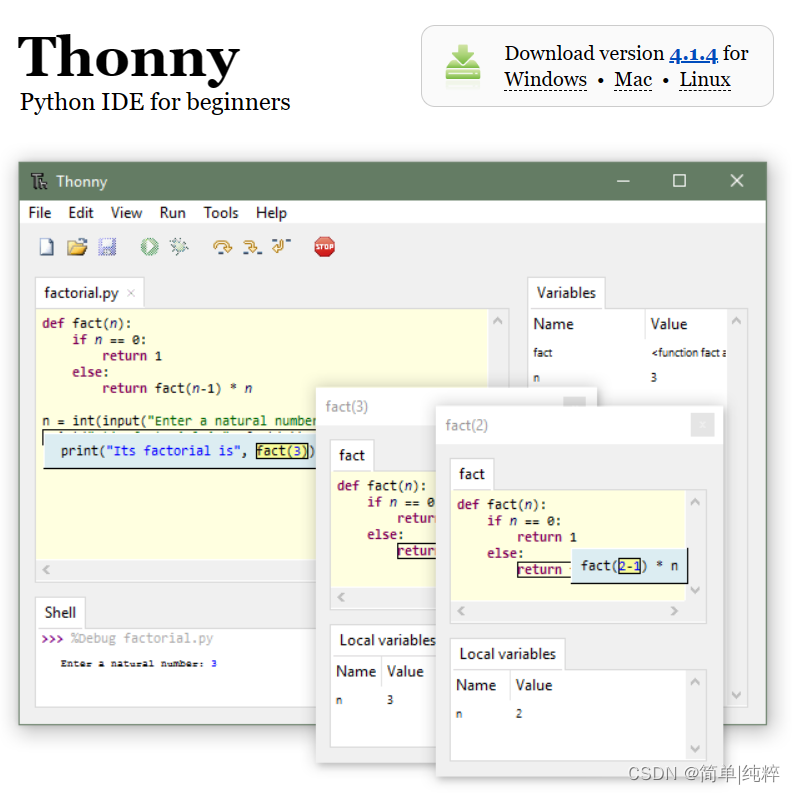

先下载开发树莓派micropython的IDE软件：https://thonny.org/
这是一款用于python开发的IDE，本质上就是用来写代码，然后通过串口把代码上传到开发板内。开源代码是通过DMA将数据从buffer中搬运到IO口外设中，因此不会受到micropython脚本运行慢的限制，纯后台运行。同时需要指出，项目所配置的系统时钟频率为250M，这是在给系统超频，虽然也能工作，但实际测试下来运行很不稳定，输出波形有毛刺，建议把 fclock = const(250000000) 改成 fclock = const(125000000)。虽然达不到标题中最高125MSPS的输出速率，但稳定也很重要。
原版代码如下：
# PicoAWG v1.0
# ref: Rolf Oldeman's Arbitrary waveform generator
# https://www.instructables.com/Arbitrary-Wave-Generator-With-the-Raspberry-Pi-Pic/
# tested with rp2-pico-20230426-v1.20.0.uf2
from machine import Pin, mem32, PWM
from rp2 import PIO, StateMachine, asm_pio
from array import array
from math import pi, sin, exp, sqrt, floor
from uctypes import addressof
from random import random
from micropython import const
#################################SETTINGS#######################################
fclock = const(250000000) # clock frequency of the pico 建议改为fclock = const(125000000)
dac_clock = int(fclock/2)
# make buffers for the waveform.
# large buffers give better results but are slower to fill
maxnsamp = const(4096) # must be a multiple of 4. miximum size is 65536
wavbuf = {}
wavbuf[0] = bytearray(maxnsamp*2)
wavbuf[1] = bytearray(maxnsamp*2)
ibuf = 0
temp = None
################################################################################
DMA_BASE = const(0x50000000)
CH0_READ_ADDR = const(DMA_BASE+0x000)
CH0_WRITE_ADDR = const(DMA_BASE+0x004)
CH0_TRANS_COUNT = const(DMA_BASE+0x008)
CH0_CTRL_TRIG = const(DMA_BASE+0x00c)
CH0_AL1_CTRL = const(DMA_BASE+0x010)
CH1_READ_ADDR = const(DMA_BASE+0x040)
CH1_WRITE_ADDR = const(DMA_BASE+0x044)
CH1_TRANS_COUNT = const(DMA_BASE+0x048)
CH1_CTRL_TRIG = const(DMA_BASE+0x04c)
CH1_AL1_CTRL = const(DMA_BASE+0x050)
PIO0_BASE = const(0x50200000)
PIO0_TXF0 = const(PIO0_BASE+0x10)
PIO0_SM0_CLKDIV = const(PIO0_BASE+0xc8)
# set desired clock frequency
machine.freq(fclock)
# set default DAC current to 10mA
dac904_bias = PWM(Pin(14))
dac904_bias.freq(100000)
dac904_bias.duty_u16(32768)
# state machine that just pushes bytes to the pins
@asm_pio(sideset_init=(PIO.OUT_HIGH,),
out_init=(PIO.OUT_HIGH,)*14,
out_shiftdir=PIO.SHIFT_RIGHT,
fifo_join=PIO.JOIN_TX,
autopull=True,
pull_thresh=28)
def stream():
wrap_target()
out(pins, 14).side(0)
nop().side(1)
wrap()
sm = StateMachine(0, stream, freq=fclock,
sideset_base=Pin(15), out_base=Pin(0))
sm.active(1)
# 2-channel chained DMA. channel 0 does the transfer, channel 1 reconfigures
p = array('I', [0]) # global 1-element array
def startDMA(ar, nword):
# first disable the DMAs to prevent corruption while writing
mem32[CH0_AL1_CTRL] = 0
mem32[CH1_AL1_CTRL] = 0
# setup first DMA which does the actual transfer
mem32[CH0_READ_ADDR] = addressof(ar)
mem32[CH0_WRITE_ADDR] = PIO0_TXF0
mem32[CH0_TRANS_COUNT] = nword
IRQ_QUIET = 0x1 # do not generate an interrupt
TREQ_SEL = 0x00 # wait for PIO0_TX0
CHAIN_TO = 1 # start channel 1 when done
RING_SEL = 0
RING_SIZE = 0 # no wrapping
INCR_WRITE = 0 # for write to array
INCR_READ = 1 # for read from array
DATA_SIZE = 2 # 32-bit word transfer
HIGH_PRIORITY = 1
EN = 1
CTRL0 = (IRQ_QUIET << 21) | (TREQ_SEL << 15) | (CHAIN_TO << 11) | (RING_SEL << 10) | (RING_SIZE << 9) | (
INCR_WRITE << 5) | (INCR_READ << 4) | (DATA_SIZE << 2) | (HIGH_PRIORITY << 1) | (EN << 0)
mem32[CH0_AL1_CTRL] = CTRL0
# setup second DMA which reconfigures the first channel
p[0] = addressof(ar)
mem32[CH1_READ_ADDR] = addressof(p)
mem32[CH1_WRITE_ADDR] = CH0_READ_ADDR
mem32[CH1_TRANS_COUNT] = 1
IRQ_QUIET = 0x1 # do not generate an interrupt
TREQ_SEL = 0x3f # no pacing
CHAIN_TO = 0 # start channel 0 when done
RING_SEL = 0
RING_SIZE = 0 # no wrapping
INCR_WRITE = 0 # single write
INCR_READ = 0 # single read
DATA_SIZE = 2 # 32-bit word transfer
HIGH_PRIORITY = 1
EN = 1
CTRL1 = (IRQ_QUIET << 21) | (TREQ_SEL << 15) | (CHAIN_TO << 11) | (RING_SEL << 10) | (RING_SIZE << 9) | (
INCR_WRITE << 5) | (INCR_READ << 4) | (DATA_SIZE << 2) | (HIGH_PRIORITY << 1) | (EN << 0)
mem32[CH1_CTRL_TRIG] = CTRL1
def setupwave(buf, f, w):
# required clock division for maximum buffer size
div = dac_clock/(f*maxnsamp)
if div < 1.0: # can't speed up clock, duplicate wave instead
dup = int(1.0/div)
nsamp = int((maxnsamp*div*dup+0.5)/4)*4 # force multiple of 4
clkdiv = 1
else: # stick with integer clock division only
clkdiv = int(div)+1
nsamp = int((maxnsamp*div/clkdiv+0.5)/4)*4 # force multiple of 4
dup = 1
# gain set
if w.amplitude >= 2:
dac904_bias.duty_u16(65535)
w.amplitude = 0.5
w.offset = 0
elif w.amplitude <= 0.2:
if w.offset == 0:
dac904_bias.duty_u16(6554)
w.amplitude = w.amplitude/0.2*0.5
else:
dac904_bias.duty_u16(65535)
w.amplitude = w.amplitude/2*0.5
w.offset = w.offset/2
else:
k = 1-w.offset/w.amplitude
dac904_bias.duty_u16(int(w.amplitude/2/k*65535))
w.amplitude = 0.5*k
w.offset = 0.5-0.5*k
# fill the buffer
# for isamp in range(nsamp):
# buf[isamp] = max(0, min(255, int(255*eval(w, dup*(isamp+0.5)/nsamp))))
# print([dup, clkdiv, nsamp, int(nsamp/2)])
if w.func is not None:
for iword in range(int(nsamp/2)):
val1 = int(16383*eval(w, dup*(iword*2+0)/nsamp))+8192
val2 = int(16383*eval(w, dup*(iword*2+1)/nsamp))+8192
word = val1 + (val2 << 14)
buf[iword*4+0] = (word & (255 << 0)) >> 0
buf[iword*4+1] = (word & (255 << 8)) >> 8
buf[iword*4+2] = (word & (255 << 16)) >> 16
buf[iword*4+3] = (word & (255 << 24)) >> 24
# set the clock divider
clkdiv_int = min(clkdiv, 65535)
clkdiv_frac = 0 # fractional clock division results in jitter
mem32[PIO0_SM0_CLKDIV] = (clkdiv_int << 16) | (clkdiv_frac << 8)
# start DMA
startDMA(buf, int(nsamp/2))
# evaluate the content of a wave
def eval(w, x):
m, s, p = 1.0, 0.0, 0.0
if 'phasemod' in w.__dict__:
p = eval(w.phasemod, x)
if 'mult' in w.__dict__:
m = eval(w.mult, x)
if 'sum' in w.__dict__:
s = eval(w.sum, x)
x = x*w.replicate-w.phase-p
x = x-floor(x) # reduce x to 0.0-1.0 range
v = w.func(x, w.pars)
v = v*w.amplitude*m
v = v+w.offset+s
return v
# some common waveforms. combine with sum,mult,phasemod
def sine(x, pars):
return sin(x*2*pi)
def pulse(x, pars): # risetime,uptime,falltime
if x < pars[0]:
return -1+2*x/pars[0]
if x < pars[0]+pars[1]:
return 1.0
if x < pars[0]+pars[1]+pars[2]:
return -1+2*(1.0-(x-pars[0]-pars[1])/pars[2])
return -1
def gaussian(x, pars):
return exp(-((x-0.5)/pars[0])**2)
def sinc(x, pars):
if x == 0.5:
return 1.0
else:
return sin((x-0.5)/pars[0])/((x-0.5)/pars[0])
def exponential(x, pars):
return exp(-x/pars[0])
def noise(x, pars): # p0=quality: 1=uniform >10=gaussian
return sum([random()-0.5 for _ in range(pars[0])])*sqrt(12/pars[0])
# empty class just to attach properties to
class wave:
pass
def data_mov(start, num):
for i in range(start, start+num):
wavbuf[ibuf][i] = temp[i-start]
wave1 = wave()
wave1.replicate = 1
wave1.phase = 0.0
# sine
wave1.func = sine
wave1.amplitude = 0.5 # Vpp
wave1.offset = 0.0 # DC bias(V)
wave1.pars = []
# white noise
# wave1.func = noise
# wave1.amplitude = 1
# wave1.offset = 0
# wave1.pars = [1]
# sinc
# wave1.func = sinc
# wave1.amplitude = 0.5
# wave1.offset = 0
# wave1.pars = [0.01]
# pulse
# wave1.func = pulse
# wave1.amplitude = 1.0
# wave1.offset = 0.0
# # risetime(percent),uptime(percent),falltime(percent)
# # sum(risetime,uptime,falltime) should be 1
# wave1.pars = [0.1, 0.8, 0.1]
# triginal(special case of pulse)
# wave1.func = pulse
# wave1.amplitude = 1.0
# wave1.offset = 0.0
# # risetime(percent),uptime(percent),falltime(percent)
# # sum(risetime,uptime,falltime) should be 1
# wave1.pars = [0.5, 0, 0.5]
setupwave(wavbuf[ibuf], 1e5, wave1)
ibuf = (ibuf+1) % 2

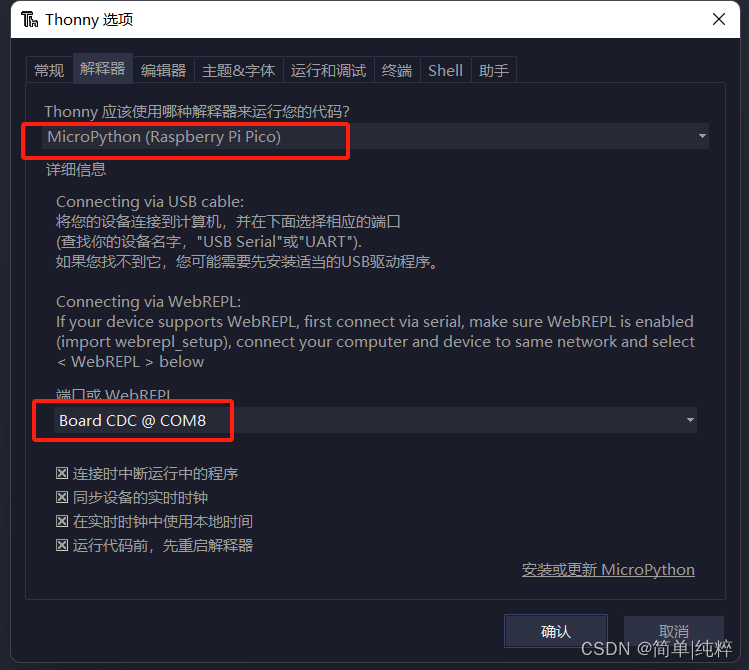

配置一下解释器，就可以上传代码到开发板了。

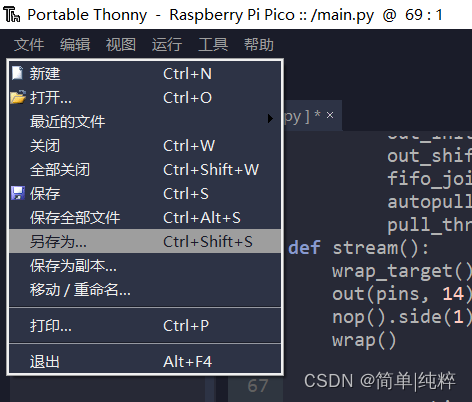

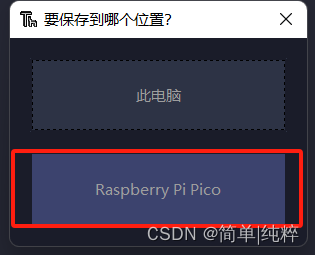

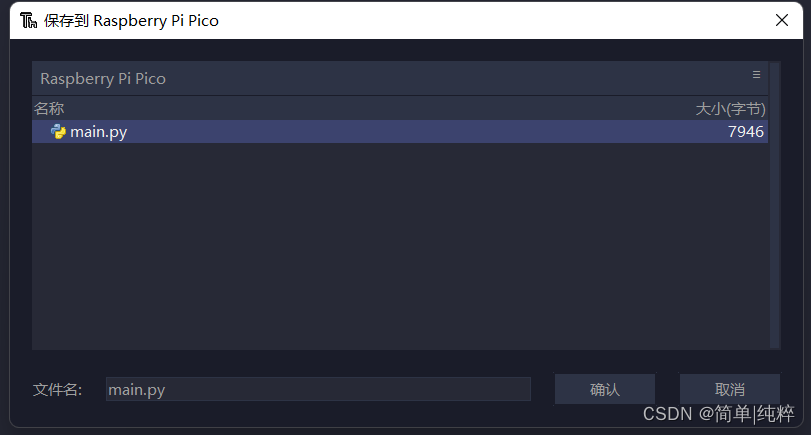

将文件另存为main.py，要保存到开发板中，当然此电脑也可以备份一份。
!](https://img-blog.csdnimg.cn/direct/8631d2a6bdb349428efc60fed5b0872a.png)
保存为main.py
先断开连接，再断电重启一下就可以运行。

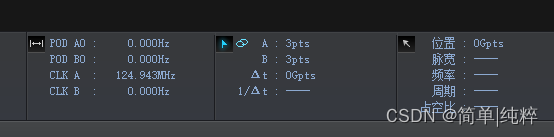

用逻辑分析仪看看波形。逻辑分析仪检测到P15端口输出了125M的时钟，也就是系统时钟250M二分频的结果。

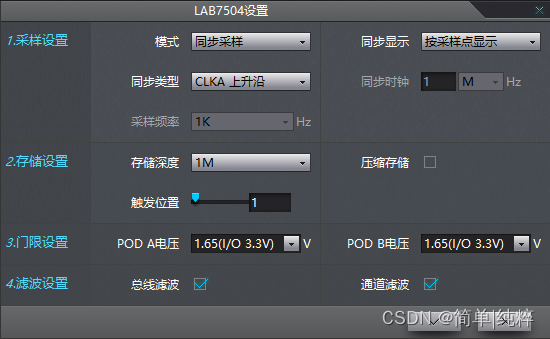

用P15端口作为逻辑分析仪同步采样的时钟端口，

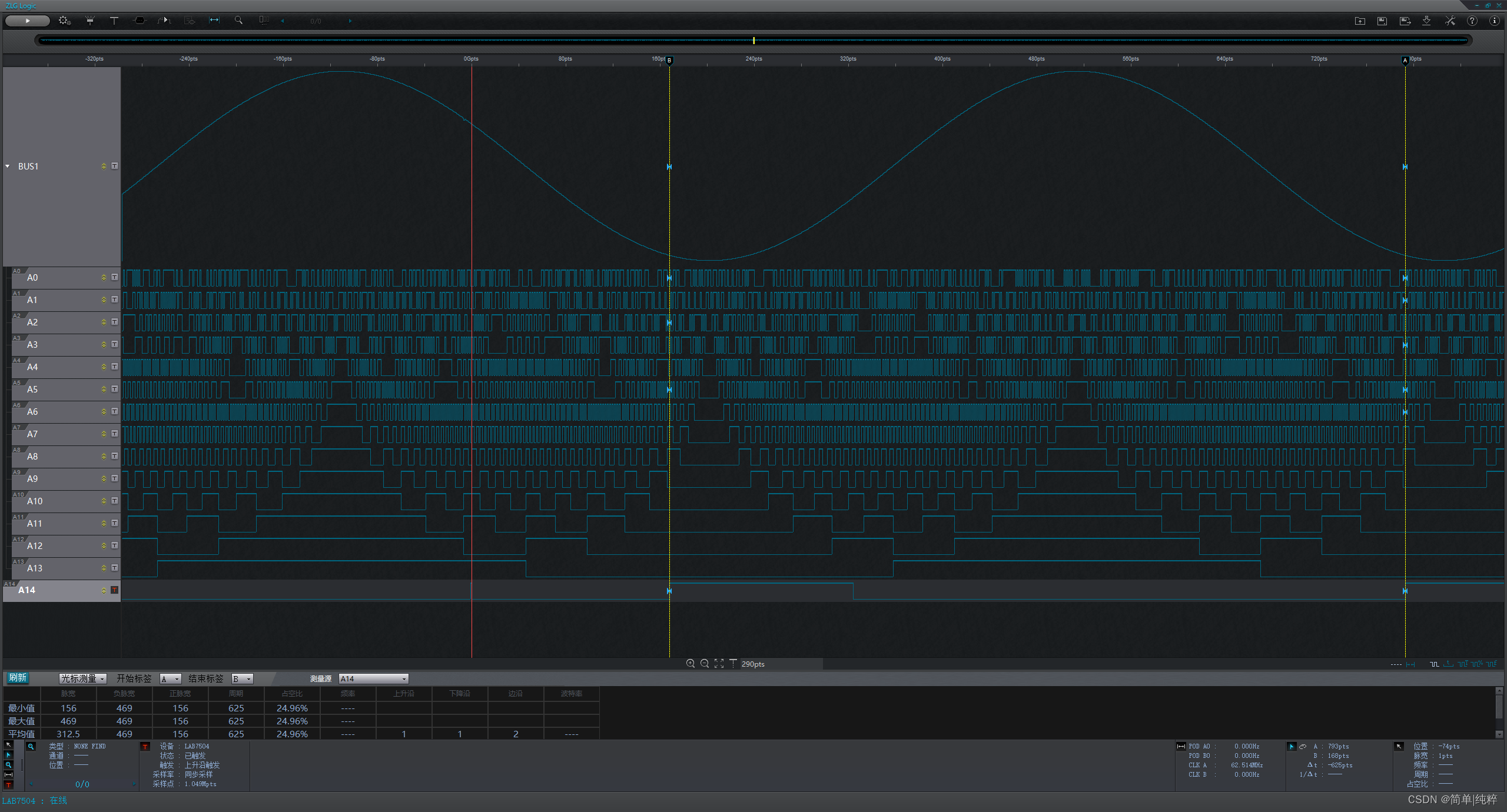

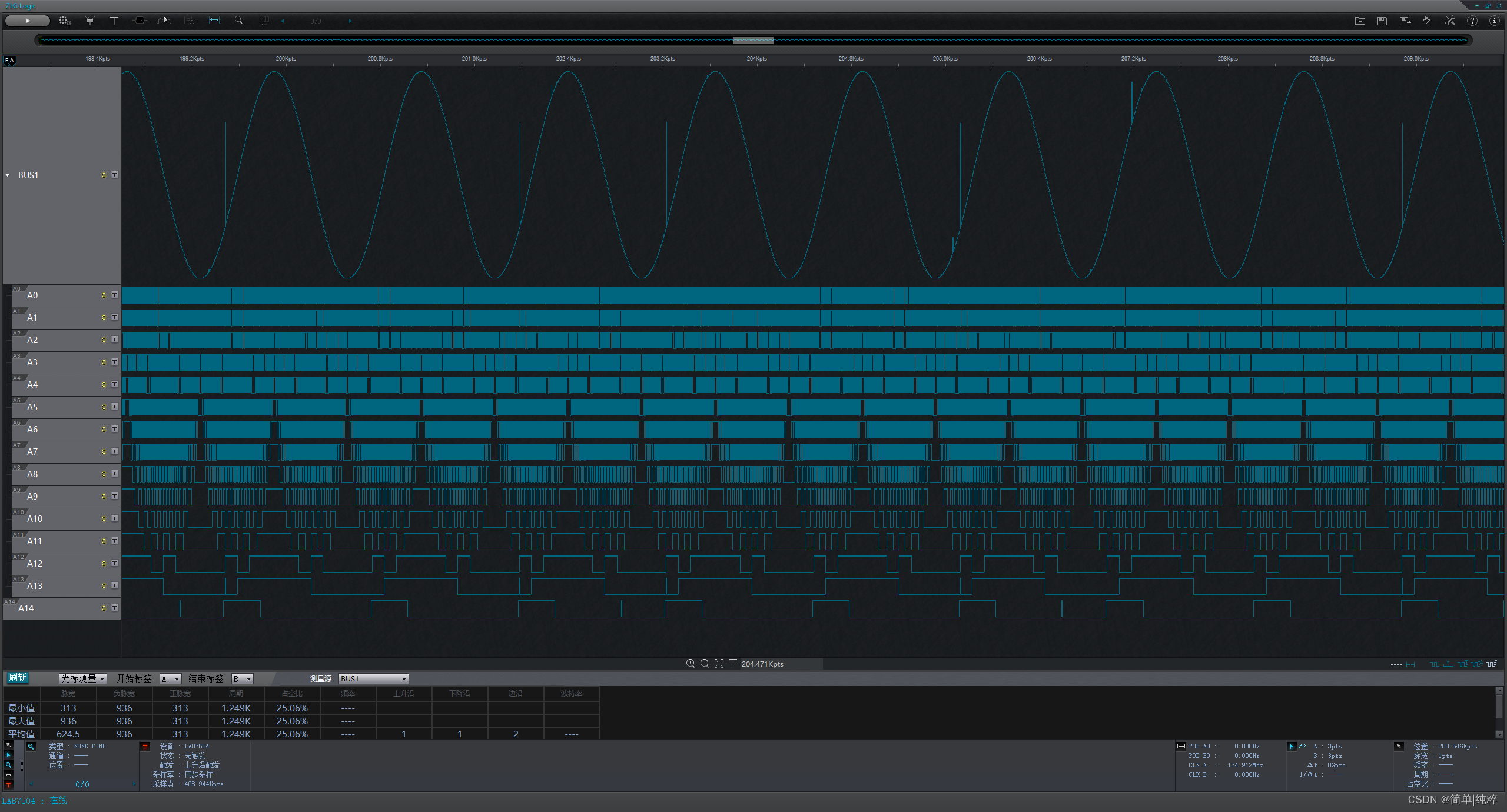

采样后的数据波形
如果排除逻辑分析仪的问题，看来超频后不太行，毛刺这么多。
系统时钟频率改成200M，再来，还是有一点毛刺。

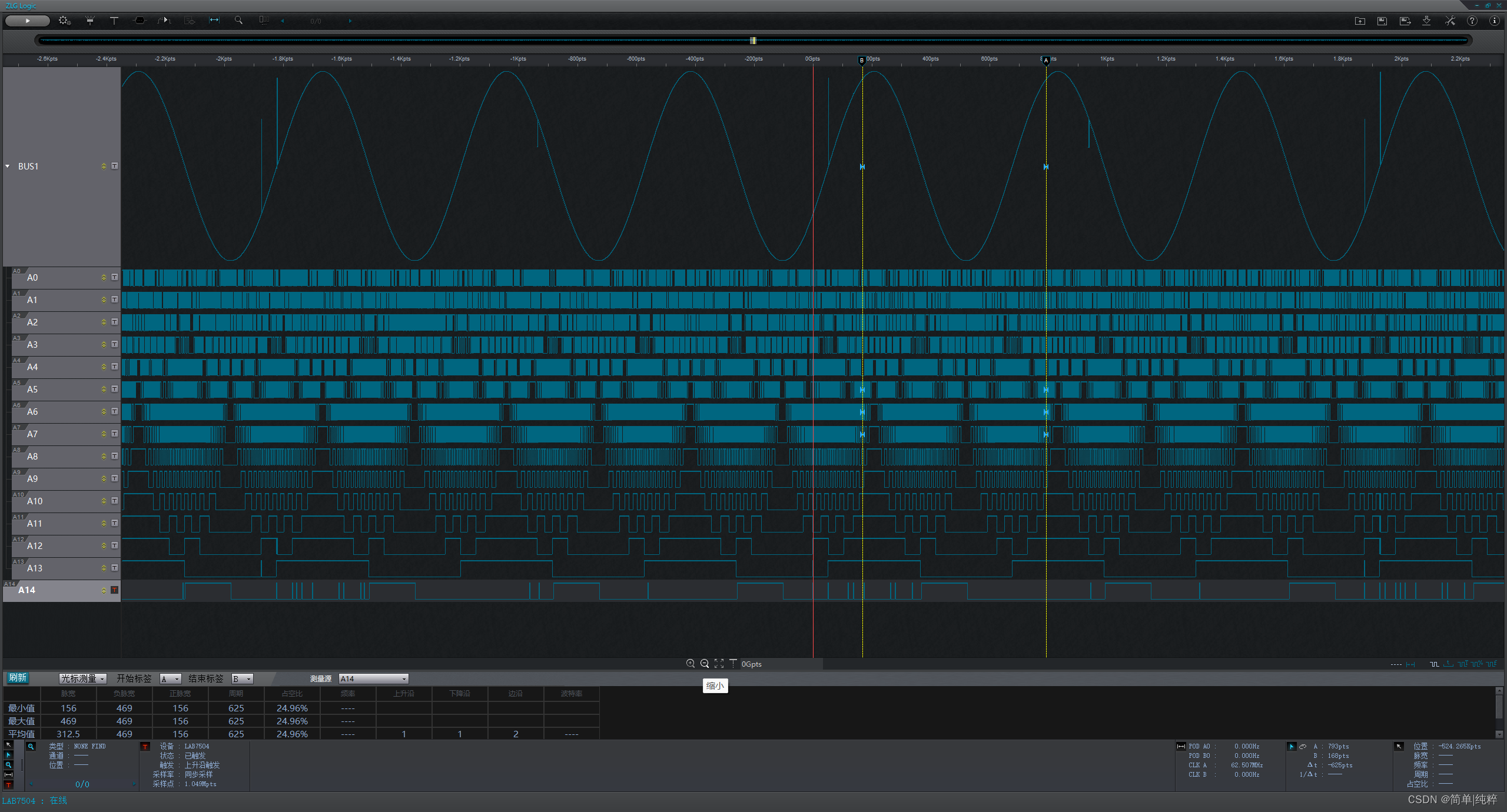

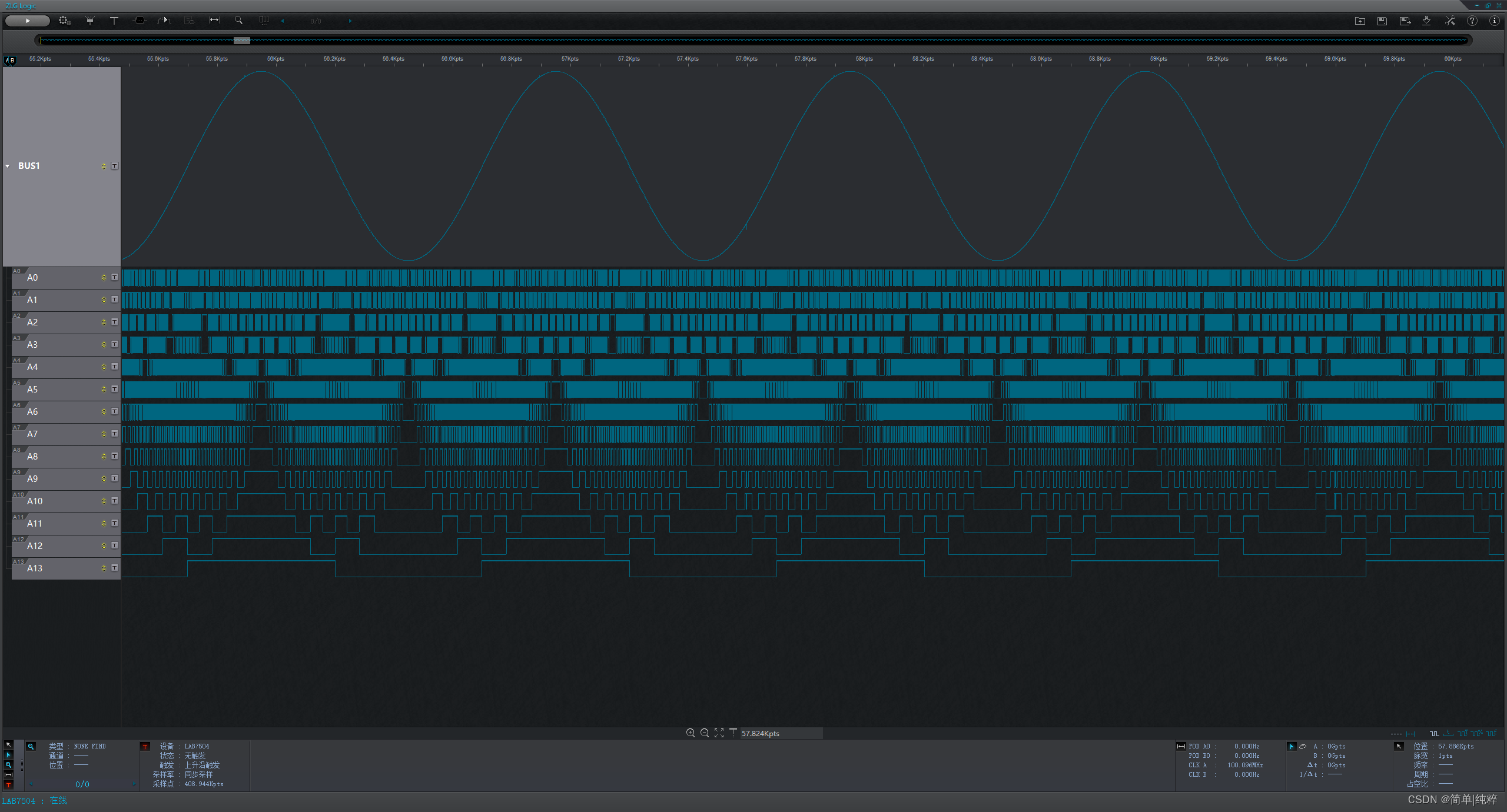

系统时钟频率改成125M。

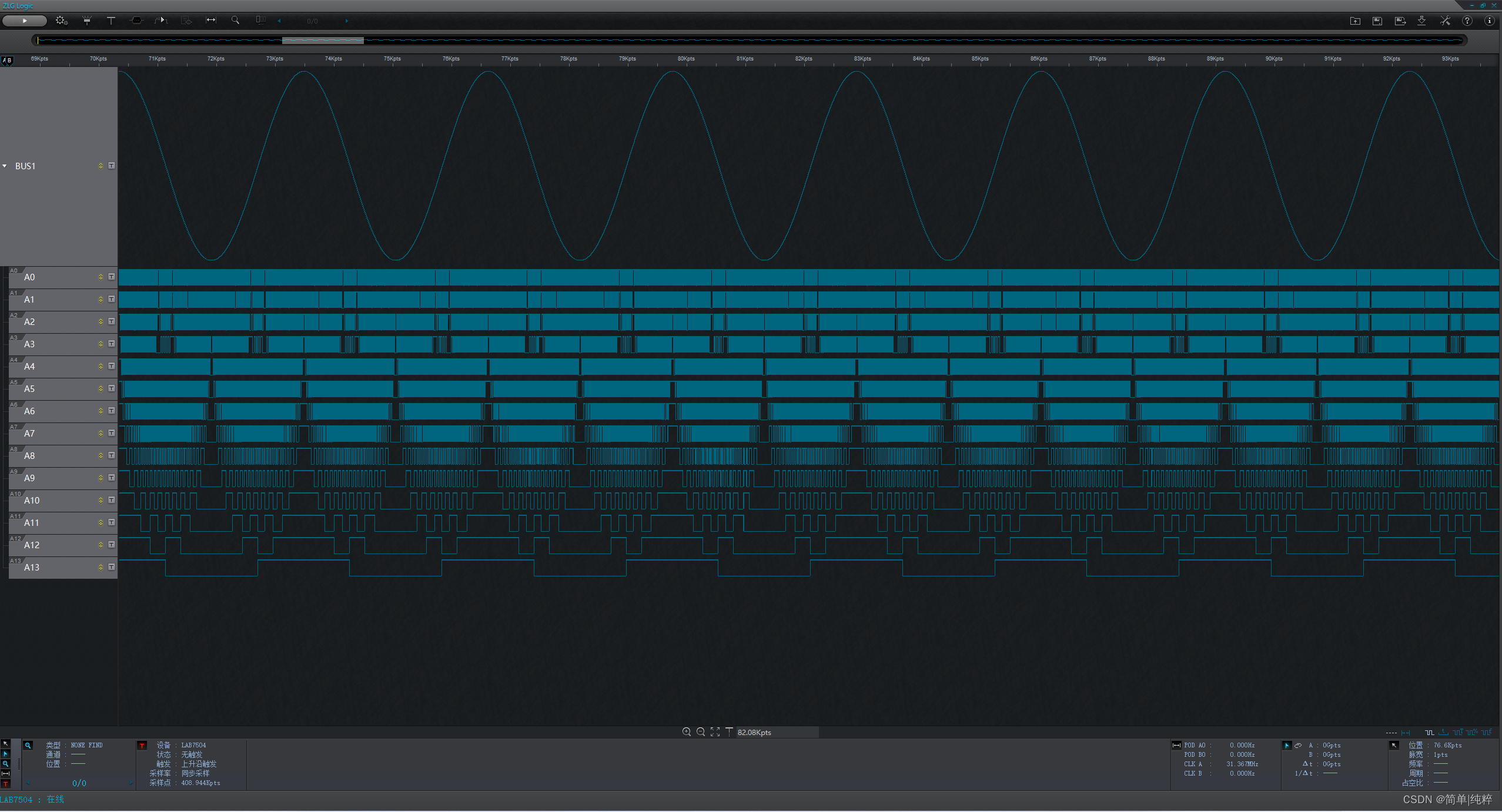

系统时钟频率62.5M。
上位机下载
直接下载已经编译好的上位机软件
https://github.com/leidawt/PicoAWG-Software/releases/download/V2.0/PicoAWG.dist.7z

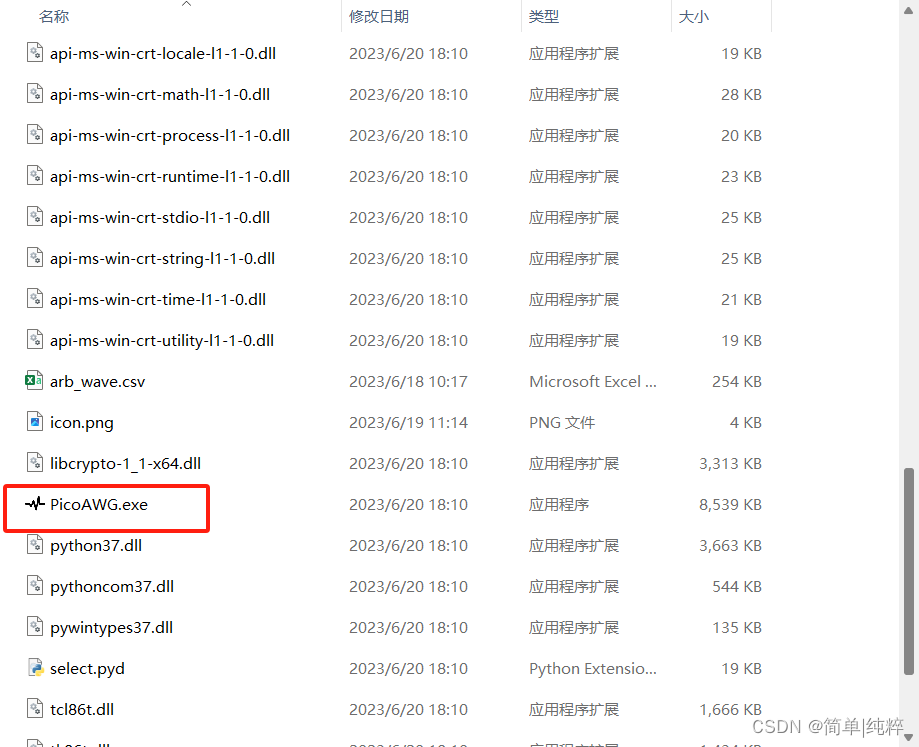

解压后找到PicoAWG.exe直接运行即可。

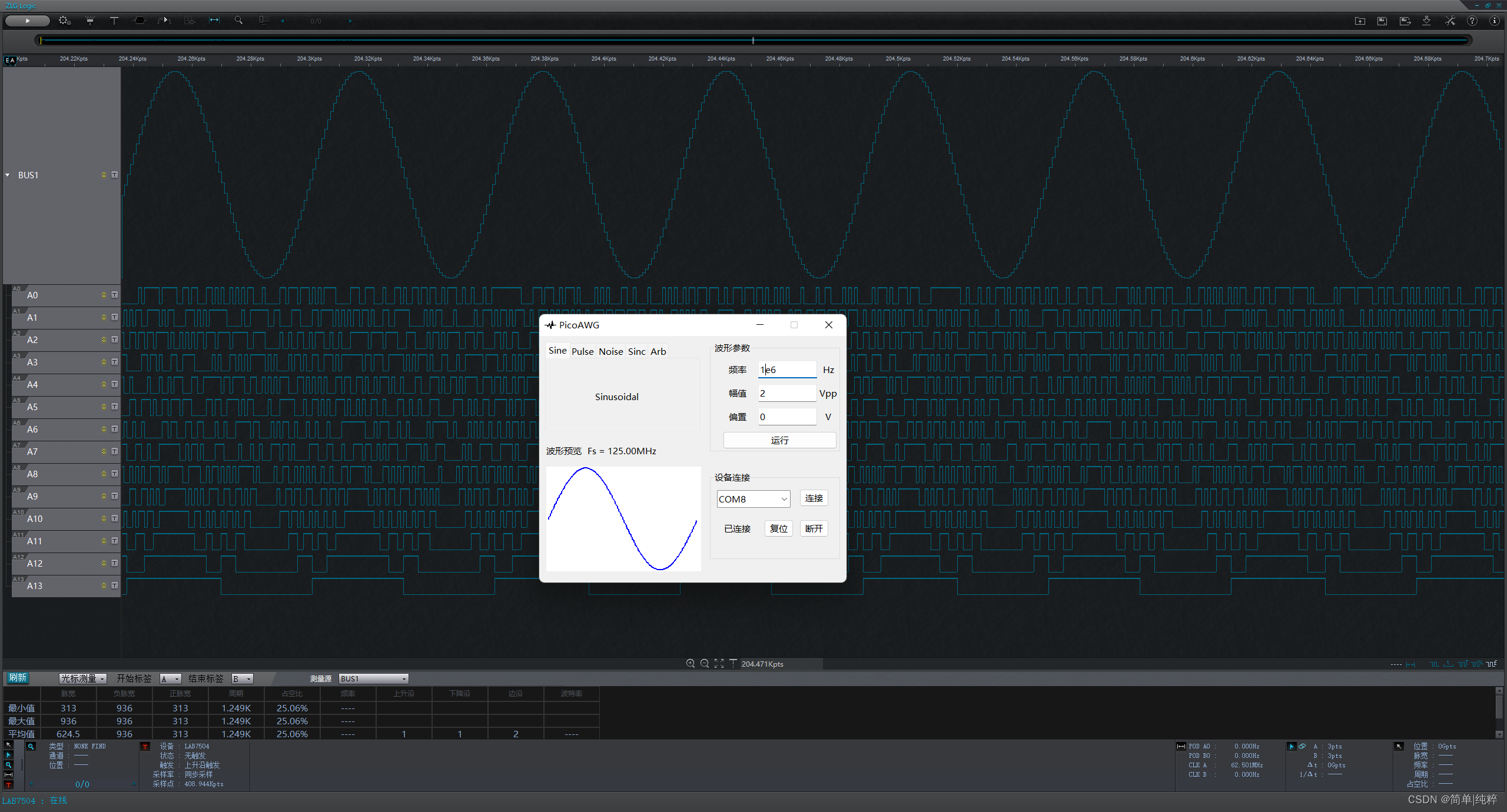

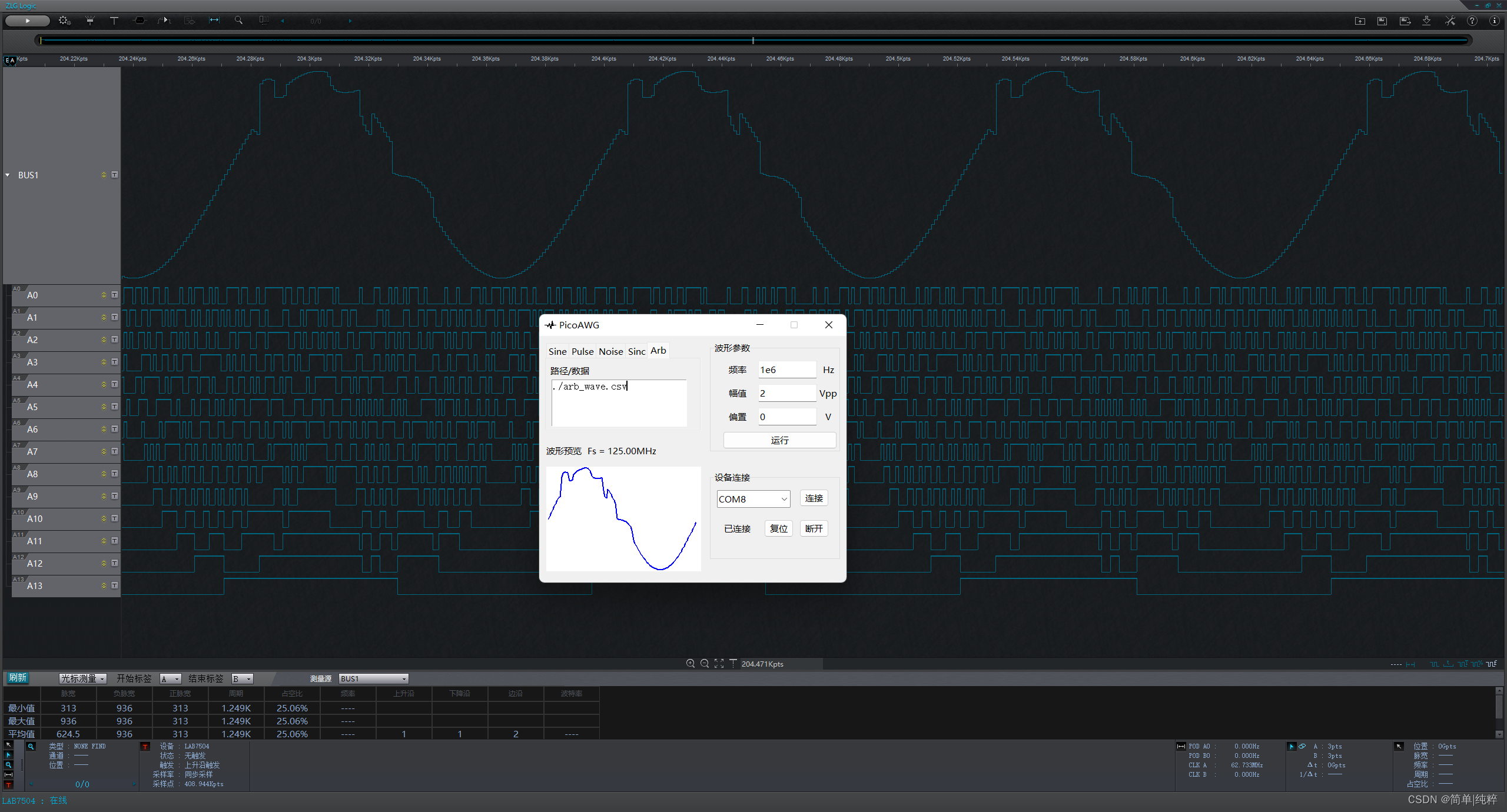

上位机选择相应串口，发送波形即可
上位机二次开发

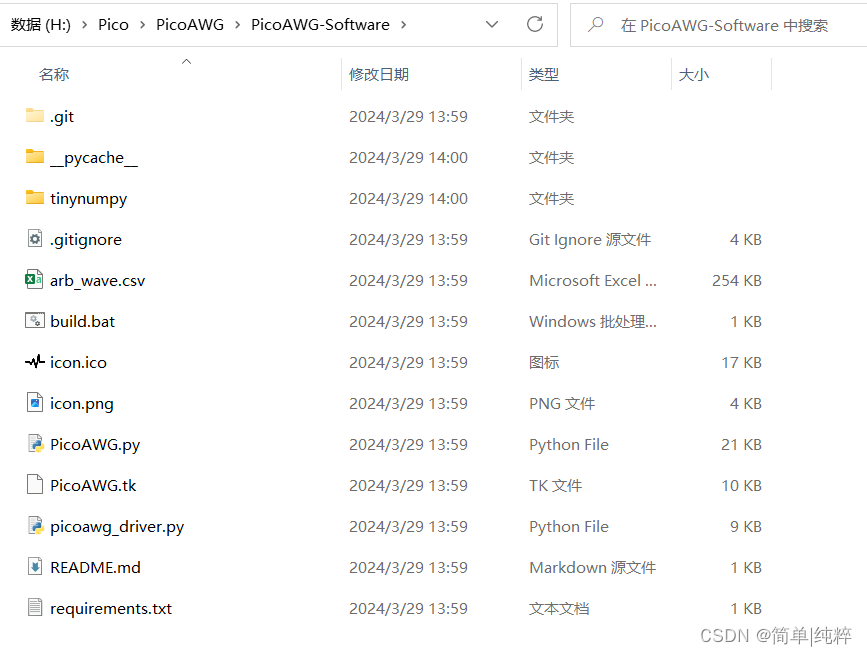

把项目克隆到本地
git clone https://github.com/leidawt/PicoAWG-Software.git
安装需要的python依赖库，前提是电脑已经安装好了python环境和相应的pip包管理器
pip install -r requirements.txt
先试试编译打包

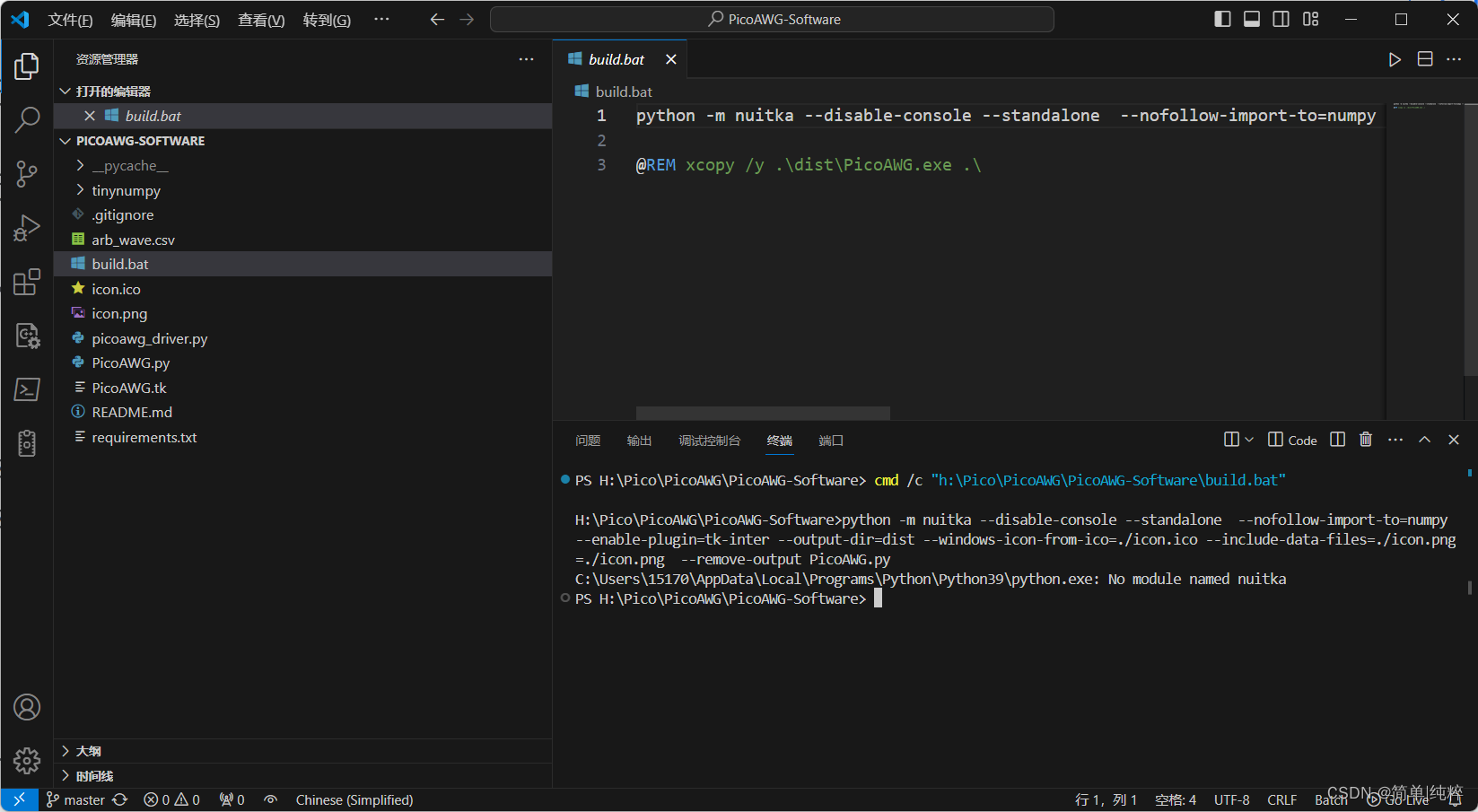

发现缺少模块nuitka

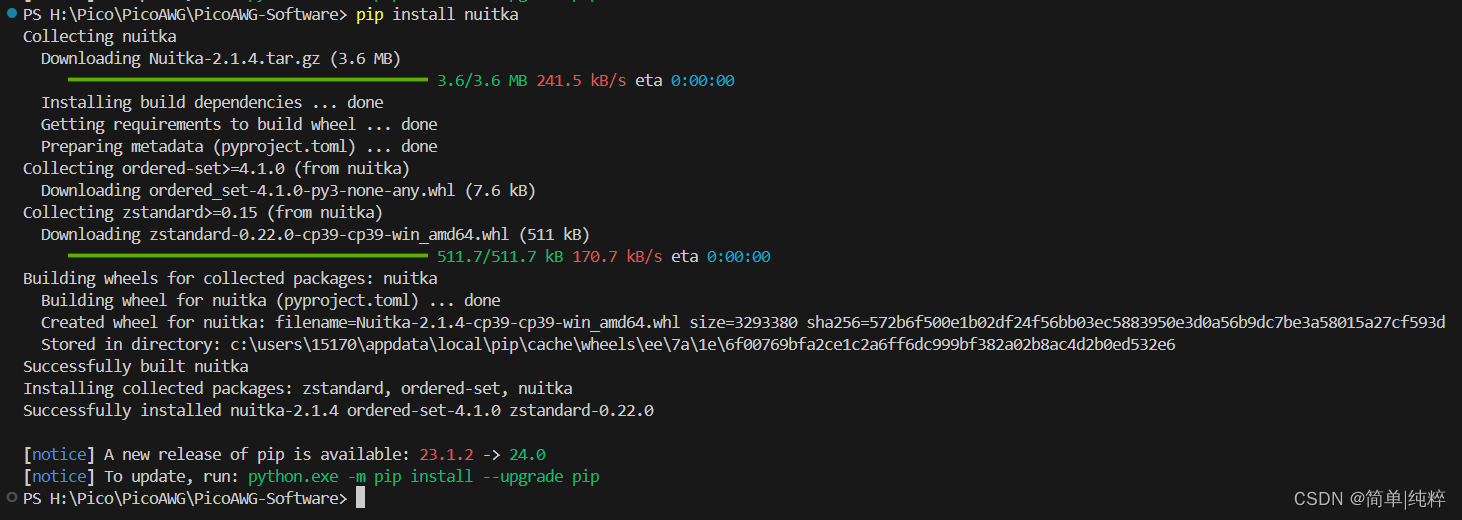

那就pip安装一个
再重新编译下，运行build.bat

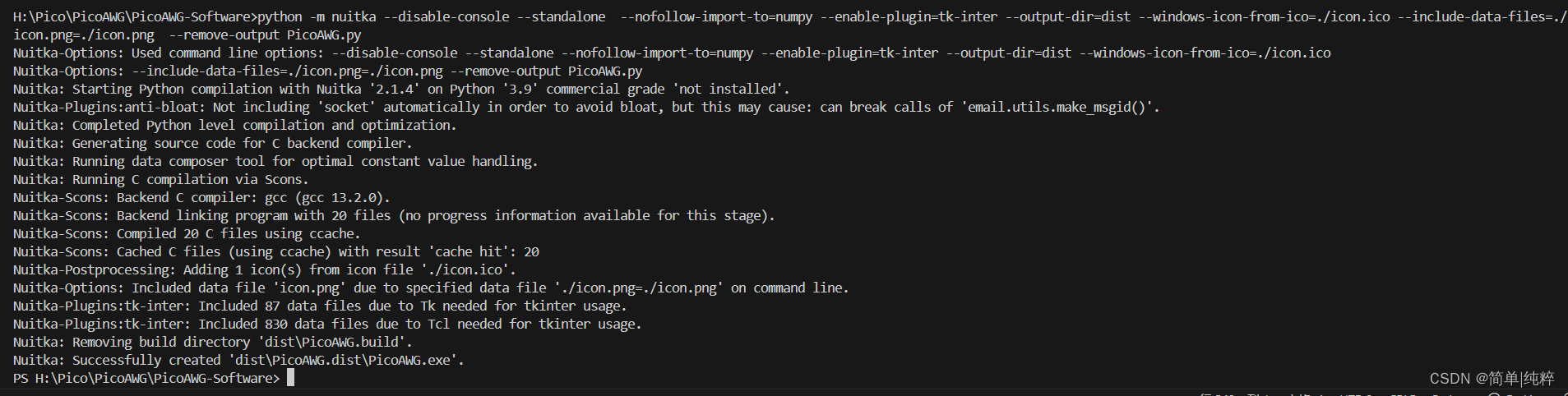

编译成功，二次开发需要怎么修改代码看心情。
首次编译会提示需要从github下载工具链，网络问题自行解决。
写在后面
本文只是简单的看看运行效果，实测发现超频运行多次就寄了，波形长这样。一堆毛刺，再也回不到之前的完美状态。所以建议不要轻易超频。

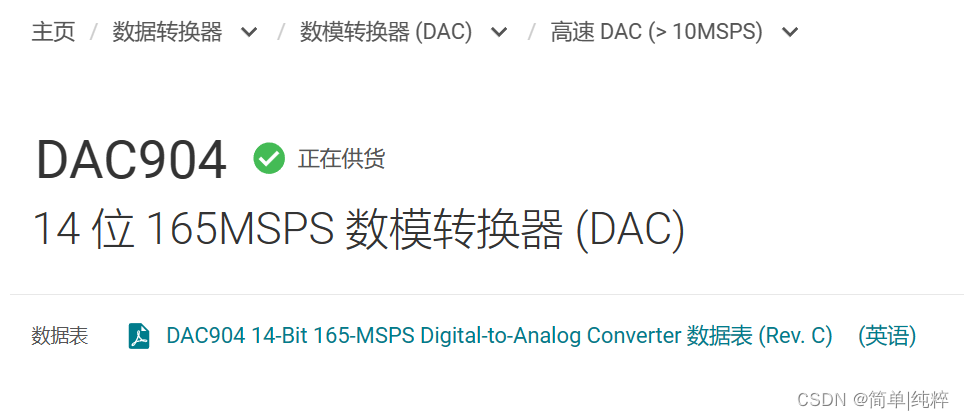

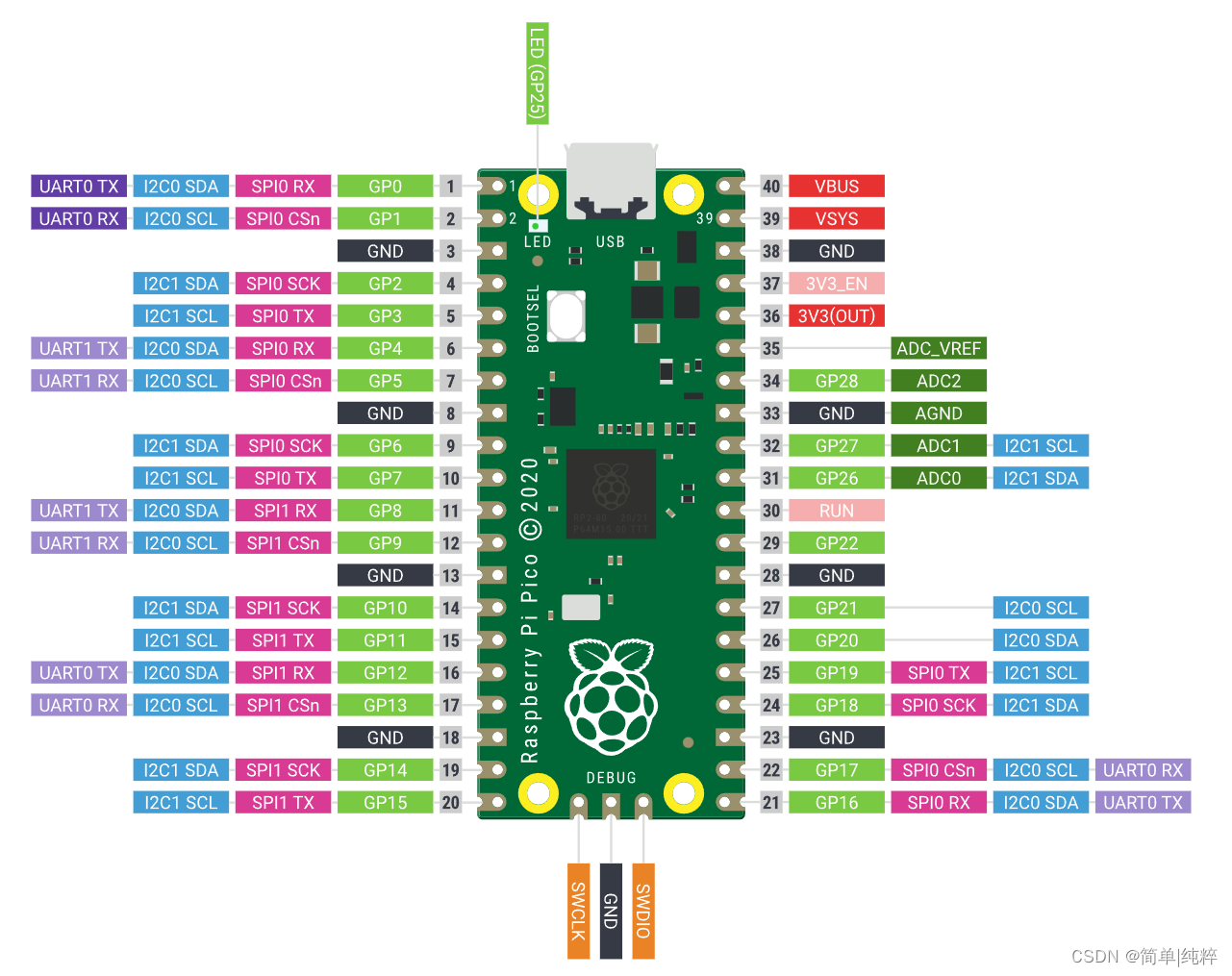

这个项目原本是驱动DAC904芯片的，通过上文逻辑分析仪可以看到，用P15引脚作为DAC时钟，P14引脚产生PWM调节参考电流，P0-P13就是14位的数字码输出了。
需要继续完善的地方：
上位机稳定性，经常卡死。
如何开发实时数据流数字信号发生器，而不是buffer模式，这样这个数字信号发生器就可以直接作为电脑外设使用，不需要高成本的FPGA。可以作为超高速声卡，SPI控制器等等。pico性能有限，最终还是需要FPGA方案。
