将大的遥感影像拆建为多个
1 代码实现(一小块儿区域裁剪)
# 将一幅遥感影像拆建为多张
import gdal
# 读取要切的原图
in_ds = gdal.Open("zx1.jpg")
print("open tif file succeed")
width = in_ds.RasterXSize # 获取数据宽度
height = in_ds.RasterYSize # 获取数据高度
outbandsize = in_ds.RasterCount # 获取数据波段数
im_geotrans = in_ds.GetGeoTransform() # 获取仿射矩阵信息
im_proj = in_ds.GetProjection() # 获取投影信息
datatype = in_ds.GetRasterBand(1).DataType
im_data = in_ds.ReadAsArray() # 获取数据
# 读取原图中的每个波段
in_band1 = in_ds.GetRasterBand(1)
in_band2 = in_ds.GetRasterBand(2)
in_band3 = in_ds.GetRasterBand(3)
# 定义切图的起始点坐标
offset_x = 0
offset_y = 0
# offset_x = width/2 # 这里是随便选取的,可根据自己的实际需要设置
# offset_y = height/2
# 定义切图的大小(矩形框)
block_xsize = 60 # 行
block_ysize = 60 # 列
k = 0
for i in range(width // block_xsize):
for j in range(height // block_xsize):
out_band1 = in_band1.ReadAsArray(i * block_xsize, j * block_xsize, block_xsize, block_ysize)
out_band2 = in_band2.ReadAsArray(i * block_xsize, j * block_xsize, block_xsize, block_ysize)
out_band3 = in_band3.ReadAsArray(i * block_xsize, j * block_xsize, block_xsize, block_ysize)
print(out_band3)
k += 1
## 从每个波段中切需要的矩形框内的数据(注意读取的矩形框不能超过原图大小)
# out_band1 = in_band1.ReadAsArray(offset_x, offset_y, block_xsize, block_ysize)
# out_band2 = in_band2.ReadAsArray(offset_x, offset_y, block_xsize, block_ysize)
# out_band3 = in_band3.ReadAsArray(offset_x, offset_y, block_xsize, block_ysize)
# 获取Tif的驱动,为创建切出来的图文件做准备
gtif_driver = gdal.GetDriverByName("GTiff")
# 创建切出来的要存的文件(3代表3个不都按,最后一个参数为数据类型,跟原文件一致)
out_ds = gtif_driver.Create(str(k) + 'clip4.tif', block_xsize, block_ysize, outbandsize, datatype)
# print("create new tif file succeed")
# 获取原图的原点坐标信息,# 获取仿射矩阵信息
ori_transform = in_ds.GetGeoTransform()
if ori_transform:
print(ori_transform)
print("Origin = ({}, {})".format(ori_transform[0], ori_transform[3]))
print("Pixel Size = ({}, {})".format(ori_transform[1], ori_transform[5]))
# 读取原图仿射变换参数值
top_left_x = ori_transform[0] # 左上角x坐标
w_e_pixel_resolution = ori_transform[1] # 东西方向像素分辨率
top_left_y = ori_transform[3] # 左上角y坐标
n_s_pixel_resolution = ori_transform[5] # 南北方向像素分辨率
# 根据反射变换参数计算新图的原点坐标
top_left_x = top_left_x + i * block_xsize * w_e_pixel_resolution
top_left_y = top_left_y + j * block_xsize * n_s_pixel_resolution
# 将计算后的值组装为一个元组,以方便设置
dst_transform = (top_left_x, ori_transform[1], ori_transform[2], top_left_y, ori_transform[4], ori_transform[5])
# 设置裁剪出来图的原点坐标
out_ds.SetGeoTransform(dst_transform)
# 设置SRS属性(投影信息)
out_ds.SetProjection(in_ds.GetProjection())
# 写入目标文件
out_ds.GetRasterBand(1).WriteArray(out_band1)
out_ds.GetRasterBand(2).WriteArray(out_band2)
out_ds.GetRasterBand(3).WriteArray(out_band3)
# 将缓存写入磁盘
out_ds.FlushCache()
print("FlushCache succeed")
# 计算统计值
# for i in range(1, 3):
# out_ds.GetRasterBand(i).ComputeStatistics(False)
# print("ComputeStatistics succeed")
del out_ds
print("End!")
2 将一大块区域裁剪为小块图像(损失了坐标)
import os
import gdal
import numpy as np
# 读取tif数据集
def readTif(fileName):
dataset = gdal.Open(fileName)
if dataset == None:
print(fileName + "文件无法打开")
return dataset
# 保存tif文件函数
def writeTiff(im_data, im_geotrans, im_proj, path):
if 'int8' in im_data.dtype.name:
datatype = gdal.GDT_Byte
elif 'int16' in im_data.dtype.name:
datatype = gdal.GDT_UInt16
else:
datatype = gdal.GDT_Float32
if len(im_data.shape) == 3:
im_bands, im_height, im_width = im_data.shape
elif len(im_data.shape) == 2:
im_data = np.array([im_data])
im_bands, im_height, im_width = im_data.shape
# 创建文件
driver = gdal.GetDriverByName("GTiff")
dataset = driver.Create(path, int(im_width), int(im_height), int(im_bands), datatype)
if (dataset != None):
dataset.SetGeoTransform(im_geotrans) # 写入仿射变换参数
dataset.SetProjection(im_proj) # 写入投影
for i in range(im_bands):
dataset.GetRasterBand(i + 1).WriteArray(im_data[i])
del dataset
def TifCrop(TifPath, SavePath, CropSize, RepetitionRate):
'''
滑动窗口裁剪函数
TifPath 影像路径
SavePath 裁剪后保存目录
CropSize 裁剪尺寸
RepetitionRate 重复率
'''
dataset_img = readTif(TifPath)
width = dataset_img.RasterXSize
height = dataset_img.RasterYSize
proj = dataset_img.GetProjection()
geotrans = dataset_img.GetGeoTransform()
img = dataset_img.ReadAsArray(0, 0, width, height) # 获取数据
# 获取当前文件夹的文件个数len,并以len+1命名即将裁剪得到的图像
#new_name = len(os.listdir(SavePath)) + 1
new_name = 1
# 裁剪图片,重复率为RepetitionRate
for i in range(int((height - CropSize * RepetitionRate) / (CropSize * (1 - RepetitionRate)))):
print("row_number:%d"%i)
for j in range(int((width - CropSize * RepetitionRate) / (CropSize * (1 - RepetitionRate)))):
# 如果图像是单波段
if (len(img.shape) == 2):
cropped = img[
int(i * CropSize * (1 - RepetitionRate)): int(i * CropSize * (1 - RepetitionRate)) + CropSize,
int(j * CropSize * (1 - RepetitionRate)): int(j * CropSize * (1 - RepetitionRate)) + CropSize]
# 如果图像是多波段
else:
cropped = img[:,
int(i * CropSize * (1 - RepetitionRate)): int(i * CropSize * (1 - RepetitionRate)) + CropSize,
int(j * CropSize * (1 - RepetitionRate)): int(j * CropSize * (1 - RepetitionRate)) + CropSize]
# 写图像
writeTiff(cropped, geotrans, proj, SavePath + "/n%d.tif" % new_name)
# 文件名 + 1
new_name = new_name + 1
# 向前裁剪最后一列
for i in range(int((height - CropSize * RepetitionRate) / (CropSize * (1 - RepetitionRate)))):
if (len(img.shape) == 2):
cropped = img[int(i * CropSize * (1 - RepetitionRate)): int(i * CropSize * (1 - RepetitionRate)) + CropSize,
(width - CropSize): width]
else:
cropped = img[:,
int(i * CropSize * (1 - RepetitionRate)): int(i * CropSize * (1 - RepetitionRate)) + CropSize,
(width - CropSize): width]
# 写图像
writeTiff(cropped, geotrans, proj, SavePath + "/n%d.tif" % new_name)
new_name = new_name + 1
# 向前裁剪最后一行
for j in range(int((width - CropSize * RepetitionRate) / (CropSize * (1 - RepetitionRate)))):
if (len(img.shape) == 2):
cropped = img[(height - CropSize): height,
int(j * CropSize * (1 - RepetitionRate)): int(j * CropSize * (1 - RepetitionRate)) + CropSize]
else:
cropped = img[:,
(height - CropSize): height,
int(j * CropSize * (1 - RepetitionRate)): int(j * CropSize * (1 - RepetitionRate)) + CropSize]
writeTiff(cropped, geotrans, proj, SavePath + "/n%d.tif" % new_name)
# 文件名 + 1
new_name = new_name + 1
# 裁剪右下角
if (len(img.shape) == 2):
cropped = img[(height - CropSize): height,
(width - CropSize): width]
else:
cropped = img[:,
(height - CropSize): height,
(width - CropSize): width]
writeTiff(cropped, geotrans, proj, SavePath + "/n%d.tif" % new_name)
new_name = new_name + 1
if __name__ == '__main__':
# 将影像1裁剪为重复率为0.1的256×256的数据集
TifCrop(r"H:\01HTutorWork\3GF2\2DataAndLabel\4Gaofen2\1fujian_shuncang\2imageLabel\zhencaiseGF2_PMS2_E118.1_N27.0_20190919_L1A0004254305-PAN2_ORTHO_PSH1.tif",
r"H:\01HTutorWork\3GF2\2DataAndLabel\4Gaofen2\1fujian_shuncang\5dataset16\1images", 16, 0)
TifCrop(r"H:\01HTutorWork\3GF2\2DataAndLabel\4Gaofen2\1fujian_shuncang\2imageLabel\sc254305.tif",
r"H:\01HTutorWork\3GF2\2DataAndLabel\4Gaofen2\1fujian_shuncang\5dataset16\2labels", 16, 0)
参考资料

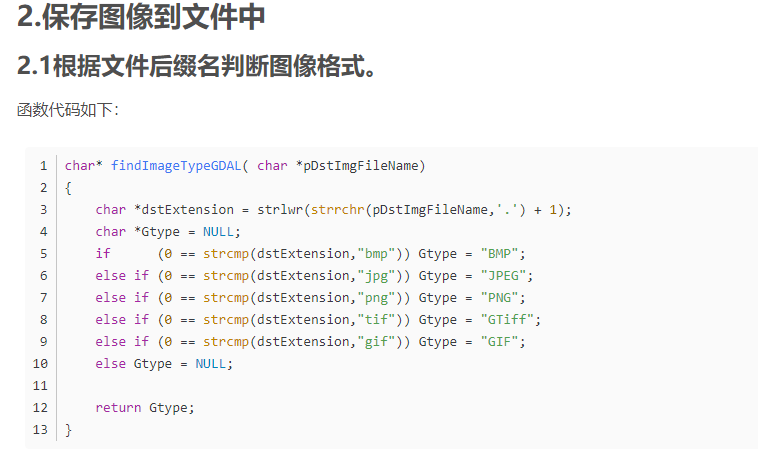

gdal图像格式转换
https://blog.csdn.net/godenlove007/article/details/8864763
