Cesium|xt3d动态轨迹线

效果
代码
预览地址

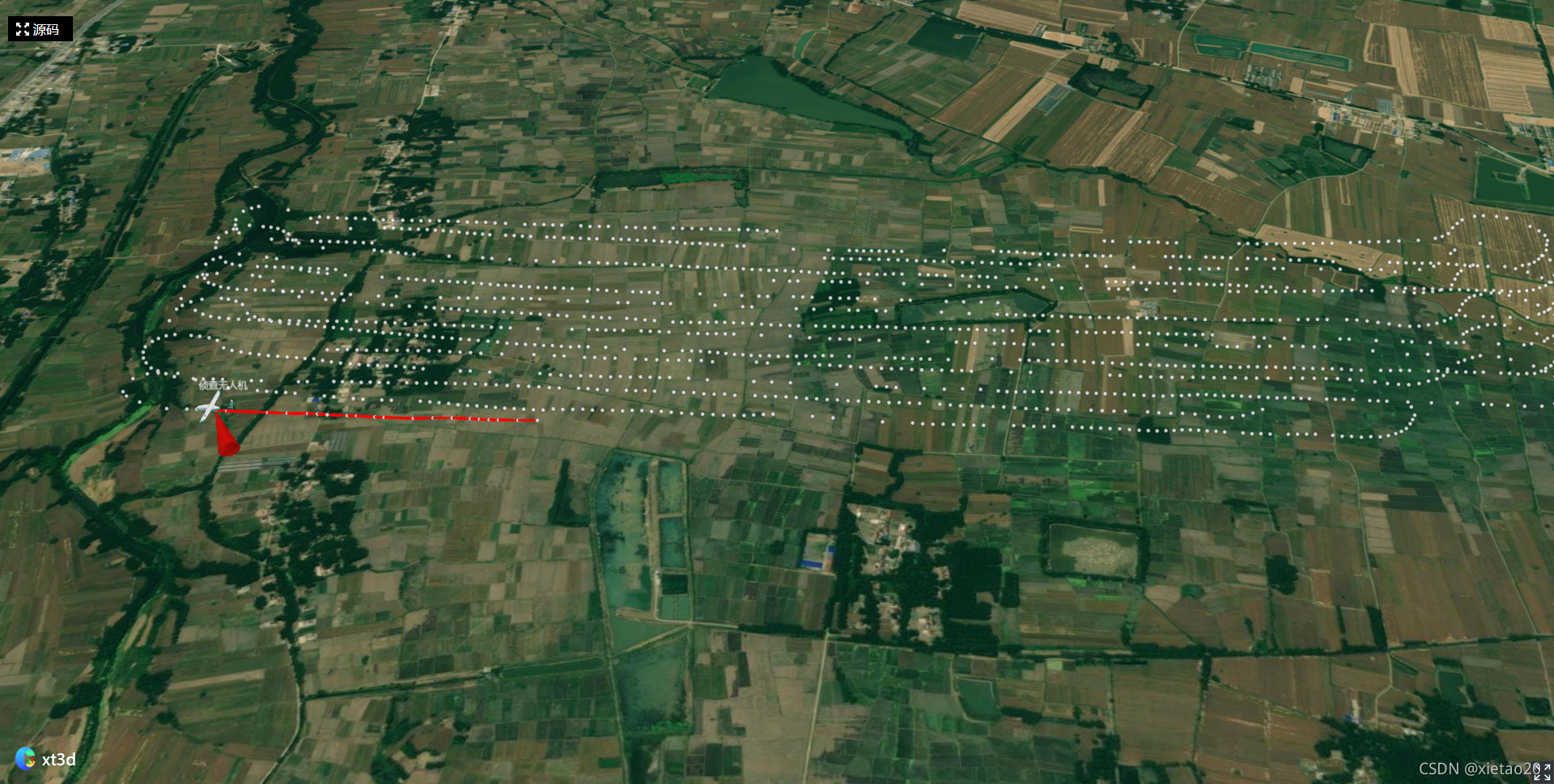

效果

在这里插入图片描述

代码

<!DOCTYPE html>
<html lang="zh-CN">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>cesium|xt3d</title>
    <!-- 引入Cesium -->
    <script src="https://cdn.jsdelivr.net/npm/cesium@1.84.0/Build/Cesium/Cesium.js"></script>
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/cesium@1.84.0/Build/Cesium/Widgets/widgets.css">

    <!--  引入xt3d -->
    <script src="http://www.xt3d.cn/xt3dlib/xt3d.min.js"></script>
    <style>
        html,
        body,
        #map3d {
            width: 100%;
            height: 100%;
            margin: 0px;
            padding: 0px;
        }
    </style>
</head>

<body>
    <div id="map3d"></div>
    <script>
        let xt3dInit = {
            init(el) {
                this.initViewer(el);
                this.loadPath();
                this.setView();
            },

            //初始化viewer
            initViewer(el) {
                this.viewer = new Cesium.Viewer(el, {
                    infoBox: false,
                    selectionIndicator: false,
                    navigation: false,
                    animation: false,
                    timeline: false,
                    baseLayerPicker: false,
                    geocoder: false,
                    homeButton: false,
                    sceneModePicker: false,
                    navigationHelpButton: false,
                    shouldAnimate: true,
                    skyAtmosphere: false,
                    imageryProvider: new Cesium.ArcGisMapServerImageryProvider({
                        url: 'https://services.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer'
                    })
                });


                //是否开启抗锯齿
                this.viewer.scene.fxaa = true;
                this.viewer.scene.postProcessStages.fxaa.enabled = true;

            },

            //飞行线
            loadPath() {
                fetch("/data.xt3d.cn/assets/data/flypath.json").then(res => {
                    return res.json();
                }).then(res => {
                    this.initPath(res);
                })
            },

            initPath(data) {
                let property = new Cesium.SampledPositionProperty();

                let start;
                let stop;
                for (let i = 0, len = data.length; i < len; i++) {
                    let item = data[i];;
                    let lng = Number(item.x.toFixed(6));
                    let lat = Number(item.y.toFixed(6));
                    let hei = item.z;
                    let time = item.time;

                    let position = null;
                    if (lng && lat) {
                        position = Cesium.Cartesian3.fromDegrees(lng, lat, hei);
                    }
                    let juliaDate = null
                    if (time) {
                        juliaDate = Cesium.JulianDate.fromIso8601(time);
                    }
                    if (position && juliaDate) {
                        property.addSample(juliaDate, position);
                    }

                    if (i == 0) {
                        start = juliaDate;
                    } else if (i == len - 1) {
                        stop = juliaDate;
                    }

                    this.viewer.entities.add({
                        position: position,
                        point: {
                            pixelSize: 4,
                            color: Cesium.Color.WHITE.withAlpha(0.8)
                        }
                    })
                }

                //设置时钟属性
                this.viewer.clock.startTime = start.clone();
                this.viewer.clock.stopTime = stop.clone();
                this.viewer.clock.currentTime = start.clone();
                this.viewer.clock.shouldAnimate = true;
                this.viewer.clock.clockRange = Cesium.ClockRange.LOOP_STOP;
                this.viewer.clock.multiplier = 5;

                if (this.viewer.timeline) {
                    this.viewer.timeline.zoomTo(start, stop);
                }

                //创建path对象
                let flyPath = new xt3d.PolylineObject.FlyPath(this.viewer, {
                    position: property,
                    orientation: new Cesium.VelocityOrientationProperty(property),
                    model: {
                        uri: "/data.xt3d.cn/assets/glb/wrj.glb",
                        colorBlendMode: Cesium.ColorBlendMode.HIGHLIGHT,
                        color: Cesium.Color.WHITE,
                        scale: 0.1,
                        minimumPixelSize: 50,
                    },
                    label: {
                        text: '侦查无人机',
                        color: Cesium.Color.AZURE,
                        outline: true,
                        outlineColor: Cesium.Color.BLACK,
                        outlineWidth: 2,
                        horizontalOrigin: Cesium.HorizontalOrigin.CENTER,
                        verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
                        pixelOffset: new Cesium.Cartesian2(10, -25),
                        scaleByDistance: new Cesium.NearFarScalar(500, 1, 1500, 0.4),
                    },
                });

                let flyCylinder = new xt3d.PolylineObject.FlyCylinder(this.viewer, property);
                //flyPath.remove();
                //flyCylinder.remove();
            },

            setView() {
                let flyToOpts = {
                    destination: {
                        x: -2475375.9177402095,
                        y: 4780087.592872154,
                        z: 3412984.727142855
                    },
                    orientation: {
                        heading: 4.660867971042048,
                        pitch: -0.6998819723213083,
                        roll: 6.279214287424039
                    },
                    duration: 1
                };
                this.viewer.scene.camera.flyTo(flyToOpts);
            },

            destroy() {
                this.viewer.entities.removeAll();
                this.viewer.imageryLayers.removeAll(true);
                this.viewer.destroy();
            }
        }

        xt3dInit.init("map3d");
    </script>
</body>

</html>

预览地址

xt3d 在线预览地址
