ThingsBoard 使用 REST API

一、参考地址

Rest-api参考：
http://www.ithingsboard.com/docs/reference/rest-api/
所有API参考：
http://www.ithingsboard.com/docs/api/

二、关于三种属性

---

1. 设备属性：只能是设备上报或者获取，平台无法修改，外部调用可以通过令牌来修改
2. 共享属性：设备只能获取，平台可修改，外部调用可修改
3. 平台属性：设备只能获取，平台可修改，外部调用可修改

---

三、相互通信方式

目前想到的，想要完成外部和设备互相通信，共有2种方式

• 通过设备属性方式，缺点是没法订阅属性更新(共享数据可以，设备属性不行)，只能自己定期去查询
• 通过rpc方式，可以订阅属性更新，直接订阅 request/+ ，在命令触发时，就可以收到对应命令了

---

四、流程

1、MQTT设置和读取设备属性

参考链接：http://www.ithingsboard.com/docs/reference/mqtt-api/#rpc-api

1. 设备通过MQTT登录，client_id是设备ID，username是访问令牌

       esp_mqtt_client_config_t mqtt_cfg = {
   		.uri = "mqtt://***.***.***.***:1883",
           .event_handle = mqtt_event_handler,
   	//	.cert_pem = (const char *)ca_cert,
     //      .client_cert_pem = (const char *)cl_cert,//client_cert_pem_start,
        //   .client_key_pem = (const char *)cl_key,//client_key_pem_start,
   		//.port= 8884,
   		.client_id = "312cd6d0-c99e-11eb-aaa5-2faca3423440",
           .username = "6U9OgdbWBNt5QCF7LJ8O",                //用户名
        //   .password = "OdYdzRrTNeUKXJvIjAUbdA02I3h2P9df",               //密码
   		//.task_stack = 10240,
   		.keepalive = 60,

       };


2. 发布属性

          msg_id = esp_mqtt_client_publish(client, "v1/devices/me/attributes", "{\"key1\":\"value1\"}", 0, 1, 0);
          ESP_LOGI(TAG, "sent publish successful, msg_id=%d", msg_id);


    - topic:v1/devices/me/attributes
    - pyload:{\"key1\":\"value1\"}  ，json格式数据 注意一下这里程序上有转义


   4. 获取属性
      • 发布 主题 为 v1/devices/me/attributes/request/序号
      • 发布的pyload为 “{“clientKeys”:“dnakey,rootkey0,ble_mac”, “sharedKeys”:“t1”}”，可以拿到设备属性，和共享属性

   int msg_id;
   static uint8_t request_id = 0;
   char request_topic[50];
   char publish_data[100]="{“clientKeys”:“dnakey,rootkey0,ble_mac”, “sharedKeys”:“t1”}";
   sprintf(request_topic,“v1/devices/me/attributes/request/%d”,request_id++);
   msg_id = esp_mqtt_client_publish(client, request_topic, publish_data, 0, 1, 0);
   ESP_LOGI(TAG, “sent publish successful, msg_id=%d”, msg_id);

   LOG：
   ```c
   [0;32mI (169389) RX_TASK: Read 7 bytes: 'request'[0m
   [0;32mI (169389) RX_TASK: 0x3fcb0200   72 65 71 75 65 73 74                              |request|[0m
   [0;32mI (169389) MQTT_EXAMPLE: sent publish successful, msg_id=22462[0m
   [0;32mI (169439) MQTT_EXAMPLE: MQTT_EVENT_PUBLISHED, msg_id=22462[0m
   [0;32mI (169529) MQTT_EXAMPLE: MQTT_EVENT_DATA[0m
   TOPIC=v1/devices/me/attributes/response/0

   DATA={"client":{"dnakey":"3951536c30537a59554a35426e496374","rootkey0":"03c53f32","ble_mac":"84c2e43f"},"shared":{"t1":"121212"}}


---

2、RPC控制设备

参考链接：
http://www.ithingsboard.com/docs/user-guide/rpc/

1. .需要订阅的topic

   • v1/devices/me/rpc/request/+ 用于 收取rpc命令

   msg_id = esp_mqtt_client_subscribe(client, "v1/devices/me/rpc/request/+", 0);
   ESP_LOGI(TAG, "sent subscribe successful, msg_id=%d", msg_id);

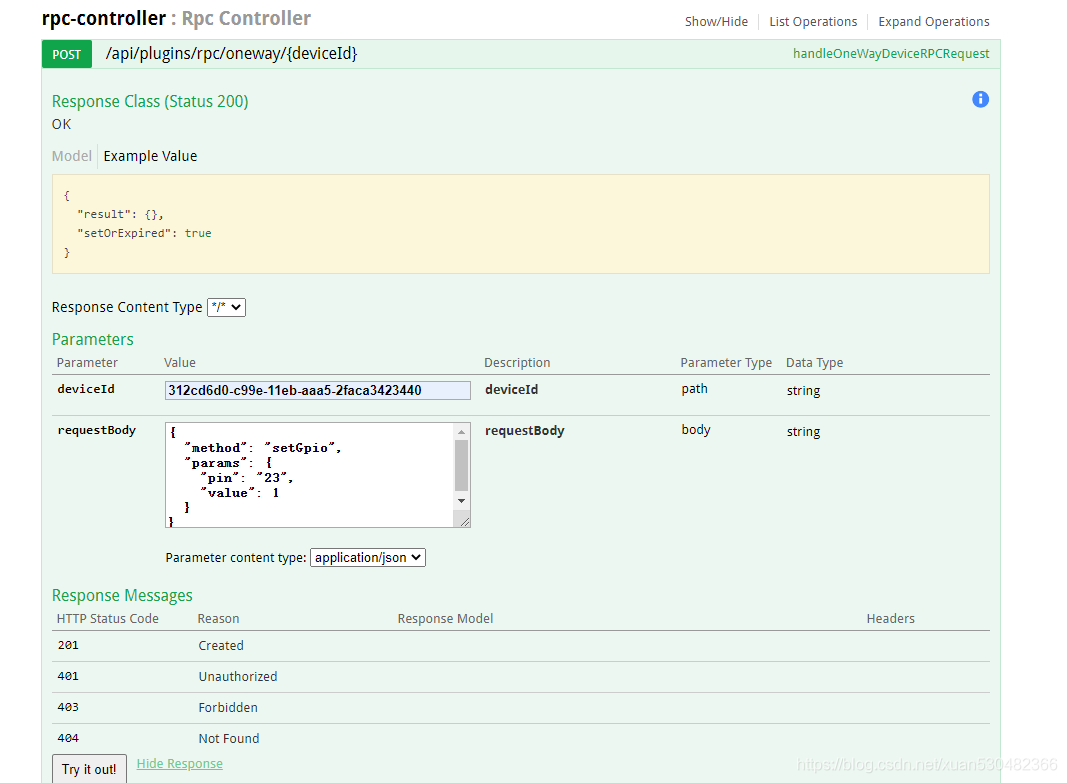

2. 通过 swagger-ui.html#/rpc-controller 下发 rpc命令=oneway模式，不需要回复
   需要填入2个信息

   • device id
   • request body,注意一下是json格式 必须有method 和 params 字段

     {
       "method": "setGpio",
       "params": {
         "pin": "23",
         "value": 1
       }
     }




3. 点击 try it out ，设备收到数据

   Log:

   [0;32mI (1196589) MQTT_EXAMPLE: MQTT_EVENT_DATA[0m
   TOPIC=v1/devices/me/rpc/request/112

   DATA={"method":"setGpio","params":{"pin":"23","value":1}}

   request_id = 112

   topic = v1/devices/me/rpc/response/112

   [0;32mI (1196609) MQTT_EXAMPLE: MQTT_EVENT_PUBLISHED, msg_id=23360[0m



4. TwoWay模式，需要回复

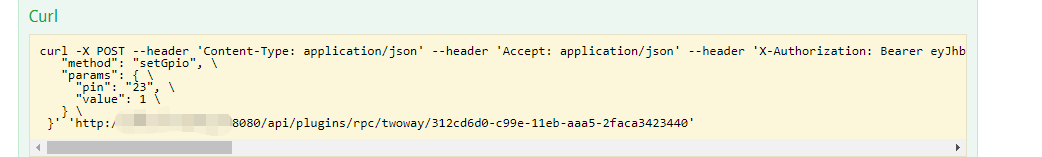

   其实我们可以看到对应的curl命令

   这里收到了数据后，发布了回复，回复数据如下：
   { "button1": 0 }


   注意这里的回复并不是设置设备属性。。。。我这里只是随便写一个

   		if(strstr((const char *)event->topic,"request"))
   		{
   			//v1/devices/me/rpc/response/$request_id

   			char *ptr = strstr((const char *)event->topic,"request");
   			uint16_t request_id = atoi(ptr+8);
   			printf("request_id = %d \r\n",request_id);


   			char topic[50];

   			sprintf(topic,"v1/devices/me/rpc/response/%d",request_id);

   			printf("topic = %s\r\n",topic);

   			esp_mqtt_client_publish(client, topic,"{\"button1\":0}", 0, 1, 0);
   		}


---

五、关于REST API 认证

参考链接：
http://www.ithingsboard.com/docs/reference/rest-api/

1. 使用POSTMAN
2. POST方式 ，地址为 ：http://localhost:8080/api/auth/login

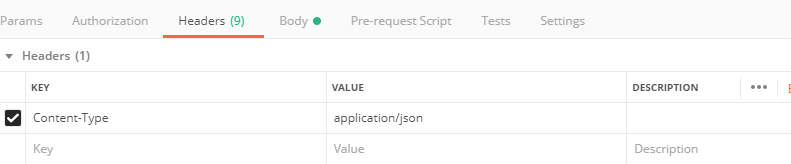

3. headers 增加 content-type 为 application /json

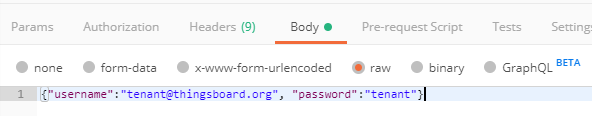

4. Body 写raw 数据 {"username":"tenant@thingsboard.org", "password":"tenant"}

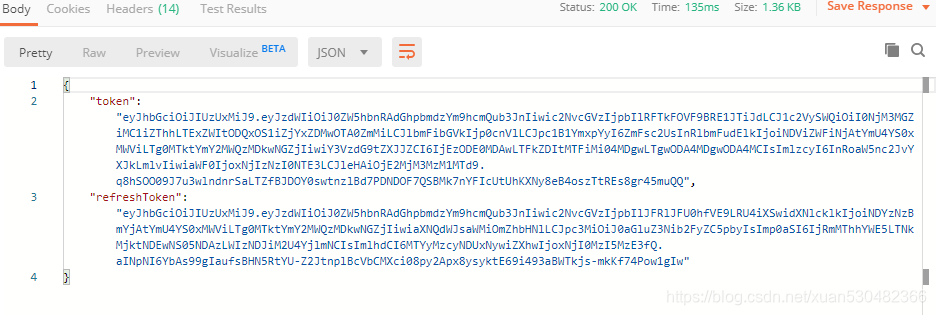

5. 发送后，或者Token

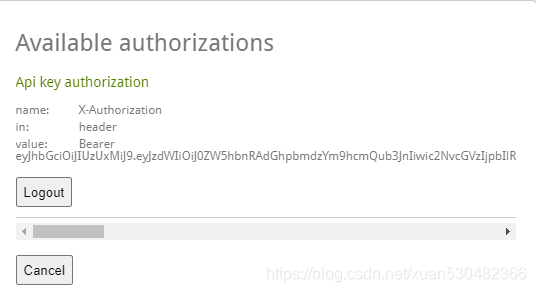

6. 打开 http://localhost:8080/swagger-ui.html，点击Authorize

   输入 Bearer+空格+Token
   验证成功后：


---

六、相关API操作

1. 获取设备所有属性，包括服务器属性，设备属性，共享属性
   这里可以看到设备的状态(是否在线)
   telemetry-controller : Telemetry Controller

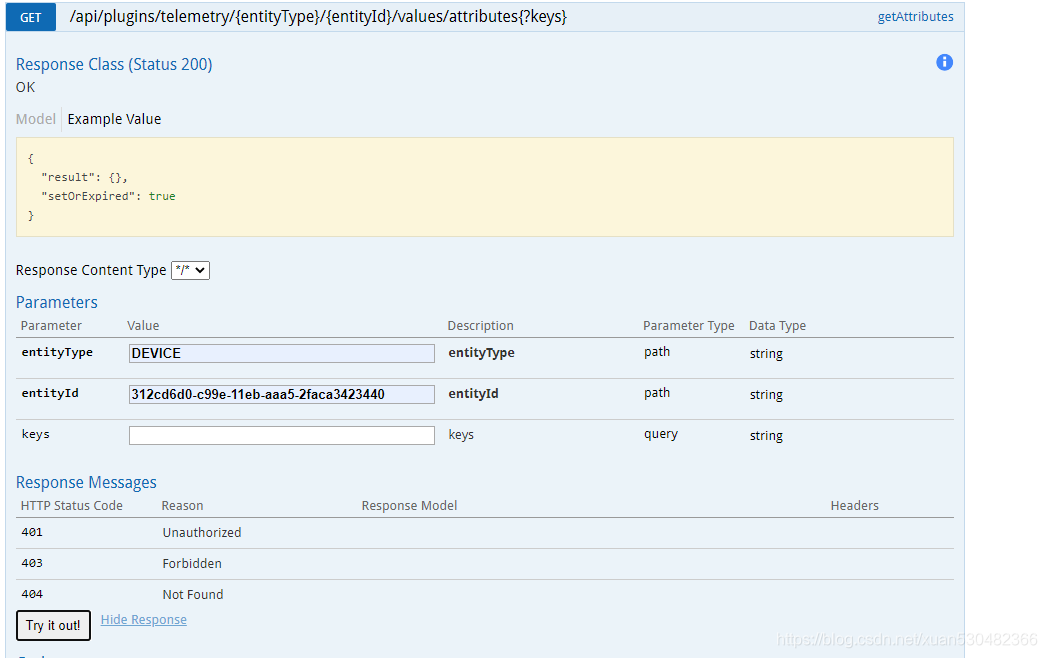

   GET /api/plugins/telemetry/{entityType}/{entityId}/values/attributes{?keys}
   entityType 为 DEVICE
   entityID为设备ID
   Keys 如果 不填，则全部获取，可以填入Key，拿自己需要的

   对应的curl命令为

   curl -X GET --header 'Accept: application/json' --header 'X-Authorization: Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZW5hbnRAdGhpbmdzYm9hcmQub3JnIiwic2NvcGVzIjpbIlRFTkFOVF9BRE1JTiJdLCJ1c2VySWQiOiI0NjM3MGZiMC1iZThhLTExZWItODQxOS1iZjYxZDMwOTA0ZmMiLCJlbmFibGVkIjp0cnVlLCJpc1B1YmxpYyI6ZmFsc2UsInRlbmFudElkIjoiNDViZWFiNjAtYmU4YS0xMWViLTg0MTktYmY2MWQzMDkwNGZjIiwiY3VzdG9tZXJJZCI6IjEzODE0MDAwLTFkZDItMTFiMi04MDgwLTgwODA4MDgwODA4MCIsImlzcyI6InRoaW5nc2JvYXJkLmlvIiwiaWF0IjoxNjIzNzI0NTE3LCJleHAiOjE2MjM3MzM1MTd9.q8hSOO09J7u3wlndnrSaLTZfBJDOY0swtnzlBd7PDNDOF7QSBMk7nYFIcUtUhKXNy8eB4oszTtREs8gr45muQQ' 'http://localhost:8080/api/plugins/telemetry/DEVICE/312cd6d0-c99e-11eb-aaa5-2faca3423440/values/attributes'


   获取到的数据 ，这里可以看到 active 为 true 意思就是在线了

   	Response Body
   [
     {
       "lastUpdateTs": 1623606896305,
       "key": "t1",
       "value": "tt1"
     },
     {
       "lastUpdateTs": 1623317129221,
       "key": "button1",
       "value": 0
     },
     {
       "lastUpdateTs": 1623723459779,
       "key": "key1",
       "value": "value1"
     },
     {
       "lastUpdateTs": 1623723459870,
       "key": "dnakey",
       "value": "3951536c30537a59554a35426e496374"
     },
     {
       "lastUpdateTs": 1623392208381,
       "key": "t2",
       "value": 5
     },
     {
       "lastUpdateTs": 1623723459870,
       "key": "rootkey0",
       "value": "03c53f32"
     },
     {
       "lastUpdateTs": 1623723459870,
       "key": "ble_mac",
       "value": "84c2e43f"
     },
     {
       "lastUpdateTs": 1623377404660,
       "key": "t1",
       "value": "121212"
     },
     {
       "lastUpdateTs": 1623724863931,
       "key": "lastActivityTime",
       "value": 1623724846444
     },
     {
       "lastUpdateTs": 1623609453940,
       "key": "lastDisconnectTime",
       "value": 1623609453940
     },
     {
       "lastUpdateTs": 1623609741443,
       "key": "inactivityAlarmTime",
       "value": 1623609741442
     },
     {
       "lastUpdateTs": 1623723454932,
       "key": "active",
       "value": true
     },
     {
       "lastUpdateTs": 1623723459722,
       "key": "lastConnectTime",
       "value": 1623723459722
     }
   ]






   Response Code
   200
   Response Headers
   {
     "cache-control": "no-cache, no-store, max-age=0, must-revalidate",
     "connection": "keep-alive",
     "content-type": "application/json",
     "date": "Tue, 15 Jun 2021 02:41:31 GMT",
     "expires": "0",
     "keep-alive": "timeout=4",
     "pragma": "no-cache",
     "proxy-connection": "keep-alive",
     "transfer-encoding": "chunked",
     "vary": "Origin, Access-Control-Request-Method, Access-Control-Request-Headers",
     "x-content-type-options": "nosniff",
     "x-xss-protection": "1; mode=block"
   }


2. 下发RPC数据
   rpc-controller : Rpc Controller
   2种定义具体参考上面 RPC控制设备
