title: others-Adjust第三方统计
categories: Others
tags: [others, Adjust, 统计]
date: 2020-09-21 14:13:14
comments: false
mathjax: true
toc: true

others-Adjust第三方统计

前篇

  • 官网 - https://www.adjust.com/
    • Android 集成文档: https://docs.adjust.com/zh/sdk/android/
    • 接入文档: https://github.com/adjust/android_sdk

接入

  1. build.gradle 引入库

    dependencies {
    implementation 'com.adjust.sdk:adjust-android:4.24.1'
    implementation 'com.google.android.gms:play-services-ads-identifier:17.0.0'
    implementation 'com.android.installreferrer:installreferrer:2.1'
}

  2. 权限 及 广播 的 清单配置 AndroidManifest.xml

    <manifest>
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <!-- Optional : -->
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />

    <application>
		<!-- adjust -->
        <receiver
            android:name="com.adjust.sdk.AdjustReferrerReceiver"
            android:permission="android.permission.INSTALL_PACKAGES"
            android:exported="true" >
            <intent-filter>
                <action android:name="com.android.vending.INSTALL_REFERRER" />
            </intent-filter>
        </receiver>
    </application>
</manifest>

  3. 混淆配置 proguard-user.txt

    ######### adjust #########
-keep class com.adjust.sdk.** { *; }
-keep class com.google.android.gms.common.ConnectionResult {
    int SUCCESS;
}
-keep class com.google.android.gms.ads.identifier.AdvertisingIdClient {
    com.google.android.gms.ads.identifier.AdvertisingIdClient$Info getAdvertisingIdInfo(android.content.Context);
}
-keep class com.google.android.gms.ads.identifier.AdvertisingIdClient$Info {
    java.lang.String getId();
    boolean isLimitAdTrackingEnabled();
}
-keep public class com.android.installreferrer.** { *; }

  4. java 代码

    package com.ecological.auctioneer.other;

import android.app.Activity;
import android.app.Application;
import android.content.Context;
import android.os.Bundle;
import android.util.Log;

import com.adjust.sdk.Adjust;
import com.adjust.sdk.AdjustConfig;
import com.adjust.sdk.AdjustEvent;
import com.adjust.sdk.LogLevel;
import com.ecological.auctioneer.Define;
import com.ecological.auctioneer.JsonTool;
import com.ecological.auctioneer.LogUtil;
import com.ecological.auctioneer.MyCode.ECode;
import com.ecological.auctioneer.SystemInfoUtil;
import com.ecological.auctioneer.Tools;
import com.ecological.auctioneer.model.JsonBean.CEventInfo;
import com.ecological.auctioneer.model.JsonBean.CTransfer;

import java.util.ArrayList;
import java.util.List;

public class AdjustHelper {

    static AdjustHelper instance = null;

    public static AdjustHelper getIns() {
        if (instance == null) {
            instance = new AdjustHelper();
        }
        return instance;
    }

    private static final String TAG = "--- AdjustHelper";
    private static final String ResKey_Token = "adjust_token";
    private static final String ResKey_Secret = "adjust_secret";

    private boolean mIsCall = false;
    private CTransfer mTransfer = new CTransfer(); // 保存数据

//    // ---------------- 测试字段
//    private String mAttribution = "attr: ";
//    private String mEventTrackingSucceeded = "ets: ";
//    private String mEventTrackingFailed = "etf: ";
//    private String mSessionTrackingSucceeded = "sts: ";
//    private String mSessionTrackingFailed = "stf: ";


    public void init(Activity activity, boolean isDebug, Define.TransferRunnable task) {
        if (isDebug) {
            Log.d(TAG, "AdjustHelper debug mode");
        }

        String token = Tools.GetStringVaule(activity, ResKey_Token);
        if (!Tools.isEmpty(token)) {
            // ad 回调
            initAdjust(activity, token, isDebug, (code, adJson) -> {
                if (code != ECode.Ok) {
                    return;
                }

                mTransfer.AdJson = adJson;
                LogUtil.TD(TAG, "--- initAdjust ok, AdJson: %s", mTransfer.AdJson);
                callTask(task);
            });

            // referer 回调
            initReferer(activity, (code, msg) -> {
                if (code != ECode.Ok) {
                    return;
                }

                mTransfer.GgJson = Tools.parseUrl2Json(msg);
                LogUtil.TD(TAG, "--- initReferer ok 111, GgJson: %s", mTransfer.GgJson);
                // callTask(task); 不能 callTask, 要等 onConversionDataSuccess 回调
            });
        } else {
            initReferer(activity, (code, msg) -> {
                if (code != ECode.Ok) {
                    return;
                }

                mTransfer.GgJson = Tools.parseUrl2Json(msg);
                LogUtil.TD(TAG, "--- initReferer ok 222, GgJson: %s", mTransfer.GgJson);
                callTask(task);
            });
        }
    }

    private void initAdjust(Activity activity, String token, boolean isDebug, Define.CodeRunnable task) {
        String secret = Tools.GetStringVaule(activity, ResKey_Secret);
        List<Long> infoLst = parseSecret(secret);

        String environment = AdjustConfig.ENVIRONMENT_PRODUCTION;
        if (isDebug) {
            environment = AdjustConfig.ENVIRONMENT_SANDBOX;
        }

        AdjustConfig config = new AdjustConfig(activity, token, environment);
        config.setAppSecret(infoLst.get(0), infoLst.get(1), infoLst.get(2), infoLst.get(3), infoLst.get(4));
        config.setLogLevel(isDebug ? LogLevel.VERBOSE : LogLevel.ERROR); // disable warning logs
        config.setSendInBackground(true);

        // -------- 注册各种回调
        // Set attribution delegate.
        config.setOnAttributionChangedListener(attribution -> {
            LogUtil.TD(TAG, "Attribution: " + attribution.toString());
            task.run(ECode.Ok, JsonTool.toJson(attribution));
        });

        // Set event success tracking delegate.
        config.setOnEventTrackingSucceededListener(eventSuccessResponseData -> {
            LogUtil.TD(TAG, "Event success data: " + eventSuccessResponseData.toString());
        });

        // Set event failure tracking delegate.
        config.setOnEventTrackingFailedListener(eventFailureResponseData -> {
            LogUtil.TD(TAG, "Event failure data: " + eventFailureResponseData.toString());
        });

        // Set session success tracking delegate.
        config.setOnSessionTrackingSucceededListener(sessionSuccessResponseData -> {
            LogUtil.TD(TAG, "Session success data: " + sessionSuccessResponseData.toString());
        });

        // Set session failure tracking delegate.
        config.setOnSessionTrackingFailedListener(sessionFailureResponseData -> {
            LogUtil.TD(TAG, "Session failure data: " + sessionFailureResponseData.toString());
        });

        // Evaluate deferred deep link to be launched.
        config.setOnDeeplinkResponseListener(deeplink -> {
            LogUtil.TD(TAG, "Deep link URL: " + deeplink);

            return true;
        });


        Adjust.onCreate(config);
        activity.getApplication().registerActivityLifecycleCallbacks(new AdjustLifecycleCallbacks());
    }

    private void initReferer(Context context, Define.CodeRunnable task) {
        GoogleReferrerHelper.getIns().start(context, task);
    }

    public static List<Long> parseSecret(String secret) {
        List<Long> numLst = new ArrayList<>();
        try {
            String[] idArr = secret.split(",");
            for (String idStr : idArr) {
                long num = Long.parseLong(idStr.trim());
                numLst.add((num));
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        LogUtil.TA(TAG, numLst.size() == 5, "--- parseSecret error, size: %d", numLst.size());
        return numLst;
    }

    private static final class AdjustLifecycleCallbacks implements Application.ActivityLifecycleCallbacks {
        @Override
        public void onActivityCreated(Activity activity, Bundle savedInstanceState) {

        }

        @Override
        public void onActivityStarted(Activity activity) {

        }

        @Override
        public void onActivityResumed(Activity activity) {
            Adjust.onResume();
        }

        @Override
        public void onActivityPaused(Activity activity) {
            Adjust.onPause();
        }

        @Override
        public void onActivityStopped(Activity activity) {

        }

        @Override
        public void onActivitySaveInstanceState(Activity activity, Bundle outState) {

        }

        @Override
        public void onActivityDestroyed(Activity activity) {

        }
    }

    public void logEvent(String jsonMsg, Define.CodeRunnable task) {
        if (SystemInfoUtil.ThirdSdk != Define.EThirdSdk.Adjust) {
            return;
        }

        CEventInfo ei = JsonTool.toObject(jsonMsg, CEventInfo.class);
        logEvent(ei, task);
    }

    public void logEvent(CEventInfo ei, Define.CodeRunnable task) {
        if (ei == null || ei.name.length() == 0 || SystemInfoUtil.ThirdSdk != Define.EThirdSdk.Adjust) {
            return;
        }

        LogUtil.TD(TAG, "--- event: %s", JsonTool.beauty(ei));

        AdjustEvent adjustEvent = new AdjustEvent(ei.name);
        if (ei.valueToSum > 0.001f) {
            String curr = "INR";
            if (ei.params.size() > 0 && ei.params.containsKey("currency")) {
                curr = (String) ei.params.get("currency");
            }
            adjustEvent.setRevenue(0.01, curr);
        }
        Adjust.trackEvent(adjustEvent);
    }

    public String getInfo() {
        return JsonTool.toJson(mTransfer);
    }

//    public void showMsg(Context ctx) {
//        CTips tps = new CTips();
//        tps.msg = String.format("%s\n%s\n%s\n%s\n%s"
//                , mAttribution, mEventTrackingSucceeded, mEventTrackingFailed, mSessionTrackingSucceeded, mSessionTrackingFailed);
//        Tools.tips02(ctx, tps, null);
//    }


    private void callTask(Define.TransferRunnable task) {
        if (mIsCall || task == null) {
            return;
        }

        mIsCall = true;
        task.run(mTransfer);
    }
}

自定义短链配置 - 跟踪链接

Google Play 应用的短链推广

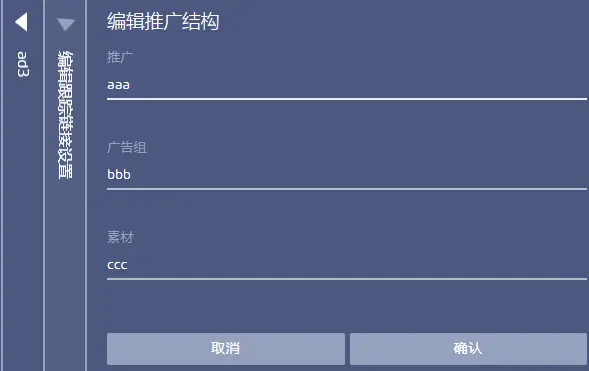

  1. 后台配置, 把需要透传的参数设置到 推广结构 中.

  2. adjust 回调中 可以获取到 归因数据 Addata

    {\"Addata\":\"{\\\"adgroup\\\":\\\"bbb\\\",\\\"adid\\\":\\\"a5ad874ca32aa310c636adaf54396ab6\\\",\\\"campaign\\\":\\\"aaa\\\",\\\"creative\\\":\\\"ccc\\\",\\\"network\\\":\\\"ad3\\\",\\\"trackerName\\\":\\\"ad3::aaa::bbb::ccc\\\",\\\"trackerToken\\\":\\\"3lcxp3p\\\"}\",\"Appid\":3,\"Deviceid\":\"1183eca72cbe5513eaf1e4f1232a8ee8\",\"Ggdata\":\"{\\\"utm_content\\\":\\\"bbb\\\",\\\"adjust_reftag\\\":\\\"cvmLwqpUXZUfr\\\",\\\"utm_term\\\":\\\"ccc\\\",\\\"utm_source\\\":\\\"ad3\\\",\\\"pid\\\":\\\"1109\\\",\\\"utm_campaign\\\":\\\"aaa\\\"}\

Facebook Ads 投放

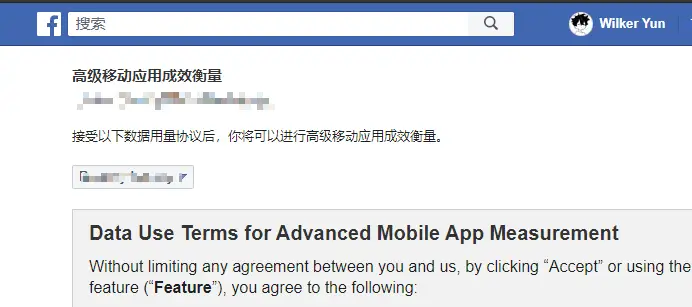

需要 Facebook 对应的 app id 接收 服务条款, 才能在 af 的 onConversionDataSuccess 回调中, 接收到 campaign 相关数据

链接: https://www.facebook.com/ads/manage/advanced_mobile_measurement/app_based_tos?appid=123123 (123123 是 app id)

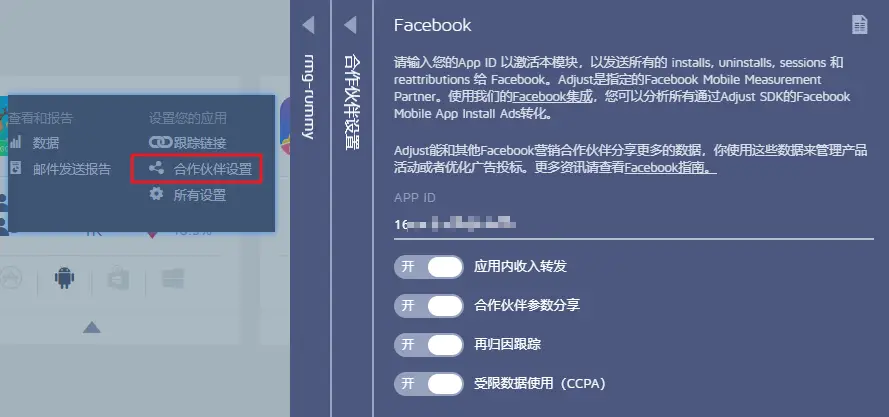

  • 合伙伙伴设置 中, 添加 facebook, 填入 fb app id.

    • 然后就可以在 adjust 的回调用获取到 fb 广告系列的名字

      config.setOnAttributionChangedListener(attribution -> { // adjust 归因回调
    LogUtil.TD(TAG, "Attribution: " + attribution.toString());
    task.run(ECode.Ok, JsonTool.toJson(attribution));
});

// 获取到的数据
\"Addata\":\"{\\\"adgroup\\\":\\\"0918 (23845782953730115)\\\",\\\"adid\\\":\\\"eee\\\",\\\"campaign\\\":\\\"ln_1094_rum9.19\\\",\\\"creative\\\":\\\"1 (23845782953750115)\\\",\\\"network\\\":\\\"Facebook Installs\\\",\\\"trackerName\\\":\\\"Facebook Installs::ln_1094_rum9.18 (23845782953570115)::0918 (23845782953730115)::1 (23845782953750115)\\\",\\\"trackerToken\\\":\\\"ofkv4pp\\\"}\"

      • campaign 对应的就是 fb 广告系列名字

查看归因

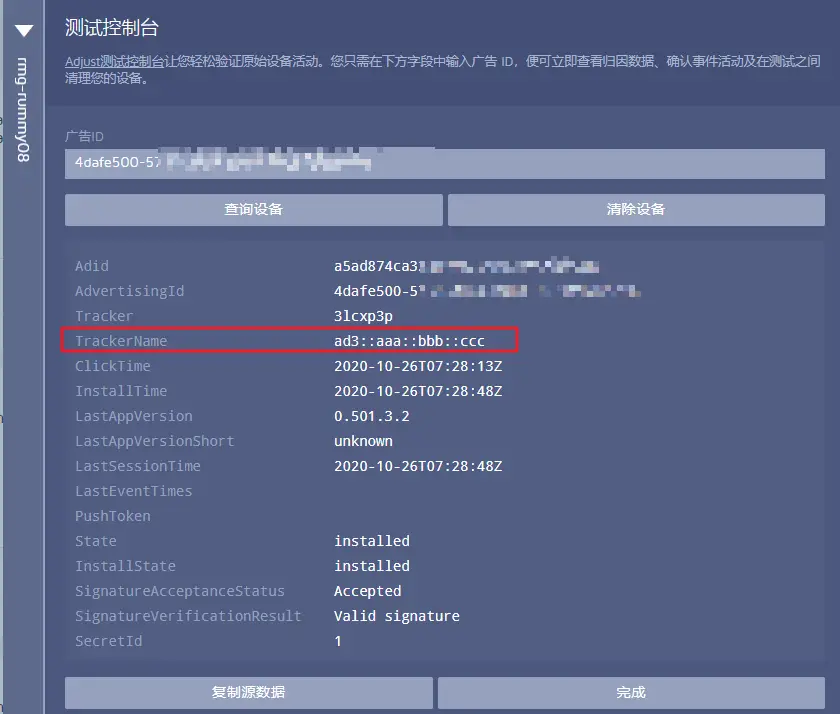

  • 所有设置 -> 测试控制台, 输入 谷歌广告 id (gaid), 可以查看到该设备的 归因数据.

api 上报事件

官方文档: https://help.adjust.com/en/article/server-to-server-events

先确定是否归因正确 查看归因 , 再查看事件的归因是否正确.

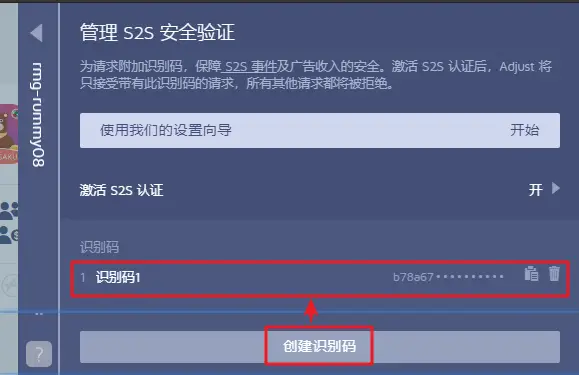

  1. 生成 s2s 秘钥 secret. 所有设置 -> S2S 安全 -> 创建识别码, 如: b78a67xxxxxx

  2. 激活 s2s. 所有设置 -> S2S 安全 -> 激活 S2S 认证

  3. 上报参数中, 不用平台的使用 id 字段不同

    • Android: gps_adid, Google 广告 id, 通过 Adjust.getGoogleAdId 回调中获取到
    • ios: idfa
py 测试代码

  • 测试用例

    # adjust
def test_adEvent(self):
    from urllib.parse import urlencode, quote

    appToken = "y0sxxx"
    eventToken = "4vexxx"
    secret = "b78a67xxxxxx"
    aduid = "ed6ec341-277c-43ce-b48d-xxx"

    params = {
        "revenue": 100,  # 收益
        "currency": "INR",  # 币种
        "environment": "production",  # 生成 or 测试环境
    }

    data = {
        "s2s": 1,
        "app_token": appToken,
        "event_token": eventToken,
        "gps_adid": aduid,  # 不同环境配置的值不一样, Android: gps_adid, 谷歌广告id
        "partner_params": quote(utils.beautyJson(params, indent=None)),  # 要 encode
    }

    url = "https://s2s.adjust.com/event?{}".format(urlencode(data, doseq=False))  # 不要 encode
    headers = {
        "Authorization": "Bearer {}".format(secret),
        "Content-Type": "application/json",
    }

    print("--- url: {}".format(url))
    code, rspDct = utils.httpPost(url, headers=headers)
    print("--- code: {}".format(code))
    print("--- rsp: {}".format(utils.beautyJson(rspDct)))

    • 上报成功, 返回的 json 有 "status": "OK" 才代表成功了.

      如果是 code: 200 但是 json 是空的, 则是上报失败.

      --- url: https://s2s.adjust.com/event?s2s=1&app_token=y0sxxx&event_token=4vexxx&gps_adid=ed6ec341-277c-43ce-b48d-xxx&partner_params=%257B%2522revenue%2522%253A%2520100%252C%2520%2522currency%2522%253A%2520%2522INR%2522%252C%2520%2522environment%2522%253A%2520%2522production%2522%257D


--- code: 200
--- rsp: {
    "status": "OK"
}

复用 Facebook 的 app id

Google 账号被封, 新的 Google 包可以复用 Facebook 的 app id, 然后 fb 的广告账号就不用重新开户了, sdk 能正常获取到 fb 的广告数据, 也就可以正常解析为 动态渠道.
