Notes about iommu=pt kernel parameter

当使用KVM pass-thru设备时，通常会设置intel_iommu=on iommu=pt内核参数，其中intel_iommu=on就是使能intel iommu，本文将介绍iommu=pt。

本文参考的内核版本是v5.0。

identity mapping指的是iova与hpa 1:1映射。

1. Motivation

The pt option only enables IOMMU translation for devices used in pass-thru ,doesn’t enable IOMMU translation for host used devices ,and this will improve performance for host PCIe devices (which are not pass-thru to a VM).

内核的注释：

1 2 3 4 5 6 7 8

/* * This variable becomes 1 if iommu=pt is passed on the kernel command  * line. If this variable is 1, IOMMU implementations do no DMA  * translation for devices and allow every device to access to whole  * physical memory. This is * useful if a user wants to use an IOMMU only for KVM device assignment  * to guests and not for driver dma translation. */ int iommu_pass_through __read_mostly = 1;

2. 源码解析

2.1 pt option解析

1 2 3 4 5 6 7

static __init int iommu_setup(char *p) { ... if (!strncmp(p, "pt", 2)) iommu_pass_through = 1; ... }

2.2 init_dmars

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

#define IDENTMAP_ALL 1 /* * This domain is a statically identity mapping domain. * 1. This domain creats a static 1:1 mapping to all usable memory. * 2. It maps to each iommu if successful. * 3. Each iommu maps to this domain if successful. */ static struct dmar_domain *si_domain; static int hw_pass_through = 1; static int __init init_dmars(void) { ... if (!ecap_pass_through(iommu->ecap)) hw_pass_through = 0; ... if (iommu_pass_through) iommu_identity_mapping |= IDENTMAP_ALL; ... if (iommu_identity_mapping) { ret = si_domain_init(hw_pass_through); if (ret) goto free_iommu; } ... if (iommu_identity_mapping) { ret = iommu_prepare_static_identity_mapping(hw_pass_through); if (ret) { pr_crit("Failed to setup IOMMU pass-through\n"); goto free_iommu; } } ... }

#define ecap_pass_through(e) ((e >> 6) & 0x1)

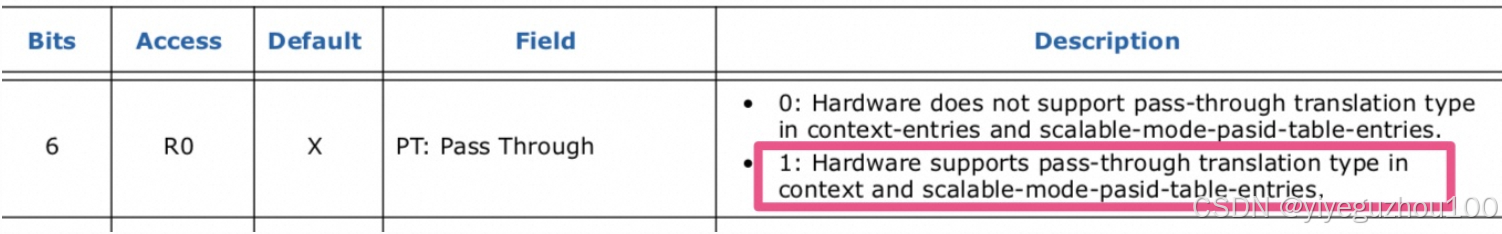

ecap_pass_through(iommu->ecap)的含义是检查Extended Capability Register的PT field。

如果Hardware supports pass-through translation type,那么hw_pass_through为1；否则hw_pass_through为0。

当iommu_pass_through被设置时，iommu_identity_mapping也会被设置。接着会依次调用si_domain_init与iommu_prepare_static_identity_mapping。

2.3 si_domain_init

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

static int __init si_domain_init(int hw) { int nid, ret = 0; si_domain = alloc_domain(DOMAIN_FLAG_STATIC_IDENTITY); if (!si_domain) return -EFAULT; if (md_domain_init(si_domain, DEFAULT_DOMAIN_ADDRESS_WIDTH)) { domain_exit(si_domain); return -EFAULT; } pr_debug("Identity mapping domain allocated\n"); if (hw) return 0; for_each_online_node(nid) { //迭代所有的活动结点(针对NUMA) unsigned long start_pfn, end_pfn; int i; for_each_mem_pfn_range(i, nid, &start_pfn, &end_pfn, NULL) { ret = iommu_domain_identity_map(si_domain, //iova与hpa 1:1映射 PFN_PHYS(start_pfn), PFN_PHYS(end_pfn)); if (ret) return ret; } } return 0; }

从上述代码可知，当hw_pass_through为1时，无需建立iova与hpa 1:1映射的iommu页表；否则需要对all usable memory建立iova与hpa 1:1映射的iommu页表。

2.4 iommu_prepare_static_identity_mapping

1 2 3 4 5 6

iommu_prepare_static_identity_mapping └── dev_prepare_static_identity_mapping └── domain_add_dev_info └── dmar_insert_one_dev_info └── domain_context_mapping └── domain_context_mapping_one

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

static int domain_context_mapping_one(struct dmar_domain *domain, struct intel_iommu *iommu, u8 bus, u8 devfn) { ... // 设置translation type 为 pass through if (hw_pass_through && domain_type_is_si(domain)) translation = CONTEXT_TT_PASS_THROUGH; ... // 获取这个设备在contex table表里面的地址 context = iommu_context_addr(iommu, bus, devfn, 1); ... struct dma_pte *pgd = domain->pgd; // iova页表基址 int agaw; context_set_domain_id(context, did); // 设置转换类型 context_set_translation_type(context, translation); // 下面代码可以看出pass through模式不会设置iova页表地址 if (translation != CONTEXT_TT_PASS_THROUGH) { ... // 非pass through模式下需要设置iova页表的基地址 context_set_address_root(context, virt_to_phys(pgd)); context_set_address_width(context, agaw); } else { /* * In pass through mode, AW must be programmed to * indicate the largest AGAW value supported by * hardware. And ASR is ignored by hardware. */ context_set_address_width(context, iommu->msagaw); } ... }

#define CONTEXT_TT_PASS_THROUGH 2

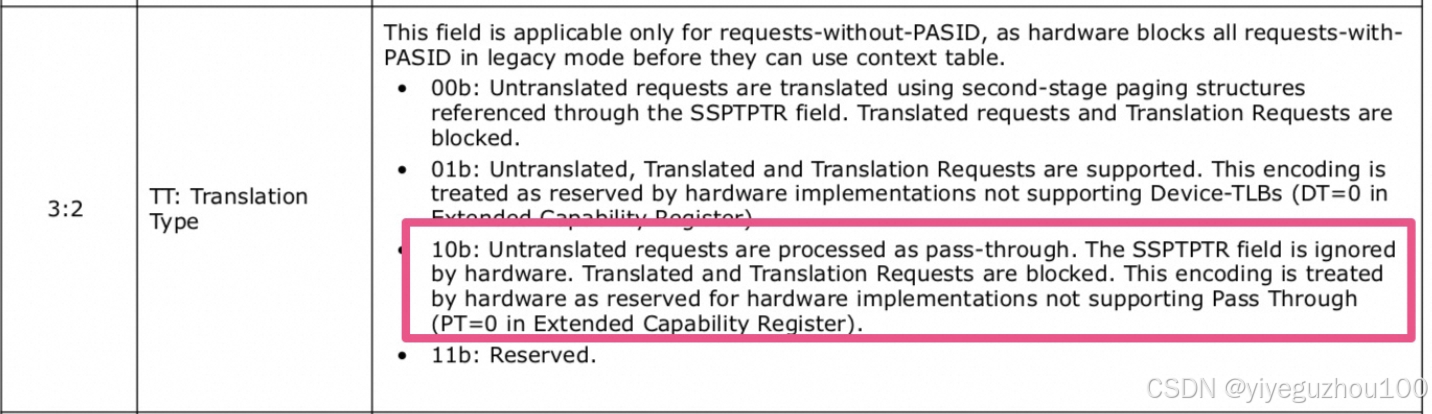

因此CONTEXT_TT_PASS_THROUGH为10b，即是2。

/*
 * This are the possible domain-types
 *
 *      IOMMU_DOMAIN_BLOCKED    - All DMA is blocked, can be used to isolate
 *                                devices
 *      IOMMU_DOMAIN_IDENTITY   - DMA addresses are system physical addresses,
 *                              - 默认是不会设置dma_ops的
 *      IOMMU_DOMAIN_UNMANAGED  - DMA mappings managed by IOMMU-API user, used
 *                                for VMs
 *      IOMMU_DOMAIN_DMA        - Internally used for DMA-API implementations.
 *                                This flag allows IOMMU drivers to implement
 *                                certain optimizations for these domains
 */

3. 总结

配置了iommu=pt就会实现identity mapping:

• 如果Hardware supports pass-through translation type，则配置pass-through translation type即可实现identity mapping，此时无需配置iommu页表，内核分配的DMA地址空间就是CPU的物理地址空间；
• 如果Hardware doesn’t support pass-through translation type，则需要配置iommu页表，使得iova与hpa 1:1映射。

当hw_pass_through=0时，依然要走iommu页表，因此性能是不如hw_pass_through=1的。

---
