『MCP』初体验

介绍

MCP 其实就是 Function Calling 的一个统一接口协议，网上介绍会有很多，所以这里不就重复介绍，这里主要是想记录说明一下 MCP 使用体验，可以帮助新人入门一下

安装 VSCode 以及 MCP client

VSCode 自行安装吧，网上会有一大堆

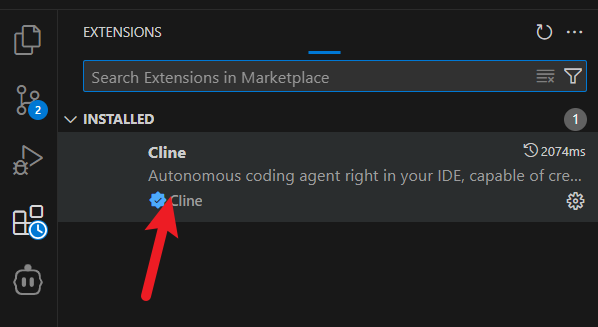

安装 cline

配置大模型

这里主要使用的是 OpenRouter.ai：https://openrouter.ai/

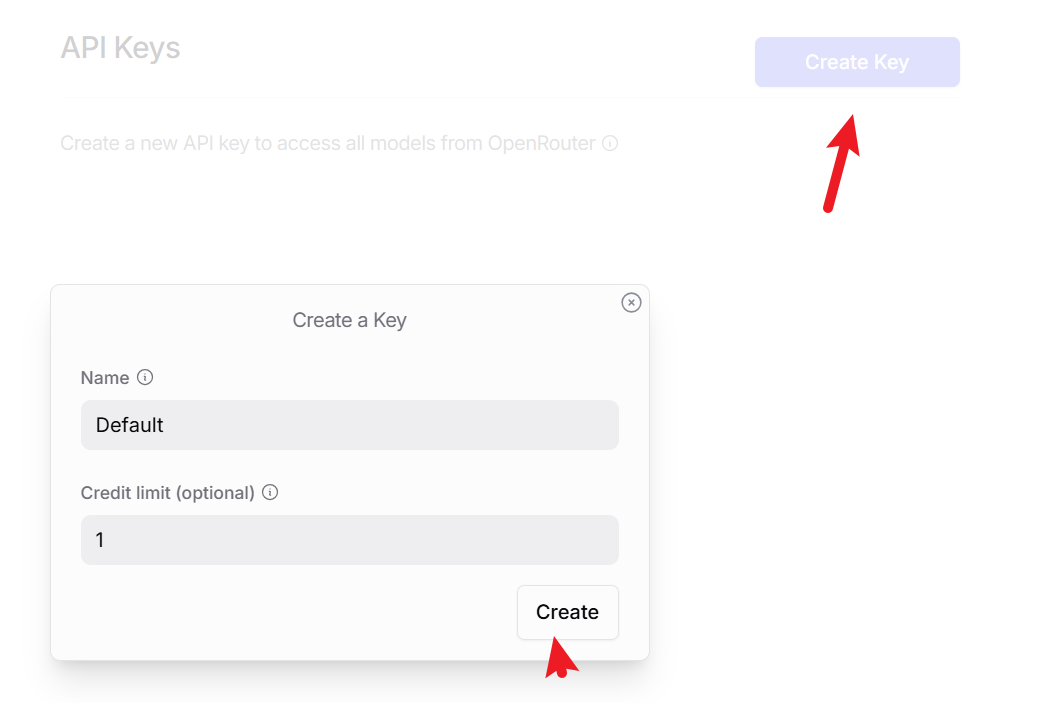

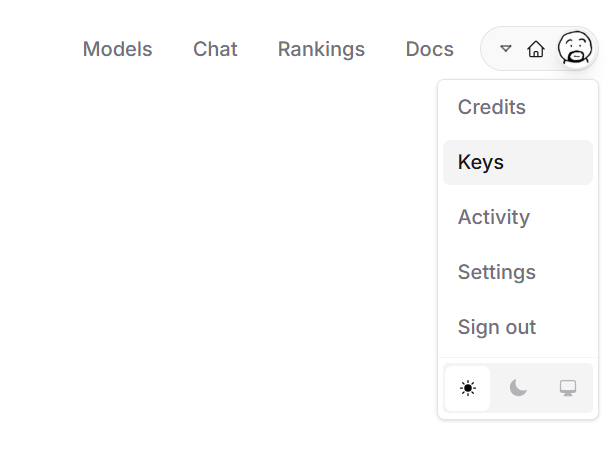

创建密钥
例如创建一个名称为 Default 的 key，限制使用量最多 1 美元，要记住这个 key，没了就找不到了，只能重新创

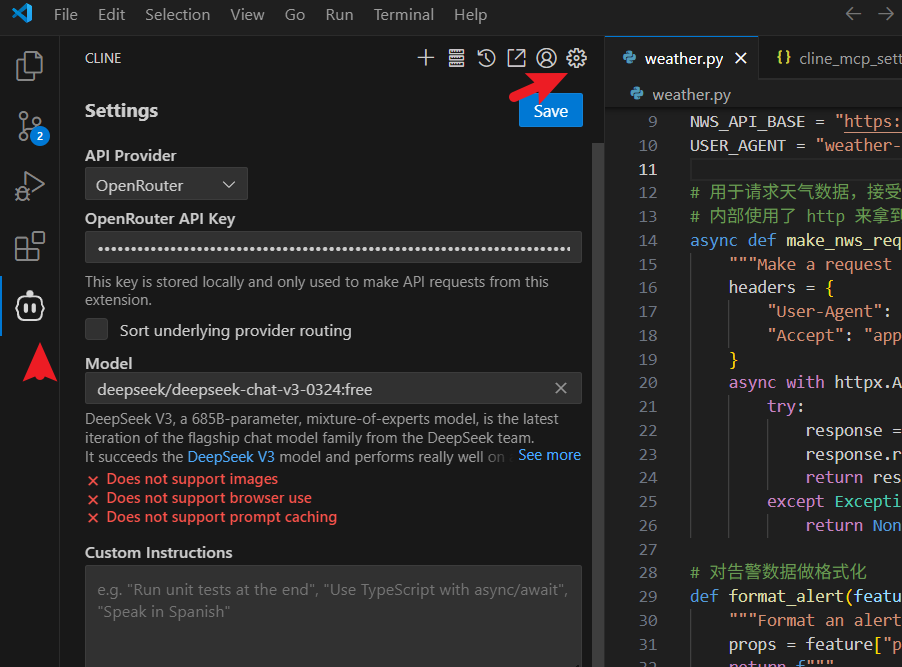

在 cline 里面配置一下刚刚申请的 key 就好了。我这里用的是免费的模型，其他模型要收费的
然后尝试咨询个问题，如果有正常回复就是成功

配置 MCP

Model Context Protocol (MCP) 支持两种主要的传输机制，用于 Cline 和 MCP 服务器之间的通信：标准输入/输出 (STDIO) 和服务器发送事件 (SSE)

本次实现：主要采用 STDIO 方式进行

配置环境

# uv 其实是另一种 pip
pip install uv
# 初始化环境一下
uv init
# 添加一下 mcp 客户端，这会自动装上，把 httpx 也安装上，主要用于调其他 http 服务时用得上
uv add "mcp[cli]" httpx

首先编写一个 weather.py

get_alerts()：用于获取美国某个州的天气预警
get_forecast()：预测天气

from typing import Any
import httpx
from mcp.server.fastmcp import FastMCP

# Initialize FastMCP server，创建对象
mcp = FastMCP("weather", log_level="ERROR")

# Constants
NWS_API_BASE = "https://api.weather.gov" # 美国气象局地址
USER_AGENT = "weather-app/1.0" # 请求数据时的标识，告诉是谁

# 用于请求天气数据，接受个参数，就是请求天气数据时用的 url
# 内部使用了 http 来拿到对应的结果
async def make_nws_request(url: str) -> dict[str, Any] | None:
    """Make a request to the NWS API with proper error handling."""
    headers = {
        "User-Agent": USER_AGENT,
        "Accept": "application/geo+json"
    }
    async with httpx.AsyncClient() as client:
        try:
            response = await client.get(url, headers=headers, timeout=30.0)
            response.raise_for_status()
            return response.json()
        except Exception:
            return None

# 对告警数据做格式化
def format_alert(feature: dict) -> str:
    """Format an alert feature into a readable string."""
    props = feature["properties"]
    return f"""
Event: {props.get('event', 'Unknown')}
Area: {props.get('areaDesc', 'Unknown')}
Severity: {props.get('severity', 'Unknown')}
Description: {props.get('description', 'No description available')}
Instructions: {props.get('instruction', 'No specific instructions provided')}
"""


# 第一个 tool，用于获取美国某个州的天气预警
# 入参是美国州代码
@mcp.tool()
async def get_alerts(state: str) -> str:
    """Get weather alerts for a US state.

    Args:
        state: Two-letter US state code (e.g. CA, NY)
    """
    url = f"{NWS_API_BASE}/alerts/active/area/{state}"
    data = await make_nws_request(url) #　调了刚刚的接口

    if not data or "features" not in data: # 这里确保没有失败
        return "Unable to fetch alerts or no alerts found."

    if not data["features"]: # 检查调用的地区否则不存在预警信息
        return "No active alerts for this state."

    alerts = [format_alert(feature) for feature in data["features"]]
    return "\n---\n".join(alerts)


# 第二个 tool
# 入参是经度和纬度
@mcp.tool() # 装饰器，将函数装饰为 tool。函数名，入参，第一个注释都会提取
async def get_forecast(latitude: float, longitude: float) -> str:
    """Get weather forecast for a location.

    Args:
        latitude: Latitude of the location
        longitude: Longitude of the location
    """
    # First get the forecast grid endpoint
    points_url = f"{NWS_API_BASE}/points/{latitude},{longitude}" # 获取到天气预报办公室信息
    points_data = await make_nws_request(points_url)

    if not points_data:
        return "Unable to fetch forecast data for this location."

    # Get the forecast URL from the points response
    forecast_url = points_data["properties"]["forecast"] #　提取到天气预告的 url
    forecast_data = await make_nws_request(forecast_url) # 这才真正获取到天气预告

    if not forecast_data:
        return "Unable to fetch detailed forecast."

    # Format the periods into a readable forecast
    periods = forecast_data["properties"]["periods"]
    forecasts = []
    for period in periods[:5]:  # Only show next 5 periods
        forecast = f"""
{period['name']}:
Temperature: {period['temperature']}°{period['temperatureUnit']}
Wind: {period['windSpeed']} {period['windDirection']}
Forecast: {period['detailedForecast']}
"""
        forecasts.append(forecast)

    return "\n---\n".join(forecasts)


if __name__ == "__main__":
    # Initialize and run the server
    mcp.run(transport='stdio') # transport 表示 MCP server 与 cline 的沟通方式是 MCP server 的输入和输出沟通

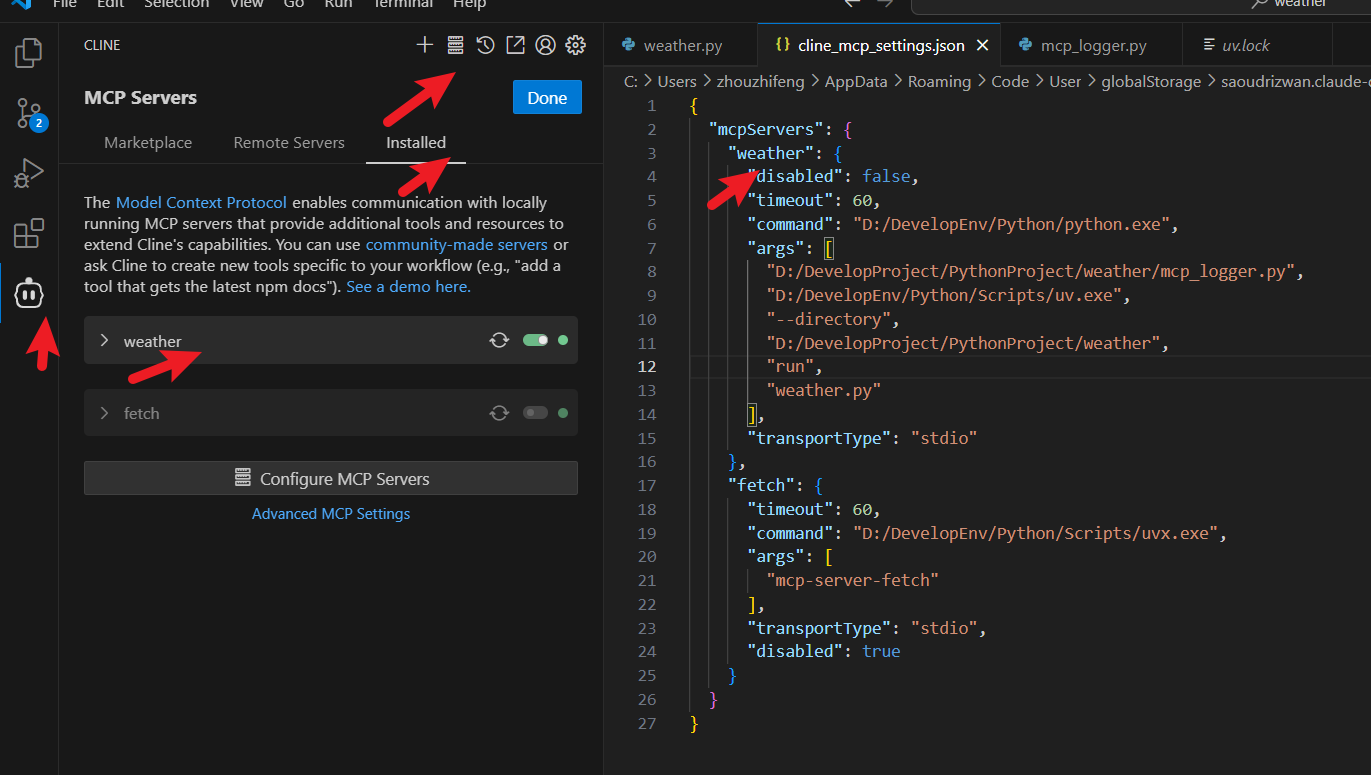

配置 STDIO 式 Server

{
  "mcpServers": {
    "weather": {
      "disabled": false,
      "timeout": 60,
      "command": "D:/DevelopEnv/Python/Scripts/uv.exe",
      "args": [
        "--directory",
        "D:/DevelopProject/PythonProject/weather",
        "run",
        "weather.py"
      ],
      "transportType": "stdio"
    },
  }
}

在这里插入图片描述

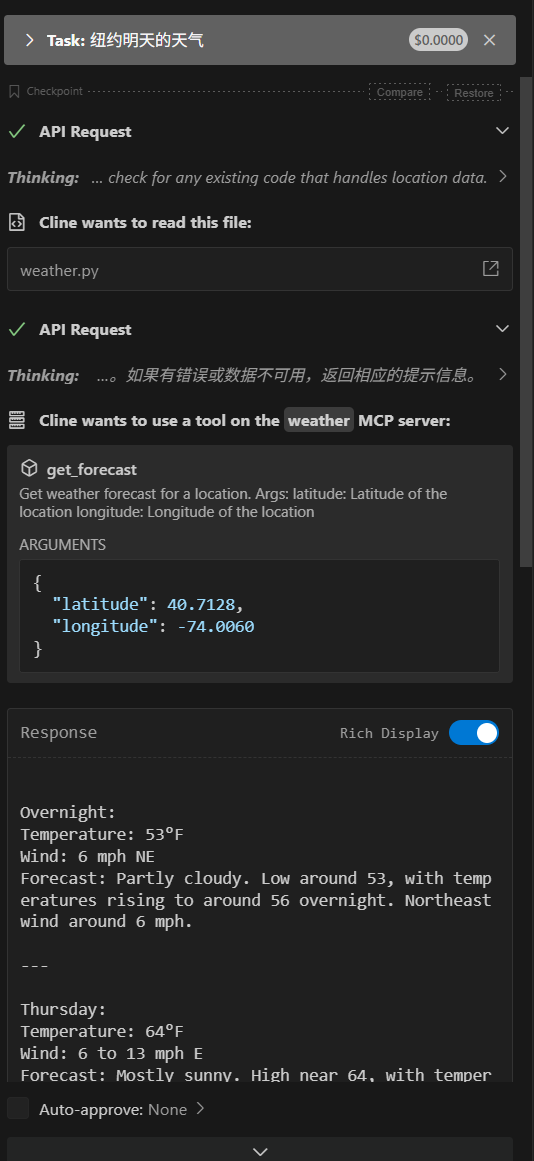

5. 然后尝试问它：纽约明天的天气怎么样。这样就可以看到调用了自己的文件

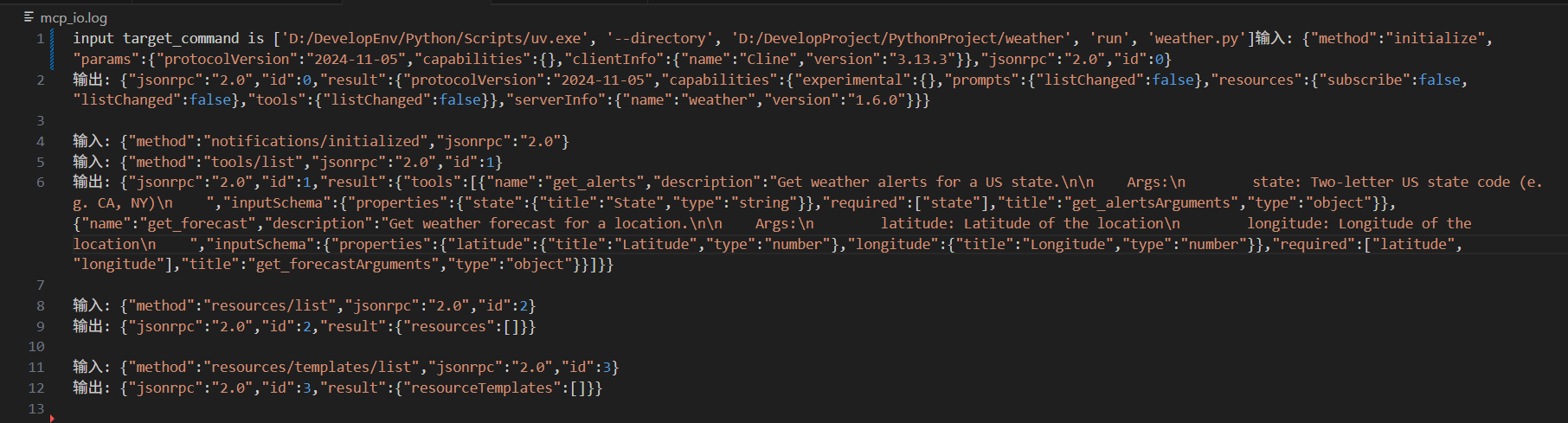

感知 MCP 调用

如果说想知道 MCP 的调用过程，可以尝试使用这段代码，他会调用子进程来做监听调用过程

#!/usr/bin/env python3

import sys
import subprocess
import threading
import argparse
import os

# --- Configuration ---
LOG_FILE = os.path.join(os.path.dirname(os.path.realpath(__file__)), "mcp_io.log")
# --- End Configuration ---

# --- Argument Parsing ---
parser = argparse.ArgumentParser(
    description="Wrap a command, passing STDIN/STDOUT verbatim while logging them.",
    usage="%(prog)s <command> [args...]"
)
# Capture the command and all subsequent arguments
parser.add_argument('command', nargs=argparse.REMAINDER,
                    help='The command and its arguments to execute.')

open(LOG_FILE, 'w', encoding='utf-8')

if len(sys.argv) == 1:
    parser.print_help(sys.stderr)
    sys.exit(1)

args = parser.parse_args()

if not args.command:
    print("Error: No command provided.", file=sys.stderr)
    parser.print_help(sys.stderr)
    sys.exit(1)

target_command = args.command
# --- End Argument Parsing ---

# --- I/O Forwarding Functions ---
# These will run in separate threads

def forward_and_log_stdin(proxy_stdin, target_stdin, log_file):
    """Reads from proxy's stdin, logs it, writes to target's stdin."""
    try:
        while True:
            # Read line by line from the script's actual stdin
            line_bytes = proxy_stdin.readline()
            if not line_bytes:  # EOF reached
                break

            # Decode for logging (assuming UTF-8, adjust if needed)
            try:
                 line_str = line_bytes.decode('utf-8')
            except UnicodeDecodeError:
                 line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n" # Log representation

            # Log with prefix
            log_file.write(f"输入: {line_str}")
            log_file.flush() # Ensure log is written promptly

            # Write the original bytes to the target process's stdin
            target_stdin.write(line_bytes)
            target_stdin.flush() # Ensure target receives it promptly

    except Exception as e:
        # Log errors happening during forwarding
        try:
            log_file.write(f"!!! STDIN Forwarding Error: {e}\n")
            log_file.flush()
        except: pass # Avoid errors trying to log errors if log file is broken

    finally:
        # Important: Close the target's stdin when proxy's stdin closes
        # This signals EOF to the target process (like test.sh's read loop)
        try:
            target_stdin.close()
            log_file.write("--- STDIN stream closed to target ---\n")
            log_file.flush()
        except Exception as e:
             try:
                log_file.write(f"!!! Error closing target STDIN: {e}\n")
                log_file.flush()
             except: pass


def forward_and_log_stdout(target_stdout, proxy_stdout, log_file):
    """Reads from target's stdout, logs it, writes to proxy's stdout."""
    try:
        while True:
            # Read line by line from the target process's stdout
            line_bytes = target_stdout.readline()
            if not line_bytes: # EOF reached (process exited or closed stdout)
                break

            # Decode for logging
            try:
                 line_str = line_bytes.decode('utf-8')
            except UnicodeDecodeError:
                 line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n"

            # Log with prefix
            log_file.write(f"输出: {line_str}")
            log_file.flush()

            # Write the original bytes to the script's actual stdout
            proxy_stdout.write(line_bytes)
            proxy_stdout.flush() # Ensure output is seen promptly

    except Exception as e:
        try:
            log_file.write(f"!!! STDOUT Forwarding Error: {e}\n")
            log_file.flush()
        except: pass
    finally:
        try:
            log_file.flush()
        except: pass
        # Don't close proxy_stdout (sys.stdout) here

# --- Main Execution ---
process = None
log_f = None
exit_code = 1 # Default exit code in case of early failure

try:
    # Open log file in append mode ('a') for the threads
    log_f = open(LOG_FILE, 'a', encoding='utf-8')
    log_f.write(f"input target_command is {target_command}")
    # Start the target process
    # We use pipes for stdin/stdout
    # We work with bytes (bufsize=0 for unbuffered binary, readline() still works)
    # stderr=subprocess.PIPE could be added to capture stderr too if needed.
    process = subprocess.Popen(
        target_command,
        stdin=subprocess.PIPE,
        stdout=subprocess.PIPE,
        stderr=subprocess.PIPE, # Capture stderr too, good practice
        bufsize=0 # Use 0 for unbuffered binary I/O
    )

    # Pass binary streams to threads
    stdin_thread = threading.Thread(
        target=forward_and_log_stdin,
        args=(sys.stdin.buffer, process.stdin, log_f),
        daemon=True # Allows main thread to exit even if this is stuck (e.g., waiting on stdin) - reconsider if explicit join is needed
    )

    stdout_thread = threading.Thread(
        target=forward_and_log_stdout,
        args=(process.stdout, sys.stdout.buffer, log_f),
        daemon=True
    )

    # Optional: Handle stderr similarly (log and pass through)
    stderr_thread = threading.Thread(
        target=forward_and_log_stdout, # Can reuse the function
        args=(process.stderr, sys.stderr.buffer, log_f), # Pass stderr streams
        # Add a different prefix in the function if needed, or modify function
        # For now, it will log with "STDOUT:" prefix - might want to change function
        # Let's modify the function slightly for this
        daemon=True
    )
    # A slightly modified version for stderr logging
    def forward_and_log_stderr(target_stderr, proxy_stderr, log_file):
        """Reads from target's stderr, logs it, writes to proxy's stderr."""
        try:
            while True:
                line_bytes = target_stderr.readline()
                if not line_bytes: break
                try: line_str = line_bytes.decode('utf-8')
                except UnicodeDecodeError: line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n"
                log_file.write(f"STDERR: {line_str}") # Use STDERR prefix
                log_file.flush()
                proxy_stderr.write(line_bytes)
                proxy_stderr.flush()
        except Exception as e:
            try:
                log_file.write(f"!!! STDERR Forwarding Error: {e}\n")
                log_file.flush()
            except: pass
        finally:
            try:
                log_file.flush()
            except: pass

    stderr_thread = threading.Thread(
        target=forward_and_log_stderr,
        args=(process.stderr, sys.stderr.buffer, log_f),
        daemon=True
    )


    # Start the forwarding threads
    stdin_thread.start()
    stdout_thread.start()
    stderr_thread.start() # Start stderr thread too

    # Wait for the target process to complete
    process.wait()
    exit_code = process.returncode

    # Wait briefly for I/O threads to finish flushing last messages
    # Since they are daemons, they might exit abruptly with the main thread.
    # Joining them ensures cleaner shutdown and logging.
    # We need to make sure the pipes are closed so the reads terminate.
    # process.wait() ensures target process is dead, pipes should close naturally.
    stdin_thread.join(timeout=1.0) # Add timeout in case thread hangs
    stdout_thread.join(timeout=1.0)
    stderr_thread.join(timeout=1.0)


except Exception as e:
    print(f"MCP Logger Error: {e}", file=sys.stderr)
    # Try to log the error too
    if log_f and not log_f.closed:
        try:
            log_f.write(f"!!! MCP Logger Main Error: {e}\n")
            log_f.flush()
        except: pass # Ignore errors during final logging attempt
    exit_code = 1 # Indicate logger failure

finally:
    # Ensure the process is terminated if it's still running (e.g., if logger crashed)
    if process and process.poll() is None:
        try:
            process.terminate()
            process.wait(timeout=1.0) # Give it a moment to terminate
        except: pass # Ignore errors during cleanup
        if process.poll() is None: # Still running?
             try: process.kill() # Force kill
             except: pass # Ignore kill errors

    # Final log message
    if log_f and not log_f.closed:
        try:
            log_f.close()
        except: pass # Ignore errors during final logging attempt

    # Exit with the target process's exit code
    sys.exit(exit_code)

同时，修改 MCP 配置

{
  "mcpServers": {
    "weather": {
      "disabled": false,
      "timeout": 60,
      "command": "D:/DevelopEnv/Python/python.exe", # 这个地方就要用调 python
      "args": [
        "D:/DevelopProject/PythonProject/weather/mcp_logger.py",  # 通过 logger 来执行 mcp 进程
        "D:/DevelopEnv/Python/Scripts/uv.exe",
        "--directory",
        "D:/DevelopProject/PythonProject/weather",
        "run",
        "weather.py"
      ],
      "transportType": "stdio"
    }
  }
}
