DirectX游戏开发编程基础之Directx安装与vs2010测试

C++一个重要的应用就是游戏开发， 而游戏开发就不得不谈directx,关于directx的众多知识本人还没有这个资格去谈论，只是刚刚起步开始学习，第一课也就是和大多数新东西一样的环境安装配置。

学习DirectX游戏开发当然要安装的就是DirectX SDK,一下是DX　SDK的下载地址：http://www.microsoft.com/download/en/details.aspx?displaylang=en&id=6812没有钱最新的是June 2010版本了，我安装的是February 2010版的，然后就是一个IDE了，一直都用VS,所以当然首选VS2010咯！

至于安装就没有什么多数的了，安装好后就是配置了。

1. 首先把DirectX SDK安装目录中Lib和Include目录下的文件分别拷贝到VS2010安装目录中的Lib和Include目录；

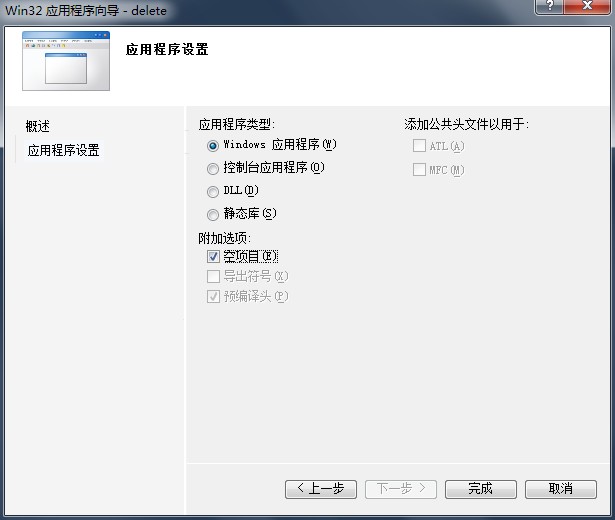

2. 打开vs2010新建一个Win32--> Win32项目，然后在应用程序设置中附加选项设置为 “空项目” 如图：

创建好项目后添加一个类粘贴一下代码：

#pragma comment (lib,"d3d9.lib")
#pragma comment (lib,"d3dx9.lib")
#pragma comment (lib,"winmm.lib")
#include <Windows.h>
#include <d3dx9.h>
#include <MMSystem.h>
LPDIRECT3D9 g_pD3D;
LPDIRECT3DDEVICE9 g_pd3dDevice;
LPDIRECT3DVERTEXBUFFER9 g_pVB;
struct CUSTOMVERTEX{
	FLOAT x, y, z;
	DWORD color;
};
#define D3DFVF_CUSTOMVERTEX (D3DFVF_XYZ|D3DFVF_DIFFUSE)
HRESULT InitObject()
{
	CUSTOMVERTEX triangle[] =
	{
		{ -1.0f,-1.0f, 0.0f, 0xffff0000, },
		{  1.0f,-1.0f, 0.0f, 0xff0000ff, },
		{  0.0f, 1.0f, 0.0f, 0xffffffff, }
	};
	if (FAILED(g_pd3dDevice->CreateVertexBuffer(3*sizeof(CUSTOMVERTEX),0, D3DFVF_CUSTOMVERTEX, D3DPOOL_DEFAULT, &g_pVB, NULL)))
		return E_FAIL;
	VOID* pVertices;
	if (FAILED(g_pVB->Lock(0,sizeof(triangle), &pVertices, 0)))
		return E_FAIL;
	memcpy(pVertices, triangle, sizeof(triangle));
	g_pVB->Unlock();
	return S_OK;
}
HRESULT InitD3D(HWND hWnd)
{
	g_pD3D = Direct3DCreate9(D3D_SDK_VERSION);
	if (NULL == g_pD3D)
		return E_FAIL;
	D3DPRESENT_PARAMETERS d3dpp;
	ZeroMemory(&d3dpp, sizeof(d3dpp));
	d3dpp.Windowed = TRUE;
	d3dpp.SwapEffect = D3DSWAPEFFECT_DISCARD;
	d3dpp.BackBufferFormat = D3DFMT_UNKNOWN;
	if(FAILED( g_pD3D->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL,
		hWnd, D3DCREATE_SOFTWARE_VERTEXPROCESSING,
		&d3dpp, &g_pd3dDevice)))
	{
		return E_FAIL;
	}
	g_pd3dDevice->SetRenderState(D3DRS_CULLMODE, D3DCULL_NONE);
	// Turn off D3D lighting, since we are providing our own vertex colors
	g_pd3dDevice->SetRenderState( D3DRS_LIGHTING, FALSE );
	if (FAILED(InitObject()))
		return E_FAIL;
	return S_OK;
}
void SetupMatrices()
{
	D3DXMATRIX matWorld;
	UINT iTime = timeGetTime() % 1000;
	FLOAT fAngle = iTime * ( 2.0f * D3DX_PI ) / 1000.0f;
	D3DXMatrixRotationY(&matWorld, fAngle);
	g_pd3dDevice->SetTransform(D3DTS_WORLD, &matWorld);
	D3DXVECTOR3 vEyePt(0.0f, 3.0f, -5.0f);
	D3DXVECTOR3 vLookAtPt(0.0f, 0.0f, 0.0f);
	D3DXVECTOR3 vUp(0.0f, 1.0f, 0.0f);
	D3DXMATRIXA16 matView;
	D3DXMatrixLookAtLH(&matView, &vEyePt, &vLookAtPt, &vUp);
	g_pd3dDevice->SetTransform(D3DTS_VIEW, &matView);
	D3DXMATRIX matPoj;
	D3DXMatrixPerspectiveFovLH(&matPoj, D3DX_PI/4, 1.0f, 1.0f, 100.0f);
	g_pd3dDevice->SetTransform(D3DTS_PROJECTION, &matPoj);
}
void Render()
{
	g_pd3dDevice->Clear(0,NULL,  D3DCLEAR_TARGET, D3DCOLOR_XRGB(0, 0, 255), 1.0f, 0);
	g_pd3dDevice->BeginScene();
	SetupMatrices();
	g_pd3dDevice->SetStreamSource(0, g_pVB, 0, sizeof(CUSTOMVERTEX));
	g_pd3dDevice->SetFVF(D3DFVF_CUSTOMVERTEX);
	g_pd3dDevice->DrawPrimitive(D3DPT_TRIANGLELIST, 0, 1);
	g_pd3dDevice->EndScene();
	g_pd3dDevice->Present(NULL, NULL, NULL, NULL);
}
void Cleanup()
{
	if (g_pd3dDevice)
		g_pd3dDevice->Release();
	if (g_pD3D)
		g_pD3D->Release();
	if (g_pVB)
		g_pVB->Release();
}
LRESULT WINAPI MsgProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
	switch (msg)
	{
	case WM_DESTROY:
		PostQuitMessage(0);
		return 0;
	case WM_PAINT:
		ValidateRect(hWnd, NULL);
		return 0;
	}
	return DefWindowProc(hWnd, msg, wParam, lParam);
}
INT WINAPI WinMain(__in HINSTANCE hInstance, __in_opt HINSTANCE hPrevInstance, __in_opt LPSTR lpCmdLine, __in int nShowCmd )
{
	WNDCLASSEX wc = {sizeof(WNDCLASSEX), CS_CLASSDC, MsgProc, 0, 0,    GetModuleHandle(NULL), NULL, NULL, NULL, NULL,     L"Direct3D", NULL};
	RegisterClassEx(&wc);
	// Create the application window
	HWND hWnd = CreateWindow(L"Direct3D",
		L"Learn", WS_OVERLAPPEDWINDOW,
		100, 100, 300, 300,
		GetDesktopWindow(),
		NULL, wc.hInstance, NULL);
	//
	ShowWindow(hWnd, SW_SHOW);
	if (SUCCEEDED(InitD3D(hWnd)))
	{
		ShowWindow(hWnd, SW_SHOWDEFAULT);
		UpdateWindow(hWnd);
		MSG msg;
		ZeroMemory(&msg, sizeof(msg));
		while (msg.message != WM_QUIT)
		{
			if(PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
			{
				TranslateMessage(&msg);
				DispatchMessage(&msg);
			}
			else
				Render();
		}
	}
	UnregisterClass( L"Direct3D", wc.hInstance );
	Cleanup();
	return nShowCmd;
}

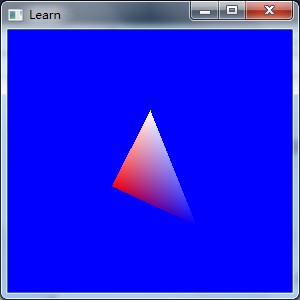

好了，运行下结果如下：

这样就成功了，代码以后在学习吧，这个方法省去了点击打开链接http://www.cnblogs.com/lovestudy/archive/2012/04/26/2471228.html中提到的方法中的很多步骤，而且不用每次新建一个项目就要很多配置，在每次新建项目只需要加入以下代码：

#pragma comment (lib,"d3d9.lib")
#pragma comment (lib,"d3dx9.lib")
#pragma comment (lib,"winmm.lib")

即可完成配置，刚开始很简单，继续加油吧！
