本文将会介绍Text to SQL相关的概念，如何使用大模型SFT实现Text to SQL，最后介绍Text to SQL的应用场景。

引言

Text to SQL，又被称为Natural Language to SQL(简称NL2SQL)，指的是将自然语言描述转化为数据库的SQL查询语句。由于数据库在我们日常工作生活中随处可见，因此Text to SQL技术也获得业界和学术界的不少研究与关注。

举个例子，比如在问题“What’s the population of New York city?”，那么我们在相关的某张表格（比如city表）中，对应的SQL语句应当为“SELECT POPULATION FROM city WHERE name = “New York””，此时数据库应当能执行该SQL语句。

常见的Text to SQL数据集有WIKISQL, Spider, ATIS, GeoQuery。以往已经有不少的NLP或者机器学习相关的技术涉及Text to SQL，但效果都比较一般。

接下来，我们将会介绍如何使用大模型SFT技术来实现Text to SQL，看看大模型的表现。

技术交流群

前沿技术资讯、算法交流、求职内推、算法竞赛、面试交流(校招、社招、实习)等、与 10000+来自港科大、北大、清华、中科院、CMU、腾讯、百度等名校名企开发者互动交流~

我们建了大模型算法岗技术与面试交流群，想要交流、需要源码&资料、提升技术的同学，可以直接加微信号：mlc2060。加的时候备注一下：研究方向 +学校/公司+CSDN，即可。然后就可以拉你进群了。

方式①、微信搜索公众号：机器学习社区，后台回复：加群
方式②、添加微信号：mlc2060，备注：CSDN + 技术交流

SFT

我们使用HuggingFace上的b-mc2/sql-create-context数据集，该数据集只有78,577条训练数据，无测试集数据，字段为answer, question, context，其中answer为最终产生的SQL语句，question为用户问题，context为数据库表格创建语句。

比如其中在一个样本中，question为How many heads of the departments are older than 56 ?, context为CREATE TABLE head (age INTEGER), answer为SELECT COUNT(*) FROM head WHERE age > 56。

我们使用谷歌开源的Gemma-7B模型对改数据集进行指令微调。以上述样本为例，对应的指令格式为：

\nBelow is an instruction that describes a task.Write a response that appropriately completes the request.\n### Instruction: How many heads of the departments are older than 56 ?\n### Database Schema:\nCREATE TABLE head (age INTEGER)\n### Response:\nSELECT COUNT(*) FROM head WHERE age > 56\n<eos>\n

其中为Gemma-7B模型的结束标志符。

使用trl可以很方面地对Gemma-7B模型进行SFT，代码如下：

from datasets import load_dataset
import torch
from peft import LoraConfig
from trl import SFTTrainer
from transformers import TrainingArguments
from transformers import AutoTokenizer, AutoModelForCausalLM, BitsAndBytesConfig

# Hugging Face model id
model_id = "./models/gemma-7b"

# BitsAndBytesConfig int-4 config
bnb_config = BitsAndBytesConfig(
    load_in_4bit=True, bnb_4bit_use_double_quant=True, bnb_4bit_quant_type="nf4", bnb_4bit_compute_dtype=torch.bfloat16
)

# Load model and tokenizer
model = AutoModelForCausalLM.from_pretrained(
    model_id,
    device_map="auto",
    torch_dtype=torch.bfloat16,
    quantization_config=bnb_config
)
tokenizer = AutoTokenizer.from_pretrained(model_id)
tokenizer.padding_side = 'right'

train_dataset = load_dataset("json", data_files="sql-create-context.json")['train']
print(train_dataset[0])
print(f"train size: {len(train_dataset)}")

# LoRA config based on QLoRA paper & Sebastian Raschka experiment
peft_config = LoraConfig(
        lora_alpha=16,
        lora_dropout=0.05,
        r=64,
        bias="none",
        target_modules=["q_proj", "k_proj", "v_proj", "o_proj","gate_proj"],
        task_type="CAUSAL_LM",
)

args = TrainingArguments(
    output_dir="output",                    # directory to save and repository id
    num_train_epochs=2,                     # number of training epochs
    per_device_train_batch_size=8,          # batch size per device during training
    gradient_accumulation_steps=4,          # number of steps before performing a backward/update pass
    gradient_checkpointing=True,            # use gradient checkpointing to save memory
    optim="paged_adamw_8bit",
    save_strategy="epoch",
    logging_strategy="steps",
    logging_steps=10,                       # log every 10 steps
    bf16=True,                              # use bfloat16 precision
    learning_rate=1e-4,                     # learning rate, based on QLoRA paper
    max_grad_norm=0.3,                      # max gradient norm based on QLoRA paper
    warmup_ratio=0.1,                      # warmup ratio based on QLoRA paper
    lr_scheduler_type="constant",           # use constant learning rate scheduler
    push_to_hub=False,                       # push model to hub
    report_to="tensorboard",                # report metrics to tensorboard
)

max_seq_length = 1024

trainer = SFTTrainer(
    model=model,
    args=args,
    train_dataset=train_dataset,
    peft_config=peft_config,
    max_seq_length=max_seq_length,
    tokenizer=tokenizer,
    packing=False,
    dataset_text_field="text"
)


trainer.train()
trainer.save_model()

训练完后，我们使用下面的脚本进行新样本的预测，代码如下：

from transformers import AutoModelForCausalLM, AutoTokenizer

peft_model_id = "./output/checkpoint-4911"
model = AutoModelForCausalLM.from_pretrained(peft_model_id, device_map="cuda")
tokenizer = AutoTokenizer.from_pretrained("./models/gemma-7b")


while True:
    question = input("enter a question: ")
    context = input("enter database schema: ")
    input_text = f"""
Below is an instruction that describes a task.Write a response that appropriately completes the request.
### Instruction: {question}
### Database Schema:
{context}
### Response:
"""
    encoding = tokenizer(input_text, return_tensors="pt").to("cuda")
    outputs = model.generate(**encoding, max_new_tokens=100, temperature=0.1, do_sample=True)
    generated_ids = outputs[:, encoding.input_ids.shape[1]:]
    generated_texts = tokenizer.batch_decode(generated_ids, skip_special_tokens=True)
    print("Instruction: ", input_text)
    print("SQL: ", generated_texts[0].strip())

为了验证改模型的效果，我们在新样本进行测试。

例子1

直接从SQL测验网站进行测试，第一个例子为：

测试题例子1

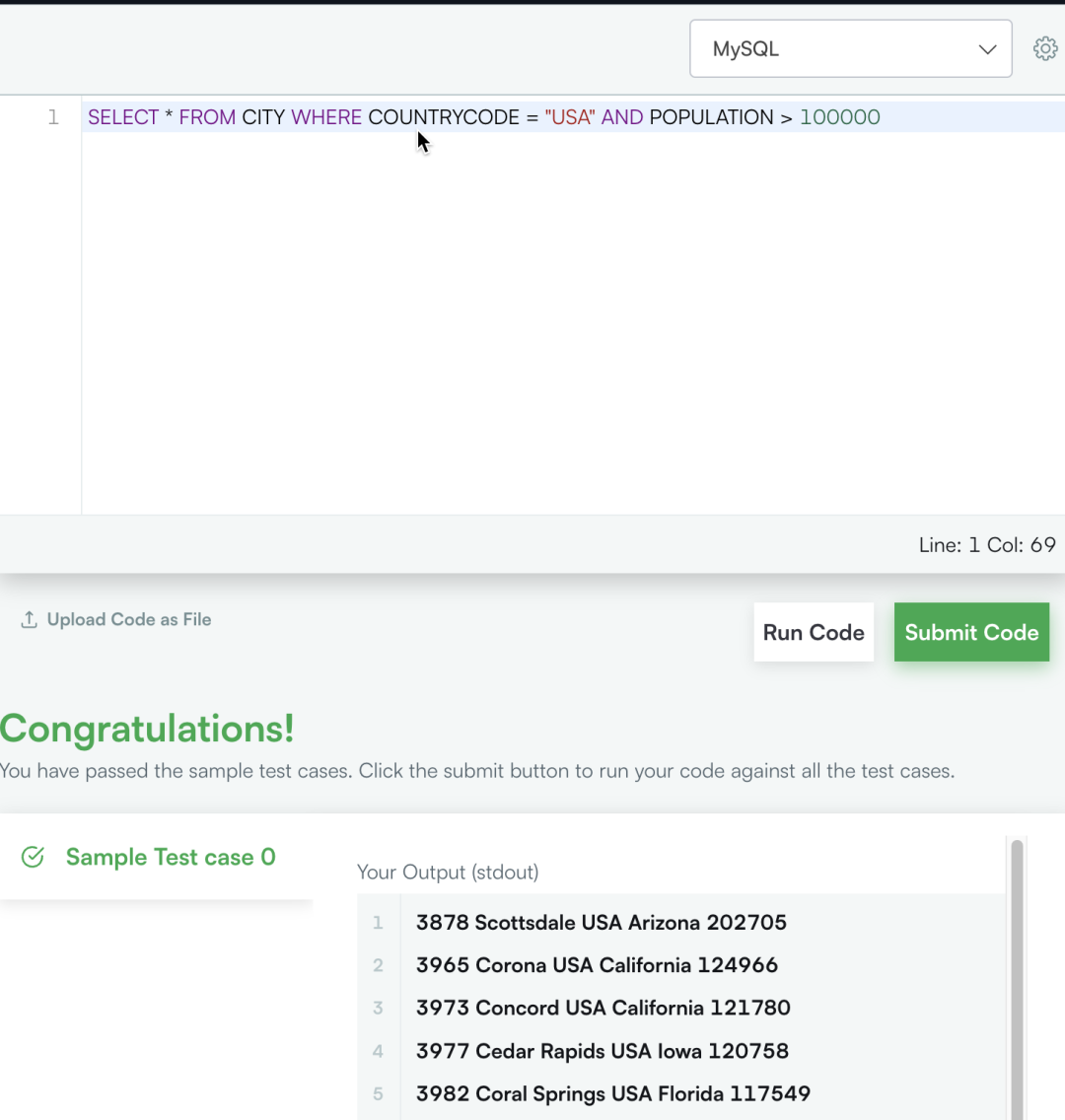

模型生成的SQL语句为：SELECT * FROM CITY WHERE COUNTRYCODE = "USA" AND POPULATION > 100000，成功运行！

生成的SQL语句执行成功1

例子2

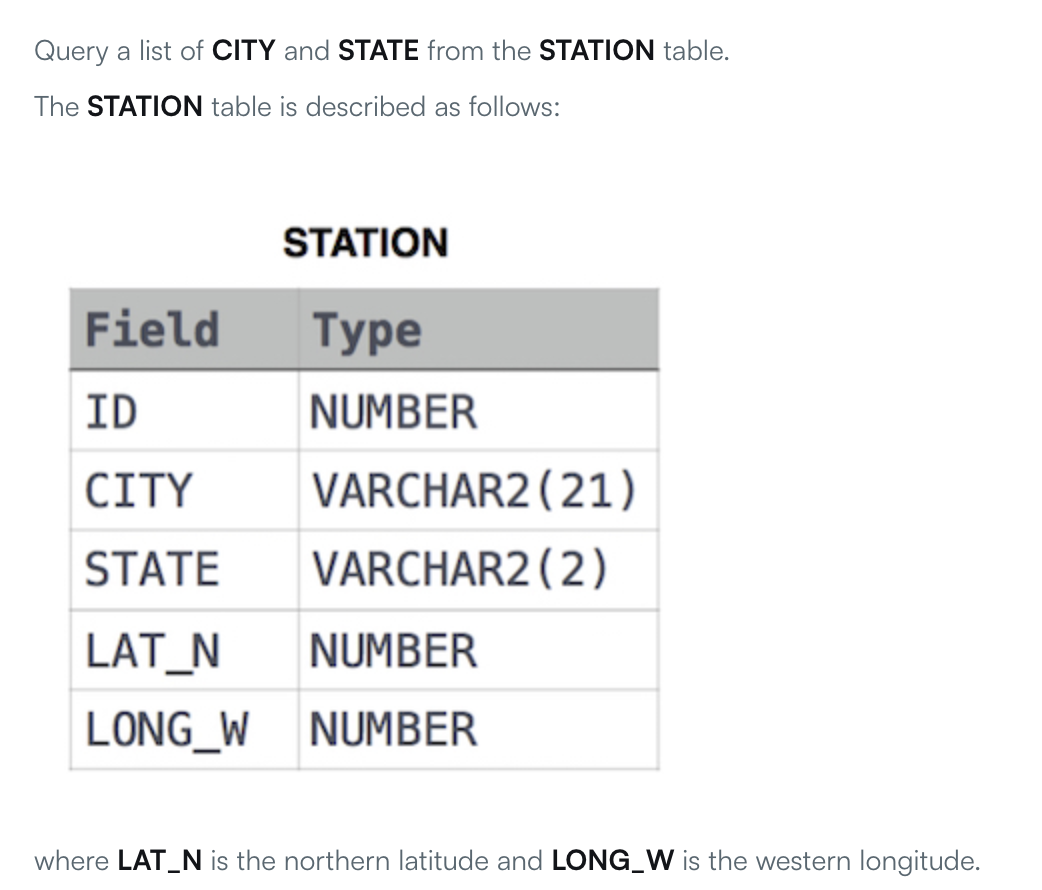

第二个例子为：

生成的SQL语句为SELECT CITY, STATE FROM STATION，也能执行成功！

例子3

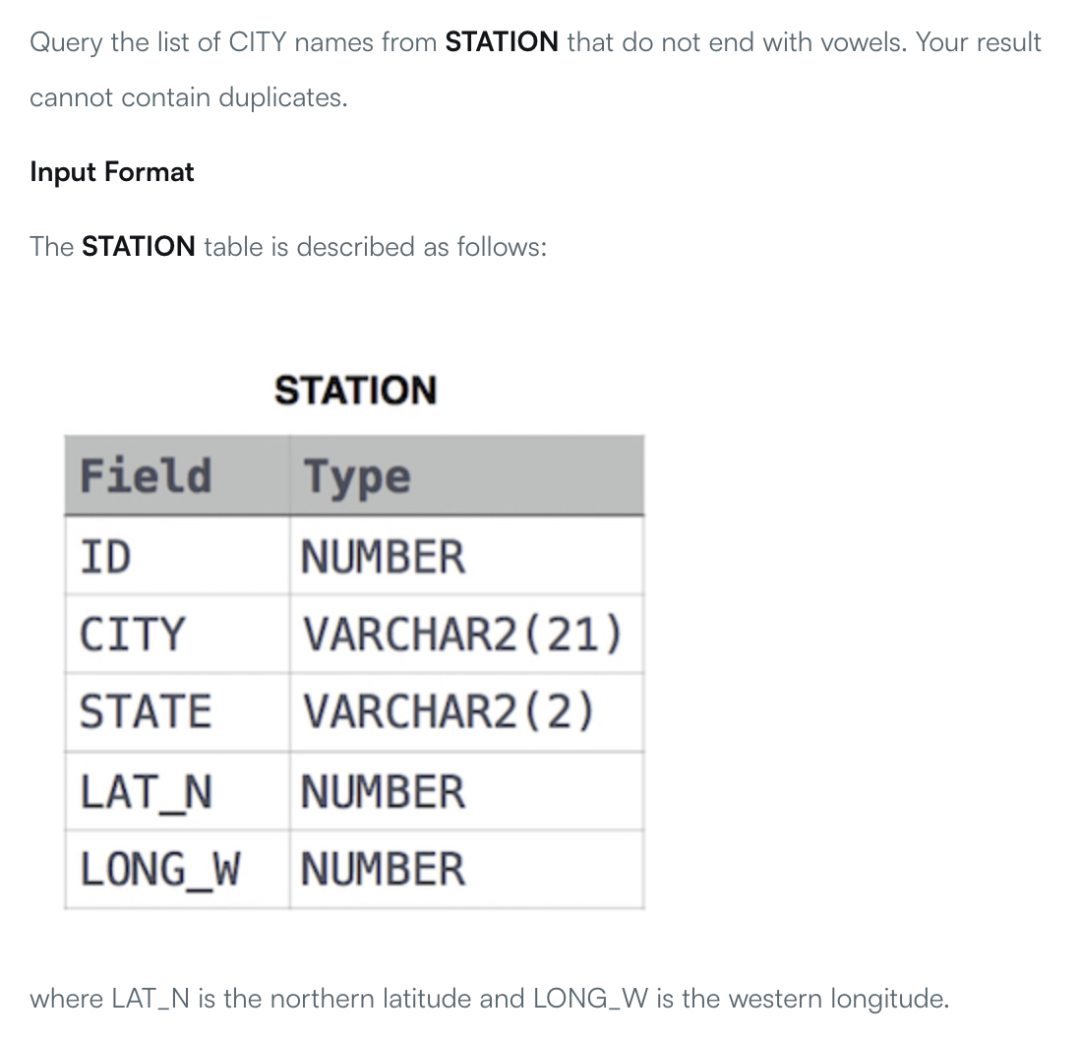

上述的两个较为简单，我们再来看个复杂点的例子。第三个例子为：

生成的SQL语句为SELECT CITY FROM STATION WHERE SUBSTR(CITY, -1) NOT IN ('A', 'E', 'I', 'O', 'U') GROUP BY CITY，竟然能执行成功！

例子4

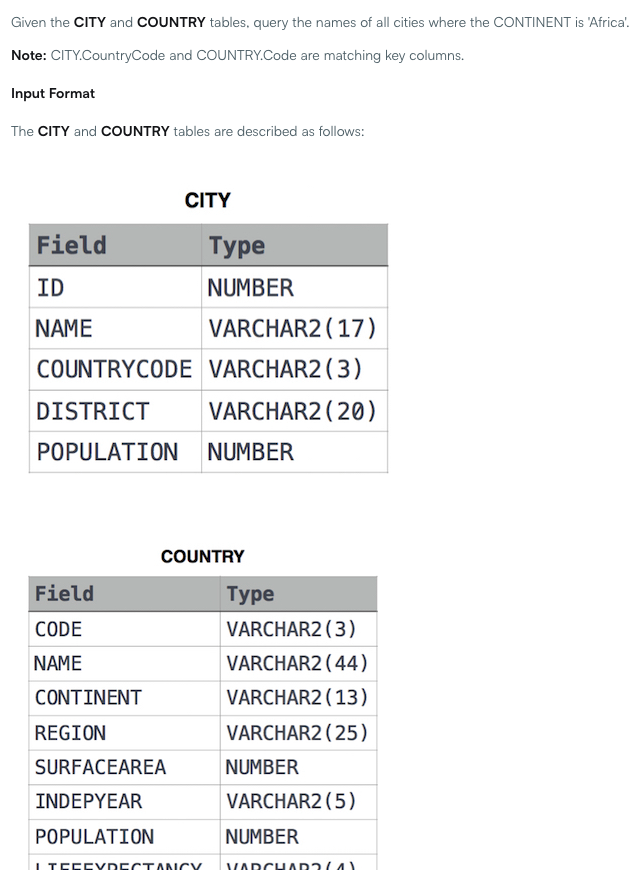

第四例子为两个表格，需要对表格进行join，如下：

生成的SQL语句为SELECT T1.NAME FROM CITY AS T1 JOIN COUNTRY AS T2 ON T1.COUNTRYCODE = T2.CODE WHERE T2.CONTINENT = 'Africa'，竟然能执行成功！

以上只是找了几个比较好的例子，实际上还是有很多生成的SQL语句无法通过测试的。

在实际的Text to SQL应用场景中，需要调整system prompt，对指令进行更加详细的描述，比较加入表格、字段描述。同时，还需要质量更高、更贴近业务场景的训练数据，以及合适的大模型等，需要保证生成的SQL语句的可执行准确率。

表格问答应用

我们举个例子，来说明Text to SQL和大模型结合起来使用，在表格问答场景中能有更好的表现。

Mysql中的users表的描述:

+-------------+--------------+------+-----+---------+----------------+
| Field       | Type         | Null | Key | Default | Extra          |
+-------------+--------------+------+-----+---------+----------------+
| id          | int          | NO   | PRI | NULL    | auto_increment |
| name        | varchar(256) | NO   |     | NULL    |                |
| age         | int          | YES  |     | NULL    |                |
| place       | varchar(256) | NO   |     | NULL    |                |
| insert_time | datetime     | YES  |     | NULL    |                |
+-------------+--------------+------+-----+---------+----------------+

表格中的所有数据:

+----+---------------+------+-------+---------------------+
| id | name          | age  | place | insert_time         |
+----+---------------+------+-------+---------------------+
|  1 | Jack          |   25 | USA   | 2023-12-23 23:48:48 |
|  2 | Green         |   26 | UK    | 2023-12-23 23:48:58 |
|  3 | Alex          |   31 | GER   | 2023-12-23 23:49:03 |
|  4 | Chen          |   52 | CHN   | 2023-12-23 23:49:08 |
|  5 | Zhang         |   42 | CHN   | 2023-12-23 23:49:13 |
|  6 | ElasticSearch |   12 | USA   | 2023-12-24 00:41:20 |
|  7 | Kibana        |   24 | USA   | 2023-12-24 00:41:37 |
|  8 | Logstash      |   36 | USA   | 2023-12-24 00:42:41 |
+----+---------------+------+-------+---------------------+

我们考虑以下四个问题：

How old is Chen?
Who is the oldest person and its age and place?
How many persons come from USA and what are their names and age?
Return the top 5 oldest person in descending order with their name and age.
what are the names that begins with J or E?

使用LlamaIndex工具中的Text-to-SQL QueryEngine对上述四个问题进行问答。代码如下：

# -*- coding: utf-8 -*-
# @file: nl2sql_test.py
# llama-index == 0.9.30
# SQLAlchemy==2.0.20
# PyMySQL == 1.1.0
from sqlalchemy import create_engine, text

from llama_index import SQLDatabase, ServiceContext
from llama_index.llms import OpenAI
from llama_index.indices.struct_store.sql_query import NLSQLTableQueryEngine

from llama_index.indices.struct_store.sql_query import (
    SQLTableRetrieverQueryEngine,
)
from llama_index.objects import (
    SQLTableNodeMapping,
    ObjectIndex,
    SQLTableSchema,
)
from llama_index import VectorStoreIndex
from llama_index.retrievers import NLSQLRetriever
from llama_index.query_engine import RetrieverQueryEngine

llm = OpenAI(temperature=0.1, model="gpt-3.5-turbo")
service_context = ServiceContext.from_defaults(llm=llm)

engine = create_engine("mysql+pymysql://root:root@localhost:3306/orm_test")
sql_database = SQLDatabase(engine, include_tables=["users"])

# text-to-sql query engine, simple example
query_engine = NLSQLTableQueryEngine(
    sql_database=sql_database,
    tables=["users"]
)
query_str = "How old is Chen?"
response = query_engine.query(query_str)
print(response)
print('*' * 30, end='\n\n')

# total size of table schema overflows context window size
# then use SQLTableNodeMapping
# set Logging to DEBUG for more detailed outputs
table_node_mapping = SQLTableNodeMapping(sql_database)
table_schema_objs = [
    (SQLTableSchema(table_name="users"))
]  # add a SQLTableSchema for each table

obj_index = ObjectIndex.from_objects(
    table_schema_objs,
    table_node_mapping,
    VectorStoreIndex,
)
query_engine = SQLTableRetrieverQueryEngine(
    sql_database, obj_index.as_retriever(similarity_top_k=1)
)

response = query_engine.query("Who is the oldest person and its age and place?")
print(response)
print('*' * 30, end='\n\n')

response = query_engine.query("How many persons come from USA and what are their names and age?")
print(response.metadata)
print(response.metadata['result'])
print(response)
print('*' * 30, end='\n\n')

# manually set context text
city_stats_text = (
    "This table gives information regarding the persons and their age and place.\n"
    "The insert time means when the record was inserted into this table."
)

table_node_mapping = SQLTableNodeMapping(sql_database)
table_schema_objs = [
    (SQLTableSchema(table_name="users", context_str=city_stats_text))
]

# text-to-sql retriever
# SQL Retriever
# default retrieval (return_raw=True)
nl_sql_retriever = NLSQLRetriever(
    sql_database, tables=["users"], return_raw=True
)

results = nl_sql_retriever.retrieve(
    "Return the top 5 oldest person in descending order with their name and age."
)

for n in results:
    print(n)
print('*' * 30, end='\n\n')

# default retrieval (return_raw=False)
nl_sql_retriever = NLSQLRetriever(
    sql_database, tables=["users"], return_raw=False
)
results = nl_sql_retriever.retrieve(
    "Return the top 5 oldest person in descending order with their name and age."
)

# NOTE: all the content is in the metadata
for n in results:
    print(n, n.metadata)
print('*' * 30, end='\n\n')

# compose SQL Retriever with RetrieverQueryEngine to synthesize a response
nl_sql_retriever = NLSQLRetriever(
    sql_database, tables=["users"], return_raw=True
)
query_engine = RetrieverQueryEngine.from_args(nl_sql_retriever)
queries = ["Return the top 5 oldest person in descending order with their name and age.",
           "what are the names that begins with J or E?"]
for query in queries:
    response = query_engine.query(query)
    print(response)
print('*' * 30, end='\n\n')

对应的输出答案为（中间有部分省略）：

Chen is 52 years old.
******************************
The oldest person is Chen, who is 52 years old and is from China.
******************************
There are four persons from the USA in the database. Their names are Jack, ElasticSearch, Kibana, and Logstash, and their ages are 25, 12, 24, and 36 respectively.
******************************
The top 5 oldest people in descending order with their names and ages are:
1. Chen, 52
2. Zhang, 42
3. Logstash, 36
4. Alex, 31
5. Green, 26
******************************
The names that begin with J or E are ElasticSearch and Jack.

看来Text to SQL对于表格问答场景有很大帮助。

补充

对于上述表格问答应用中的5个问题，我们使用Gemma-7B微调的Text to SQL模型进行回答，生成的SQL语句如下：

SELECT age FROM users WHERE place = ‘Chen’
SELECT id, name, age, place FROM users ORDER BY age DESC LIMIT 1
SELECT id, name, age FROM users WHERE place = ‘USA’ ORDER BY insert_time
SELECT id, name, age FROM users ORDER BY age DESC LIMIT 5
SELECT name FROM users WHERE name LIKE ‘J%’ OR name LIKE ‘E%’

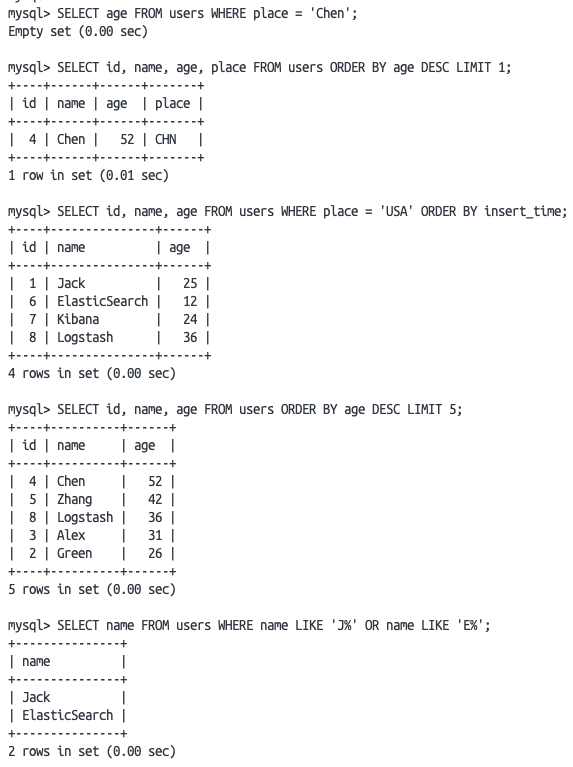

将它们在MySQL中进行执行，结果如下：

MySQL执行结果

所有的语句都可以执行，但第一条语句是错误的，不过只需将place改成name即可执行成功。

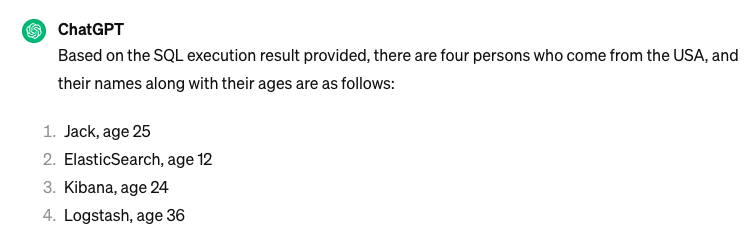

有了上述的SQL执行结果，我们将上述表格问答中的第三个例子进行Prompt Engineer，如下：

<The background information follows>:

table `users` in Mysql:

+-------------+--------------+------+-----+---------+----------------+
| Field       | Type         | Null | Key | Default | Extra          |
+-------------+--------------+------+-----+---------+----------------+
| id          | int          | NO   | PRI | NULL    | auto_increment |
| name        | varchar(256) | NO   |     | NULL    |                |
| age         | int          | YES  |     | NULL    |                |
| place       | varchar(256) | NO   |     | NULL    |                |
| insert_time | datetime     | YES  |     | NULL    |                |
+-------------+--------------+------+-----+---------+----------------+

SQL execution result:

mysql> SELECT id, name, age FROM users WHERE place = 'USA' ORDER BY insert_time;

+----+---------------+------+
| id | name          | age  |
+----+---------------+------+
|  1 | Jack          |   25 |
|  6 | ElasticSearch |   12 |
|  7 | Kibana        |   24 |
|  8 | Logstash      |   36 |
+----+---------------+------+

Based on the background information, Answer the question: How many persons come from USA and what are their names and age?
