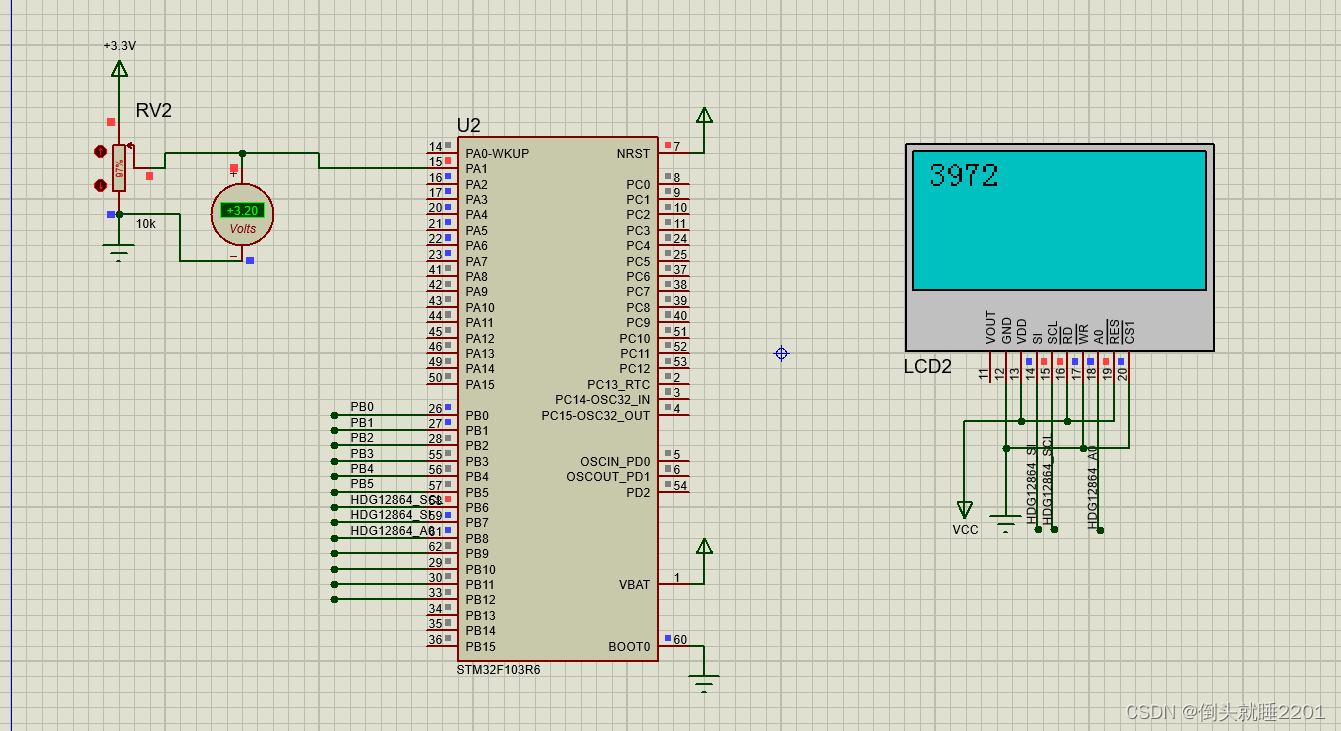

采用ad转换电路，获取PA1引脚输入的电压并转换为数值，

倒头就睡2201

于 2024-06-30 19:48:34 发布

阅读量627

点赞数 5

文章标签：单片机嵌入式硬件

本文链接：https://blog.csdn.net/2201_75716499/article/details/140085273

版权

main.c

#include "stm32f10x.h"
#include "delay.h"
#include "OLED.h"
#include "adc.h"

int main()
{
   u16 adc_val;
   delay_init();
   LCD_Init();
   ADC1_Init();
   while(1)
   {
       adc_val =get_ADC1_Average(ADC_Channel_1,5);
       Draw_number(adc_val,0,0);
       delay_ms(500);
   }
}

adc.c

#include "stm32f10x.h"
#include "adc.h"
#include "delay.h"
void ADC1_Init()
{
   RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1, ENABLE);
   RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE);

   GPIO_InitTypeDef GPIO_InitStructure;
   ADC_InitTypeDef ADC_InitStructure;

   GPIO_InitStructure.GPIO_Mode=GPIO_Mode_AIN;
   GPIO_InitStructure.GPIO_Pin=GPIO_Pin_1;
   GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
   GPIO_Init(GPIOA,&GPIO_InitStructure);

   RCC_ADCCLKConfig(RCC_PCLK2_Div6);
   ADC_DeInit(ADC1);

   ADC_InitStructure.ADC_ContinuousConvMode=DISABLE;//µ¥´Î×ª»»
   ADC_InitStructure.ADC_DataAlign=ADC_DataAlign_Right;//ÓÒ¶ÔÆë
   ADC_InitStructure.ADC_ExternalTrigConv=ADC_ExternalTrigConv_None;
   ADC_InitStructure.ADC_Mode=ADC_Mode_Independent;
   ADC_InitStructure.ADC_NbrOfChannel=1;//¹æÔò×ª»»Í¨µÀÊý1
   ADC_InitStructure.ADC_ScanConvMode=DISABLE;//µ¥Í¨µÀ×ª»»
   ADC_Init(ADC1,&ADC_InitStructure);

   ADC_Cmd(ADC1,ENABLE);

   ADC_ResetCalibration(ADC1);//¸´Î»Ð£×¼¼Ä´æÆ÷
   while(!ADC_GetResetCalibrationStatus(ADC1));//µÈ´ý¸´Î»Ð£×¼¼Ä´æÆ÷Íê³É
   //delay(20);

   ADC_StartCalibration(ADC1);
   while(!ADC_GetCalibrationStatus(ADC1));
   //delay(20);
}

uint16_t get_ADC1_Val(u8 ch)
{
   ADC_RegularChannelConfig(ADC1,ch,1,ADC_SampleTime_239Cycles5);
   ADC_SoftwareStartConvCmd(ADC1,ENABLE);
   while(!ADC_GetFlagStatus(ADC1,ADC_FLAG_EOC));
   return ADC_GetConversionValue(ADC1);
}

uint16_t get_ADC1_Average(u8 ch,u8 times)
{
   uint16_t average = 0;
   int i=0;
   for(i=0;i<times;i++)
   {
       average+=get_ADC1_Val(ch);
       delay_ms(5);
   }
   return average/times;
}

adc.h

#ifndef __ADC_H
#define __ADC_H

#include "sys.h"

void ADC1_Init(void);
uint16_t get_ADC1_Val(u8 ch);
uint16_t get_ADC1_Average(u8 ch,u8 times);

#endif
