绘制动态折线图

    这一篇记录python的可视化工具matplotlib库，也就是把处理过DataFrame的结果给可视化出来，可以对照Excel的各种可视化结果。

    这一篇主要学习折线图的基础绘制方法，不用复杂的数据集，只是学一下呈现方式和参数设置。

from pyecharts.charts import Line
from pyecharts import options as opts
from pyecharts.globals import ThemeType
x_data = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]
y_data1 = [10, 40, 30, 30, 45, 25, 35]
y_data2 = [15, 25, 20, 35, 30, 45, 40]
y_data3 = [20, 5, 45, 25, 40, 35, 30]
line = (
    Line(init_opts=opts.InitOpts(theme=ThemeType.LIGHT))
    .add_xaxis(xaxis_data=x_data)
    .add_yaxis(
        series_name="Series 1",
        y_axis=y_data1,
        is_smooth=False,
        linestyle_opts=opts.LineStyleOpts(width=3),
        itemstyle_opts=opts.ItemStyleOpts(color="blue"),
    )
    .add_yaxis(
        series_name="Series 2",
        y_axis=y_data2,
        is_smooth=False,
        linestyle_opts=opts.LineStyleOpts(width=3),
        itemstyle_opts=opts.ItemStyleOpts(color="orange"),
    )
    .add_yaxis(
        series_name="Series 3",
        y_axis=y_data3,
        is_smooth=False,
        linestyle_opts=opts.LineStyleOpts(width=3),
        itemstyle_opts=opts.ItemStyleOpts(color="green"),
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="折线图"),
        tooltip_opts=opts.TooltipOpts(trigger="axis", axis_pointer_type="cross"),
        legend_opts=opts.LegendOpts(
            type_="plain",
            pos_left="right",
            pos_top="middle",
            orient="vertical",
            item_width=30,
            item_height=15,
        ),
        datazoom_opts=[opts.DataZoomOpts(type_="inside"), opts.DataZoomOpts()],
        xaxis_opts=opts.AxisOpts(
            type_="category",
            axislabel_opts=opts.LabelOpts(rotate=45),
            boundary_gap=False,
        ),
        yaxis_opts=opts.AxisOpts(
            type_="value",
            axislabel_opts=opts.LabelOpts(formatter="{value}"),
            splitline_opts=opts.SplitLineOpts(is_show=True),
        ),
    )
)

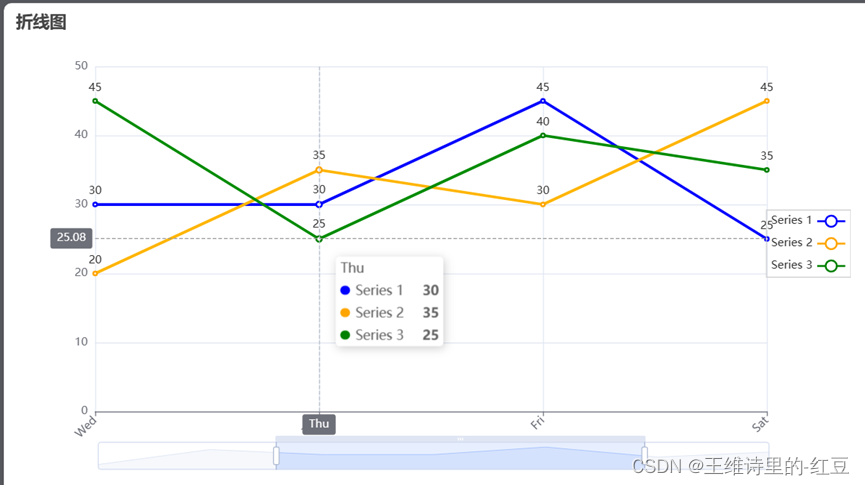

line.render("折线图.html")
