感谢各位大佬的光临,希望和大家一起进步,望得到你的三连,互三支持,一起进步
前言
前面我们学习了很多数据结果相关的知识,这次我们就来利用之前所学的和c语言来学习一下迷宫问题
迷宫问题_牛客题霸_牛客网 (nowcoder.com)
描述
定义一个二维数组 N*M ,如 5 × 5 数组下所示:
int maze[5][5] = {
0, 1, 0, 0, 0,
0, 1, 1, 1, 0,
0, 0, 0, 0, 0,
0, 1, 1, 1, 0,
0, 0, 0, 1, 0,
};
它表示一个迷宫,其中的1表示墙壁,0表示可以走的路,只能横着走或竖着走,不能斜着走,要求编程序找出从左上角到右下角的路线。入口点为[0,0],既第一格是可以走的路。数据范围: 2≤𝑛,𝑚≤10 2≤n,m≤10 , 输入的内容只包含 0≤𝑣𝑎𝑙≤1 0≤val≤1
输入描述:
输入两个整数,分别表示二维数组的行数,列数。再输入相应的数组,其中的1表示墙壁,0表示可以走的路。数据保证有唯一解,不考虑有多解的情况,即迷宫只有一条通道。
输出描述:
左上角到右下角的最短路径,格式如样例所示。
示例1
输入:
5 5 0 1 0 0 0 0 1 1 1 0 0 0 0 0 0 0 1 1 1 0 0 0 0 1 0复制输出:
(0,0) (1,0) (2,0) (2,1) (2,2) (2,3) (2,4) (3,4) (4,4)说明:
注意:不能斜着走!!

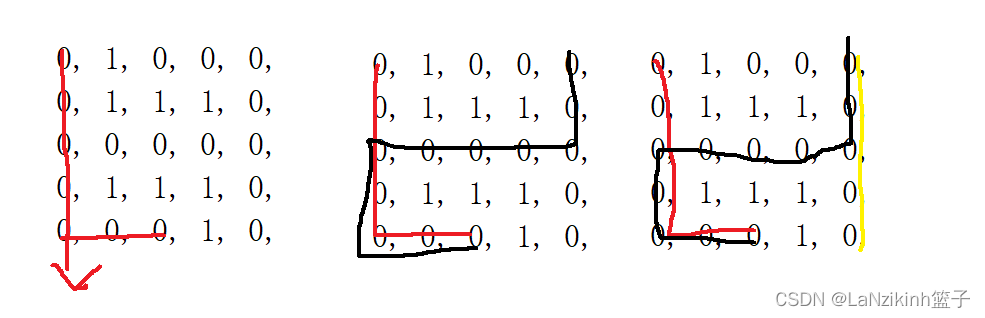

思路:利用深度优先遍历,回溯算法,四方向递归
首先我们想要来定义一个结构体,在迷宫上有很多点,我们既然要走,就要把先把点拿住
typedef struct Postion
{
int row;
int col;
}PT;
一.主要逻辑
我们先要思考这个题目的主要逻辑,就是说我要怎么去实现这个题目?首先第一个就是动态开辟一个二维空间,因为我要先输入一个二维的矩阵。首先要注意int a[n][m]; // vs2022 不支持以及c语言是不支持变长数组的,所以我们要自己开辟一个,利用指针数组去开辟
int** maze = (int**)malloc(sizeof(int*) * N);
for (int i = 0; i < N; ++i)
{
maze[i] = (int*)malloc(sizeof(int) * M);
}
// 二维数组的输入
for (int i = 0; i < N; ++i)
{
for (int j = 0; j < M; ++j)
{
scanf("%d", &maze[i][j]);
}
}
然后就是输出,还有输出坐标,所以我们需要把坐标存起来,存完之后再输出出去,那我们用什么存勒,这里我们用栈来存放,然后我们后面的思路就是初始化一个栈和一个入口,然后去走迷宫,如果能找到通路就打印坐标,如果找不到就退出,然后就销毁数组和栈
int main()
{
int N = 0, M = 0;
while (scanf("%d%d", &N, &M) != EOF)
{
// int a[n][m]; // vs2013 不支持
// 动态开辟二维数组
int** maze = (int**)malloc(sizeof(int*) * N);
for (int i = 0; i < N; ++i)
{
maze[i] = (int*)malloc(sizeof(int) * M);
}
// 二维数组的输入
for (int i = 0; i < N; ++i)
{
for (int j = 0; j < M; ++j)
{
scanf("%d", &maze[i][j]);
}
}
//初始化栈
StackInit(&path);
// PrintMaze(maze, N, M);
PT entry = { 0, 0 }; //入口
//迷宫走的思路
if (GetMazePath(maze, N, M, entry))
{
//printf("找到通路\n");
//
PirntPath(&path);
}
else
{
printf("没有找到通路\n");
}
StackDestory(&path);
for (int i = 0; i < N; ++i)
{
free(maze[i]);
}
free(maze);
maze = NULL;
}
return 0;
}
二.利用利用深度优先遍历,回溯算法,四方向递归走迷宫
这个就是这个题目的难点,如何去走这个迷宫?
按上下左右方式去走,深度遍历,先往深处走,如果找不到再回溯过去,直到找到为止
1.做之前先来判断坐标的有效性
只要不是墙,并且坐标大于0坐标没有出迷宫,就都是有效的
//判断该坐标是否为有效可遍历的坐标
bool IsPass(int** maze, int N, int M, PT pos)
{
if (pos.row >= 0 && pos.row < N
&& pos.col >= 0 && pos.col < M
&& maze[pos.row][pos.col] == 0)
{
return true;
}
else
{
return false;
}
}
然后走迷宫,函数开始是先入栈,不管是不是都先入,如果这个坐标不是路径,后面再删除就可以了,走之前先判断一下,如果走到出口就直接结束,然后探测4个方向,遍历过的位置标记2,防止我再次遍历,向上向下方向遍历,只要改动作标就可以了
//判断路径坐标进行可以进行遍历
bool GetMazePath(int** maze, int N, int M, PT cur)
{
//直接入栈
StackPush(&path, cur);
// 如果走到出口
if (cur.row == N - 1 && cur.col == M - 1)
return true;
// 探测cur位置得上、下、左、右四个方向
PT next;
maze[cur.row][cur.col] = 2; //已经遍历过的(包括当前)位置,标记为2
//向上遍历
next = cur;
next.row -= 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向下遍历
next = cur;
next.row += 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向左遍历
next = cur;
next.col -= 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向右遍历
next = cur;
next.col += 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
StackPop(&path); //不通,这个坐标不能使用,就出栈
return false; //四个方向都不通,就返回false,递归会回溯,探索其他通路
}
三.栈的操作
收集到的数据不能直接用,我用占存起来了,不能直接释放,因为栈的特征是后进先出,所以我可以搭建两个栈来实现,把我第一个栈的数据导到第二个栈的数据在拿出来就可以了
// 输出栈里面的坐标路径
//要求从最开始的坐标先输出,而栈是后进先出,需要调整输出
void PirntPath(ST* ps)
{
// path数据倒到rPath
ST rPath;
StackInit(&rPath);
while (!StackEmpty(&path))
{
StackPush(&rPath, StackTop(&path));
StackPop(&path);
}
while (!StackEmpty(&rPath))
{
PT top = StackTop(&rPath);
printf("(%d,%d)\n", top.row, top.col);
StackPop(&rPath);
}
StackDestory(&rPath);
}
四.总代码
注意:c语言库里是没有栈的,所以在这之前要自己写一个栈,这也是c语言不好的地方
#include<stdio.h>
#include<stdlib.h>
#include<assert.h>
#include<stdbool.h>
#include<string.h>
//定义位置结构体
typedef struct Postion
{
int row;
int col;
}PT;
//栈的实现
typedef PT STDataType;
typedef struct Stack
{
STDataType* a; //通过数组实现栈的结构
int top;
int capacity;
}ST;
//初始化
void StackInit(ST* ps);
//释放内存、销毁空间
void StackDestory(ST* ps);
// 入栈
void StackPush(ST* ps, STDataType x);
// 出栈
void StackPop(ST* ps);
//取栈顶数据
STDataType StackTop(ST* ps);
//栈的大小
int StackSize(ST* ps);
//判空
bool StackEmpty(ST* ps);
//初始化
void StackInit(ST* ps)
{
assert(ps);
ps->a = (STDataType*)malloc(sizeof(STDataType) * 4);
if (ps->a == NULL)
{
printf("malloc fail!\n");
exit(-1);
}
ps->capacity = 4;
ps->top = 0; //这使得top最终指向的是栈顶的后一个位置。若top=-1,则最终指向的是栈顶。
}
//释放内存、销毁空间
void StackDestory(ST* ps)
{
assert(ps);
free(ps->a);
ps->a = NULL;
ps->top = ps->capacity = 0;
}
// 入栈
void StackPush(ST* ps, STDataType x)
{
assert(ps);
// 满了->增容
if (ps->top == ps->capacity)
{
STDataType* tmp = (STDataType*)realloc(ps->a, ps->capacity * 2 * sizeof(STDataType));
if (tmp == NULL)
{
printf("realloc fail!\n");
exit(-1);
}
else
{
ps->a = tmp;
ps->capacity *= 2;
}
}
ps->a[ps->top] = x;
ps->top++;
}
// 出栈
void StackPop(ST* ps)
{
assert(ps);
// 栈空了,再调用Pop,就会直接中止程序报错
assert(ps->top > 0);
//ps->a[ps->top - 1] = 0; //置为0只考虑了int型等,若为char、double等就不适用了。
ps->top--;
}
//取栈顶数据
STDataType StackTop(ST* ps)
{
assert(ps);
// 栈空了,再调用Top,就会直接中止程序报错
assert(ps->top > 0);
return ps->a[ps->top - 1];
}
//求栈大小
int StackSize(ST* ps)
{
assert(ps);
return ps->top;
}
//判空
bool StackEmpty(ST* ps)
{
assert(ps);
return ps->top == 0;
}
//maze实现
ST path; //定义全局变量
//打印
void PrintMaze(int** maze, int N, int M)
{
for (int i = 0; i < N; ++i)
{
for (int j = 0; j < M; ++j)
{
printf("%d ", maze[i][j]);
}
printf("\n");
}
printf("\n");
}
// 输出栈里面的坐标路径
//要求从最开始的坐标先输出,而栈是后进先出,需要调整输出
void PirntPath(ST* ps)
{
// path数据倒到rPath
ST rPath;
StackInit(&rPath);
while (!StackEmpty(&path))
{
StackPush(&rPath, StackTop(&path));
StackPop(&path);
}
while (!StackEmpty(&rPath))
{
PT top = StackTop(&rPath);
printf("(%d,%d)\n", top.row, top.col);
StackPop(&rPath);
}
StackDestory(&rPath);
}
//判断该坐标是否为有效可遍历的坐标
bool IsPass(int** maze, int N, int M, PT pos)
{
if (pos.row >= 0 && pos.row < N
&& pos.col >= 0 && pos.col < M
&& maze[pos.row][pos.col] == 0)
{
return true;
}
else
{
return false;
}
}
//判断路径坐标进行可以进行遍历
bool GetMazePath(int** maze, int N, int M, PT cur)
{
//直接入栈
StackPush(&path, cur);
// 如果走到出口
if (cur.row == N - 1 && cur.col == M - 1)
return true;
// 探测cur位置得上、下、左、右四个方向
PT next;
maze[cur.row][cur.col] = 2; //已经遍历过的(包括当前)位置,标记为2
//向上遍历
next = cur;
next.row -= 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向下遍历
next = cur;
next.row += 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向左遍历
next = cur;
next.col -= 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
//向右遍历
next = cur;
next.col += 1;
if (IsPass(maze, N, M, next))
{
if (GetMazePath(maze, N, M, next))
return true;
}
StackPop(&path); //不通,这个坐标不能使用,就出栈
return false; //四个方向都不通,就返回false,递归会回溯,探索其他通路
}
int main()
{
int N = 0, M = 0;
while (scanf("%d%d", &N, &M) != EOF)
{
// int a[n][m]; // vs2013 不支持
// 动态开辟二维数组
int** maze = (int**)malloc(sizeof(int*) * N);
for (int i = 0; i < N; ++i)
{
maze[i] = (int*)malloc(sizeof(int) * M);
}
// 二维数组的输入
for (int i = 0; i < N; ++i)
{
for (int j = 0; j < M; ++j)
{
scanf("%d", &maze[i][j]);
}
}
//初始化栈
StackInit(&path);
// PrintMaze(maze, N, M);
PT entry = { 0, 0 }; //入口
//迷宫走的思路
if (GetMazePath(maze, N, M, entry))
{
//printf("找到通路\n");
//
PirntPath(&path);
}
else
{
printf("没有找到通路\n");
}
StackDestory(&path);
for (int i = 0; i < N; ++i)
{
free(maze[i]);
}
free(maze);
maze = NULL;
}
return 0;
}
总结
初阶迷宫问题的思路想通了就很好写了,我觉得最难的开辟二维数组和搭建那个栈,进阶的迷宫问题,他会设置一个最短路径的选择,这个下次在讲。
