压力传感器的使用(ARDUINO)

lllshsh

已于 2024-06-28 20:19:51 修改

阅读量947

点赞数 1

文章标签：算法

于 2024-06-02 19:06:10 首次发布

本文链接：https://blog.csdn.net/2302_81176524/article/details/139395489

版权

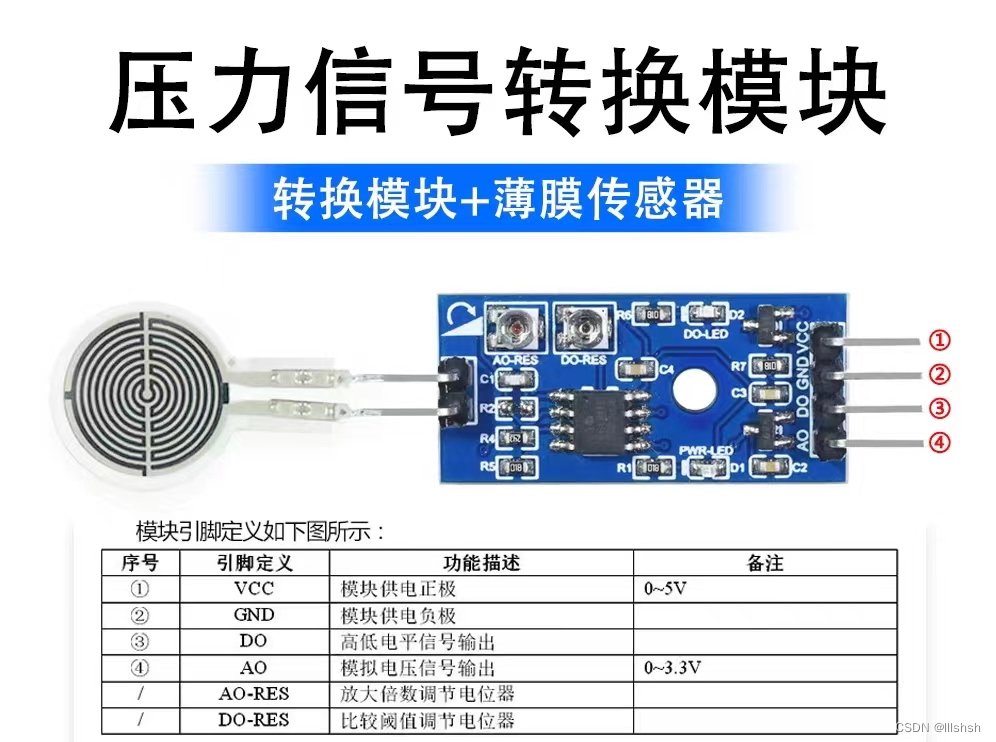

DO高低电平输出接口

#define SENSOR 2
int KEY_NUM = 0;
int count = 0;
int state = 0;

void setup()
{
  pinMode(SENSOR,INPUT);
  Serial.begin(9600); // setup serial
}

void loop()
{
  scanSensor();
  if(KEY_NUM == 1)
  {
    KEY_NUM = 0;
  	Serial.println("press!");
  	Serial.print("count =");
  	Serial.println(count);
  	count++;


    if(state == 2)
      state = 0;
  }

}

void scanSensor()
{
  if(digitalRead(SENSOR) == LOW)
  {
    delay(10);
    if(digitalRead(SENSOR) == LOW)
    {
      while(digitalRead(SENSOR) == LOW);
      KEY_NUM = 1;
    }
  }
}

AO模拟量输出接口

#include <Arduino.h>

#define DEBUGSerial Serial
int sensorPin = A0;
#define PRESS_MIN	20
#define PRESS_MAX	6000

#define VOLTAGE_MIN 100
#define VOLTAGE_MAX 3300

void setup()
{
	DEBUGSerial.begin(9600); // setup serial
	Serial.println("setup end!");
}

void loop()
{
	long Fdata = getPressValue(sensorPin);
	DEBUGSerial.print("F = ");
	DEBUGSerial.print(Fdata);
	DEBUGSerial.println(" g,");
	delay(300);
}

long getPressValue(int pin)
{
	long PRESS_AO = 0;
	int VOLTAGE_AO = 0;
	int value = analogRead(pin);

	DEBUGSerial.print("AD = ");
	DEBUGSerial.print(value);
	DEBUGSerial.print(" ,");

	VOLTAGE_AO = map(value, 0, 1023, 0, 5000);

	DEBUGSerial.print("V = ");
	DEBUGSerial.print(VOLTAGE_AO);
	DEBUGSerial.print(" mv,");

	if(VOLTAGE_AO < VOLTAGE_MIN)
	{
		PRESS_AO = 0;
	}
	else if(VOLTAGE_AO > VOLTAGE_MAX)
	{
		PRESS_AO = PRESS_MAX;
	}
	else
	{
		PRESS_AO = map(VOLTAGE_AO, VOLTAGE_MIN, VOLTAGE_MAX, PRESS_MIN, PRESS_MAX);
	}


	return PRESS_AO;
}

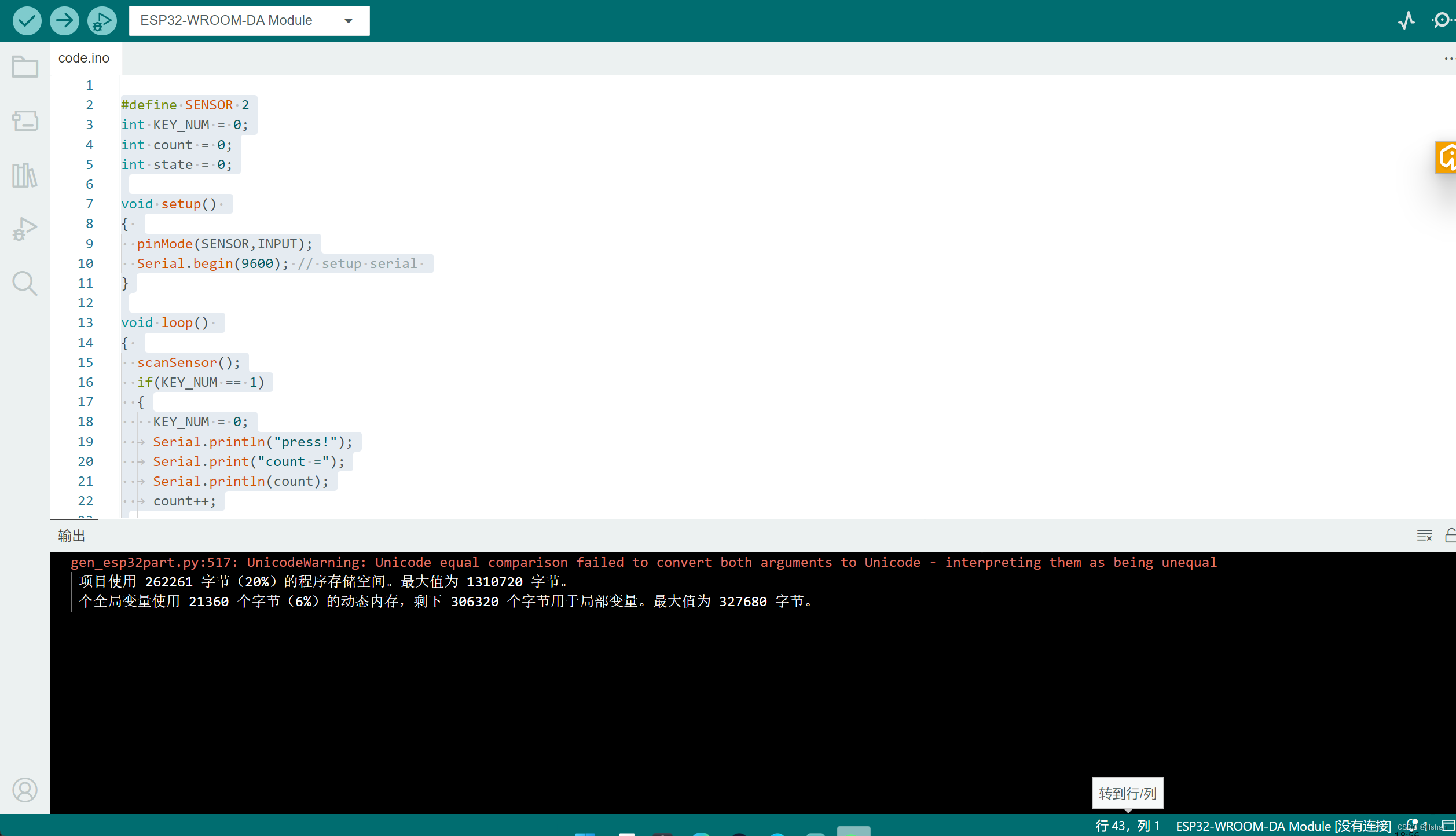

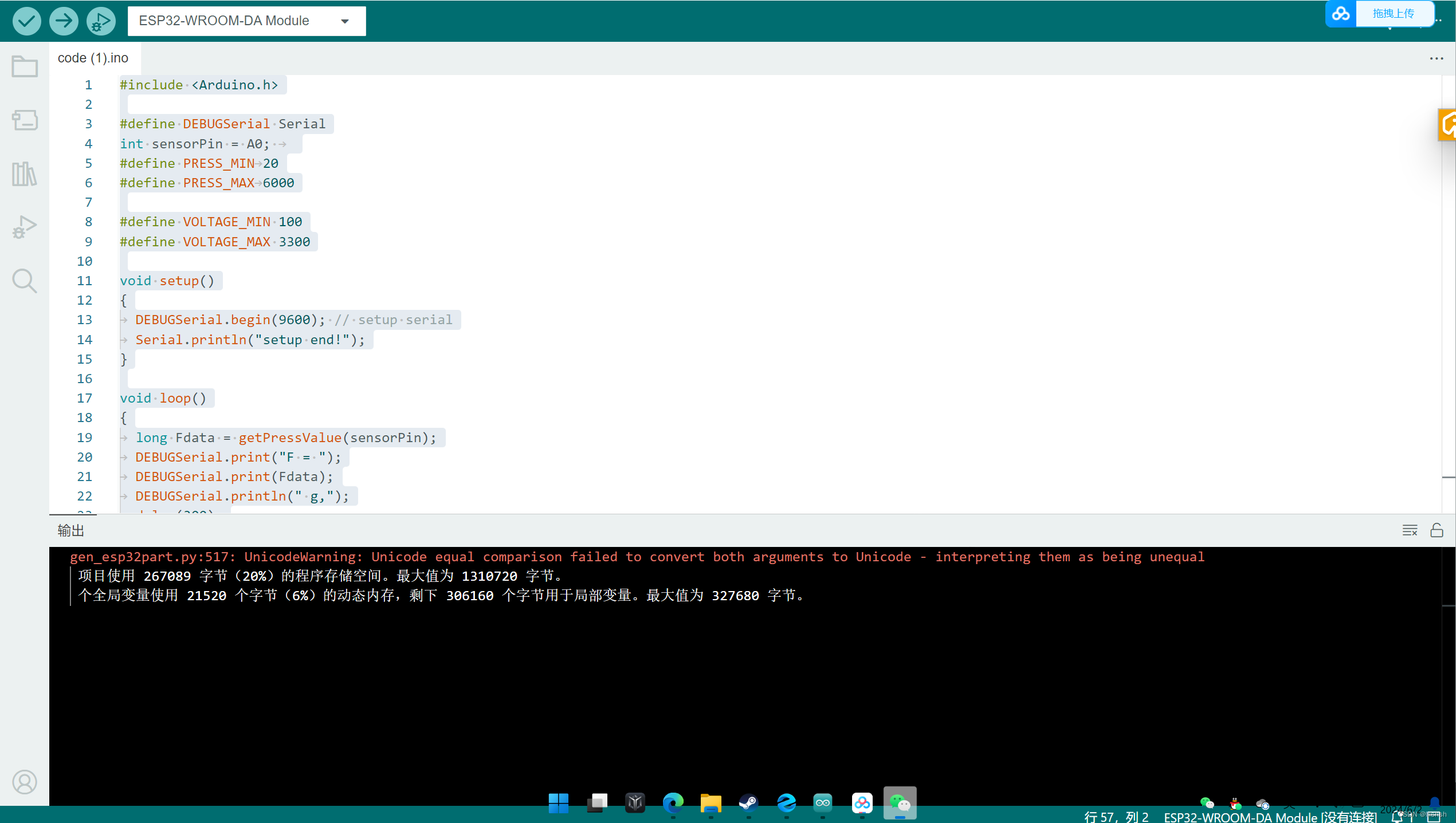

验证结果
