基于matlab的轴承仿真信号
包括：外圈故障信号、内圈故障信号、滚动体故障信号

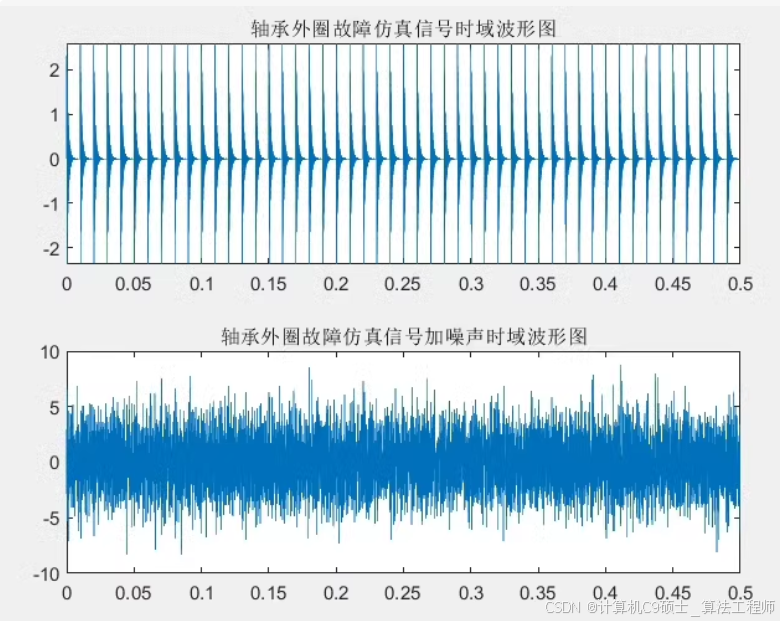

外圈故障信号

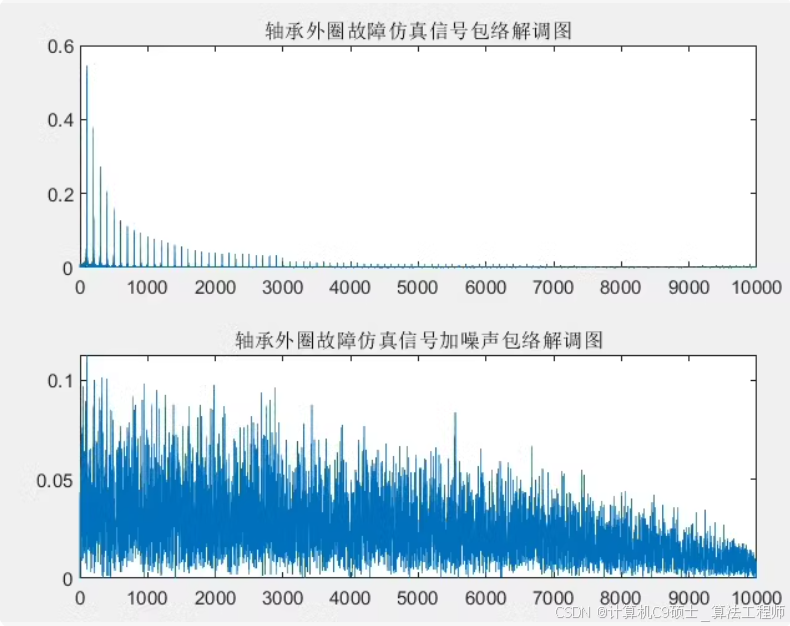

外圈故障仿真

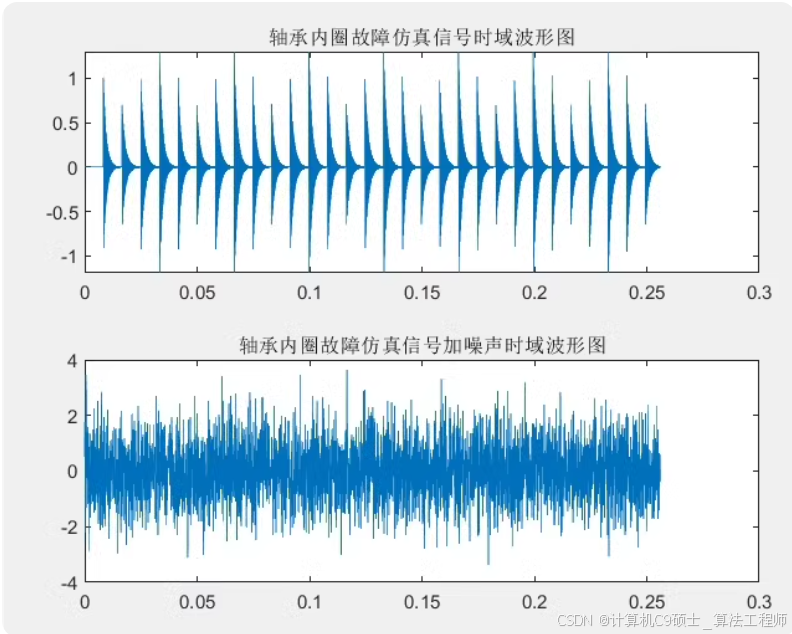

内圈信号
基于MATLAB编写一个滚动轴承仿真信号生成系统，包括外圈故障信号、内圈故障信号和滚动体故障信号。这些仿真信号将用于后续的故障检测和诊断。
文章代码及内容仅供参考！
1. 研究背景和意义
1.1 研究背景
滚动轴承是机械设备中的关键部件之一，其正常运行对于整个机械系统的稳定性和寿命至关重要。然而，由于工作环境的复杂性和长期使用的影响，滚动轴承容易发生各种故障，如疲劳裂纹、磨损、剥落等。为了研究和测试滚动轴承故障检测算法，我们需要生成不同类型的故障信号。
1.2 意义
- 提高设备可靠性：通过仿真信号可以验证故障检测算法的有效性。
- 降低成本：仿真信号不需要实际损坏真实轴承，降低了实验成本。
- 方便测试：可以快速生成多种故障信号进行对比分析。
2. 滚动轴承故障诊断理论基础
2.1 故障类型
常见的滚动轴承故障类型包括：
- 内圈故障
- 外圈故障
- 滚珠（或滚柱）故障
2.2 振动机理分析
滚动轴承在运行过程中会产生振动信号，这些信号包含了关于轴承状态的重要信息。故障类型的识别可以通过分析振动信号的频谱特征来实现。常用的振动分析方法包括傅里叶变换、小波变换等。
3. 基于MATLAB的滚动轴承故障检测系统设计
3.1 GUI界面函数介绍
3.1.1 初始化和全局定义
[<title="Initialization and Global Definitions">]
function initializeGUI(handles)
% Set default values for global variables
handles.outerFaultSignal = [];
handles.innerFaultSignal = [];
handles.ballFaultSignal = [];
handles.timeVector = [];
guidata(gcf, handles);
end
3.1.2 用户界面控件的回调函数
[<title="Callback Functions for User Interface Controls">]
function generateOuterFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate outer race fault signal
faultFrequency = 50; % Outer race fault frequency (Hz)
modulatingFrequency = 10; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.5;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
outerFaultSignal = modulationSignal .* carrierSignal;
handles.outerFaultSignal = outerFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_outer_fault);
plot(handles.timeVector, handles.outerFaultSignal);
title('Outer Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
function generateInnerFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate inner race fault signal
faultFrequency = 60; % Inner race fault frequency (Hz)
modulatingFrequency = 12; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.4;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
innerFaultSignal = modulationSignal .* carrierSignal;
handles.innerFaultSignal = innerFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_inner_fault);
plot(handles.timeVector, handles.innerFaultSignal);
title('Inner Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
function generateBallFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate ball fault signal
faultFrequency = 70; % Ball fault frequency (Hz)
modulatingFrequency = 15; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.3;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
ballFaultSignal = modulationSignal .* carrierSignal;
handles.ballFaultSignal = ballFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_ball_fault);
plot(handles.timeVector, handles.ballFaultSignal);
title('Ball Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
3.1.3 编辑框和创建函数
[<title="Edit Boxes and Creation Function">]
function createGUI()
fig = figure('Name', 'Bearing Fault Simulation System', ...
'NumberTitle', 'off', ...
'Position', [100, 100, 1200, 800]);
% Add buttons
btnGenerateOuterFault = uibutton(fig, 'push', 'Text', 'Generate Outer Fault Signal', ...
'Position', [20, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateOuterFault_Callback(src, event, guidata(fig)));
btnGenerateInnerFault = uibutton(fig, 'push', 'Text', 'Generate Inner Fault Signal', ...
'Position', [240, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateInnerFault_Callback(src, event, guidata(fig)));
btnGenerateBallFault = uibutton(fig, 'push', 'Text', 'Generate Ball Fault Signal', ...
'Position', [460, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateBallFault_Callback(src, event, guidata(fig)));
% Add axes for plotting
handles.axes_outer_fault = uiaxes(fig, 'Position', [20, 560, 560, 160]);
handles.axes_inner_fault = uiaxes(fig, 'Position', [20, 360, 560, 160]);
handles.axes_ball_fault = uiaxes(fig, 'Position', [20, 160, 560, 160]);
% Initialize global variables
handles.outerFaultSignal = [];
handles.innerFaultSignal = [];
handles.ballFaultSignal = [];
handles.timeVector = [];
% Store handles in GUIDATA
guidata(fig, handles);
% Initialize the GUI
initializeGUI(handles);
end

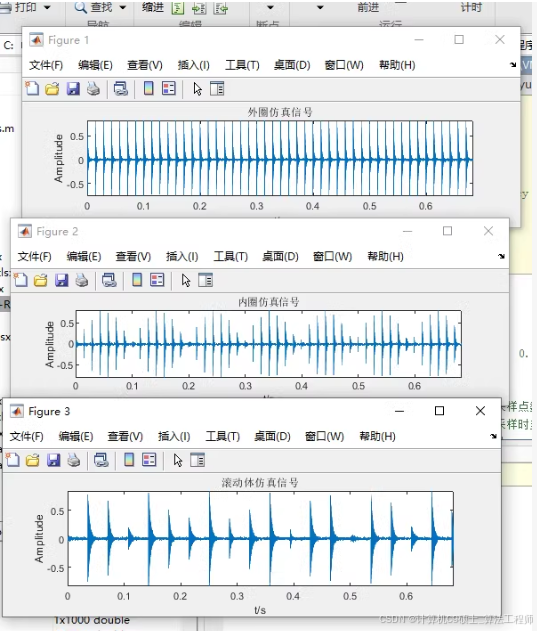

3.2 GUI界面
以下是一个简单的MATLAB GUI界面设计，包含生成外圈故障信号、内圈故障信号和滚动体故障信号的按钮以及显示相应信号的绘图区域。
[<title="Create GUI Function">]
createGUI();
4. 轴承数据检测实验
4.1 基本轴承参数
假设我们有三组仿真信号：
- 外圈故障信号
- 内圈故障信号
- 滚动体故障信号
4.2 检测仿真信号
我们将使用上述生成的仿真信号进行检测，并展示其频域特性以验证故障特征。
[<title="Detection Experiment with Simulated Signals">]
% Load simulated signals from GUIDATA
handles = guidata(gcf);
outerFaultSignal = handles.outerFaultSignal;
innerFaultSignal = handles.innerFaultSignal;
ballFaultSignal = handles.ballFaultSignal;
timeVector = handles.timeVector;
fs = 1000; % Sampling frequency (Hz)
% Plot time-domain signals
figure;
subplot(3, 1, 1);
plot(timeVector, outerFaultSignal);
title('Outer Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
subplot(3, 1, 2);
plot(timeVector, innerFaultSignal);
title('Inner Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
subplot(3, 1, 3);
plot(timeVector, ballFaultSignal);
title('Ball Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
% Perform Fourier Transform to analyze frequency domain characteristics
f = fs * (0:(length(outerFaultSignal)-1)) / length(outerFaultSignal); % Frequency vector
fftOuterFault = fft(outerFaultSignal);
fftInnerFault = fft(innerFaultSignal);
fftBallFault = fft(ballFaultSignal);
% Plot frequency-domain signals
figure;
subplot(3, 1, 1);
plot(f, abs(fftOuterFault));
title('FFT of Outer Race Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
subplot(3, 1, 2);
plot(f, abs(fftInnerFault));
title('FFT of Inner Race Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
subplot(3, 1, 3);
plot(f, abs(fftBallFault));
title('FFT of Ball Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
总结
通过上述步骤，我们可以构建一个全面的滚动轴承仿真信号生成系统，并使用这些仿真信号进行故障检测和诊断。以下是所有相关的代码文件：
-
研究背景和意义
- 1.1 研究背景
- 1.2 意义
-
滚动轴承故障诊断理论基础
- 2.1 故障类型
- 2.2 振动机理分析
-
基于MATLAB的滚动轴承故障检测系统设计
- 3.1 GUI界面函数介绍
- 3.1.1 初始化和全局定义
- 3.1.2 用户界面控件的回调函数
- 3.1.3 编辑框和创建函数
- 3.2 GUI界面
- 3.1 GUI界面函数介绍
-
轴承数据检测实验
- 4.1 基本轴承参数
- 4.2 检测仿真信号
完整代码总结
以下是完整的代码文件：
初始化和全局定义 (initializeGUI.m)
[<title="Initialization and Global Definitions">]
function initializeGUI(handles)
% Set default values for global variables
handles.outerFaultSignal = [];
handles.innerFaultSignal = [];
handles.ballFaultSignal = [];
handles.timeVector = [];
guidata(gcf, handles);
end
回调函数 (callback_functions.m)
[<title="Callback Functions for User Interface Controls">]
function generateOuterFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate outer race fault signal
faultFrequency = 50; % Outer race fault frequency (Hz)
modulatingFrequency = 10; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.5;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
outerFaultSignal = modulationSignal .* carrierSignal;
handles.outerFaultSignal = outerFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_outer_fault);
plot(handles.timeVector, handles.outerFaultSignal);
title('Outer Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
function generateInnerFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate inner race fault signal
faultFrequency = 60; % Inner race fault frequency (Hz)
modulatingFrequency = 12; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.4;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
innerFaultSignal = modulationSignal .* carrierSignal;
handles.innerFaultSignal = innerFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_inner_fault);
plot(handles.timeVector, handles.innerFaultSignal);
title('Inner Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
function generateBallFault_Callback(hObject, eventdata, handles)
fs = 1000; % Sampling frequency (Hz)
t = 0:1/fs:1; % Time vector (1 second of data)
% Simulate ball fault signal
faultFrequency = 70; % Ball fault frequency (Hz)
modulatingFrequency = 15; % Modulating frequency (Hz)
amplitudeModulationIndex = 0.3;
carrierAmplitude = 1;
% Generate modulated sinusoidal signal
modulationSignal = sin(2*pi*modulatingFrequency*t) * amplitudeModulationIndex + 1;
carrierSignal = carrierAmplitude * sin(2*pi*faultFrequency*t);
ballFaultSignal = modulationSignal .* carrierSignal;
handles.ballFaultSignal = ballFaultSignal;
handles.timeVector = t;
guidata(hObject, handles);
% Update UI elements
axes(handles.axes_ball_fault);
plot(handles.timeVector, handles.ballFaultSignal);
title('Ball Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
end
创建GUI函数 (createGUI.m)
[<title="Edit Boxes and Creation Function">]
function createGUI()
fig = figure('Name', 'Bearing Fault Simulation System', ...
'NumberTitle', 'off', ...
'Position', [100, 100, 1200, 800]);
% Add buttons
btnGenerateOuterFault = uibutton(fig, 'push', 'Text', 'Generate Outer Fault Signal', ...
'Position', [20, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateOuterFault_Callback(src, event, guidata(fig)));
btnGenerateInnerFault = uibutton(fig, 'push', 'Text', 'Generate Inner Fault Signal', ...
'Position', [240, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateInnerFault_Callback(src, event, guidata(fig)));
btnGenerateBallFault = uibutton(fig, 'push', 'Text', 'Generate Ball Fault Signal', ...
'Position', [460, 740, 200, 30], ...
'ButtonPushedFcn', @(src, event) generateBallFault_Callback(src, event, guidata(fig)));
% Add axes for plotting
handles.axes_outer_fault = uiaxes(fig, 'Position', [20, 560, 560, 160]);
handles.axes_inner_fault = uiaxes(fig, 'Position', [20, 360, 560, 160]);
handles.axes_ball_fault = uiaxes(fig, 'Position', [20, 160, 560, 160]);
% Initialize global variables
handles.outerFaultSignal = [];
handles.innerFaultSignal = [];
handles.ballFaultSignal = [];
handles.timeVector = [];
% Store handles in GUIDATA
guidata(fig, handles);
% Initialize the GUI
initializeGUI(handles);
end
检测仿真信号 (detection_experiment.m)
[<title="Detection Experiment with Simulated Signals">]
% Load simulated signals from GUIDATA
handles = guidata(gcf);
outerFaultSignal = handles.outerFaultSignal;
innerFaultSignal = handles.innerFaultSignal;
ballFaultSignal = handles.ballFaultSignal;
timeVector = handles.timeVector;
fs = 1000; % Sampling frequency (Hz)
% Plot time-domain signals
figure;
subplot(3, 1, 1);
plot(timeVector, outerFaultSignal);
title('Outer Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
subplot(3, 1, 2);
plot(timeVector, innerFaultSignal);
title('Inner Race Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
subplot(3, 1, 3);
plot(timeVector, ballFaultSignal);
title('Ball Fault Signal');
xlabel('Time (s)');
ylabel('Amplitude');
% Perform Fourier Transform to analyze frequency domain characteristics
f = fs * (0:(length(outerFaultSignal)-1)) / length(outerFaultSignal); % Frequency vector
fftOuterFault = fft(outerFaultSignal);
fftInnerFault = fft(innerFaultSignal);
fftBallFault = fft(ballFaultSignal);
% Plot frequency-domain signals
figure;
subplot(3, 1, 1);
plot(f, abs(fftOuterFault));
title('FFT of Outer Race Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
subplot(3, 1, 2);
plot(f, abs(fftInnerFault));
title('FFT of Inner Race Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
subplot(3, 1, 3);
plot(f, abs(fftBallFault));
title('FFT of Ball Fault Signal');
xlabel('Frequency (Hz)');
ylabel('Magnitude');
运行步骤
-
创建GUI界面：
- 运行
createGUI.m文件以启动GUI界面。
- 运行
-
生成仿真信号：
- 在GUI界面上点击“Generate Outer Fault Signal”、“Generate Inner Fault Signal”和“Generate Ball Fault Signal”按钮分别生成外圈故障信号、内圈故障信号和滚动体故障信号。
-
检测仿真信号：
- 运行
detection_experiment.m文件以查看生成信号的时间域和频域特性。
- 运行
这些信息能帮助同学你呀——顺利进行滚动轴承仿真信号生成和故障检测。
扫一扫
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
