基于大数据的玉米产量数据可视化分析系统介绍

本系统是一个基于大数据技术栈构建的玉米产量数据可视化分析平台，运用Hadoop分布式存储框架结合Spark大数据处理引擎，实现对海量玉米产量数据的高效处理与深度分析。系统采用Django作为后端开发框架，通过Python语言整合Pandas、NumPy等数据科学库，搭配MySQL数据库进行数据持久化存储。前端界面运用Vue.js框架配合ElementUI组件库构建用户交互界面，集成Echarts图表库实现数据的多维度可视化展示。系统核心功能涵盖玉米产量数据的采集、存储、清洗、分析以及可视化呈现，支持数据质量分析模块对原始数据进行完整性、准确性、一致性检验，环境影响分析模块能够探索气候、土壤、降水等环境因子与玉米产量的关联性。通过HDFS分布式文件系统存储大规模数据集，利用Spark SQL进行复杂查询与统计分析，最终以直观的图表形式向用户展示分析结果，为农业生产决策提供数据支撑，让使用者能够快速掌握玉米产量的变化趋势和影响因素。

基于大数据的玉米产量数据可视化分析系统演示视频

【数据分析】基于大数据的玉米产量数据可视化分析系统 | 大数据毕设实战项目 选题推荐 可视化大屏 文档指导 Hadoop SPark java Python

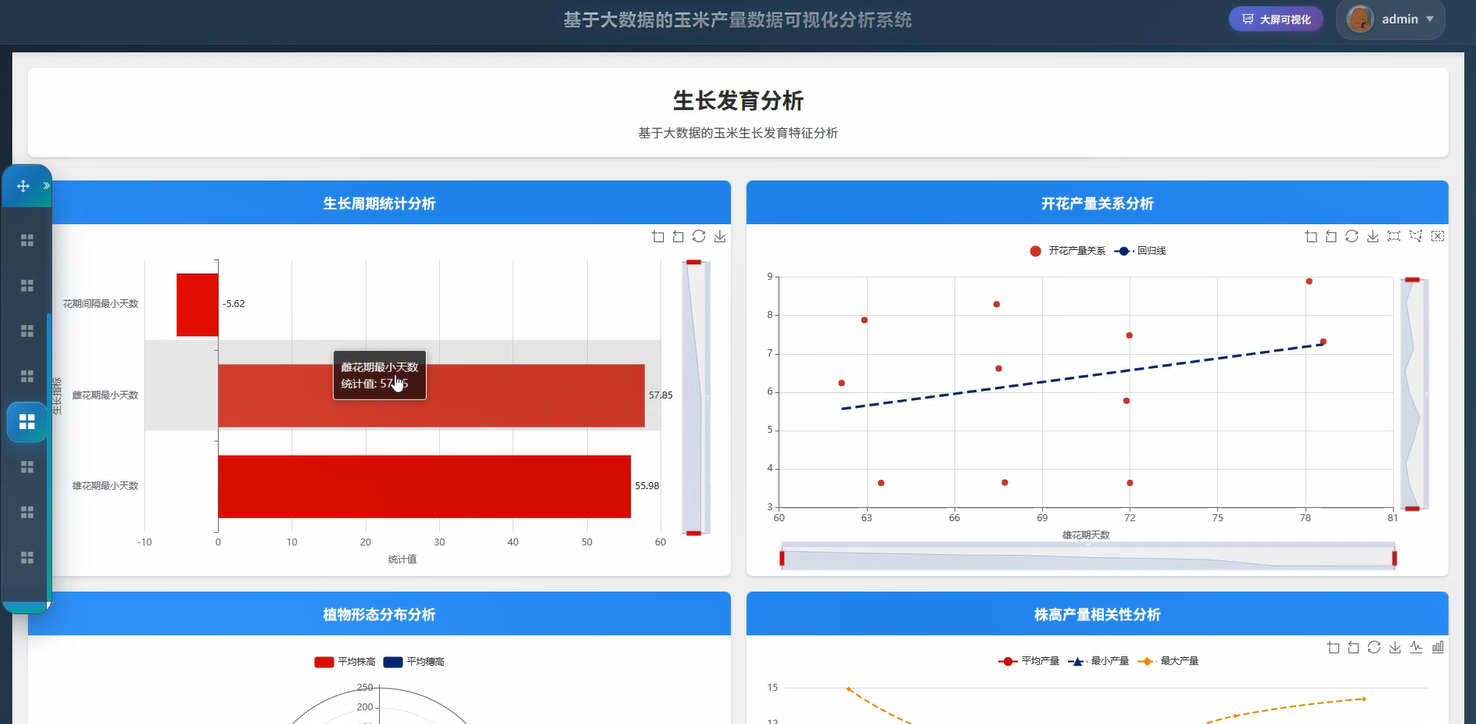

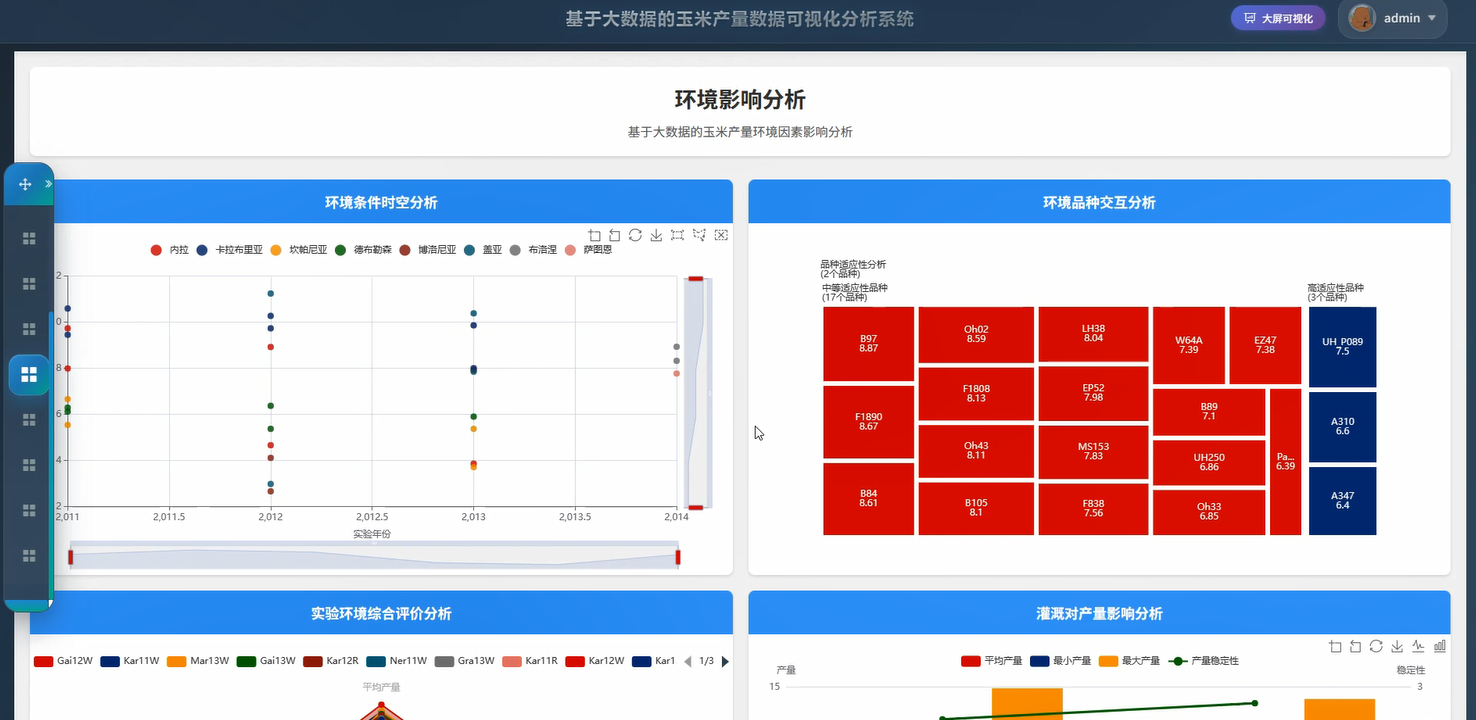

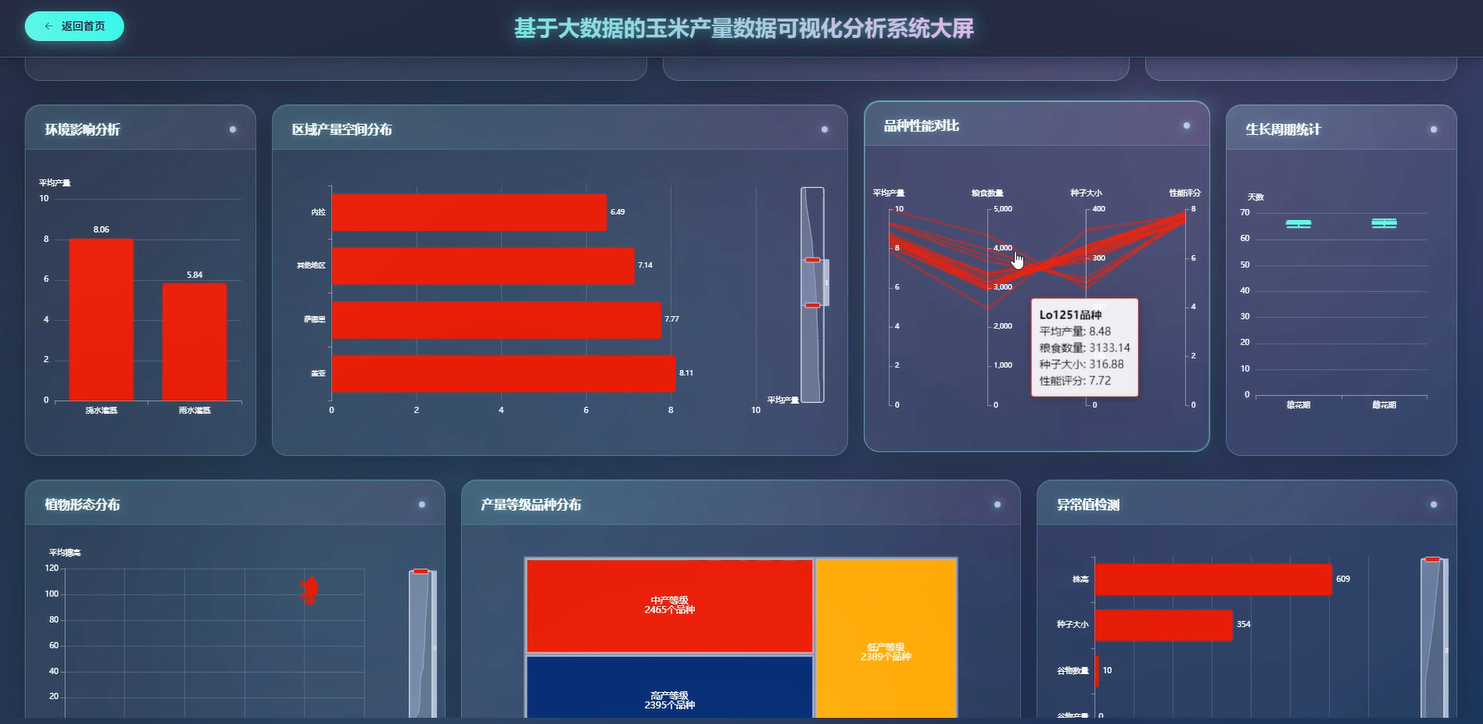

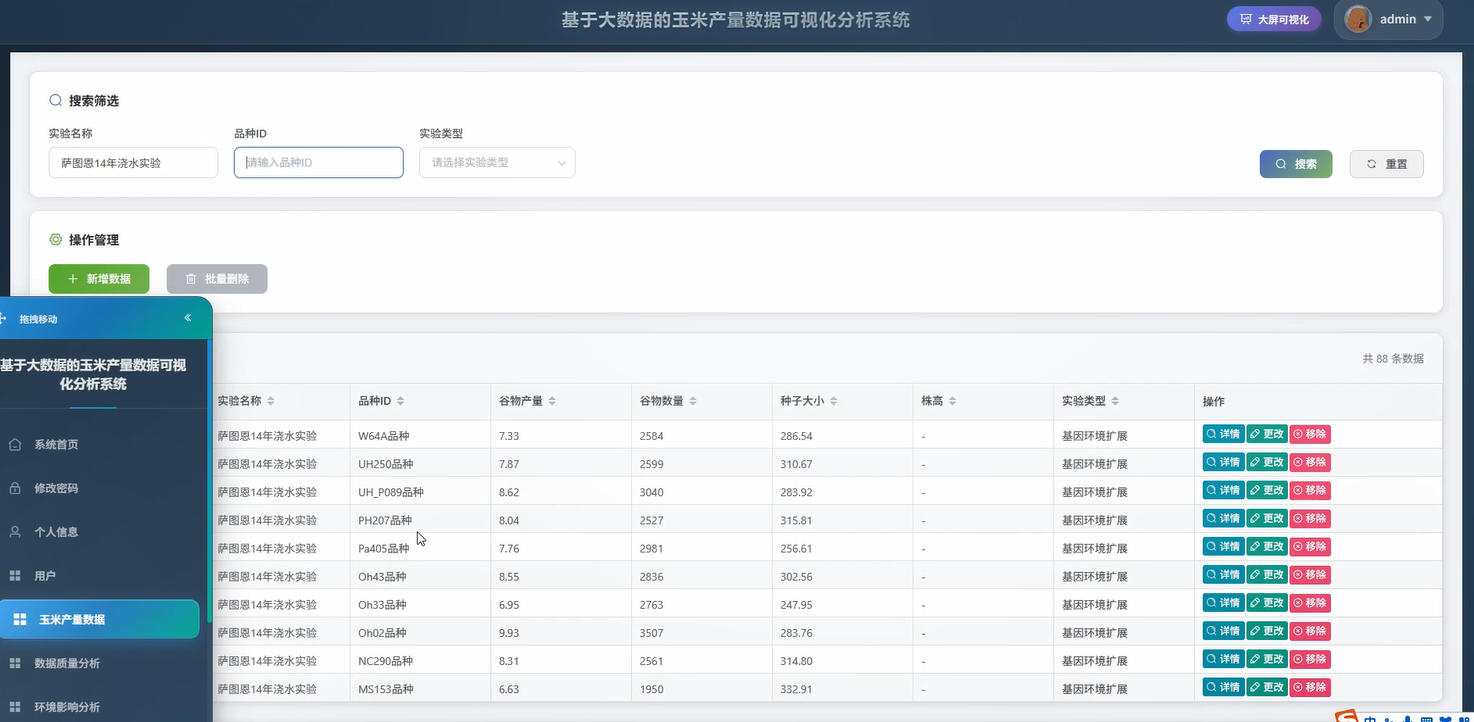

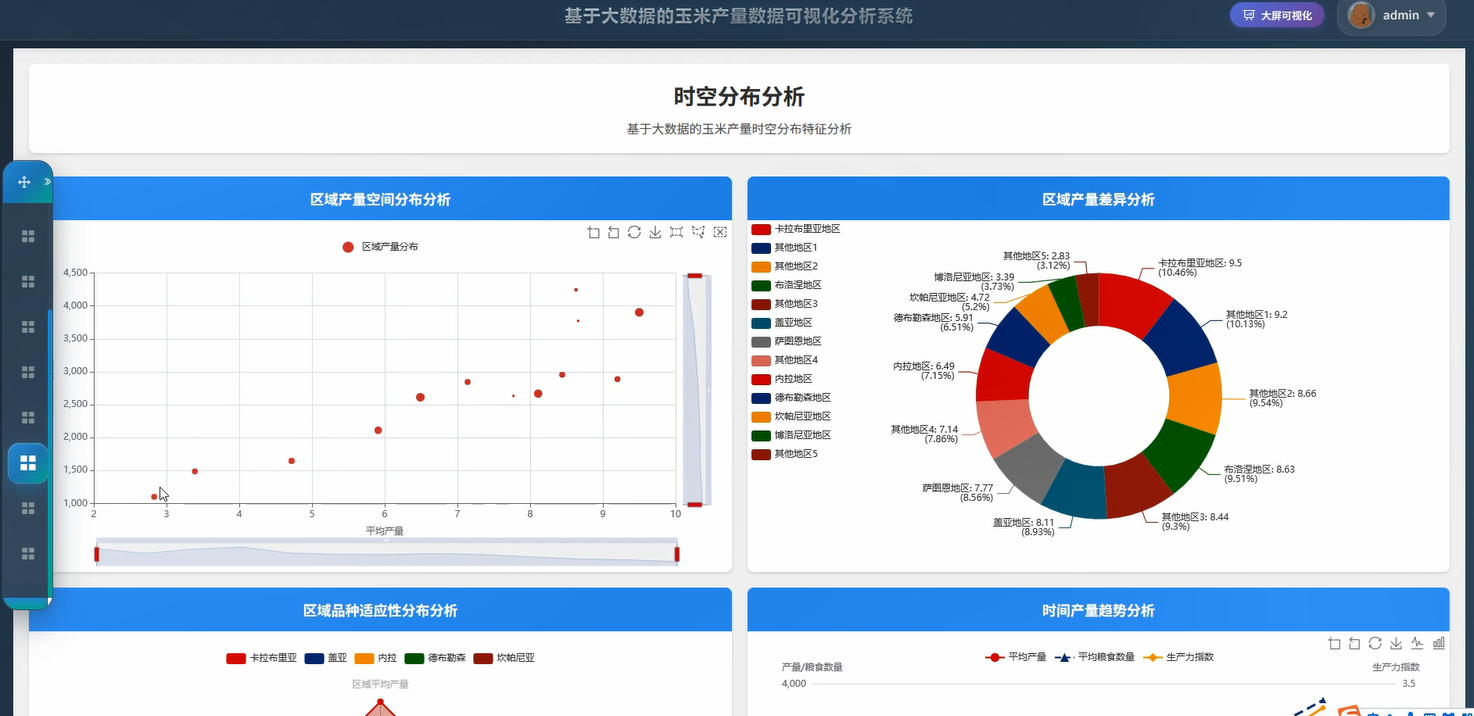

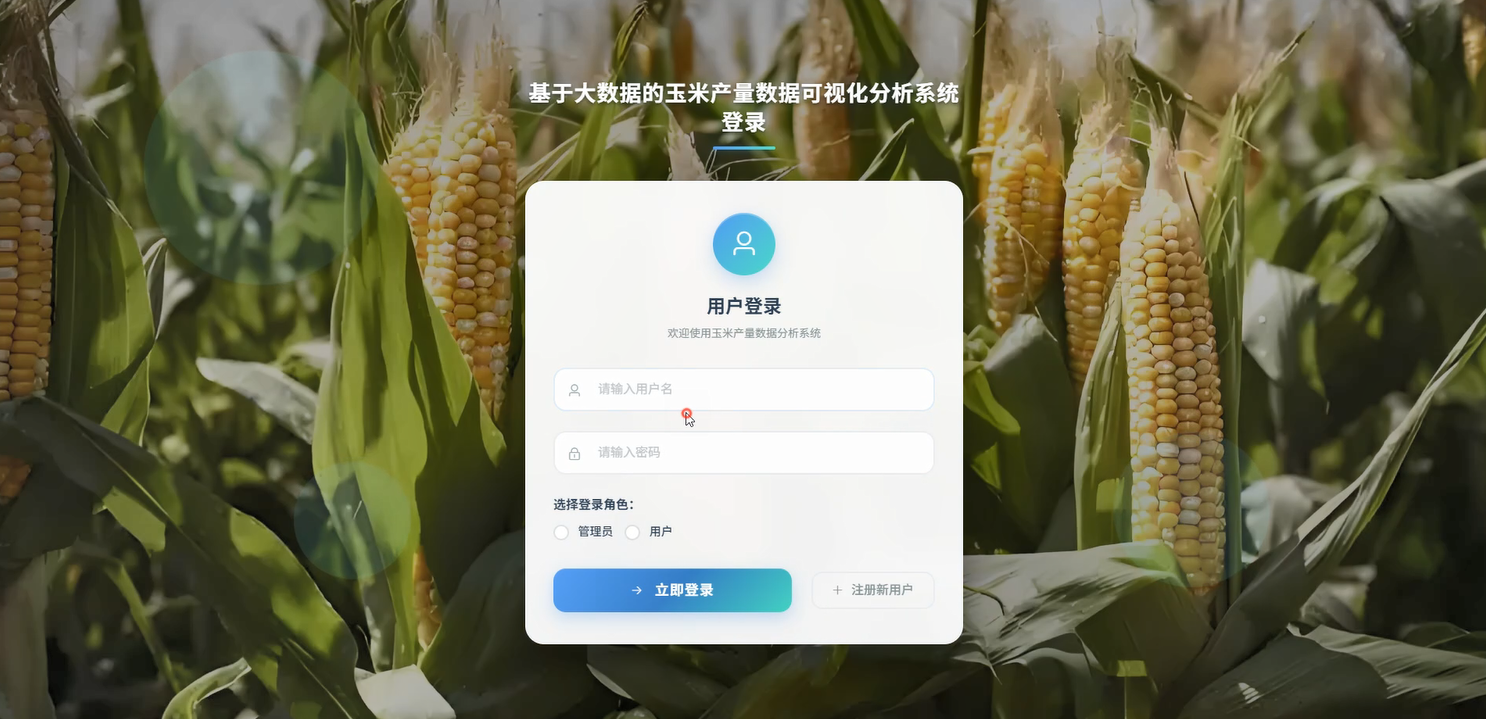

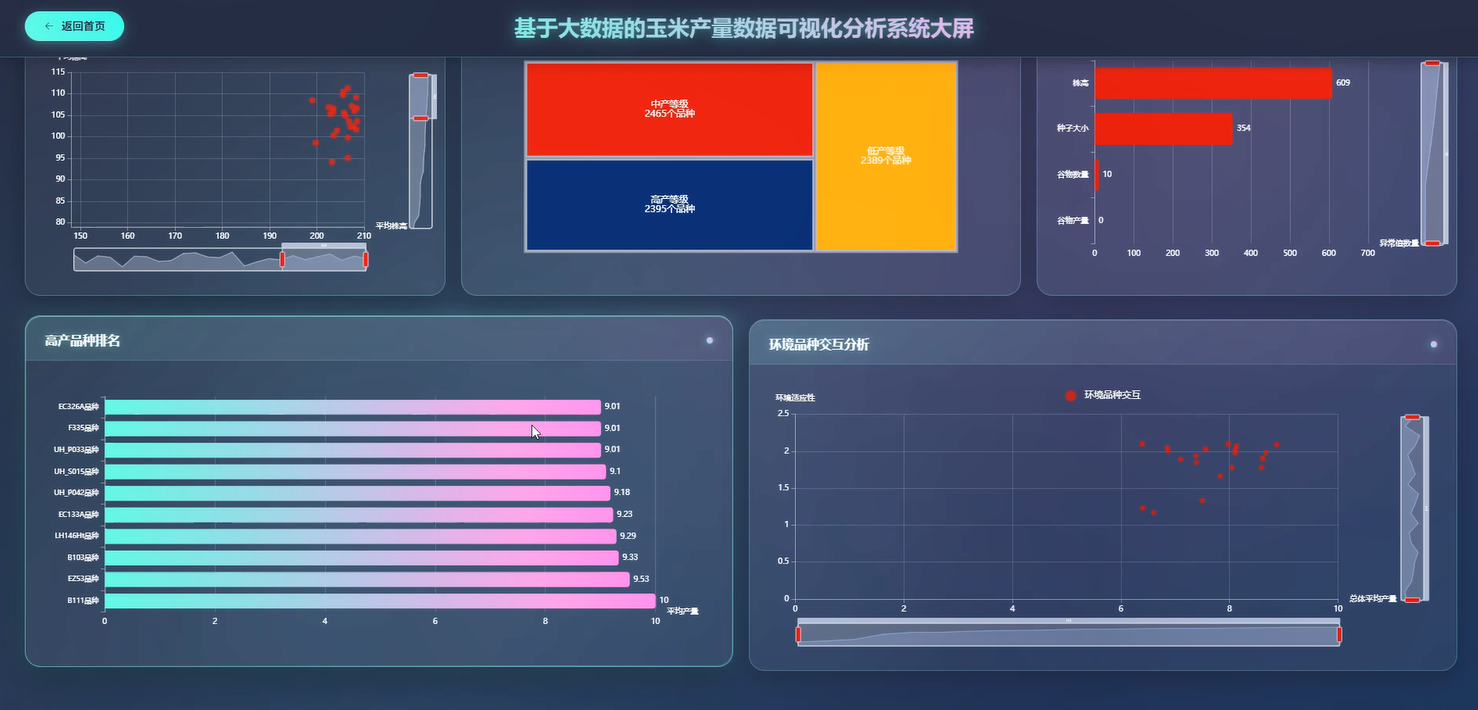

基于大数据的玉米产量数据可视化分析系统演示图片

基于大数据的玉米产量数据可视化分析系统代码展示

from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, sum, count, when, isnan, isnull, stddev, min, max, corr
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json

spark = SparkSession.builder.appName("CornYieldAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()

@csrf_exempt
def corn_yield_data_analysis(request):
    """玉米产量数据处理与分析"""
    if request.method == 'POST':
        data = json.loads(request.body)
        region = data.get('region', 'all')
        year_range = data.get('year_range', [2020, 2024])
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/corn_db").option("dbtable", "corn_yield_data").option("user", "root").option("password", "password").load()
        filtered_df = df.filter((col("year") >= year_range[0]) & (col("year") <= year_range[1]))
        if region != 'all':
            filtered_df = filtered_df.filter(col("region") == region)
        yield_stats = filtered_df.groupBy("year", "region").agg(avg("yield_per_hectare").alias("avg_yield"), sum("total_yield").alias("total_production"), count("*").alias("record_count"))
        monthly_trend = filtered_df.groupBy("year", "month").agg(avg("yield_per_hectare").alias("monthly_avg"))
        regional_comparison = filtered_df.groupBy("region").agg(avg("yield_per_hectare").alias("region_avg"), stddev("yield_per_hectare").alias("yield_variance"))
        yield_distribution = filtered_df.select("yield_per_hectare").rdd.map(lambda x: x[0]).histogram(20)
        top_performing_areas = filtered_df.groupBy("region", "county").agg(avg("yield_per_hectare").alias("area_avg")).orderBy(col("area_avg").desc()).limit(10)
        year_over_year_growth = filtered_df.groupBy("year").agg(avg("yield_per_hectare").alias("yearly_avg")).orderBy("year")
        seasonal_analysis = filtered_df.groupBy("season").agg(avg("yield_per_hectare").alias("seasonal_avg"), count("*").alias("seasonal_count"))
        productivity_ranking = filtered_df.select("farm_id", "yield_per_hectare", "region").orderBy(col("yield_per_hectare").desc()).limit(50)
        correlation_matrix = filtered_df.select(corr("yield_per_hectare", "rainfall").alias("rainfall_corr"), corr("yield_per_hectare", "temperature").alias("temp_corr"), corr("yield_per_hectare", "soil_quality").alias("soil_corr"))
        result_data = {
            'yield_statistics': yield_stats.toPandas().to_dict('records'),
            'monthly_trends': monthly_trend.toPandas().to_dict('records'),
            'regional_comparison': regional_comparison.toPandas().to_dict('records'),
            'yield_distribution': {'buckets': yield_distribution[0], 'frequencies': yield_distribution[1]},
            'top_areas': top_performing_areas.toPandas().to_dict('records'),
            'yearly_growth': year_over_year_growth.toPandas().to_dict('records'),
            'seasonal_data': seasonal_analysis.toPandas().to_dict('records'),
            'productivity_ranking': productivity_ranking.toPandas().to_dict('records'),
            'correlations': correlation_matrix.toPandas().to_dict('records')[0]
        }
        return JsonResponse({'status': 'success', 'data': result_data})

@csrf_exempt
def data_quality_analysis(request):
    """数据质量分析与检测"""
    if request.method == 'POST':
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/corn_db").option("dbtable", "corn_yield_data").option("user", "root").option("password", "password").load()
        total_records = df.count()
        missing_yield = df.filter(col("yield_per_hectare").isNull() | isnan(col("yield_per_hectare"))).count()
        missing_rainfall = df.filter(col("rainfall").isNull() | isnan(col("rainfall"))).count()
        missing_temperature = df.filter(col("temperature").isNull() | isnan(col("temperature"))).count()
        missing_soil = df.filter(col("soil_quality").isNull() | isnan(col("soil_quality"))).count()
        duplicate_records = df.groupBy("farm_id", "year", "month").count().filter(col("count") > 1).count()
        outlier_detection = df.select("yield_per_hectare").summary("25%", "75%").collect()
        q1 = float(outlier_detection[0]["yield_per_hectare"])
        q3 = float(outlier_detection[1]["yield_per_hectare"])
        iqr = q3 - q1
        lower_bound = q1 - 1.5 * iqr
        upper_bound = q3 + 1.5 * iqr
        outliers_count = df.filter((col("yield_per_hectare") < lower_bound) | (col("yield_per_hectare") > upper_bound)).count()
        data_completeness = df.select([count(when(col(c).isNull() | isnan(col(c)), c)).alias(c) for c in df.columns])
        completeness_stats = data_completeness.toPandas().to_dict('records')[0]
        consistency_check = df.filter((col("yield_per_hectare") < 0) | (col("rainfall") < 0) | (col("temperature") < -50) | (col("temperature") > 60)).count()
        temporal_gaps = df.groupBy("year", "month").count().orderBy("year", "month")
        expected_records_per_month = df.select("farm_id").distinct().count()
        temporal_completeness = temporal_gaps.filter(col("count") < expected_records_per_month * 0.8).count()
        data_freshness = df.agg(max("last_updated").alias("latest_update"), min("last_updated").alias("earliest_update"))
        regional_coverage = df.groupBy("region").count().orderBy(col("count").desc())
        quality_score = ((total_records - missing_yield - missing_rainfall - missing_temperature - outliers_count - consistency_check) / total_records) * 100
        quality_report = {
            'total_records': total_records,
            'missing_data': {'yield': missing_yield, 'rainfall': missing_rainfall, 'temperature': missing_temperature, 'soil': missing_soil},
            'duplicate_records': duplicate_records,
            'outliers_count': outliers_count,
            'outlier_bounds': {'lower': lower_bound, 'upper': upper_bound},
            'completeness_stats': completeness_stats,
            'consistency_errors': consistency_check,
            'temporal_gaps': temporal_completeness,
            'data_freshness': data_freshness.toPandas().to_dict('records')[0],
            'regional_coverage': regional_coverage.toPandas().to_dict('records'),
            'overall_quality_score': round(quality_score, 2)
        }
        return JsonResponse({'status': 'success', 'quality_report': quality_report})

@csrf_exempt
def environment_impact_analysis(request):
    """环境影响因子分析"""
    if request.method == 'POST':
        data = json.loads(request.body)
        analysis_type = data.get('analysis_type', 'comprehensive')
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/corn_yield_data").option("user", "root").option("password", "password").load()
        rainfall_correlation = df.stat.corr("yield_per_hectare", "rainfall")
        temperature_correlation = df.stat.corr("yield_per_hectare", "temperature")
        soil_correlation = df.stat.corr("yield_per_hectare", "soil_quality")
        humidity_correlation = df.stat.corr("yield_per_hectare", "humidity")
        rainfall_ranges = df.withColumn("rainfall_range", when(col("rainfall") < 500, "low").when(col("rainfall") < 800, "medium").otherwise("high")).groupBy("rainfall_range").agg(avg("yield_per_hectare").alias("avg_yield"), count("*").alias("sample_count"))
        temperature_ranges = df.withColumn("temp_range", when(col("temperature") < 15, "cool").when(col("temperature") < 25, "moderate").otherwise("warm")).groupBy("temp_range").agg(avg("yield_per_hectare").alias("avg_yield"), count("*").alias("sample_count"))
        soil_quality_impact = df.groupBy("soil_type").agg(avg("yield_per_hectare").alias("avg_yield"), avg("soil_quality").alias("avg_soil_score"), count("*").alias("sample_count")).orderBy(col("avg_yield").desc())
        seasonal_environment = df.groupBy("season").agg(avg("rainfall").alias("avg_rainfall"), avg("temperature").alias("avg_temperature"), avg("yield_per_hectare").alias("avg_yield"), stddev("yield_per_hectare").alias("yield_variance"))
        optimal_conditions = df.filter((col("yield_per_hectare") > df.approxQuantile("yield_per_hectare", [0.8], 0.01)[0])).agg(avg("rainfall").alias("optimal_rainfall"), avg("temperature").alias("optimal_temperature"), avg("humidity").alias("optimal_humidity"), avg("soil_quality").alias("optimal_soil"))
        environmental_stress = df.filter((col("rainfall") < 300) | (col("rainfall") > 1200) | (col("temperature") < 10) | (col("temperature") > 35)).agg(avg("yield_per_hectare").alias("stress_yield"), count("*").alias("stress_records"))
        monthly_env_pattern = df.groupBy("month").agg(avg("rainfall").alias("monthly_rainfall"), avg("temperature").alias("monthly_temp"), avg("yield_per_hectare").alias("monthly_yield"))
        regional_env_variation = df.groupBy("region").agg(avg("rainfall").alias("region_rainfall"), avg("temperature").alias("region_temp"), avg("yield_per_hectare").alias("region_yield"), stddev("rainfall").alias("rainfall_variance"))
        climate_trend_analysis = df.groupBy("year").agg(avg("rainfall").alias("yearly_rainfall"), avg("temperature").alias("yearly_temp"), avg("yield_per_hectare").alias("yearly_yield")).orderBy("year")
        extreme_weather_impact = df.filter((col("rainfall") > 1000) | (col("temperature") > 30) | (col("rainfall") < ![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/8e4590b24bee4d95bb7b20b896e4bd4e.png#pic_center)
200)).groupBy("year").agg(avg("yield_per_hectare").alias("extreme_weather_yield"), count("*").alias("extreme_events"))
        environment_analysis_result = {
            'correlations': {'rainfall': rainfall_correlation, 'temperature': temperature_correlation, 'soil': soil_correlation, 'humidity': humidity_correlation},
            'rainfall_impact': rainfall_ranges.toPandas().to_dict('records'),
            'temperature_impact': temperature_ranges.toPandas().to_dict('records'),
            'soil_analysis': soil_quality_impact.toPandas().to_dict('records'),
            'seasonal_patterns': seasonal_environment.toPandas().to_dict('records'),
            'optimal_conditions': optimal_conditions.toPandas().to_dict('records')[0],
            'stress_conditions': environmental_stress.toPandas().to_dict('records')[0] if environmental_stress.count() > 0 else {},
            'monthly_patterns': monthly_env_pattern.toPandas().to_dict('records'),
            'regional_variations': regional_env_variation.toPandas().to_dict('records'),
            'climate_trends': climate_trend_analysis.toPandas().to_dict('records'),
            'extreme_weather': extreme_weather_impact.toPandas().to_dict('records')
        }
        return JsonResponse({'status': 'success', 'environment_analysis': environment_analysis_result})

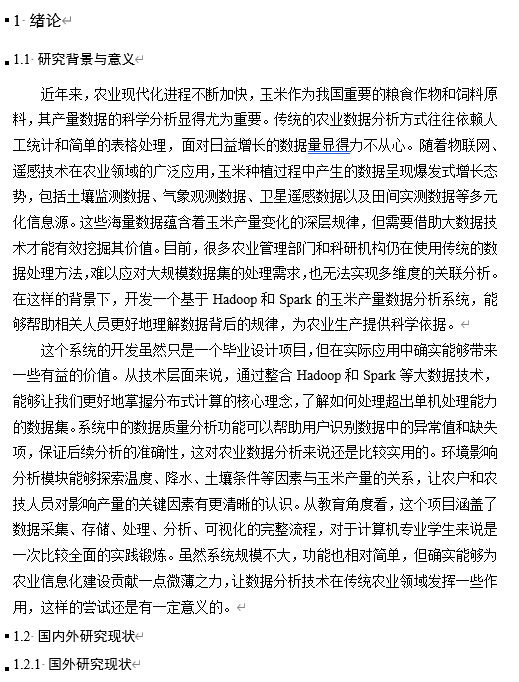

基于大数据的玉米产量数据可视化分析系统文档展示
