深度学习笔记(一)— VGG11

深度学习笔记(1)——VGG11

本文介绍复现VGG11并用于CIFAR10数据集分类(Pytorch)。

1.网络结构

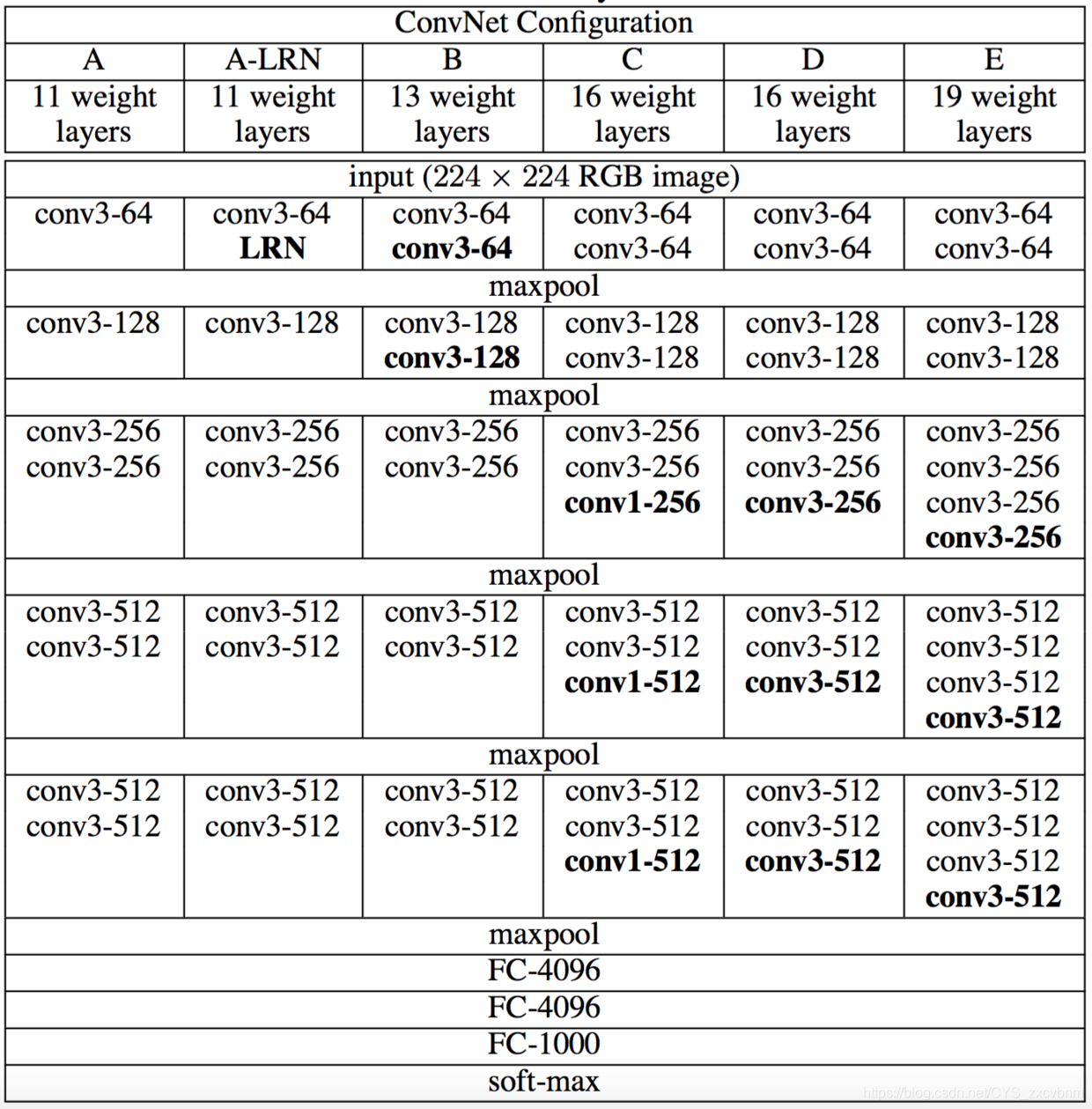

在这里插入图片描述
上图给出了所有VGG网络的结构,其中VGG11网络结构为:

  • Block1:3*3卷积×1+最大池化×1+relu(输入通道:3,输出通道:64)
  • Block2:3*3卷积×1+最大池化×1+relu(输入通道:64,输出通道:128)
  • Block3:3*3卷积×2+最大池化×2+relu(输入通道:128,输出通道:256)
  • Block4:3*3卷积×2+最大池化×2+relu(输入通道:256,输出通道:512)
  • Block5:3*3卷积×2+最大池化×2+relu(输入通道:512,输出通道:512)
  • classifier:fc×3+softmax

2.代码实现

原网络中输入图像为3*224*224,经Block5后为512*7*7,fc层输出为1000类,这里使用CIFAR10数据集,输入为3*32*32,输出为10类,fc层神经元数量略有改动。

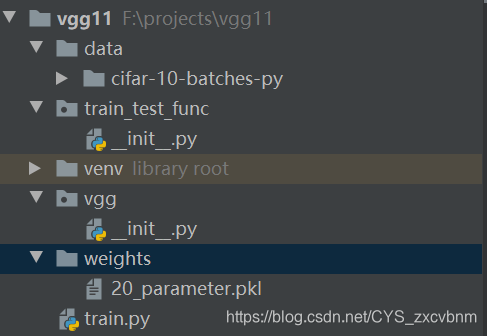

文件结构:在这里插入图片描述
vgg/__init__.py:

import torch
import torch.nn as nn
import torch.nn.functional as F


class VGG11(nn.Module):
    def __init__(self, num_classes=10):
        super(VGG11, self).__init__()
        self.conv_layer1 = self._make_conv_1(3,64)
        self.conv_layer2 = self._make_conv_1(64,128)
        self.conv_layer3 = self._make_conv_2(128,256)
        self.conv_layer4 = self._make_conv_2(256,512)
        self.conv_layer5 = self._make_conv_2(512,512)
        self.classifier = nn.Sequential(
            nn.Linear(512, 64),    # 这里修改一下输入输出维度
            nn.ReLU(inplace=True),
            nn.Dropout(p=0.5),
            nn.Linear(64, 64),
            nn.ReLU(inplace=True),
            nn.Dropout(p=0.5),
            nn.Linear(64, num_classes)
            # 使用交叉熵损失函数,pytorch的nn.CrossEntropyLoss()中已经有过一次softmax处理,这里不用再写softmax
        )

    def _make_conv_1(self,in_channels,out_channels):
        layer = nn.Sequential(
                nn.Conv2d(in_channels,out_channels, kernel_size=3, padding=1),
                nn.BatchNorm2d(out_channels, affine=True),
                nn.ReLU(inplace=True),
                nn.MaxPool2d(kernel_size=2, stride=2)
            )
        return layer
    def _make_conv_2(self,in_channels,out_channels):
        layer = nn.Sequential(
                nn.Conv2d(in_channels,out_channels, kernel_size=3, padding=1),
                nn.BatchNorm2d(out_channels, affine=True),
                nn.ReLU(inplace=True),
                nn.Conv2d(out_channels,out_channels, kernel_size=3, padding=1),
                nn.BatchNorm2d(out_channels, affine=True),
                nn.ReLU(inplace=True),
                nn.MaxPool2d(kernel_size=2, stride=2)
              )
        return layer

    def forward(self, x):
        # 32*32 channel == 3
        x = self.conv_layer1(x)
        # 16*16 channel == 64
        x = self.conv_layer2(x)
        # 8*8 channel == 128
        x = self.conv_layer3(x)
        # 4*4 channel == 256
        x = self.conv_layer4(x)
        # 2*2 channel == 512
        x = self.conv_layer5(x)
        # 1*1 channel == 512
        x = x.view(x.size(0), -1)
        # 512
        x = self.classifier(x)
        # 10
        return x

train_test_func/__init__.py:

import torch
import torch.nn as nn


def train_func(model,cur_epoch,optimizer,data_loader,loss_func):
    model.train()
    total_loss = 0  # 累加每个batch的loss,求均值作为该epoch的loss
    data_len = len(data_loader)
    for i, (data, target) in enumerate(data_loader):
        optimizer.zero_grad()
        data, target = data.cuda(), target.cuda()
        result = model.forward(data)
        loss = loss_func(result,target)
        loss.backward()
        optimizer.step()
        cur_loss = loss.item()
        total_loss += cur_loss
    ave_loss = total_loss/data_len
    print('epoch:%d || loss:%f'%(cur_epoch,ave_loss))


def test_func(model,data_loader):
    model.eval()
    data_cnt = 0
    correct = 0
    with torch.no_grad():
        for i, (data, target) in enumerate(data_loader):
            data, target = data.cuda(), target.cuda()
            _,predict = torch.max(model.forward(data).data,1)  # 取最大值的索引为预测结果
            correct += int(torch.sum(predict==target).cpu().numpy())  # 统计正确个数
            data_cnt += len(target)
    print('Accuracy of model in test set is: %f'%(correct/data_cnt))

train,py:

from train_test_func import *
from vgg import VGG11
import torchvision
from torchvision import transforms

EPOCH = 100

LR = 1e-5

model = VGG11()
model = model.cuda()

train_transform = transforms.Compose([
    transforms.Resize((32, 32)),
    transforms.RandomHorizontalFlip(),  # 为抑制过拟合,对于训练数据进行随机水平翻转和随机旋转处理
    transforms.RandomRotation(30),
    transforms.ToTensor(),
    transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.2225))
])

test_transform = transforms.Compose([
    transforms.Resize((32, 32)),
    transforms.ToTensor(),
    transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.2225))
])

trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
                                        download=True, transform=train_transform)
testset = torchvision.datasets.CIFAR10(root='./data', train=False,
                                       download=True, transform=test_transform)

optimizer = torch.optim.Adam(model.parameters(), lr=LR, weight_decay=5e-4)

loss_func = nn.CrossEntropyLoss()
print('start training...')
for epoch_i in range(EPOCH):
    train_loader = torch.utils.data.DataLoader(trainset, batch_size=5000,
                                               shuffle=True, num_workers=0)
    train_func(model, epoch_i, optimizer, train_loader, loss_func)

    test_loader = torch.utils.data.DataLoader(testset, batch_size=5000,
                                              shuffle=False, num_workers=0)
    test_func(model, test_loader)
    if (epoch_i + 1) % 10 == 0:
        torch.save(model.state_dict(), 'weights/%s_parameter.pkl' % str(epoch_i + 1))
        print('save current parameter: %s_parameter.pkl' % str(epoch_i + 1))

3.运行结果

在训练过程中,lr=1e-4下运行约60个epoch时loss下降不再明显,此时测试集准确率在77左右,在此基础上,lr下调至1e-5,训练20个epoch后,loss下降幅度较小,测试集准确率到80左右。

在这里插入图片描述
