LaTex 中的Beamer使用

Beamer

beamer 中通过frame 来控制每一页的内容，其与编写常用的LaTex文稿基本没有区别

titlepage

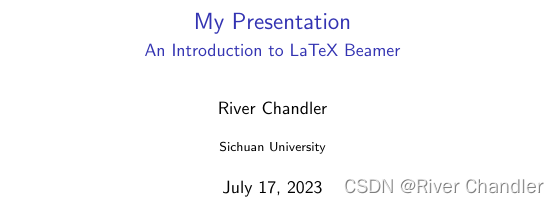

\title[Short Title]{My Presentation}
\subtitle{An Introduction to LaTeX Beamer}
\author{River Chandler}
\institute{Sichuan University}
\date{\today}

	\begin{frame}
		\titlepage
	\end{frame}

Beamer 动画

当你开始使用LaTex时，就不需要太关心ppt的动画问题了
example

\documentclass{beamer}

\begin{document}

	\begin{frame}
		\frametitle{animation example}

		\begin{itemize}
			\item<1-> first step
			\item<2-> second step
			\item<3-> third step
		\end{itemize}

		\pause

		\begin{enumerate}
			\item<4-> first item
			\item<5-> second item
			\item<6-> third item
		\end{enumerate}

		\pause

		\begin{block}<7->{caution}
			this is an example with animation
		\end{block}

	\end{frame}

\end{document}

用WPS 播放即可

思维导图 Tikz 宏包

思维导图结构

\node
child 指令

		\begin{tikzpicture}[above left, distance=2cm]

			\node {1}
			child[sibling distance=2cm] {node {2}
				child[sibling distance=1.5cm] {node {3}
					child[sibling distance=2cm] {node {4}}
					child[sibling distance=2cm] {node {5}}
					child[sibling distance=3cm] {node {6}}
				}
				child[sibling distance=1.5cm] {node {7}}
				child[sibling distance=1.5cm] {
					child[sibling distance=1cm] {node {8}}
				}
				child[sibling distance=1.5cm] {
					child[sibling distance=1cm] {node {9}}
				}
				child[sibling distance=1.5cm] {
					child[sibling distance=1cm] {node {0}}
				}
			}
			child[sibling distance=2.5cm] {node {a}}
			child[sibling distance=2cm] {node {b}}
			child[sibling distance=2cm] {
				child[sibling distance=2cm] {node {c}}
				child[sibling distance=2cm] {node {d}}
			};
		\end{tikzpicture}

节点格式设置

		\begin{tikzpicture}
			\node[rectangle, draw=blue, fill=yellow!20, rounded corners] {e}
			child {node[circle, draw=red,  fill=green!20] {f}}
			child {node[rectangle, draw=orange, fill=pink!20] {g}}
			child {node[rectangle, draw=orange, fill=blue!20] {h}};
		\end{tikzpicture}

连线格式设置

		\begin{tikzpicture}
			\node {i}
			child {node {j}}
			child {node {k}}
			child[red, dashed] {node {l}};
		\end{tikzpicture}

完整代码

\documentclass{article}
\usepackage{tikz}
\usepackage{CJKutf8}

\begin{document}
   \begin{CJK*}{UTF8}{gbsn}

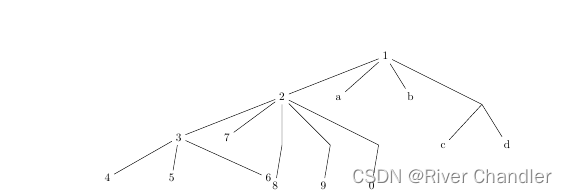

       \begin{tikzpicture}[above left, distance=2cm]

           \node {1}
           child[sibling distance=2cm] {node {2}
               child[sibling distance=1.5cm] {node {3}
                   child[sibling distance=2cm] {node {4}}
                   child[sibling distance=2cm] {node {5}}
                   child[sibling distance=3cm] {node {6}}
               }
               child[sibling distance=1.5cm] {node {7}}
               child[sibling distance=1.5cm] {
                   child[sibling distance=1cm] {node {8}}
               }
               child[sibling distance=1.5cm] {
                   child[sibling distance=1cm] {node {9}}
               }
               child[sibling distance=1.5cm] {
                   child[sibling distance=1cm] {node {0}}
               }
           }
           child[sibling distance=2.5cm] {node {a}}
           child[sibling distance=2cm] {node {b}}
           child[sibling distance=2cm] {
               child[sibling distance=2cm] {node {c}}
               child[sibling distance=2cm] {node {d}}
           };
       \end{tikzpicture}

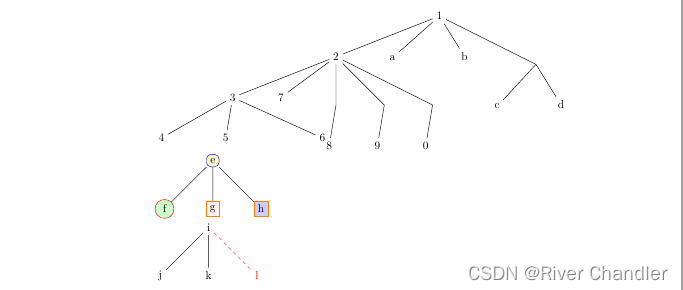

       \begin{tikzpicture}
           \node[rectangle, draw=blue, fill=yellow!20, rounded corners] {e}
           child {node[circle, draw=red, fill=green!20] {f}}
           child {node[rectangle, draw=orange, fill=pink!20] {g}}
           child {node[rectangle, draw=orange, fill=blue!20] {h}};
       \end{tikzpicture}

       \begin{tikzpicture}
           \node {i}
           child {node {j}}
           child {node {k}}
           child[red, dashed] {node {l}};
       \end{tikzpicture}

   \end{CJK*}
\end{document}
