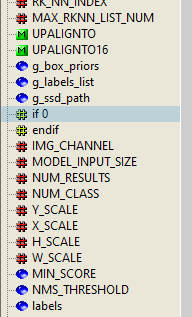

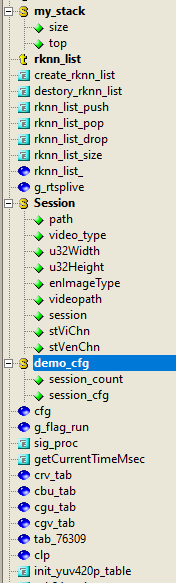

如图：
- 黄色
S代表定义的结构体 - 黄色
t代表结构体的别名 - 绿色菱形绿色方块代表结构体中的元素
- 蓝色椭圆代表全局变量、全局指针、全局结构体、等
- 带
E的浅蓝方块表示函数 - 黄色
#表示include头文件，或则ifdef条件编译 - 红色
#表示常量宏定义，如数值、字符串等 - 带
M的绿色方块表示方法宏定义，比如一个需要若干参数的计算公式
文章目录
20230816
Source Insight（SI）C/C++符号标记含义
Source Insight是一款功能强大的项目定向型代码编辑器，支持C、C++、Java及其他一些编程语言。它的核心特性之一是其符号浏览能力，能够帮助开发者快速理解和探索源代码。在这篇文章中，我们将深入探讨Source Insight中的C/C++符号标记的含义。
符号概述
在Source Insight中，"符号"一词用于描述源代码中的元素，例如变量、函数、类、结构、枚举等。每种符号都有一个唯一的标记，这个标记可以帮助开发者快速识别出符号的类型。
下面是几种常见的C/C++符号标记：
v: 变量f: 函数m: 成员函数或方法c: 类s: 结构e: 枚举d: 宏定义t: typedefn: 命名空间
变量标记 (v)
变量在C/C++中代表了存储空间，该空间包含了特定类型的值。在Source Insight中，使用v标记表示变量。
int variable; // v:variable
函数标记 (f)
函数是由一系列程序指令组成的，用来完成特定任务的一段独立程序代码。在Source Insight中，使用f标记表示函数。
void function() { // f:function
// function body
}
成员函数标记 (m)
成员函数也被称为方法，是定义在类或结构体中的函数。在Source Insight中，使用m标记表示成员函数。
class MyClass {
public:
void memberFunction() { // m:memberFunction
// function body
}
};
类标记 ©
类是C++的核心特性之一，它定义了一种新的类型，我们可以创建类的对象。在Source Insight中，使用c标记表示类。
class MyClass { // c:MyClass
// class definition
};
结构标记 (s)
结构是一种复合数据类型，它允许我们存储不同类型的数据项。在Source Insight中，使用s标记表示结构。
struct MyStruct { // s:MyStruct
// struct definition
};
枚举标记 (e)
枚举是一种用户定义的数据类型，它包含固定数量的常量。在Source Insight中，使用e标记表示枚举。
enum Colors { // e:Colors
Red,
Green,
Blue
};
宏定义标记 (d)
宏定义是预处理器的一部分，它是源代码中用#define指令定义的符号或字符串。在Source Insight中，使用d标记表示宏定义。
#define PI 3.14 // d:PI
Typedef标记 (t)
Typedef是一个关键字，它允许程序员为现有的数据类型创建一个新的名称。在Source Insight中，使用t标记表示typedef。
typedef int integer; // t:integer
命名空间标记 (n)
命名空间是C++中的一个特性，它用于避免名称冲突。在Source Insight中，使用n标记表示命名空间。
namespace MyNamespace { // n:MyNamespace
// namespace definition
};
以上就是Source Insight中C/C++的主要符号标记。理解这些标记对于阅读和理解源代码非常重要。
参考资料:
- “Source Insight User Guide”, Source Dynamics.
- “The C++ Programming Language”, Bjarne Stroustrup.
